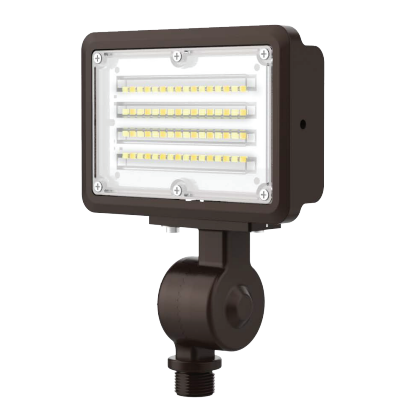

TitanBeam Series LED Flood Light Fixture
TitanBeam Series LED Flood Light Fixture
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Instructions
Installation Instructions
Warranty
Warranty

Product Overview
The TitanBeam Series LED Flood Light Fixture delivers powerful, efficient illumination in a compact, durable design for outdoor environments. Built with a robust bronze housing, this fixture offers selectable wattage and color temperature options to adapt output to varying project needs. Broad voltage compatibility and 0–10V dimming provide flexibility and reliable performance for both new installations and retrofit applications.
Application
The TitanBeam Series LED Flood Light Fixture is commonly used for outdoor and large-area lighting applications requiring wide, uniform light distribution. Typical uses include lawns, alleys, loading and docking areas, building entrances, doorways, pathways, and stadium environments where consistent illumination supports visibility and safety.
Product Details & Ordering Information
TitanBeam Series LED Flood Light Fixture — Selectable 100W–150W, 17000–25500 Lumens, 3000K–5000K CCT, 120–277V
| Order Code: | 311100 |
| DLC Product ID: | S-WVVT3Q |
| Model Number: | NC-AL150W-3CCT-T3 |
| Wattage: | 100W, 120W, 150W |
| Voltage: | 120-277V |
| Lumens: | 17000, 20400, 25500 |
| Efficacy: | 170 lm/W |
| CCT: | 3000K, 4000K, 5000K |
| Dimming: | 0-10V |
| Dimensions: | 16.63"L x 8.66"W x 2.07"H |
Titan Beam Series LED Flood Light Fixture FAQs
What Are Titan Beam Series LED Flood Light Fixture?
Titan Beam Series LED Flood Light Fixture are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.
Where Can Titan Beam Series LED Flood Light Fixture Be Used?
Titan Beam Series LED Flood Light Fixture are suitable for a wide range of outdoor environments, including:
- Parking lots
- Building exteriors
- Walkways and pathways
- Commercial and industrial properties
- Residential homes and gardens
How Do I Choose the Right Wattage and Color Temperature for Titan Beam Series LED Flood Light Fixture?
Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.
Are Titan Beam Series LED Flood Light Fixture Dimmable?
Yes, Titan Beam Series LED Flood Light Fixture are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.
What Certifications Do Titan Beam Series LED Flood Light Fixture Have?
Titan Beam Series LED Flood Light Fixture are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.
How Do I Install Titan Beam Series LED Flood Light Fixture?
Titan Beam Series LED Flood Light Fixture include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
