NCLTG
XSlim Series LED Round Panel Light
XSlim Series LED Round Panel Light
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Instructions
Installation Instructions
Share

About XSlim Series LED Round Panel Light

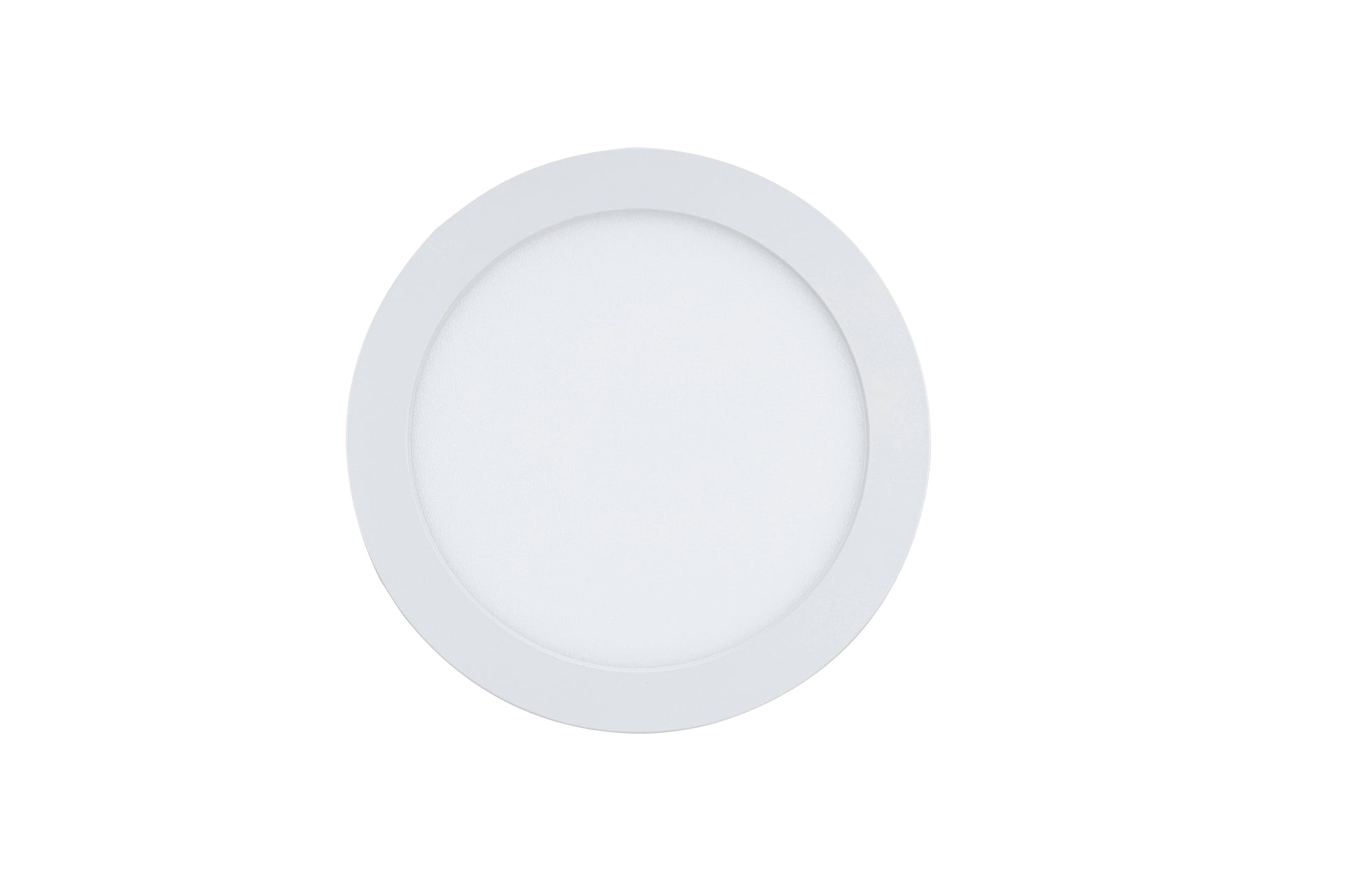

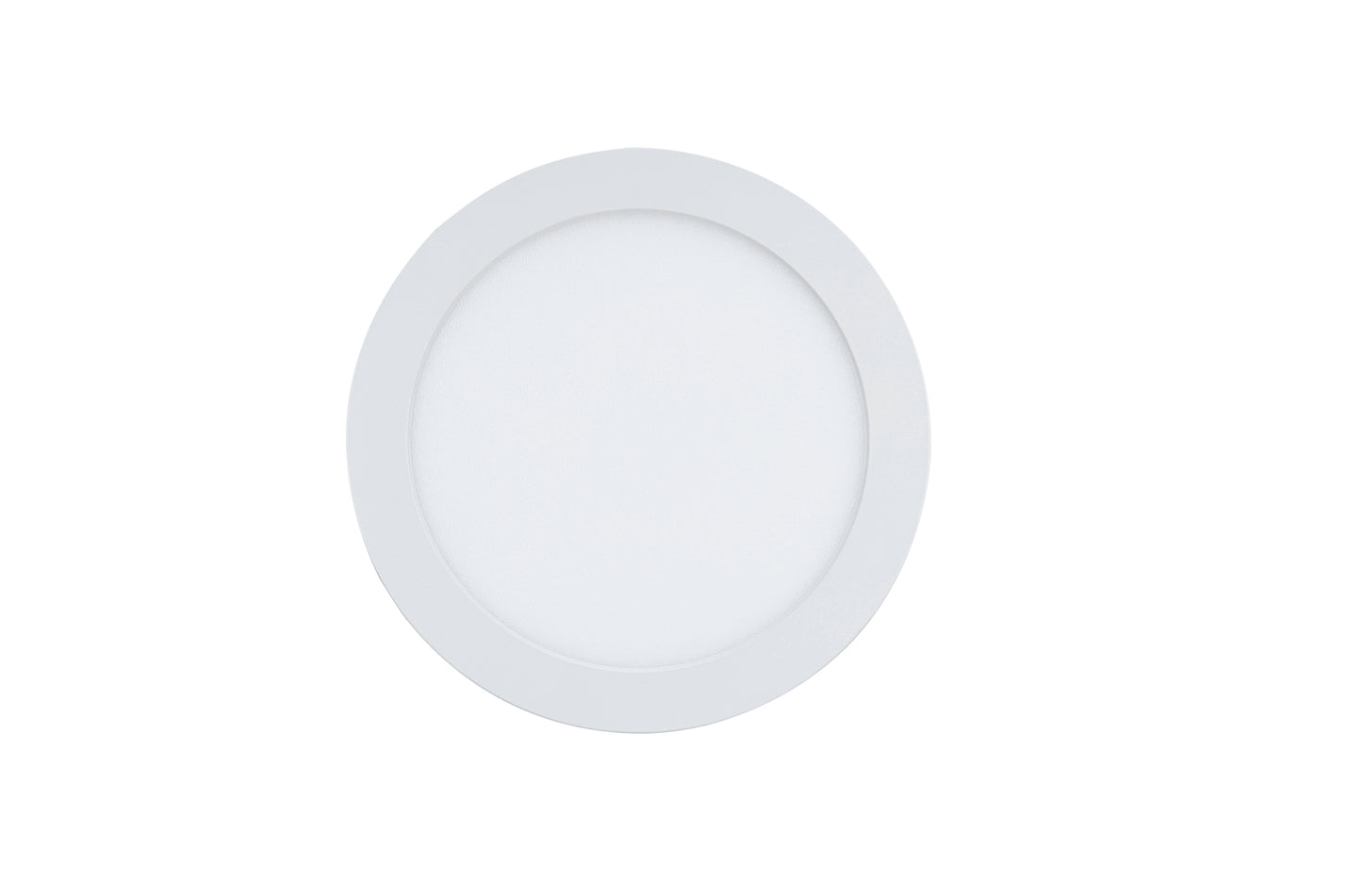

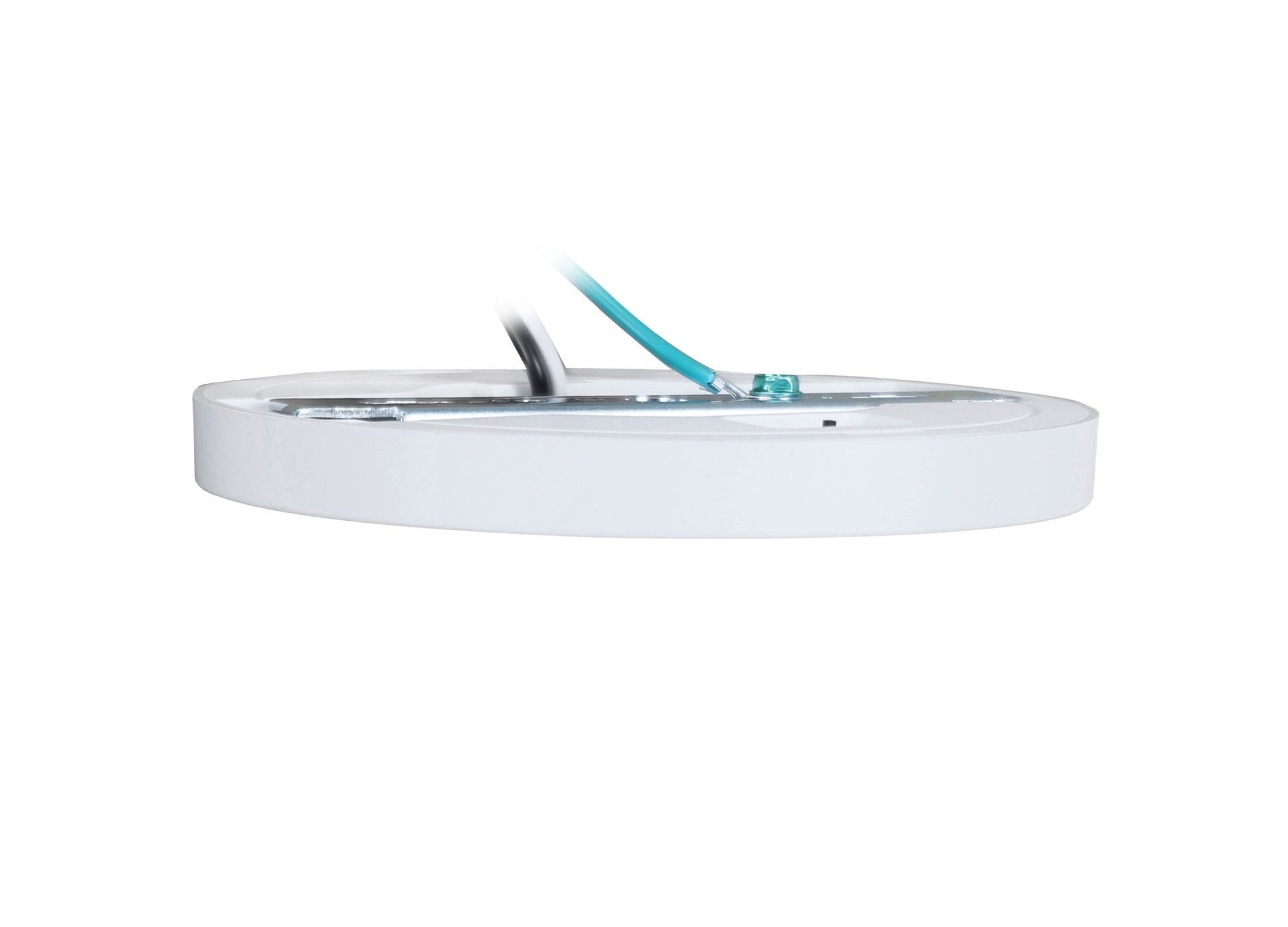

The XSlim Series LED Round Panel Light is an ultra-slim, edge-lit ceiling fixture engineered for modern homes and commercial spaces. Its low-profile design delivers uniform, flicker-free illumination while maintaining a sleek aesthetic that complements any interior. Featuring 5CCT field-selectable color temperature, you can customize the light output from warm to cool tones to match your space perfectly. Whether you're lighting hallways, kitchens, bedrooms, or offices, this versatile LED panel adapts to your needs. Installation is effortless with twist-and-lock mounting brackets compatible with standard J-box and recessed can housings. Choose from multiple decorative trim options to seamlessly integrate with your ceiling style and décor. Experience energy-efficient, long-lasting LED performance with the professional-grade quality and design flexibility the XSlim Series delivers.
Energy Chart

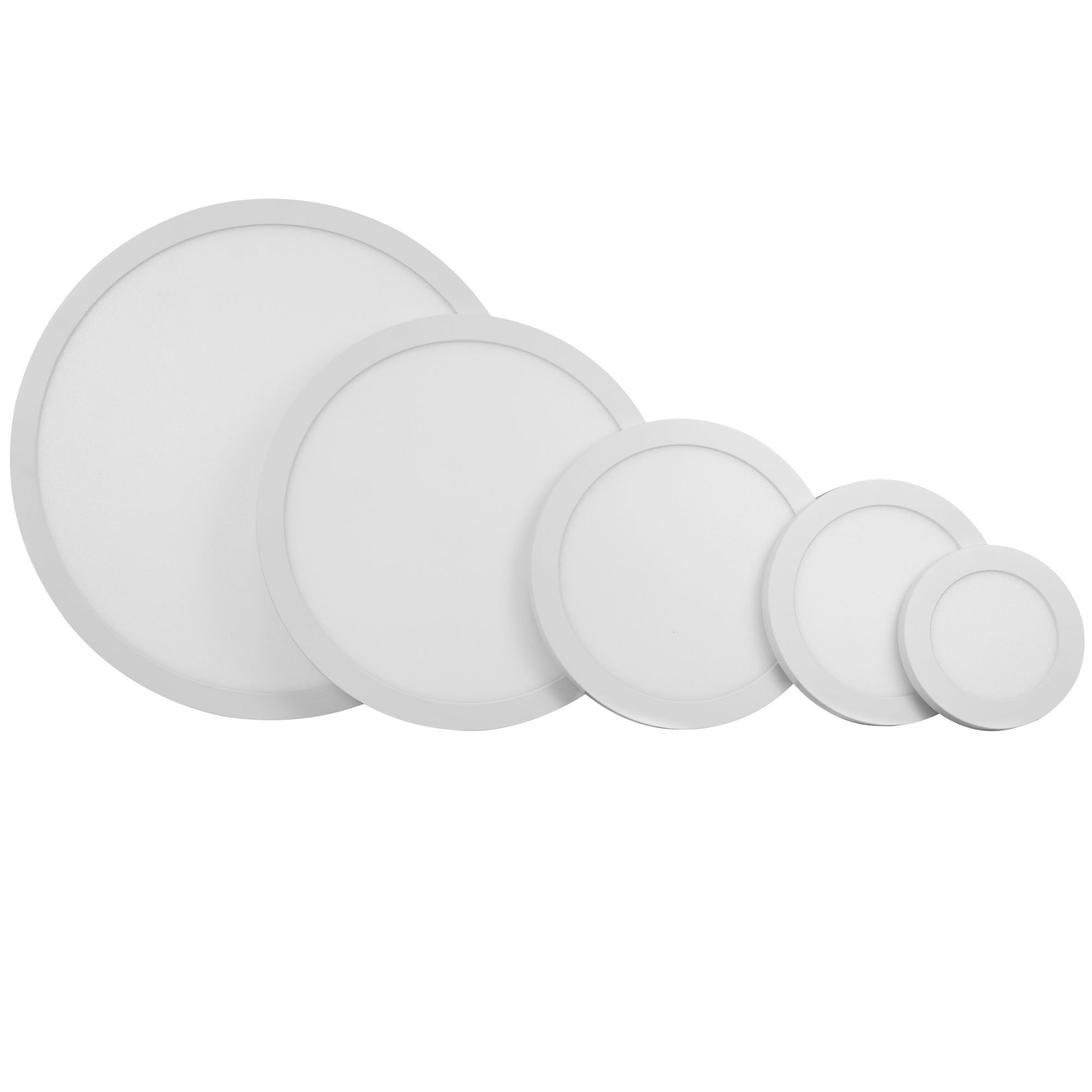

| Model No. | Size | Wattage | Efficacy |
Delivered Lumens |
CCT |
| NC-FM01-5-8W-CCT | 5” | 8W | 70 lm/W ±5% | 560 lm ±5% | 2700K / 3000K / 3500K / 4000K / 5000K |
| NC-FM01-7-12W-CCT | 7” | 12W | 80 lm/W ±5% | 960 lm ±5% | 2700K / 3000K / 3500K / 4000K / 5000K |
| NC-FM01-9-18W-CCT | 9” | 18W | 90 lm/W ±5% | 1620 lm ±5% | 2700K / 3000K / 3500K / 4000K / 5000K |
| NC-FM01-12-24W-CCT | 12” | 24W | 90 lm/W ±5% | 2160 lm ±5% | 2700K / 3000K / 3500K / 4000K / 5000K |
| NC-FM01-15-36W-CCT | 15” | 36W | 100 lm/W ±5% | 3600 lm ±5% | 2700K / 3000K / 3500K / 4000K / 5000K |
NC-FM01-5-8W-CCT, NC-FM01-7-12W-CCT, NC-FM01-9-18W-CCT, NC-FM01-12-24W-CCT, NC-FM01-15-36W-CCT,
XSlim Series LED Round Panel Light FAQs
What Are XSlim Series LED Round Panel Light?
XSlim Series LED Round Panel Light are energy-efficient recessed fixtures designed to provide uniform, bright illumination across a range of commercial environments. These downlights are ideal for offices, retail spaces, hospitality areas, and other professional settings.
Where CanXSlim Series LED Round Panel Light Be Used?
XSlim Series LED Round Panel Light are ideal for a wide range of commercial applications, including:
- Offices
- Retail environments
- Hospitals and hospitality areas
- Common areas such as lobbies and hallways
How Do I Choose the Right Wattage and Color Temperature for XSlim Series LED Round Panel Light?
Choosing the appropriate wattage and color temperature depends on your space’s size and function. Higher wattages, such as 30W, are suited for larger areas or spaces that need brighter illumination, while 12W or 16W models work well in smaller rooms. For color temperature, 4000K to 5000K is commonly selected for workspaces requiring bright, clear light, whereas 2700K and 3000K create a warm, inviting ambiance ideal for relaxation or hospitality settings.
Are XSlim Series LED Round Panel Light Dimmable?
Yes, XSlim Series LED Round Panel Light are compatible with 0–10V dimming systems, providing flexible lighting control and energy savings across a variety of commercial environments.
What Certifications Do XSlim Series LED Round Panel Light Have?
XSlim Series LED Round Panel Light are UL listed, DLC Premium certified, and IP54 rated for wet locations. These certifications ensure the fixtures meet stringent safety, energy efficiency, and durability standards required for commercial applications.
How Do I Install XSlim Series LED Round Panel Light?

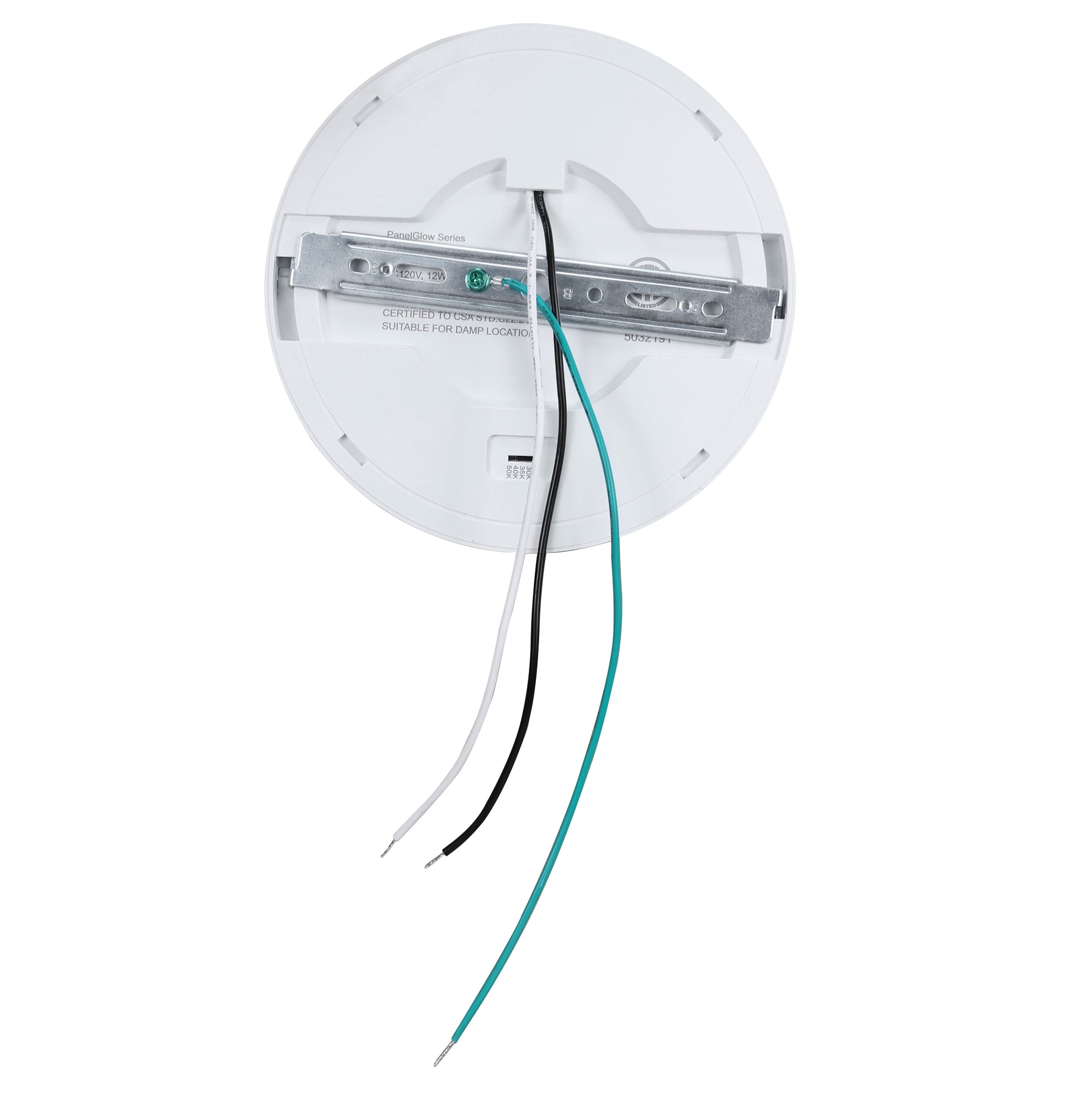

XSlim Series LED Round Panel Light include all necessary mounting hardware for straightforward installation. Fixtures secure into the ceiling using spring clips and connect via the attached MC whip/junction box for a quick, reliable setup.
