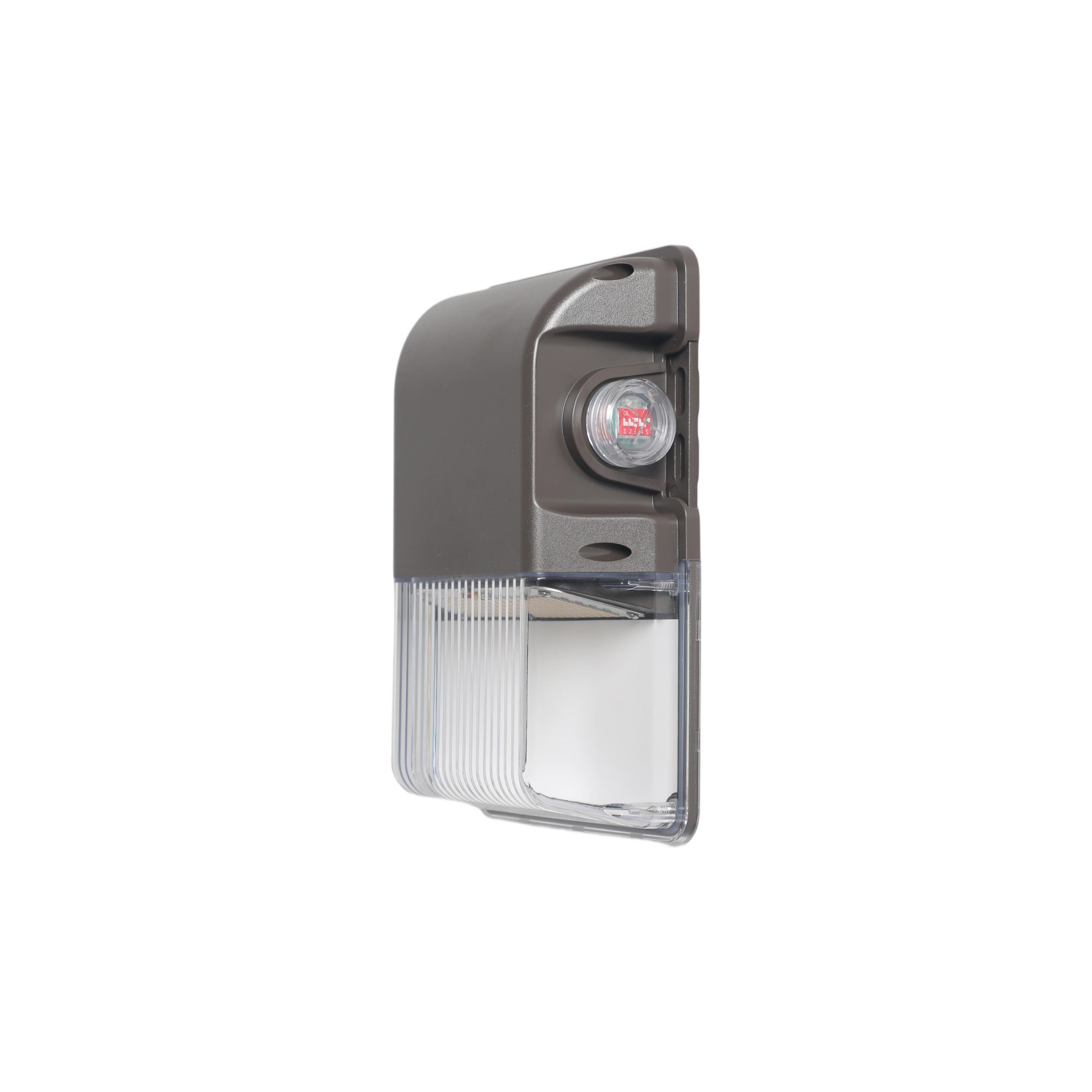

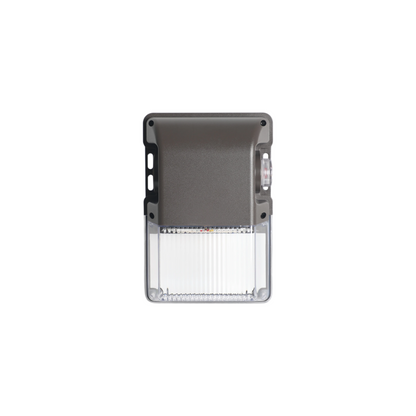

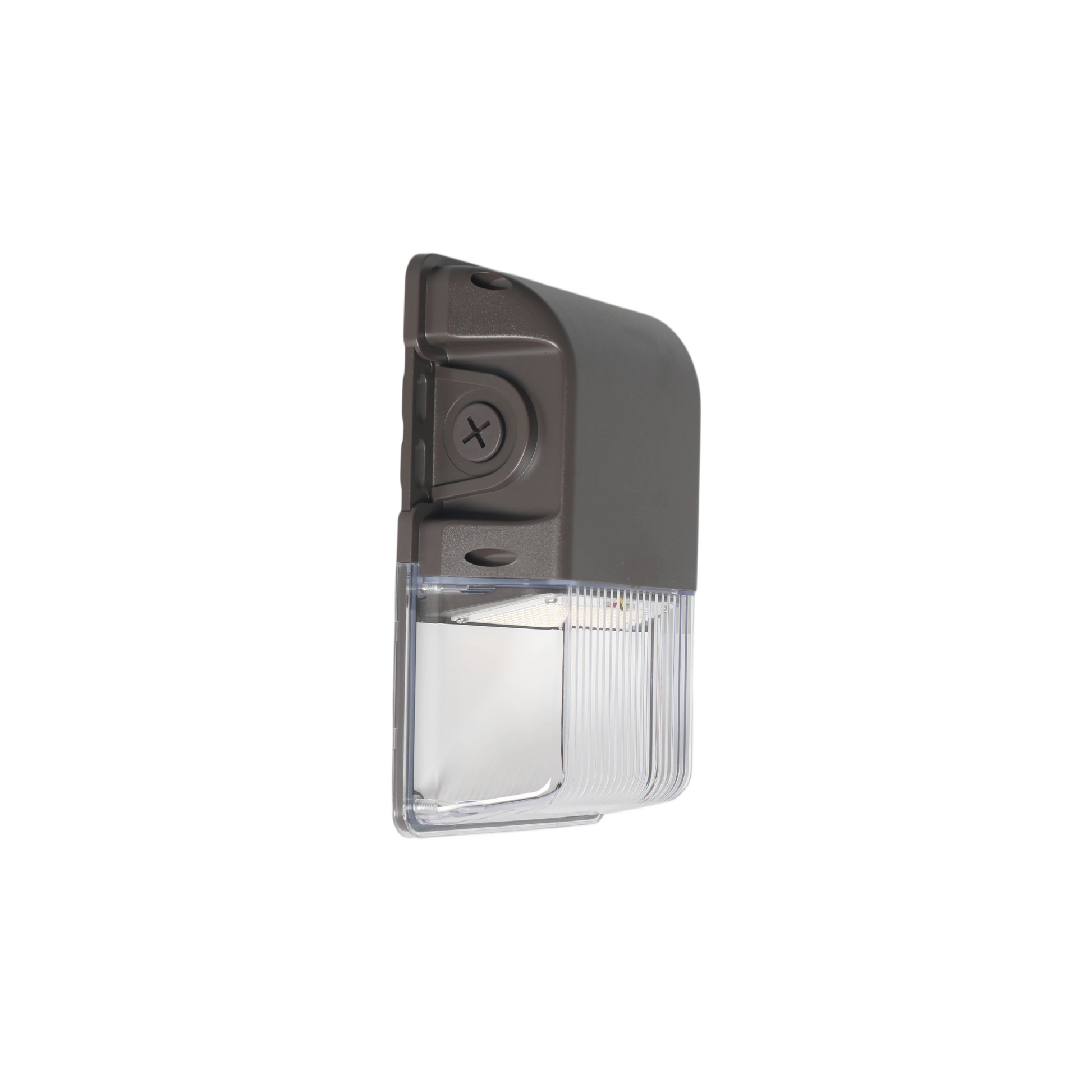

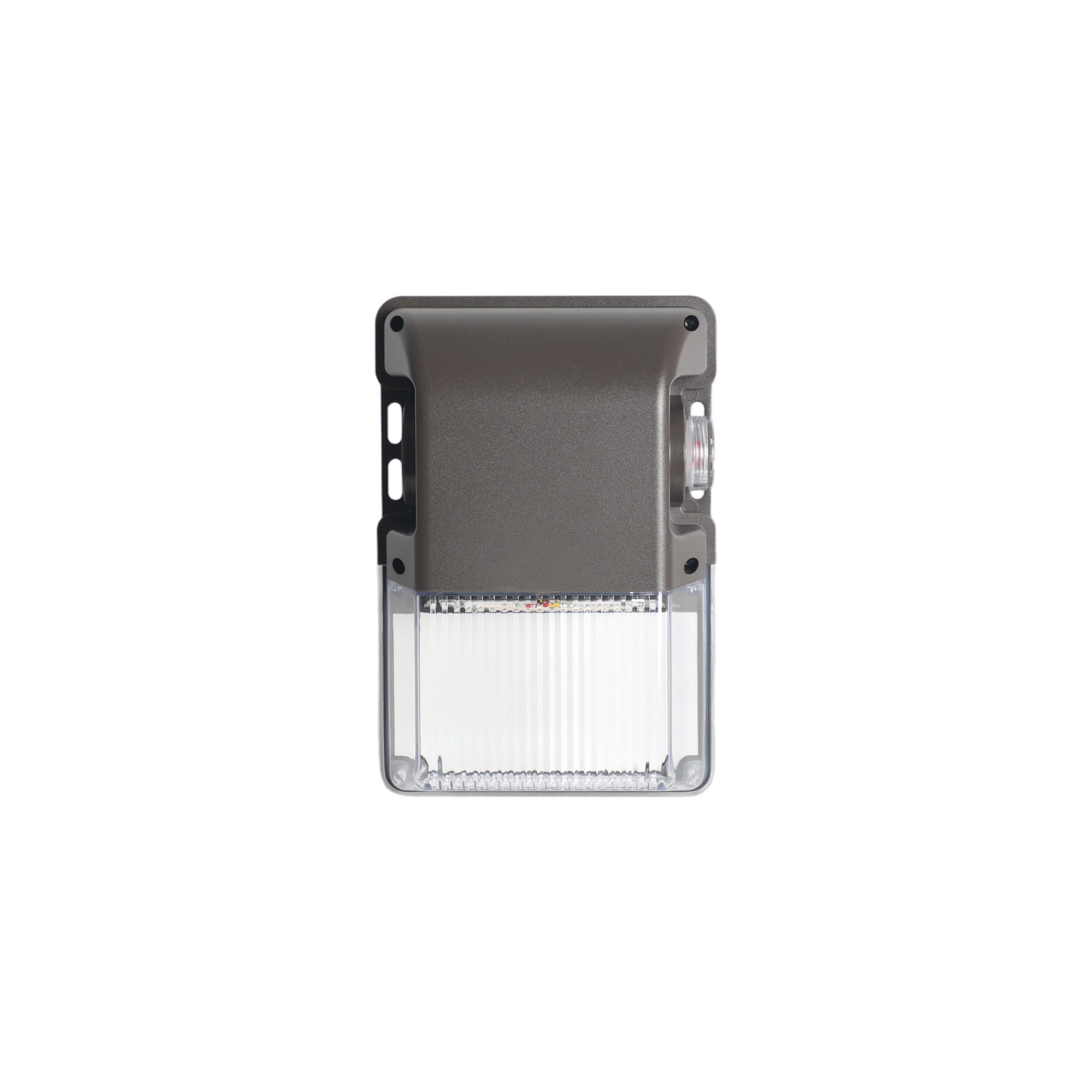

MiniGuard Series LED Mini Wall Pack Light Fixture

MiniGuard Series LED Mini Wall Pack Light Fixture

NCLTG WallGuard Series LED Wall Pack Light feature badges – 3-CCT selectable, 4-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specification Sheet

NC-WPM01G-25W-3CCT LED Mini Wall Pack Light Fixture

Photometrics (IES Files)

DD09053 GD09067 25W Mini WP BSW00111-20260131T051947Z-3-001

Installation Instructions

Mini WP Installation Instructions-Bestwon

Warranty

Request Price View full details

Product Overview

The MiniGuard Series LED Mini Wall Pack Light Fixture provides compact, efficient exterior illumination for general-purpose wall-mounted applications. Designed with a durable bronze housing, this fixture offers selectable wattage and color temperature options to accommodate varying lighting requirements. Wide voltage compatibility supports straightforward installation in both new and retrofit projects where space efficiency and consistent performance are priorities

Application

The MiniGuard Series LED Mini Wall Pack Light Fixture is suited for wall-mounted outdoor lighting needs across commercial and light industrial settings. Common applications include factories, warehouses, commercial buildings, self-storage facilities, building entrances, exit pathways, and walkways, delivering reliable illumination in areas where a smaller footprint is required.

Technical Summary

 Ambient Operating Temperature −40°C to 45°C (−40°F to 113°F)
Power Factor ≥0.9
Total Harmonic Distortion (THD) <20%
L70 Lifetime >50,000 hours at 25°C (77°F) ambient temperature
Ingress Protection IP65
Certifications UL Listed for wet locations



Performance Specifications

 SKU 33-1801
Catalog Number NC-WPF01G-80W-3CCT
Selectable Wattage (80W, 60W, 50W)
Selectable CCT (3000K, 4000K, 5000K)
Lumens 11440LM, 8580LM, 7150LM
Efficacy 143lm/W
Current 0.67A
Input Voltage 120-277V
Dimming 0-10V
CRI >80
Distribution Pattern 120°



MiniGuard Series LED Mini Wall Pack Light Fixture FAQs

What Are MiniGuard Series LED Mini Wall Pack Light Fixture?

MiniGuard Series LED Mini Wall Pack Light Fixture are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.

Where Can MiniGuard Series LED Mini Wall Pack Light Fixture Be Used?

MiniGuard Series LED Mini Wall Pack Light Fixture are suitable for a wide range of outdoor environments, including:

  • Parking lots
  • Building exteriors
  • Walkways and pathways
  • Commercial and industrial properties
  • Residential homes and gardens

How Do I Choose the Right Wattage and Color Temperature for MiniGuard Series LED Mini Wall Pack Light Fixture?

Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.

Are MiniGuard Series LED Mini Wall Pack Light Fixture Dimmable?

Yes, MiniGuard Series LED Mini Wall Pack Light Fixture are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.

What Certifications Do MiniGuard Series LED Mini Wall Pack Light Fixture Have?

MiniGuard Series LED Mini Wall Pack Light Fixture are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.

How Do I Install MiniGuard Series LED Mini Wall Pack Light Fixture?

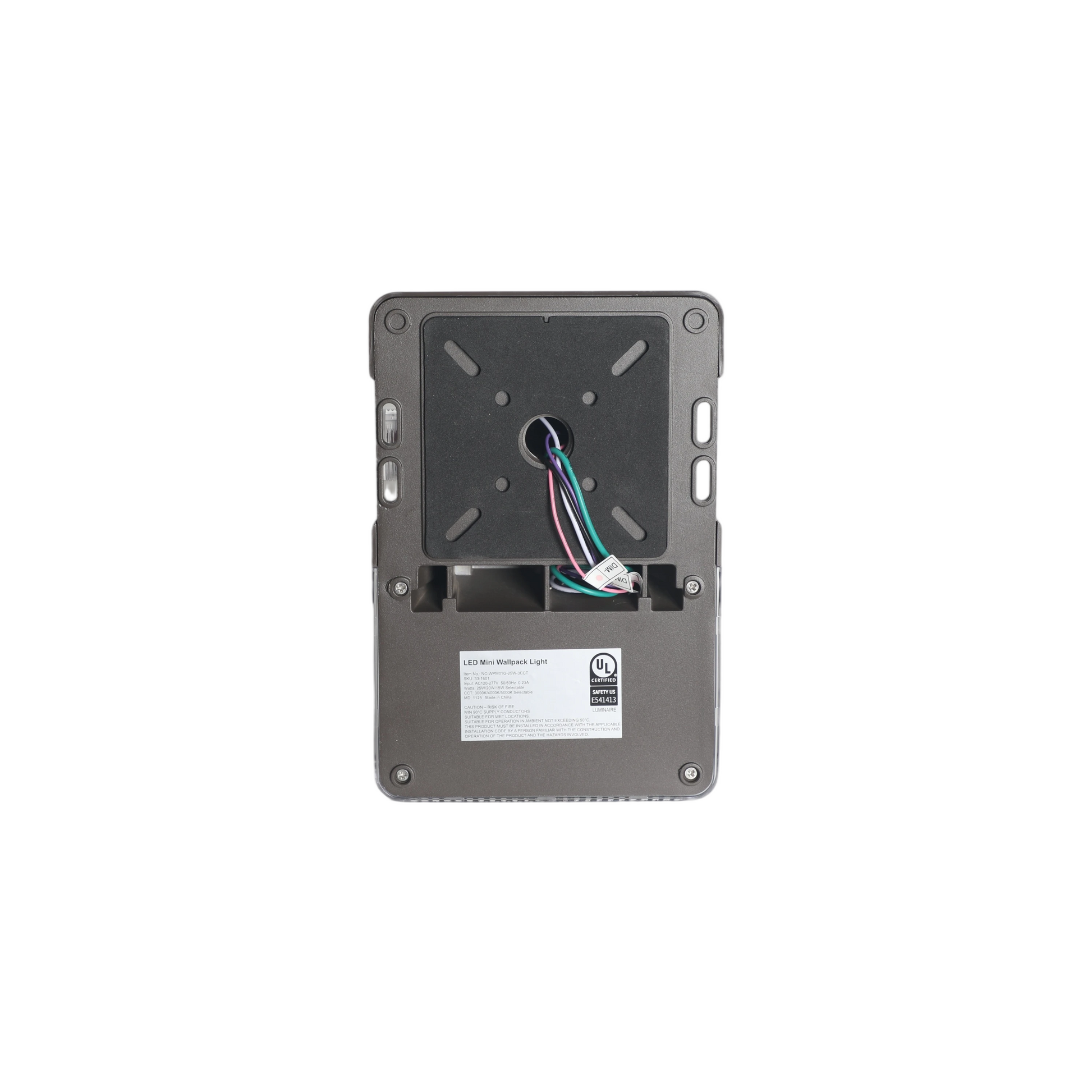

MiniGuard Series LED Mini Wall Pack Light Fixture include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
