Product Overview

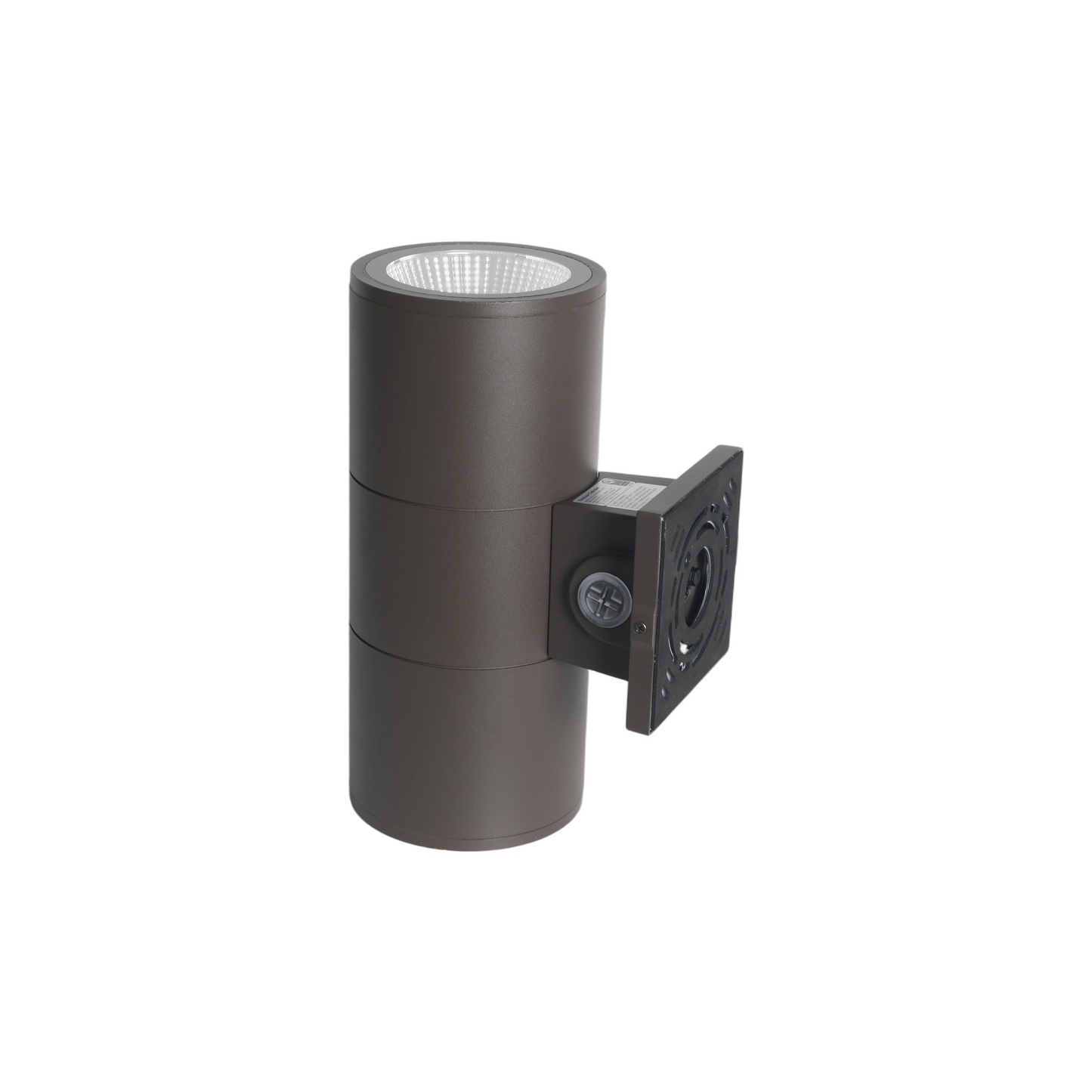

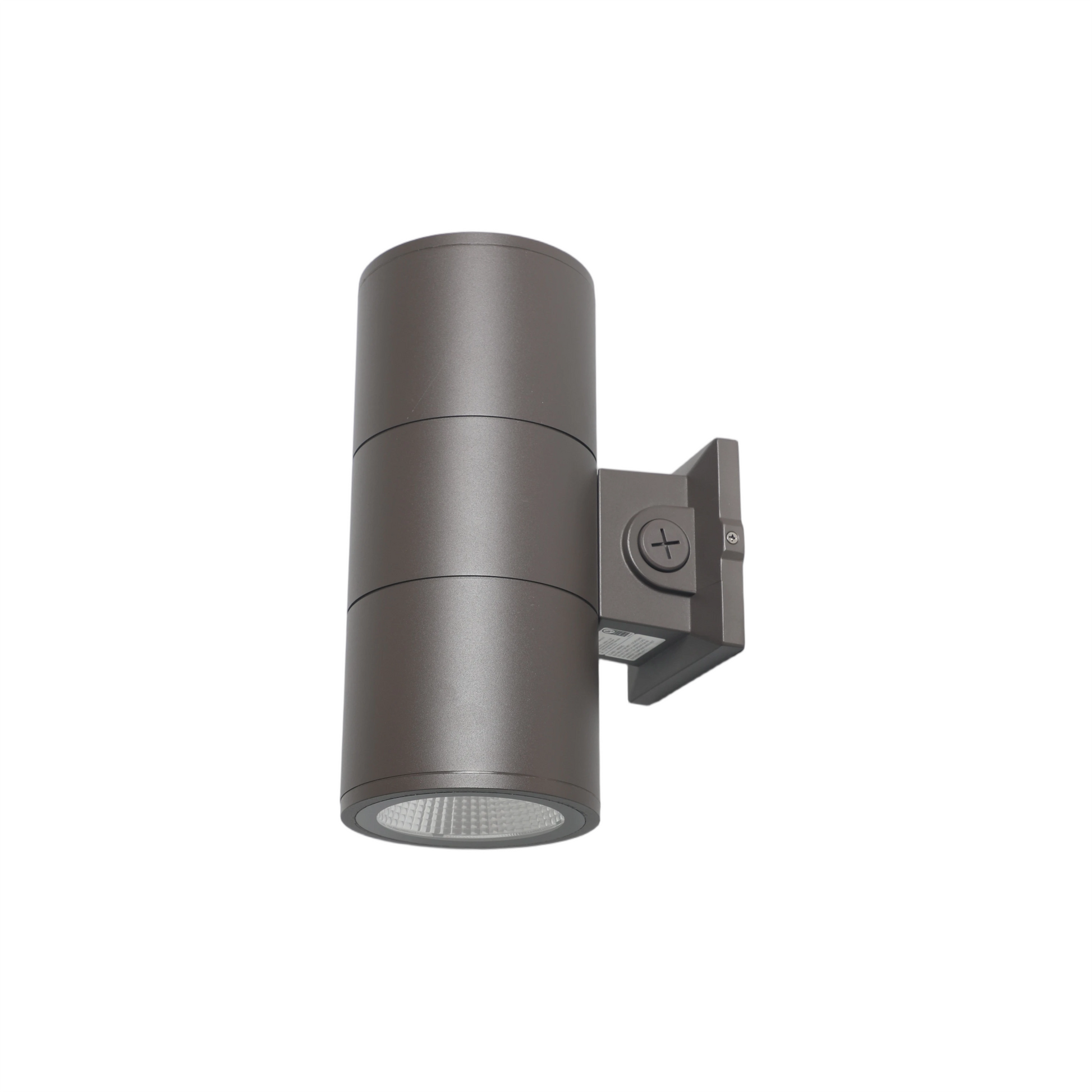

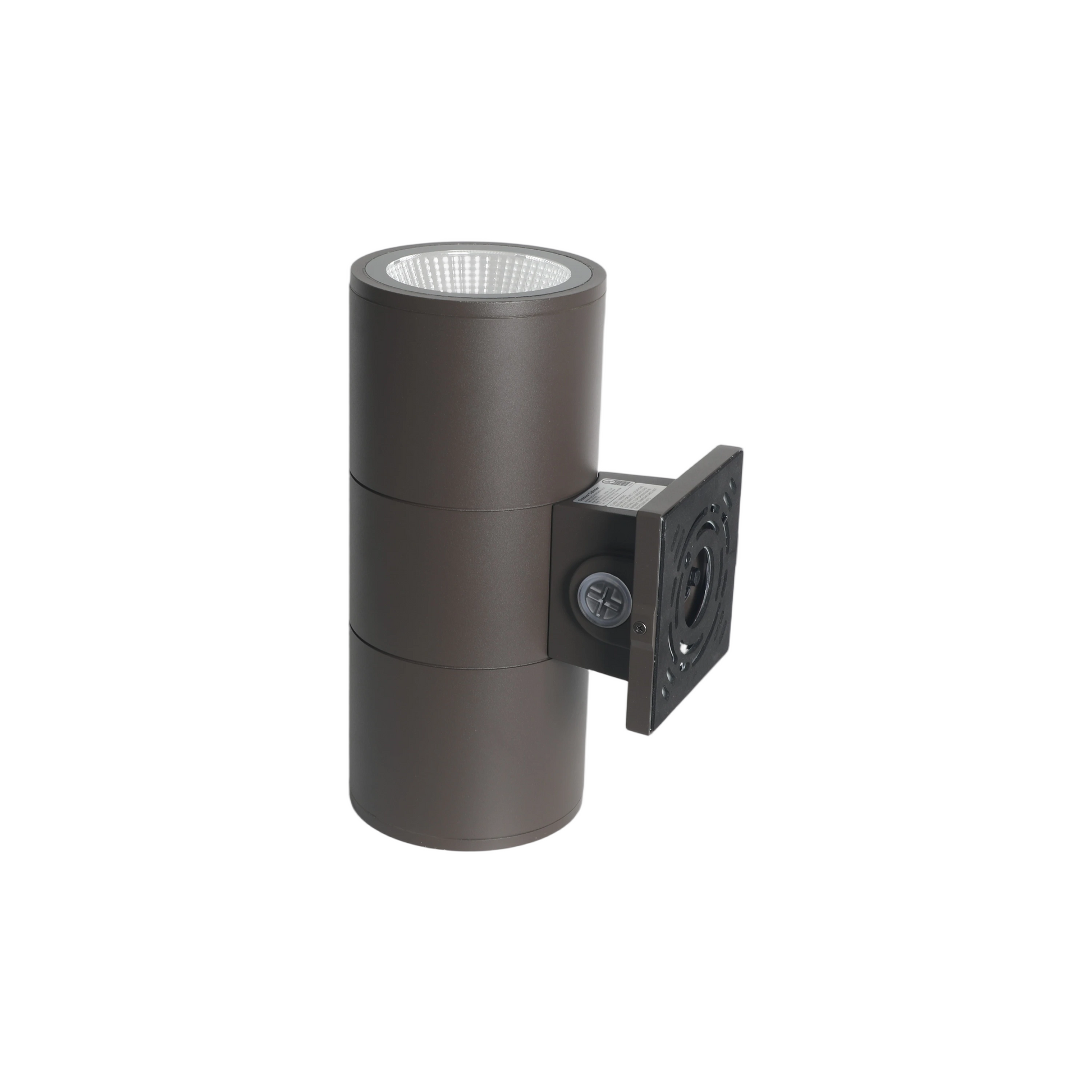

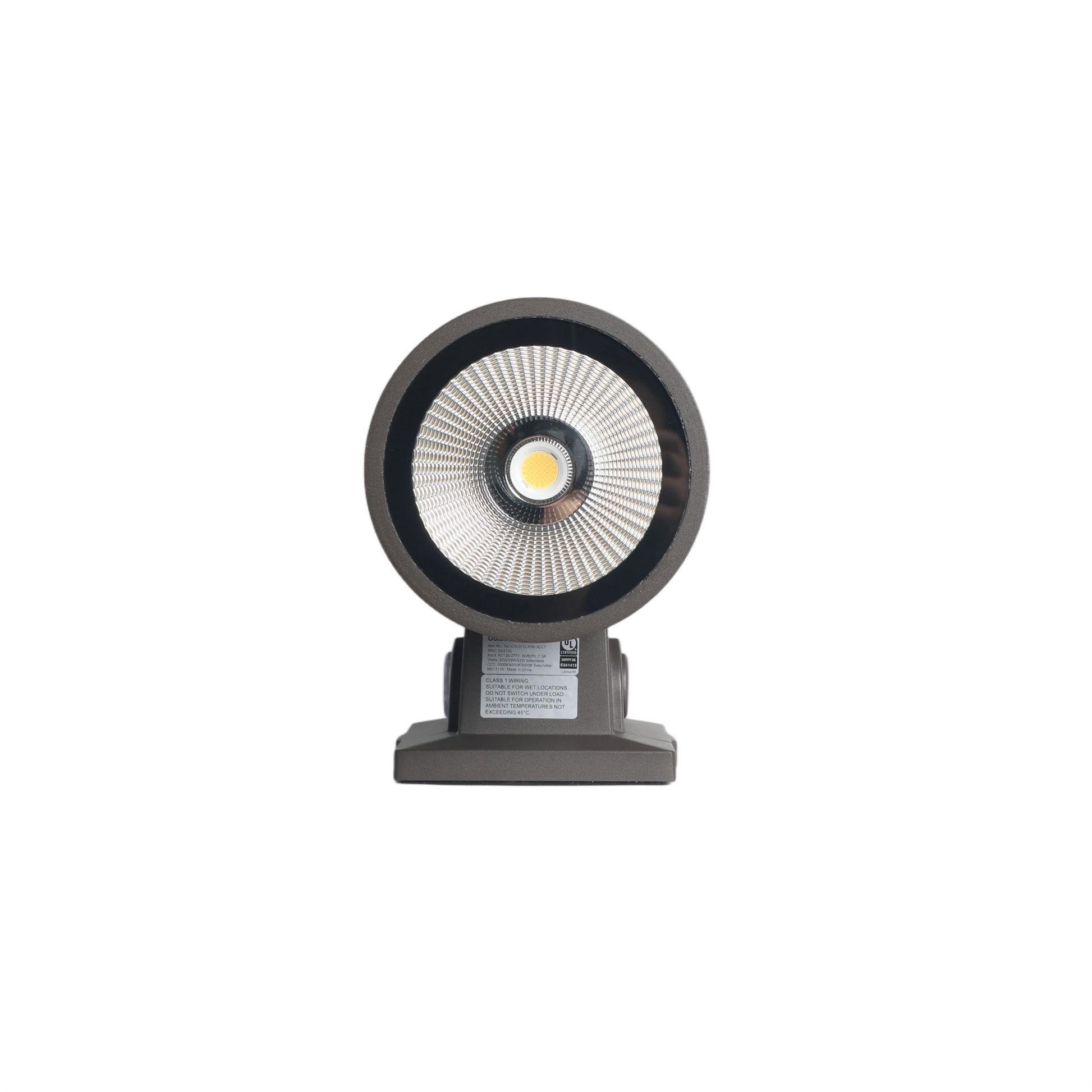

The CylinLux Series LED Outdoor Cylinder Light Fixture offers a sleek, modern form factor designed for both architectural and functional exterior lighting applications. Featuring a durable bronze housing, this fixture provides selectable wattage and color temperature options to accommodate varied lighting needs. Wide voltage compatibility supports straightforward installation across new construction and retrofit projects while maintaining a refined, consistent appearance.
Application
The CylinLux Series LED Outdoor Cylinder Light Fixture is well suited for architectural and perimeter lighting applications where focused illumination and clean aesthetics are desired. Common uses include building facades, entryways, hallways and stairways, offices, outdoor patios and decks, perimeter lighting, residential settings, and storefront lighting.
Product Details & Ordering Information
CylinLux Series LED Outdoor Cylinder Light Fixture — Selectable 100W–150W, 17000–25500 Lumens, 3000K–5000K CCT, 120–277V
| Order Code: | 311100 |
| DLC Product ID: | S-WVVT3Q |
| Model Number: | NC-AL150W-3CCT-T3 |
| Wattage: | 100W, 120W, 150W |
| Voltage: | 120-277V |
| Lumens: | 17000, 20400, 25500 |
| Efficacy: | 170 lm/W |
| CCT: | 3000K, 4000K, 5000K |
| Dimming: | 0-10V |
| Dimensions: | 16.63"L x 8.66"W x 2.07"H |
CylinLux Series LED Outdoor Cylinder Light Fixture FAQs
What Are CylinLux Series LED Outdoor Cylinder Light Fixture?
CylinLux Series LED Outdoor Cylinder Light Fixture are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.
Where Can CylinLux Series LED Outdoor Cylinder Light Fixture Be Used?
CylinLux Series LED Outdoor Cylinder Light Fixture are suitable for a wide range of outdoor environments, including:
- Parking lots
- Building exteriors
- Walkways and pathways
- Commercial and industrial properties
- Residential homes and gardens
How Do I Choose the Right Wattage and Color Temperature for CylinLux Series LED Outdoor Cylinder Light Fixture?
Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.
Are CylinLux Series LED Outdoor Cylinder Light Fixture Dimmable?
Yes, CylinLux Series LED Outdoor Cylinder Light Fixture are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.
What Certifications Do CylinLux Series LED Outdoor Cylinder Light Fixture Have?
CylinLux Series LED Outdoor Cylinder Light Fixture are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.
How Do I Install CylinLux Series LED Outdoor Cylinder Light Fixture?
CylinLux Series LED Outdoor Cylinder Light Fixture include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
