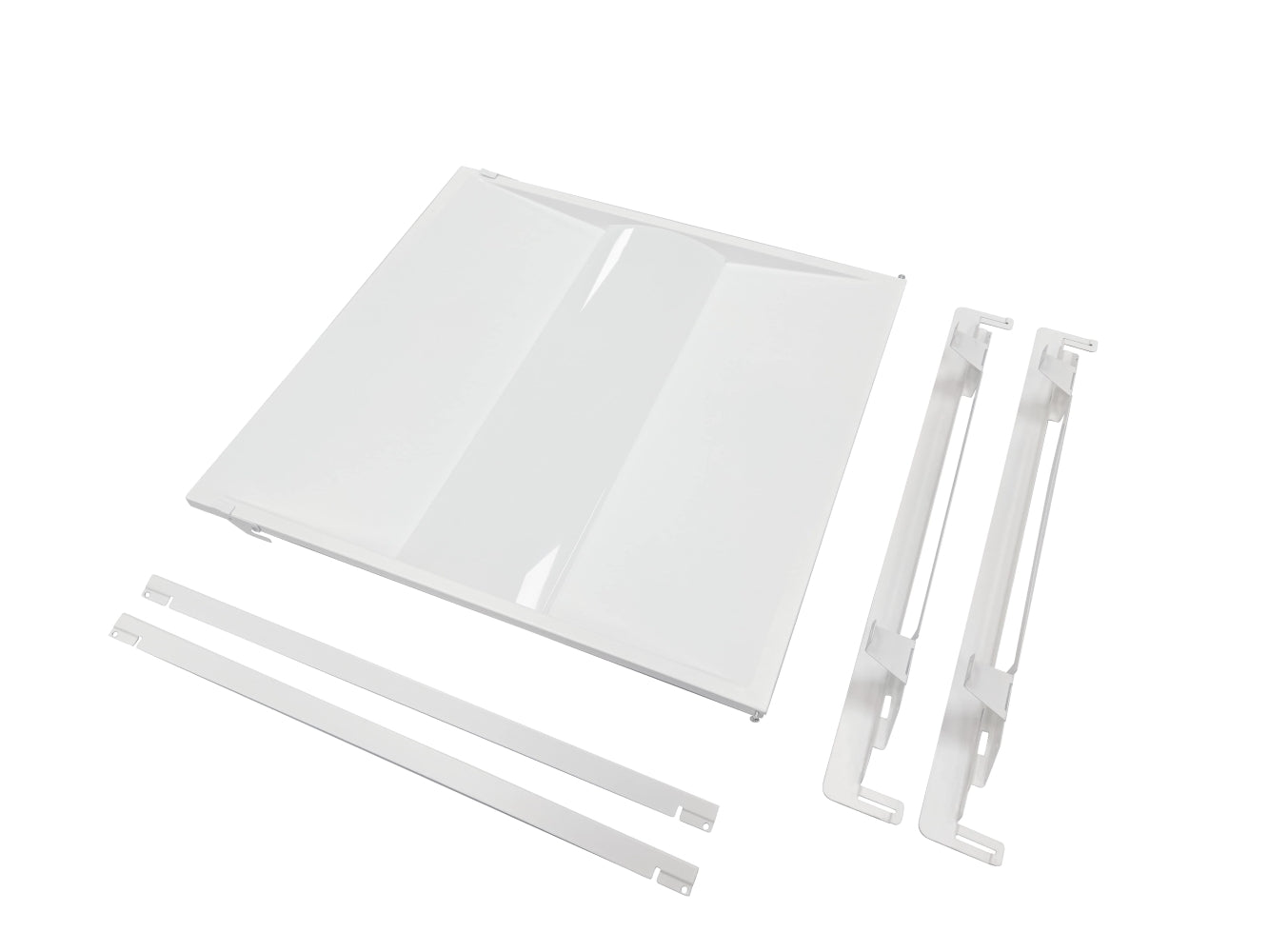

• NCLTG SnapFit Series 2x2 LED Troffer Light Retrofit Kit laid out with all installation components included

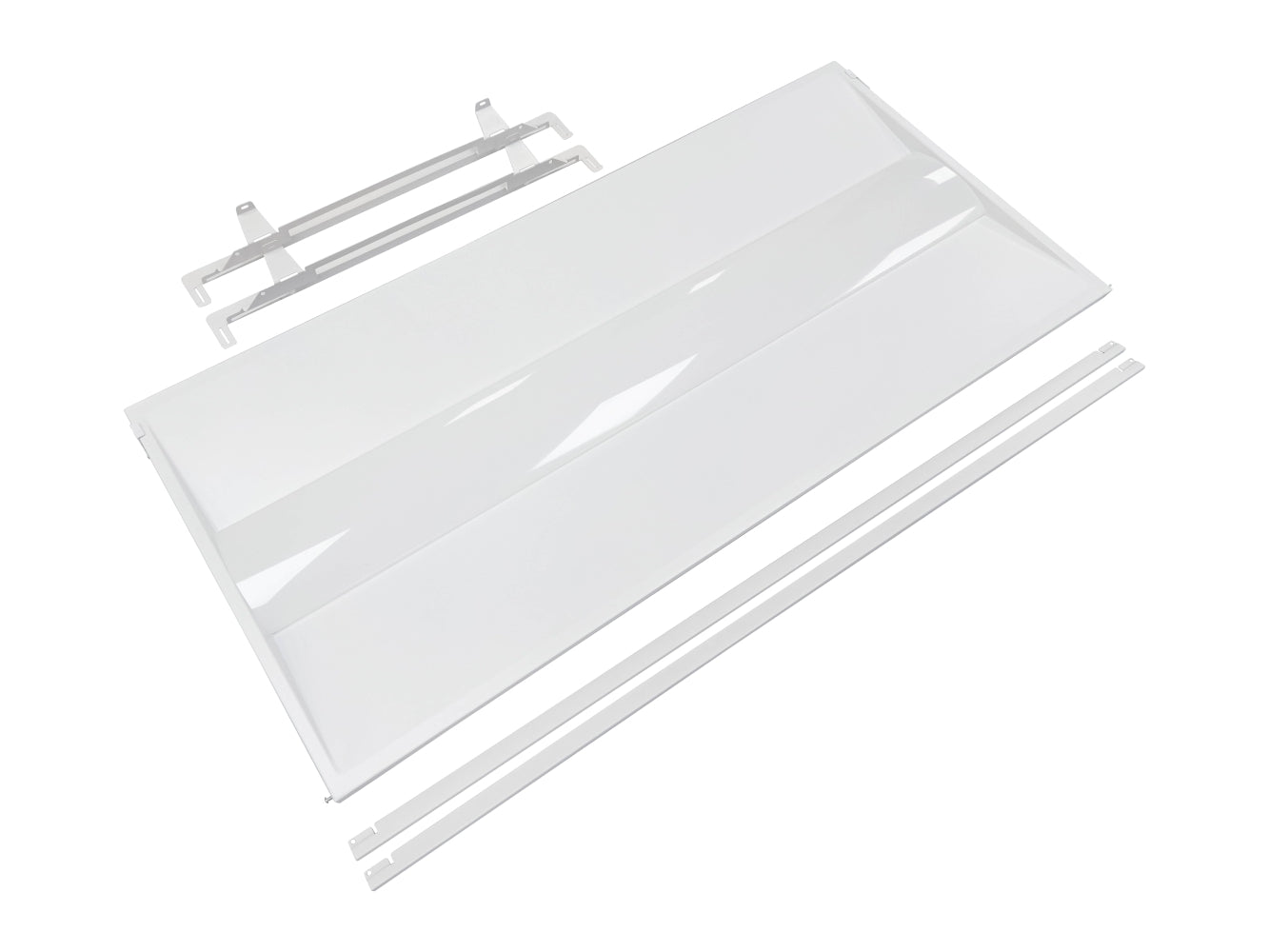

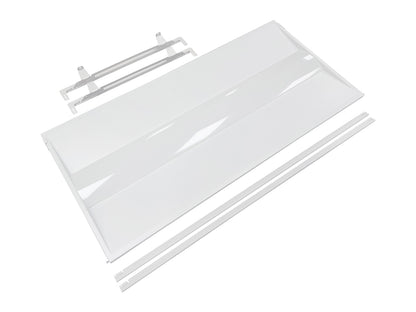

  • NCLTG SnapFit Series 2x4 LED Troffer Light Retrofit Kit displayed with all included components for installation

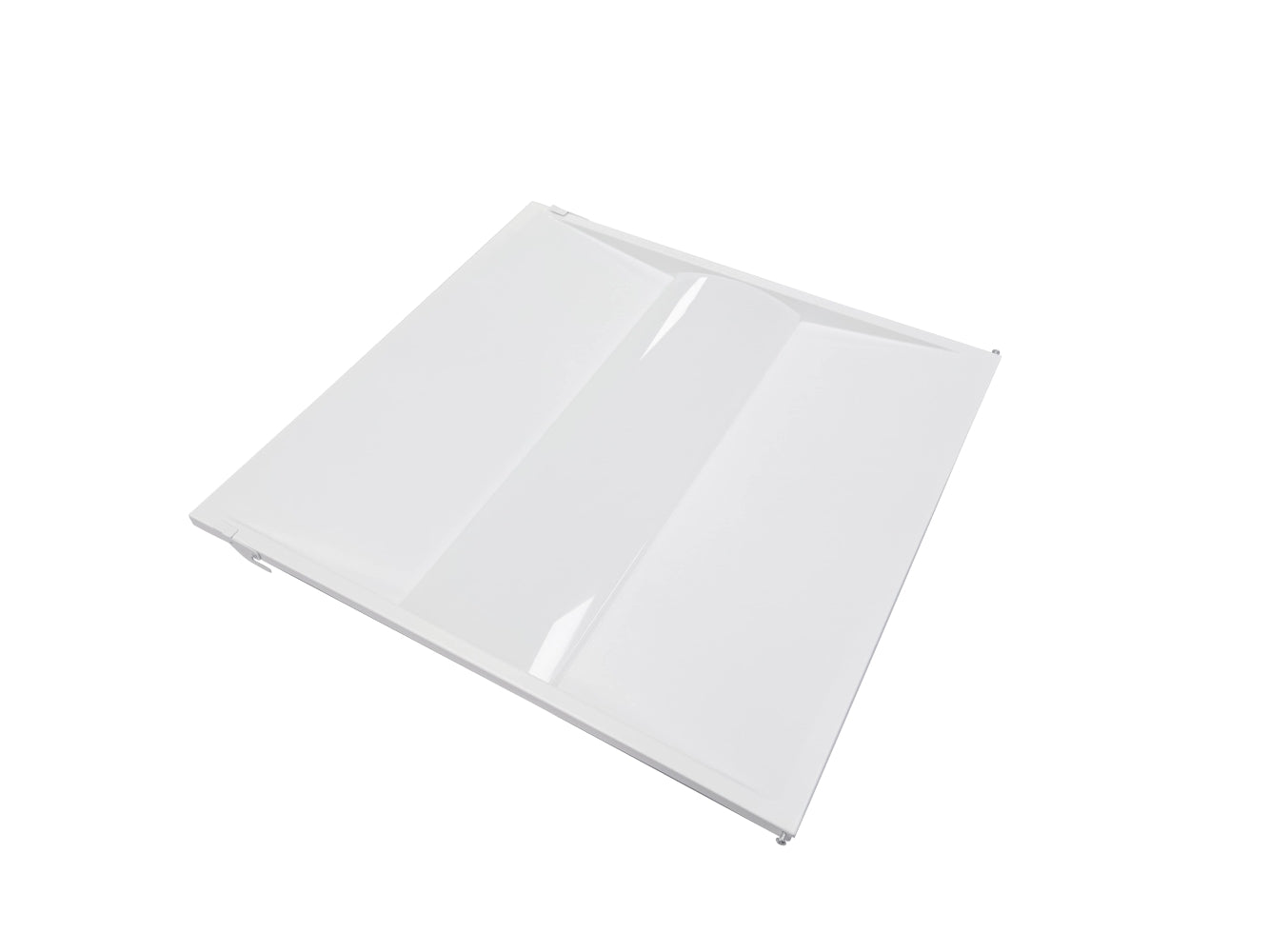

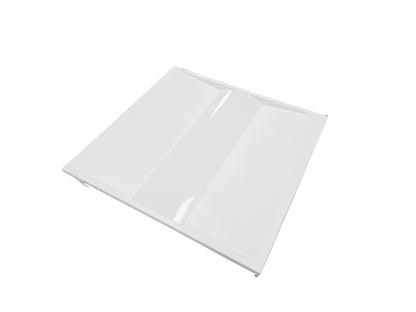

  • NCLTG SnapFit Series 2x2 LED Troffer Light Retrofit Kit designed for easy upgrade of existing fixtures

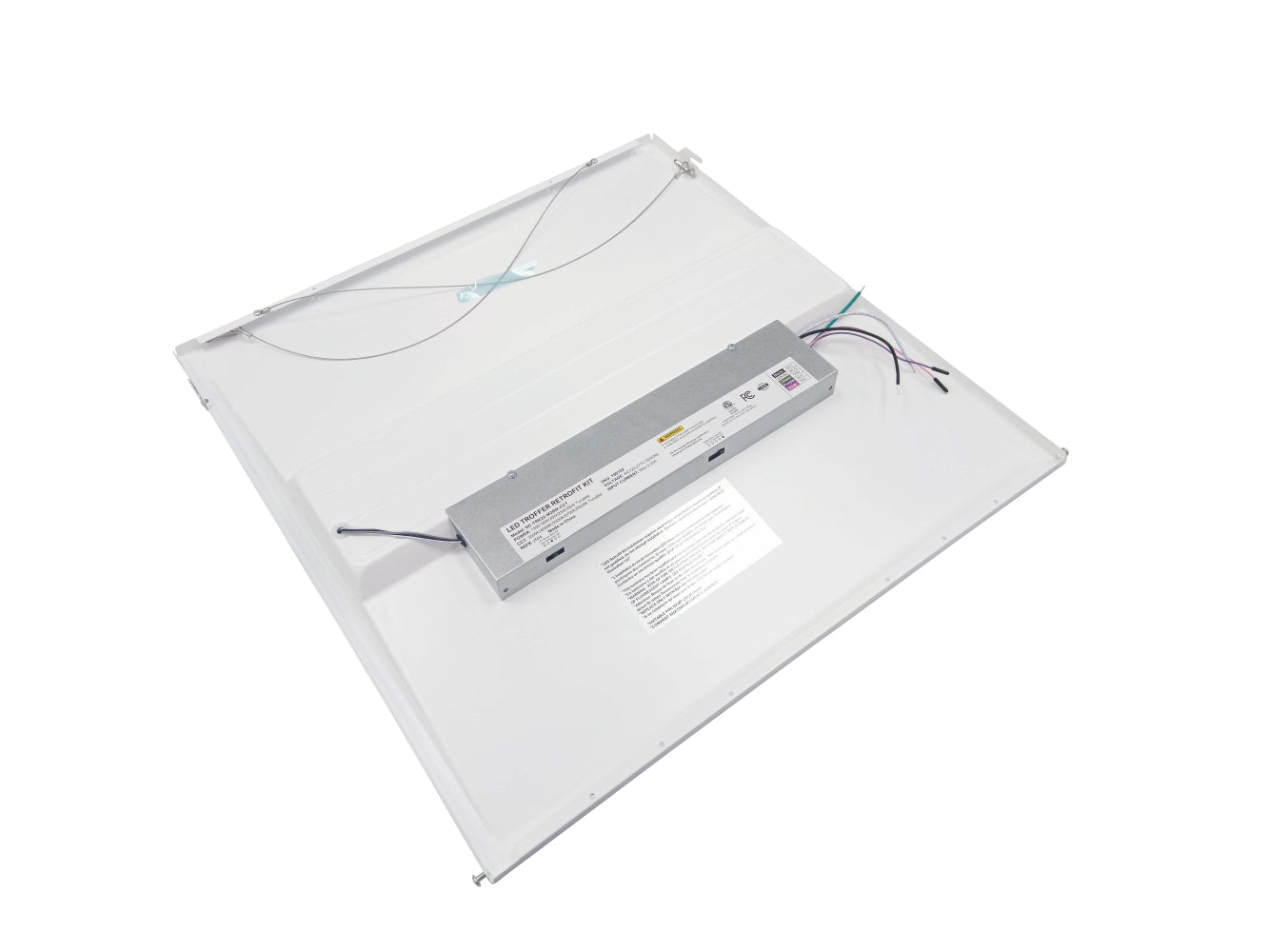

  • Back view of the NCLTG SnapFit Series 2x2 LED Troffer Light Retrofit Kit showing mounting frame and wiring

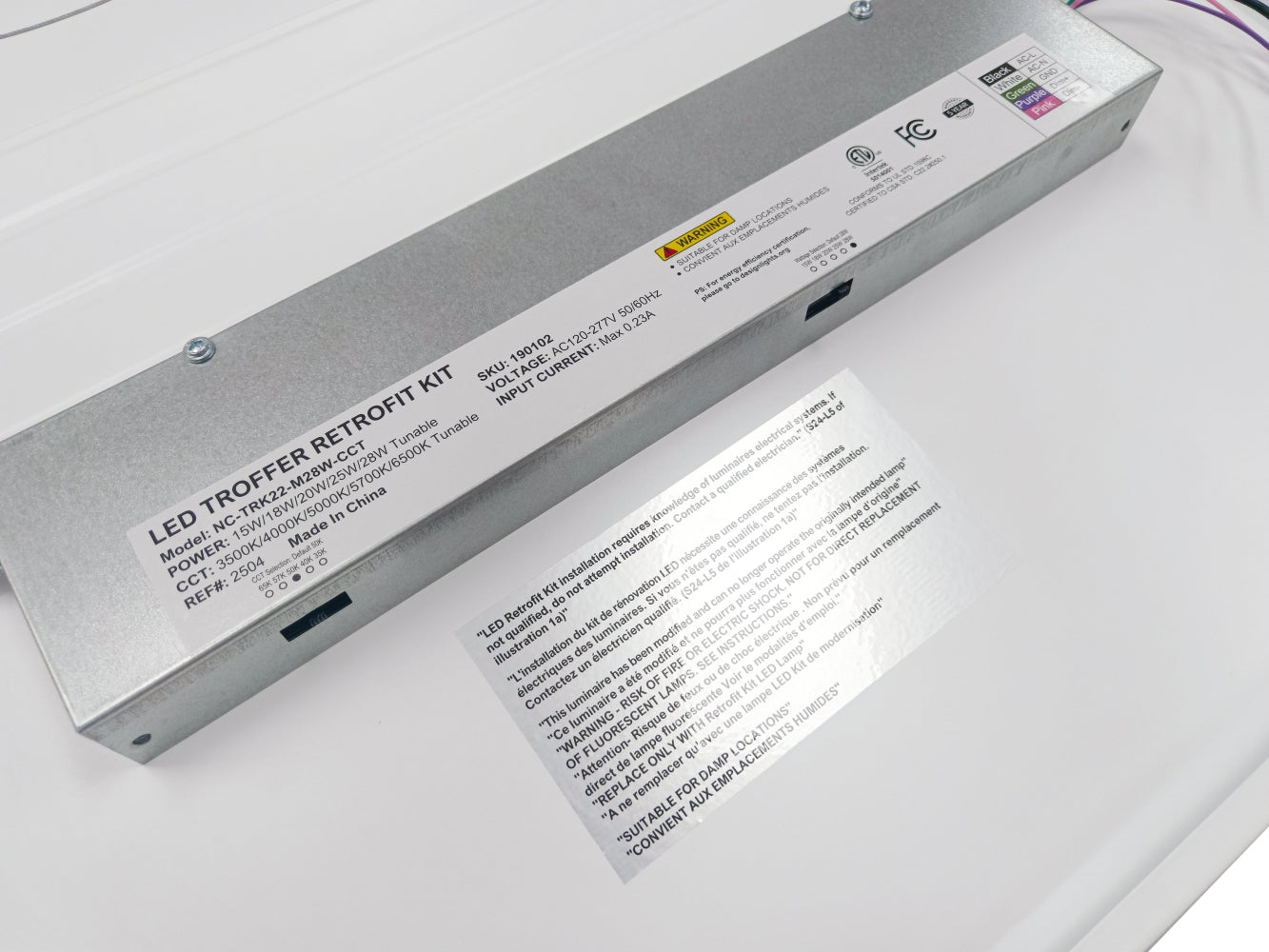

  • Close-up of the driver in the NCLTG SnapFit Series LED Troffer Light Retrofit Kit showing certification labels

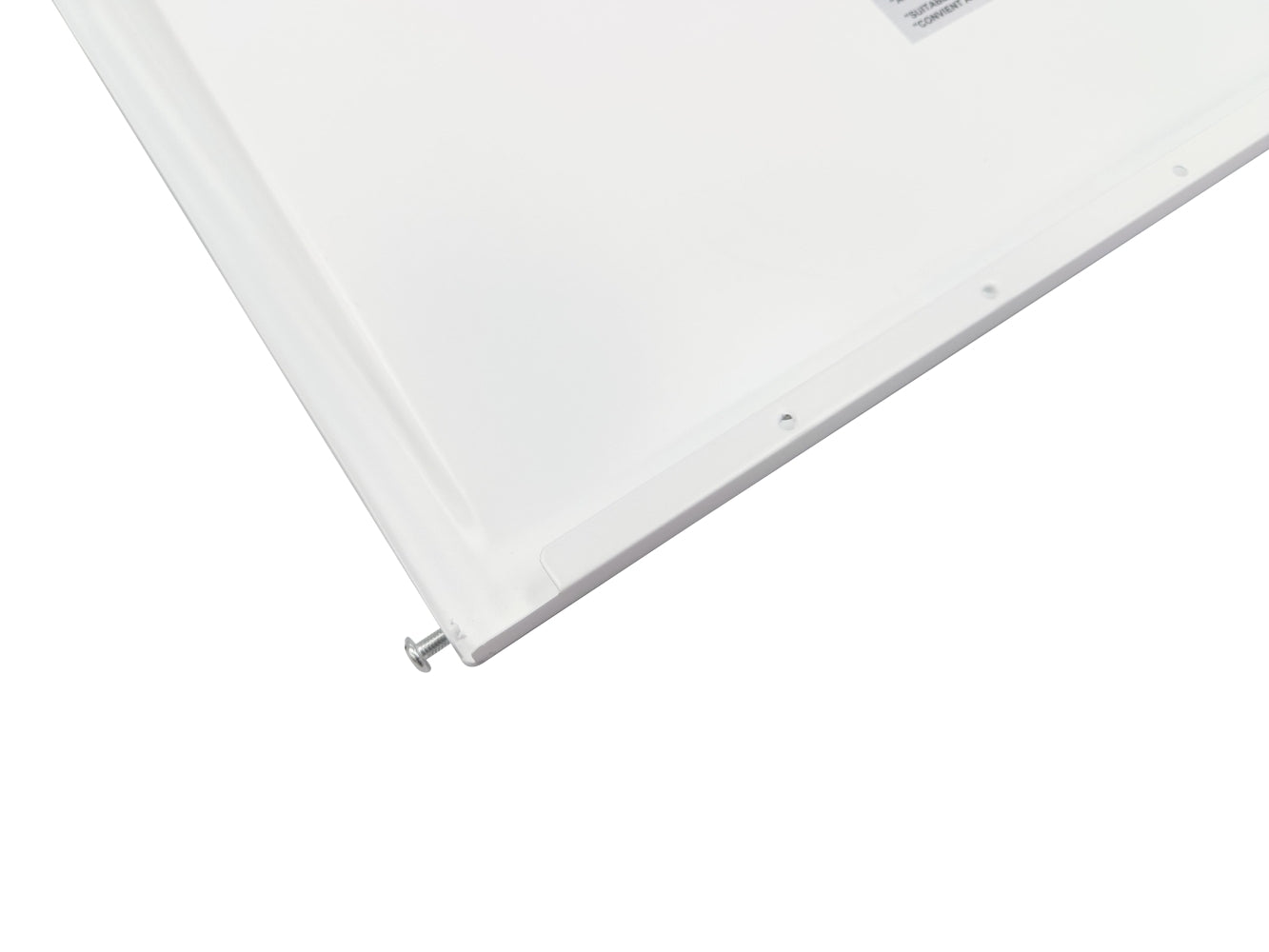

  • Detailed corner view of the NCLTG SnapFit Series LED Troffer Light Retrofit Kit highlighting construction

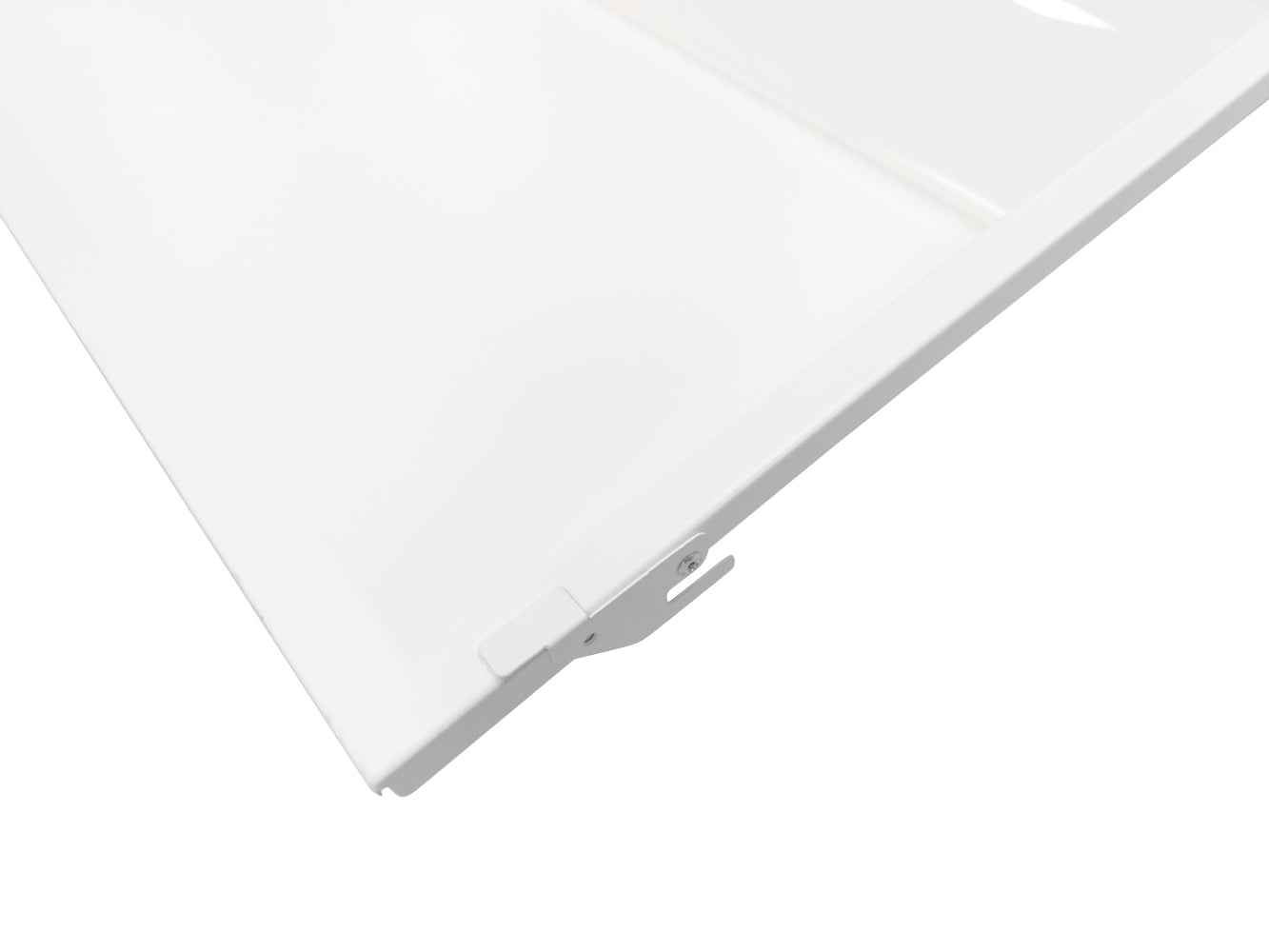

  • Close-up detailed view of the grid clip on the NCLTG SnapFit Series LED Troffer Light Retrofit Kit

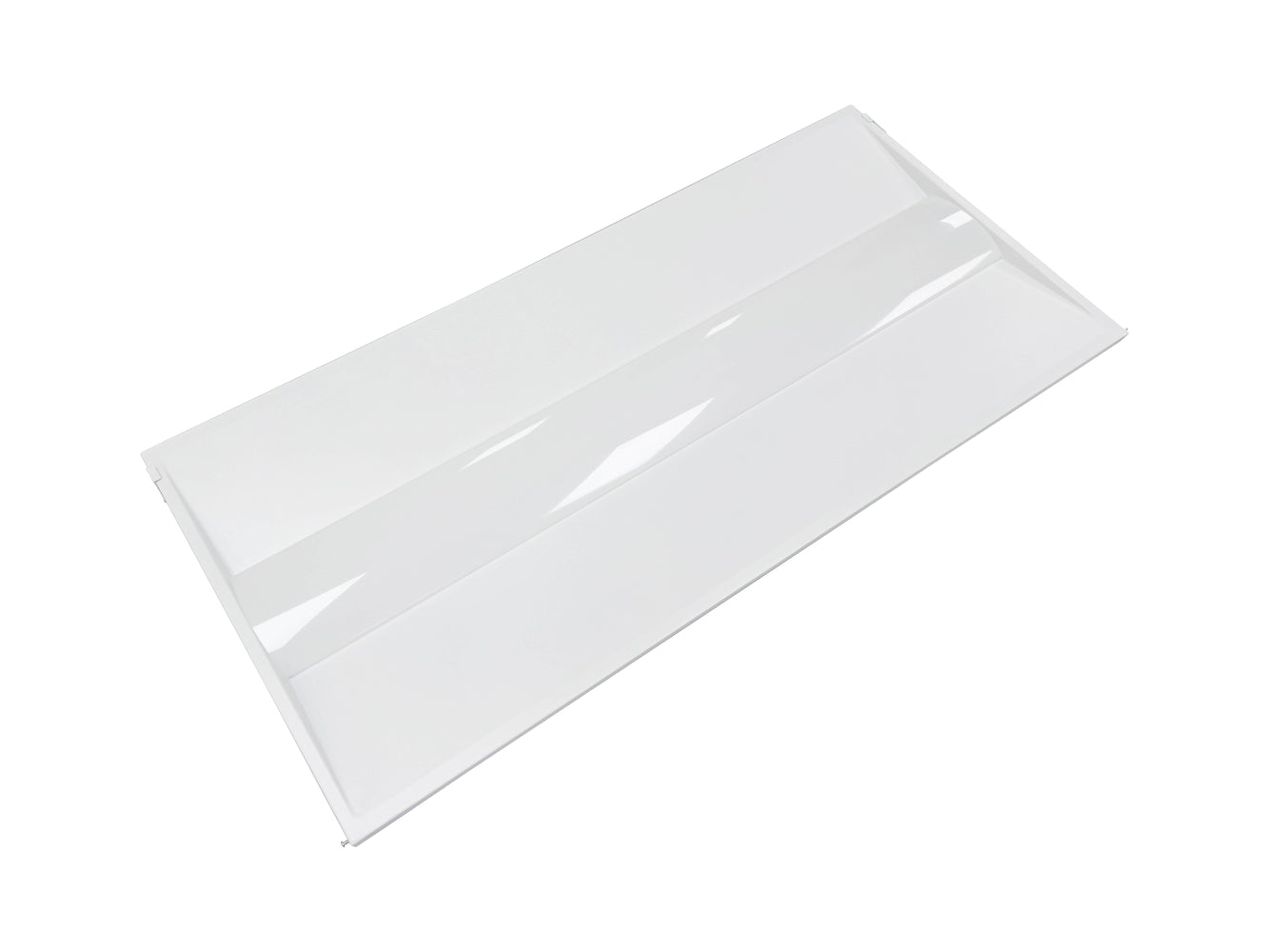

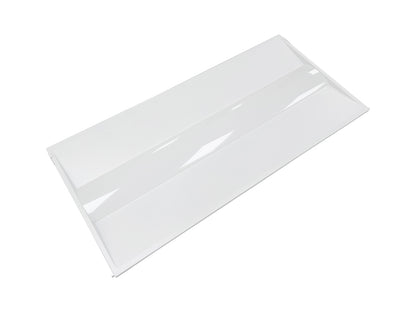

  • NCLTG SnapFit Series 2x4 LED Troffer Light Retrofit Kit engineered for efficient lighting retrofits

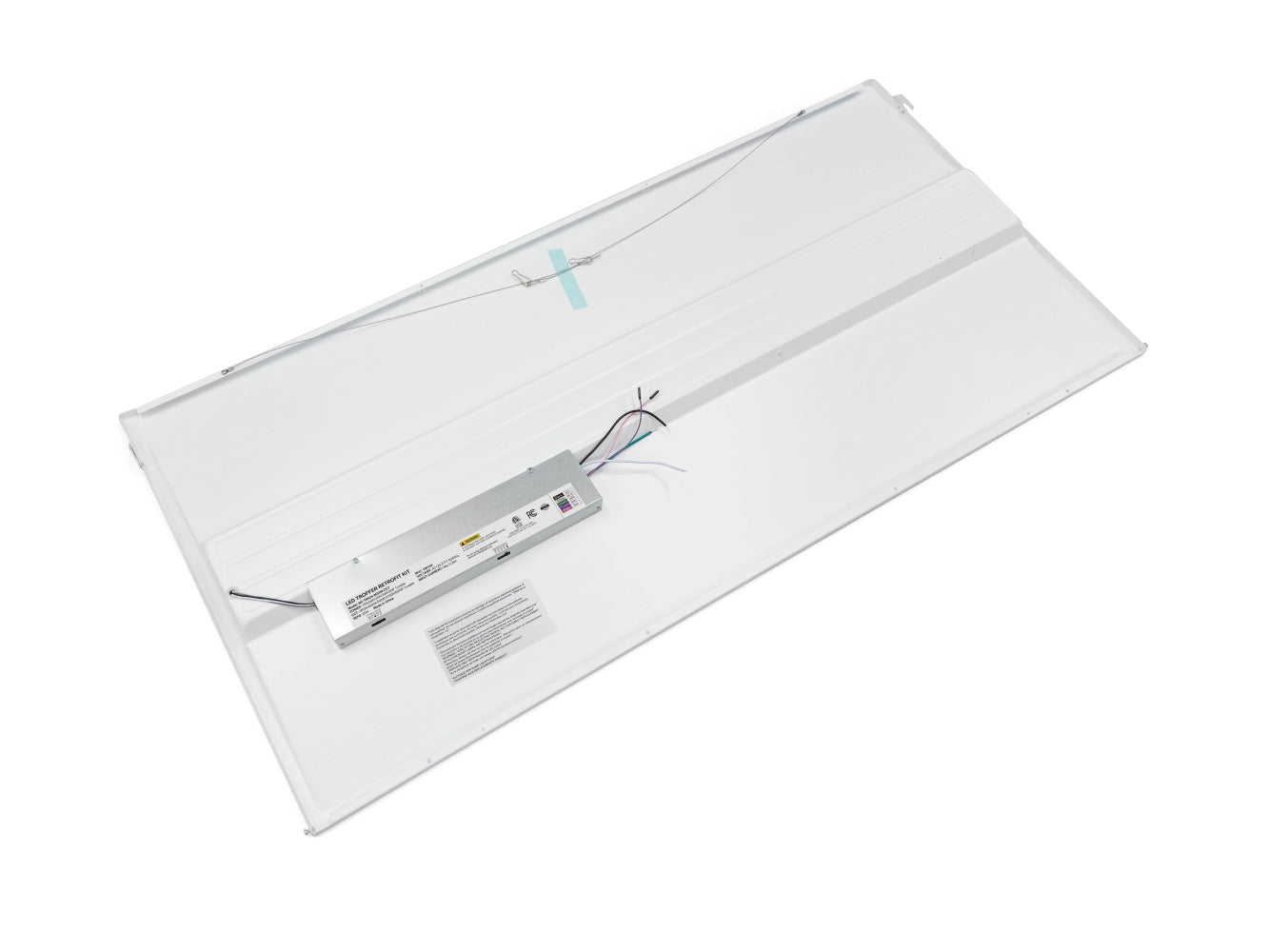

  • Back view of the NCLTG SnapFit Series 2x4 LED Troffer Light Retrofit Kit showing mounting frame and wiring
  • Infographic describing the SnapFit Series LED Troffer Retrofit Kits from NCLTG: an efficient solution to replace fluorescent troffers with modern LEDs; designed for quick installation in standard 2x2 and 2x4 fixtures; customizable wattage and color temperature to meet project needs; bright, uniform light output to improve visual comfort; durable construction for long-term reliability; and industry certifications ensuring safety, compliance, and rebate eligibility.
  • Infographic explaining why to choose SnapFit Series LED Troffer Retrofit Kits by NCLTG: quick, low-disruption installation that fits existing housings; substantial energy savings compared with fluorescent lighting; adjustable brightness and color temperature for different environments; long-life LED technology that cuts maintenance and replacements; and trusted NCLTG quality supported by comprehensive certifications for safety, rebates, and compliance.
  • Infographic highlighting key features of the SnapFit Series LED Troffer Retrofit Kits by NCLTG: available in standard 2x2 and 2x4 sizes to fit commercial troffers; selectable wattages from 15W to 50W for flexible lumen output; adjustable color temperatures from 3500K to 6500K to suit task and ambiance; 0–10V dimming compatibility for precise control; certifications including cETLus, DLC Premium, and RoHS for safety, rebate eligibility, and compliance; and a durable metal housing with a polycarbonate lens.
  • Infographic illustrating applications for SnapFit Series LED Troffer Retrofit Kits by NCLTG: designed for versatile use across commercial and institutional environments. Office buildings and conference rooms benefit from bright, uniform illumination; retail stores and shopping centers improve product visibility and customer engagement; educational facilities and classrooms gain adaptable, glare-free lighting; healthcare centers and hospitals require reliable, high-quality illumination.
1 13

NCLTG

SnapFit Series LED Troffer Light Retrofit Kits

SnapFit Series LED Troffer Light Retrofit Kits

NCLTG SnapFit Series LED Troffer Light Retrofit Kits feature badges – 5-CCT selectable, 5-wattage adjustable, 0–10V dimmable, DLC Premium listed, cETLus certified

Specification Sheet

Photometrics (IES Files)

Installation Instructions

Warranty

Request Price View full details

About the SnapFit Series LED Troffer Retrofit Kits

SnapFit LED Troffer Retrofit Kits modernize outdated drop ceilings with bright, even illumination—without the cost or disruption of full fixture replacement. Available in 2×2 and 2×4 sizes, they are engineered for common applications in commercial indoor lighting, including offices, classrooms, clinics, and retail environments. Trusted on projects nationwide, NCLTG designs SnapFit kits to improve visibility, comfort, and energy efficiency while keeping ceilings clean and modern.

Not sure whether to choose panels, troffers, or retrofit kits? Read our step-by-step guide to selecting the right drop-ceiling lighting solution .

Product Details & Ordering Information

SnapFit 1×4 LED Troffer Light Retrofit Kit — Selectable 15W–28W, 1950–3500 Lumens, 3500K–6500K CCT, 120–277V

Order Code: 190101
Model Number: NC-TRK14-M28W-CCT
Wattage: 15W, 18W, 20W, 25W, 28W
Voltage: 120-277V
Lumens: 1950, 2340, 2600, 3125, 3500
Efficacy: 125-130 lm/W
CCT: 3500K, 4000K, 5000K, 5700K, 6500K
Dimming: 0-10V

SnapFit 2x2 LED Troffer Light Retrofit Kit — Selectable 15W–28W, 1950–3500 Lumens, 3500K–6500K CCT, 120–277V

Order Code: 190102
DLC Product ID: S-TTMX9B
Model Number: NC-TRK22-M28W-CCT
Wattage: 15W, 18W, 20W, 25W, 28W
Voltage: 120-277V
Lumens: 1950, 2340, 2600, 3125, 3500
Efficacy: 125-130 lm/W
CCT: 3500K, 4000K, 5000K, 5700K, 6500K
Dimming: 0-10V
Dimensions: 21.5"L x 22.1"W x 1.89"H

SnapFit 2x4 LED Troffer Light Retrofit Kit — Selectable 15W–35W, 1950–4375 Lumens, 3500K–6500K CCT, 120–277V

Order Code: 190104
DLC Product ID: S-8RY2BG
Model Number: NC-TRK24-M35W-CCT
Wattage: 15W, 20W, 25W, 30W, 35W
Voltage: 120-277V
Lumens: 1950, 2600, 3125, 3750, 4375
Efficacy: 125-130 lm/W
CCT: 3500K, 4000K, 5000K, 5700K, 6500K
Dimming: 0-10V
Dimensions: 45.39"L x 22.1"W x 1.89"H

SnapFit 2x4 LED Troffer Light Retrofit Kit — Selectable 25W–50W, 3250–6250 Lumens, 3500K–6500K CCT, 120–277V

Order Code: 190124
DLC Product ID: S-6FWKN9
Model Number: NC-TRK24-M50W-CCT
Wattage: 25W, 30W, 35W, 40W, 50W
Voltage: 120-277V
Lumens: 3250, 3900, 4550, 5000, 6250
Efficacy: 125-130 lm/W
CCT: 3500K, 4000K, 5000K, 5700K, 6500K
Dimming: 0-10V
Dimensions: 45.39"L x 22.1"W x 1.89"H

SnapFit Series LED Troffer Light Retrofit Kits FAQs

Can SnapFit retrofit kits fit all standard troffer fixtures?

SnapFit kits are designed to fit most standard 2x2 and 2x4 troffer housings. It’s recommended to check your fixture dimensions before purchase.

Do these retrofit kits support dimming?

Yes, SnapFit Series retrofit kits support 0-10V dimming systems for adjustable lighting control.

What certifications do the SnapFit kits have?

They are cETLus listed, DLC Premium certified, and RoHS compliant, ensuring safety, quality, and energy efficiency.

Is installation difficult?

Installation is simple and requires no special tools. The retrofit kits are designed to snap into existing troffer frames, minimizing labor time.

What is the expected lifespan of the SnapFit retrofit kits?

They offer an L70 rated lifespan of over 50,000 hours, providing long-term reliable performance.
