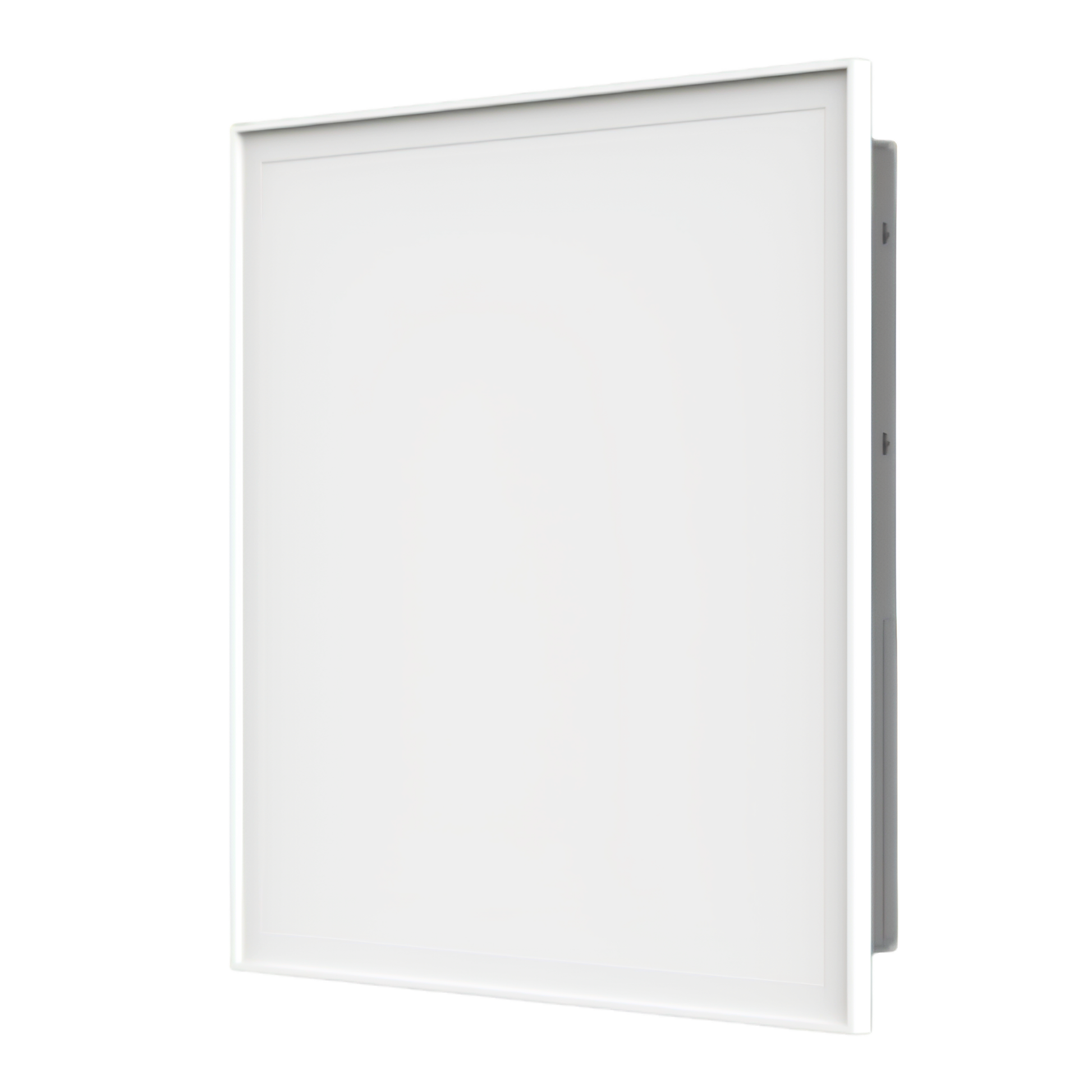

BackLite Series CCT Tunable LED Panel

About BackLite Series CCT Tunable LED Panel

The BackLite Series CCT Tunable LED Panel is designed for commercial interior applications, including offices, schools, healthcare facilities, and retail spaces. These panels feature a slim backlit design and offer flexible field adjustments for wattage and color temperature.

Key Performance Specifications

• Sizes: Available in 1x4, 2x2, and 2x4 configurations.
• Selectable CCT: 3000K, 3500K, 4000K, 5000K, and 6500K.
• Input Voltage: 120-347V.
• Efficiency: Up to 145 lm/W with a CRI >80.
• Dimming: 0-10V dimming support.
• Certifications: UL listed and DLC Certified Premium.

Construction and Installation

• The panels are constructed with an aluminum frame, PS diffuser, and SPCC back-plate.
• The design includes a screwless panel and is compatible with emergency drivers.
• Panels can achieve an IP65 room-side rating if screws are properly applied during installation.
• Installation must be performed by a qualified electrician in accordance with relevant electrical standards.

Operational Precautions

• The unit should not be installed on flammable objects or covered by insulation.
• Power must be disconnected during installation or maintenance to ensure safety.
• The product is intended for indoor use and should not be exposed to rain.
• Operating outside the rated voltage range of 120-347V (50-60Hz) may affect performance and lifespan.
