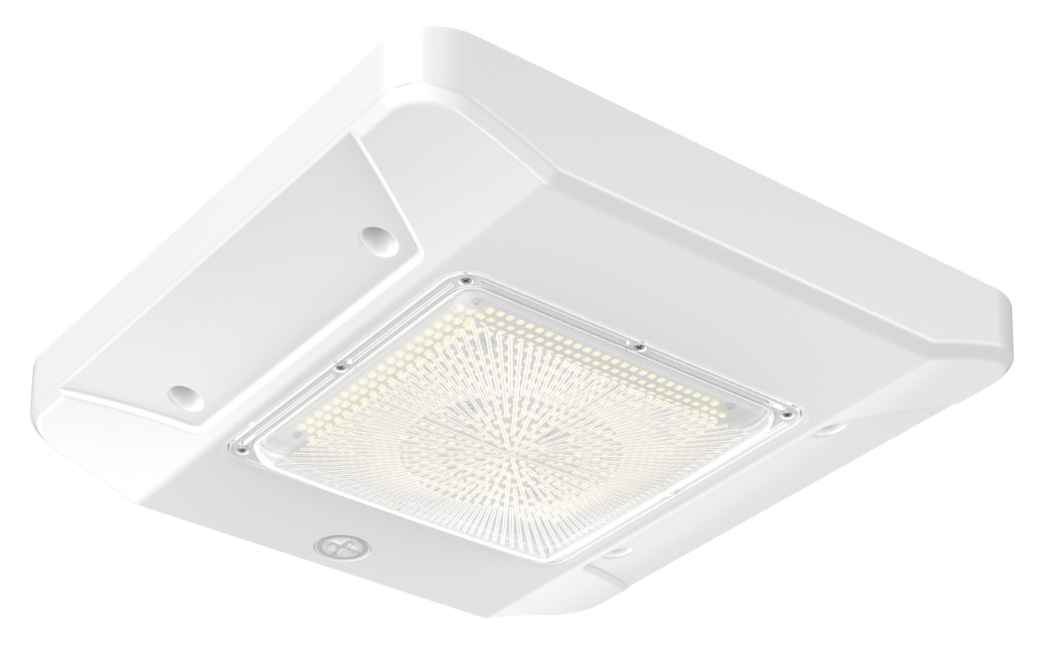

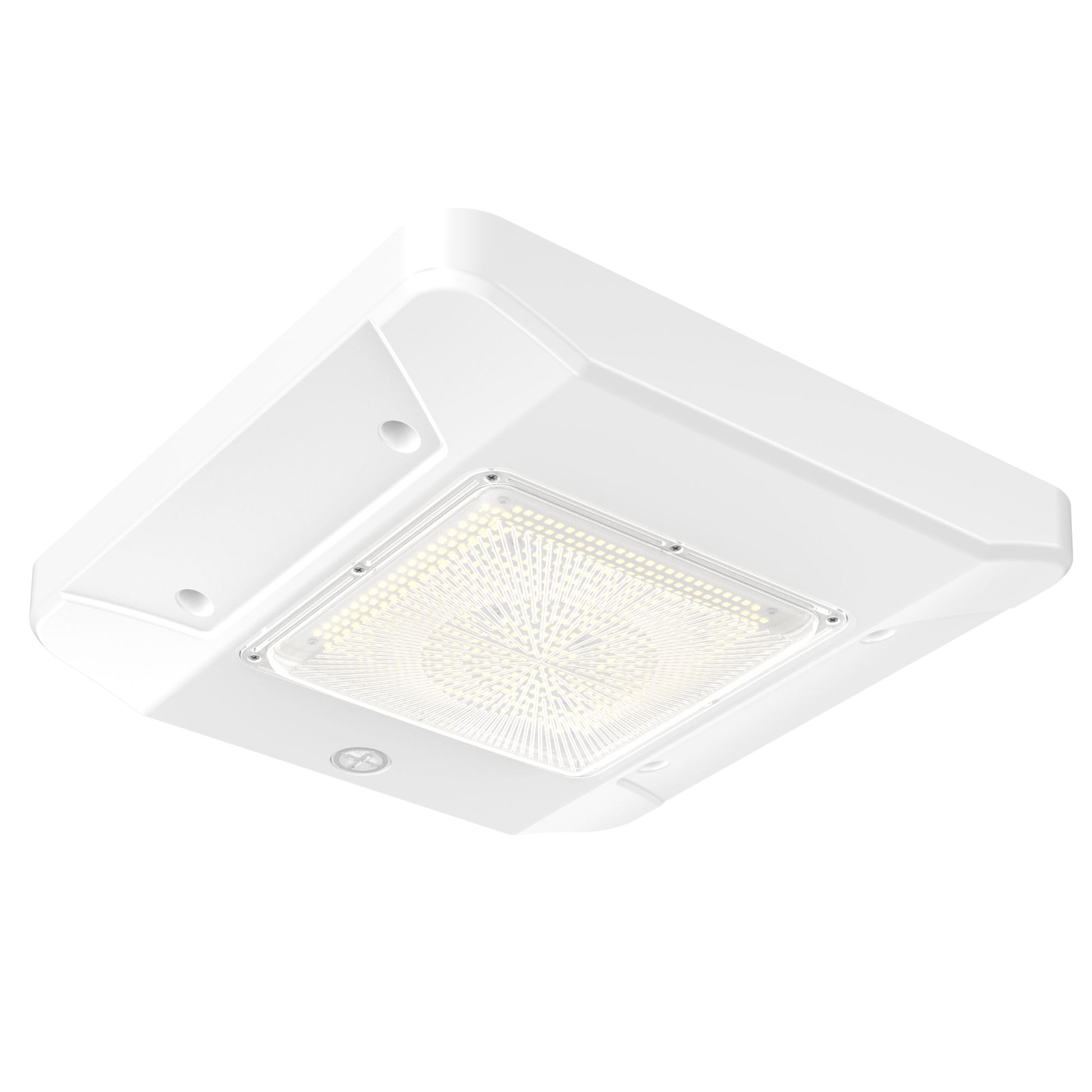

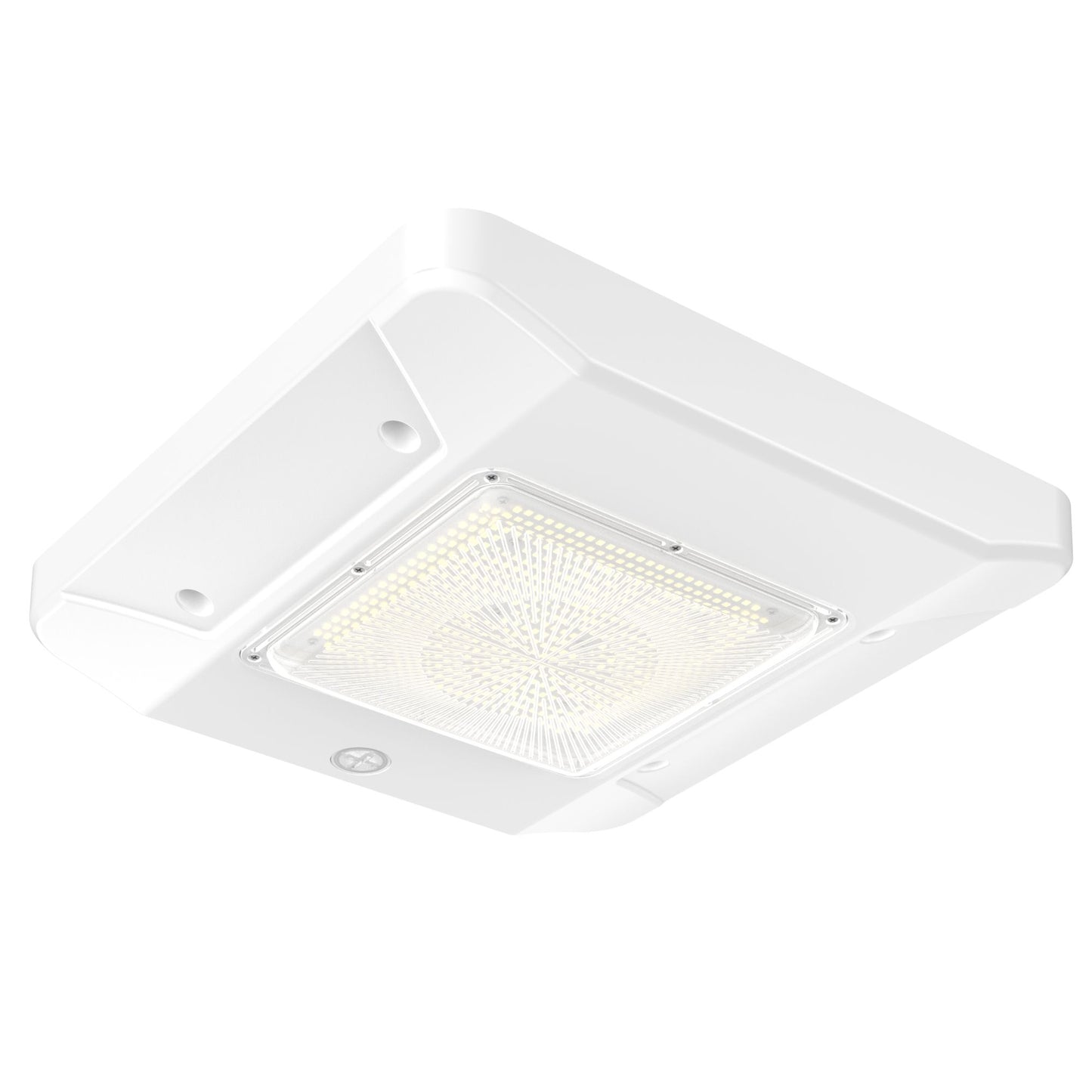

• NCLTG FuelLite Series LED gas station canopy light with die-cast aluminum housing, polycarbonate lens, selectable wattage 100W–150W, and CCT options 4000K–5700K
1 1

NCLTG

FuelLite Series LED Gas Station Canopy Lights – High-Performance Canopy Lighting Solutions for Fuel Stations, Convenience Stores & Entrances

FuelLite Series LED Gas Station Canopy Lights – High-Performance Canopy Lighting Solutions for Fuel Stations, Convenience Stores & Entrances

NCLTG FuelLite Series LED Gas Station Canopy Light feature badges – 3-CCT selectable, 3-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specification Sheet

Warranty

Request Price View full details

Overview

FuelLite Series LED Gas Station Canopy Lights are purpose-built to provide bright, reliable illumination for fueling areas, parking structures, and covered walkways. Engineered for visibility and safety, these fixtures deliver consistent coverage that helps drivers and pedestrians feel secure in high-traffic environments.

Available with selectable wattages of 100W, 120W, and 150W, FuelLite canopy lights output up to 21,000 lumens at an impressive 140 lm/W efficacy—offering both power and energy savings. Color temperature choices of 4000K, 5000K, or 5700K make it easy to tailor the atmosphere, whether you want a neutral, balanced glow or a crisp, daylight effect.

Built to perform in demanding outdoor conditions, each fixture features a die-cast aluminum housing with a durable polycarbonate lens, rated IP65 for wet-location protection. With UL listing and an L70 lifetime of over 50,000 hours, FuelLite canopy lights provide long-term reliability and reduced maintenance costs—making them a dependable, energy-efficient solution for gas stations and other canopy applications.

Infographic describing the FuelLite Series LED Gas Station Canopy Lights by NCLTG: purpose-built fixtures for high-traffic fueling areas and commercial canopies; on-site Power Select and CCT Select for tailored wattage and color temperature while reducing SKU complexity; energy-efficient operation up to 140 lm/W with lumen outputs to 21,000 for excellent visibility; rugged die-cast aluminum housing with an impact-resistant polycarbonate lens.

About the FuelLite Series LED Gas Station Canopy Lights – Customizable Output, Rugged Build & Efficient Performance

  • Purpose-built for fuel stations and canopies to deliver bright, uniform illumination
  • Power Select & CCT Select adapt wattage and color temperature on site to reduce SKUs
  • Energy-efficient performance up to 140 lm/W with packages reaching 21,000 lumens
  • Rugged construction die-cast aluminum housing and impact-resistant polycarbonate lens
  • Outdoor ready IP65, UL wet listed, and DLC Premium for rebate eligibility
  • Easy install & control surface or 3/4″ NPT mounting, 0–10V dimming, low-profile design
Infographic explaining why to choose FuelLite Series LED Gas Station Canopy Lights by NCLTG: purpose-built illumination for high-traffic fueling areas; on-site Power Select and CCT Select to tailor wattage and color temperature while reducing inventory complexity; high-efficiency operation up to 140 lm/W with lumen outputs to 21,000 for superior visibility; rugged die-cast aluminum housing with impact-resistant polycarbonate lens; outdoor-ready ratings including IP65, UL wet location, and DLC Premium.

Why Choose FuelLite LED Gas Station Canopy Lights – Power/CCT Select, Rugged IP65 & 140 lm/W Efficiency

  • Purpose-built for high-traffic canopies to enhance visibility, safety, and customer experience
  • Power Select & CCT Select let you set wattage and color temperature on site—reducing SKU complexity
  • High-efficiency performance up to 140 lm/W with packages delivering up to 21,000 lumens
  • Rugged, weather-resistant build die-cast aluminum housing and impact-resistant polycarbonate lens
  • Outdoor ready with IP65 protection, UL wet location listing, and DLC Premium certification
  • Wide operating range reliable from −40°F to 113°F for harsh environments
  • Advanced control & mounting 0–10V dimming; surface mount or 3/4″ NPT pipe for quick installs
  • Long life, low maintenance L70 > 50,000 hours to cut service costs over time
Infographic illustrating applications for FuelLite Series LED Gas Station Canopy Lights by NCLTG: purpose-built illumination for gas station fueling areas and entrances; uniform, secure lighting across multi-level parking structures; dependable canopy lighting for fast-food, banking, and service drive-throughs; and consistent coverage along covered commercial walkways to improve pedestrian safety and comfort.

Applications for FuelLite LED Gas Station Canopy Lights – Reliable Illumination for Fueling, Parking & Drive-Throughs

  • Gas stations — bright, energy-efficient lighting for fueling areas and entrances to improve safety and customer experience
  • Parking structures — uniform illumination that enhances visibility and security in multi-level facilities
  • Drive-throughs — reliable canopy lighting for fast-food, banking, and service lanes to aid customers and staff
  • Commercial walkways — consistent lighting for covered pedestrian paths, improving safety and comfort

FuelLite Gas Station Canopy Layout Calculator

Enter canopy length/width, mounting height, and target foot-candles, then select your FuelLite output (e.g., 14,000–21,000 lm) and CCT. The tool returns a site-specific starting layout with recommended fixture count and grid spacing based on established lumen-method and canopy spacing criteria.

FuelLite Gas Station Canopy — Calculator

Estimate canopy fixtures for fuel stations and travel centers with high, uniform task illumination.

Visual Layout Preview

Schematic preview; verify with IES photometrics and canopy layout constraints.

FuelLite Series LED Gas Station Canopy Light FAQs

What Makes FuelLite Series LED Gas Station Canopy Lights Ideal for Gas Stations?

FuelLite Series LED Gas Station Canopy Lights provide high lumen output, selectable color temperatures, and rugged construction, ensuring excellent visibility, enhanced safety, and energy efficiency in fueling areas and other canopy-covered spaces.

Can I Adjust the Brightness and Color Temperature?

Yes, FuelLite Series LED Gas Station Canopy Lights feature Power Select and CCT Select technologies, allowing you to easily adjust both wattage and color temperature in the field. This flexibility ensures the perfect lighting setup for any application.

Are FuelLite Series LED Gas Station Canopy Lights Suitable for Harsh Outdoor Environments?

Yes, FuelLite Series LED Gas Station Canopy Lights are IP65 rated, UL listed for wet locations, and constructed with a rugged die-cast aluminum housing. These features ensure long-term performance and reliability, even in extreme weather conditions.

Do FuelLite Series LED Gas Station Canopy Lights Support Dimming?

Yes, all FuelLite Series LED Gas Station Canopy Lights are equipped with a 0–10V dimming driver, allowing advanced control over light levels and providing additional energy savings when paired with compatible dimming systems.

How Long Do FuelLite Series LED Gas Station Canopy Lights Last?

FuelLite Series LED Gas Station Canopy Lights are rated for an L70 lifespan of over 50,000 hours, delivering years of reliable performance while minimizing maintenance and replacement costs.

FuelLite Series — LED Gas Station Canopy Lighting for Safer, Brighter Fuel Islands

Purpose-built for fuel canopies, FuelLite delivers uniform, glare-controlled illumination with DLC-listed efficiency and rugged wet-location durability for 24/7 operations.

  • Uniform, low-glare optics for clear visibility and safer fueling areas
  • Field-selectable wattage & CCT to match site standards and reduce SKUs
  • IP65 wet-location construction with impact-resistant housing/lens
  • DLC Premium performance for utility rebate eligibility and energy savings
