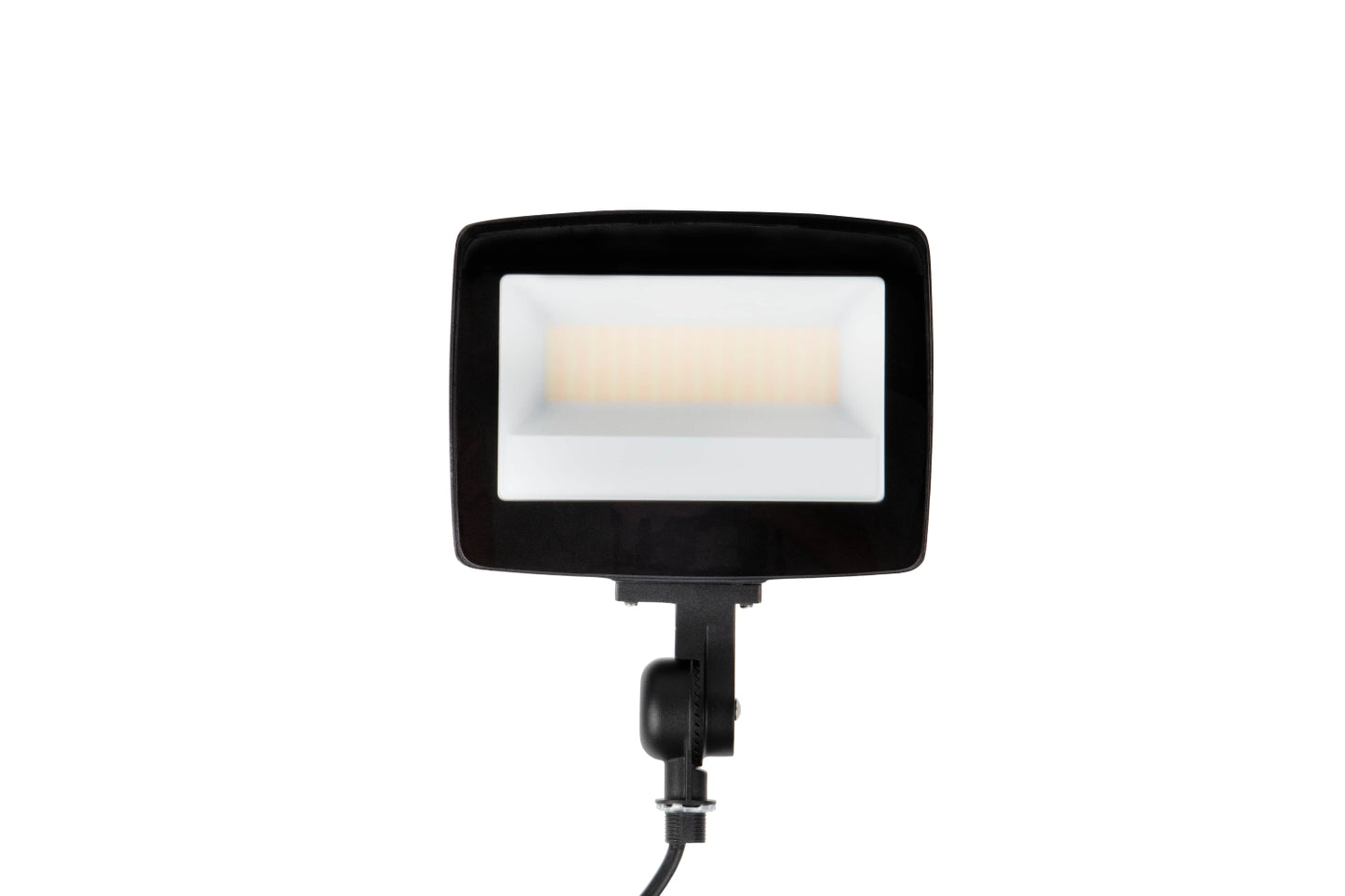

• Front view of the NCLTG TitanBeam Series LED flood light showing its compact design and durable housing

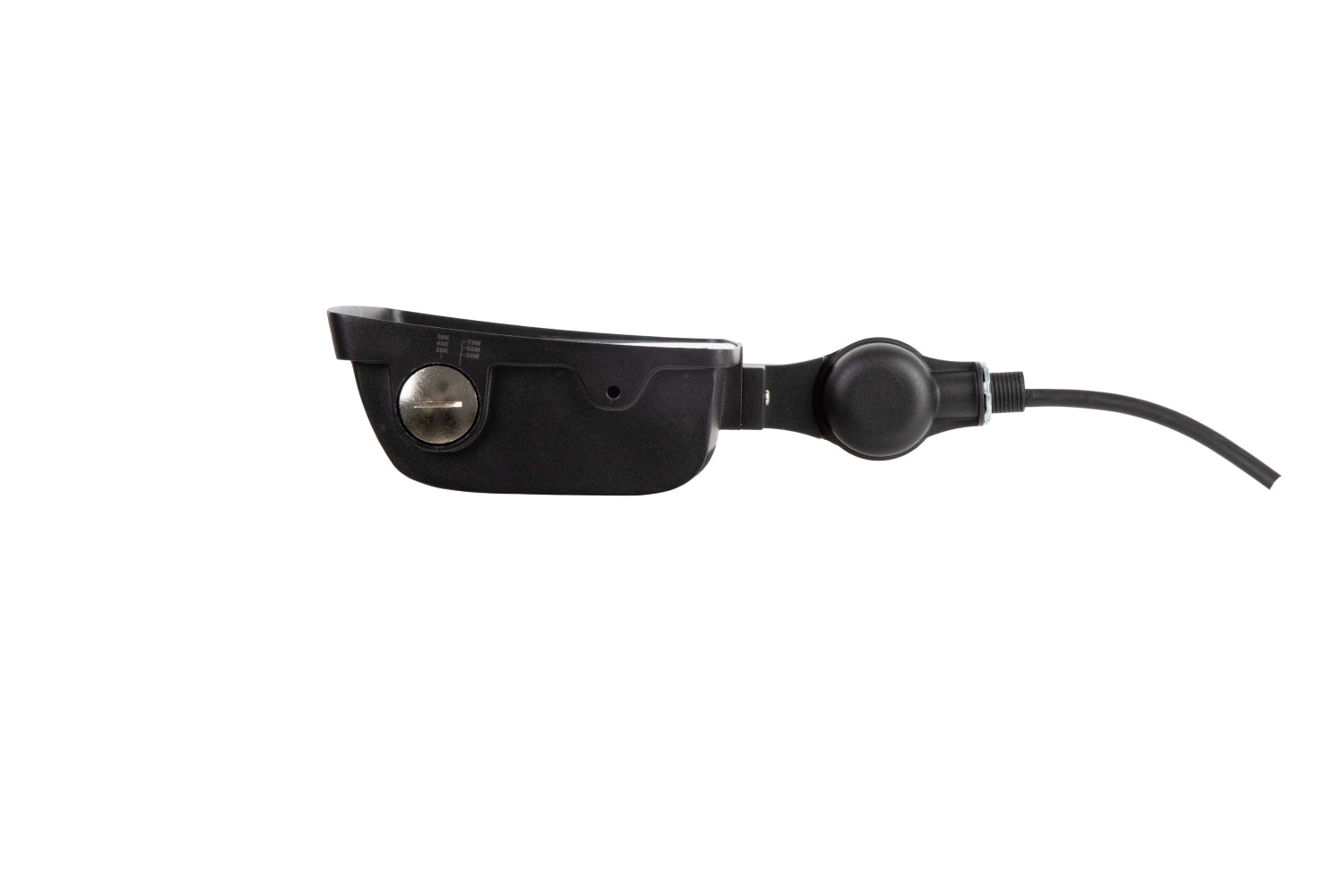

  • Left side view of the NCLTG TitanBeam Series flood light showing the attached power cord for easy installation

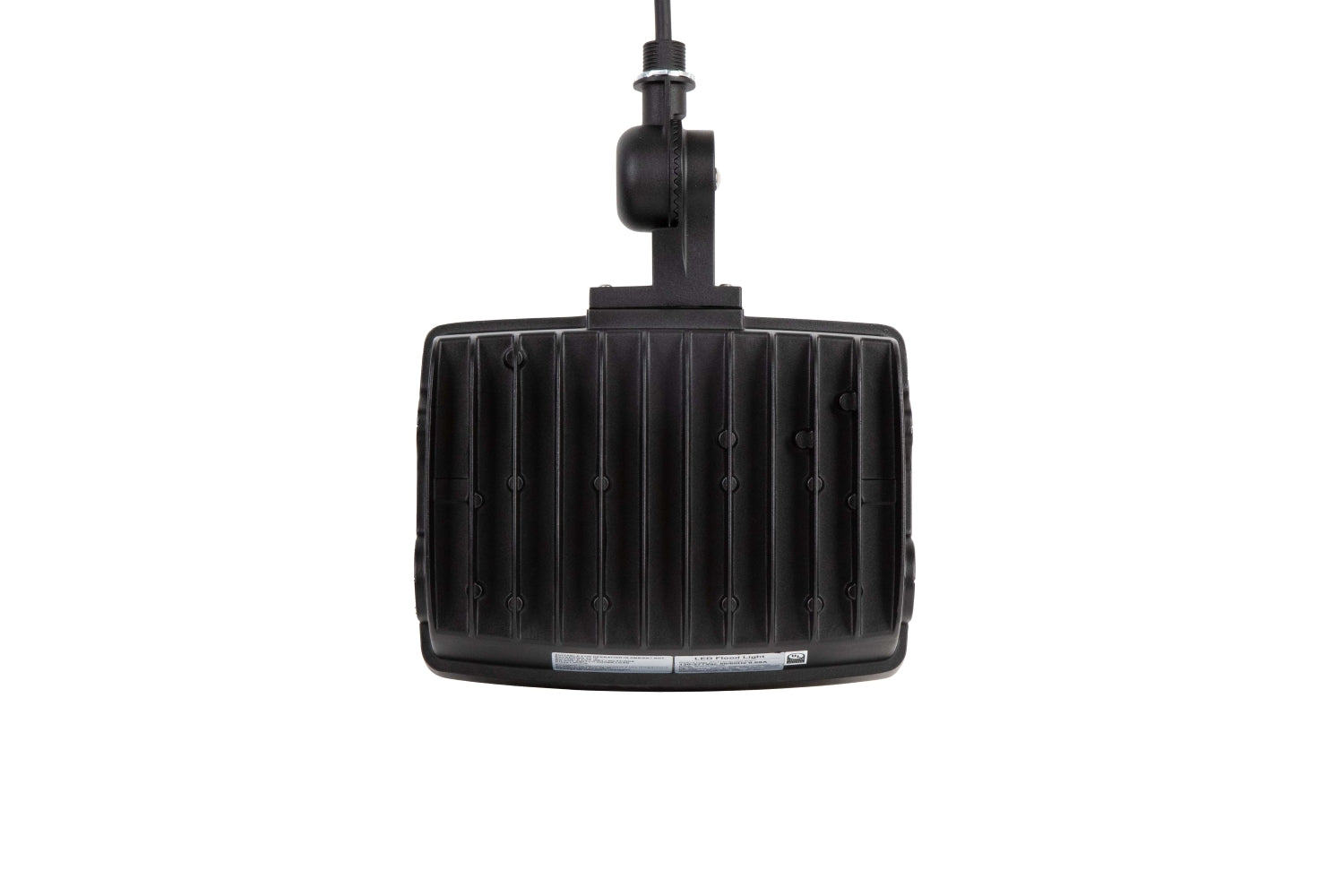

  • Upside-down back view of the NCLTG TitanBeam Series flood light highlighting its heat-dissipating fins for improved thermal management

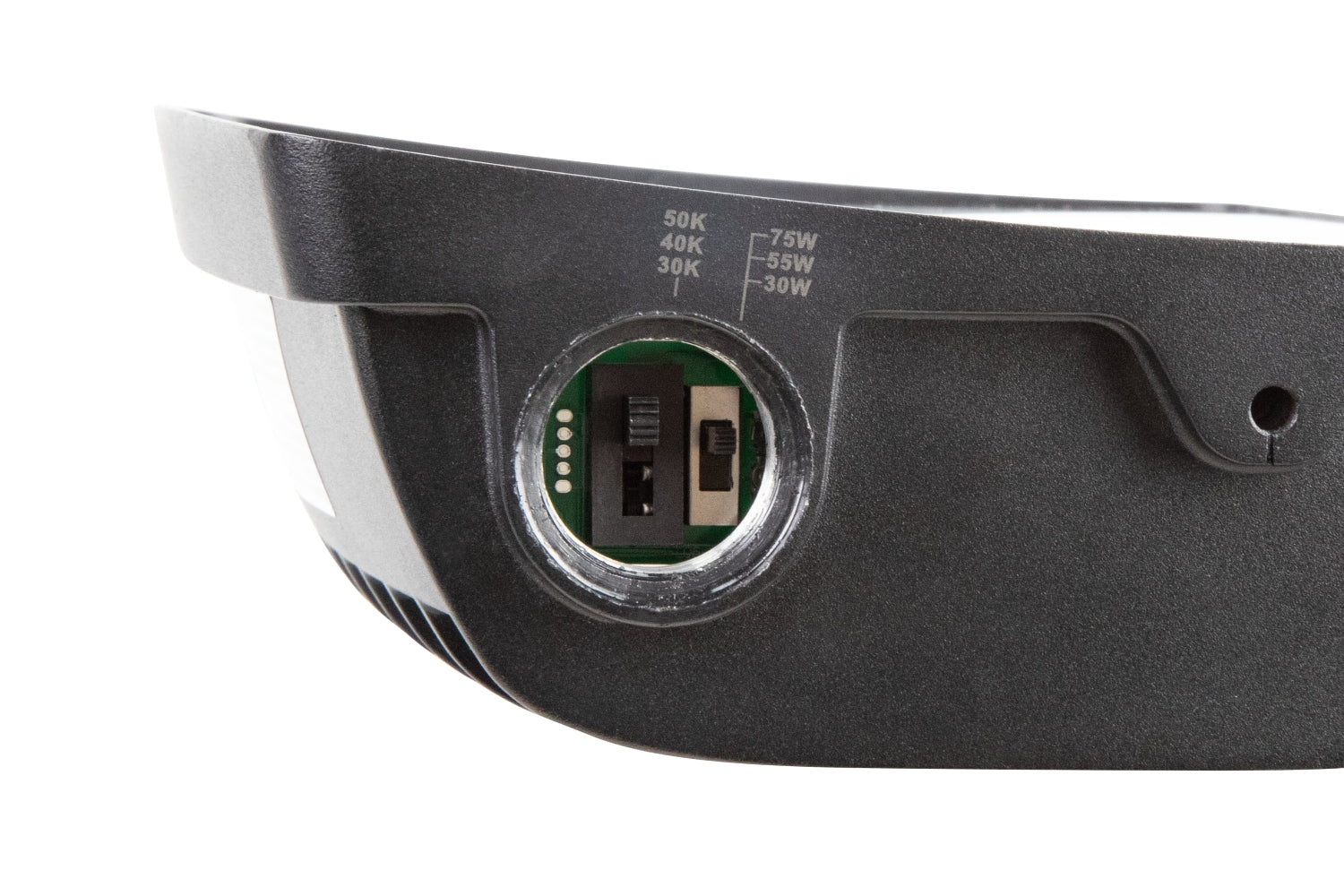

  • Up-close view of the NCLTG TitanBeam Series flood light highlighting the wattage and CCT selectable DIP switches

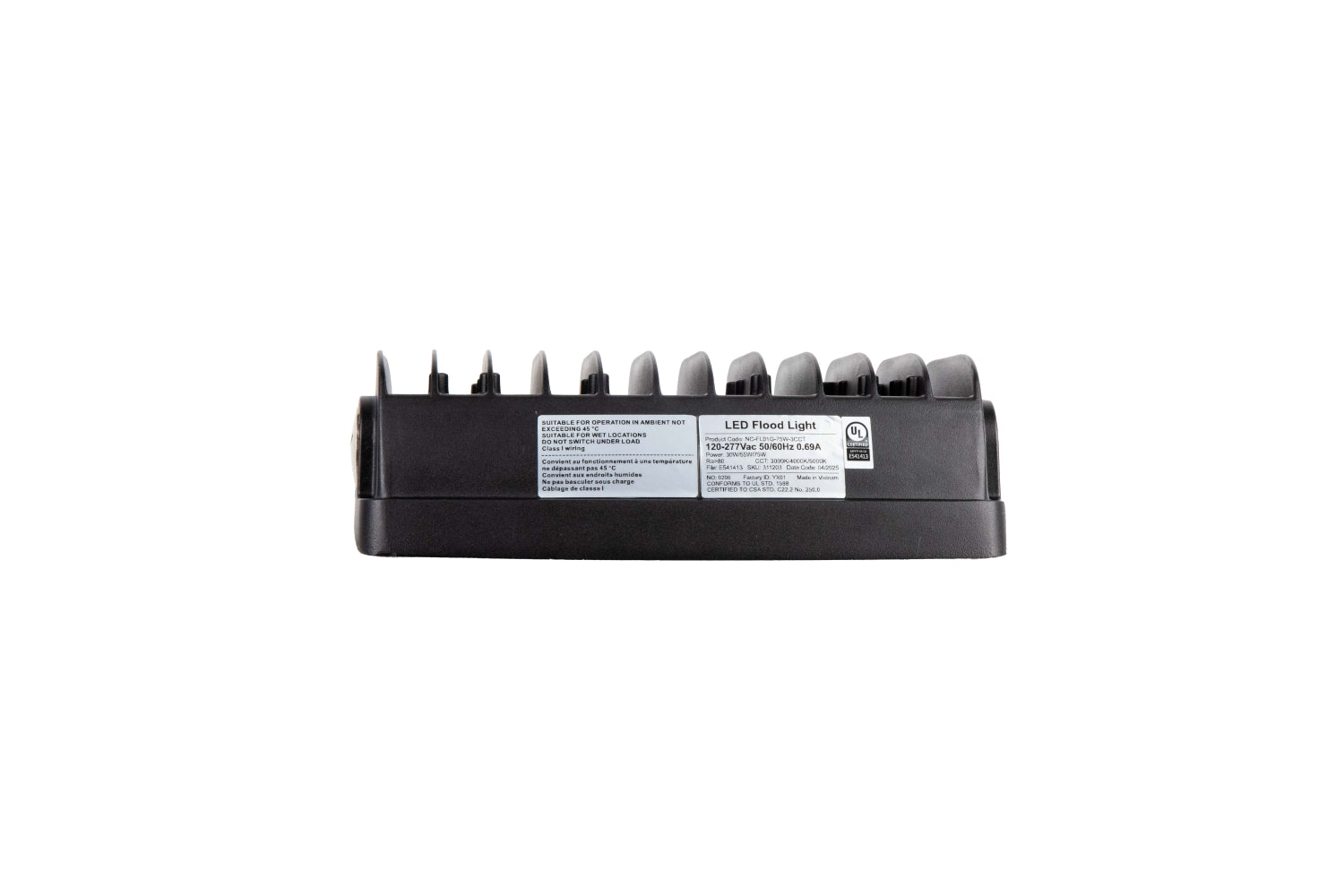

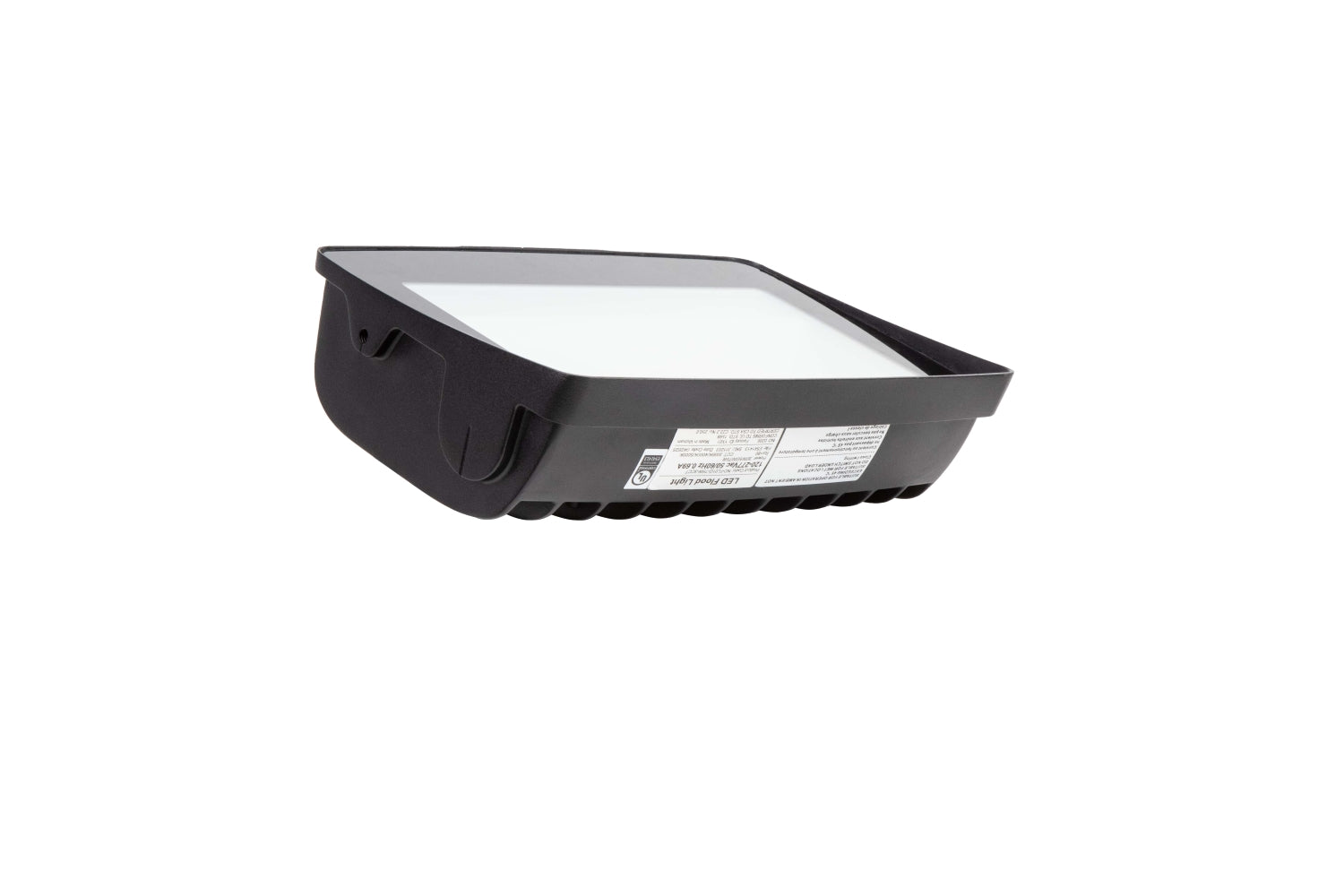

  • Top view of the NCLTG TitanBeam Series flood light showing the model and certification labels on the fixture housing
  • Infographic describing the TitanBeam Series LED Flood Lights by NCLTG: compact, durable fixtures that provide targeted, high-performance illumination for commercial and architectural applications; selectable wattage and color temperature for flexible, project-specific results; energy-efficient LED design delivering clean, uniform light; precise aiming for façade accents, sign lighting, pedestrian walkways, and landscape features; and a low-maintenance build for long-term reliability and efficiency.
  • Infographic explaining why to choose the TitanBeam Series LED Flood Lights by NCLTG: engineered for contractors, distributors, and property managers handling demanding outdoor applications; selectable output from 5W to 120W streamlines spec and field tuning; tunable color temperatures support visibility and brand consistency; controls-ready design integrates with advanced systems (0–10V dimming, photocell, motion) for smarter energy use; precise, and uniform beams reduce spill and glare.
  • Infographic highlighting the key features of the TitanBeam Series LED Flood Lights by NCLTG: a built-in power switch allows field-selectable wattage from 5–15W up to 75–120W; tunable CCT choices of 3000K, 4000K, or 5000K; high lumen output up to 15,600 lumens for optimal visibility in architectural and security applications; compact, die-cast aluminum housing with a high-transmittance glass lens rated IP65 and IK06 for harsh outdoor conditions.
  • Infographic illustrating applications for TitanBeam Series LED Flood Lights by NCLTG: deliver precise, high-output lighting for building façades and architectural accents; strengthen site security with dependable perimeter illumination; elevate landscapes by highlighting trees, gardens, sculptures, and exterior walls; ensure safe pedestrian movement with uniform, glare-controlled lighting along pathways and walkways; and showcase business signage and outdoor branding with consistent illumination.
1 9

NCLTG

TitanBeam Series LED Flood Lights

TitanBeam Series LED Flood Lights

NCLTG TitanBeam Series LED Flood Light feature badges – 3-CCT selectable, 3-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specification Sheet

Warranty

Request Price View full details

About the TitanBeam Series LED Flood Lights

TitanBeam Series LED Flood Lights are purpose-built for commercial outdoor lighting—delivering powerful, controlled illumination for landscapes, signage, building façades, loading areas, and general site lighting. With four scalable models, TitanBeam lets you right-size output and optics for each application, from accenting architectural details to lighting large parking and perimeter zones. As part of our broader portfolio, TitanBeam supports real-world applications and is specified on projects nationwide. NCLTG engineers TitanBeam fixtures for reliable performance, efficient operation, and a clean, professional site appearance.

Each fixture offers field-selectable wattages from 5W to 120W, producing approximately 1,950–15,600 lumens. CCT Select allows you to choose between 3000K, 4000K, or 5000K for the right balance of warmth, visibility, and security. For energy management, TitanBeam supports 0–10V dimming and optional photocell controls for dusk-to-dawn operation—delivering precise, uniform coverage without over-lighting.

Designed for long outdoor service, TitanBeam combines a die-cast aluminum housing with a high-transmittance glass lens. Each fixture carries an IP65 wet-location rating and IK06 impact protection for reliable operation in demanding environments. Backed by UL Listed compliance, an L70 lifetime > 50,000 hours, and a 5-year warranty, the TitanBeam family is a trusted choice for contractors, facility managers, and property owners seeking dependable flood lighting that enhances safety and site aesthetics.

Comparing flood light options? Read our complete guide to choosing LED flood lights for commercial & industrial sites .

Product Details & Ordering Information

TitanBeam LED Flood Light — Selectable 5W–15W, 650–1950 Lumens, 3000K–5000K CCT, 120–277V

Order Code: 311201
DLC Product ID: S-XWDDR5
Model Number: NC-FL01G-15W-3CCT
Wattage: 5W, 10W, 15W
Voltage: 120-277V
Lumens: 650, 1300, 1950
Efficacy: 130 lm/W
CCT: 3000K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 7.8"W x 5.9"H x 2.9"D

TitanBeam LED Flood Light — Selectable 15W–55W, 1950–7150 Lumens, 3000K–5000K CCT, 120–277V

Order Code: 311202
DLC Product ID: S-FY2L2P
Model Number: NC-FL01G-55W-3CCT
Wattage: 15W, 30W, 55W
Voltage: 120-277V
Lumens: 1950, 3900, 7150
Efficacy: 130 lm/W
CCT: 3000K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 9"W x 6.9"H x 2.9"D

TitanBeam LED Flood Light — Selectable 30W–75W, 3900–9750 Lumens, 3000K–5000K CCT, 120–277V

Order Code: 311203
DLC Product ID: S-RTCKPN
Model Number: NC-FL01G-75W-3CCT
Wattage: 30W, 55W, 75W
Voltage: 120-277V
Lumens: 3900, 7150, 9750
Efficacy: 130 lm/W
CCT: 3000K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 9"W x 6.9"H x 2.9"D

TitanBeam LED Flood Light — Selectable 75W–120W, 9750–15600 Lumens, 3000K–5000K CCT, 120–277V

Order Code: 311204
DLC Product ID: S-4YS5B6
Model Number: NC-FL01G-120W-3CCT
Wattage: 75W, 100W, 120W
Voltage: 120-277V
Lumens: 9750, 13000, 15600
Efficacy: 130 lm/W
CCT: 3000K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 11"W x 7.9"H x 3.1"D

TitanBeam Series LED Flood Light FAQs

What Are TitanBeam Series LED Flood Lights Used For?

TitanBeam Series LED Flood Lights provide wide-beam, high-intensity illumination for outdoor areas including building façades, landscapes, signage, and security zones. They are ideal for accentuating architectural features and enhancing visibility in low-light or dark environments.

What Wattage Options Are Available for TitanBeam Series LED Flood Lights?

The TitanBeam Series offers four selectable wattage configurations: 5W/10W/15W, 15W/30W/55W, 30W/55W/75W, and 75W/100W/120W, providing precise control over brightness and energy consumption.

Can I Adjust the Color Temperature of TitanBeam Series LED Flood Lights?

Yes, every TitanBeam Series model features a CCT selectable switch with options for 3000K, 4000K, and 5000K, enabling you to customize the color temperature to suit your project’s visual preferences and environment.

Are TitanBeam Series LED Flood Lights Weatherproof?

Absolutely. TitanBeam Series LED Flood Lights are IP65 rated for outdoor use and UL listed for wet locations. Their robust construction ensures they withstand exposure to rain, wind, dust, and impact, making them ideal for harsh outdoor conditions.

Do TitanBeam Series LED Flood Lights Support Dimming or Motion Control?

Yes, all TitanBeam Series models are compatible with 0–10V dimming systems and support optional photocell sensors for dusk-to-dawn operation or integration with smart lighting controls.

How Long Do TitanBeam Series LED Flood Lights Last?

TitanBeam Series LED Flood Lights are rated for over 50,000 hours of maintenance-free operation, supported by NCLTG's commitment to quality engineering and proven field durability.

Are TitanBeam Series LED Flood Lights Easy to Install?

Yes, with a compact profile measuring 16.63" x 8.66" x 2.07" and universal mounting options, TitanBeam Series LED Flood Lights offer straightforward installation for both retrofit and new construction projects.
