NuGem Series LED Acorn Post Top Lantern
NuGem Series LED Acorn Post Top Lantern
Specification Sheet
Specification Sheet
About NuGem Series LED Acorn Post Top Lantern
| Product Identification | Performance Specifications |
|---|---|
|
Order Code: G-0020 Model No: PT03-100W-H-T-P Black |
|

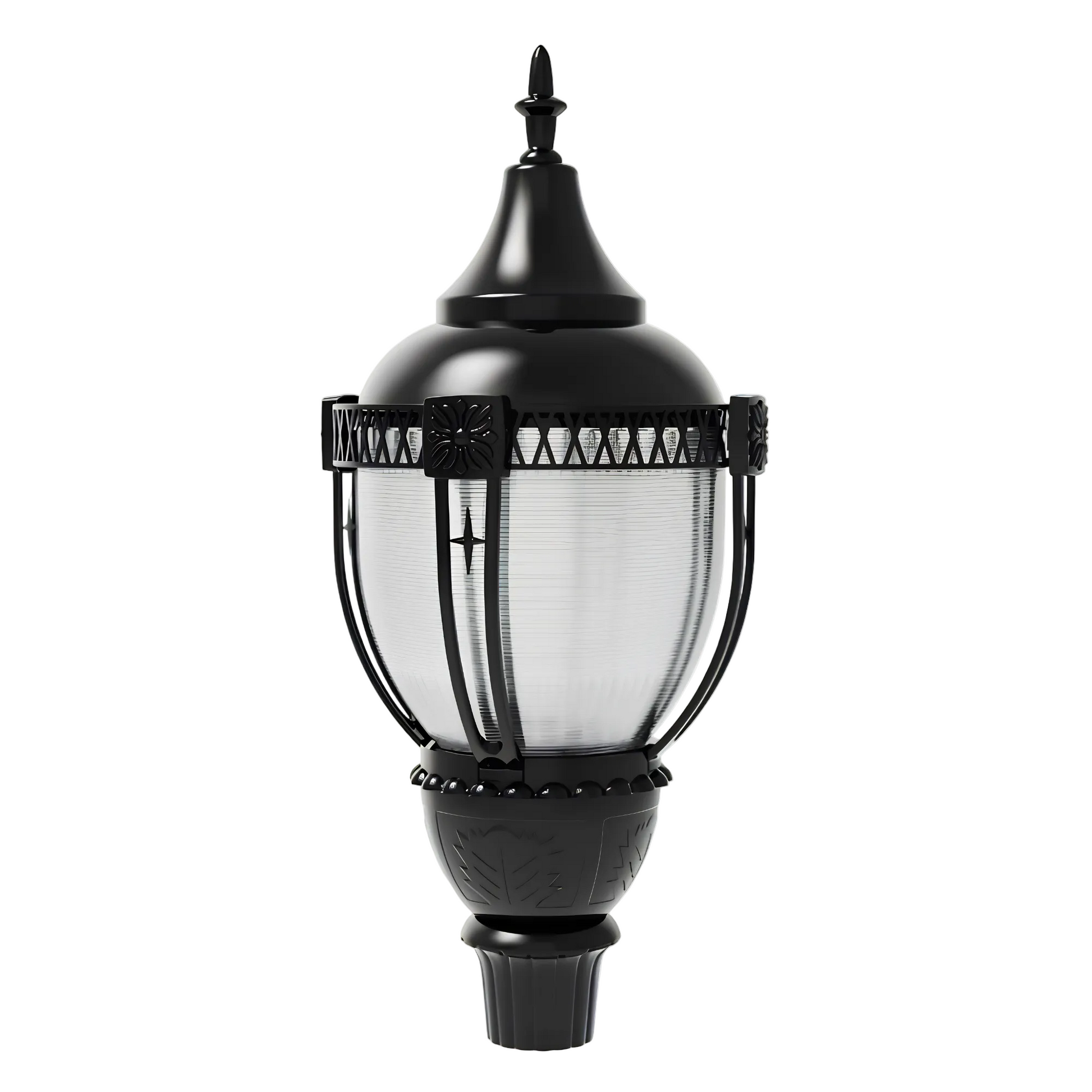

The NuGem Series LED Acorn Post Top Lantern is a decorative outdoor luminaire designed for parks, pathways, campuses, residential communities, and commercial landscapes.
Key Product Features:
-
Design & Construction: The fixture features a classic acorn lantern design with a heavy-duty die-cast aluminum housing, an anti-static powder coat finish, and a UV-shield prismatic polycarbonate lens.
-
Performance: It offers selectable wattage (60W/80W/100W) and color temperatures (3000K/4000K/5000K) to provide flexible lighting. The unit provides 360° light distribution with an efficacy of up to 140 lm/W.
-
Technical Specifications:
-
Input & Dimming: 120-277V with 0-10V dimming.
-
Environmental Rating: IP65 wet location rated, suitable for operation in temperatures ranging from -40°C to 45°C.
-
Lifetime: L70 rating of >50,000 hours.
- Mounting: Designed for 2-3/8" tenon pole mounts.
-
Input & Dimming: 120-277V with 0-10V dimming.
- Dimensions & Weight: The product dimensions are approximately 38.58"H x 17.52" diameter, with a net weight of 16.53 lbs.
