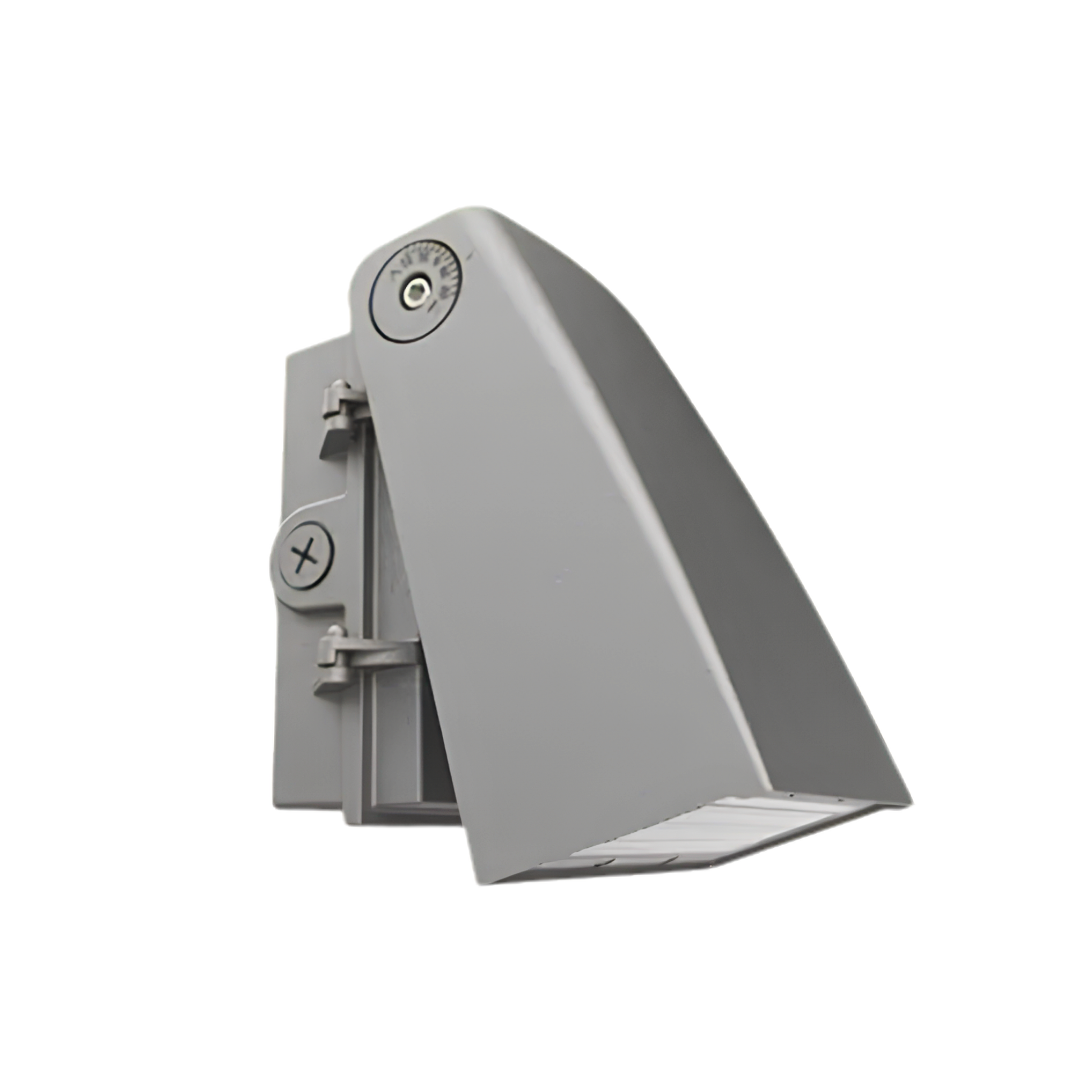

DuraGem Series LED Adjustable Cutoff Wall Pack

About DuraGem Series LED Adjustable Cutoff Wall Pack

The DuraGem Series LED Adjustable Cutoff Wall Pack is a versatile outdoor luminaire designed for commercial applications such as building exteriors, walkways, and perimeter security lighting.

Key Features and Technical Specifications:

• Performance: The series features selectable wattage (80W/100W/120W) and selectable color temperature (3000K/4000K/5000K). It provides 130 lm/W with a CRI >70.

• Construction: Units are built with a heavy-duty die-cast aluminum housing, a UV-resistant polyester finish, and a tempered glass lens.

• Optics and Controls: The fixture includes adjustable vertical beam positioning for optimized light distribution and offers an optional integrated photocell for dusk-to-dawn operation.

• Electrical: It supports 120-277V input with 0-10V dimming. Electrical performance includes a power factor >0.9 and THD <15%.

• Environmental and Lifetime: Rated for wet locations with an operating range of -40°C to 45°C, the product has an L70 lifetime rating of over 50,000 hours.

• Dimensions: All models measure 14.21"L x 9.27"W x 7.31"D.

Certifications and Warranty:

The product is UL listed, DLC Premium listed, RoHS compliant, and IP65 rated.
It comes with a 5-year warranty.
