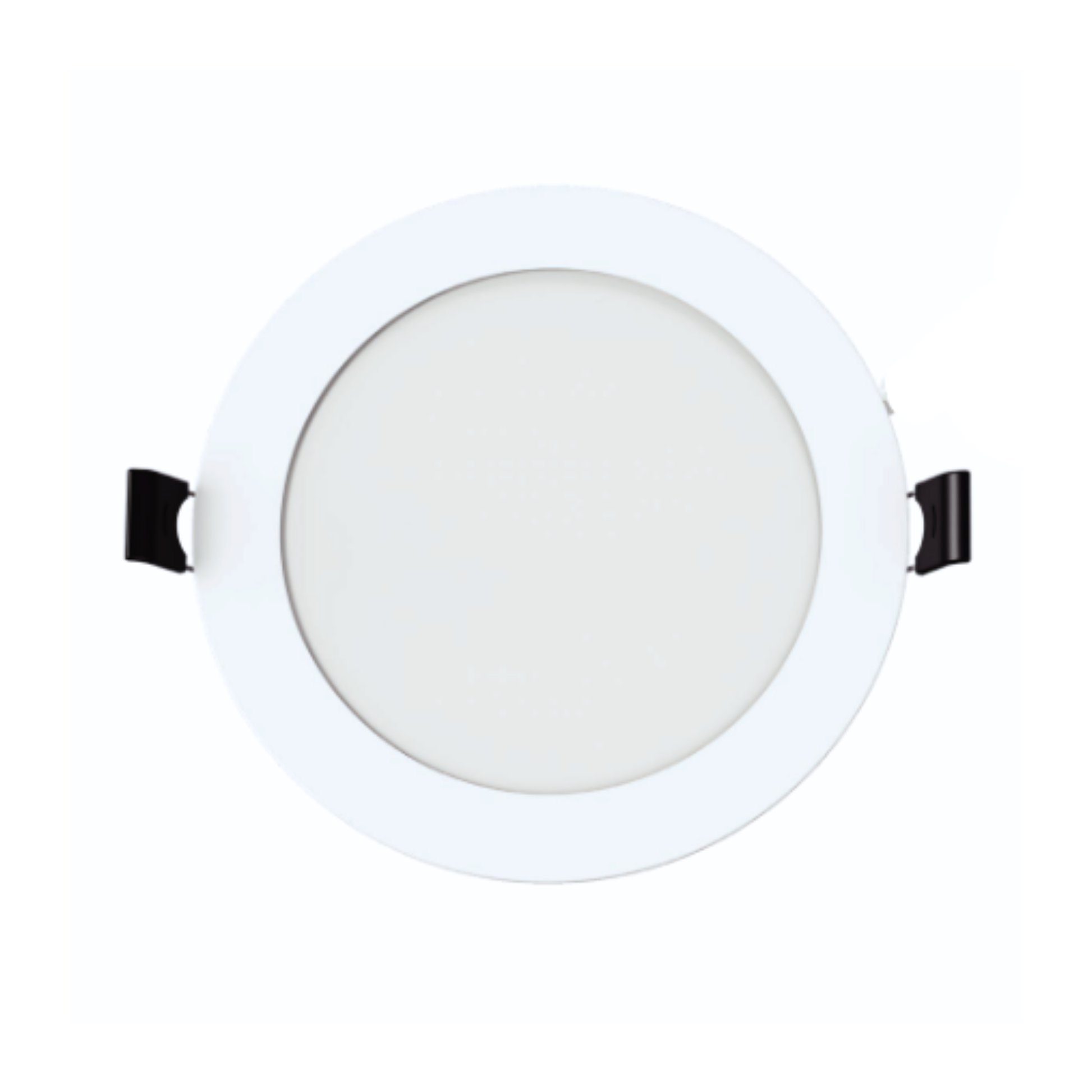

About SlimBeam Series LED Round Panel Light

SlimBeam Series LED Round Panel Light deliver adaptable, high-efficiency illumination for today’s commercial spaces. Available in 4-inch, 6-inch, 8-inch, and 10-inch sizes, these fixtures fit standard ceiling cutouts—making them a versatile choice for offices, retail stores, hospitality projects, and more. As part of our broader commercial indoor lighting portfolio, SlimBeam Series supports a wide range of applications and is specified on projects nationwide. NCLTG designs each panel light with the same focus on performance, efficiency, and long-term reliability that defines our entire product line.

Each downlight offers wattage selectable from 12W to 30W and color temperature tuning between 2700K and 5000K, allowing contractors and facility managers to set the right light levels on-site. With Energy Star certification and efficacy up to 139 lumens per watt, SlimBeam Series help reduce operating costs while maintaining professional-grade brightness and comfort.

Durably built with die-cast aluminum housing and a polycarbonate lens, these commercial recessed lights carry a wet-location IP54 rating for dependable performance in demanding environments. Backed by an L70 lifetime of 50,000+ hours, they minimize maintenance and deliver long-lasting, uniform illumination for modern ceilings.



Product Identification Technical Specifications
Size: 4"
Order Code: 32-0301
Model: NC-SDL01-4-9W-CCT
Power: 9W (Cutout: 4-1/4 in)
Efficiency: >82 LM/W
Voltage: 100-130 Vac
LED Type: 2835
CCT: 5CCT Adj. (2700K-5000K)
CRI: >90 | Beam: 110°
Certifications: ETL, Energy Star, JA8, FCC
Size: 6"
Order Code: 32-0302
Model: NC-SDL01-6-12W-CCT
Power: 12W (Cutout: 6-1/4 in)
Efficiency: >82 LM/W
Voltage: 100-130 Vac
LED Type: 2835
CCT: 5CCT Adj. (2700K-5000K)
CRI: >90 | Beam: 110°
Certifications: ETL, Energy Star, JA8, FCC
Size: 8"
Order Code: 32-0303
Model: NC-SDL01-8-18W-CCT
Power: 18W (Cutout: 8-1/4 in)
Efficiency: >82 LM/W
Voltage: 100-130 Vac
LED Type: 2835
CCT: 5CCT Adj. (2700K-5000K)
CRI: >90 | Beam: 110°
Certifications: ETL, Energy Star, JA8, FCC

SlimBeam Series LED Round Panel Light (5CCT Selectable) FAQs

What Are SlimBeam Series LED Round Panel Light (5CCT Selectable) Downlights?

SlimBeam Series LED Round Panel Light (5CCT Selectable) are energy-efficient recessed fixtures designed to provide uniform, bright illumination across a range of commercial environments. These downlights are ideal for offices, retail spaces, hospitality areas, and other professional settings.

Where Can SlimBeam Series LED Round Panel Light (5CCT Selectable) Be Used?

SlimBeam Series LED Round Panel Light (5CCT Selectable) are ideal for a wide range of commercial applications, including:

  • Offices
  • Retail environments
  • Hospitals and hospitality areas
  • Common areas such as lobbies and hallways

How Do I Choose the Right Wattage and Color Temperature for SlimBeam Series LED Round Panel Light (5CCT Selectable)?

Choosing the appropriate wattage and color temperature depends on your space’s size and function. Higher wattages, such as 30W, are suited for larger areas or spaces that need brighter illumination, while 12W or 16W models work well in smaller rooms. For color temperature, 4000K to 5000K is commonly selected for workspaces requiring bright, clear light, whereas 2700K and 3000K create a warm, inviting ambiance ideal for relaxation or hospitality settings.

Are SlimBeam Series LED Round Panel Light (5CCT Selectable) Dimmable?

Yes, SlimBeam Series LED Round Panel Light (5CCT Selectable) are compatible with 0–10V dimming systems, providing flexible lighting control and energy savings across a variety of commercial environments.

What Certifications Do SlimBeam Series LED Round Panel Light (5CCT Selectable) Have?

SlimBeam Series LED Round Panel Light (5CCT Selectable) are UL listed, DLC Premium certified, and IP54 rated for wet locations. These certifications ensure the fixtures meet stringent safety, energy efficiency, and durability standards required for commercial applications.

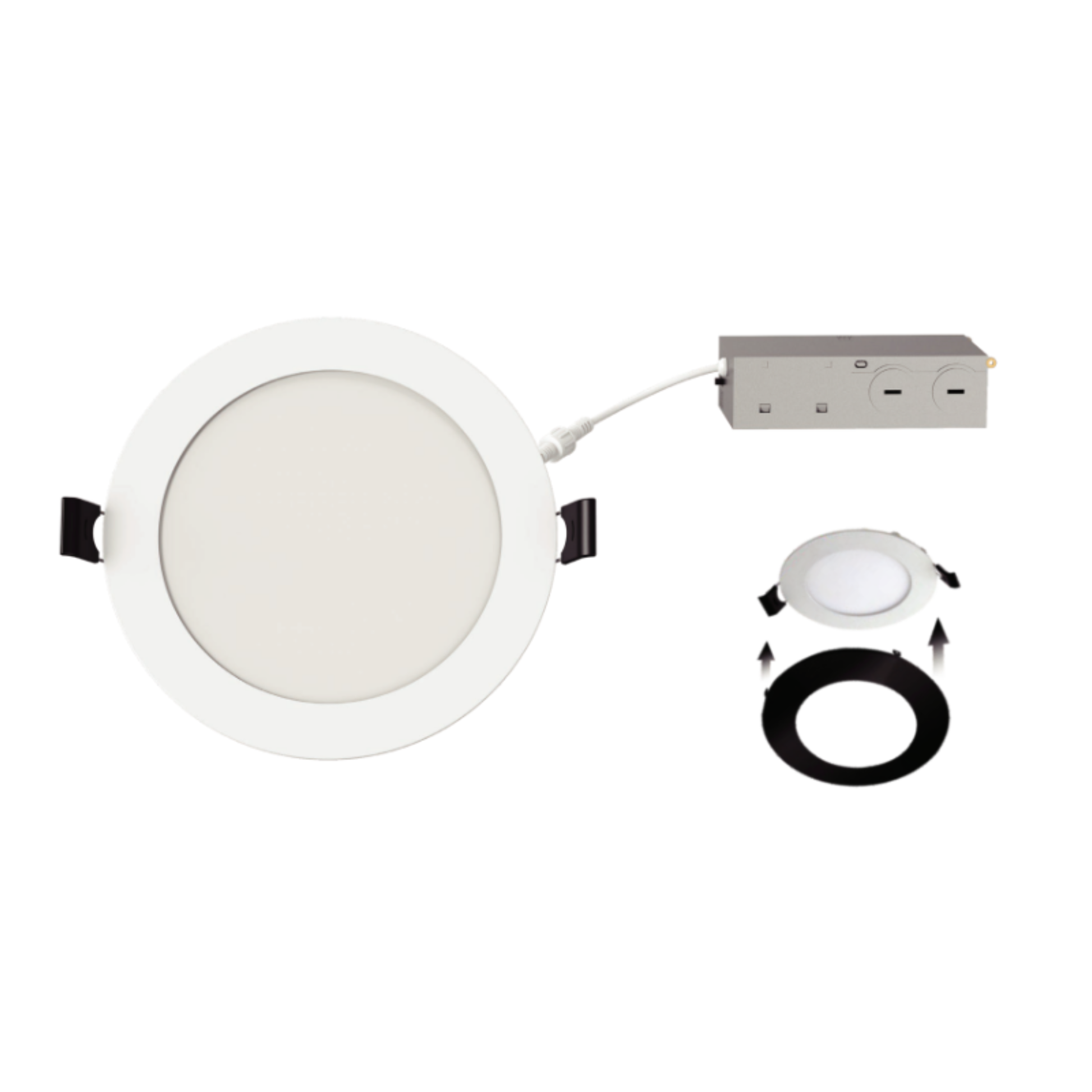

How Do I Install SlimBeam Series LED Round Panel Light (5CCT Selectable)?

SlimBeam Series LED Round Panel Light (5CCT Selectable) include all necessary mounting hardware for straightforward installation. Fixtures secure into the ceiling using spring clips and connect via the attached MC whip/junction box for a quick, reliable setup.
