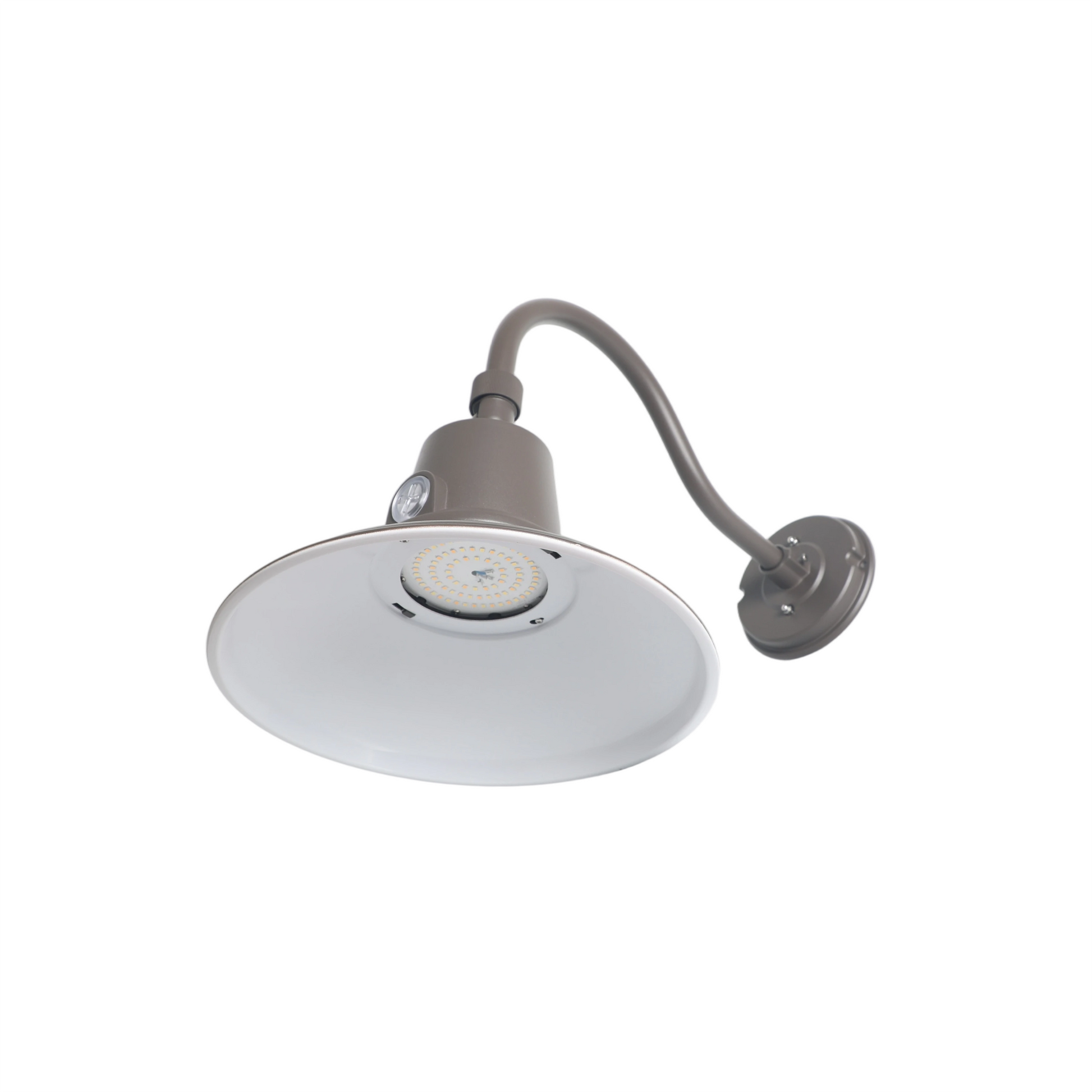

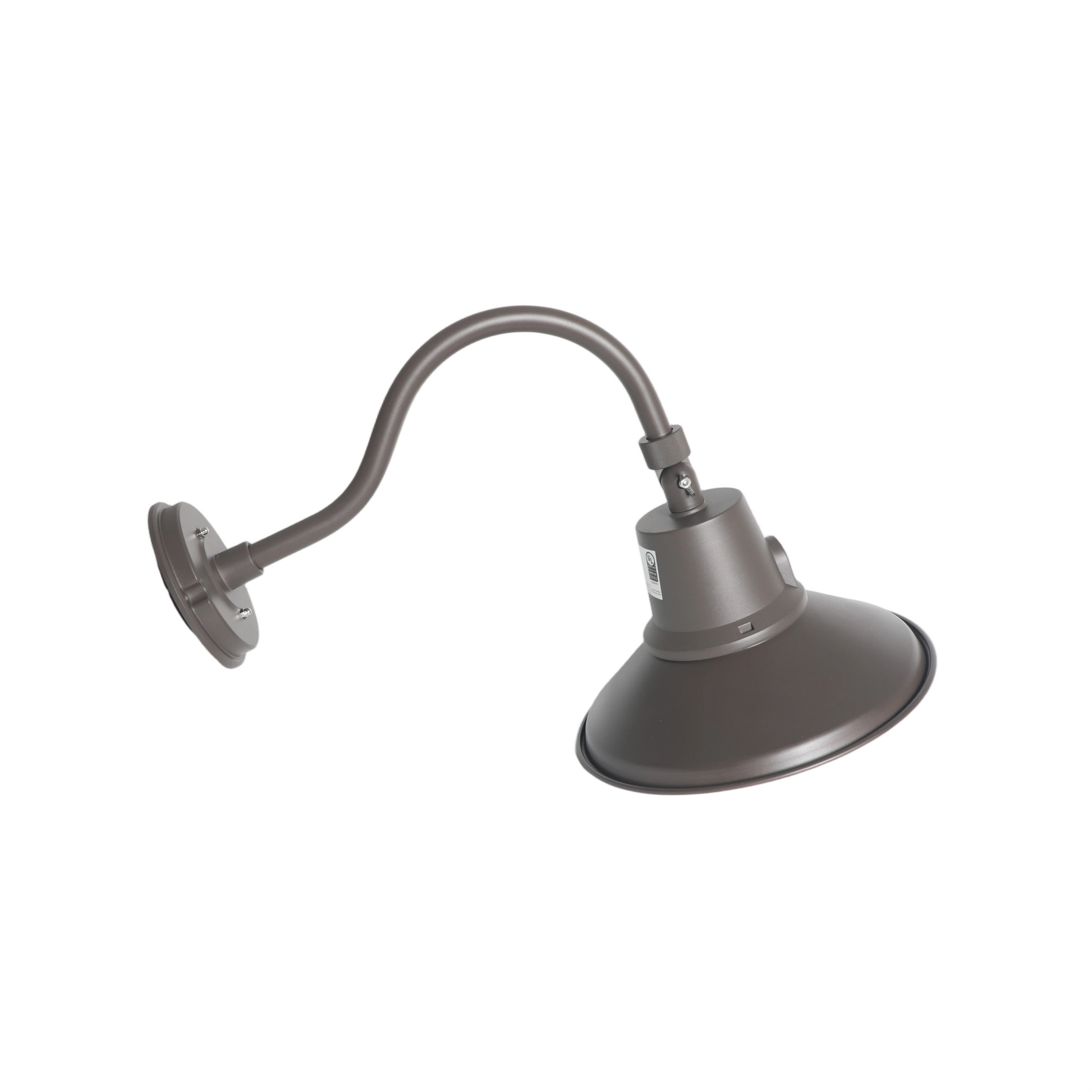

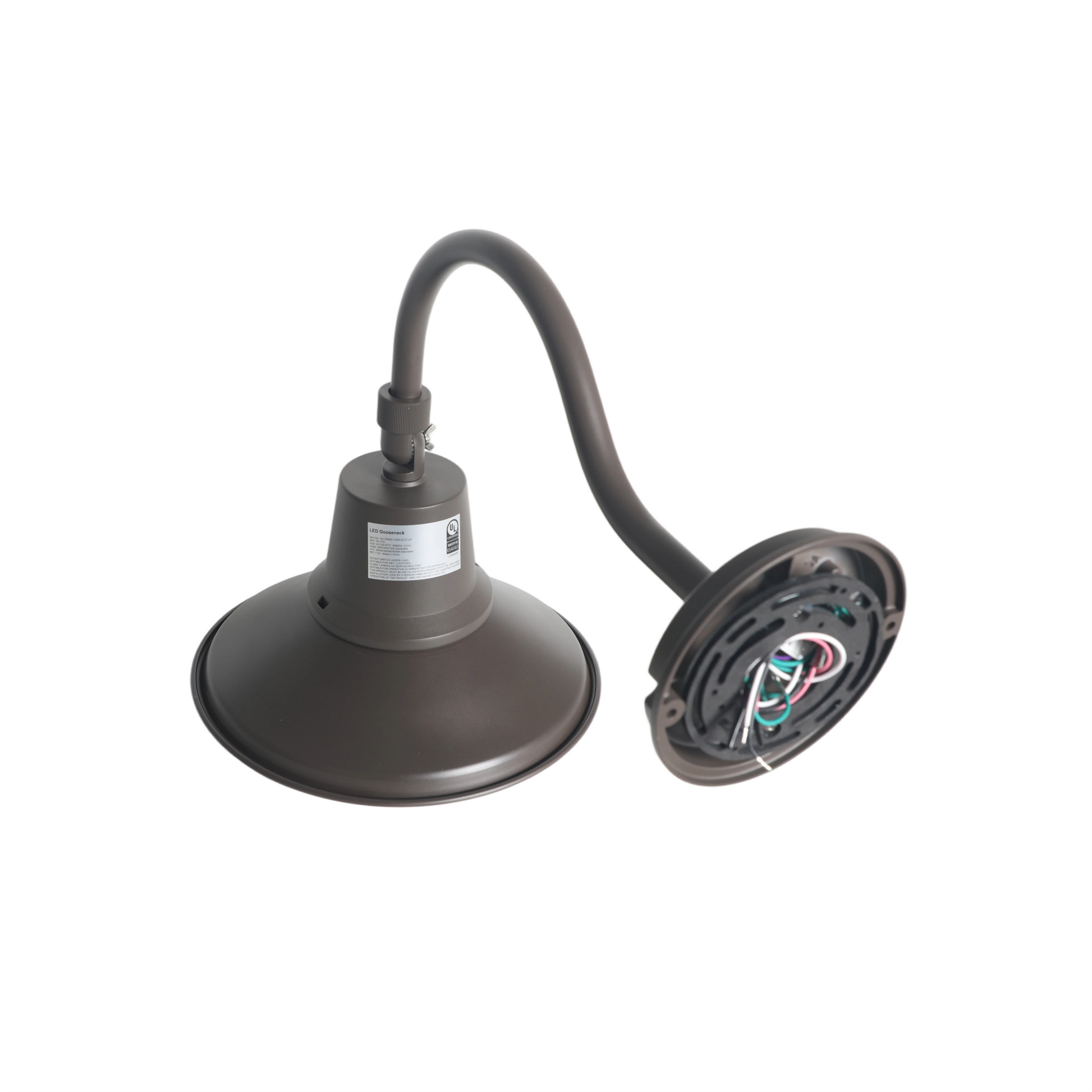

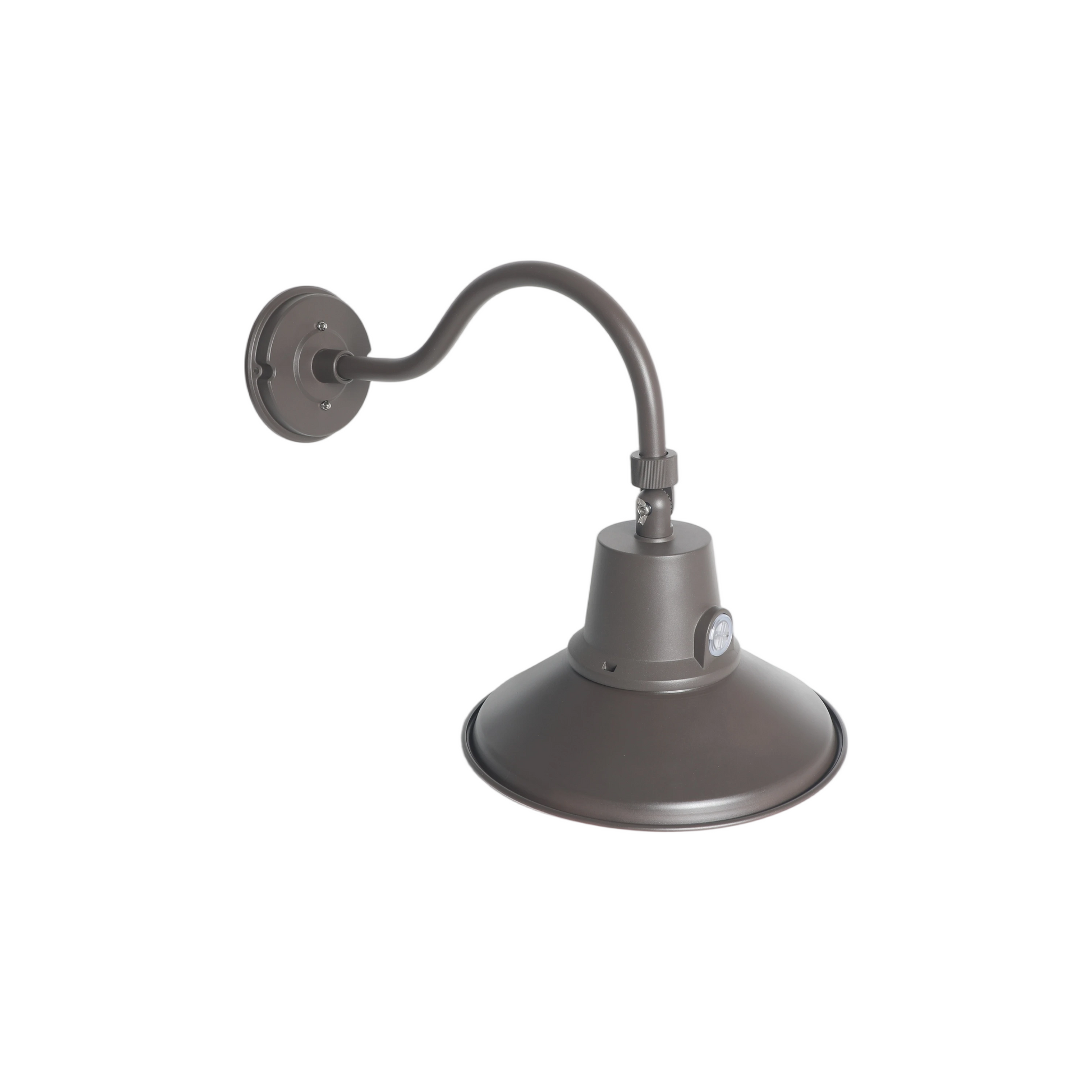

BarnCrest Series LED G2 Gooseneck Barn Light Fixture
BarnCrest Series LED G2 Gooseneck Barn Light Fixture
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Instructions
Installation Instructions
Warranty
Warranty

Product Overview
The BarnCrest Series LED G2 Gooseneck Barn Light Fixture combines classic barn-style aesthetics with modern LED performance to deliver reliable, high-quality outdoor illumination. Featuring a traditional gooseneck design and durable bronze housing, this fixture offers selectable wattage and color temperature options for added flexibility across applications. Wide voltage compatibility and 0–10V dimming allow for seamless integration into both new and retrofit projects, making it a practical and visually appealing exterior lighting solution.
Application
The BarnCrest Series LED G2 Gooseneck Barn Light Fixture is commonly used for outdoor and large-area lighting applications where consistent illumination and architectural character are desired. Typical uses include lawns, alleys, loading and docking areas, building entrances, doorways, pathways, and open outdoor spaces such as stadiums and recreational facilities, providing dependable lighting coverage while enhancing overall site appearance.
Product Details & Ordering Information
BarnCrest Series LED G2 Gooseneck Barn Light Fixture — Selectable 100W–150W, 17000–25500 Lumens, 3000K–5000K CCT, 120–277V
| Order Code: | 311100 |
| DLC Product ID: | S-WVVT3Q |
| Model Number: | NC-AL150W-3CCT-T3 |
| Wattage: | 100W, 120W, 150W |
| Voltage: | 120-277V |
| Lumens: | 17000, 20400, 25500 |
| Efficacy: | 170 lm/W |
| CCT: | 3000K, 4000K, 5000K |
| Dimming: | 0-10V |
| Dimensions: | 16.63"L x 8.66"W x 2.07"H |
BarnCrest Series LED G2 Gooseneck Barn Light Fixture FAQs
What Are BarnCrest Series LED G2 Gooseneck Barn Light Fixture?
BarnCrest Series LED G2 Gooseneck Barn Light Fixture are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.
Where Can BarnCrest Series LED G2 Gooseneck Barn Light Fixture Be Used?
BarnCrest Series LED G2 Gooseneck Barn Light Fixture are suitable for a wide range of outdoor environments, including:
- Parking lots
- Building exteriors
- Walkways and pathways
- Commercial and industrial properties
- Residential homes and gardens
How Do I Choose the Right Wattage and Color Temperature for BarnCrest Series LED G2 Gooseneck Barn Light Fixture?
Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.
Are BarnCrest Series LED G2 Gooseneck Barn Light Fixture Dimmable?
Yes, BarnCrest Series LED G2 Gooseneck Barn Light Fixture are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.
What Certifications Do BarnCrest Series LED G2 Gooseneck Barn Light Fixture Have?
BarnCrest Series LED G2 Gooseneck Barn Light Fixture are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.
How Do I Install BarnCrest Series LED G2 Gooseneck Barn Light Fixture?
BarnCrest Series LED G2 Gooseneck Barn Light Fixture include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
