NCLTG

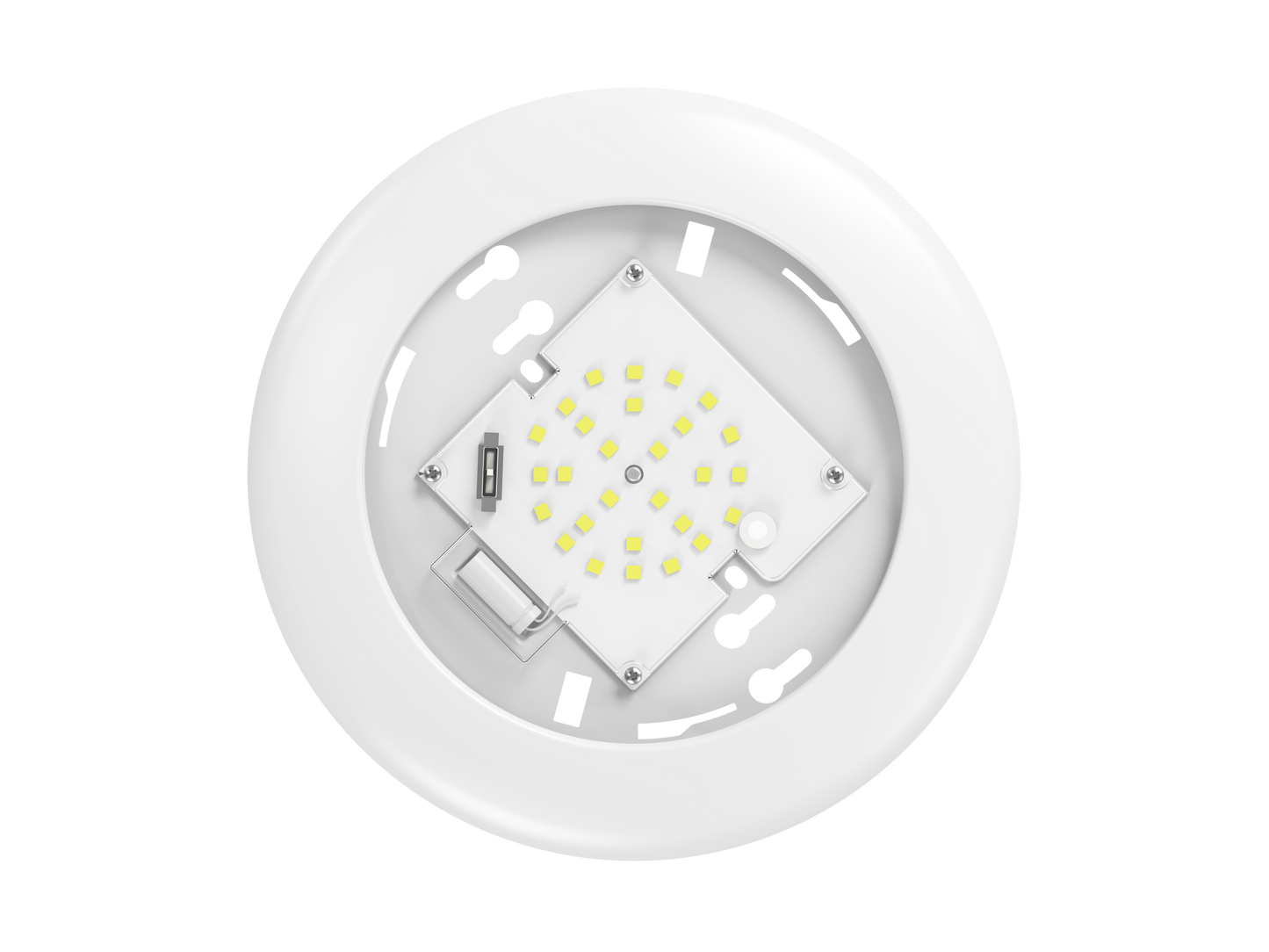

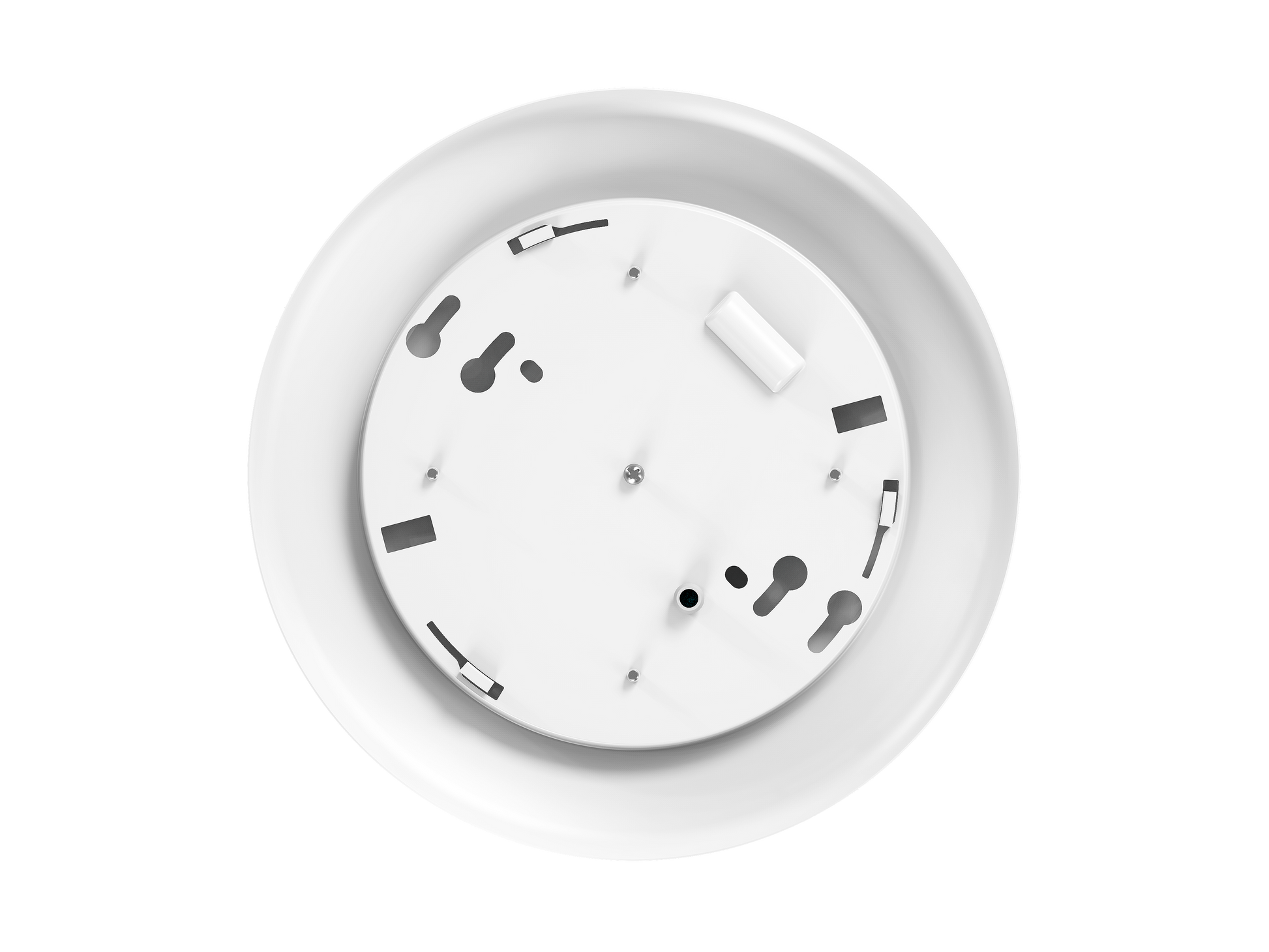

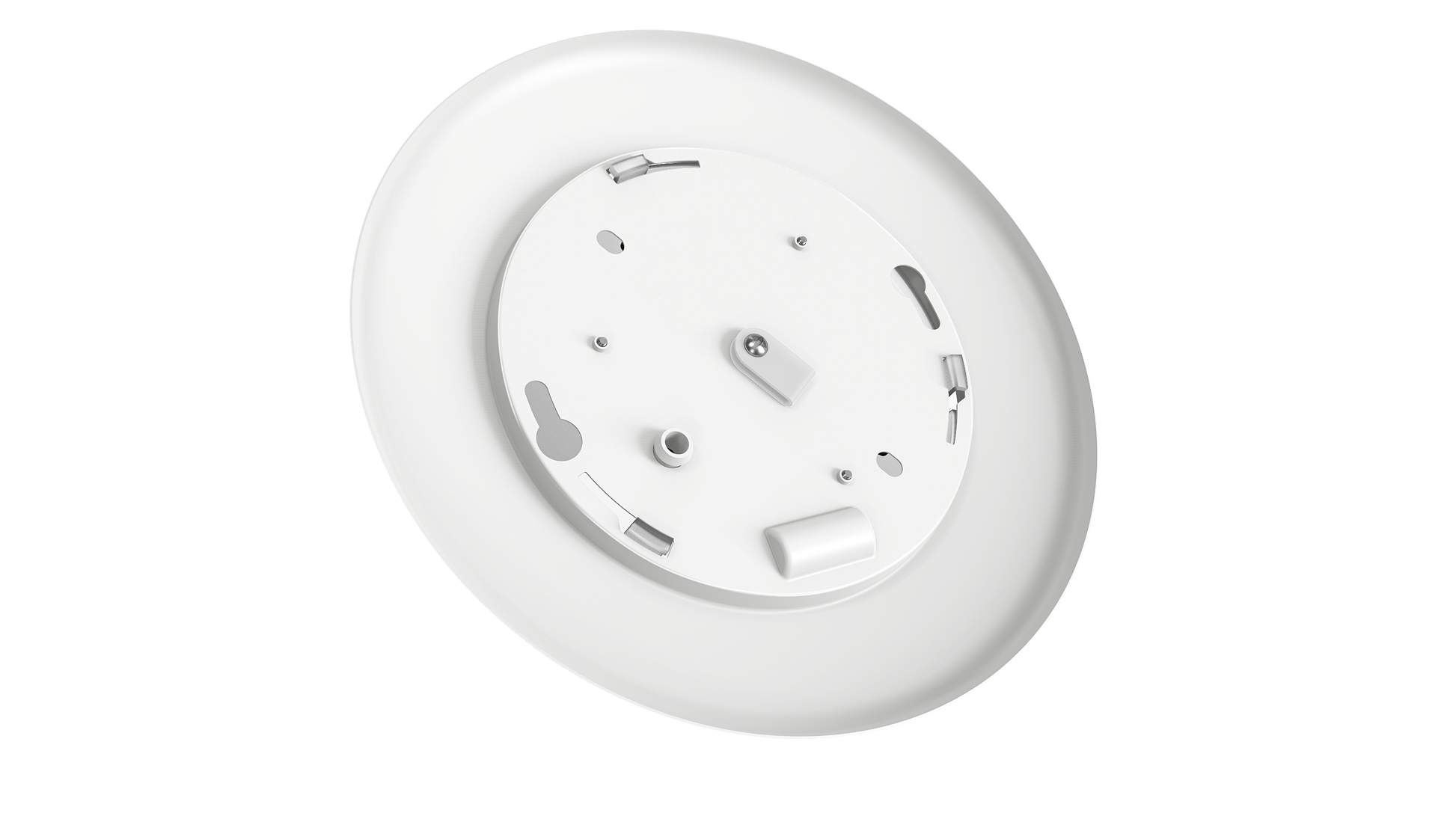

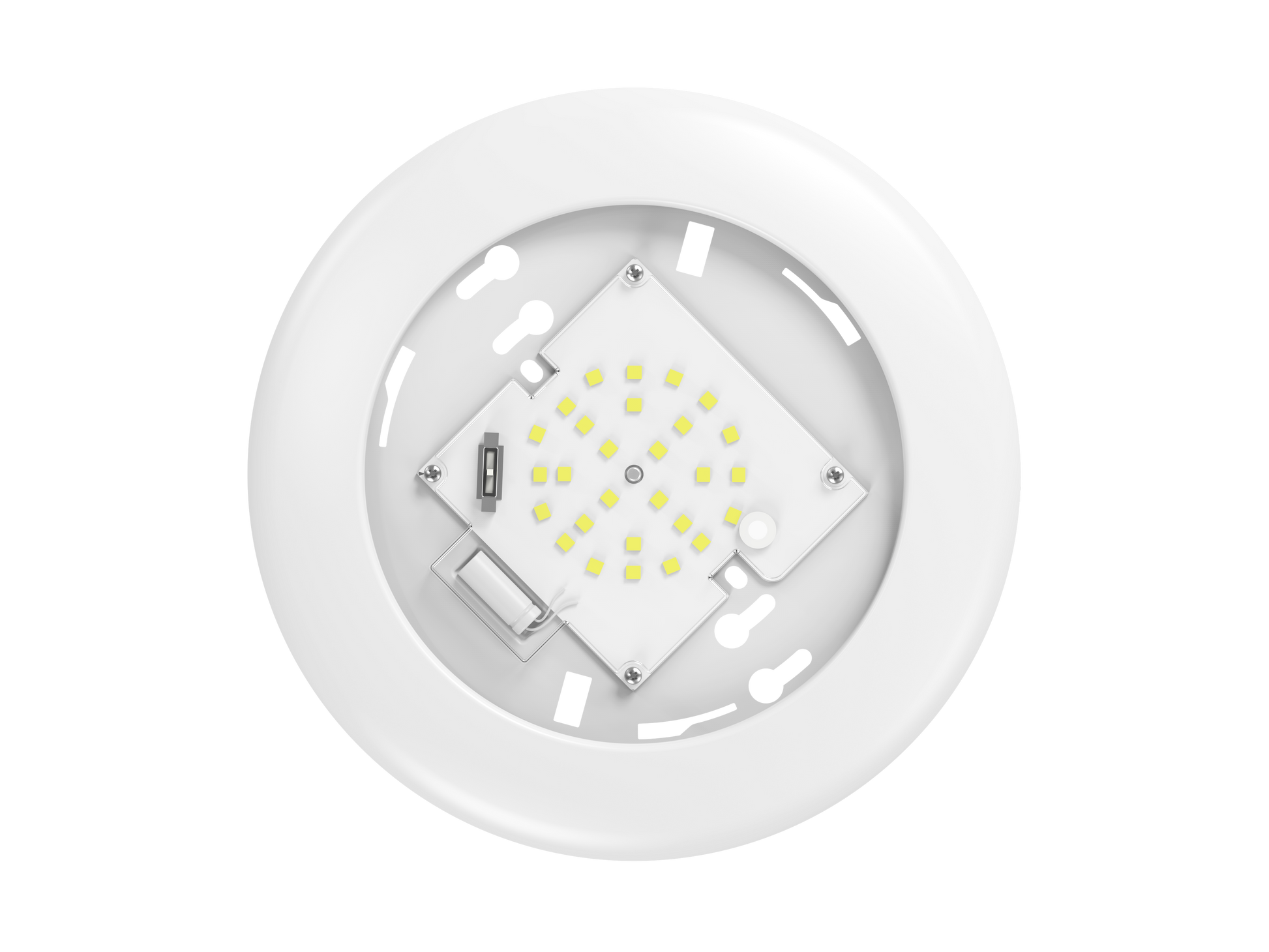

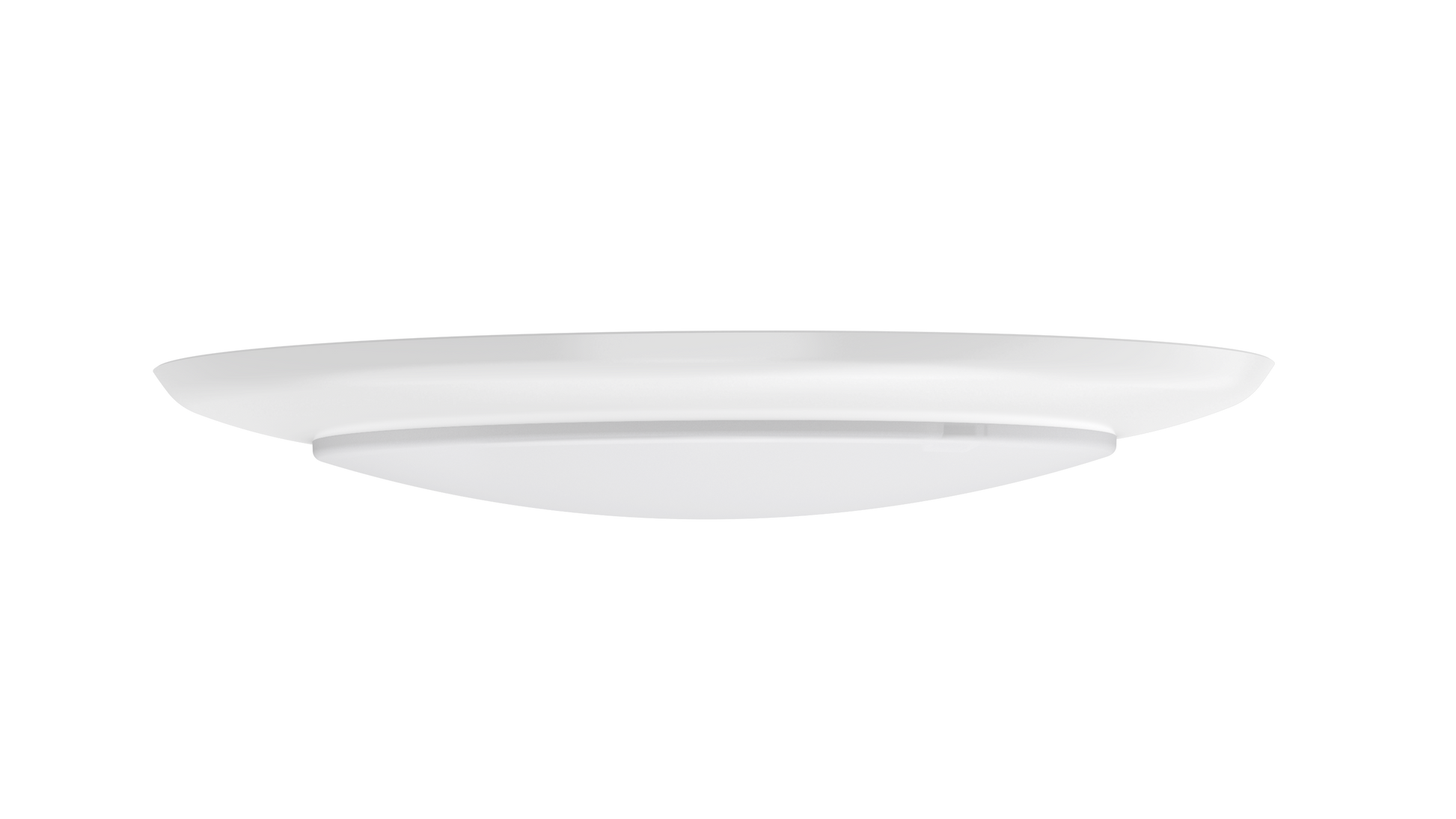

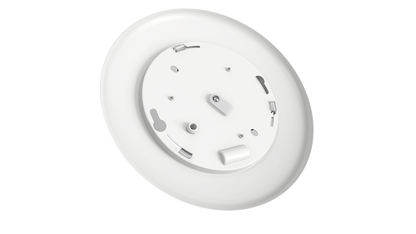

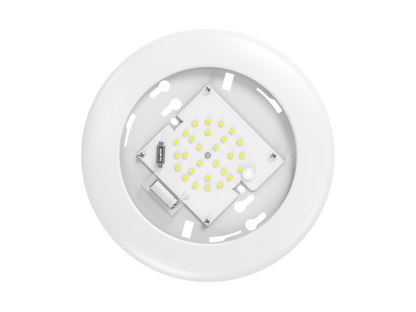

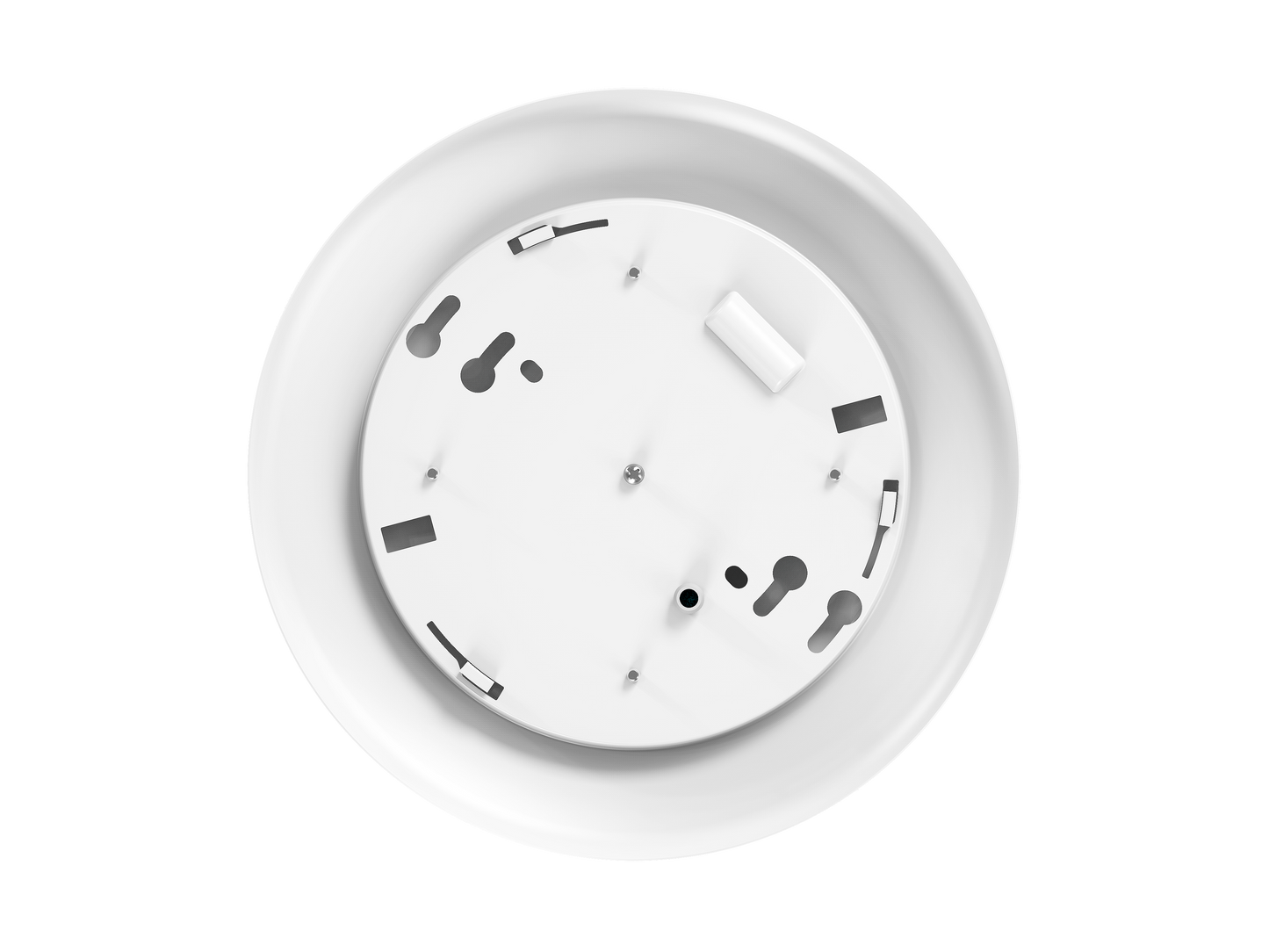

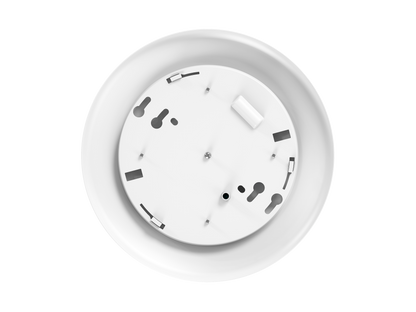

DiskLine Series LED Round Disc Downlight
DiskLine Series LED Round Disc Downlight
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Instructions
Installation Instructions
Share

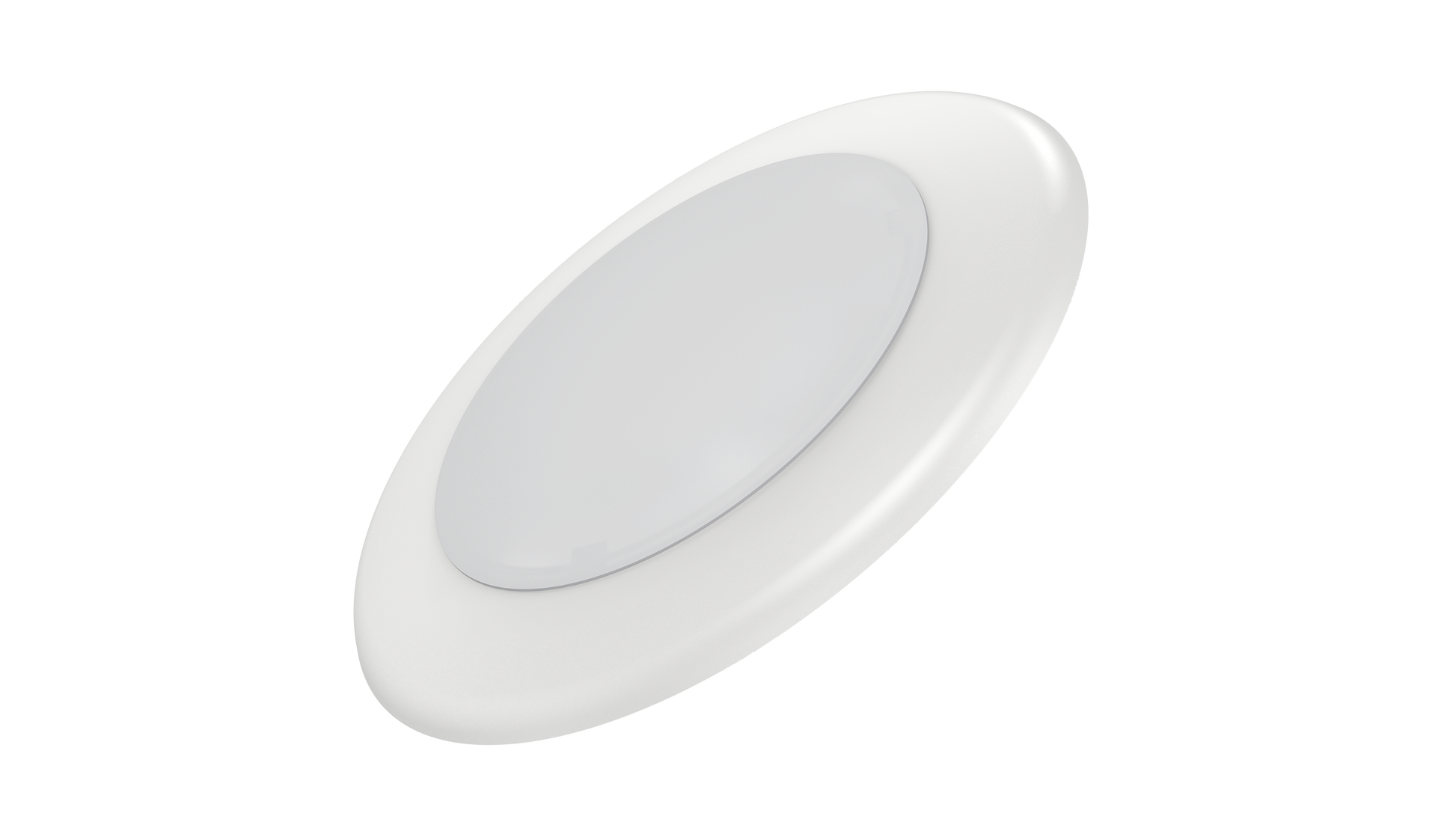

About DiskLine Series LED Round Disc Downlight
DiskLine Series LED Round Disc Downlight — Premium Low-Profile Recessed & Surface Mount Lighting Transform your interior spaces with the DiskLine Series LED Round Disc Downlight, the modern solution for residential and commercial lighting. This ultra-slim, low-profile downlight delivers a sleek ceiling appearance while fitting seamlessly into shallow ceiling conditions. Designed for versatility, the DiskLine works with 4-inch, 5-inch, and 6-inch recessed housings and standard junction boxes, making it ideal for retrofits and new installations. Perfect for hotels, corridors, shopping malls, exhibition rooms, and residential interiors, this fixture replaces traditional surface-mounted and recessed downlights with contemporary efficiency. Key Features: Ultra-Slim Disc Design — Clean, modern profile that enhances any ceiling aesthetic while accommodating tight spaces. 5 Selectable Color Temperatures — Integrated CCT dial lets you choose the perfect warmth for any environment, from warm residential tones to bright commercial settings. High Color Rendering (CRI 90) — Enhanced color accuracy ensures true-to-life lighting in retail, galleries, and design-focused spaces. Advanced Thermal Management — Spinning iron heat sink maximizes heat dissipation for extended fixture lifespan and reliable performance. Dimmable Compatibility — Full 10-100% dimming control with most standard dimmers, including Lutron models, for complete lighting flexibility. Low-glare general lighting that combines style, performance, and adaptability for any interior application.
Specifications
| Order Code | 32-0401 | 32-0402 |
| Model Number | NC-DSK01-4-10W-CCT | NC-SDL01-6-15W-CCT |
| Size | 4” | 6” |
| CCT | 2700K, 3000K, 3500K, 4500K, 5000K | 2700K, 3000K, 3500K, 4000K, 5000K |
| Lumen(lm)(±10%) | 820, 830, 900, 850, 830 | 1230, 1250, 1350, 1300, 1250 |
| Power(w)(±10%) | 10W | 15W |
| Beam(angle) | 110° | 110° |
| LED Type | 2835 | 2835 |
| LED QTY | Warm White 2835*14 Cold White 2835*14 | Warm White 2835*14 Cold White 2835*14 |
| Voltage, Frequency | AC120V/60Hz | AC120V/60Hz |
| CRI | ≥90 | ≥90 |
| PF | >0.9 | >0.9 |
| Dimming Type | Triac dimmable | Triac dimmable |
| Control Method | Change color temperature by dial switch | Change color temperature by dial switch |
NC-DSK01-4-10W-CCT, NC-SDL01-6-15W-CCT,
DiskLine Series LED Round Disc Downlight FAQs
What Are DiskLine Series LED Round Disc Downlight Downlights?
DiskLine Series LED Round Disc Downlight Downlights are energy-efficient recessed fixtures designed to provide uniform, bright illumination across a range of commercial environments. These downlights are ideal for offices, retail spaces, hospitality areas, and other professional settings.
Where Can DiskLine Series LED Round Disc Downlight Downlights Be Used?
DiskLine Series LED Round Disc Downlight Downlights are ideal for a wide range of commercial applications, including:
- Offices
- Retail environments
- Hospitals and hospitality areas
- Common areas such as lobbies and hallways
How Do I Choose the Right Wattage and Color Temperature for DiskLine Series LED Round Disc Downlight Downlights?
Choosing the appropriate wattage and color temperature depends on your space’s size and function. Higher wattages, such as 30W, are suited for larger areas or spaces that need brighter illumination, while 12W or 16W models work well in smaller rooms. For color temperature, 4000K to 5000K is commonly selected for workspaces requiring bright, clear light, whereas 2700K and 3000K create a warm, inviting ambiance ideal for relaxation or hospitality settings.
Are DiskLine Series LED Round Disc Downlight Dimmable?
Yes, DiskLine Series LED Round Disc Downlight are compatible with 0–10V dimming systems, providing flexible lighting control and energy savings across a variety of commercial environments.
What Certifications Do DiskLine Series LED Round Disc Downlight Have?
HDiskLine Series LED Round Disc Downlight are UL listed, DLC Premium certified, and IP54 rated for wet locations. These certifications ensure the fixtures meet stringent safety, energy efficiency, and durability standards required for commercial applications.
How Do I Install DiskLine Series LED Round Disc Downlight?
DiskLine Series LED Round Disc Downlight include all necessary mounting hardware for straightforward installation. Fixtures secure into the ceiling using spring clips and connect via the attached MC whip/junction box for a quick, reliable setup.
