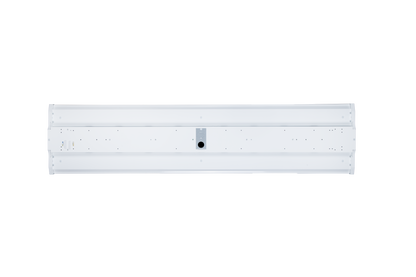

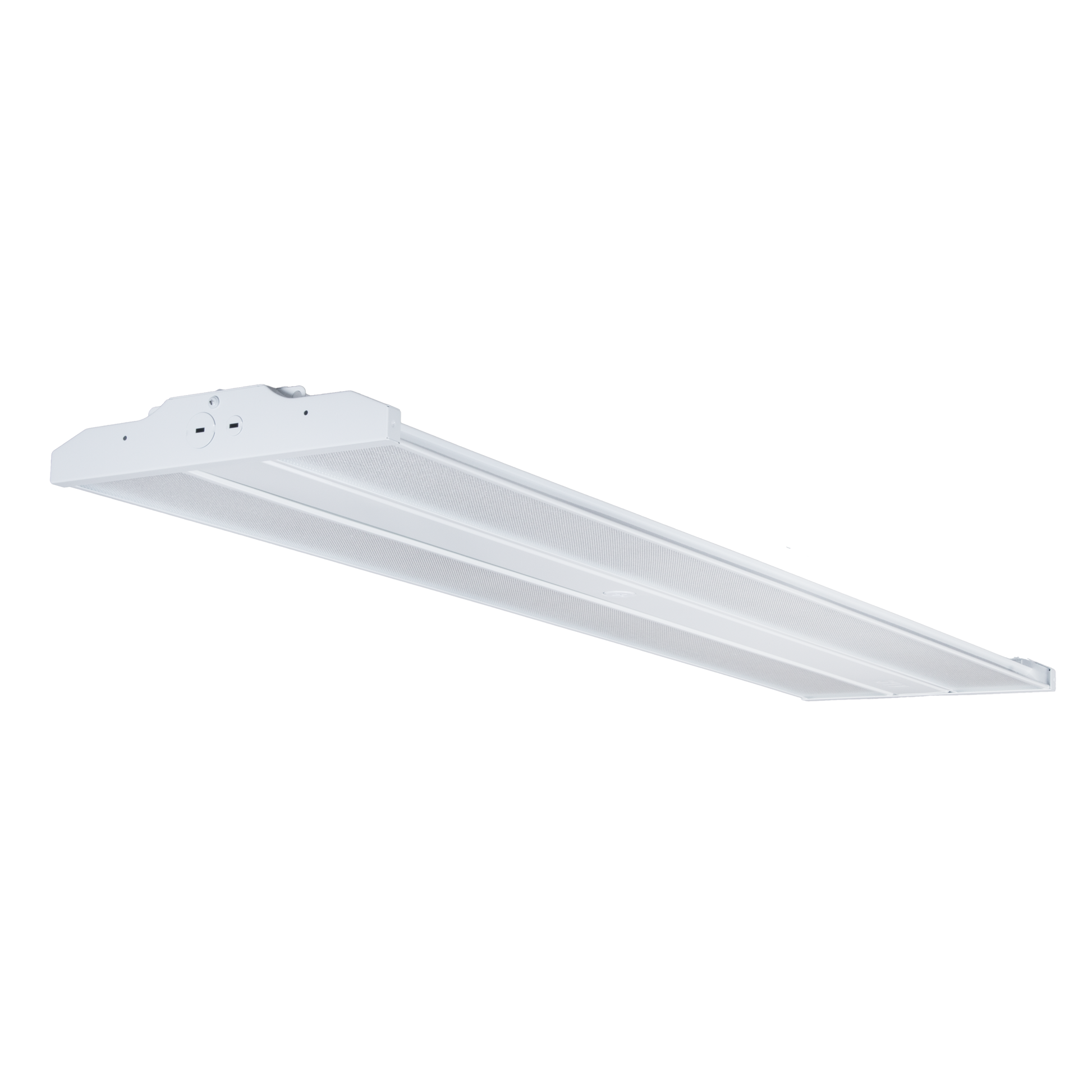

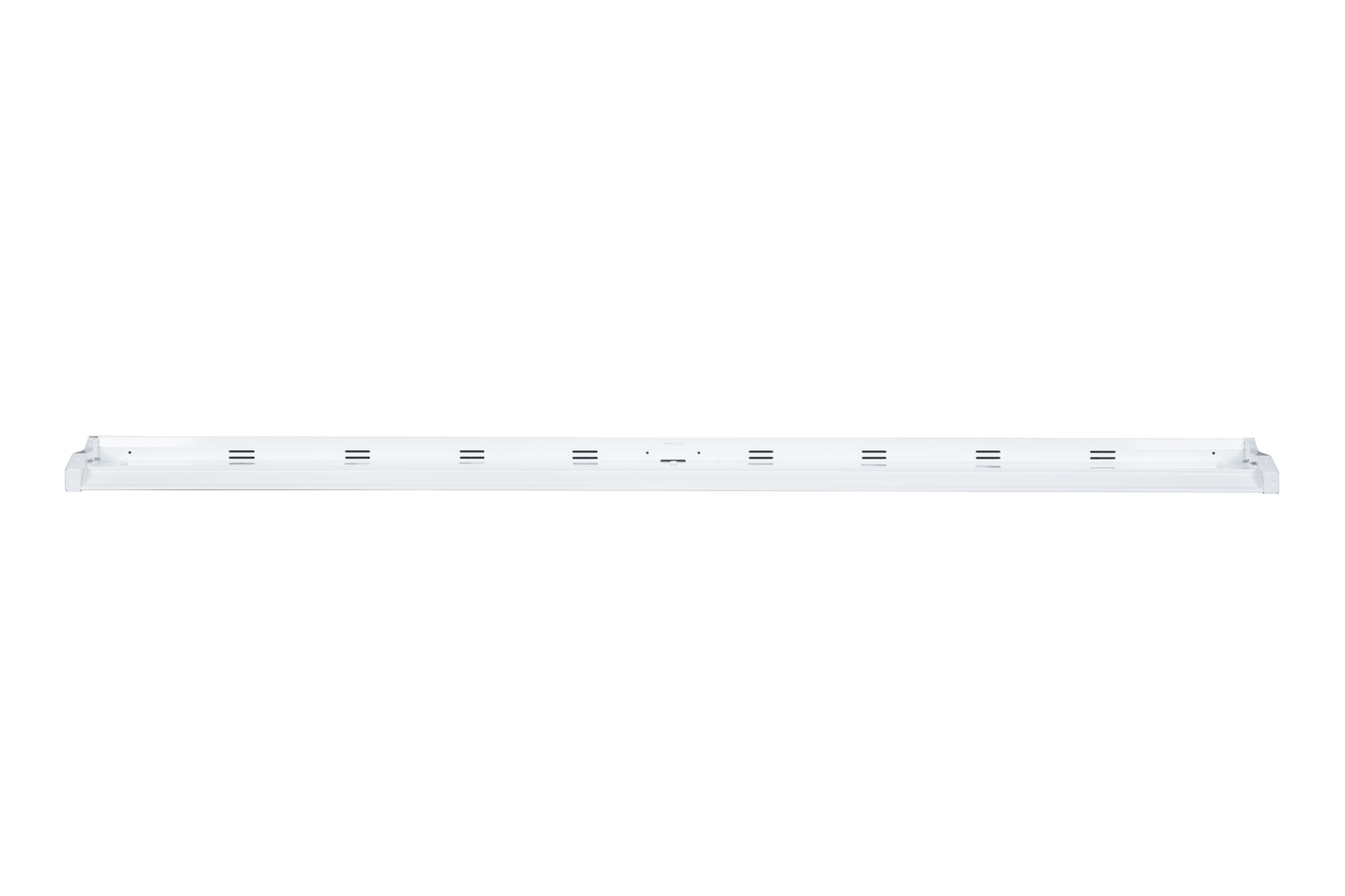

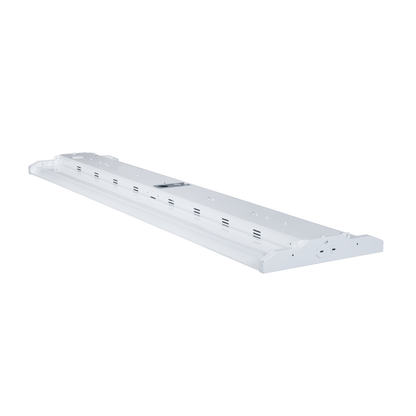

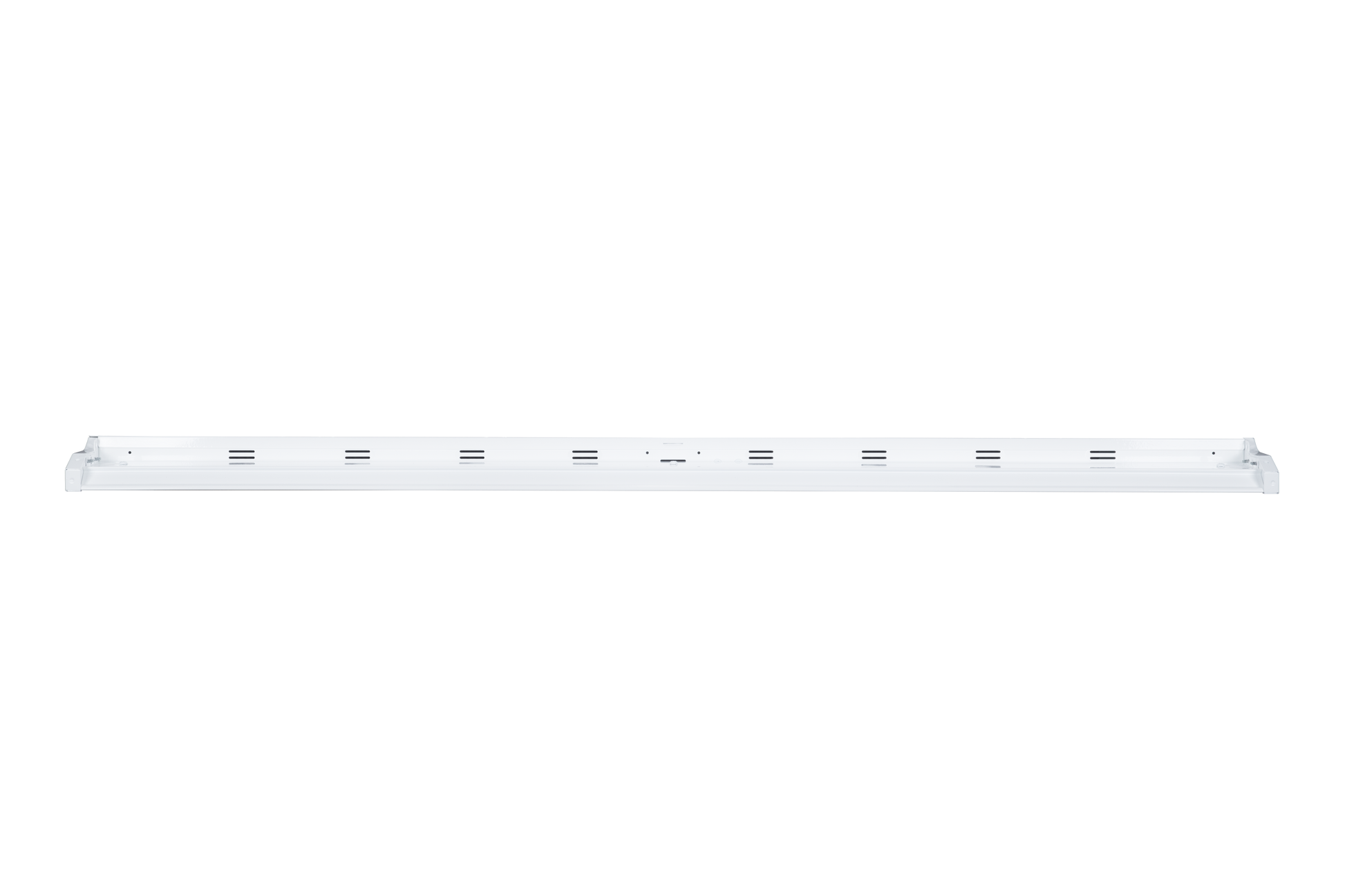

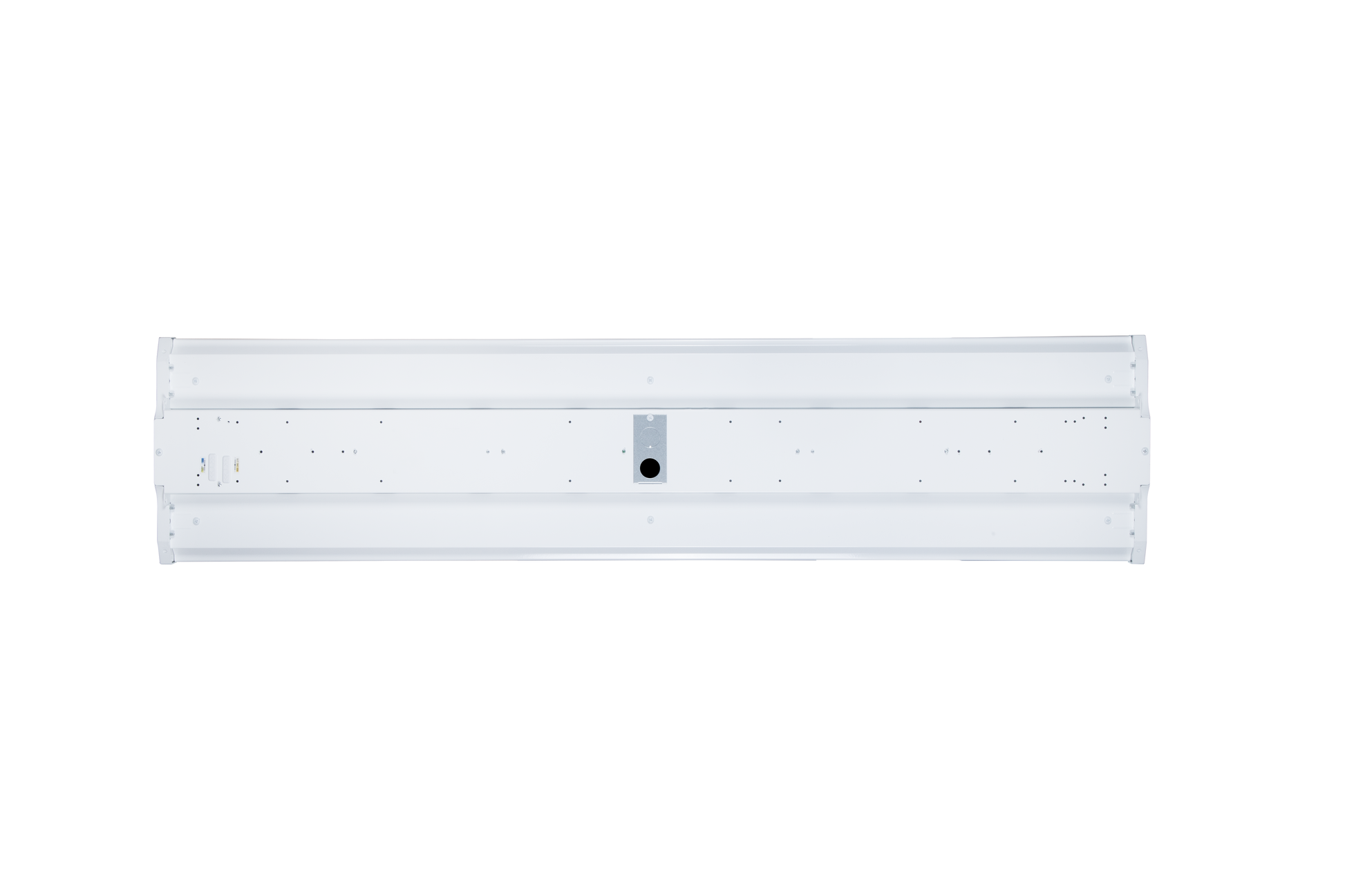

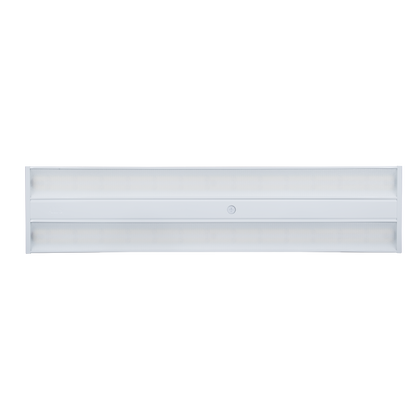

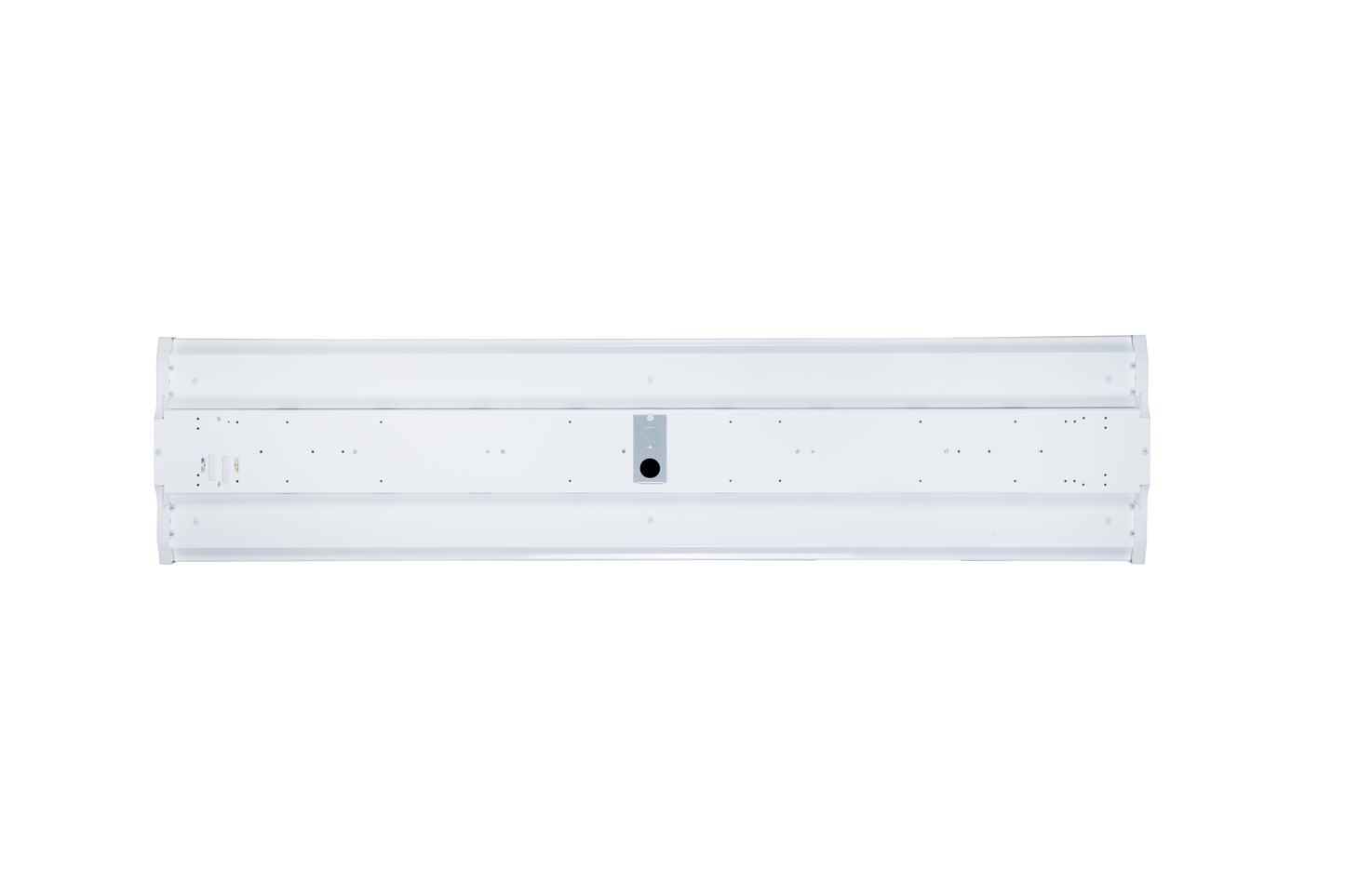

Gemini Series LED Linear High Bay Fixture
Gemini Series LED Linear High Bay Fixture
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Instructions
Installation Instructions
Share

About Gemini Series LED Linear High Bay Fixture
Compact, High-Performance Industrial Lighting The Gemini Series LED Linear High Bay delivers powerful, efficient illumination for high-ceiling warehouses, distribution centers, and manufacturing facilities. This compact industrial fixture combines versatile performance with intelligent design, making it ideal for demanding commercial environments. Engineered for flexibility, the Gemini Series features selectable power configurations to match your specific ceiling height and layout requirements. The durable sheet metal housing and polycarbonate lens ensure uniform light distribution and reliable long-term operation in tough industrial settings. Key Features: Compact linear design maximizes performance without sacrificing space efficiency Multiple wattage options for customized lighting solutions across different applications Sensor-ready with pre-installed 12V AUX receptacle for seamless integration with lighting controls and occupancy sensors Configurable light distribution — choose between general or aisle-specific lighting patterns 6kV surge protection for stable operation in electrically demanding environments Suspended or surface-mounted installation options Perfect for warehouses, manufacturing plants, and any high-ceiling space requiring consistent, energy-efficient LED illumination. The Gemini Series combines industrial-grade durability with smart adaptability to reduce installation complexity and optimize your lighting investment.
| Product Identification | Performance Specifications |
|---|---|
|
Order Code: 38-0101 Model No: NC-LHB2-1.4-135/115/100W-2CCT-S Size: 1.4ft |
|
|
Order Code: 38-0102 Model No: NC-LHB2-1.9-135/115/100W-2CCT-S Size: 1.9ft |
|
|
Order Code: 38-0103 Model No: NC-LHB2-2.6-270/230/200W-2CCT-S Size: 2.6ft |
|
|
Order Code: 38-0104 Model No: NC-LHB2-3.7-400/340/270W-2CCT-S Size: 3.7ft |
|
Gemini Series LED Linear High Bay Fixture FAQs
What Is a Gemini Series LED Linear High Bay Fixture?
The Gemini Series LED Linear High Bay Fixture is a round, compact fixture engineered to provide powerful illumination for large, open spaces with high ceilings. Its streamlined UFO design ensures efficient light distribution, easy installation, and superior performance in demanding environments.
Where Can Gemini Series LED Linear High Bay Fixture Be Installed?
Gemini Series LED Linear High Bay Fixture are perfect for a variety of high-ceiling applications where bright, uniform lighting is essential. Common installation locations include:
- Warehouses and distribution centers
- Manufacturing and assembly areas
- Gymnasiums and sports facilities
- Retail and commercial buildings
- Any industrial environment requiring powerful illumination
Are Gemini Series LED Linear High Bay Fixture Dimmable?
Yes, Gemini Series LED Linear High Bay Fixture are compatible with 0–10V dimming systems, allowing users to customize light levels as needed while achieving additional energy savings.
Do Gemini Series LED Linear High Bay Fixture Qualify for Rebates?
Yes, Gemini Series LED Linear High Bay Fixture are DLC Premium listed, making them eligible for many energy rebate programs. This certification helps reduce overall project costs while ensuring the fixtures meet high energy-efficiency standards.
How Easy Are Gemini Series LED Linear High Bay Fixture to Install?
Gemini Series LED Linear High Bay Fixture are designed for quick and straightforward installation. They feature a versatile mounting system compatible with hooks, chains, and brackets, making them easy to install in a wide range of industrial and commercial settings.
