NuGem Series LED Bollard Light
NuGem Series LED Bollard Light
Specification Sheet
Specification Sheet
About NuGem Series LED Bollard Light
| Product Identification | Performance Specifications |
|---|---|
|
Order Code: B-0001 Model No: BD01-24W-X-TCP-Y-ZZ Dimensions: 40.96”L x 6.35”W x 6.35”D |
|
|
Order Code: B-0002 Model No: BD02-24W-X-TCP-Y-ZZ Dimensions: Ø6.39”C x 42.24”H |
|
|
Order Code: B-0003 Model No: BD03-24W-X-TCP-Y-ZZ Dimensions: Ø6.39”C x 40.98”H |
|
|
Order Code: B-0004 Model No: BD04-24W-X-TCP-Y-ZZ Dimensions: Ø6.39”C x 42.24”H |
|
|
Order Code: B-0005 Model No: BD05-24W-X-TCP-Y-ZZ Dimensions: Ø6.39”C x 40.98”H |
|
|
Order Code: B-0006 Model No: BD06-24W-X-TCP-Y-ZZ Dimensions: Ø9.80”C x 41.65”H |
|
The NuGem Series LED Bollard Light is a versatile outdoor luminaire designed for commercial applications such as pathways, parks, plazas, and entrances.
Key Features and Performance
- Flexibility: The fixture offers field-adjustable wattage (14W/19W/24W) and color temperature (3500K/4000K/5000K).
- Construction: It features durable die-cast aluminum housing with a UV-resistant powder coat finish and a polycarbonate lens.
- Environmental & Durability: The series is wet location rated, IP65 certified, and designed for an operating range of -40°C to 45°C with an L70 lifetime exceeding 50,000 hours.
- Electrical: Supports 120-277V or 120-347V input with 0-10V dimming, a power factor >0.9, and THD <20%.
- Controls & Mounting: Includes optional integrated photocell with DIP switches for dusk-to-dawn operation and uses ground anchor installation.
- Certifications: DLC Premium listed and FCC certified.
Design Options

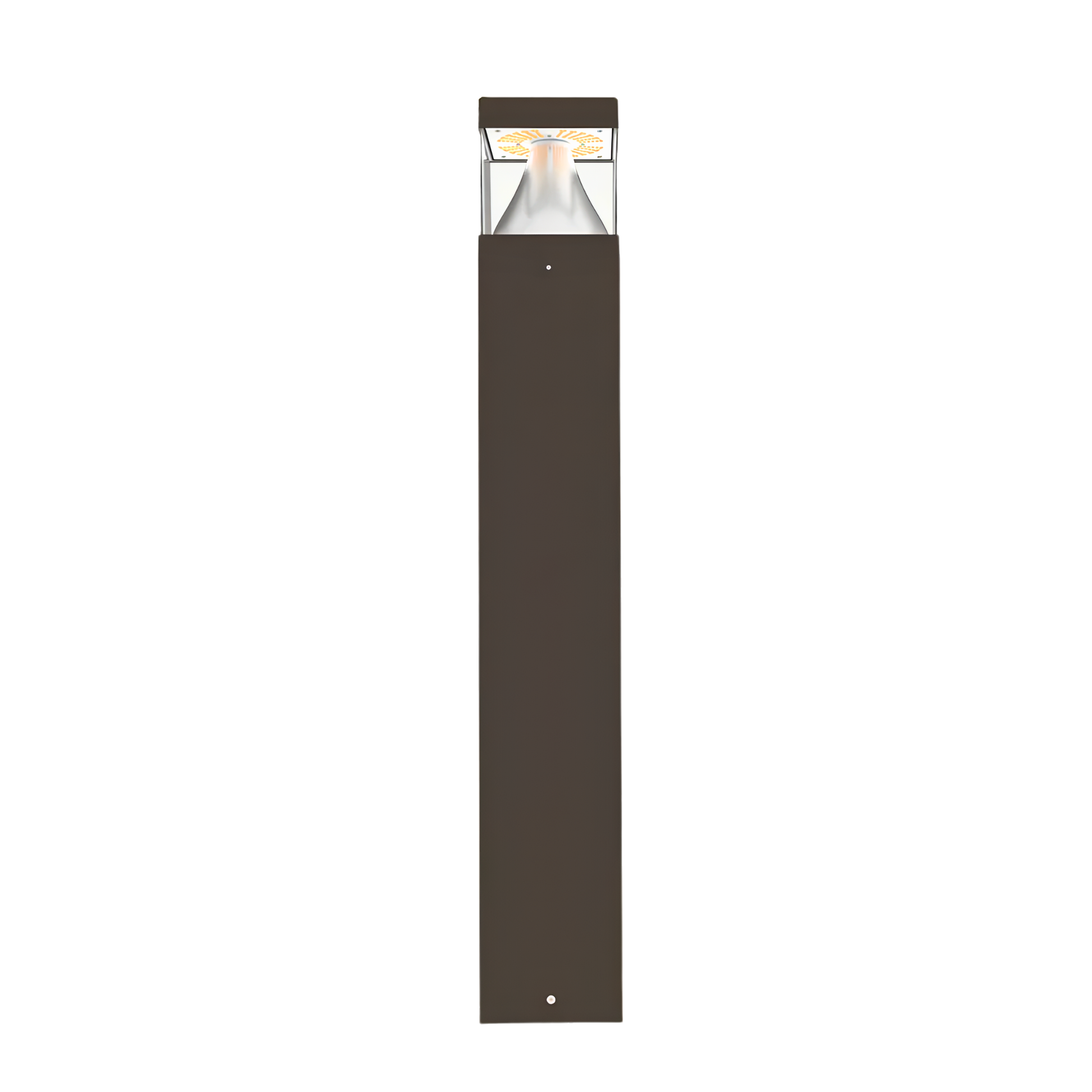

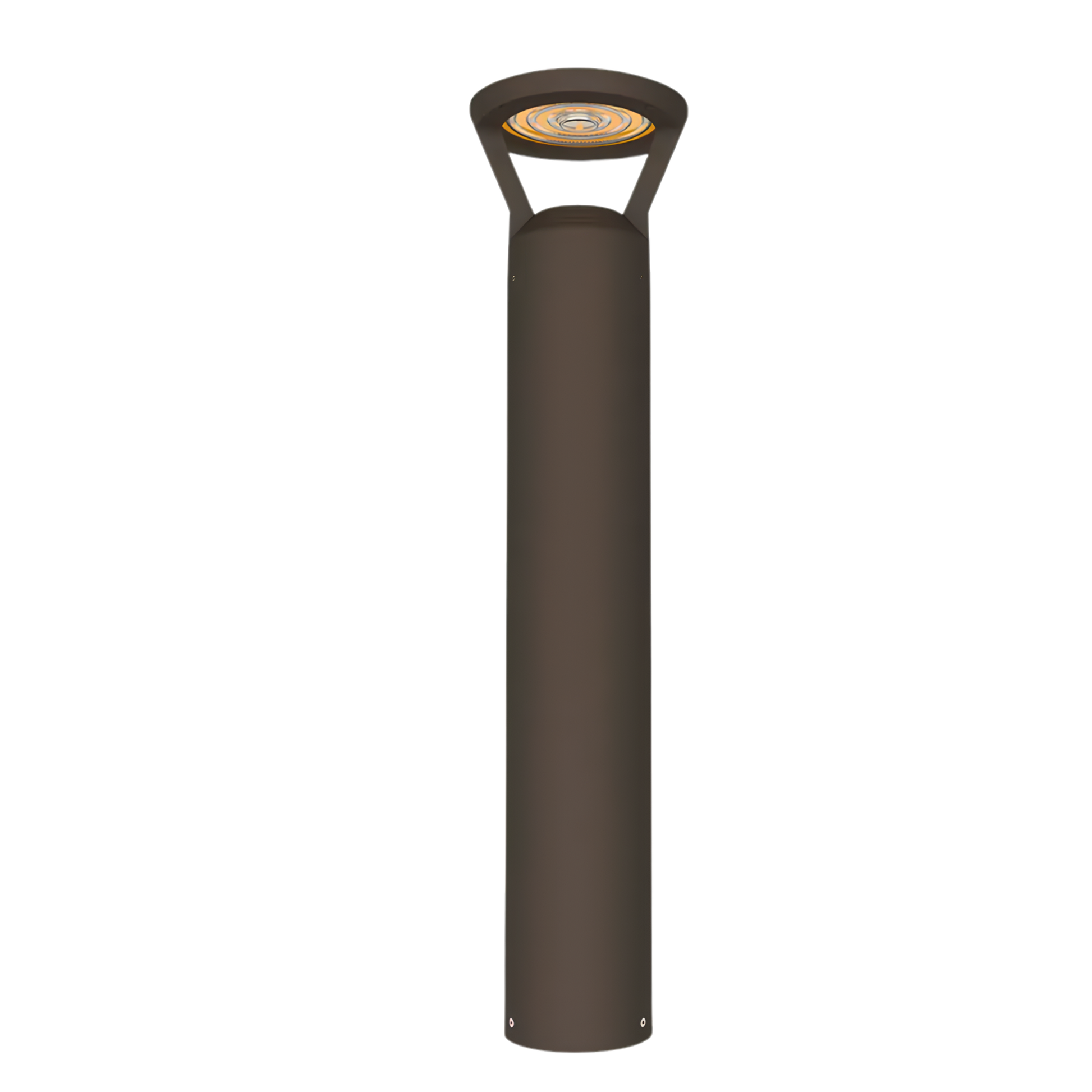

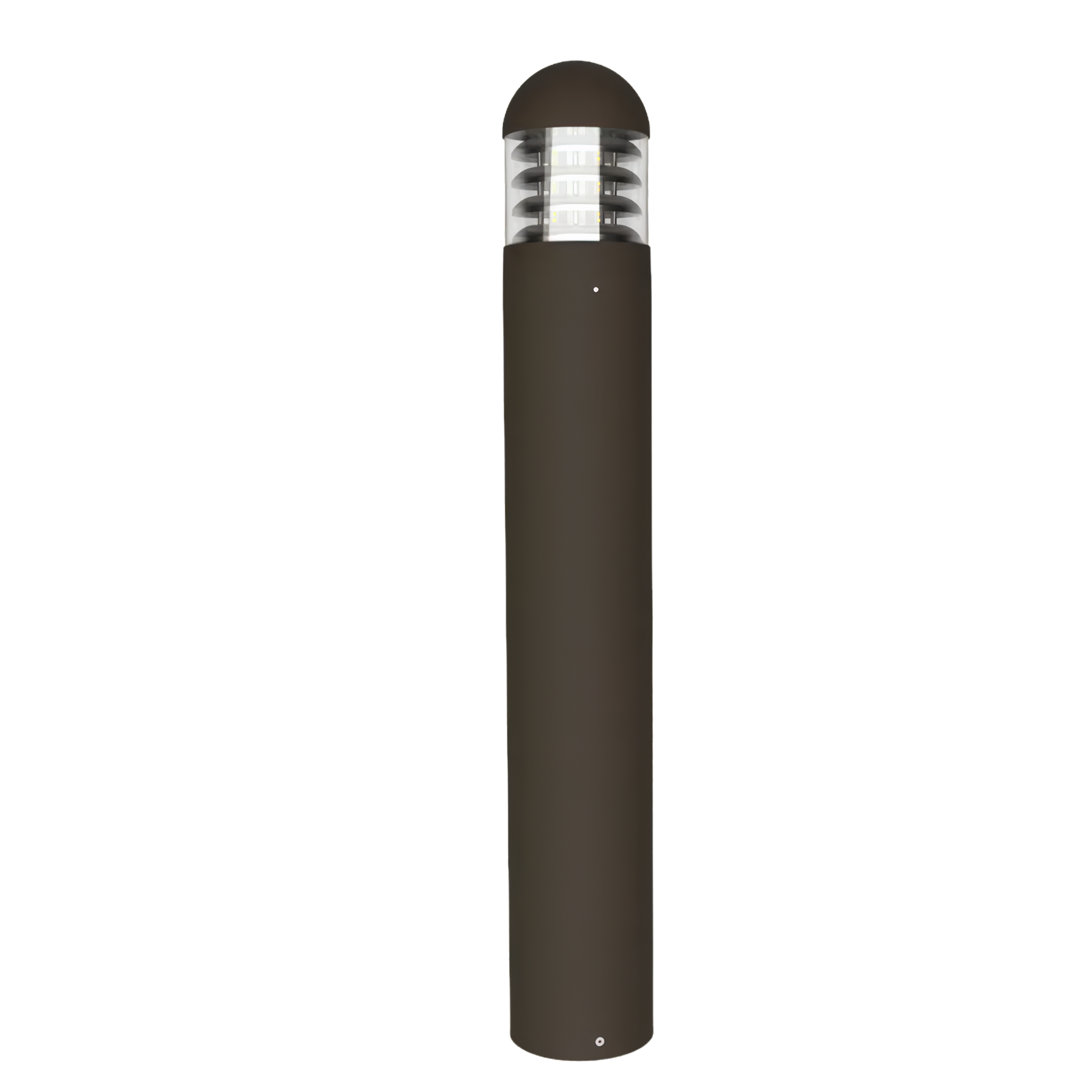

The series is available in various housing and head styles, including both square and cylinder options, finished in bronze. Various model numbers (e.g., BD01 through BD06) provide different dimensional profiles to suit specific architectural needs.
