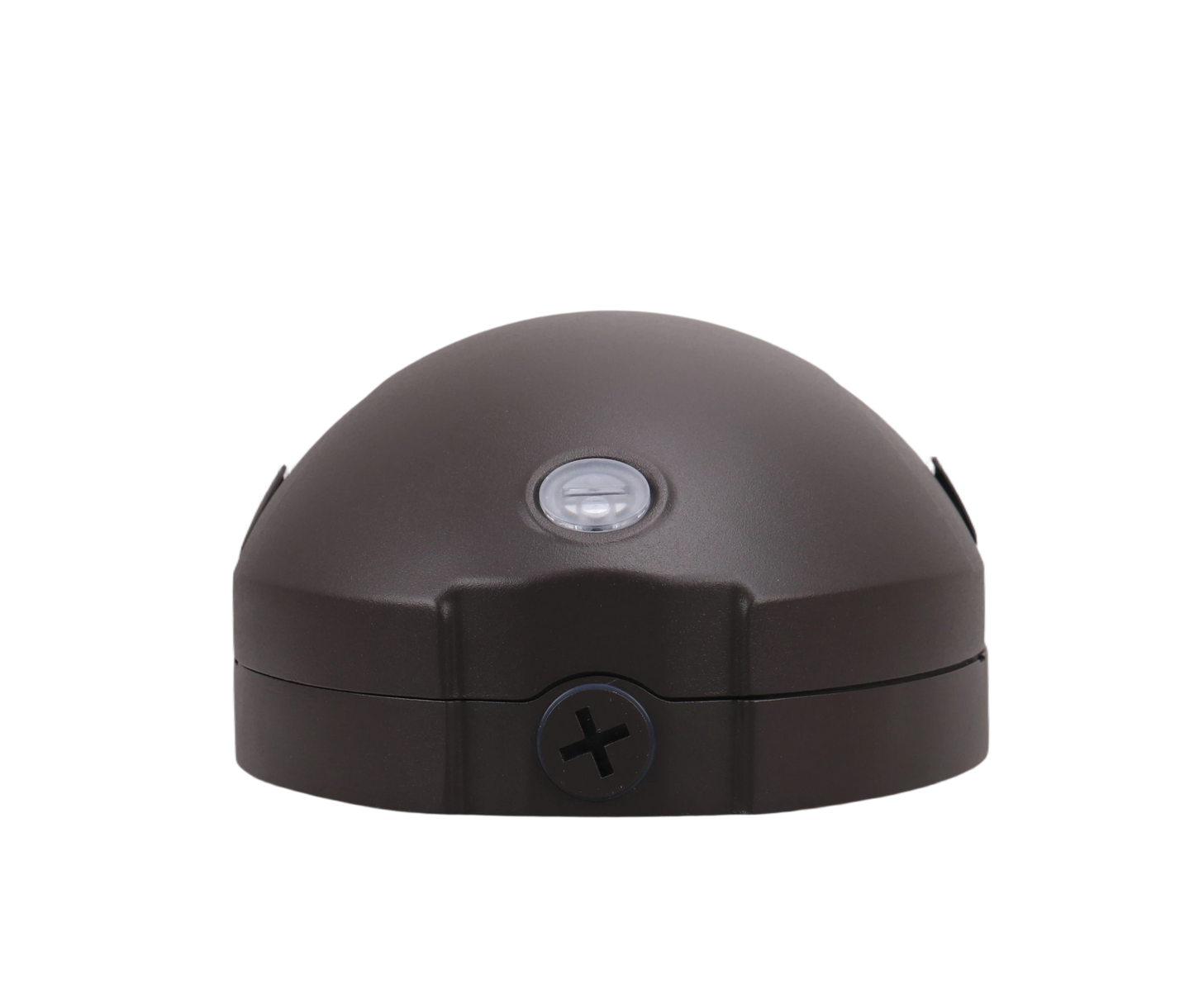

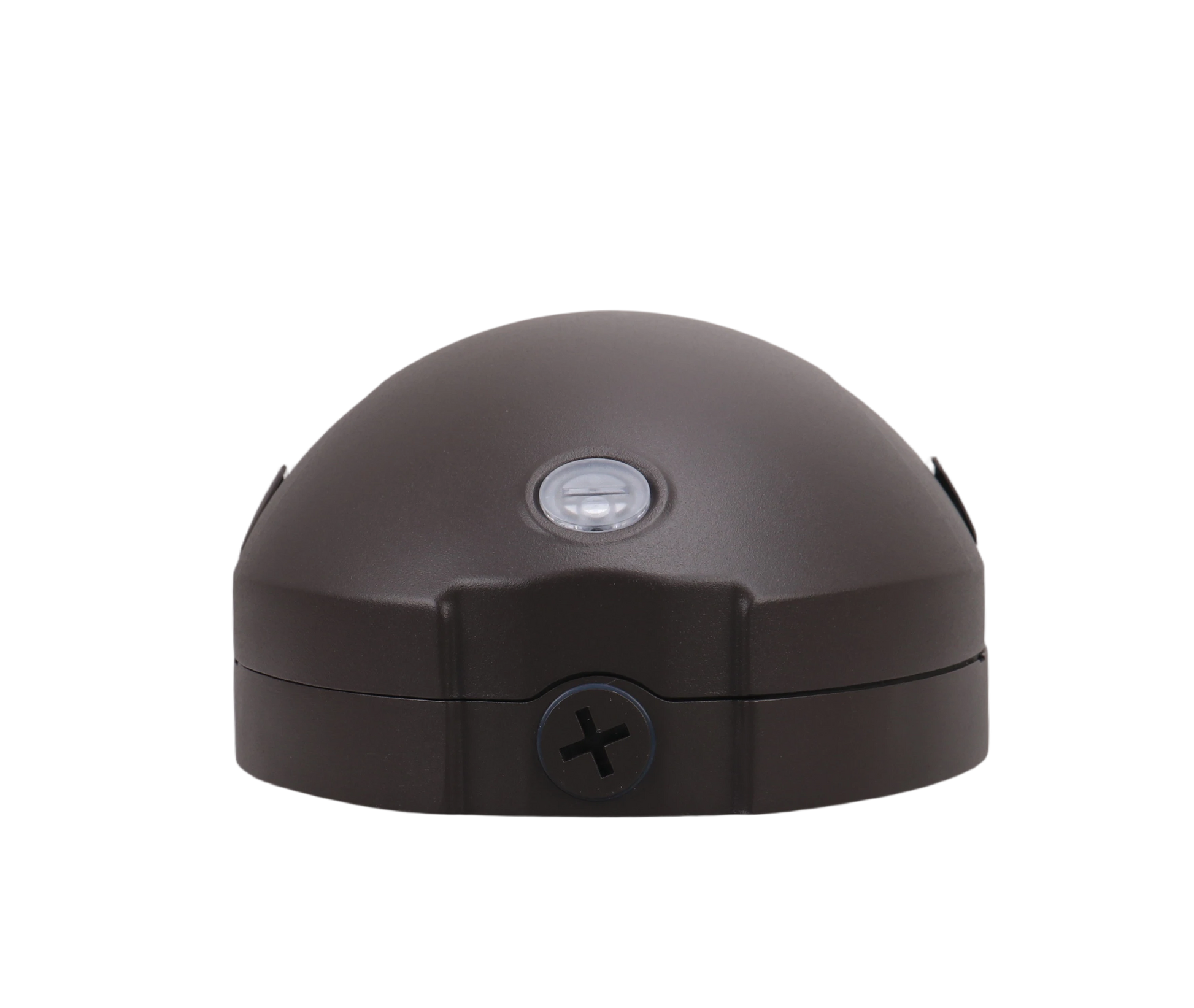

PicoGuard Series LED Mini Oval Wall Pack Light Fixture
PicoGuard Series LED Mini Oval Wall Pack Light Fixture
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Instructions
Installation Instructions

Product Overview

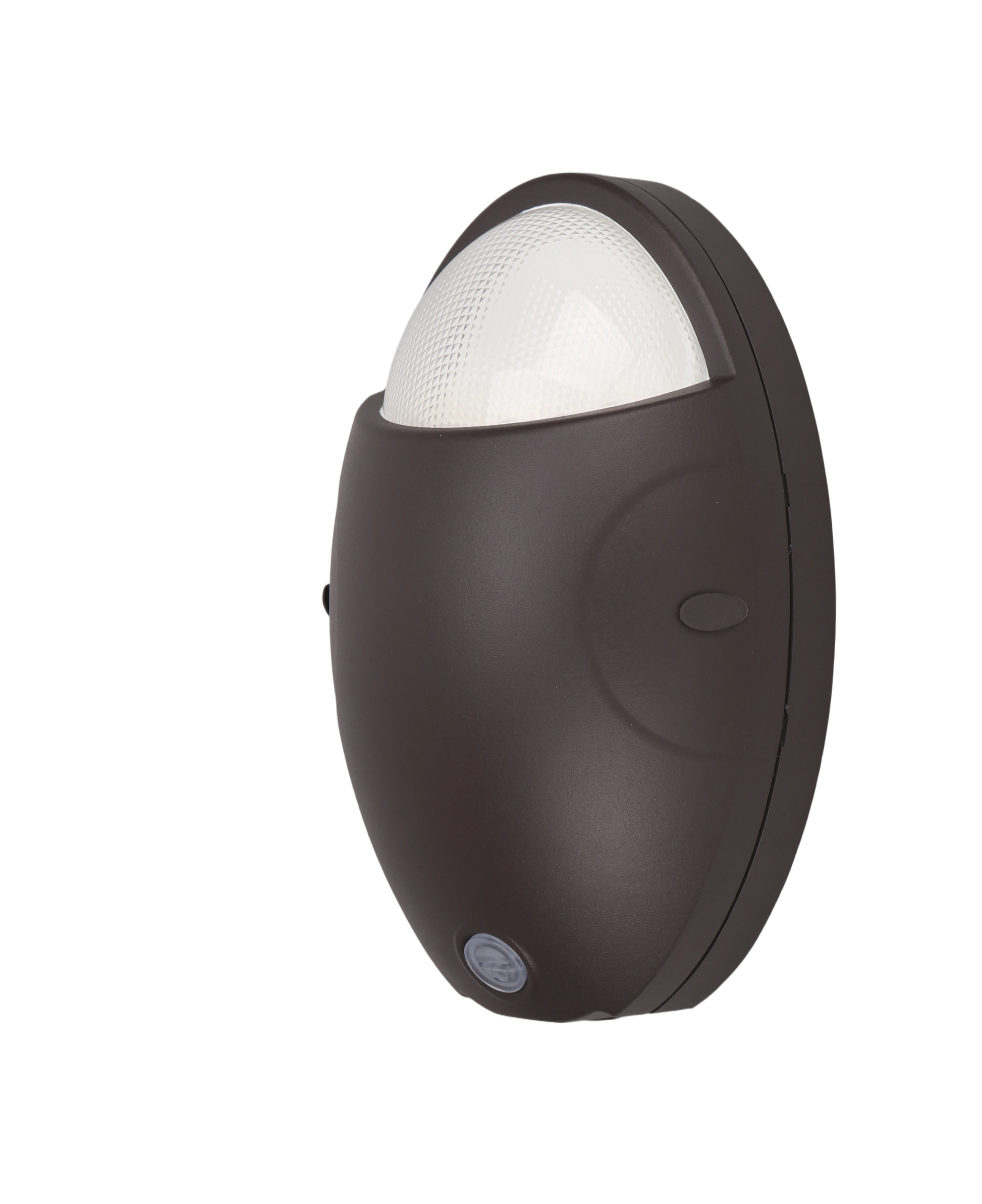

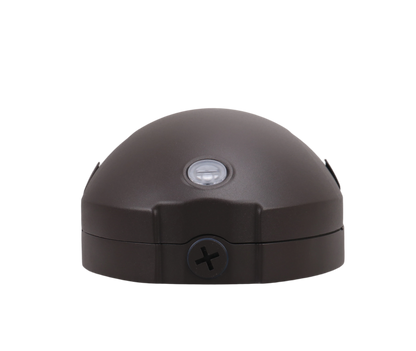

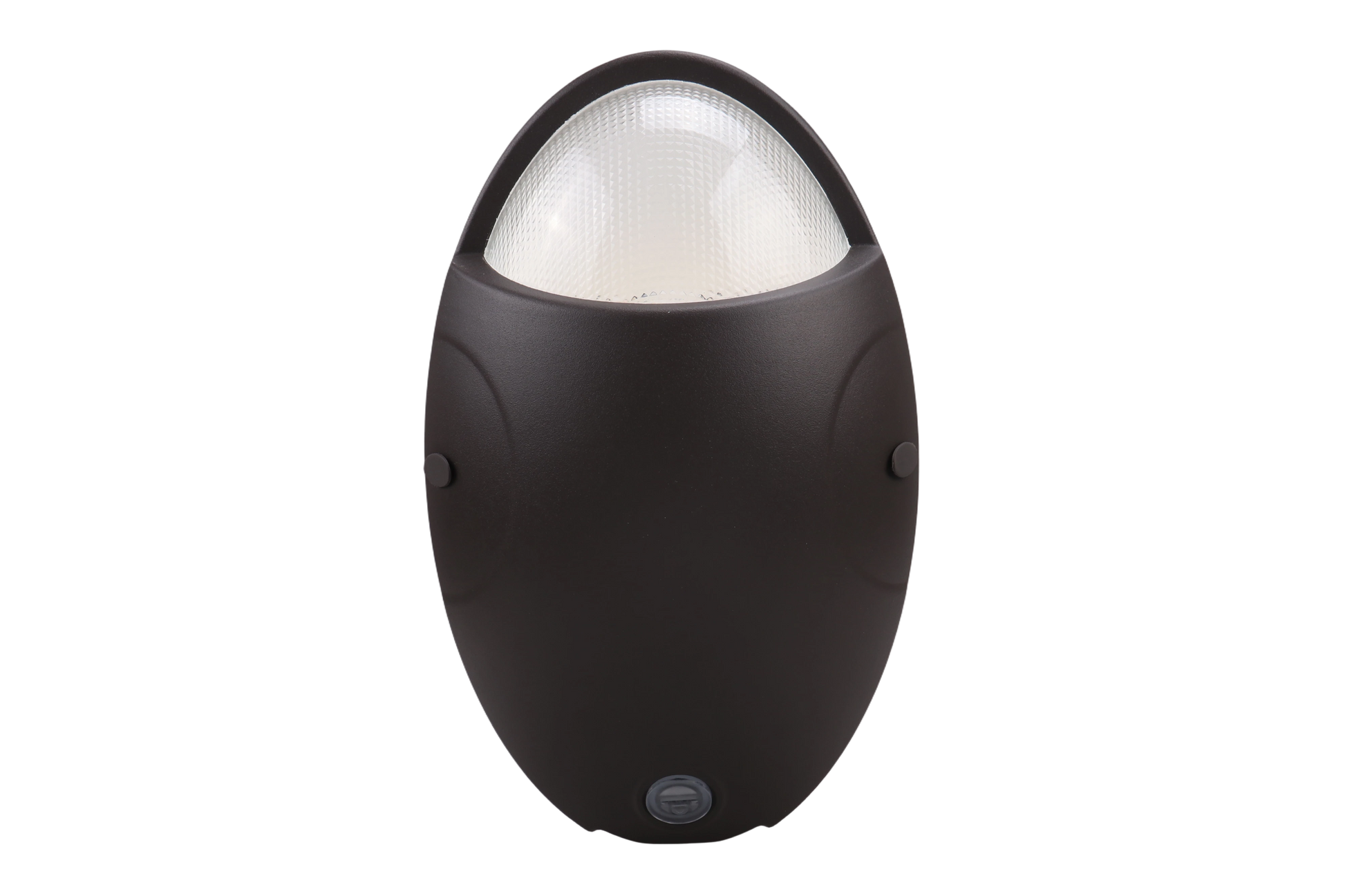

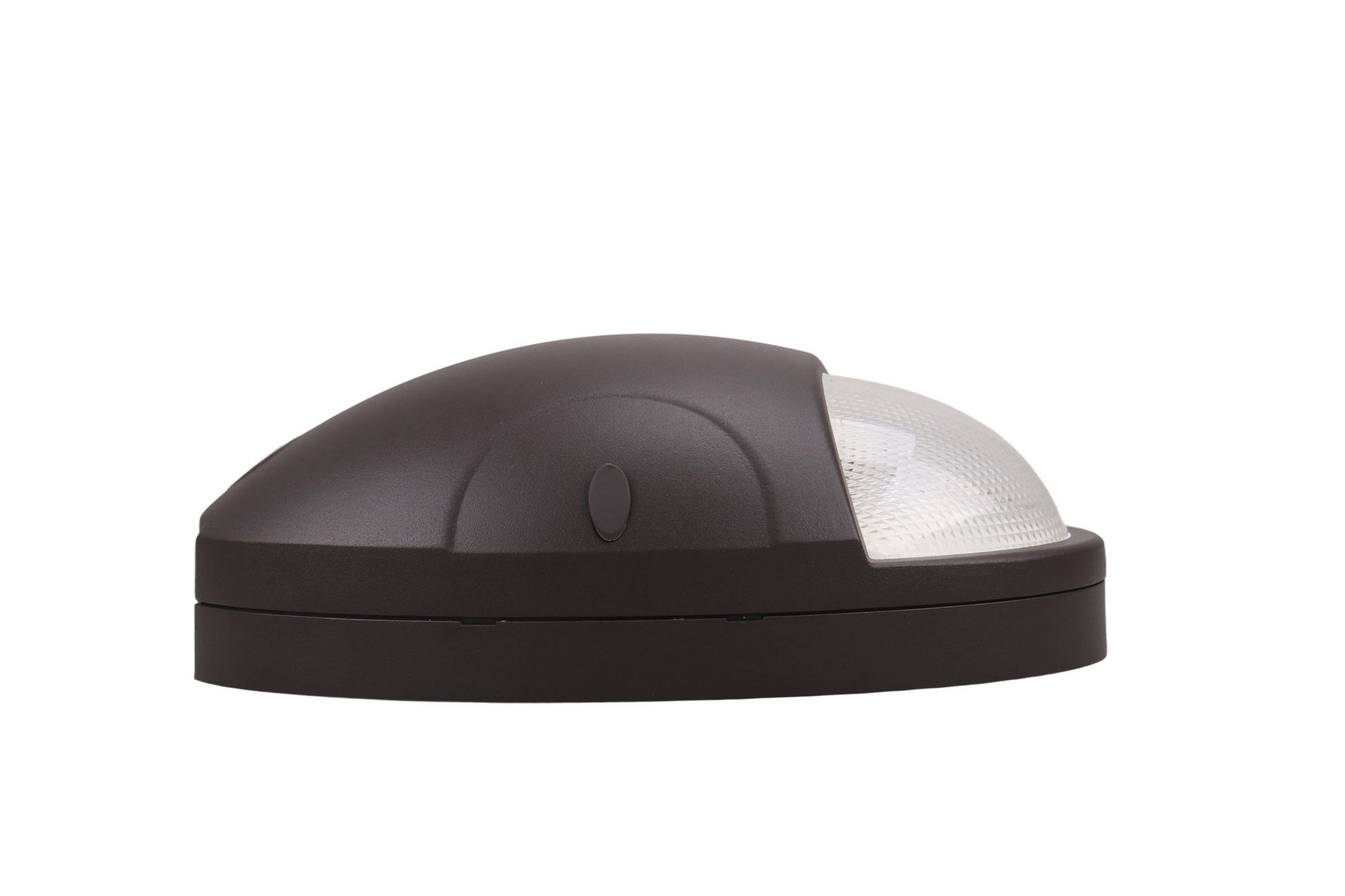

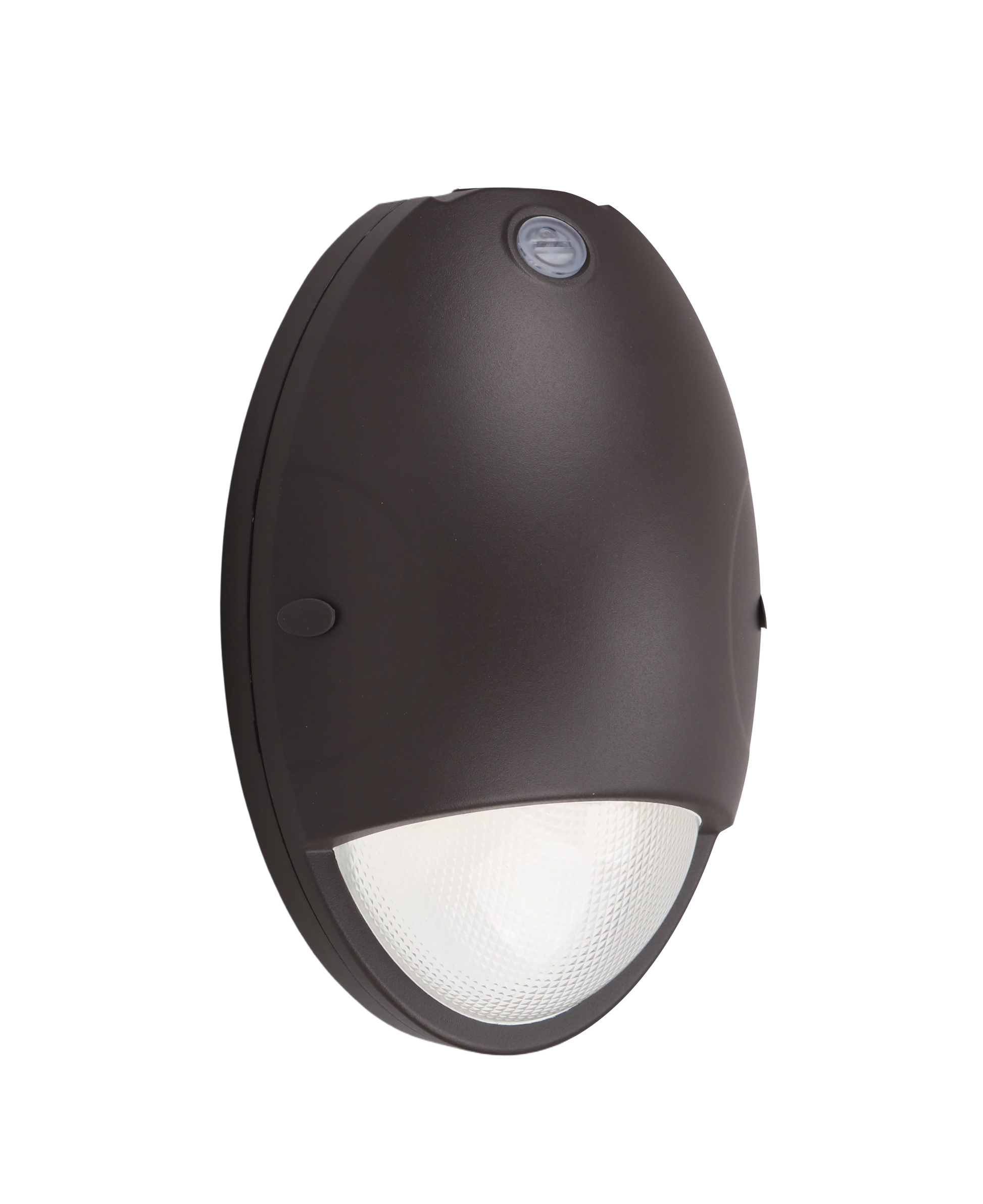

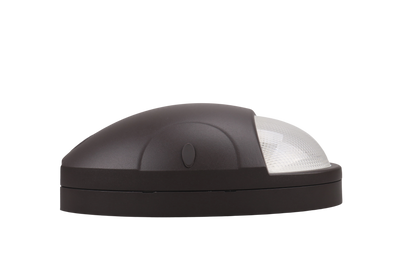

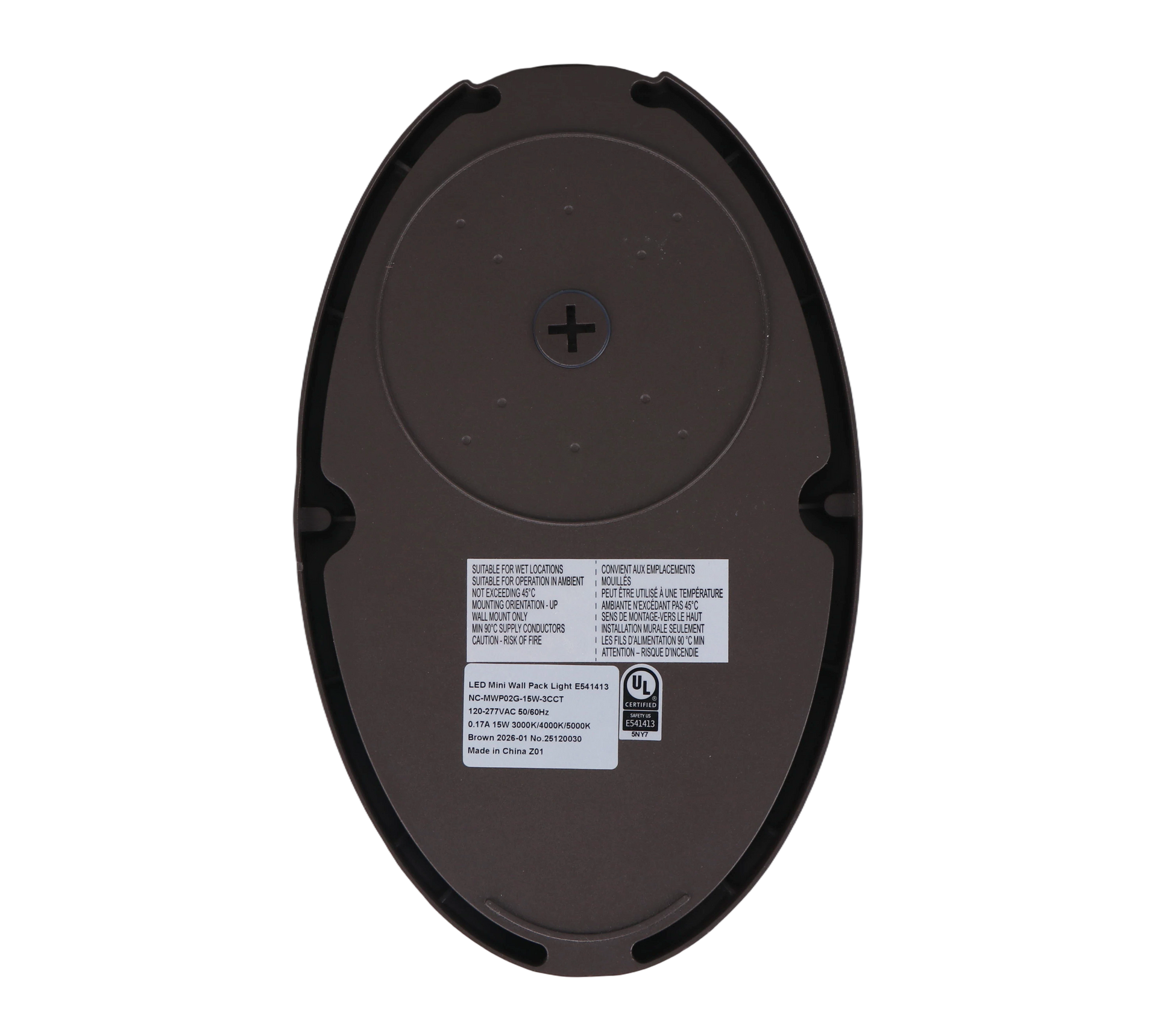

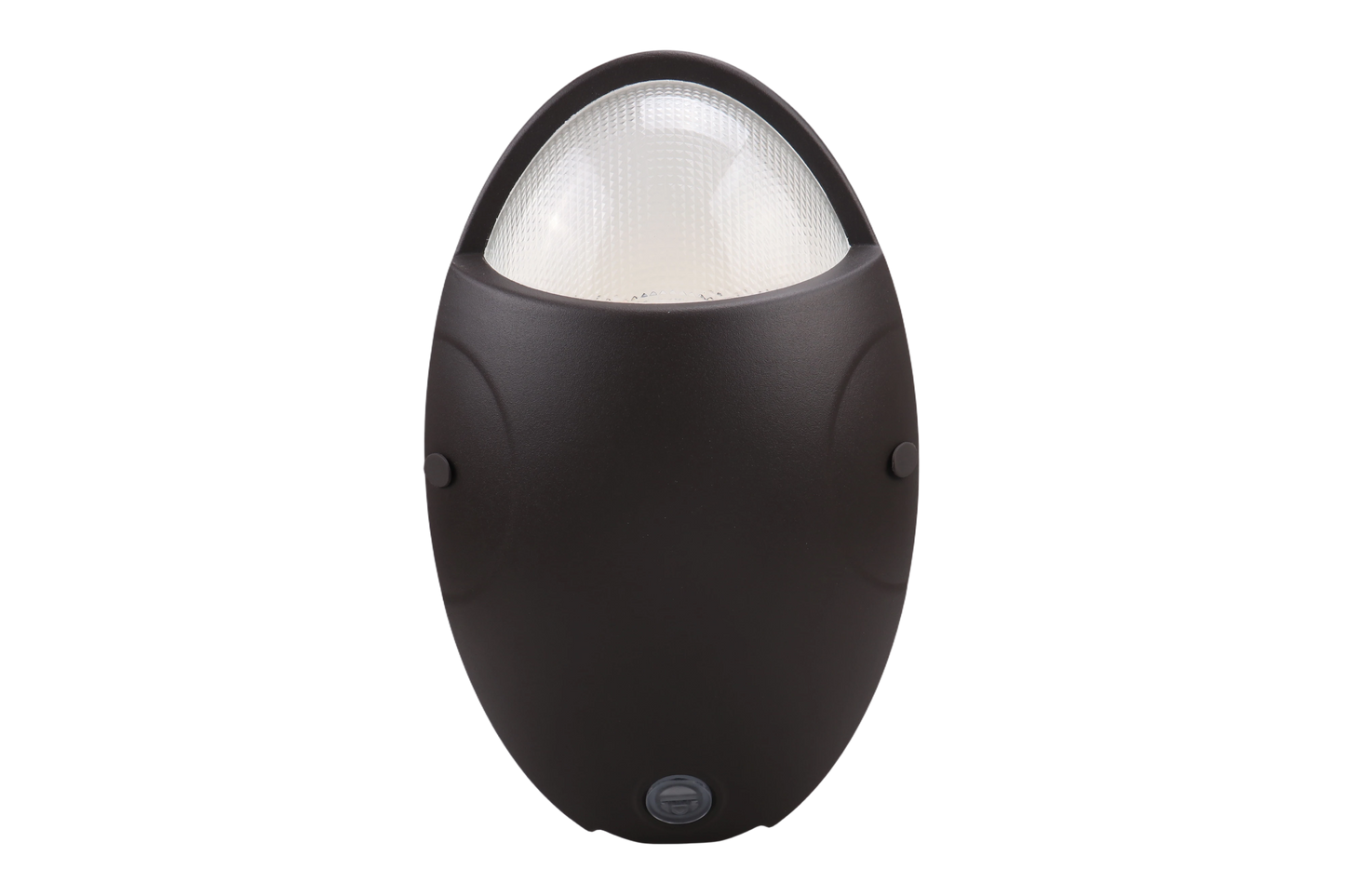

The NCLTG LED Mini Oval Wall Pack Light Fixture is a general-purpose, compact LED wall-mounted luminaire featuring fixed 15W power output and 3CCT selectable color temperatures of 3000K, 4000K, and 5000K. The fixture operates on 120–277V input voltage, includes 0–10V dimming capability, and is housed in a bronze-finished enclosure designed for outdoor installations.
Application
This mini wall pack is designed for wall-mounted outdoor lighting applications where a compact fixture size is required. Its form factor supports installation in locations where space constraints or lower mounting heights are a consideration.
Product Details & Ordering Information
PicoGuard Series LED Mini Oval Wall Pack Light Fixture
| Order Code: | 37-0101 |
| Model Number: | NC-MWP02G-15W-3CCT |
| Selectable Wattage: | 15W |
| Voltage: | 120-277V |
| Lumens: | 2100, 2117, 2106 |
| Efficacy: | 170 lm/W |
| CCT: | 3000K, 4000K, 5000K |
| Dimming: | 0-10V |
| Dimensions: | 16.63"L x 8.66"W x 2.07"H |
NC-MWP02G-15W-3CCT, NC-MWP02G-15W-3CCT-EM,
PicoGuard Series LED Mini Oval Wall Pack Light Fixture FAQs
What Are PicoGuard Series LED Mini Oval Wall Pack Light Fixture?
PicoGuard Series LED Mini Oval Wall Pack Light Fixture are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.
Where Can PicoGuard Series LED Mini Oval Wall Pack Light Fixture Be Used?
PicoGuard Series LED Mini Oval Wall Pack Light Fixture are suitable for a wide range of outdoor environments, including:
- Parking lots
- Building exteriors
- Walkways and pathways
- Commercial and industrial properties
- Residential homes and gardens
How Do I Choose the Right Wattage and Color Temperature for PicoGuard Series LED Mini Oval Wall Pack Light Fixture?
Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.
Are PicoGuard Series LED Mini Oval Wall Pack Light Fixture Dimmable?
Yes, PicoGuard Series LED Mini Oval Wall Pack Light Fixture are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.
What Certifications Do PicoGuard Series LED Mini Oval Wall Pack Light Fixture Have?
PicoGuard Series LED Mini Oval Wall Pack Light Fixture are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.
How Do I Install PicoGuard Series LED Mini Oval Wall Pack Light Fixture?
PicoGuard Series LED Mini Oval Wall Pack Light Fixture include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
