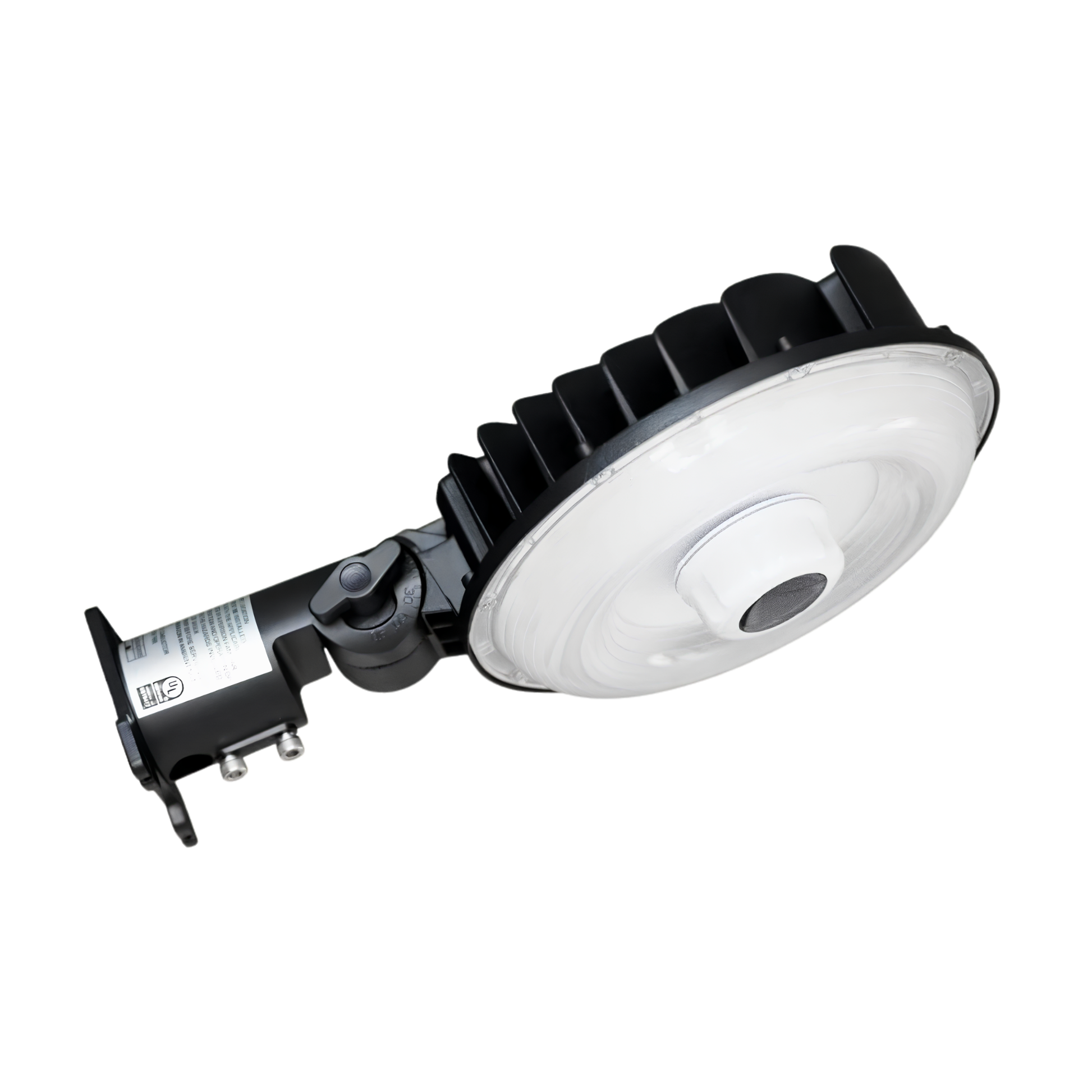

NuGem Series LED Dusk to Dawn Light

About NuGem Series LED Dusk to Dawn Light

The NuGem Series LED Dusk to Dawn Light is an outdoor area luminaire designed for various applications, including roadways, parking lots, building perimeters, and pedestrian walkways.

Key Features and Construction

• Performance: The series offers selectable wattage (60W/80W/100W) and selectable color temperatures (3500K, 4000K, and 5000K) to provide flexible lighting.

• Controls: Each unit features an integrated photocell for automatic dusk-to-dawn operation. The fixtures are also compatible with optional PIR and microwave sensors, as well as remote control programming.

• Durability: Constructed with a heavy-duty die-cast aluminum housing and a ridged polycarbonate lens, the fixture is rated for wet locations. It features a UV-resistant finish.

• Mounting: The series utilizes an adjustable slip-fitter for versatile installation and aiming.


Technical Specifications

• Electrical: The fixture operates on 120-277V, supports 0-10V dimming, and offers an efficacy of up to 125 lm/W. It maintains a power factor greater than 0.9 and THD of less than 20%.

• Operational Range: The operating temperature range is -20°C to 45°C, with a lifetime rating of L70 >50,000 hours.

• Certifications: The product is DLC Listed Premium and IP65 certified.


The NuGem Series simplifies project specification and inventory management through its field-adjustable settings. Available models include options for fixed 100W output or selectable output, all featuring a black finish.
