NuGem Series LED Box Post Top Lantern

About NuGem Series LED Box Post Top Lantern

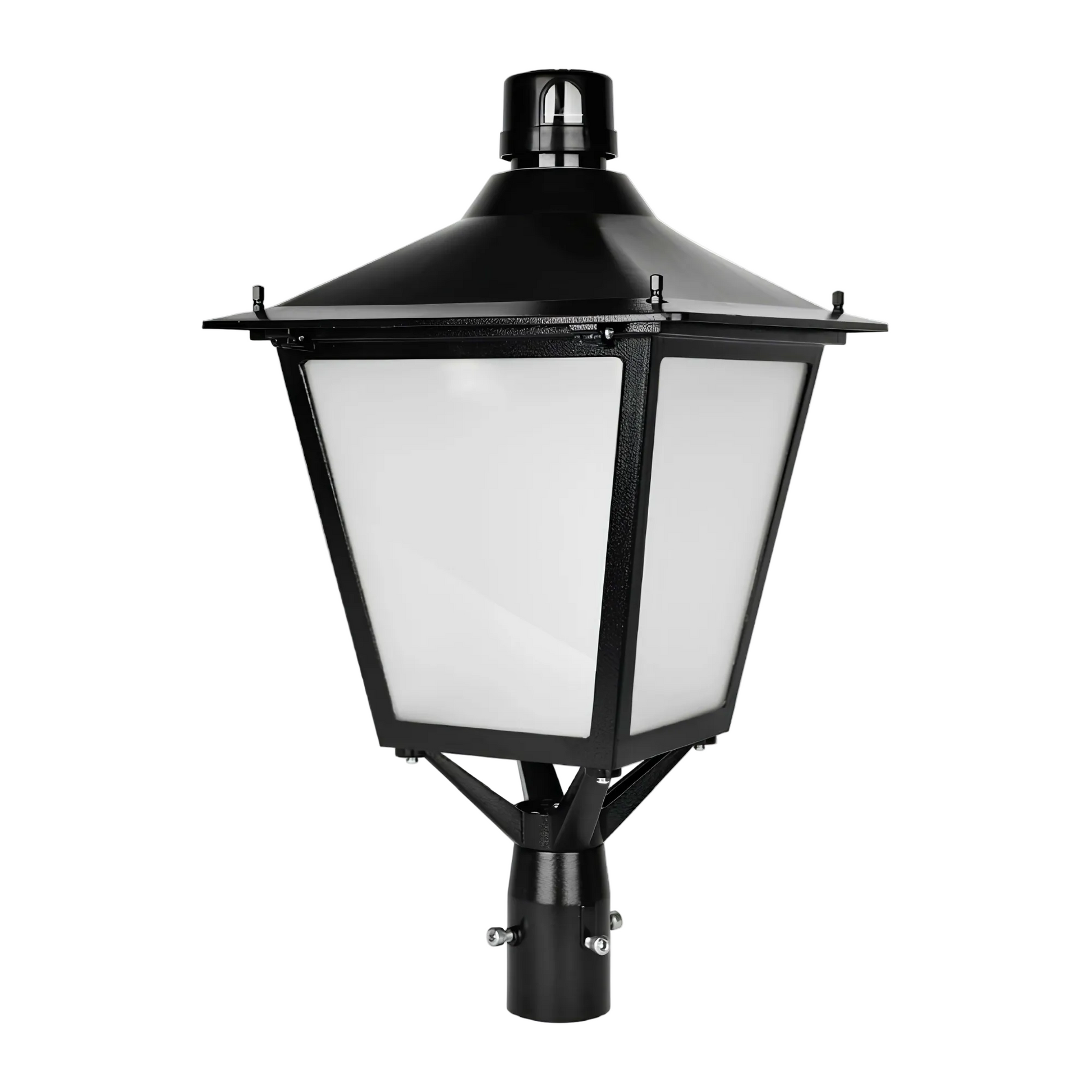

The NuGem Series LED Box Post Top Lantern is a decorative outdoor luminaire designed for various environments, including pathways, parks, campuses, residential communities, and commercial landscapes.

Key Features and Performance

• Design & Construction: The fixture features a classic lantern style with a heavy-duty die-cast aluminum housing, an anti-static powder coat finish, and a UV-shield frosted glass lens.

• Flexibility: It offers field-selectable wattage settings (up to 60W or 120W models), selectable color temperatures (3000K, 4000K, 5000K), and 0-10V dimming.

• Controls & Optics: It includes an integrated NEMA 3-pin photocell for automatic dusk-to-dawn operation and utilizes Type V optics for uniform 120° beam distribution.

• Durability: The lantern is IP65 wet location rated and operates in temperatures ranging from -40°C to 50°C, with an L70 lifetime exceeding 100,000 hours.


Technical Specifications

• Electrical: Operates at 120-277V with a power factor >0.9 and efficacy up to 140 lm/W.

• Mounting: Designed for standard 2-3/8" tenon pole-top installation.

• Dimensions: All models measure 13.80"L x 13.80"W x 24.92"H.


Certifications and Compliance

• The series is cETLus certified, DLC listed, and FCC compliant.

• Products are backed by a 5-year warranty.
