NauticShield Series G10 Bulkhead
NauticShield Series G10 Bulkhead
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Instructions
Installation Instructions
Warranty
Warranty

Product Overview

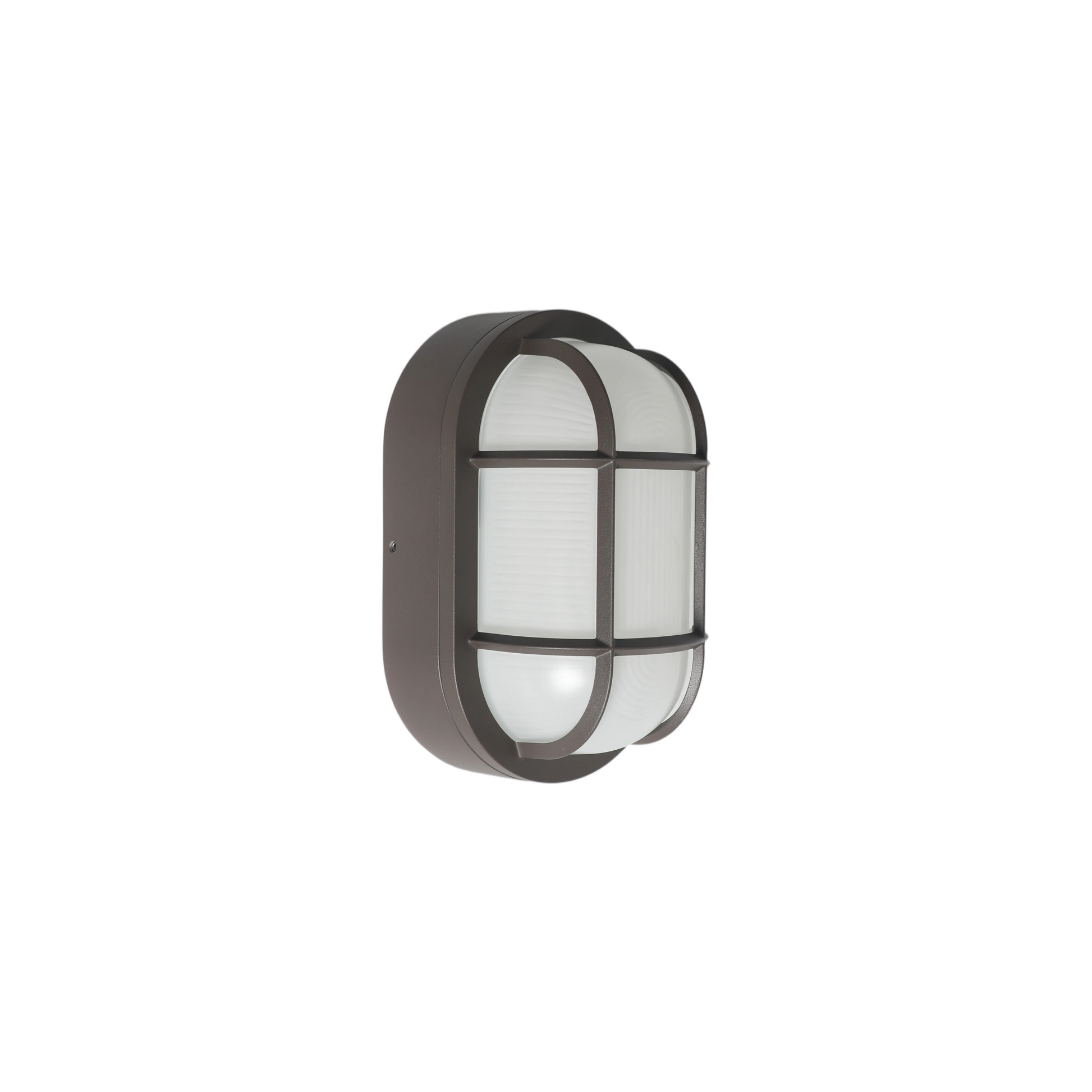

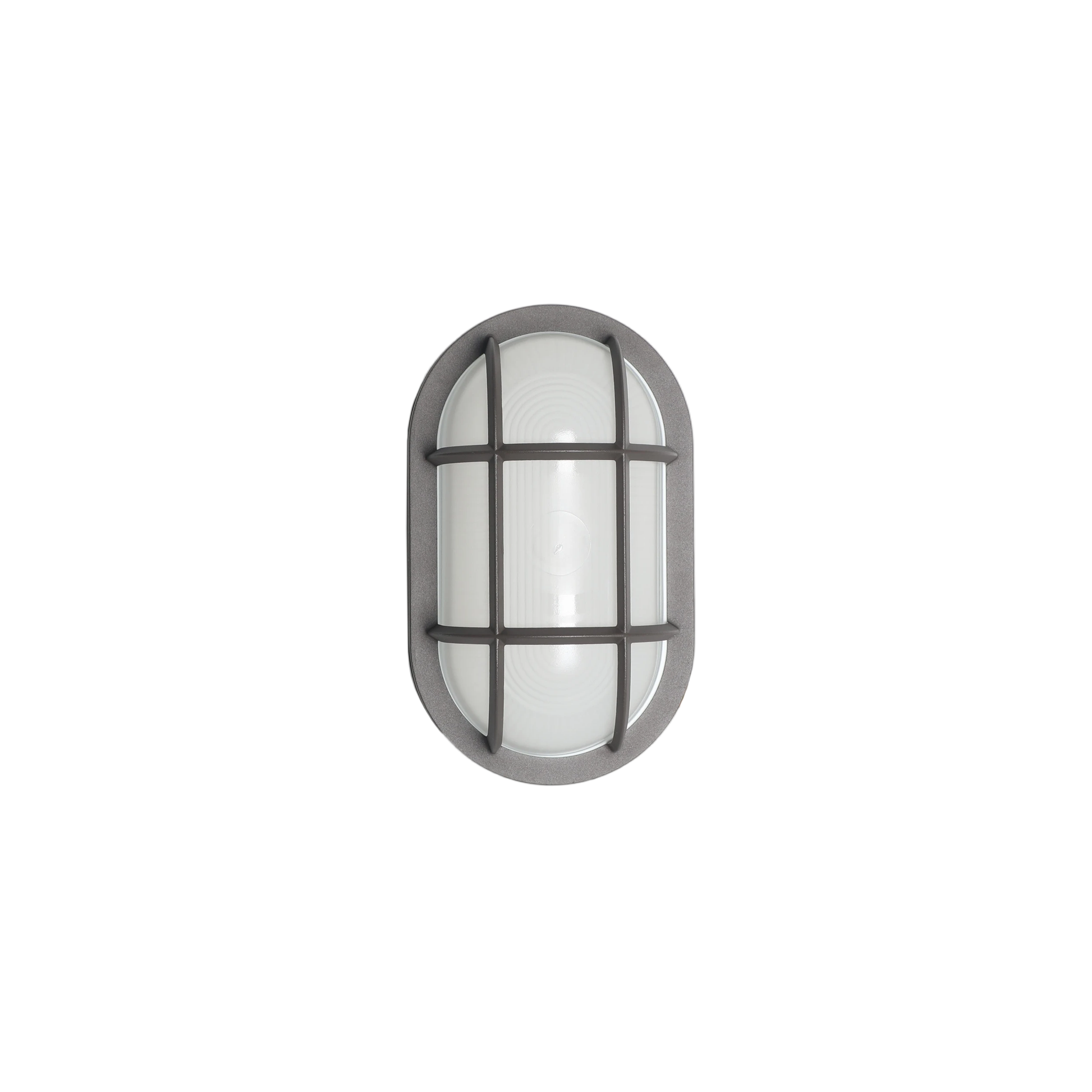

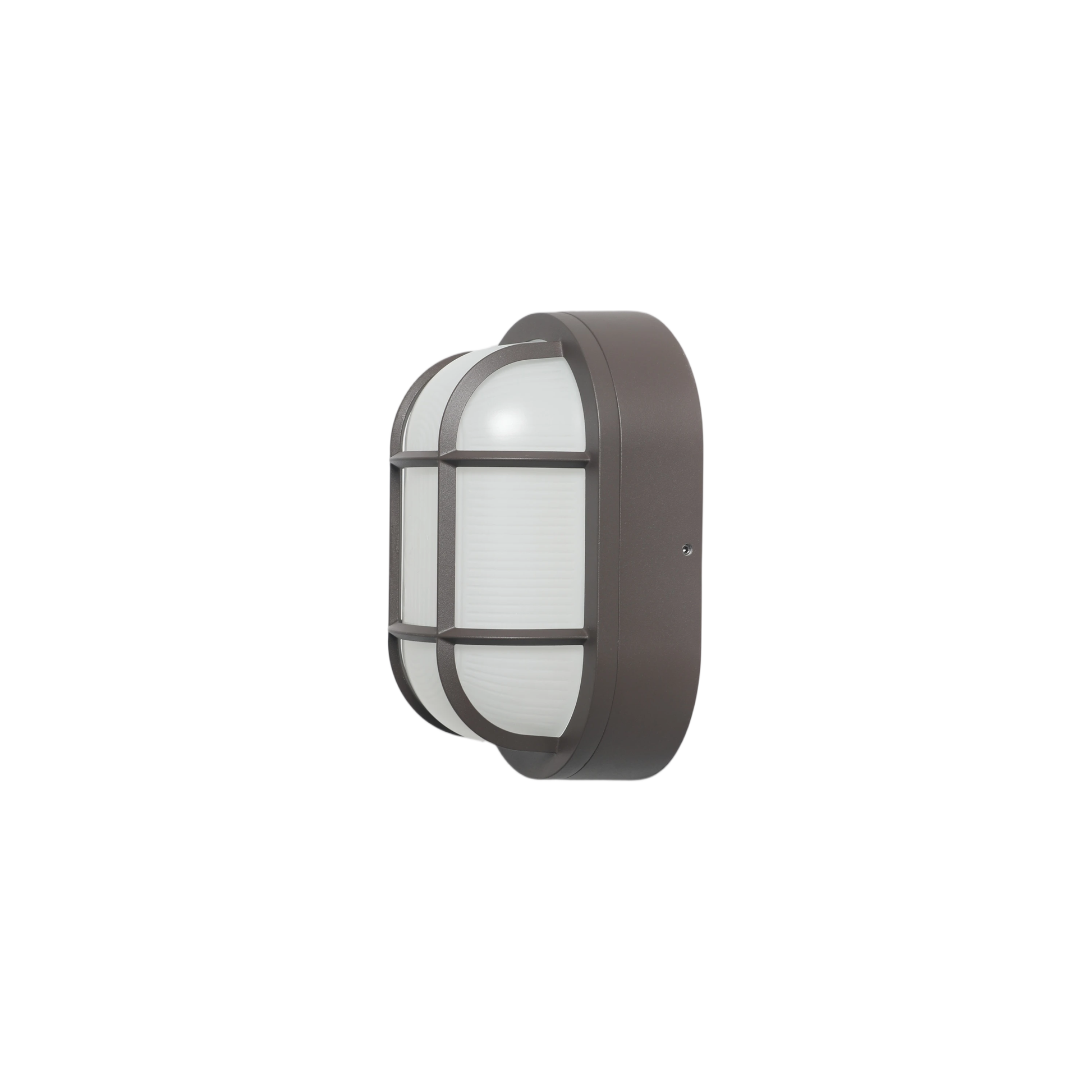

The NauticShield Series G10 Bulkhead delivers dependable LED illumination in a compact oval bulkhead design suited for both indoor and outdoor environments. Constructed with a durable bronze housing, this fixture offers selectable wattage and color temperature options to support flexibility across a range of lighting needs. Wide voltage compatibility allows for straightforward installation in new construction or retrofit applications while maintaining consistent performance.
Application
The NauticShield Series G10 Bulkhead is well suited for residential, utility, and exterior spaces requiring reliable, wall-mounted illumination. Common applications include cabins, sauna rooms, basements, storerooms, attics, porches, patios, decks, boathouses, and dock areas, providing practical lighting coverage in compact or enclosed settings.
Technical Summary
| Ambient Operating Temperature | −40°C to 45°C (−40°F to 113°F) |
| Power Factor | ≥0.9 |
| Total Harmonic Distortion (THD) | <20% |
| L70 Lifetime | >50,000 hours at 25°C (77°F) ambient temperature |
| Ingress Protection | IP65 |
| Certifications | UL Listed for wet locations |
Performance Specifications
| SKU | 33-1801 |
| Catalog Number | NC-WPF01G-80W-3CCT |
| Selectable Wattage | (80W, 60W, 50W) |
| Selectable CCT | (3000K, 4000K, 5000K) |
| Lumens | 11440LM, 8580LM, 7150LM |
| Efficacy | 143lm/W |
| Current | 0.67A |
| Input Voltage | 120-277V |
| Dimming | 0-10V |
| CRI | >80 |
| Distribution Pattern | 120° |
NauticShield Series G10 Bulkhead FAQs
What Are NauticShield Series G10 Bulkhead?
NauticShield Series G10 Bulkhead are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.
Where Can NauticShield Series G10 Bulkhead Be Used?
NauticShield Series G10 Bulkhead are suitable for a wide range of outdoor environments, including:
- Parking lots
- Building exteriors
- Walkways and pathways
- Commercial and industrial properties
- Residential homes and gardens
How Do I Choose the Right Wattage and Color Temperature for NauticShield Series G10 Bulkhead?
Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.
Are NauticShield Series G10 Bulkhead Dimmable?
Yes, NauticShield Series G10 Bulkhead are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.
What Certifications Do NauticShield Series G10 Bulkhead Have?
NauticShield Series G10 Bulkhead are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.
How Do I Install NauticShield Series G10 Bulkhead?
NauticShield Series G10 Bulkhead include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
