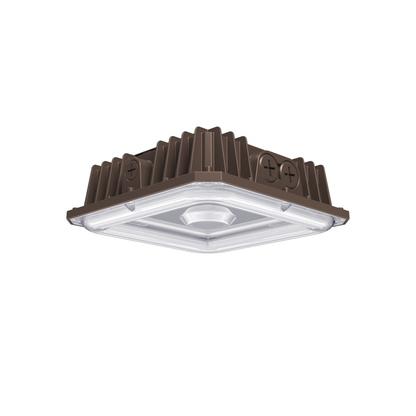

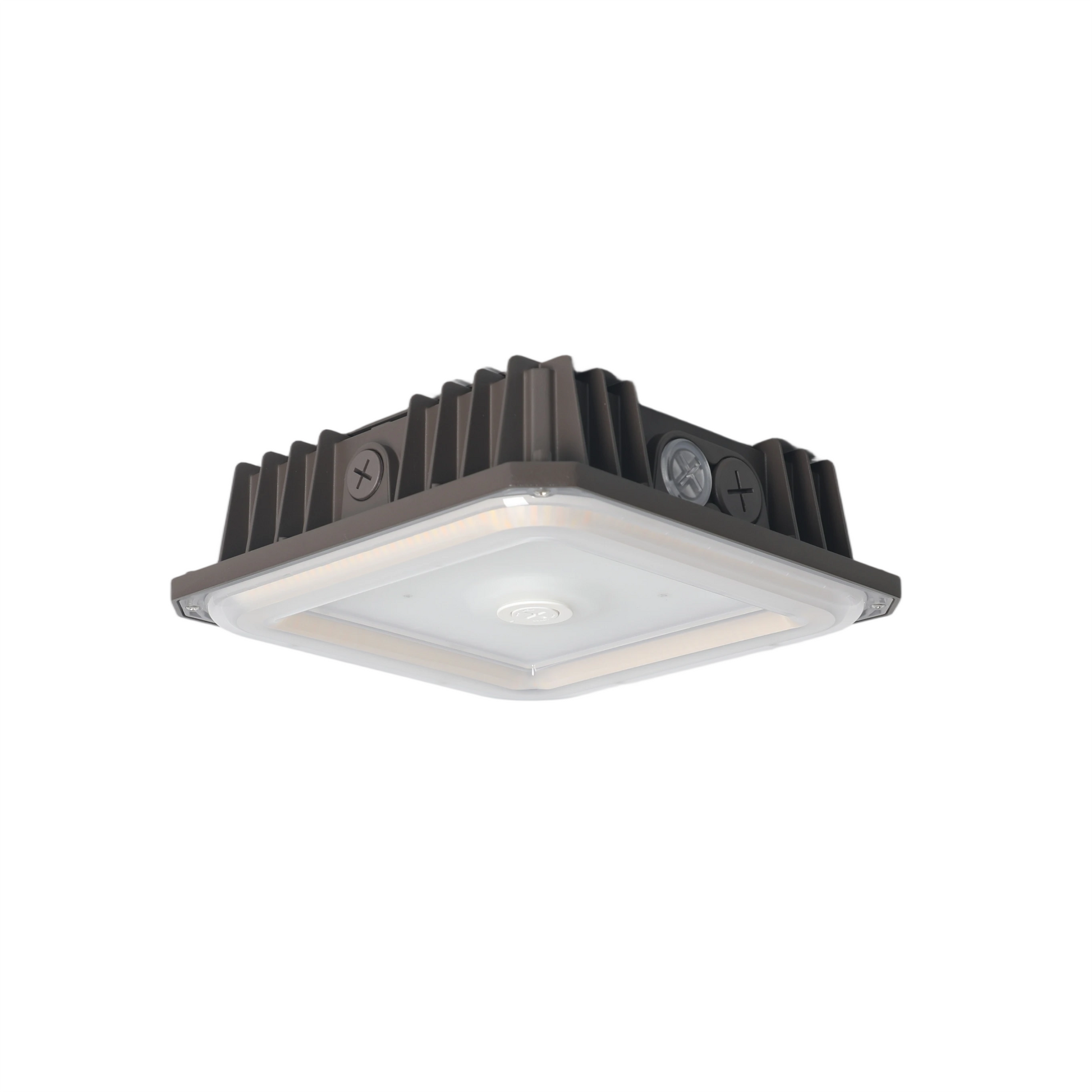

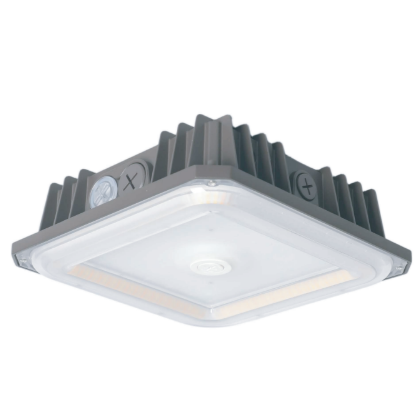

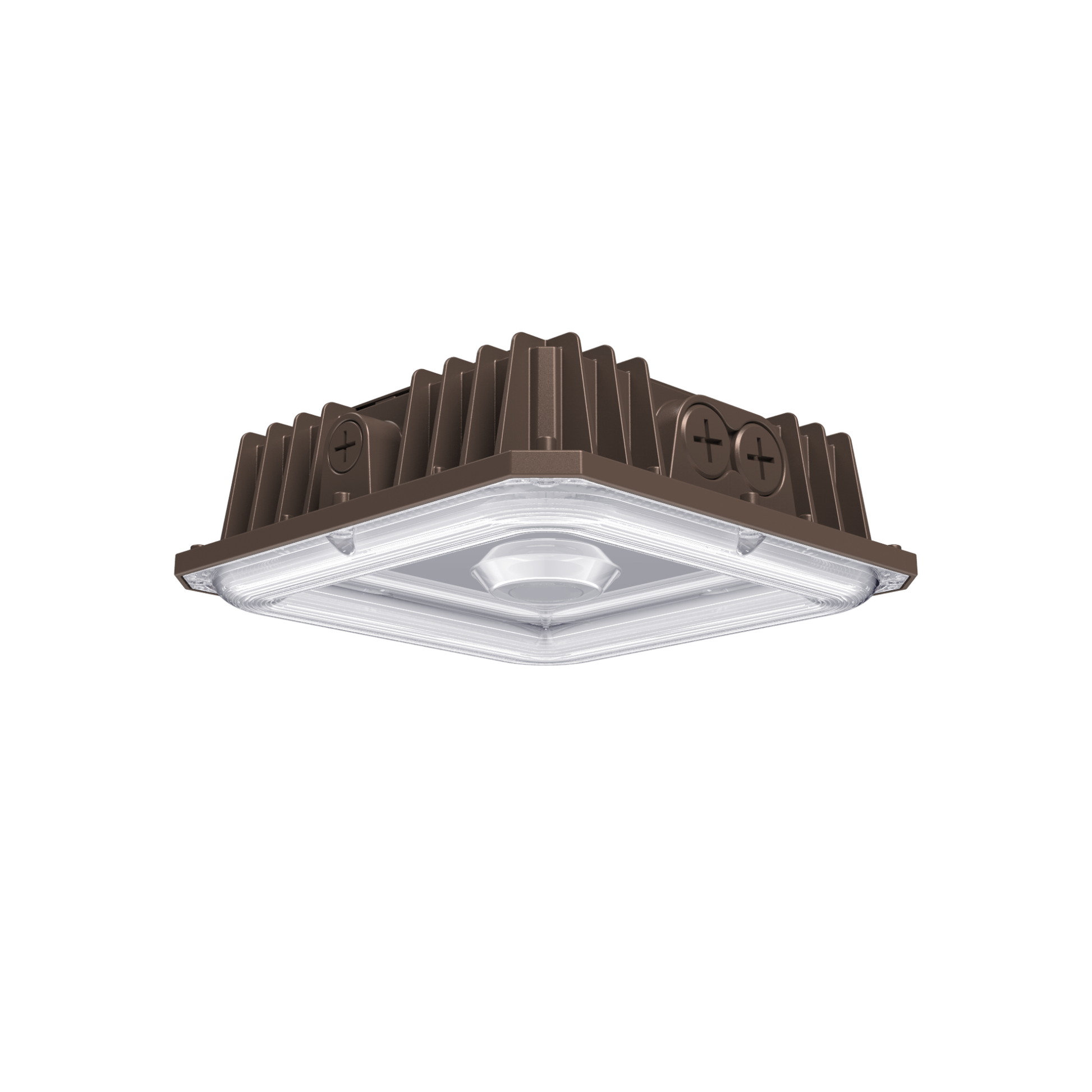

CanoLux Series LED Garage Canopy Light Fixture

CanoLux Series LED Garage Canopy Light Fixture

NCLTG WallGuard Series LED Wall Pack Light feature badges – 3-CCT selectable, 4-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Photometrics (IES Files)

Installation Instructions

Request Price View full details

Product Overview

The CanoLux Series LED Garage Canopy Light Fixture is a power-selectable LED luminaire designed for surface-mounted canopy and ceiling installations. The fixture supports selectable wattage options of 40–30–20W or 80–60–40W, selectable color temperatures of 3000K, 4000K, and 5000K, and operates on 120–277V input voltage. It features a low-profile design, die-cast aluminum housing, integrated photocell, and 0–10V dimming compatibility, as outlined in the specification sheet.

Application

The CanoLux Series is intended for use in parking lots, gas stations, underpasses, warehouses, stairwells, passages, toll stations, waiting rooms, restaurants, and hotels. It is suitable for installations where canopy-style luminaires are required for covered or ceiling-mounted outdoor and semi-outdoor spaces.

Product Details & Ordering Information

CanoLux Series LED Garage Canopy Light Fixture — Selectable 100W–150W, 17000–25500 Lumens, 3000K–5000K CCT, 120–277V

Order Code: 311100
DLC Product ID: S-WVVT3Q
Model Number: NC-AL150W-3CCT-T3
Wattage: 100W, 120W, 150W
Voltage: 120-277V
Lumens: 17000, 20400, 25500
Efficacy: 170 lm/W
CCT: 3000K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 16.63"L x 8.66"W x 2.07"H

RecessEdge Series LED Down Light Fixture FAQs

What Are RecessEdge Series LED Down Light Fixture?

RecessEdge Series LED Down Light Fixture are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.

Where Can RecessEdge Series LED Down Light Fixture Be Used?

RecessEdge Series LED Down Light Fixture are suitable for a wide range of outdoor environments, including:

  • Parking lots
  • Building exteriors
  • Walkways and pathways
  • Commercial and industrial properties
  • Residential homes and gardens

How Do I Choose the Right Wattage and Color Temperature for RecessEdge Series LED Down Light Fixture?

Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.

Are RecessEdge Series LED Down Light Fixture Dimmable?

Yes, RecessEdge Series LED Down Light Fixture are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.

What Certifications Do RecessEdge Series LED Down Light Fixture Have?

RecessEdge Series LED Down Light Fixture are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.

How Do I Install RecessEdge Series LED Down Light Fixture?

RecessEdge Series LED Down Light Fixture include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
