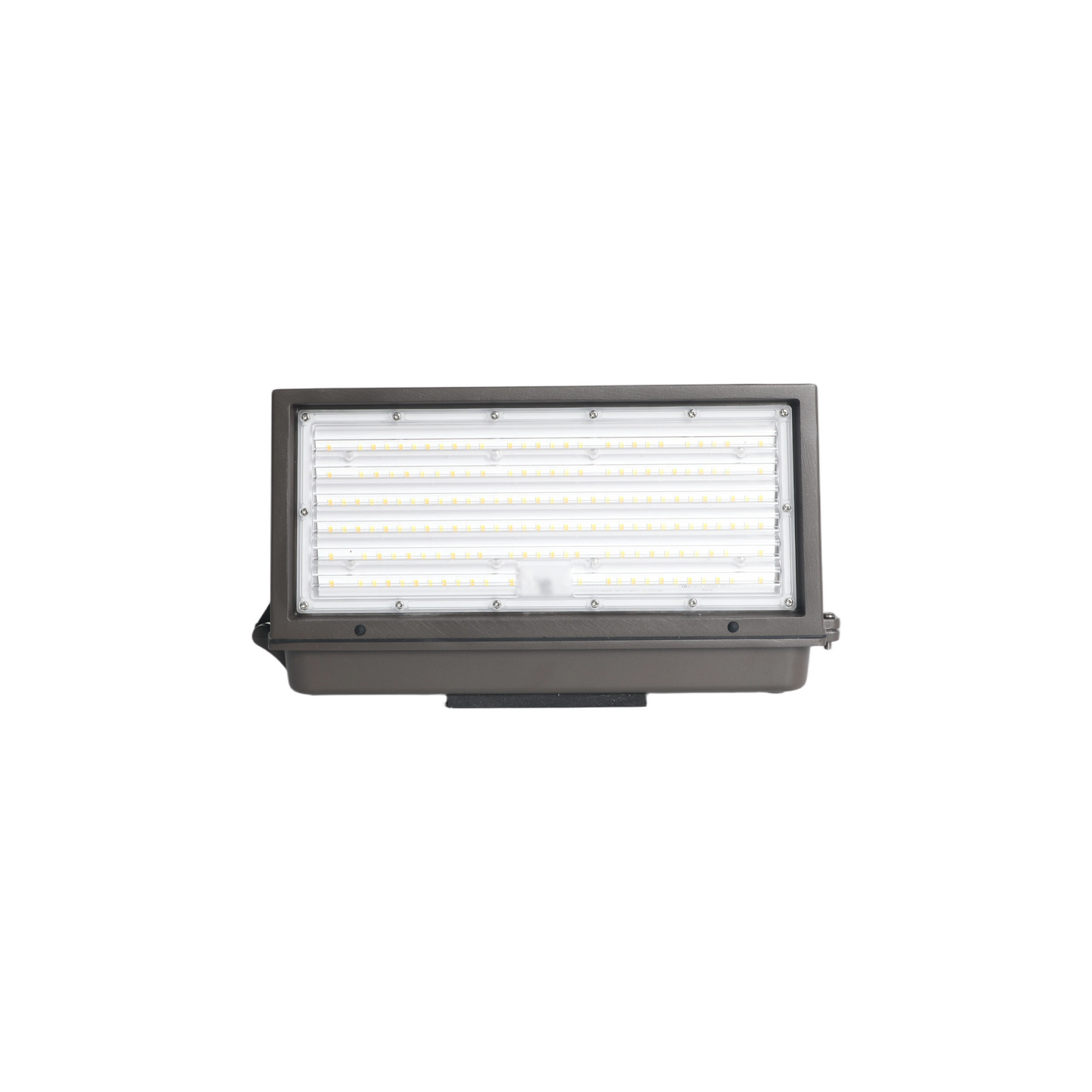

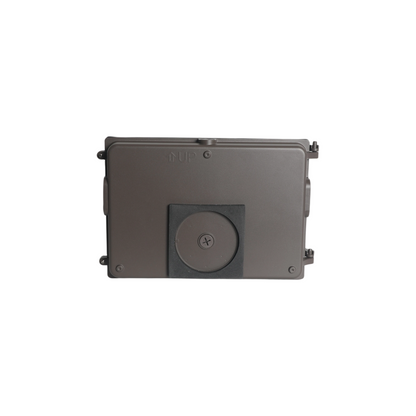

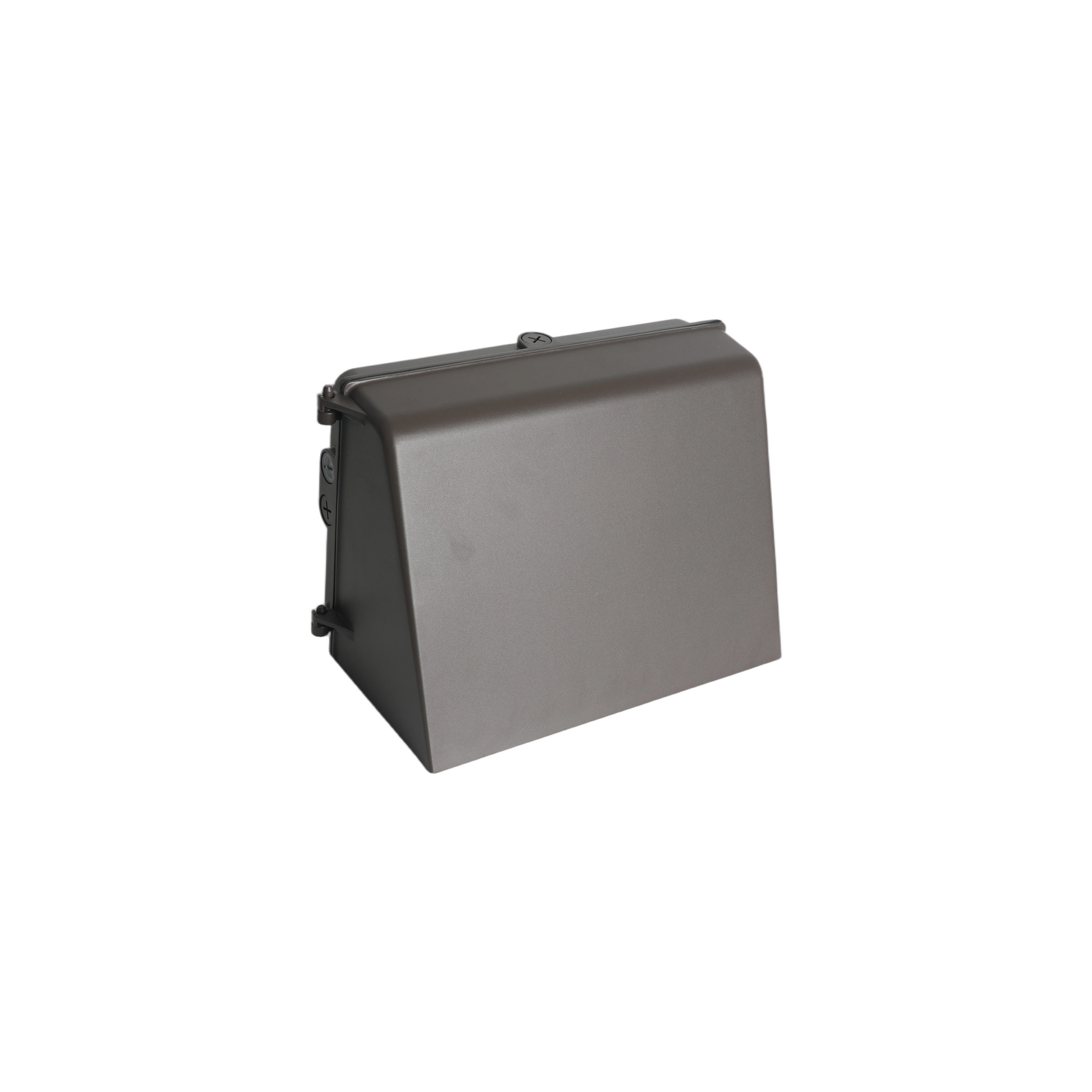

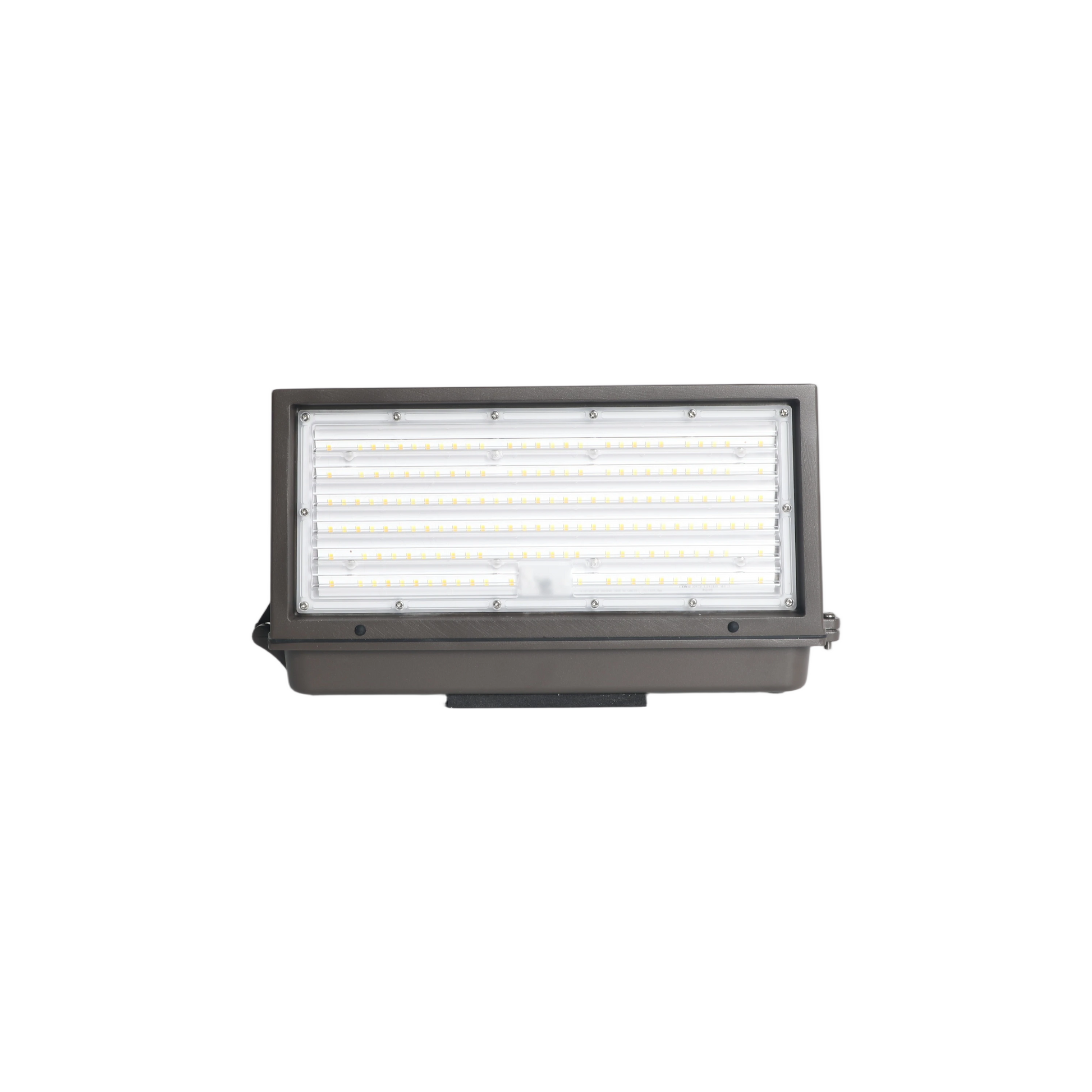

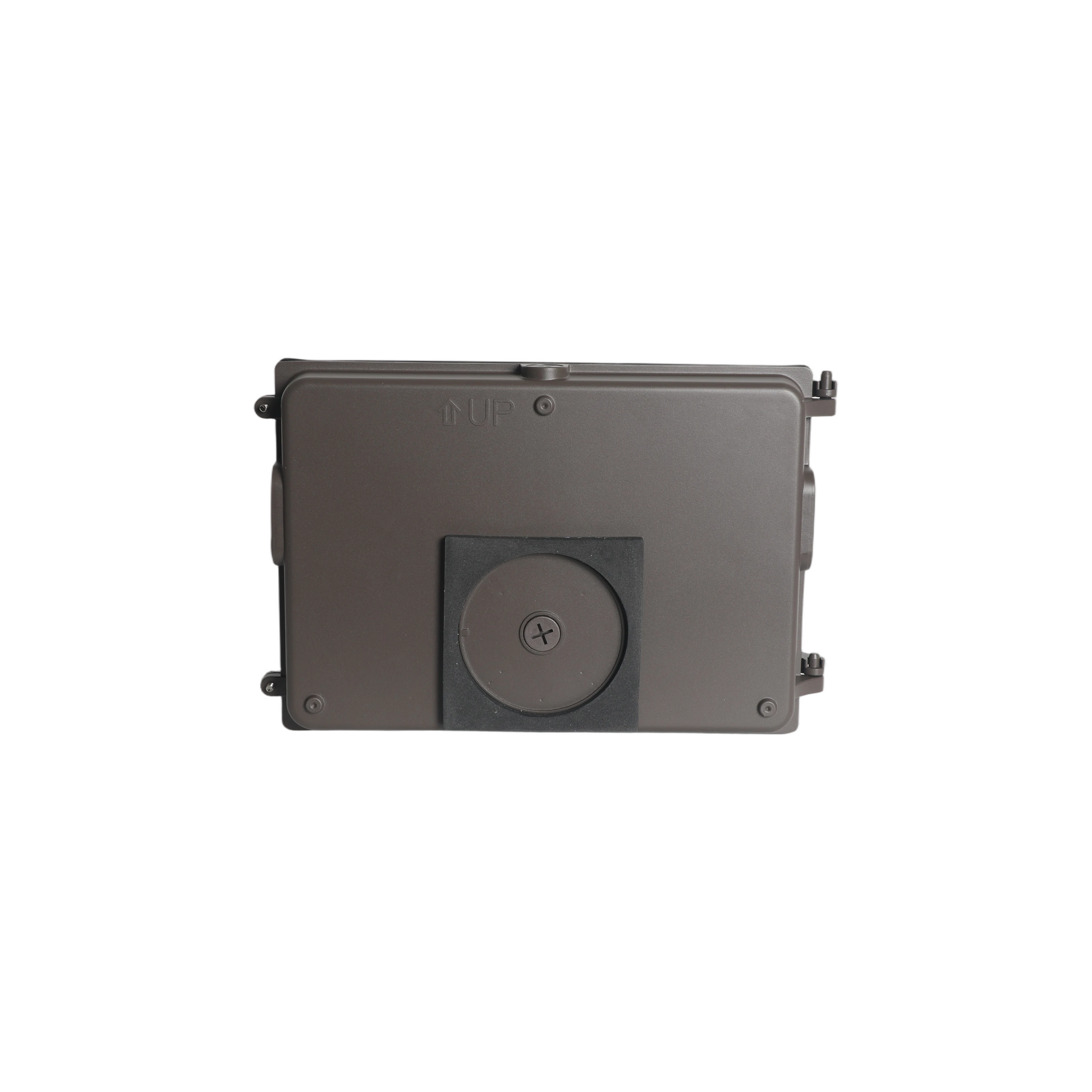

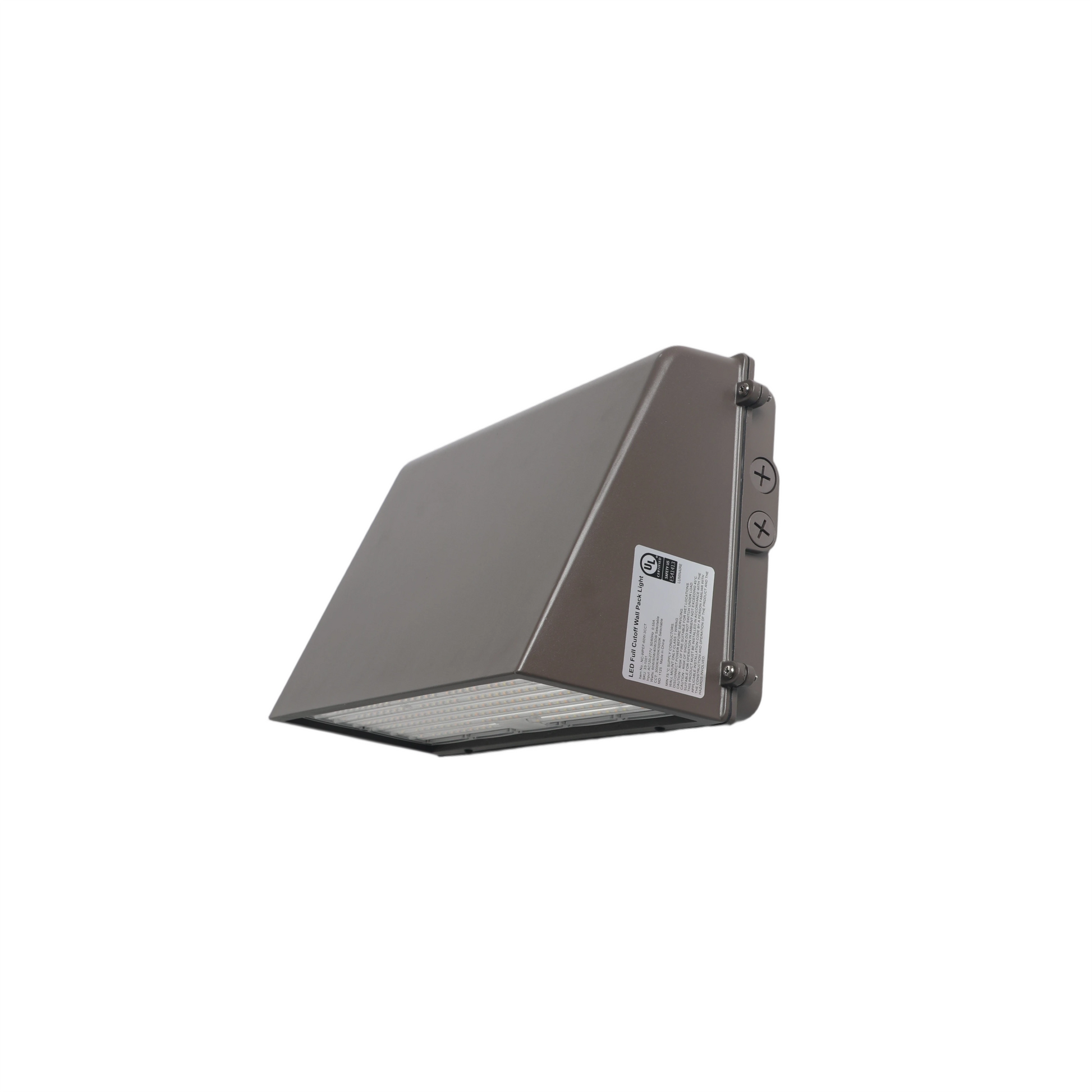

DarkShield Series LED Full Cutoff Wall Pack Light Fixture

DarkShield Series LED Full Cutoff Wall Pack Light Fixture

NCLTG WallGuard Series LED Wall Pack Light feature badges – 3-CCT selectable, 4-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specification Sheet

DarkShield Series LED Full Cutoff Wall Pack Light Fixture - Spec Sheet

Photometrics (IES Files)

DarkShield Series LED Full Cutoff Wall Pack Light Fixture - IES

Installation Instructions

DarkShield Series LED Full Cutoff Wall Pack Light Fixture - Installation Instructions

Request Price View full details

About DarkShield Series LED Full Cutoff Wall Pack Light Fixture

The DarkShield Series LED Full Cutoff Wall Pack Light Fixture delivers precision exterior lighting with intelligent control and durable construction. This power-selectable LED wall pack (NC-WPEF-XXW-3CCT-EM) features full cutoff optics that eliminate unwanted uplight while directing illumination exactly where needed—ideal for warehouses, offices, factories, hospitals, and hotels. Choose from dual wattage configurations (60–50–40–30W or 120–90–60–30W) and three color temperatures (3000K, 4000K, 5000K) to match your specific application. The fixture operates on standard 120–277V input with 0–10V dimming compatibility, giving you seamless integration with existing lighting control systems. Built tough with die-cast aluminum housing and a professional bronze finish, this wall pack withstands demanding outdoor environments. Optional photocell automation enables dusk-to-dawn operation without external controls, while configurable accessories—wire guards, light shields, and emergency drivers—adapt the fixture to your exact site requirements. Engineered for controlled light distribution, energy efficiency, and long-term reliability in exterior wall-mounted applications.

Product Identification Performance Specifications
Order Code: 33-1001
Model No: NC-WPEF-60W-3CCT
Nominal Size: 14 INCH
  • Wattage: 30W / 40W / 50W / 60W
  • Lumens: 4200lm - 8400lm
  • CCT: 3000K / 4000K / 5000K
  • Efficacy: 140lm/W
  • Input: 120-277V | 0.55A
  • CRI/Beam: >80 / 120°
Order Code: 33-1002
Model No: NC-WPEF-60W-3CCT-EM
Nominal Size: 14 INCH
  • Wattage: 30W / 40W / 50W / 60W
  • Lumens: 4050lm - 8100lm
  • CCT: 3000K / 4000K / 5000K
  • Efficacy: 135lm/W
  • CRI/Beam: >80 / 120°
Order Code: 33-1003
Model No: NC-WPEF-120W-3CCT
Nominal Size: 14 INCH
  • Wattage: 30W / 60W / 90W / 120W
  • Lumens: 3990lm - 15960lm
  • CCT: 3000K / 4000K / 5000K
  • Efficacy: 133lm/W
  • Input: 120-277V | 1.1A
  • CRI/Beam: >80 / 120°
Order Code: 33-1004
Model No: NC-WPEF-120W-3CCT-EM
Nominal Size: 14 INCH
  • Wattage: 30W / 60W / 90W / 120W
  • Lumens: 3930lm - 15720lm
  • CCT: 3000K / 4000K / 5000K
  • Efficacy: 131lm/W
  • CRI/Beam: >80 / 120°

DarkShield Series LED Full Cutoff Wall Pack Light Fixture FAQs

What Are DarkShield Series LED Full Cutoff Wall Pack Light Fixture?

DarkShield Series LED Full Cutoff Wall Pack Light Fixture are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.

Where Can DarkShield Series LED Full Cutoff Wall Pack Light Fixture Be Used?

DarkShield Series LED Full Cutoff Wall Pack Light Fixture are suitable for a wide range of outdoor environments, including:

  • Parking lots
  • Building exteriors
  • Walkways and pathways
  • Commercial and industrial properties
  • Residential homes and gardens

How Do I Choose the Right Wattage and Color Temperature for DarkShield Series LED Full Cutoff Wall Pack Light Fixture?

Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.

Are DarkShield Series LED Full Cutoff Wall Pack Light Fixture Dimmable?

Yes, DarkShield Series LED Full Cutoff Wall Pack Light Fixture are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.

What Certifications Do DarkShield Series LED Full Cutoff Wall Pack Light Fixture Have?

DarkShield Series LED Full Cutoff Wall Pack Light Fixture are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.

How Do I Install DarkShield Series LED Full Cutoff Wall Pack Light Fixture?

DarkShield Series LED Full Cutoff Wall Pack Light Fixture include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
