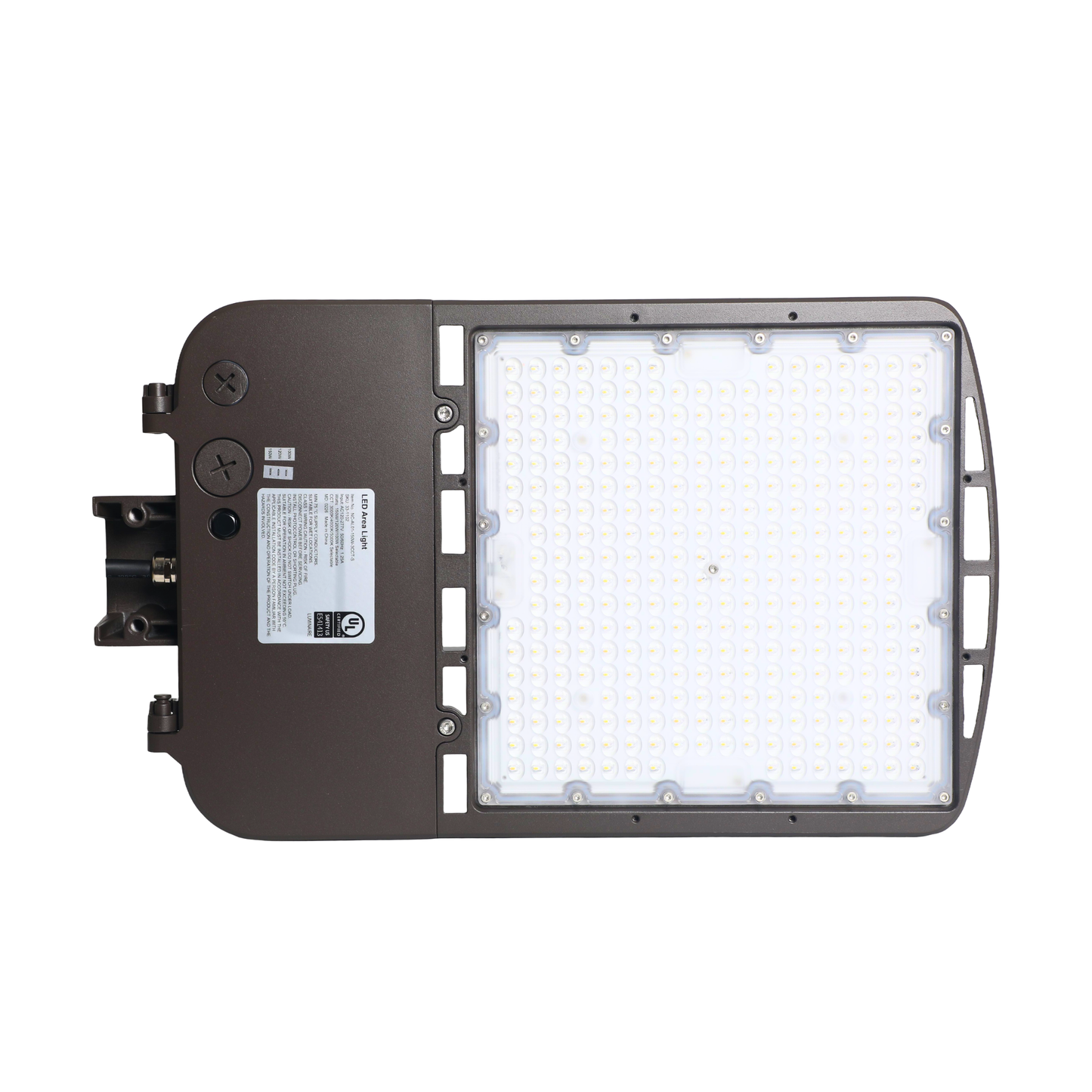

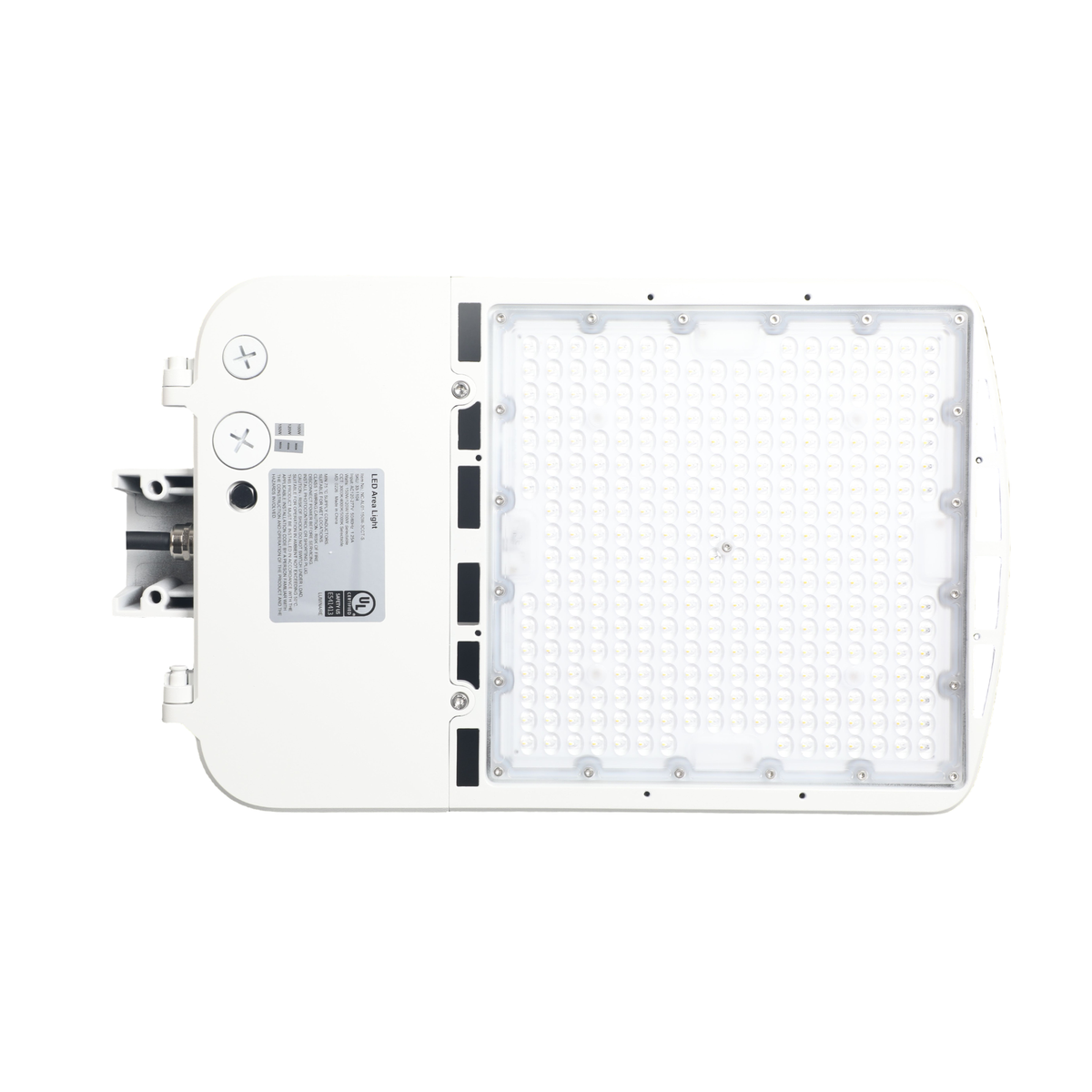

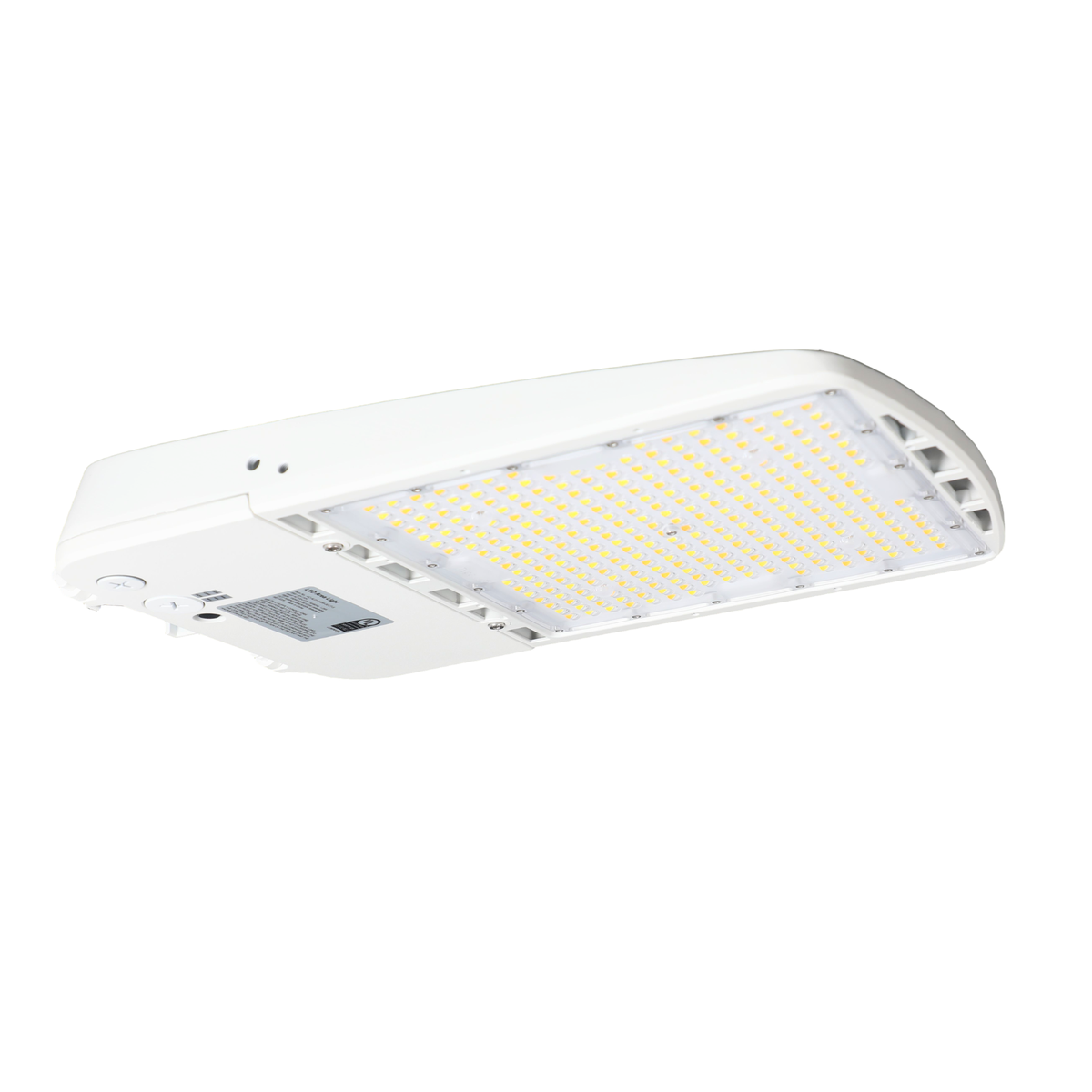

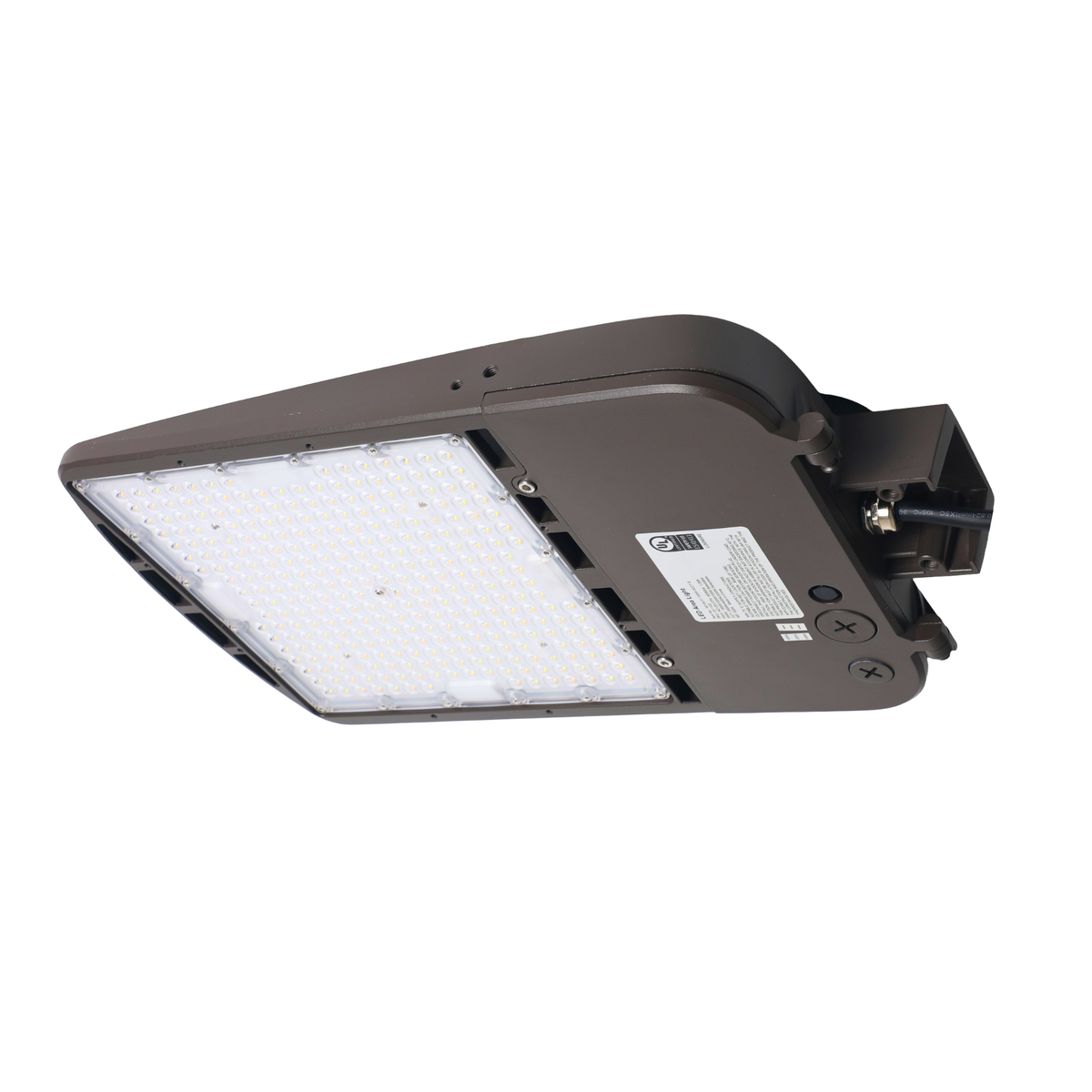

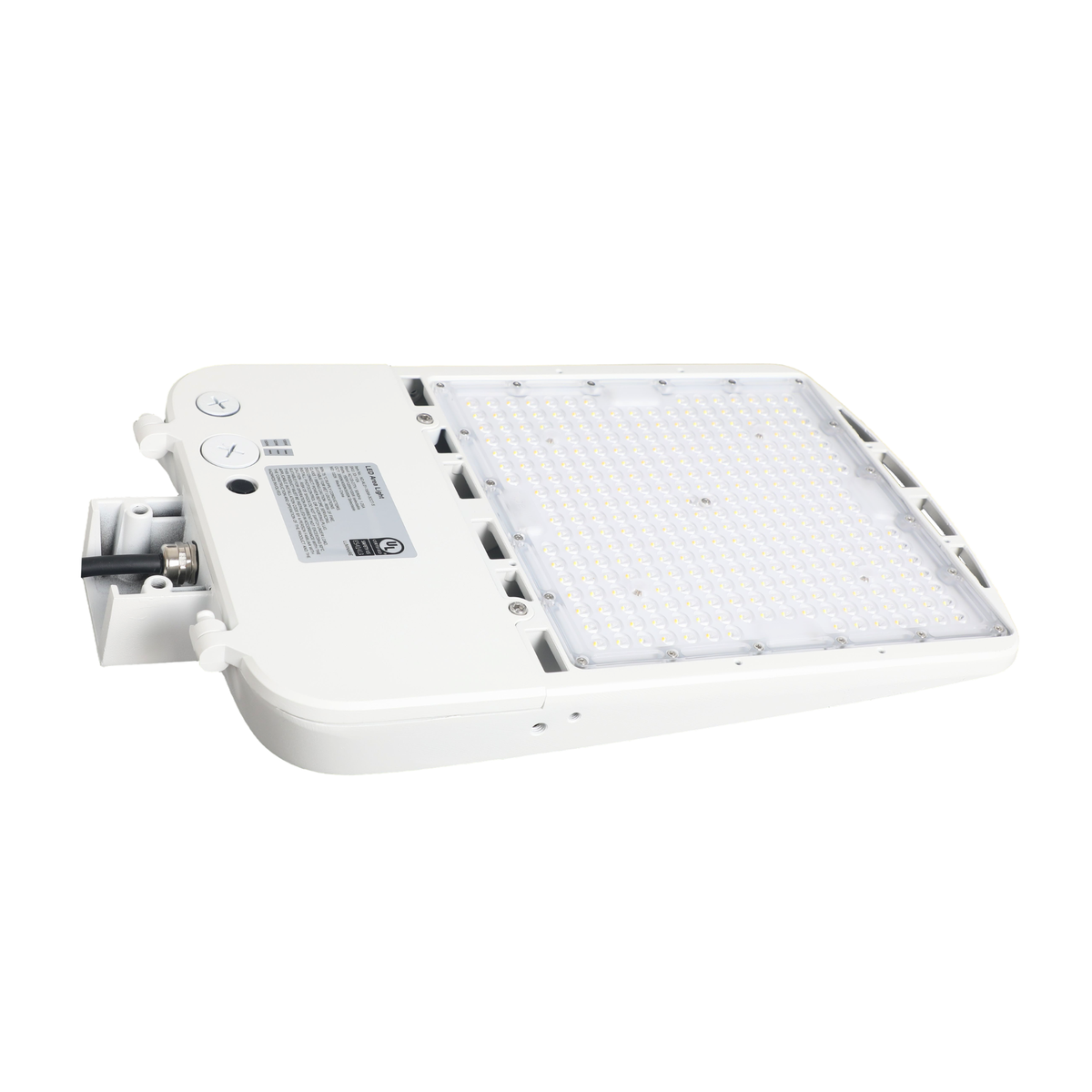

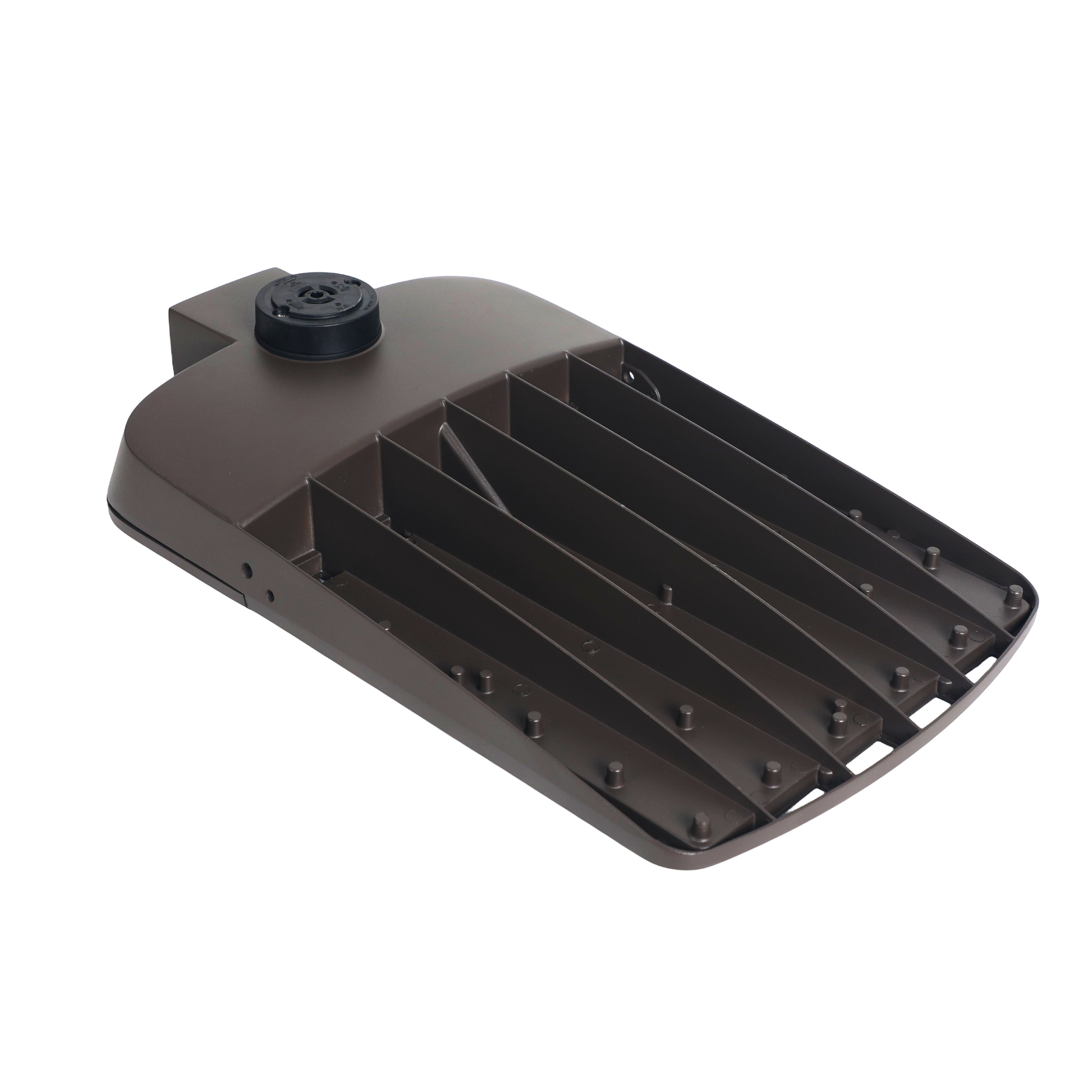

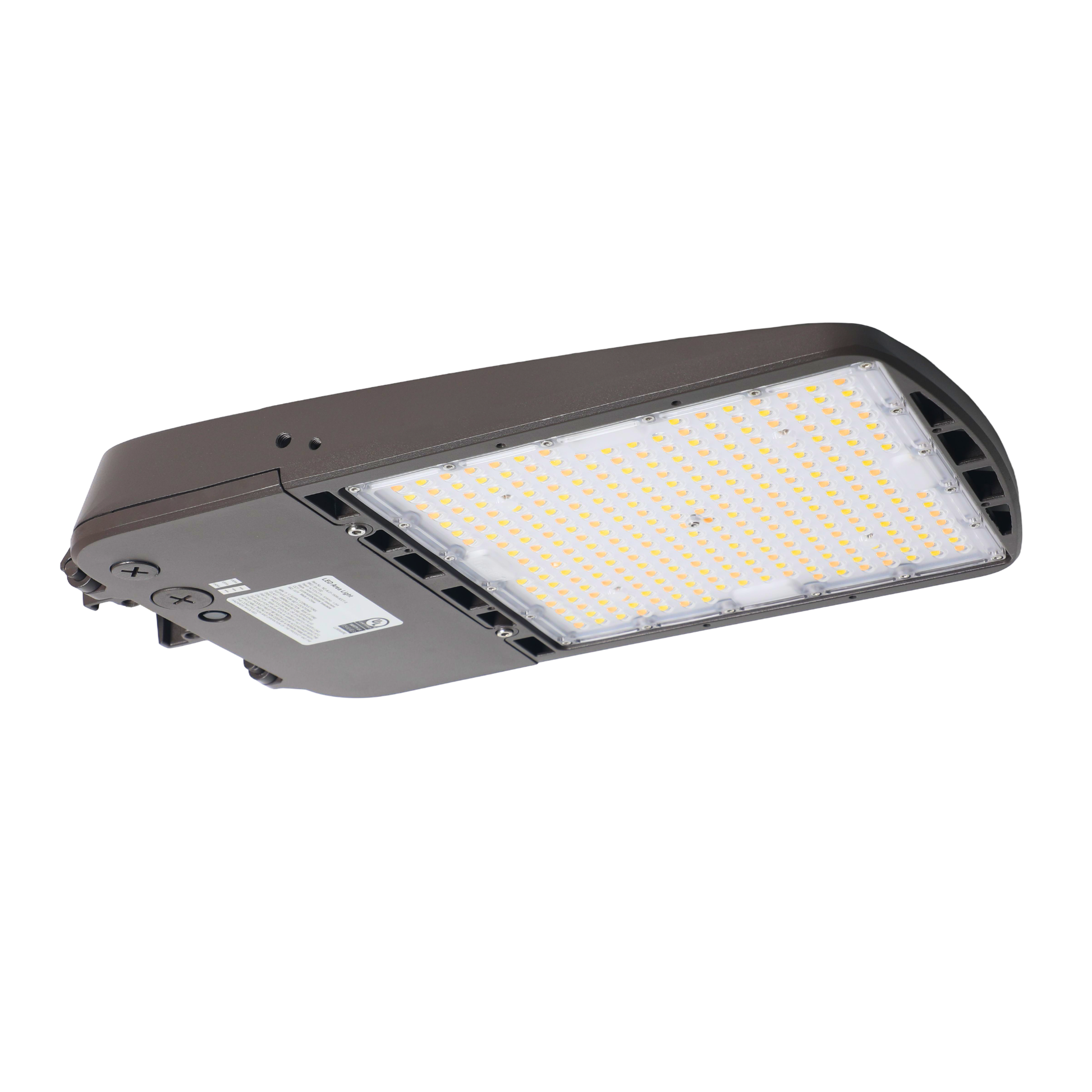

GridMax PRO Series LED Area Light

GridMax PRO Series LED Area Light

NCLTG WallGuard Series LED Wall Pack Light feature badges – 3-CCT selectable, 4-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specification Sheet

GridMax PRO Series LED Area Light - Specification Sheet

Photometrics (IES Files)

GridMax PRO Series LED Area Light - IES

Installation Instructions

Request Price View full details

GridMax PRO Series LED Area Light – Professional Outdoor Lighting Solution

The GridMax PRO Series LED Area Light delivers high-efficiency LED area lighting for outdoor spaces that demand flexibility, precision, and performance. This adaptable fixture combines selectable wattage and color temperature with multiple optical distributions, allowing a single unit to serve diverse site conditions while maintaining superior illumination and electrical consistency.

Why Choose GridMax PRO Series LED Area Light

Field-Adjustable Wattage & CCT
Customize output and color temperature on-site to match project specifications and energy goals—no fixture replacement needed.

Four Optical Distribution Options
Type II, III, IV, and V distributions optimize light spread for parking lots, roadways, campuses, and industrial facilities with varying layout requirements.

Industry-Leading Efficiency
Achieve up to 170 lumens per watt, maximizing illumination while minimizing energy consumption and operational costs.

Smart Control Ready

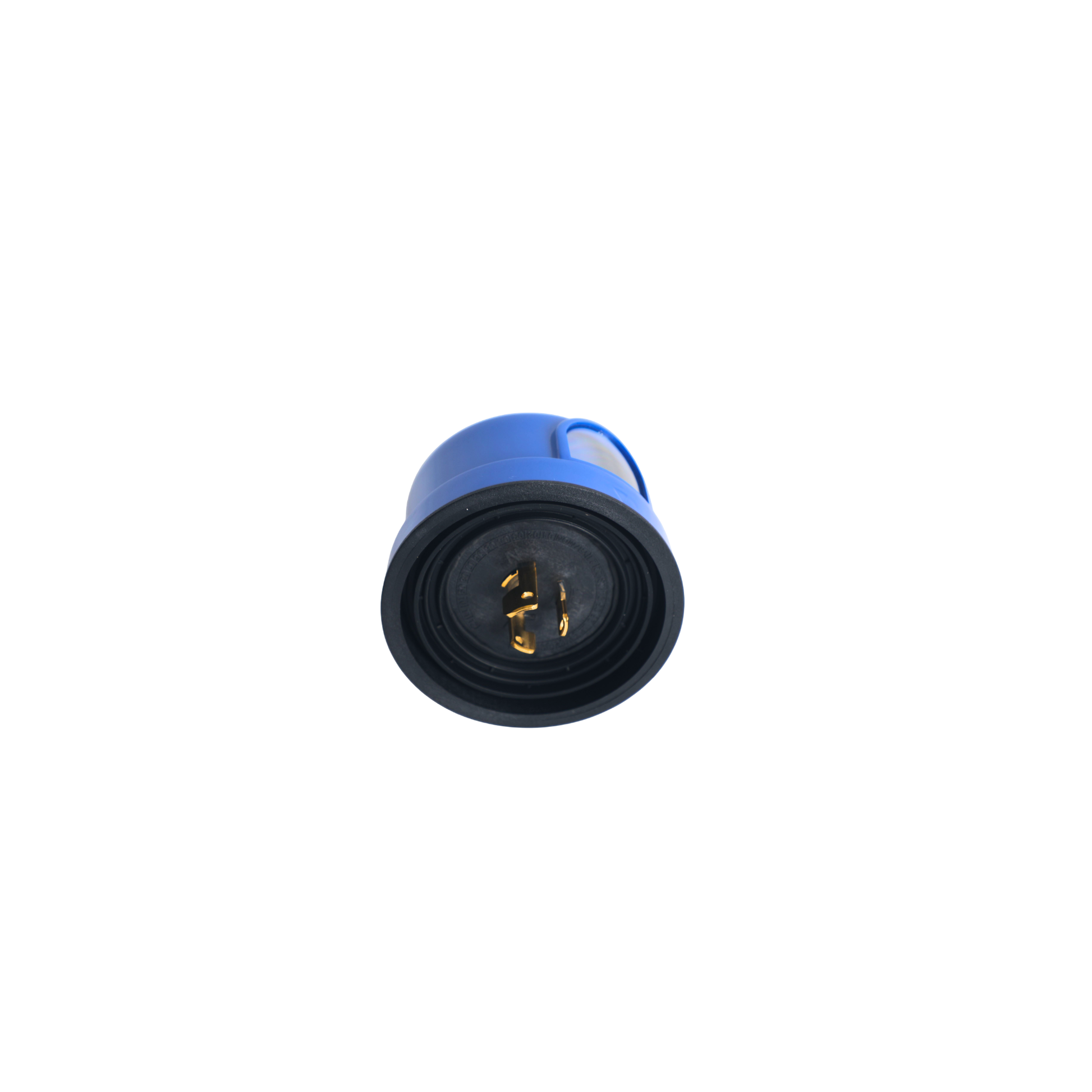

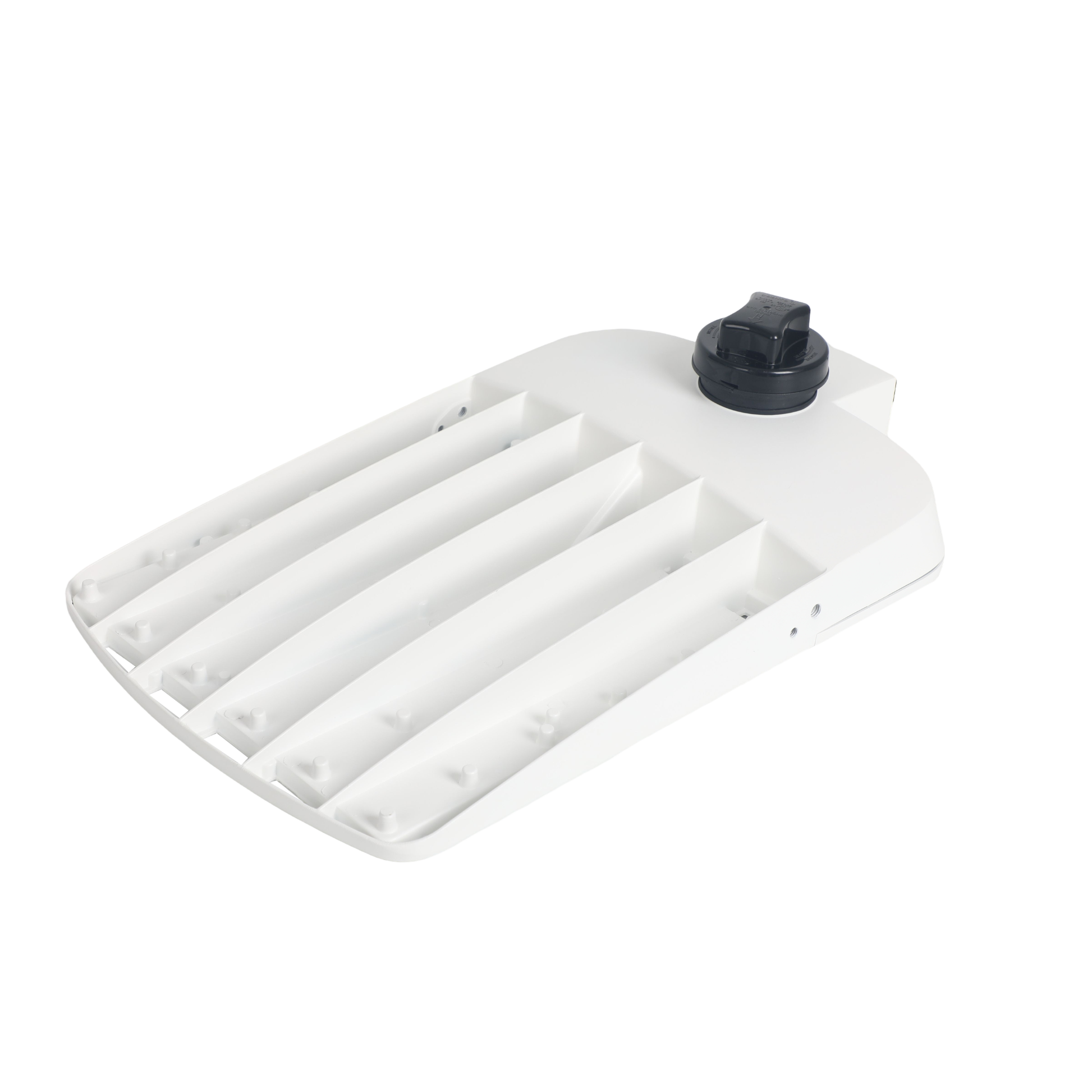

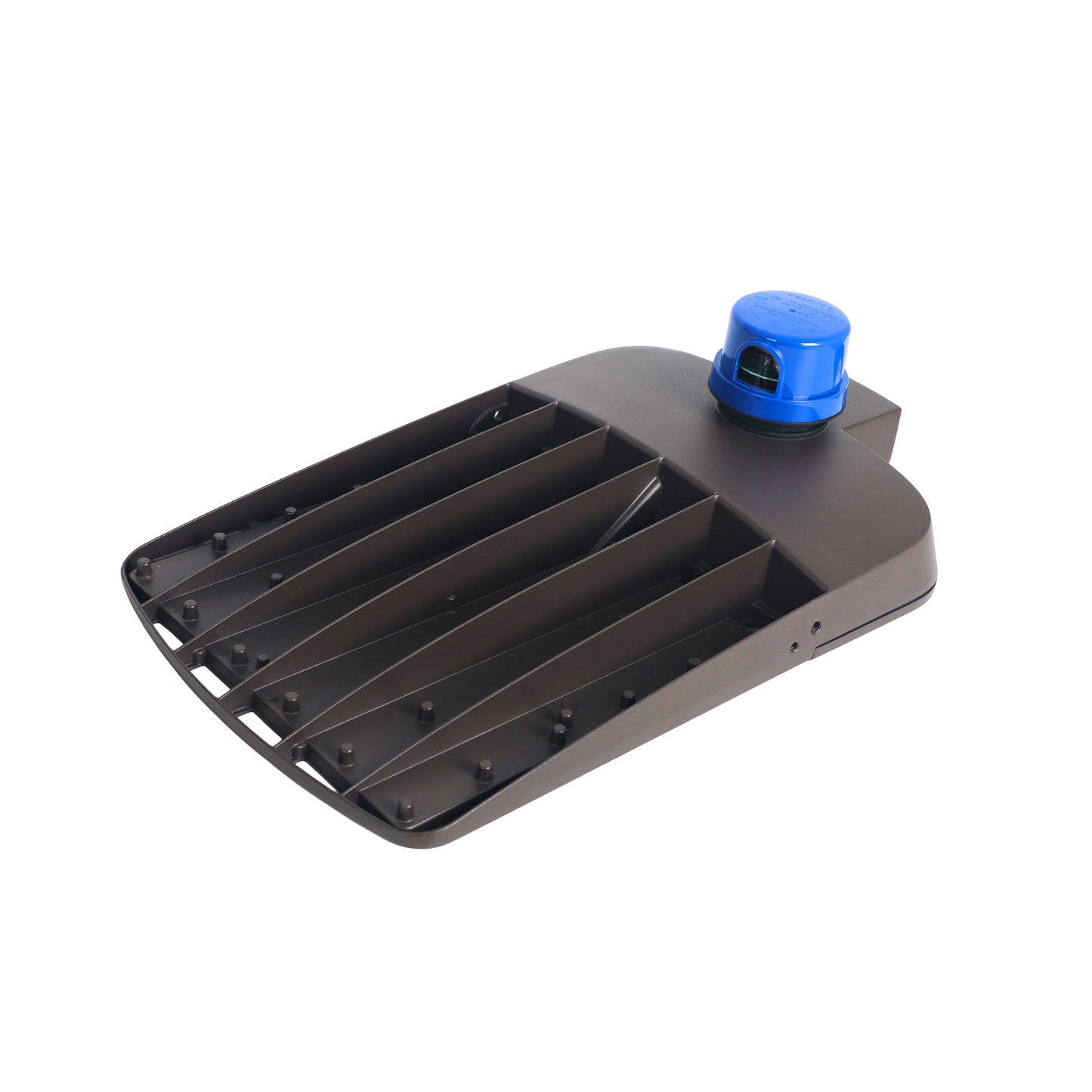

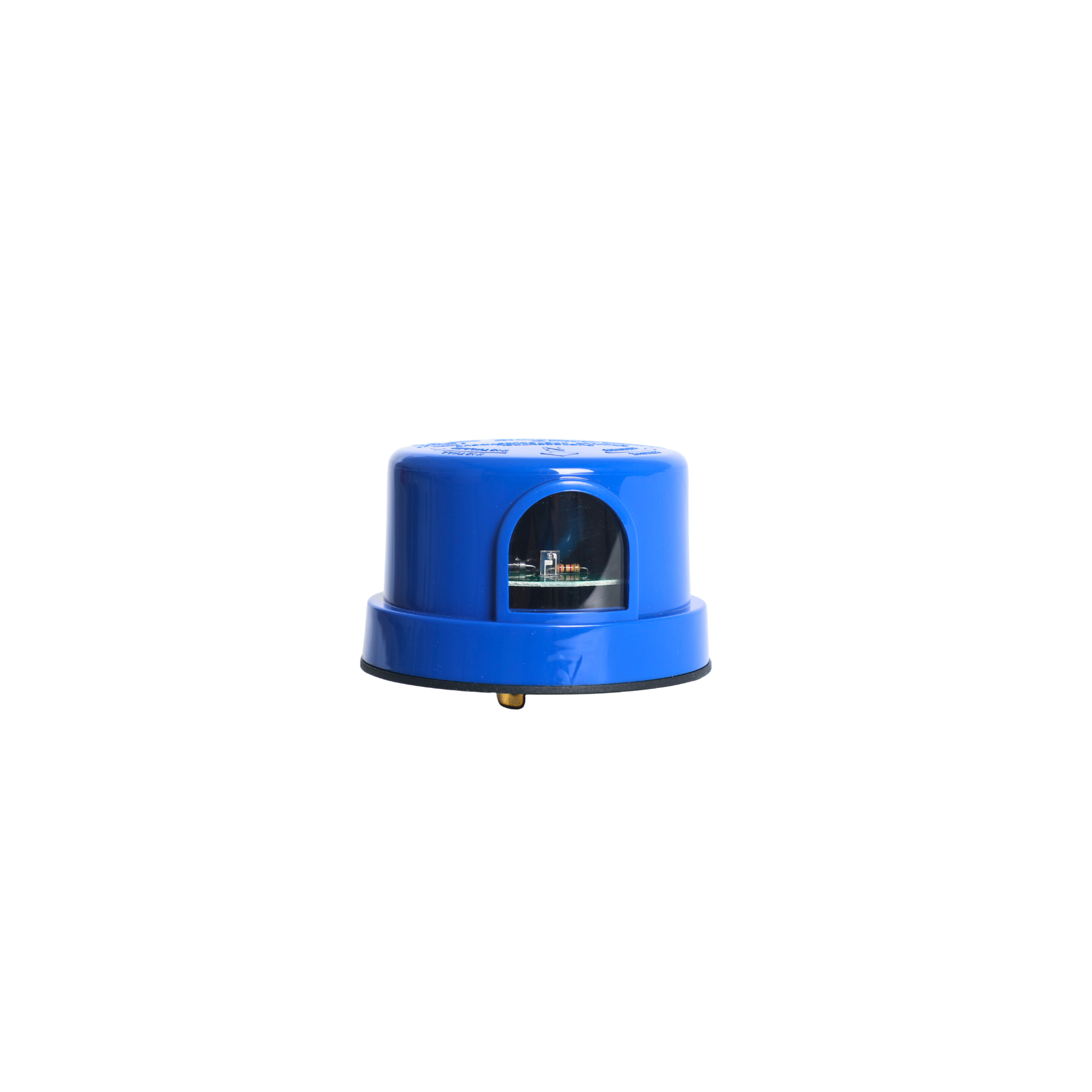

Integrated support for optional sensors and NEMA receptacles enables future integration with advanced lighting control systems.

Perfect For

Parking areas, highways, educational campuses, commercial complexes, and industrial operations. Supports both pole-mounted and arm-mounted configurations for flexible installation across any outdoor environment.

One fixture. Unlimited adaptability. The GridMax PRO Series LED Area Light evolves with your lighting needs.

Product Identification Performance Specifications
Model No: NC-CPS-40W-3CCT
  • Wattage: 100W / 120W / 150W
  • Lumens: 17000lm - 25500lm
  • CCT: 3000K / 4000K / 5000K
  • Efficacy: 170lm/W
  • Frequency: 60Hz
Model No: NC-AL01-300W-3CCT_T3
  • Wattage: 200W / 240W / 300W
  • Lumens: 34000lm - 51000lm
  • CCT: 3000K / 4000K / 5000K
  • Efficacy: 170lm/W
  • Frequency: 60Hz°

GridMax PRO Series LED Area Light FAQs

What Are GridMax PRO Series LED Area Light?

GridMax PRO Series LED Area Light are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.

Where Can GridMax PRO Series LED Area Light Be Used?

GridMax PRO Series LED Area Light are suitable for a wide range of outdoor environments, including:

  • Parking lots
  • Building exteriors
  • Walkways and pathways
  • Commercial and industrial properties
  • Residential homes and gardens

How Do I Choose the Right Wattage and Color Temperature for GridMax PRO Series LED Area Light?

Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.

Are GridMax PRO Series LED Area Light Dimmable?

Yes, GridMax PRO Series LED Area Light are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.

What Certifications Do GridMax PRO Series LED Area Light Have?

GridMax PRO Series LED Area Light are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.

How Do I Install GridMax PRO Series LED Area Light?

GridMax PRO Series LED Area Light include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
