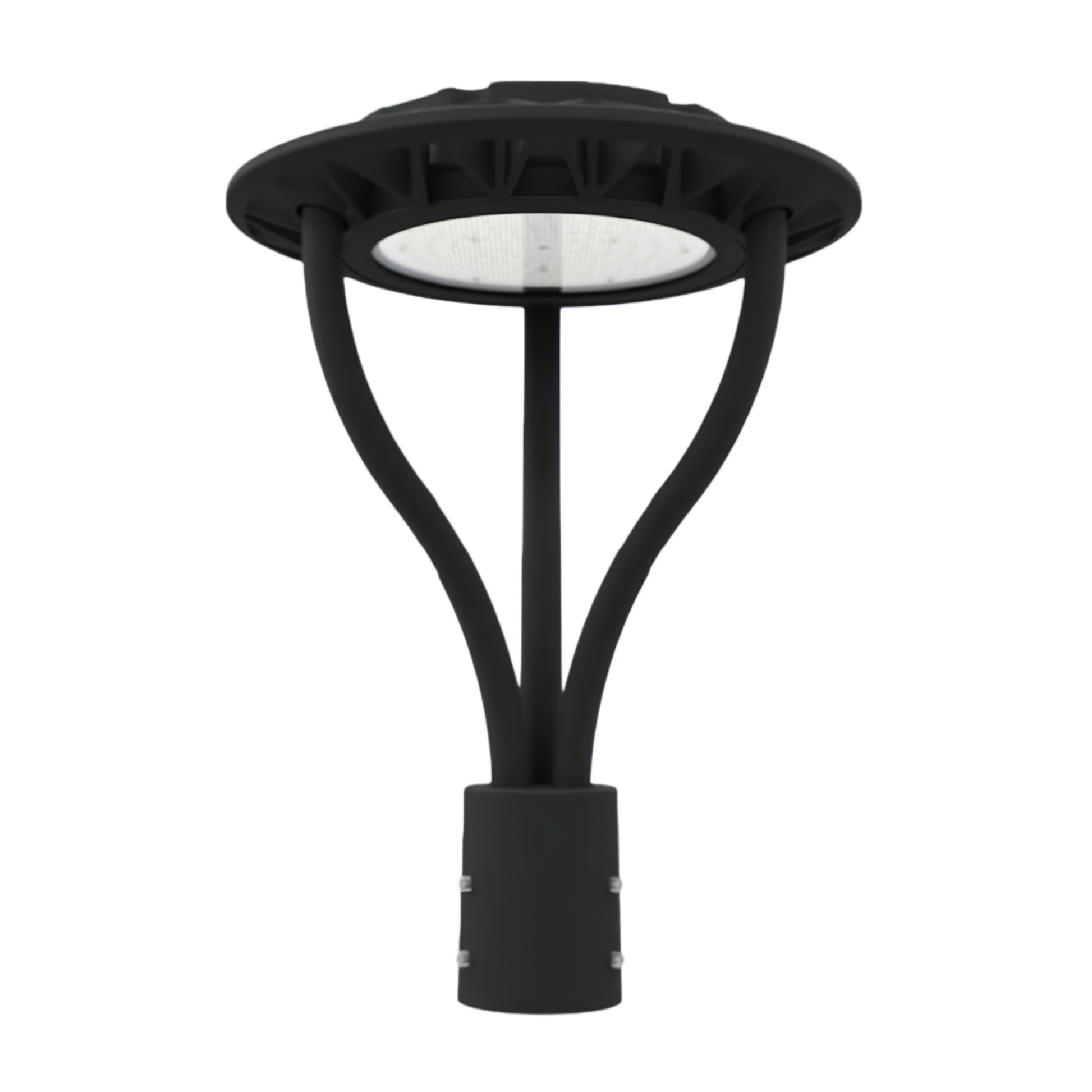

NuGem Series LED Post Top Light

About NuGem Series LED Post Top Light

The NuGem Series LED Post Top Light is an architectural outdoor luminaire engineered for applications such as parks, pedestrian walkways, campuses, plazas, courtyards, and commercial landscapes.

Key Features and Performance

• Design & Construction: The fixture features a decorative profile with a heavy-duty die-cast aluminum housing, a UV-resistant polyester finish, and a polycarbonate Type V lens.
• Optics: It utilizes IES/NEMA Type V distribution to provide uniform illumination across open areas.
• Flexibility: The series offers field-adjustable wattage (70W/100W/150W) and selectable color temperatures (3000K/4000K/5000K), which simplifies project specifications.
• Performance: The luminaires provide up to 140 lm/W efficacy and include 0-10V dimming capabilities. They are rated for wet locations with an operating temperature range of -40°C to 45°C and an L70 lifetime exceeding 50,000 hours.
• Installation: Each unit is designed for a standard 3-inch slip-fit pole mount.

Certifications and Specifications

• Certifications: The NuGem Series is cETLus certified, DLC Premium listed, FCC compliant, and carries an IP65 rating.
• Electrical: Units operate on 120-277V with a power factor >0.9 and THD <10%.
• Dimensions: All models feature a uniform diameter of 14.23 inches and a height of 9.23 inches.
