Product Overview

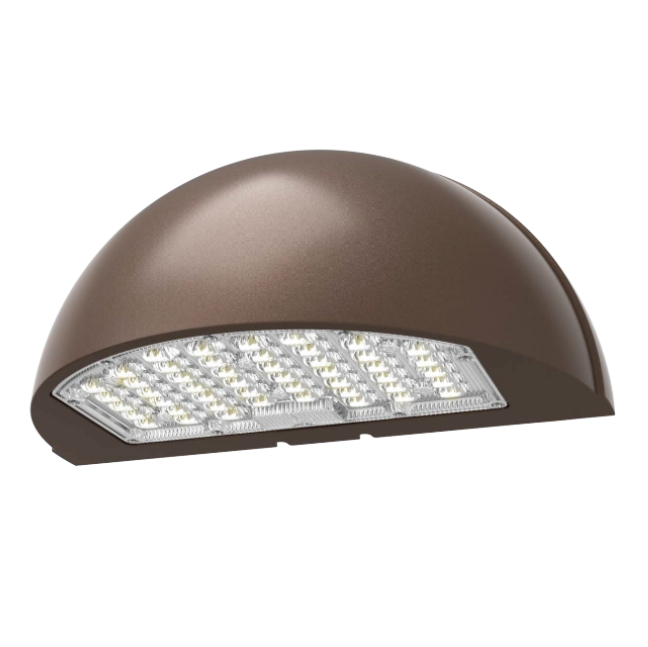

The LunaGuard Series LED Round Cutoff Wall Pack Light delivers efficient, controlled exterior illumination in a compact semi-circular design. Built with a durable bronze housing, this fixture offers selectable wattage and color temperature options to support flexibility across a range of outdoor applications. Wide voltage compatibility and 0–10V dimming allow for smooth integration into both new construction and retrofit projects while maintaining consistent performance and visual uniformity.
Application
The LunaGuard Series LED Round Cutoff Wall Pack Light is commonly used in outdoor and wet-location environments where full cutoff light control and reliable illumination are required. Typical applications include processing workshops, storage warehouses, industrial facilities, toll booths, waiting areas, and railway platform spaces, providing dependable lighting coverage while minimizing glare and spill light.
Technical Summary
| Ambient Operating Temperature | −40°C to 45°C (−40°F to 113°F) |
| Power Factor | ≥0.9 |
| Total Harmonic Distortion (THD) | <20% |
| L70 Lifetime | >50,000 hours at 25°C (77°F) ambient temperature |
| Ingress Protection | IP65 |
| Certifications | UL Listed for wet locations |
Performance Specifications
| SKU | 33-1801 |
| Catalog Number | NC-WPF01G-80W-3CCT |
| Selectable Wattage | (80W, 60W, 50W) |
| Selectable CCT | (3000K, 4000K, 5000K) |
| Lumens | 11440LM, 8580LM, 7150LM |
| Efficacy | 143lm/W |
| Current | 0.67A |
| Input Voltage | 120-277V |
| Dimming | 0-10V |
| CRI | >80 |
| Distribution Pattern | 120° |
LunaGuard Series LED Round Cutoff Wall Pack Light FAQs
What Are LunaGuard Series LED Round Cutoff Wall Pack Light?
LunaGuard Series LED Round Cutoff Wall Pack Light are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.
Where Can WallGuard Series LED Wall Pack Lights Be Used?
LunaGuard Series LED Round Cutoff Wall Pack Light are suitable for a wide range of outdoor environments, including:
- Parking lots
- Building exteriors
- Walkways and pathways
- Commercial and industrial properties
- Residential homes and gardens
How Do I Choose the Right Wattage and Color Temperature for LunaGuard Series LED Round Cutoff Wall Pack Light?
Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.
Are LunaGuard Series LED Round Cutoff Wall Pack Light Dimmable?
Yes, LunaGuard Series LED Round Cutoff Wall Pack Light are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.
What Certifications Do LunaGuard Series LED Round Cutoff Wall Pack Light Have?
LunaGuard Series LED Round Cutoff Wall Pack Light are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.
How Do I Install LunaGuard Series LED Round Cutoff Wall Pack Light?
LunaGuard Series LED Round Cutoff Wall Pack Light include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.
