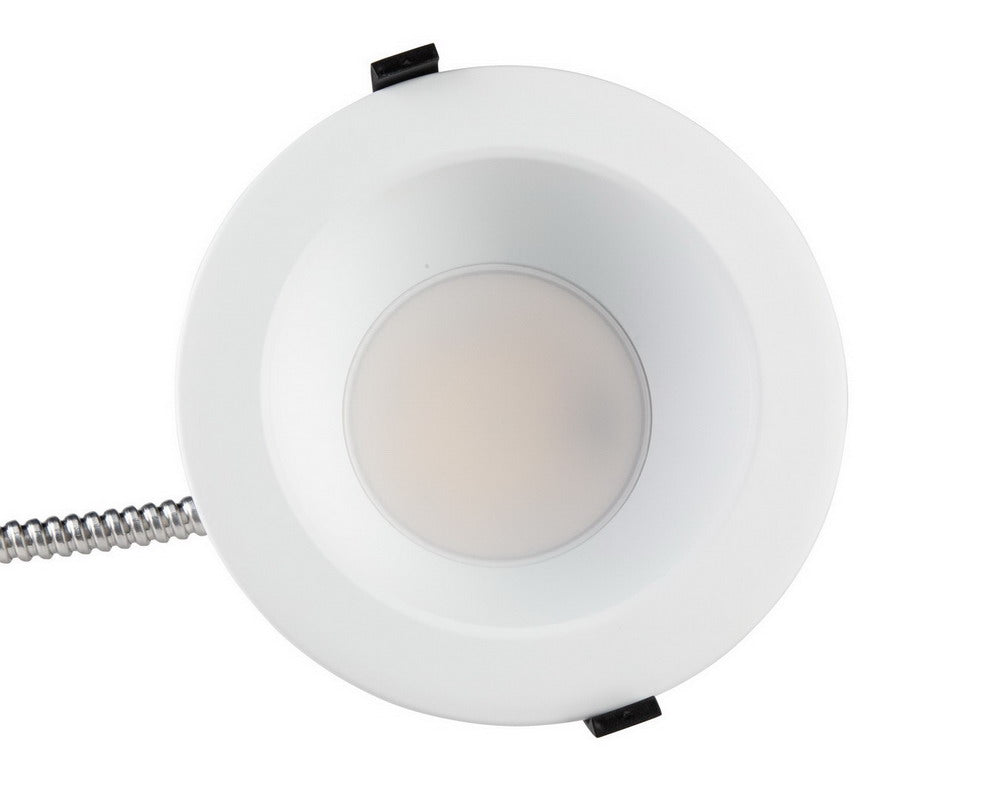

• NCLTG RecessEdge Series 6-inch LED commercial downlight front view displaying the wide recessed trim and integrated LED light source

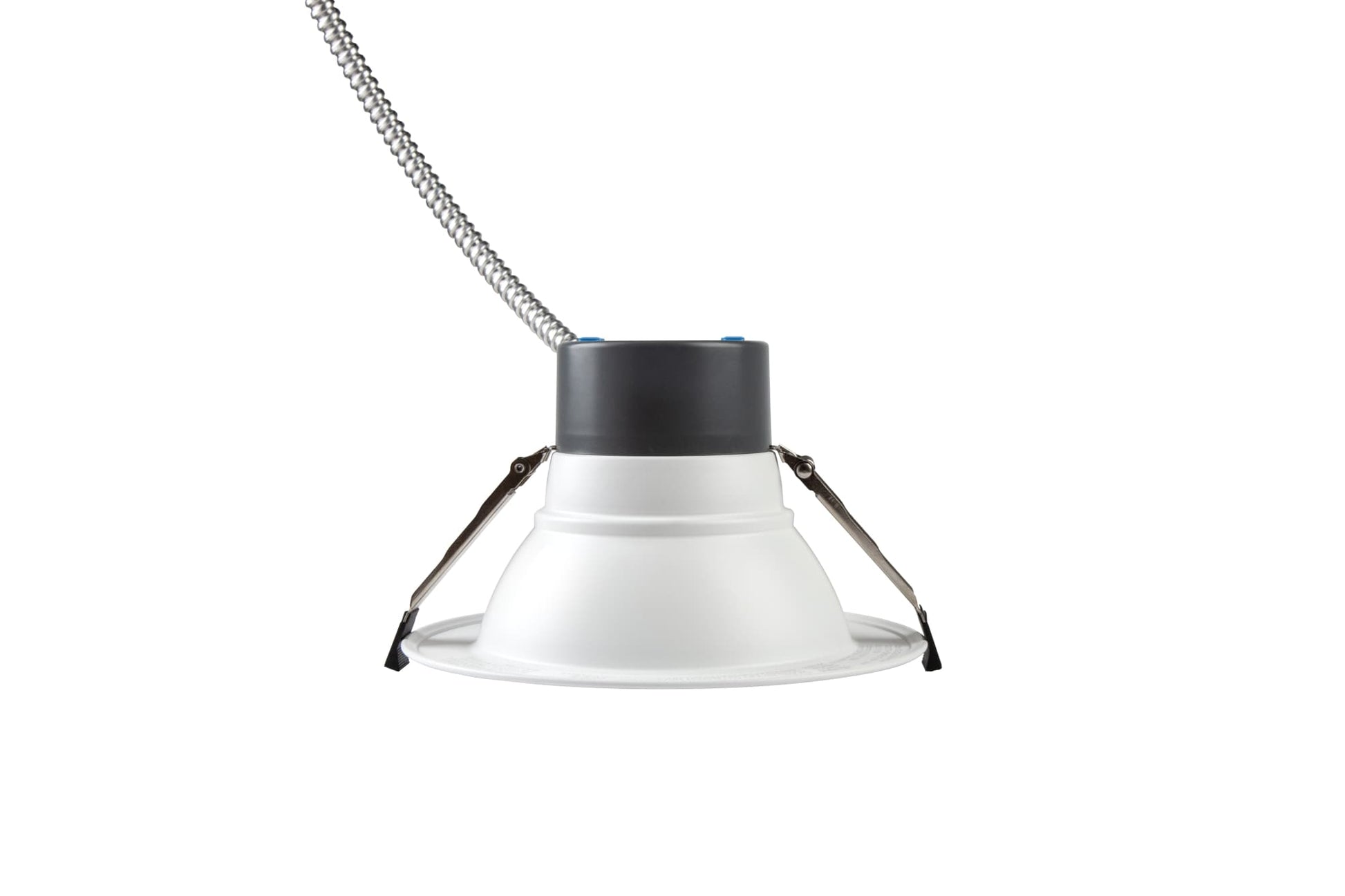

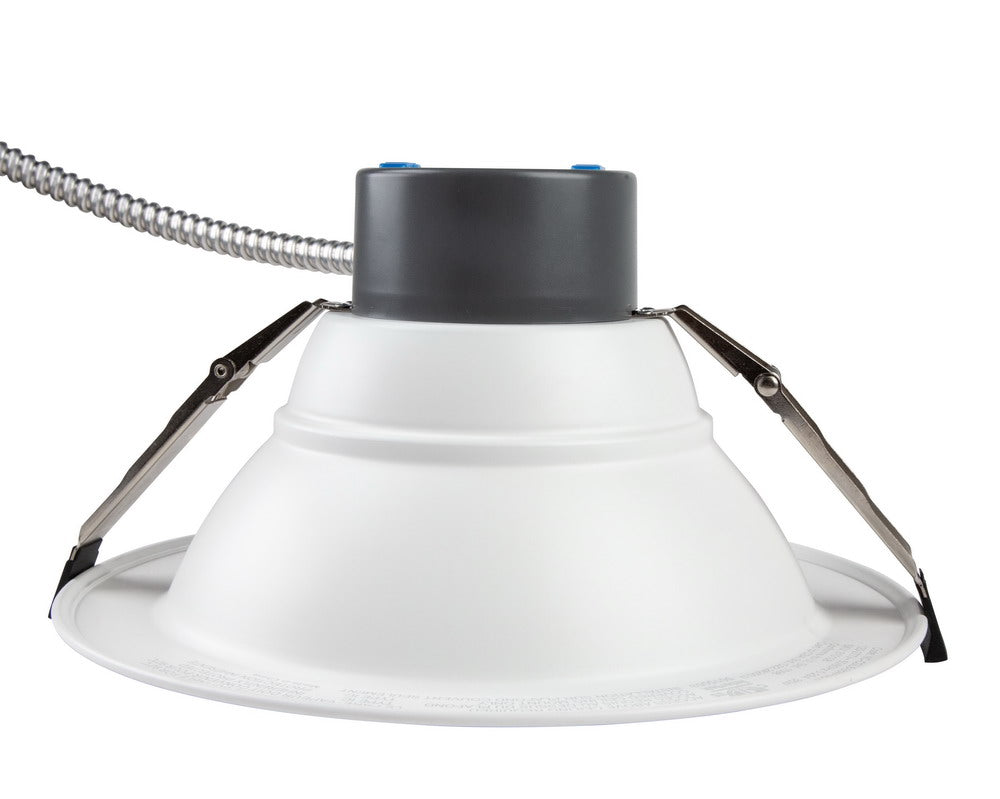

  • NCLTG RecessEdge Series 6-inch LED commercial downlight side view showing mounting clips and MC cable flexing upward for easy ceiling installation

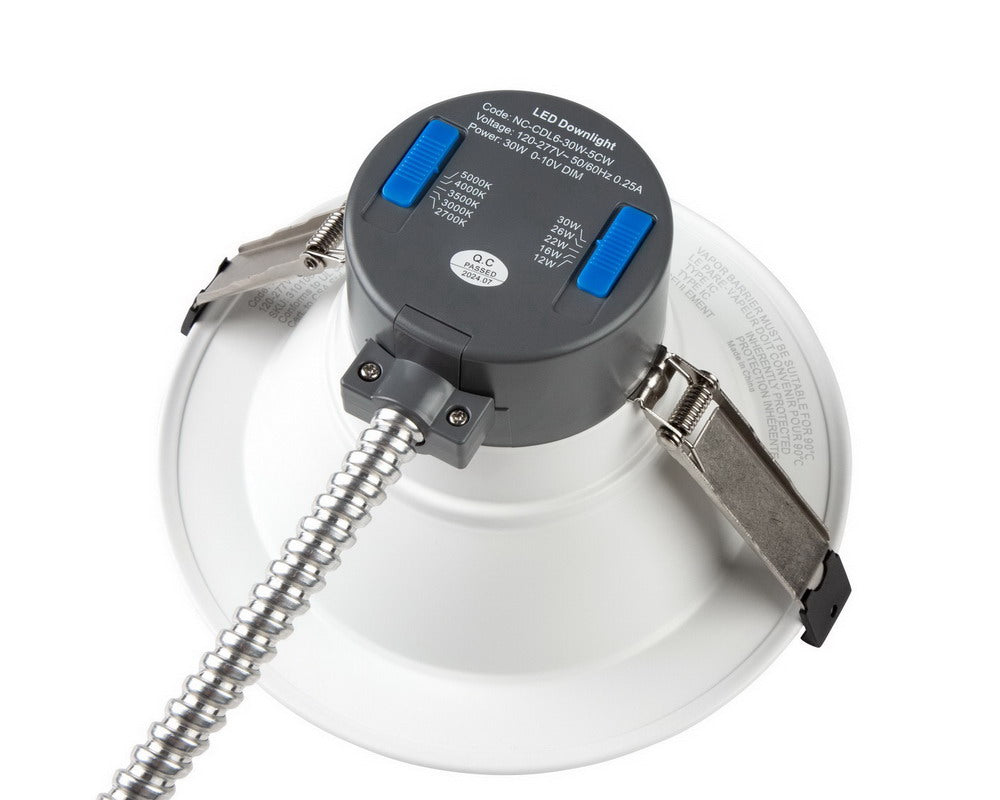

  • NCLTG RecessEdge Series 6-inch LED commercial downlight top view showing mounting clips, MC cable, and wattage/CCT selectable slide switches for customizable settings

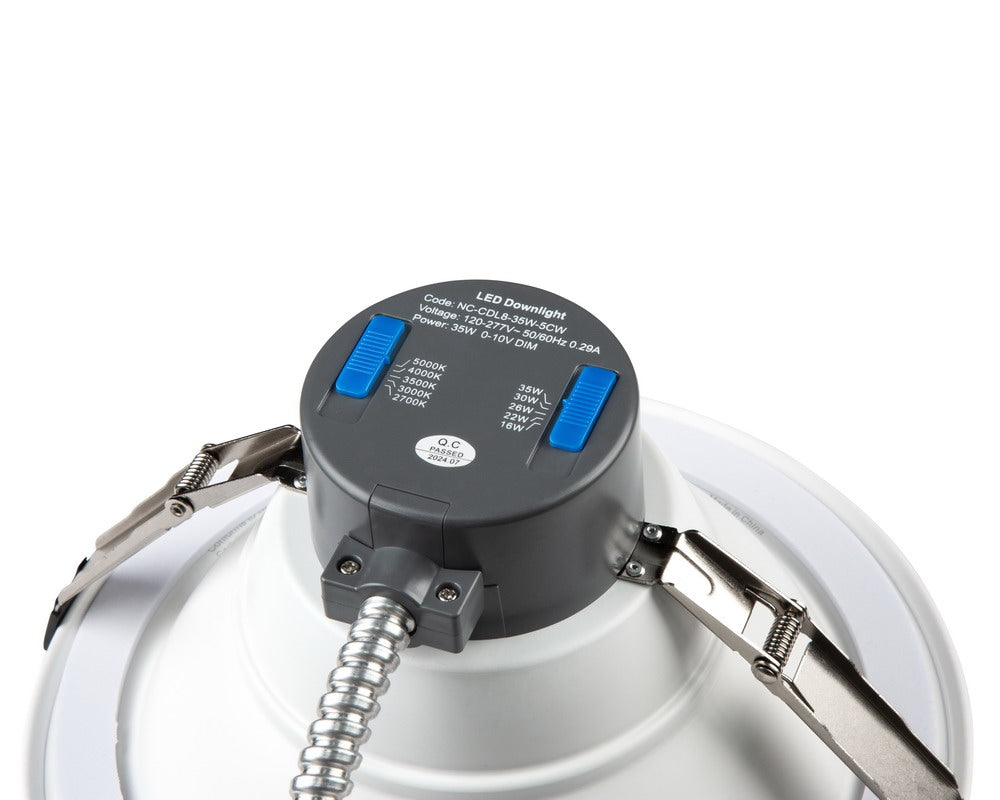

  • NCLTG RecessEdge Series 8-inch LED commercial downlight top detailed view showing wattage and CCT selectable slide switches for on-site customization

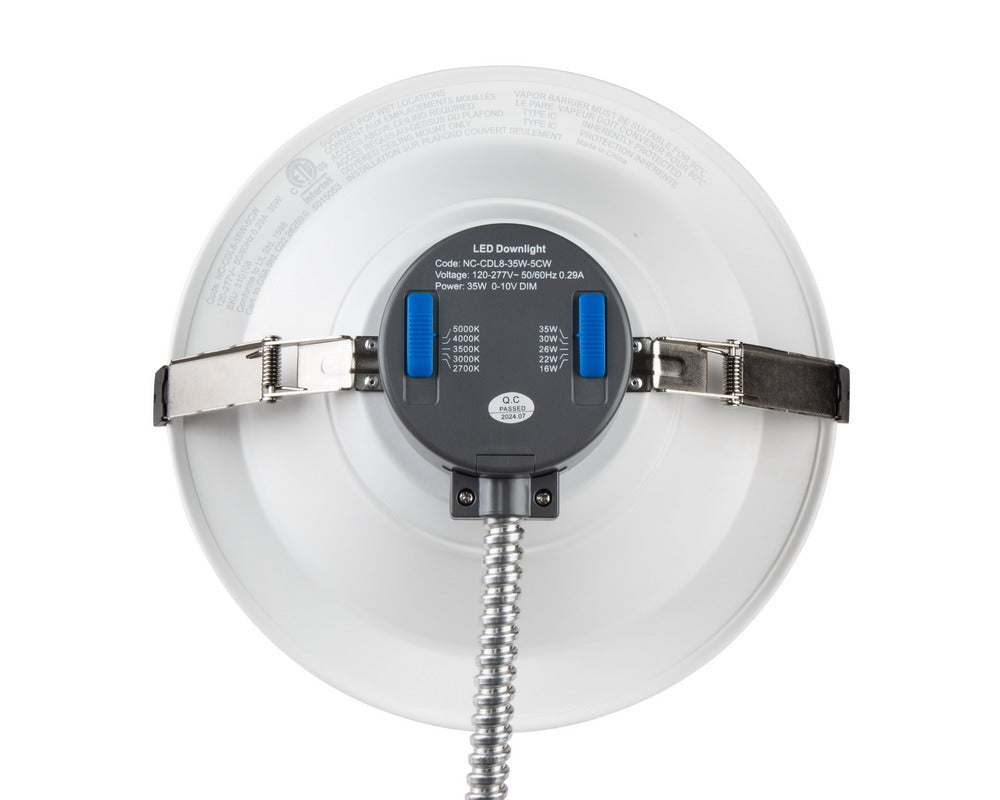

  • NCLTG RecessEdge Series 8-inch LED commercial downlight top view featuring wattage and CCT selectable slide switches for adjustable lighting settings

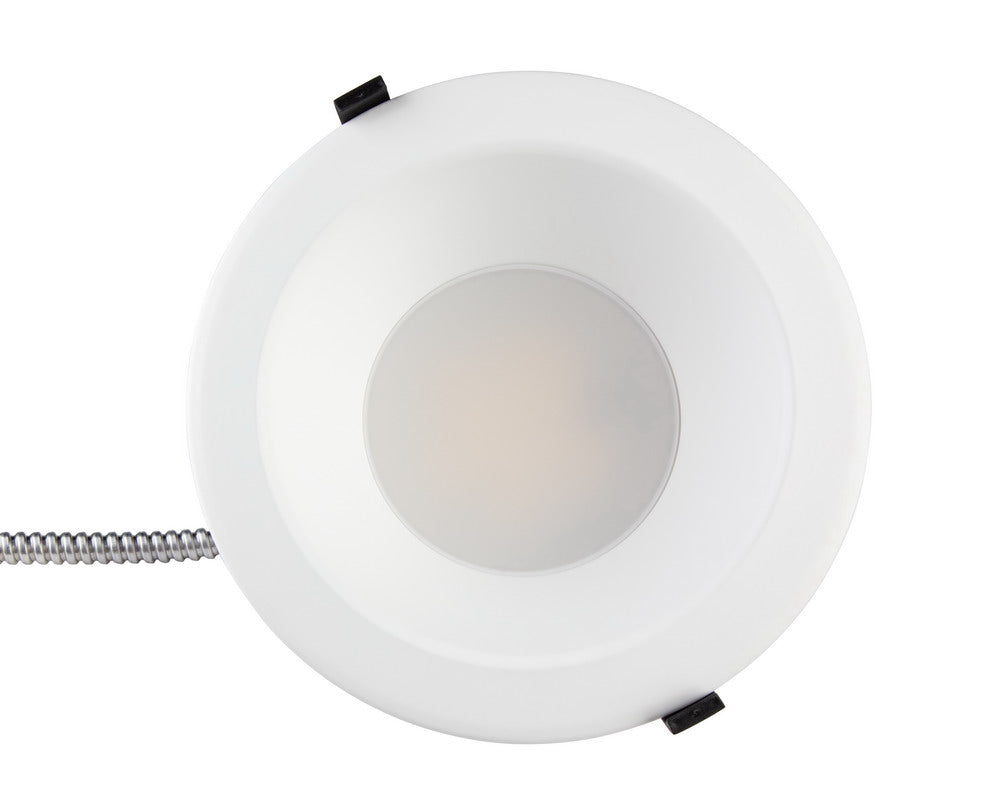

  • NCLTG RecessEdge Series 8-inch LED commercial downlight front view displaying the wide recessed trim and integrated high-efficiency LED design

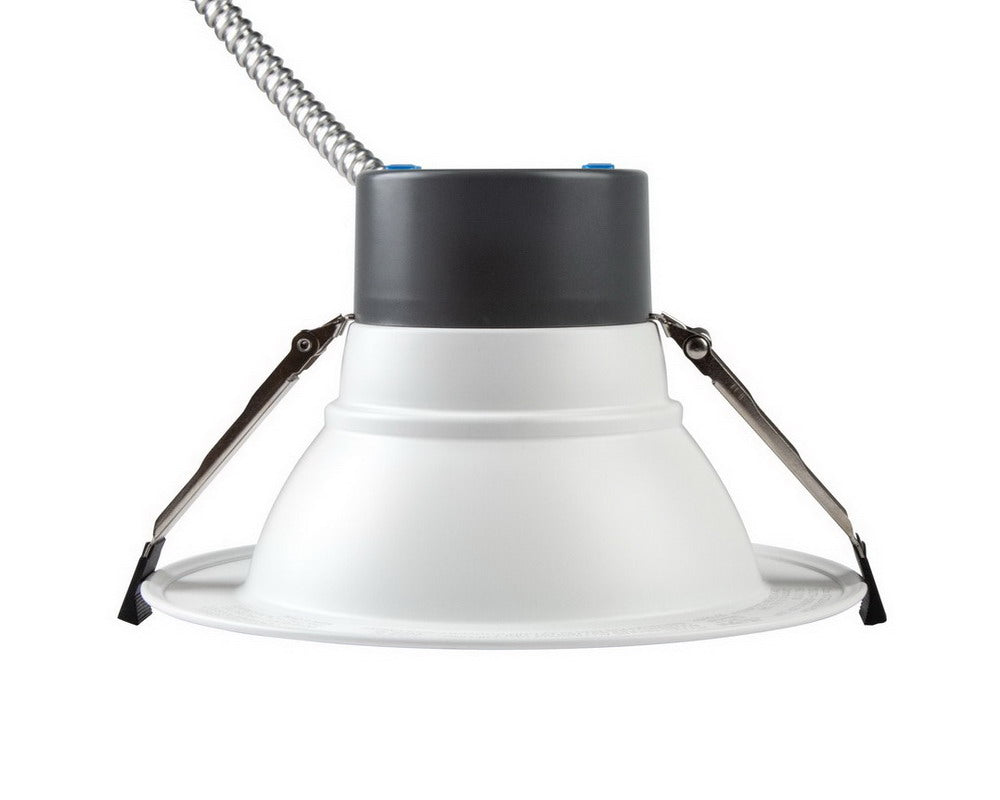

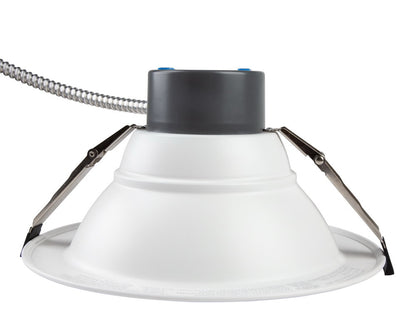

  • NCLTG RecessEdge Series 8-inch LED commercial downlight side view showing installation clips and MC cable for secure and efficient mounting

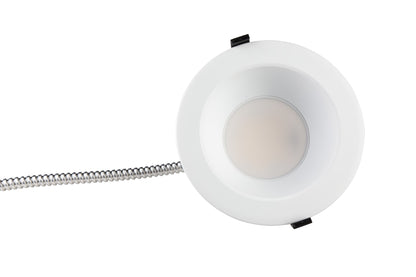

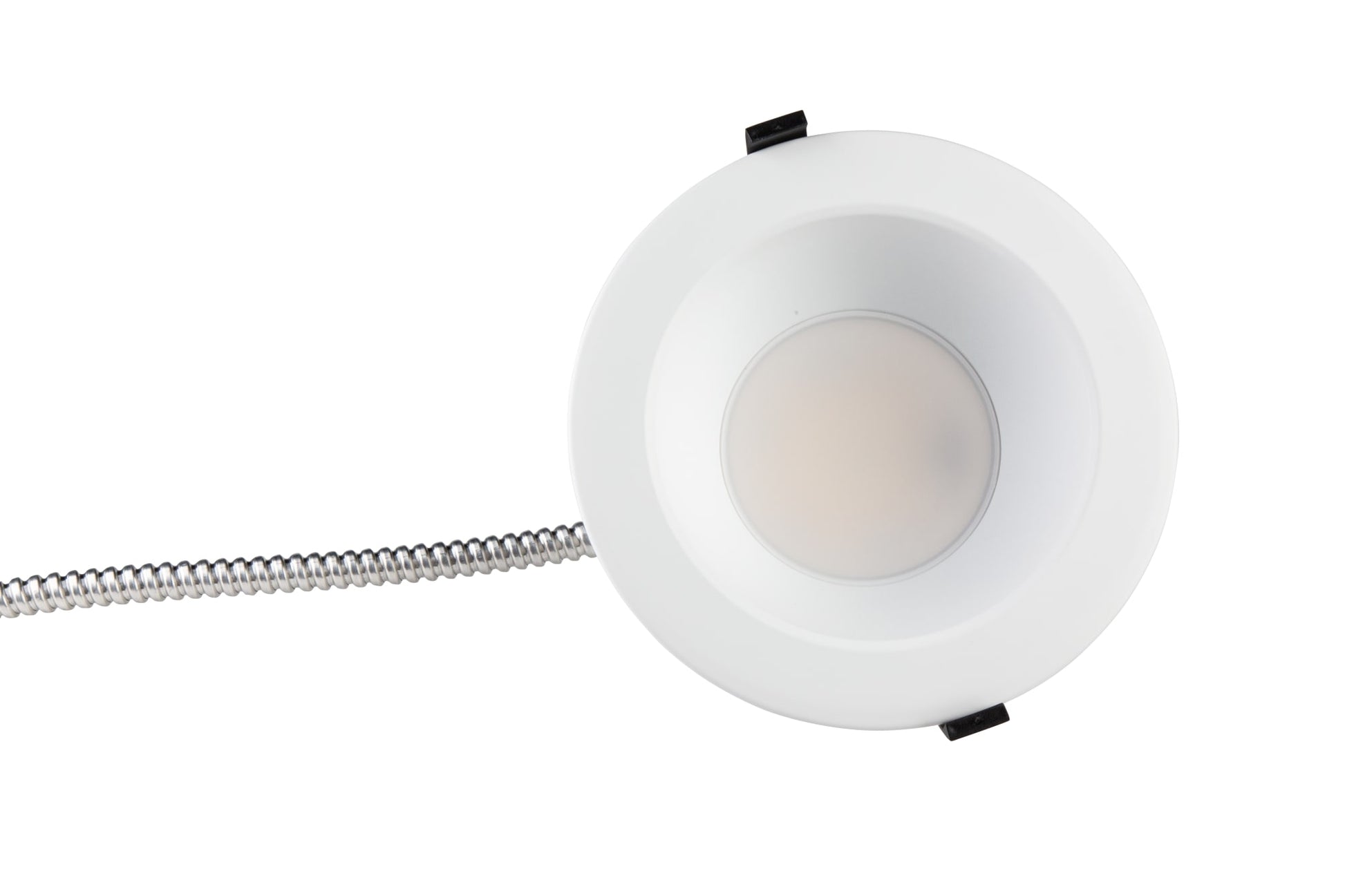

  • NCLTG RecessEdge Series 4-inch LED commercial downlight front view showing compact recessed design and high-efficiency integrated LED

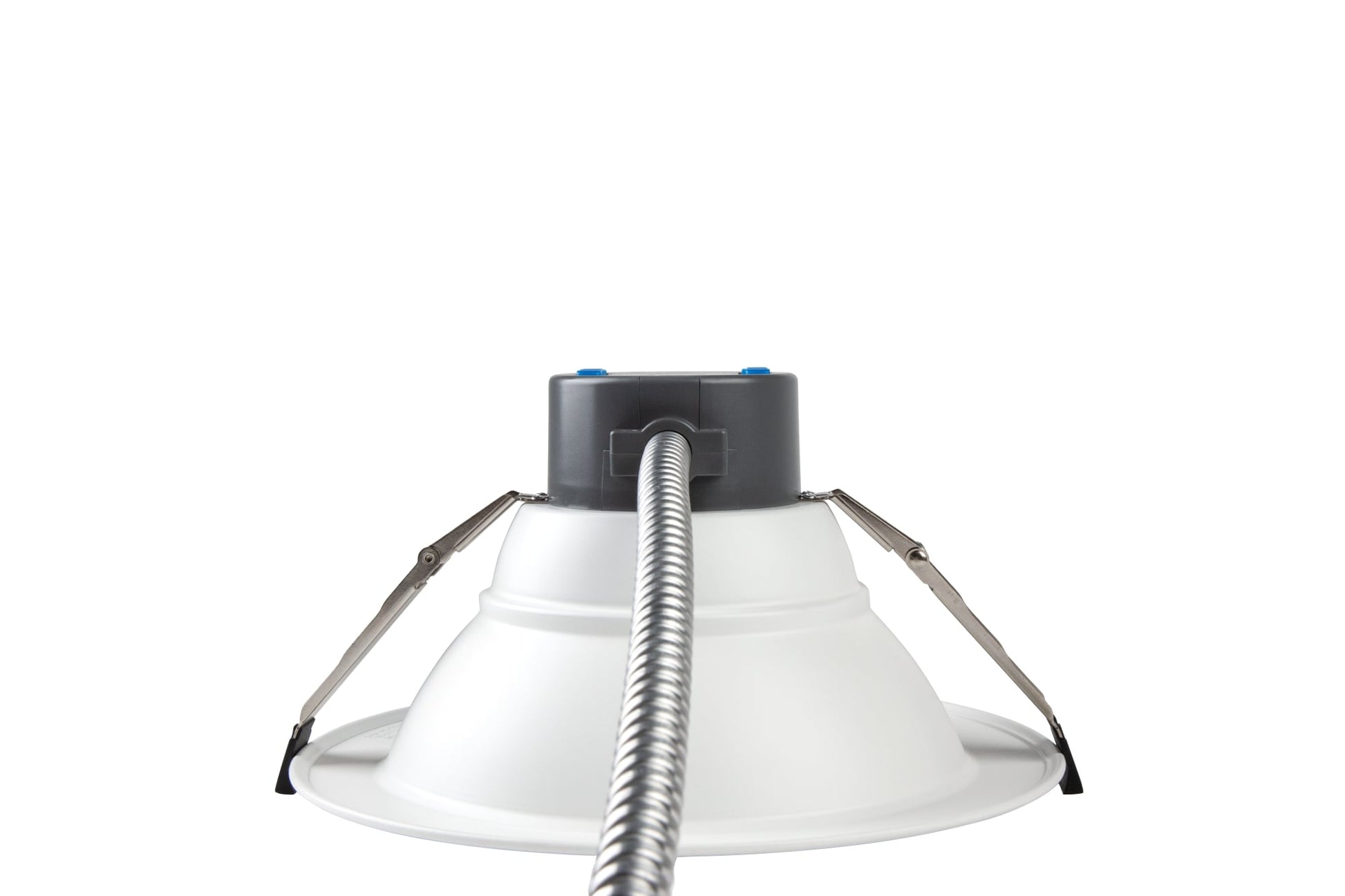

  • NCLTG RecessEdge Series 4-inch LED commercial downlight side view showing mounting clips and attached MC cable for easy installation
  • NCLTG RecessEdge Series 4-inch LED commercial downlight side view showing mounting clips and MC cable flexed upward for installation positioning
  • Infographic highlighting NCLTG RecessEdge Series LED commercial downlights available in 4-inch, 6-inch, 8-inch, and 10-inch sizes with adjustable wattages, selectable color temperatures, and energy-efficient performance for offices, retail, hospitality, and other commercial spaces.
  • Infographic explaining why to choose NCLTG RecessEdge Series LED commercial downlights with selectable wattages, adjustable color temperatures, and customizable performance for energy-efficient lighting in offices, retail, and hospitality environments.
  • Infographic highlighting the durable construction of NCLTG RecessEdge Series LED commercial downlights with die-cast aluminum housing, impact-resistant lens, and IP54 wet location rating for reliable long-term performance in high-traffic environments.
  • Infographic showing NCLTG RecessEdge Series LED commercial downlights with Power Select and CCT Select for adjustable brightness and color temperature, enabling warm or cool lighting tailored to any commercial space.
  • Infographic highlighting NCLTG RecessEdge Series LED commercial downlights with high lumen output, low energy use up to 139 lm/W efficacy, and long-life L70 50,000 hours for reduced maintenance and cost savings.
  • Infographic showing versatile applications of NCLTG RecessEdge Series LED commercial downlights for offices, retail spaces, hospitality areas, and lobbies/common areas with uniform, adaptable illumination.
1 17

NCLTG

RecessEdge Series LED Commercial Downlights

RecessEdge Series LED Commercial Downlights

NCLTG RecessEdge Series LED Commercial Downlight feature badges – 5-CCT selectable, 5-wattage adjustable, 0–10V dimmable, DLC Premium listed, cETLus certified

Specification Sheet

Photometrics (IES Files)

Installation Instructions

Warranty

Request Price View full details

About RecessEdge Series LED Commercial Downlights

The RecessEdge Series LED Commercial Downlights deliver adaptable, high-efficiency illumination for today’s commercial spaces. Available in 4-inch, 6-inch, 8-inch, and 10-inch sizes, these fixtures fit standard ceiling cutouts—making them a versatile choice for offices, retail stores, hospitality projects, and more. As part of our broader commercial indoor lighting portfolio, RecessEdge supports a wide range of applications and is specified on projects nationwide. NCLTG designs each downlight with the same focus on performance, efficiency, and long-term reliability that defines our entire product line.

Each downlight offers wattage selectable from 12W to 30W and color temperature tuning between 2700K and 5000K, allowing contractors and facility managers to set the right light levels on-site. With Energy Star certification and efficacy up to 139 lumens per watt, RecessEdge fixtures help reduce operating costs while maintaining professional-grade brightness and comfort.

Durably built with die-cast aluminum housing and a polycarbonate lens, these commercial recessed lights carry a wet-location IP54 rating for dependable performance in demanding environments. Backed by an L70 lifetime of 50,000+ hours, they minimize maintenance and deliver long-lasting, uniform illumination for modern ceilings.

Product Details & Ordering Information

RecessEdge 4" LED Commercial Downlight — Selectable 6W–16W, 600–1515 Lumens, 2700K–5000K CCT, 120–277V

Order Code: 310104
Model Number: NC-CDL4-16W-5CW
Wattage: 6W, 8W, 10W, 12W, 16W
Voltage: 120-277V
Lumens: 600, 830, 1045, 1207, 1515
Efficacy: 100 lm/W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 6"D x 4.1"H

RecessEdge 6" LED Commercial Downlight — Selectable 12W–30W, 1440–3600 Lumens, 2700K–5000K CCT, 120–277V

Order Code: 310106
Energy Star Product ID: 3722204
Model Number: NC-CDL6-30W-5CW
Wattage: 12W, 16W, 22W, 26W, 30W
Voltage: 120-277V
Lumens: 1440, 1920, 2640, 3120, 3600
Efficacy: 120 lm/W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 8.3"D x 4.8"H

RecessEdge 8" LED Commercial Downlight — Selectable 16W–35W, 1920–4200 Lumens, 2700K–5000K CCT, 120–277V

Order Code: 310108
Energy Star Product ID: 3722205
Model Number: NC-CDL8-35W-5CW
Wattage: 16W, 22W, 26W, 30W, 35W
Voltage: 120-277V
Lumens: 1920, 2640, 3120, 3600, 4200
Efficacy: 120 lm/W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 10.3"D x 5.3"H

RecessEdge 10" LED Commercial Downlight — Selectable 22W–40W, 2640–4800 Lumens, 2700K–5000K CCT, 120–277V

Order Code: 310110
Model Number: NC-CDL10-40W-5CW
Wattage: 22W, 26W, 30W, 35W, 40W
Voltage: 120-277V
Lumens: 2640, 3120, 3600, 4200, 4800
Efficacy: 120 lm/W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K
Dimming: 0-10V
Dimensions: 11.6"D x 5.9"H

RecessEdge Series LED Commercial Downlight FAQs

What Are RecessEdge Series LED Commercial Downlights?

RecessEdge Series LED Commercial Downlights are energy-efficient recessed fixtures designed to provide uniform, bright illumination across a range of commercial environments. These downlights are ideal for offices, retail spaces, hospitality areas, and other professional settings.

Where Can RecessEdge Series LED Commercial Downlights Be Used?

RecessEdge Series LED Commercial Downlights are ideal for a wide range of commercial applications, including:

  • Offices
  • Retail environments
  • Hospitals and hospitality areas
  • Common areas such as lobbies and hallways

How Do I Choose the Right Wattage and Color Temperature for RecessEdge Series LED Commercial Downlights?

Choosing the appropriate wattage and color temperature depends on your space’s size and function. Higher wattages, such as 30W, are suited for larger areas or spaces that need brighter illumination, while 12W or 16W models work well in smaller rooms. For color temperature, 4000K to 5000K is commonly selected for workspaces requiring bright, clear light, whereas 2700K and 3000K create a warm, inviting ambiance ideal for relaxation or hospitality settings.

Are RecessEdge Series LED Commercial Downlights Dimmable?

Yes, RecessEdge Series LED Commercial Downlights are compatible with 0–10V dimming systems, providing flexible lighting control and energy savings across a variety of commercial environments.

What Certifications Do RecessEdge Series LED Commercial Downlights Have?

RecessEdge Series LED Commercial Downlights are UL listed, DLC Premium certified, and IP54 rated for wet locations. These certifications ensure the fixtures meet stringent safety, energy efficiency, and durability standards required for commercial applications.

How Do I Install RecessEdge Series LED Commercial Downlights?

RecessEdge Series LED Commercial Downlights include all necessary mounting hardware for straightforward installation. Fixtures secure into the ceiling using spring clips and connect via the attached MC whip/junction box for a quick, reliable setup.
