PIR Highbay Sensor

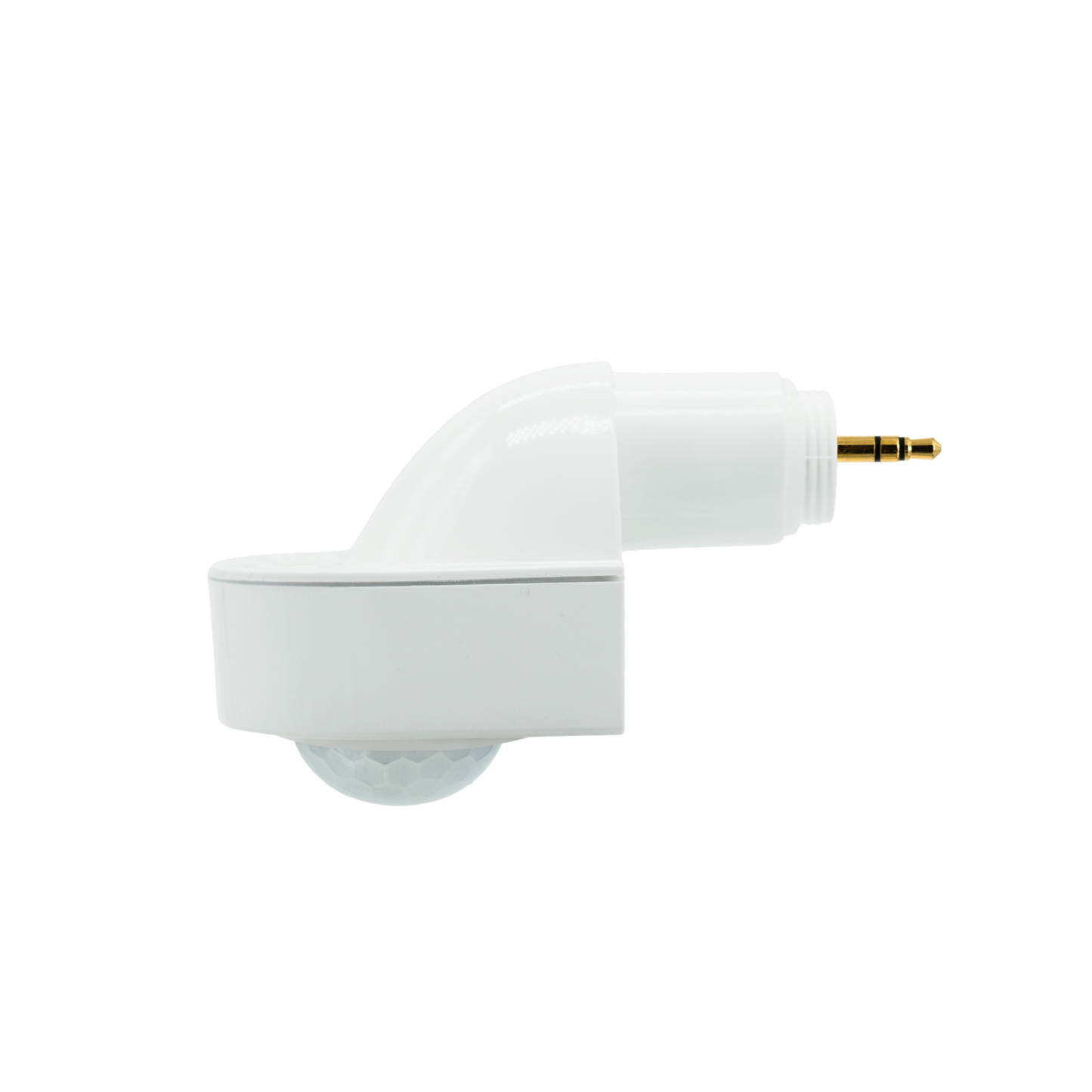

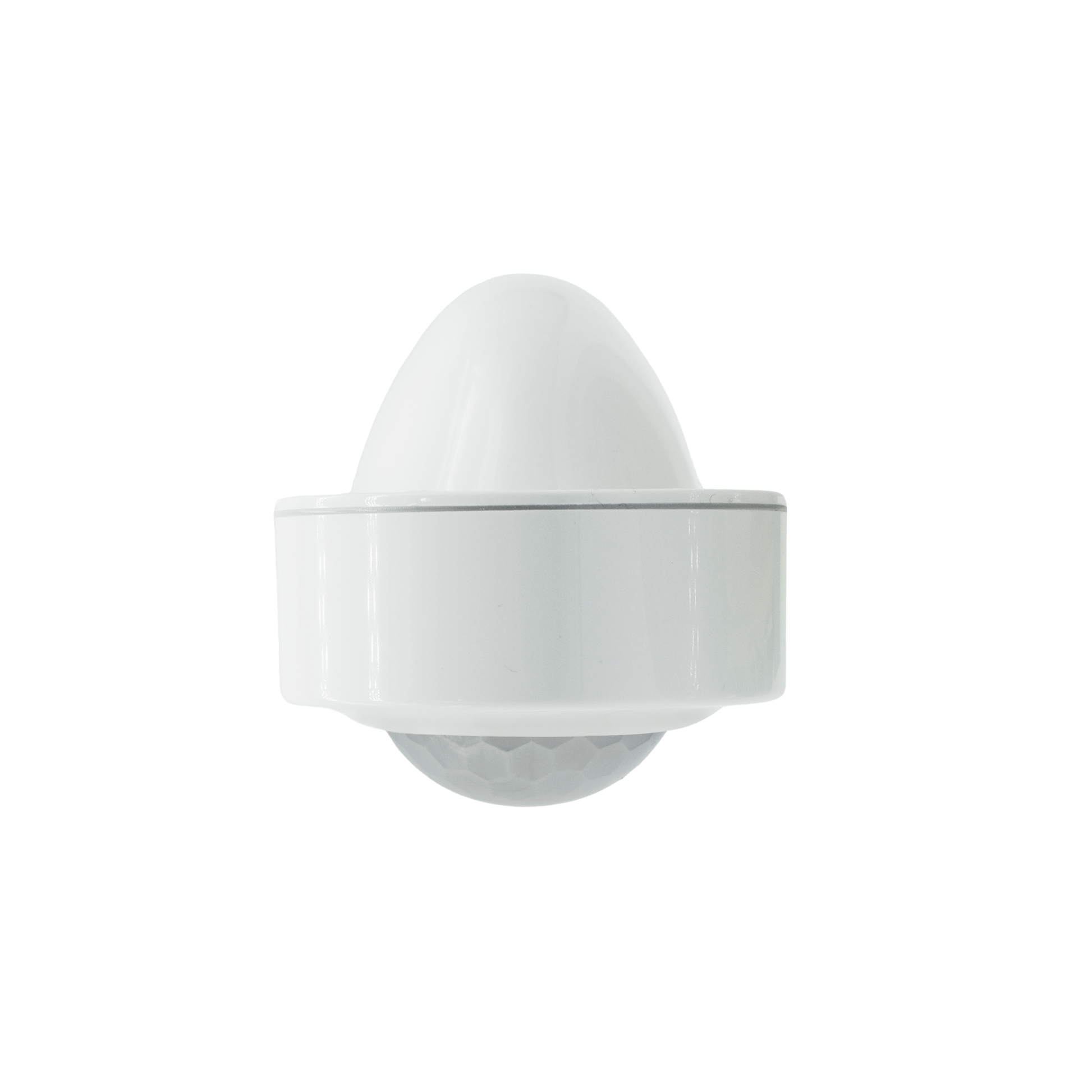

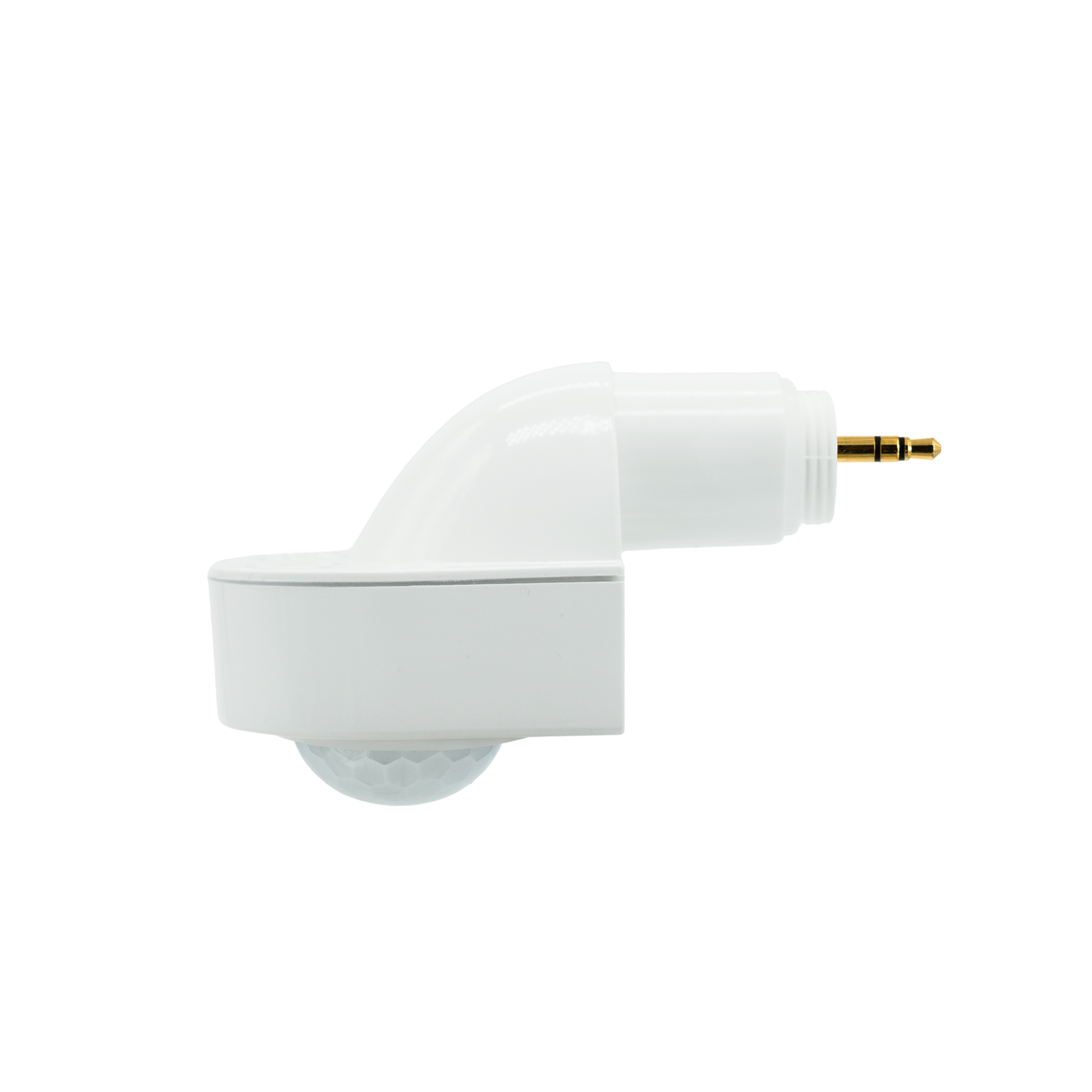

The HD10VR-PH-1A PIR Highbay Sensor (SKU: A-3511).

Product Specifications & Features

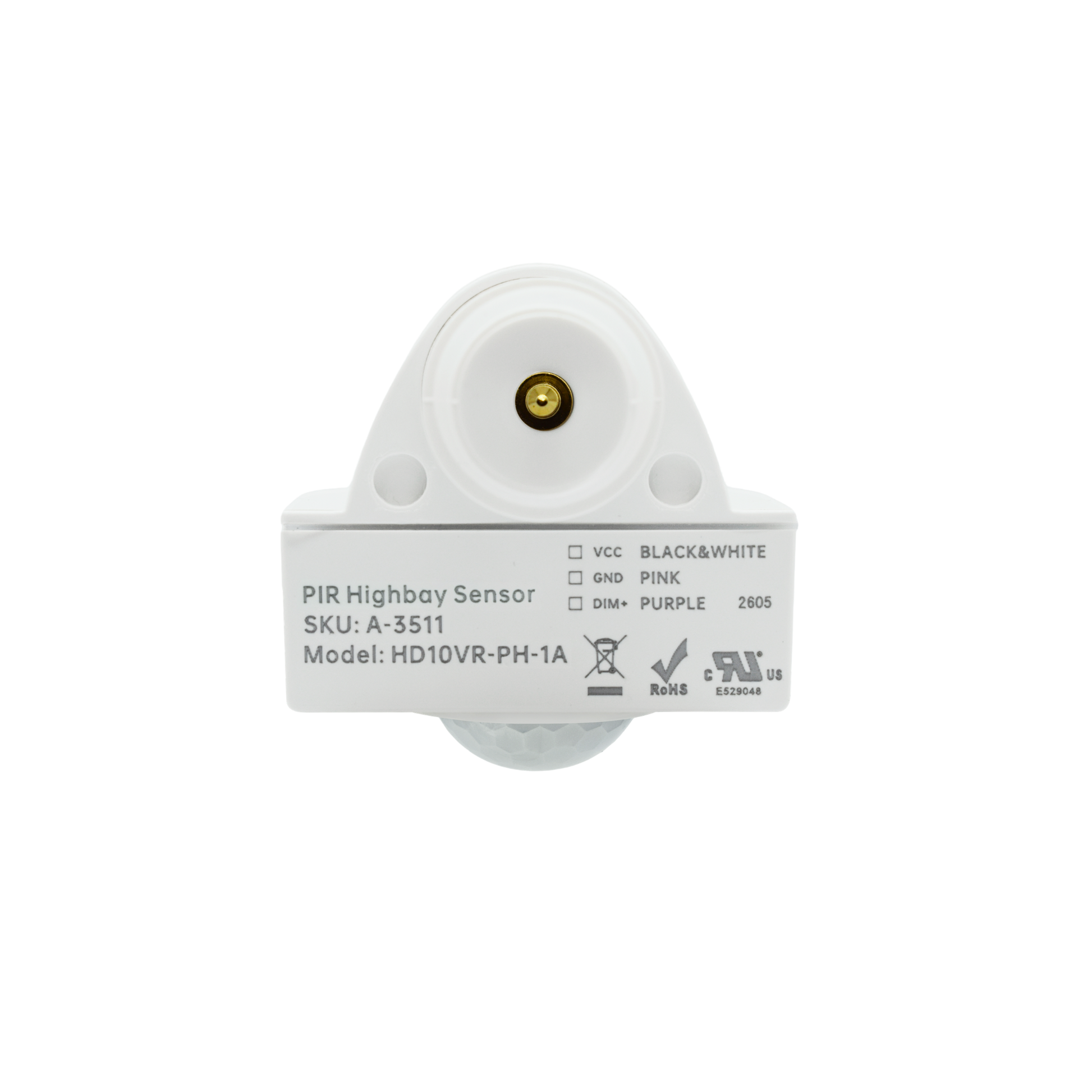

• Power and Dimming: Operates at 12VDC (10-15VDC range) with 0-10V dimming capabilities.
• Environmental: Designed for indoor use with an IP65 rating and a working temperature range of -40°C to +60°C.
• Functionality: Includes Daylight Harvesting, Photocell functions, and PIR sensing.
• Warranty: 5 years.

Sensor Capabilities

• Detection: Supports a maximum installation height of 12m (39ft). Detection distance and area are adjustable (25%/50%/75%/100%).

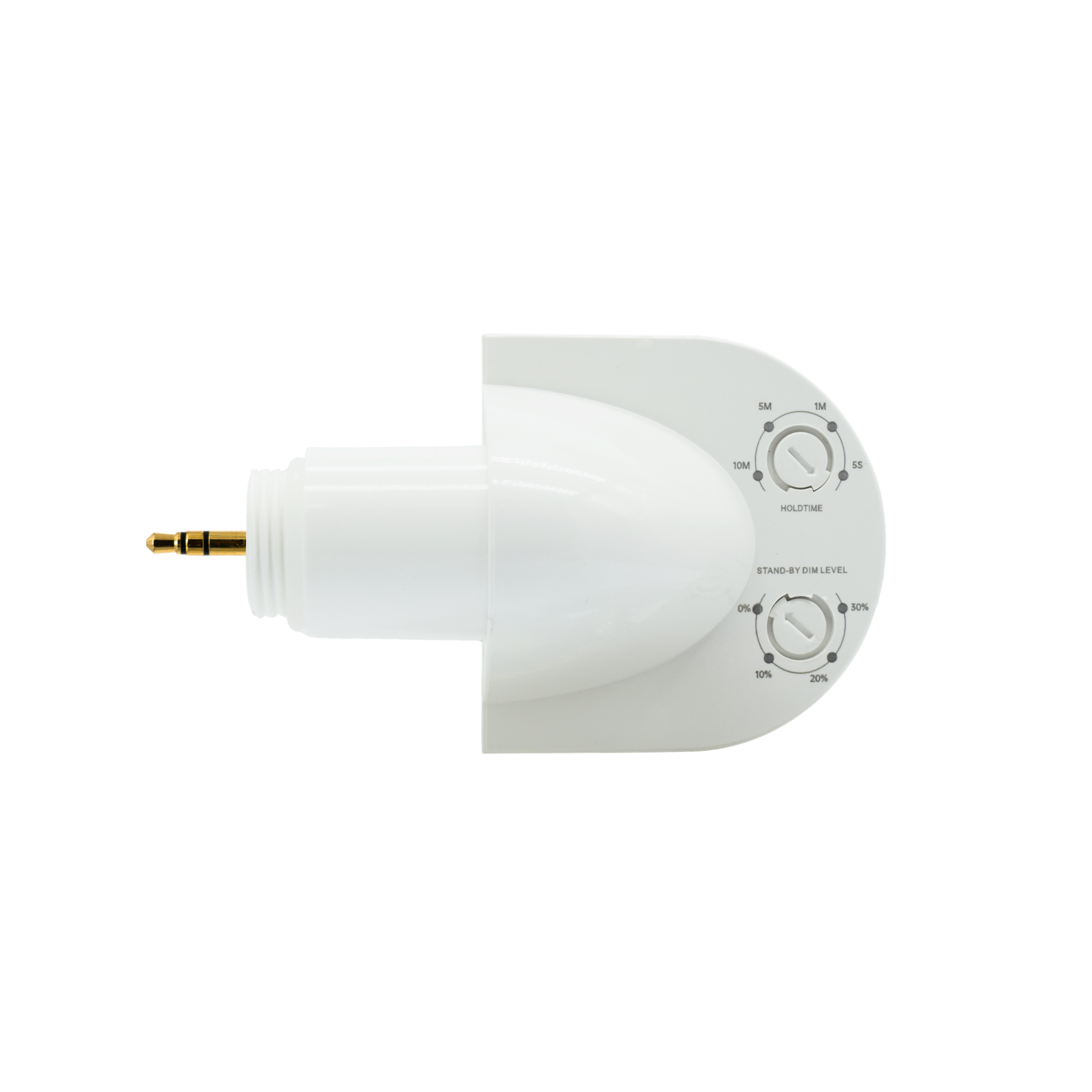

• Timing and Dimming: Features adjustable hold times, standby periods, and standby dimming levels via remote control or rotating switch.
• Operational Modes:
  • Daylight Harvesting: Automatically adjusts artificial light based on ambient natural light levels.
  • Dusk/Dawn: Automatically turns lights on/off based on ambient light threshold settings.
  • Motion Sensing: Controls lighting based on detected presence and hold times.

Installation and Safety Notes

• Installation: Must be installed by a qualified electrician with power disconnected.

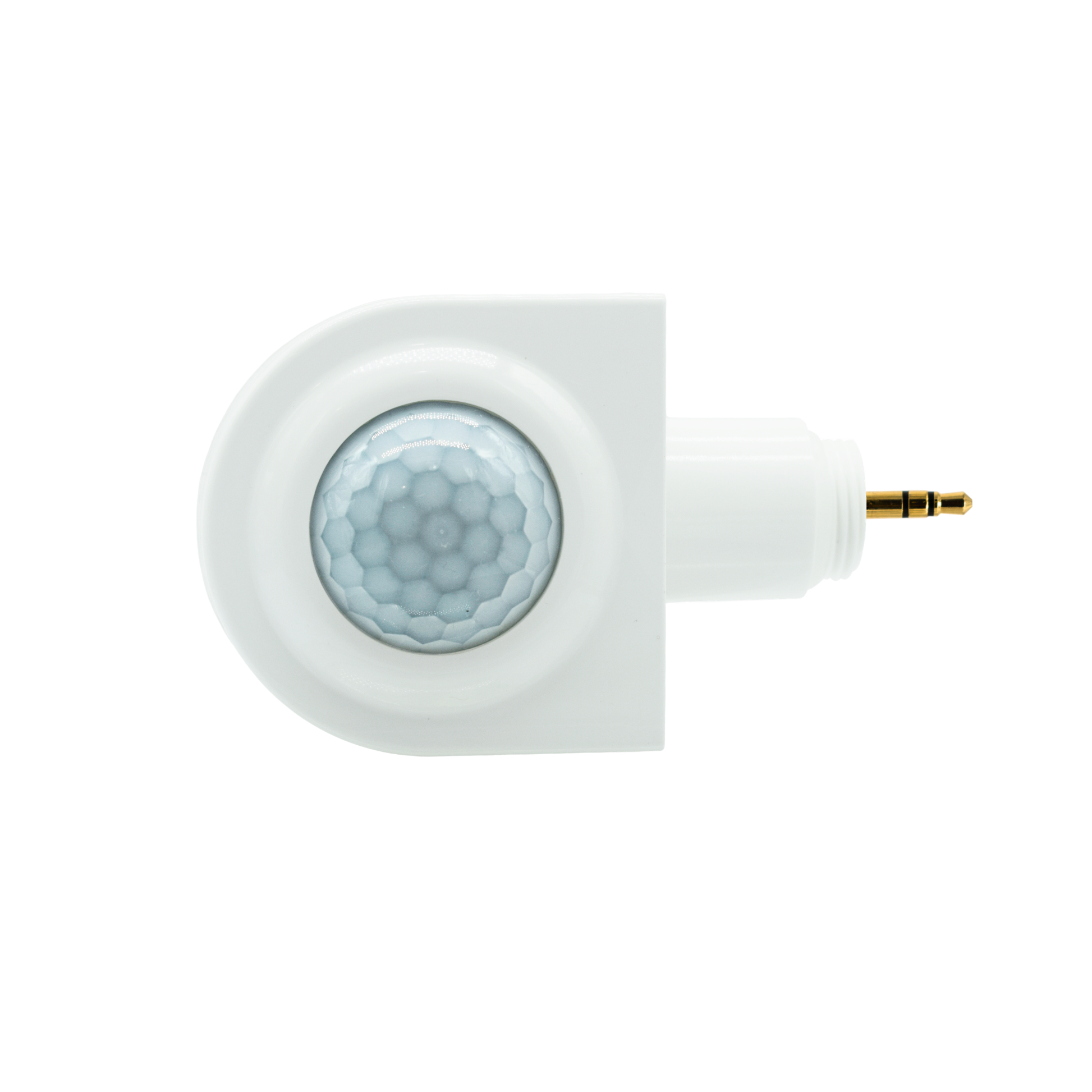

• Placement: Suitable for ceiling mounting; avoid sidewall installations if possible due to increased sensitivity. The sensor's Fresnel lens must be fully exposed and positioned lower than the light fixture.
• Performance Factors: Detection performance is affected by object size, speed, and movement direction (parallel movement is more effective).
• Unauthorized Modifications: Any unauthorized changes to the unit will invalidate the guarantee.
