PIR Highbay Sensor

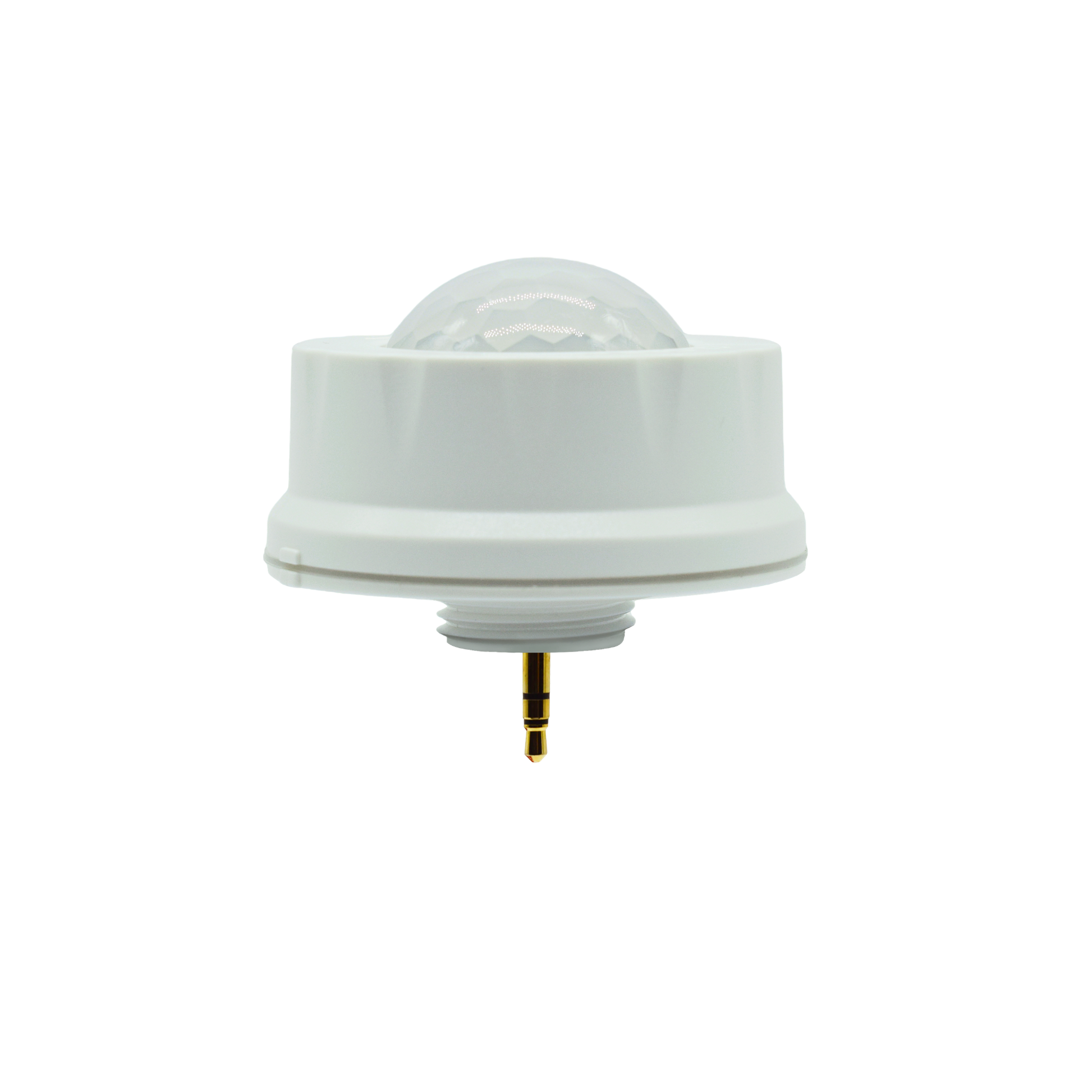

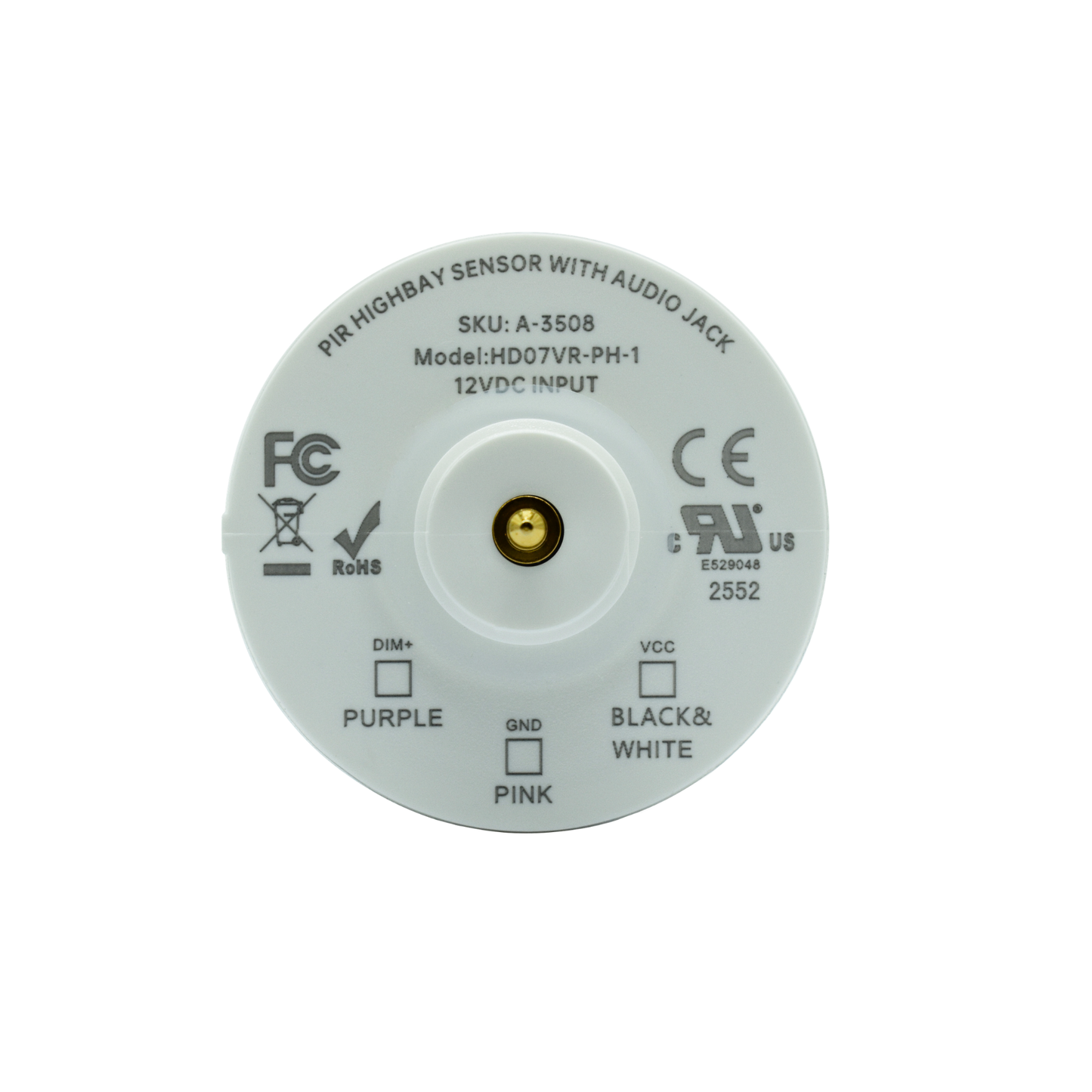

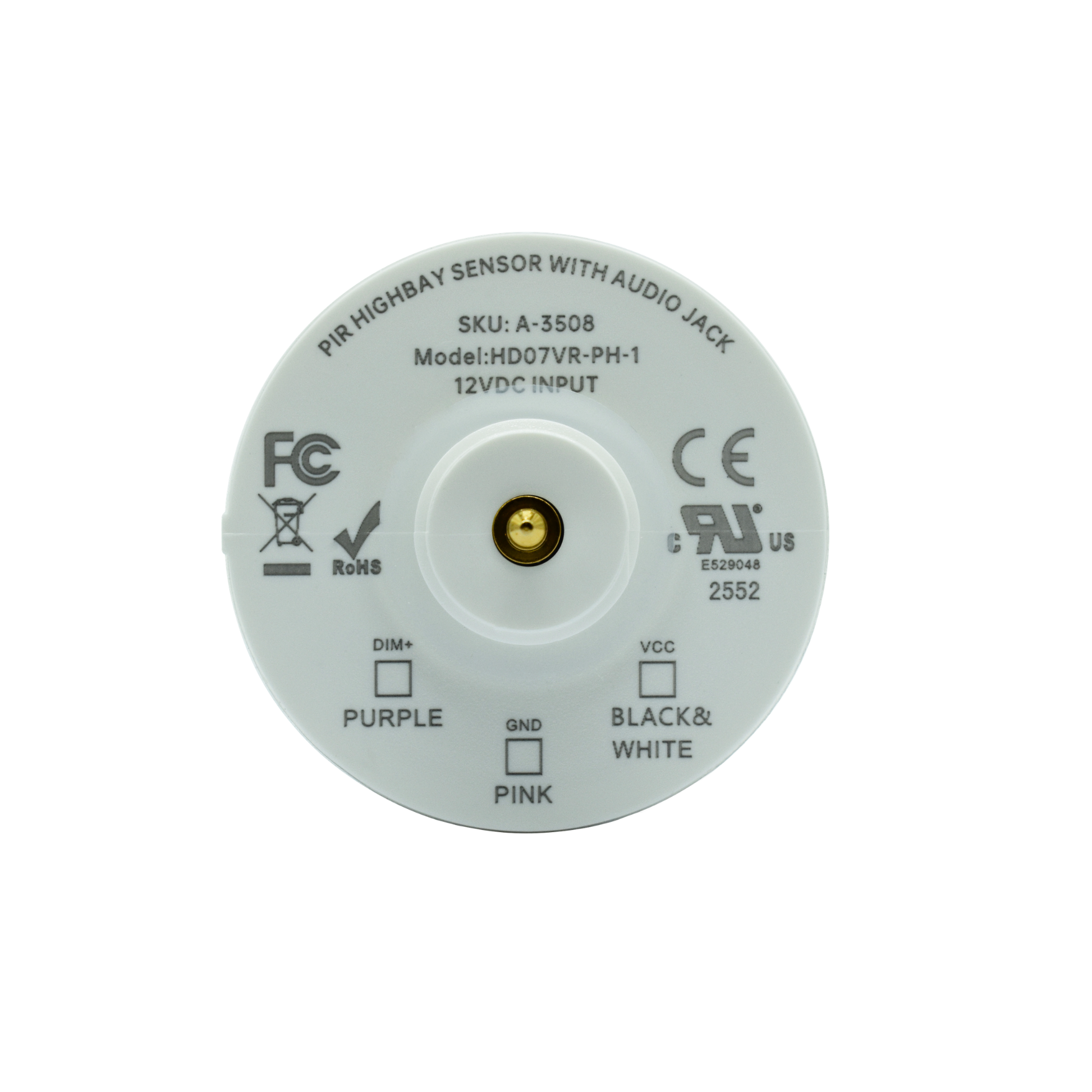

The HD07VR-PH-1 PIR Highbay Sensor (SKU: A-3508) is a 12VDC powered sensor designed for UFO highbay applications. It is UL certified and comes with a 5-year warranty.

Technical Specifications

• Power and Input: It operates on an input voltage range of 10-15VDC with a current of \<30mA.
• Detection: It features a 5.8GHz microwave frequency and a maximum installation height of 12m/39ft. Detection distance is 2-4m/6.5-13ft.
• Environment: The sensor is rated IP65 and functions in temperatures ranging from -20°C to +60°C.
• Output: Supports 0-10V dimming.

Key Features and Functionality

• Control: Includes remote control capabilities and bi-level dimming.
• Dusk/Dawn Function: The sensor can distinguish between artificial and natural light to automatically turn off lights when ambient brightness exceeds a preset threshold.
• Operational Modes:
  • Dusk/Dawn: With insufficient light, the sensor maintains a standby dimming level; motion triggers 100% brightness.
  • Daylight Threshold: If ambient light is sufficient, the sensor keeps the light off even when motion is detected.
  • Standard Motion Detection: Automatically turns the light on upon detecting motion, holding for a set period before dimming or turning off.

Application Notes

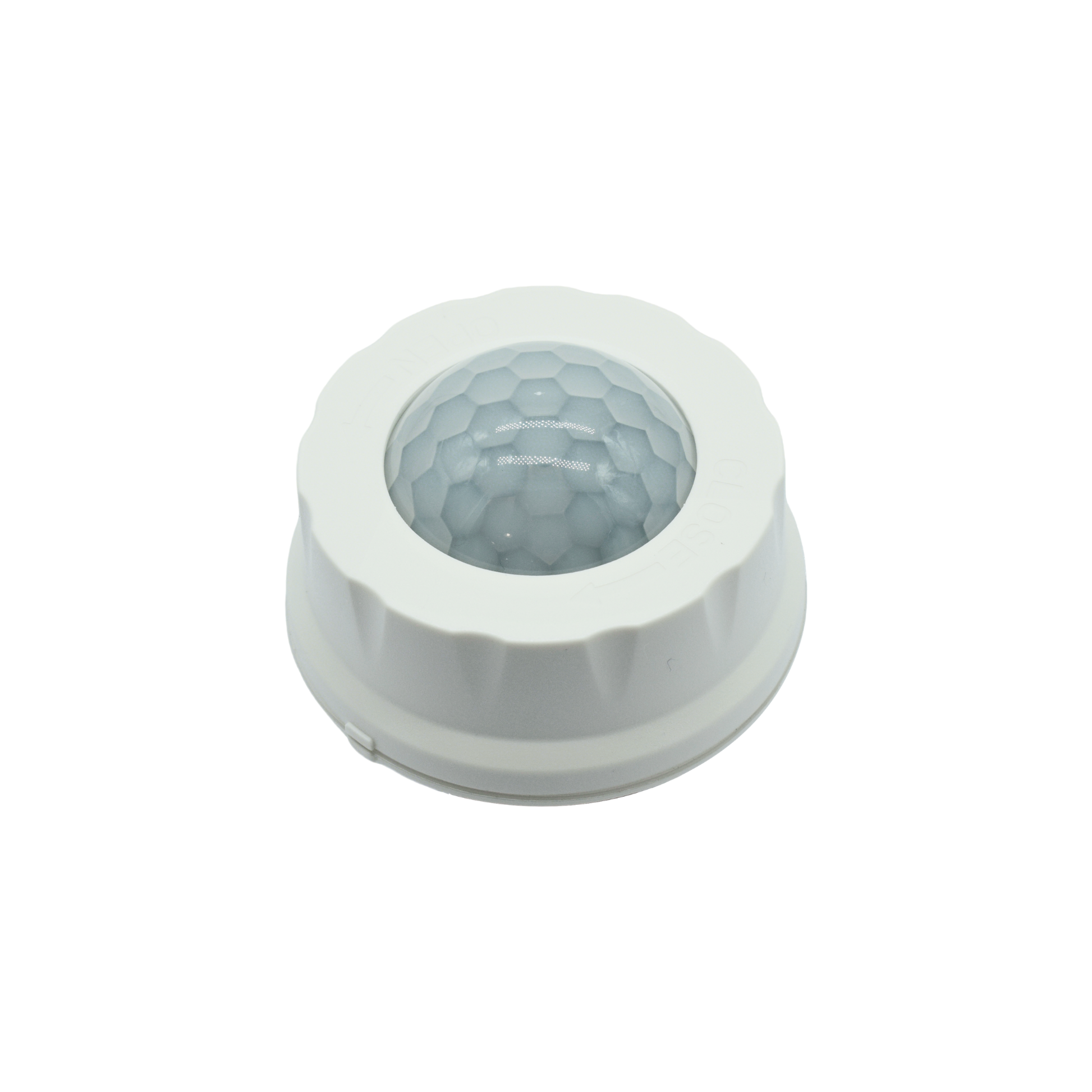

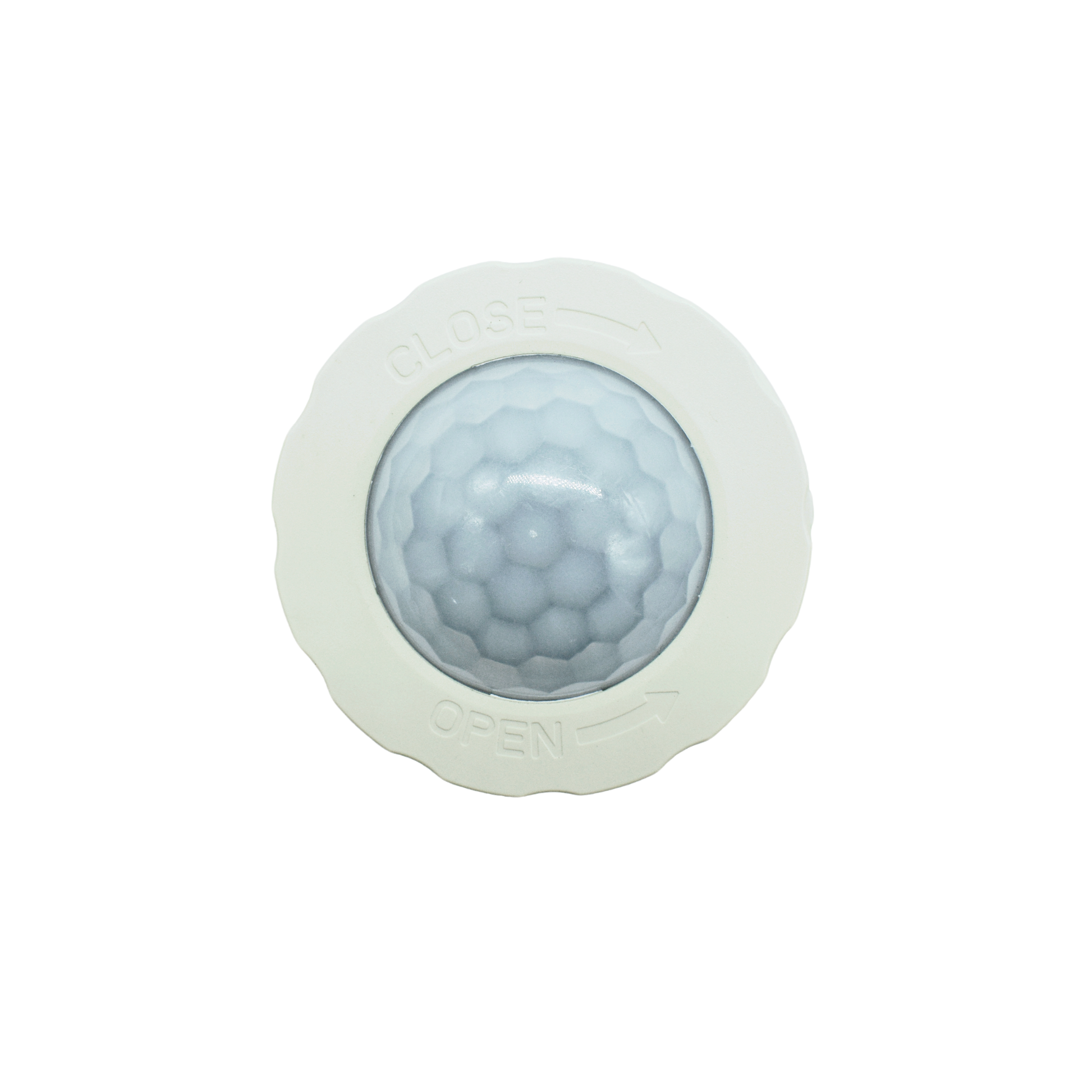

• Installation: Designed for indoor, ceiling-mount usage. The fresnel lens must remain exposed to the air and positioned lower than the light fixture.
• Safety: Must be installed by a qualified electrician with the power off; unauthorized modifications will void all guarantees.
• Performance: Dimming functionality may vary depending on the connected driver, and input voltage must remain stable within 10%.
