NC-BUGWL01 LED Emergency Light
NC-BUGWL01 LED Emergency Light
Specification Sheet
Specification Sheet
Photometrics (IES Files)
Photometrics (IES Files)
Installation Guide
Installation Guide

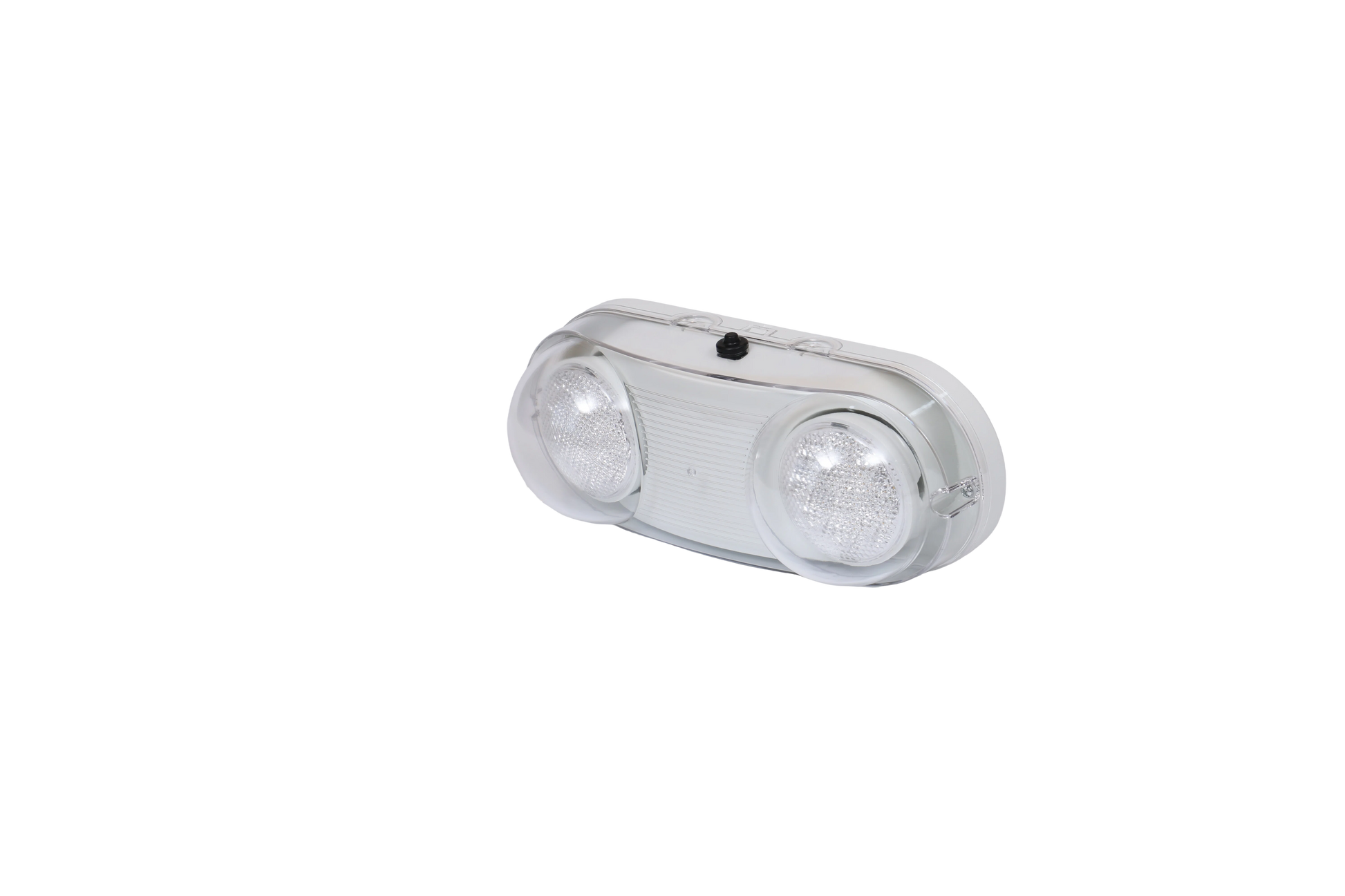

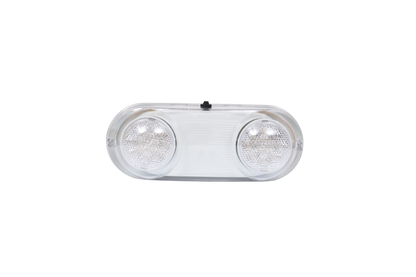

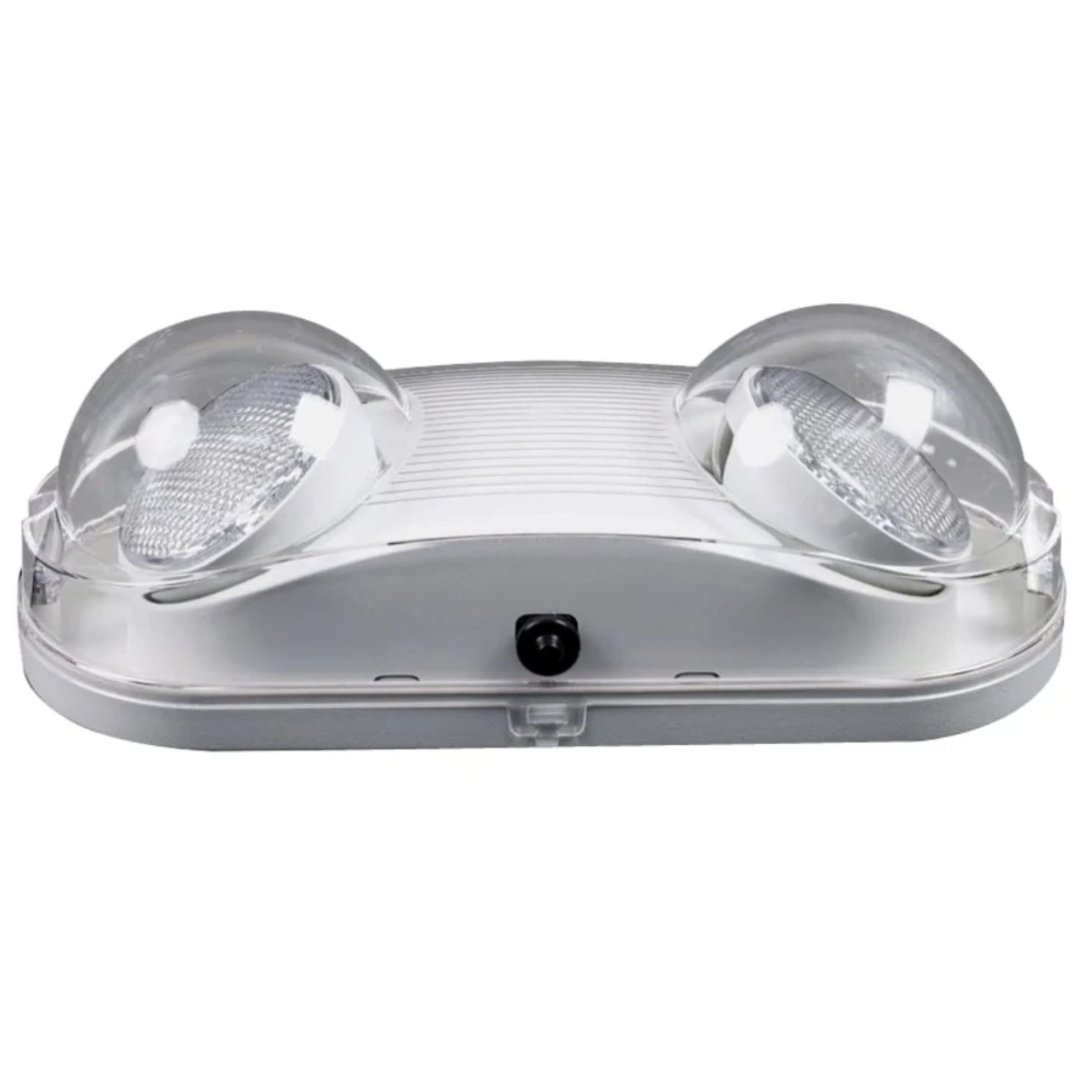

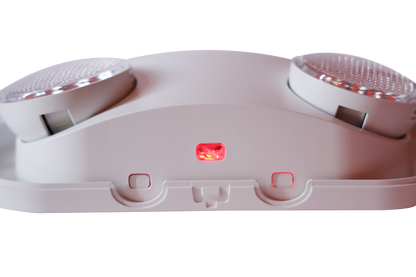

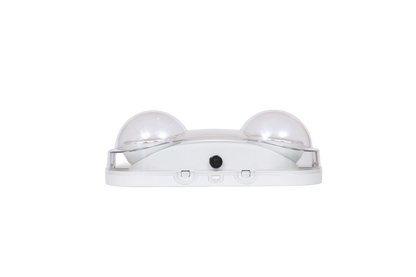

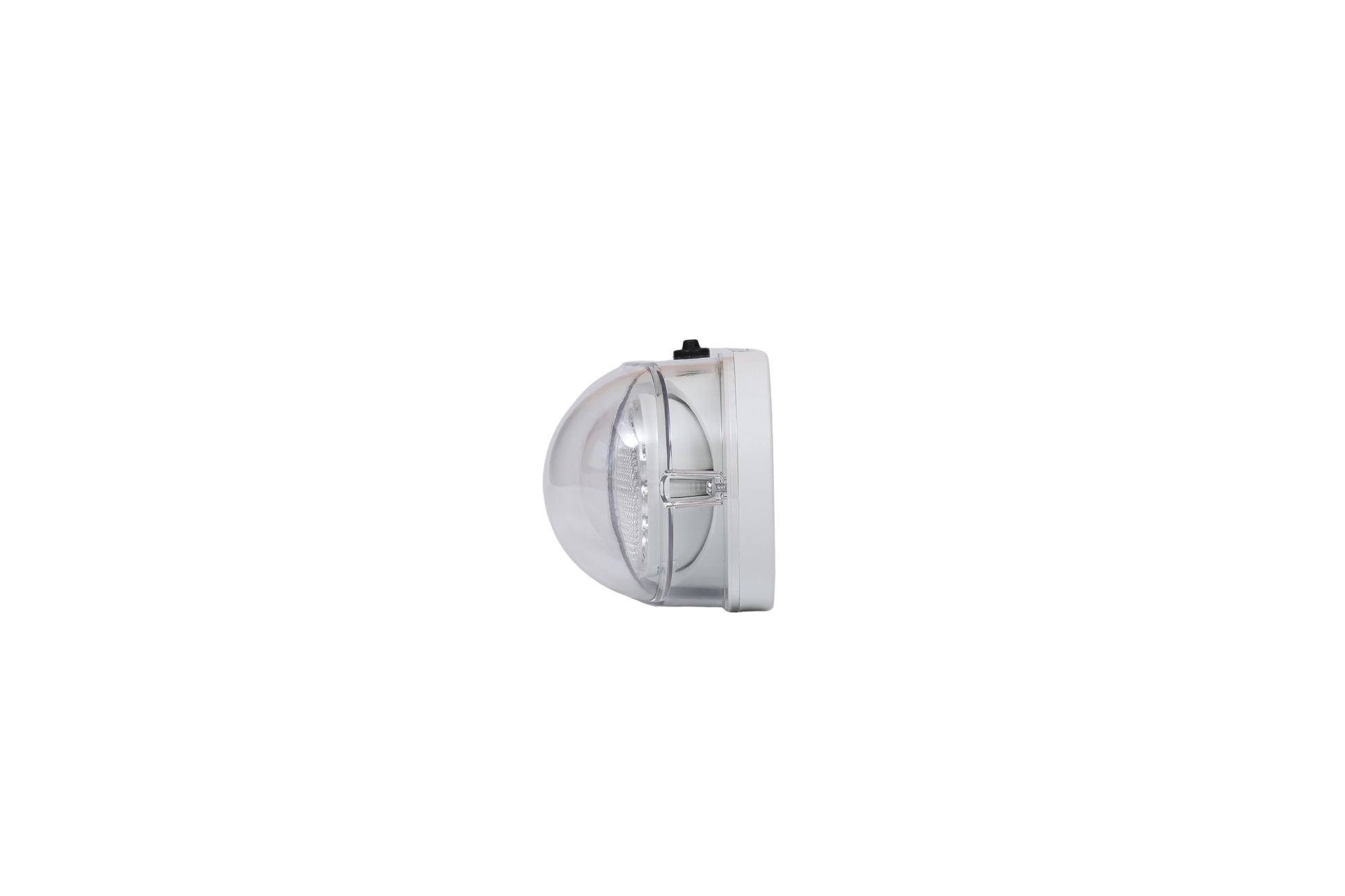

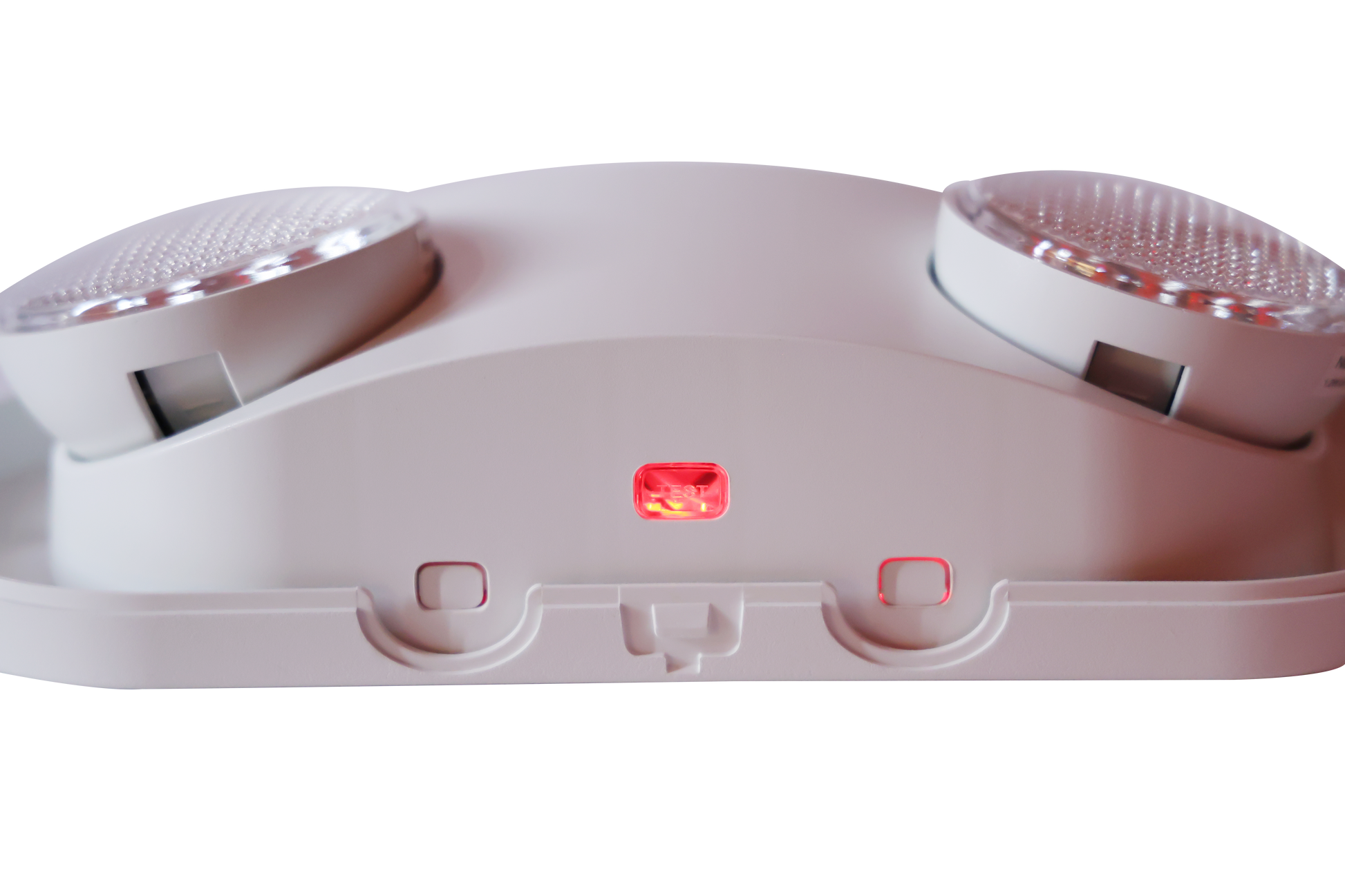

About the NC-BUGWL01 LED Emergency Light
NC-BUGWL01 LED Emergency Light provides dependable, code-compliant backup illumination for offices, retail spaces, warehouses, schools, and healthcare facilities. Designed with dual LED heads (≈2.2–2.4W total), these fixtures deliver bright, directional light during outages and operate on a universal 120–277V input for simple specification across diverse projects. As part of our commercial indoor lighting portfolio, Sentinel emergency lights are trusted for safety-critical applications and are specified on projects nationwide. NCLTG engineers these units with reliability, compliance, and ease of installation in mind.

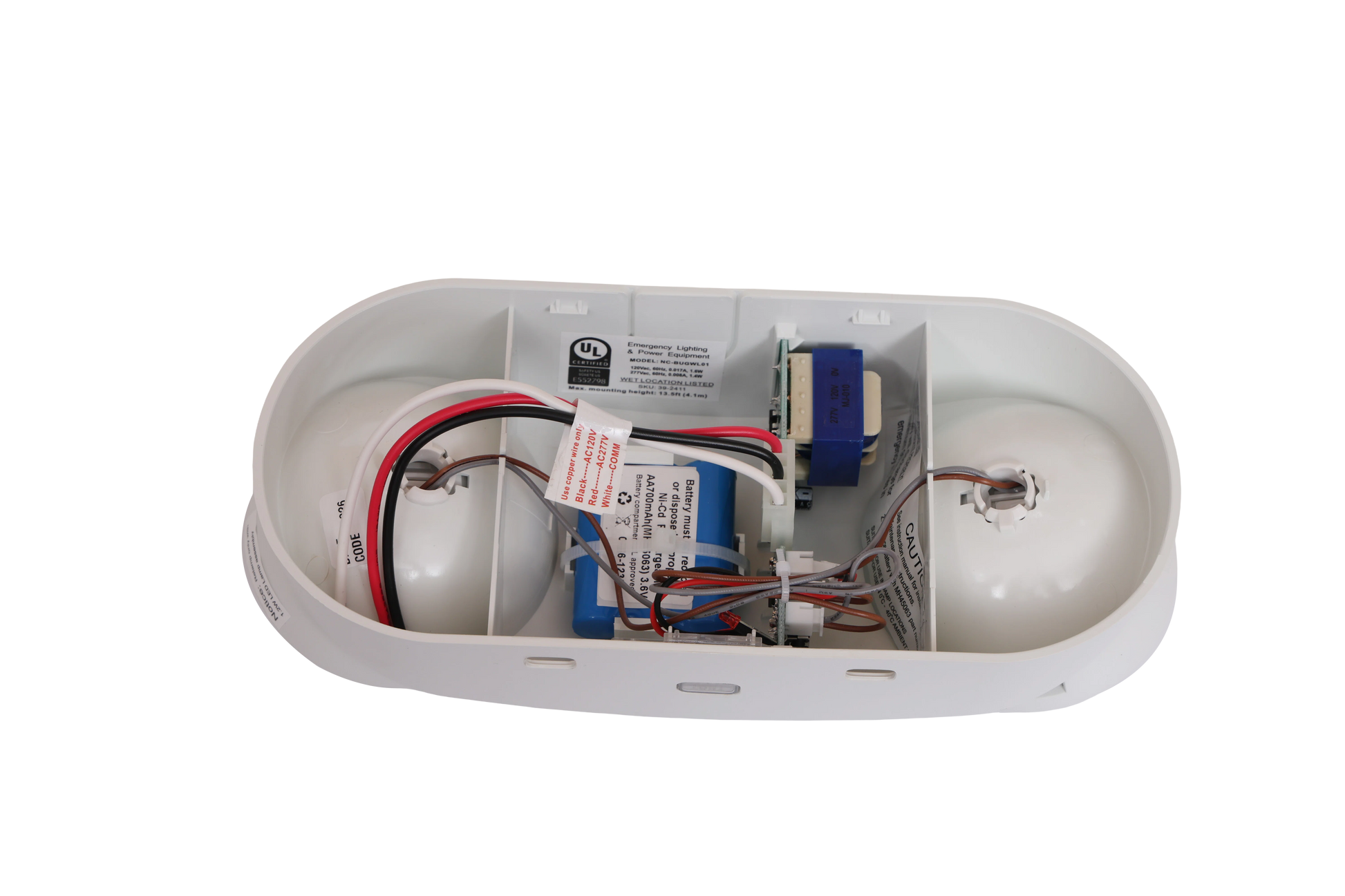

Each model features a rechargeable Ni-Cd battery (3.6V 700mAh) that provides at least 90 minutes of emergency illumination and fully recharges within 24 hours. Remote-capable versions (3.6–9.6V) allow additional emergency heads to be powered for extended coverage in larger facilities. Rugged thermoplastic housings with impact-resistant polycarbonate lenses are available in both damp- and wet-location rated models, ensuring durability across environments from stairwells to parking garages.
For safety and peace of mind, every Sentinel emergency light is UL listed and backed by a comprehensive 5-year warranty. The result is a dependable, energy-efficient solution that installs cleanly, withstands everyday use, and ensures safe egress when it matters most.
Product Details & Ordering Information
Sentinel Wet Location Rated LED Emergency Light
| Order Number: | 39-2411 |
| Model Number: | NC-BUGWL01 |
| Wattage: | 2.4W |
| Voltage: | 120-277V |
| Battery: | 3.6V 700mAH Rechargeable Ni-Cd |
| Emergency Operation: | 90 Minutes |
| Dimensions: | 11.61"W x 4.71"H x 4.13"D |
NC-BUGWL01 LED Emergency Lightt FAQs
What Makes NC-BUGWL01 LED Emergency Light Reliable During Outages?
These fixtures utilize energy-efficient LEDs paired with rechargeable Ni-Cd batteries, ensuring at least 90 minutes of emergency illumination during power outages.
Can the Light Heads on NC-BUGWL01 LED Emergency Light Be Adjusted?
Yes, all models feature dual adjustable LED heads that can be aimed to maximize coverage and eliminate shadows in critical areas.
Are There NC-BUGWL01 LED Emergency Light Models Available for Outdoor Use?
Yes, NCLTG offers wet location rated emergency lights specifically designed for outdoor or moisture-prone environments.
How Long Does It Take for the Battery in NC-BUGWL01 LED Emergency Light to Recharge?
The integrated Ni-Cd battery fully recharges within 24 hours and is designed to provide long-term, reliable performance with minimal maintenance.
Do NC-BUGWL01 LED Emergency Light Meet Safety Codes?
Yes, all NCLTG Sentinel Series LED Emergency Lights are UL 924 listed and cULus certified, ensuring full compliance with emergency egress lighting regulations.
