Microwave Sensor
Microwave Sensor
Specifications Sheet
Specifications Sheet
| Product Identification | Technical Specifications |
|---|---|
|
Model Number: HD08VR-M-1 Sensor Type: Microwave Sensor Applications: Indoor Lighting (Panels, Troffers) Certifications: NLC / DLC Qualified |
|

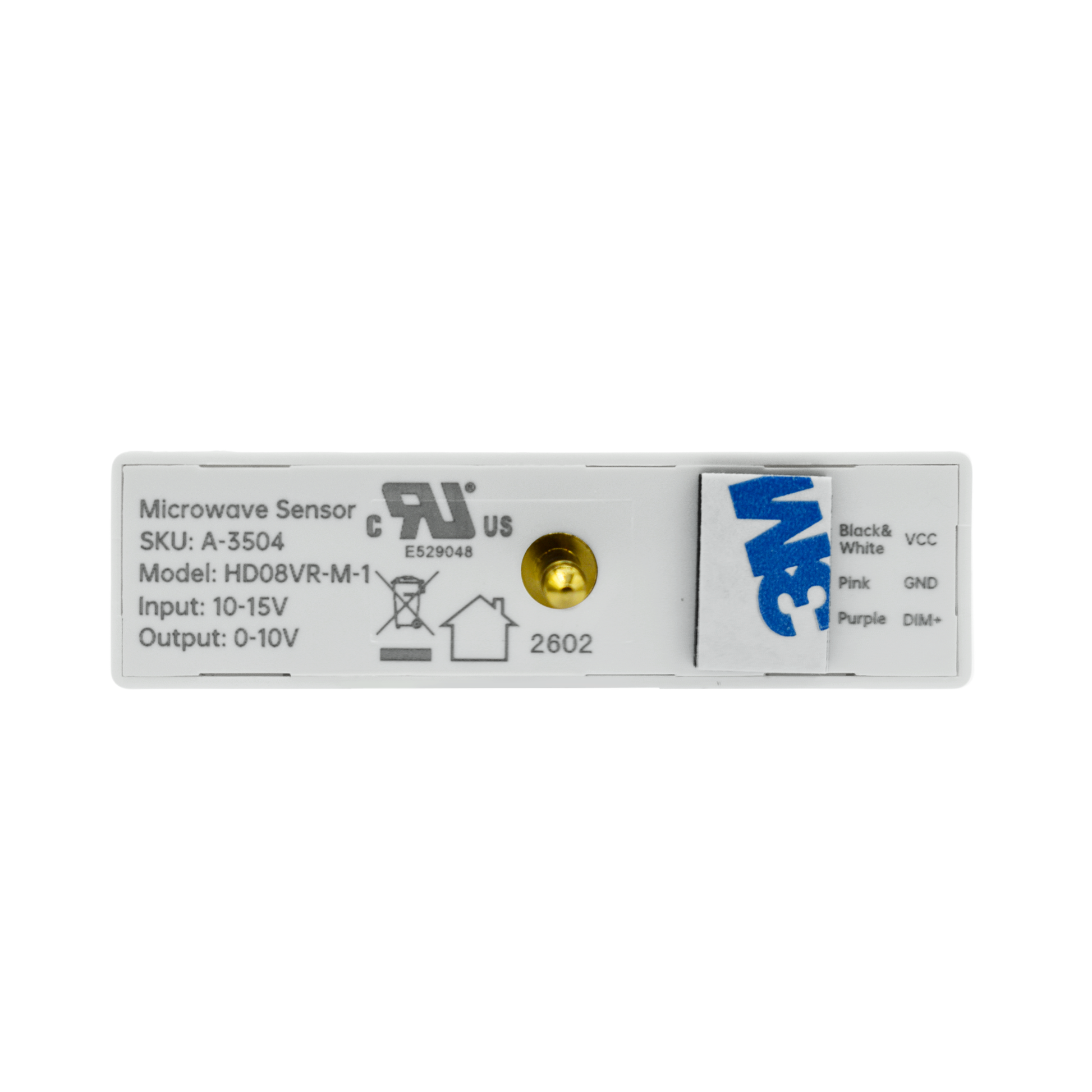

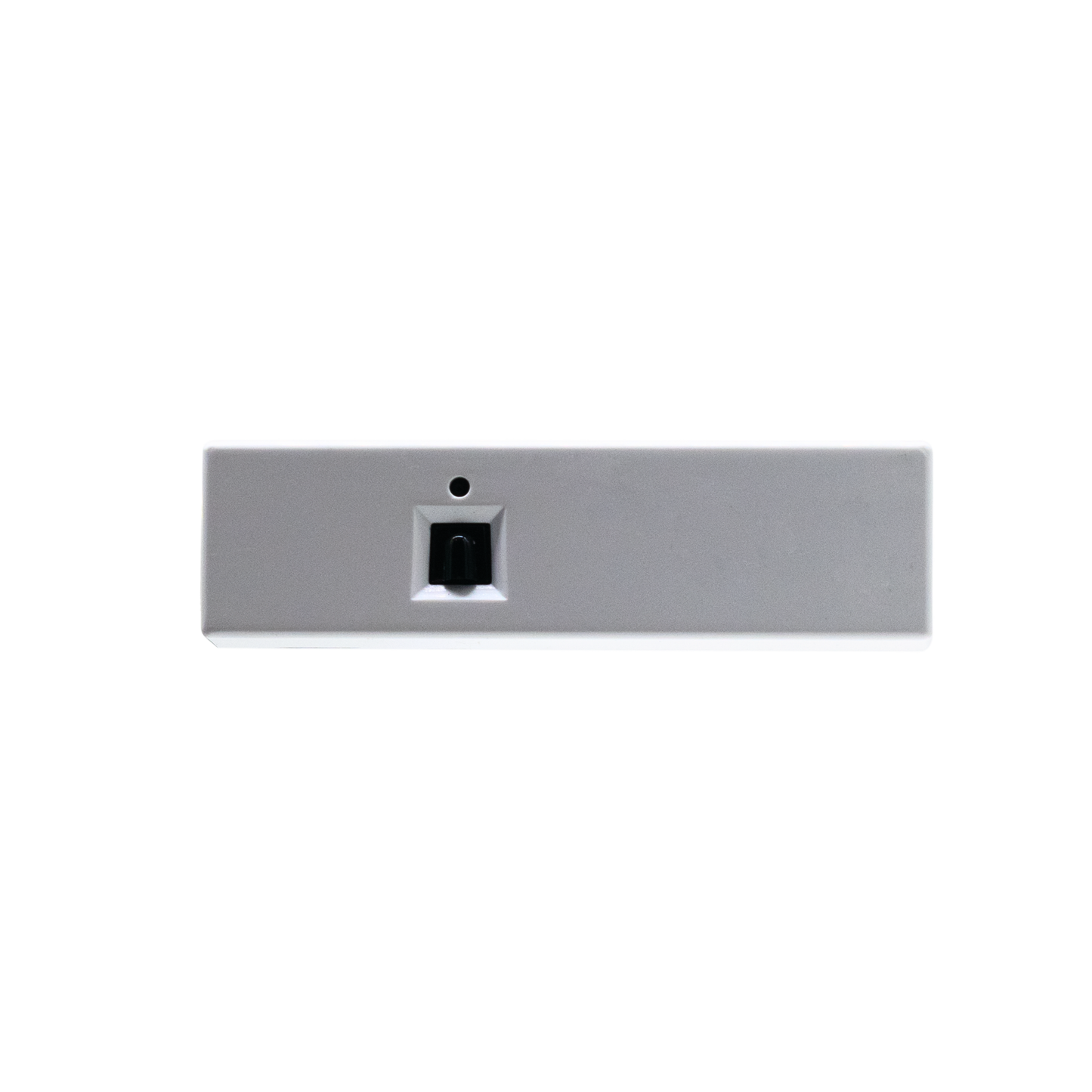

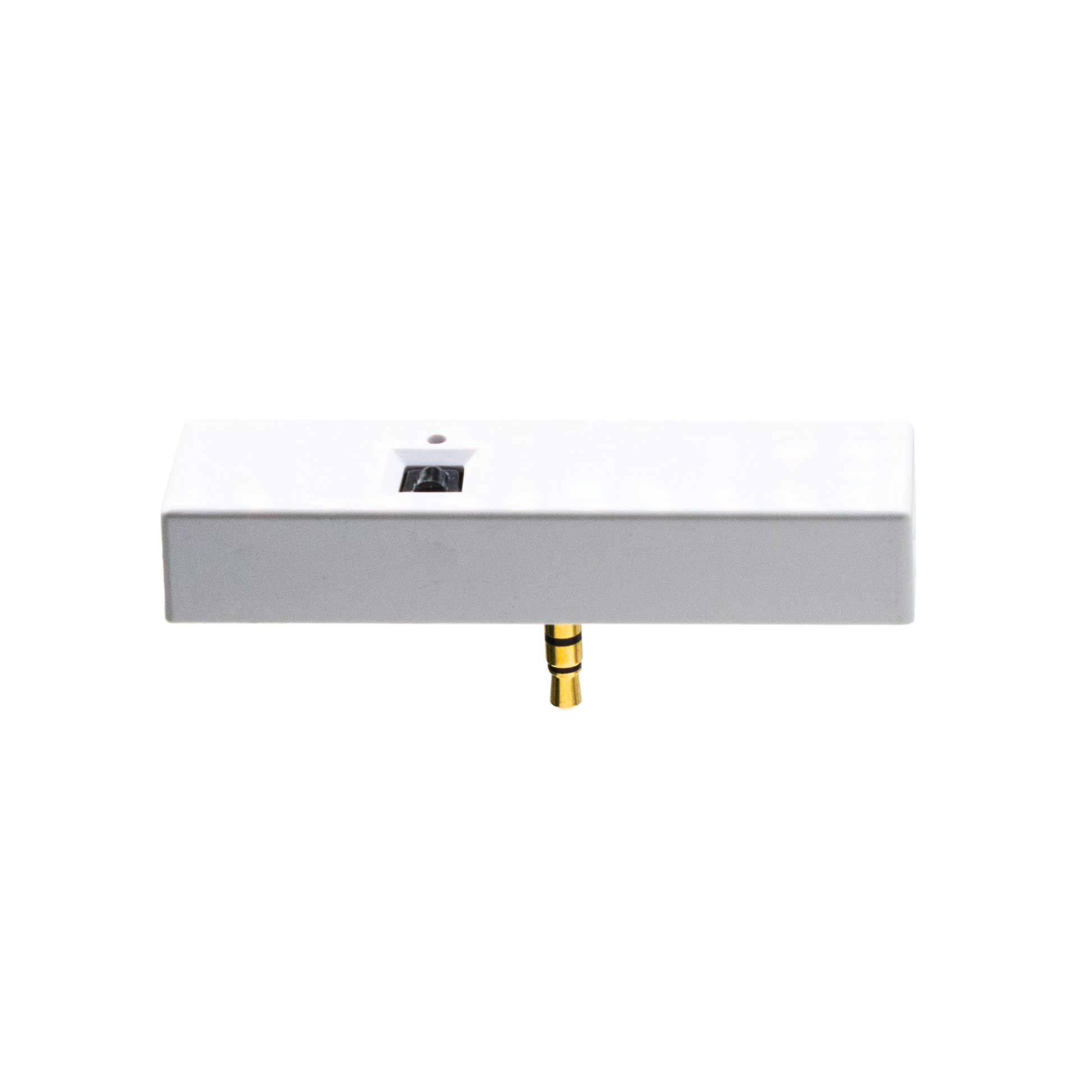

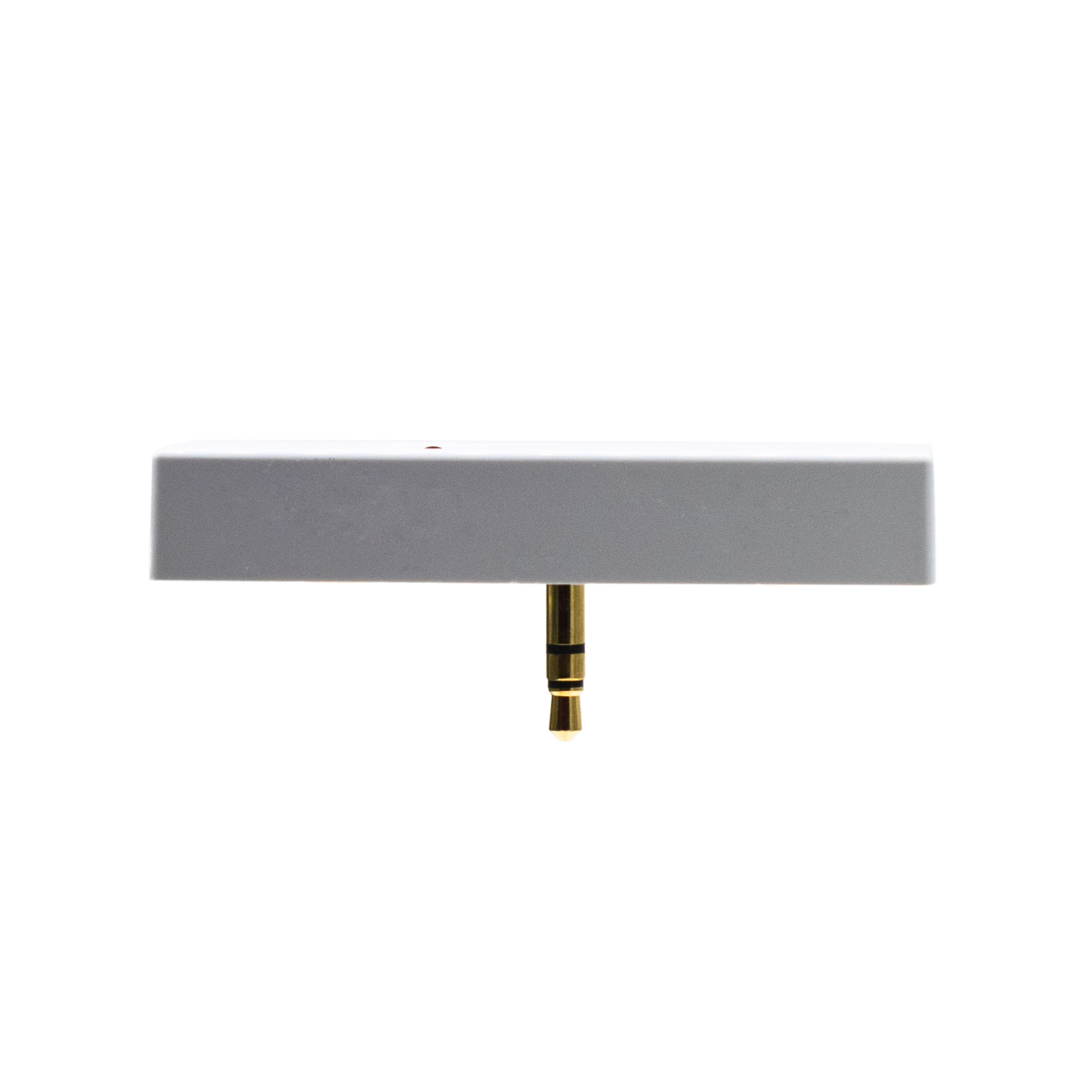

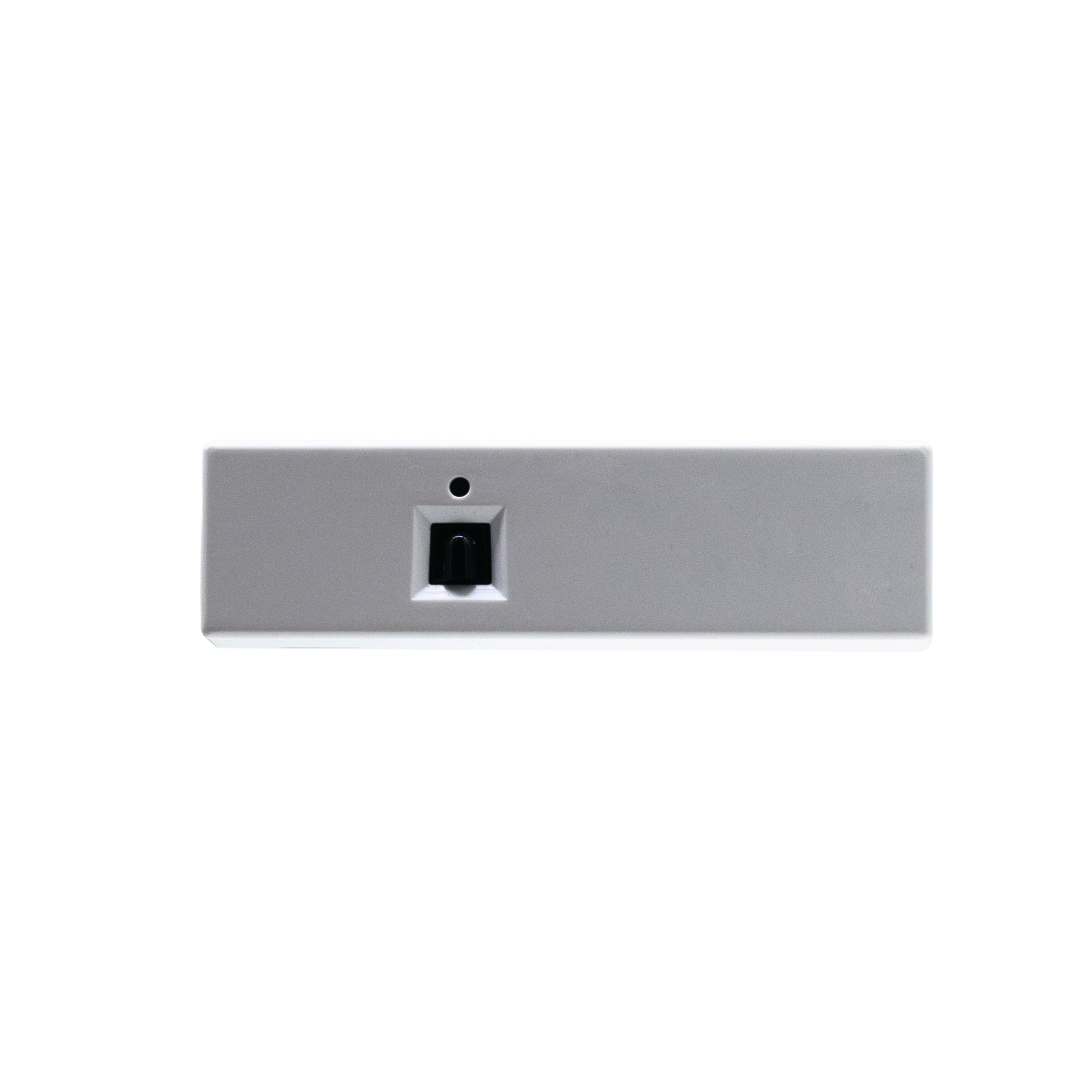

The HD08VR-M-1 is a NLC/DLC-qualified microwave sensor designed for indoor lighting applications such as panels and troffers.
Key Specifications
- Power & Signal: It operates on 12VDC (10-15VDC input range) with a power consumption of <30mA and supports 0-10V dimming.
- Performance: The sensor operates at a frequency of 5.8GHz±75MHz. It has a maximum installation height of 4m (13.12ft) and a detection distance of >3m/9ft.
- Environment: The working temperature range is -25°C to +60°C, and it holds an IP20 rating.
- Warranty: The product comes with a 5-year warranty.
Functional Features
The sensor supports several operational modes, including:
- Daylight Harvesting: Automatically adjusts light brightness based on ambient light levels.
- Dusk/Dawn Function: Automatically turns lights off when ambient brightness exceeds a preset lux level.
- Occupancy Sensing: Features include adjustable detection area, hold time, standby period, and standby dimming levels to manage light output based on motion.
Installation & Application Notes
- Placement: It is suitable for ceiling mounting; if wall-mounted, sensitivity should be adjusted as the sensor becomes more sensitive.
- Interference: The sensor should be kept away from vibration-prone equipment, AC/DC power lines, and other wireless devices to avoid signal interference.
- Safety: Installation must be performed by a qualified electrician, and power must be turned off before work begins. Unauthorized modifications void the product guarantee.
