Highbay Sensor Series (Bluetooth & Regular)

Product Identification	Specifications & Compatibility
Order Code: X-0430 Model Number: HD10VR-M-1A	Type: 12V AUX Extended Mount Indoor MW Sensor Features: Bi-Level Control / Daylight Sensor Compatibility: For LB / SL

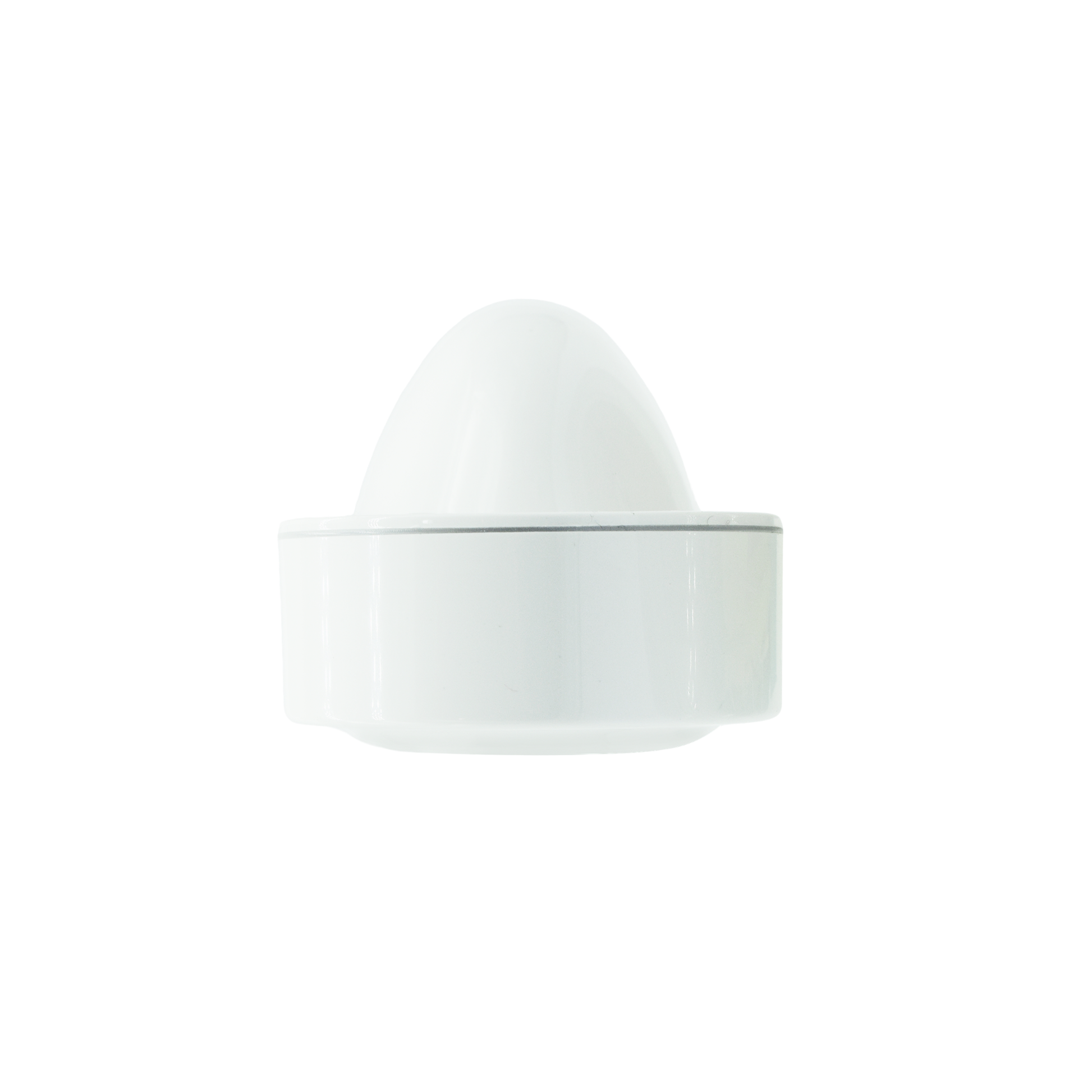

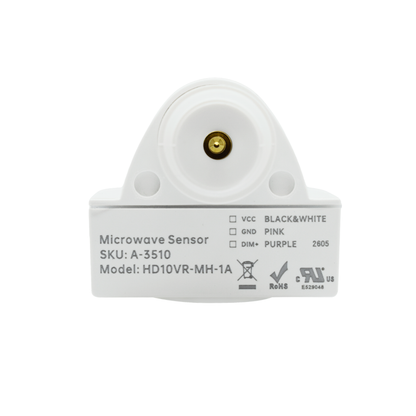

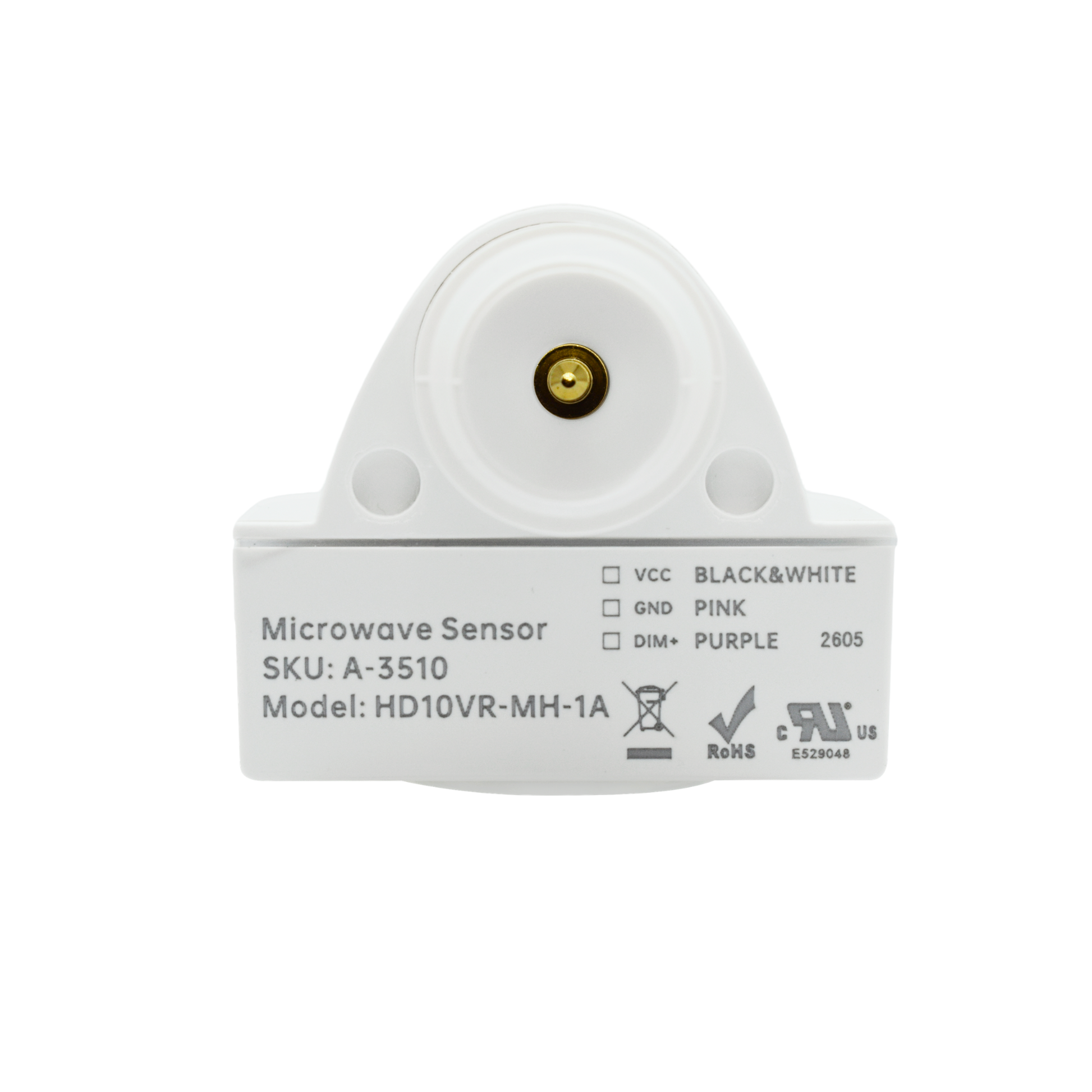

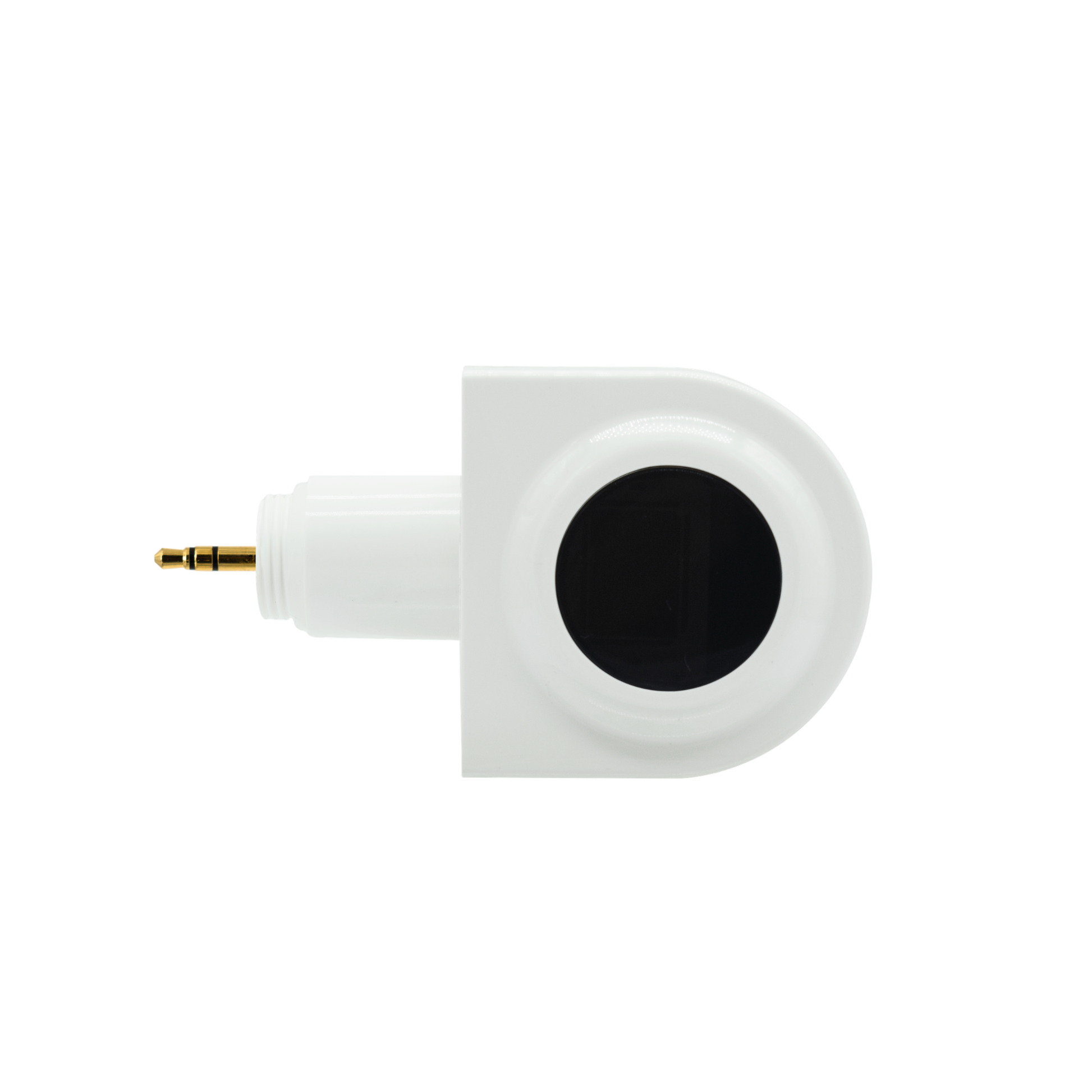

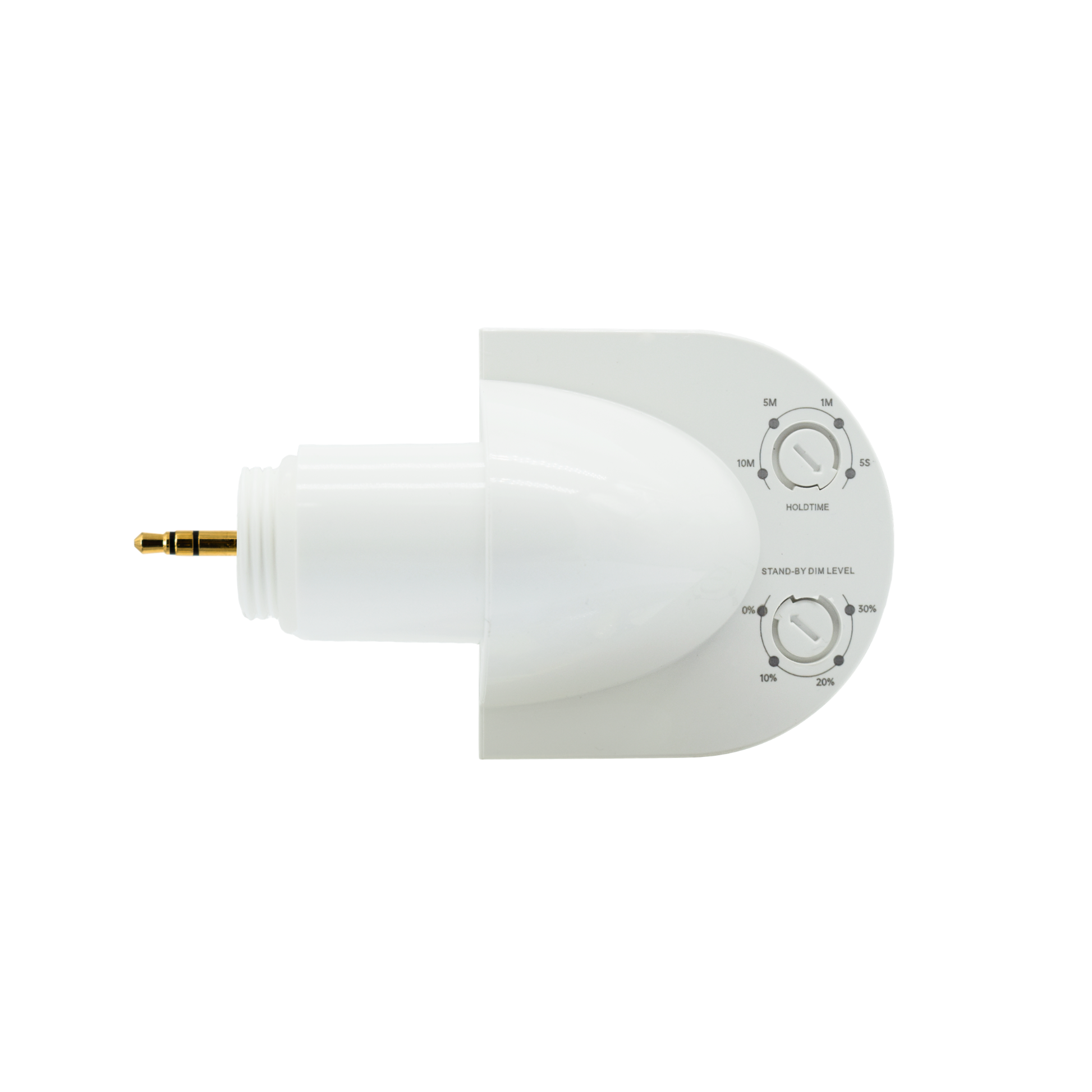

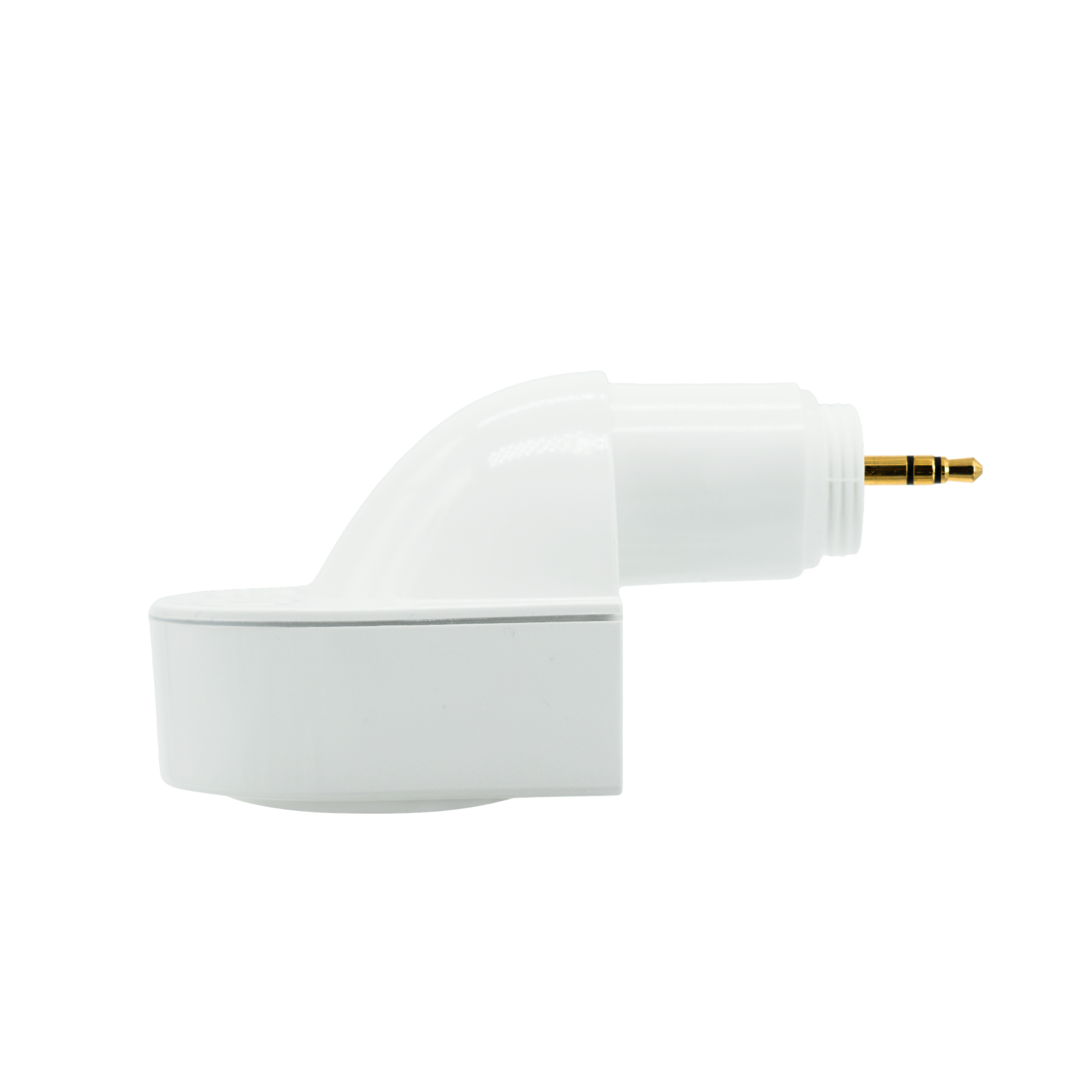

Order Code: A-3510 Model Number: HD10VR-MH-1A	Type: 12V AUX Extended Mount Indoor MW Sensor Features: Bi-Level Control / Daylight Sensor Compatibility: For LHB
Order Code: X-0432 Model Number: HD10VR-P-1A	Type: 12V AUX Extended Mount Indoor PIR Sensor Features: Bi-Level Control / Daylight Sensor Compatibility: For LB / L

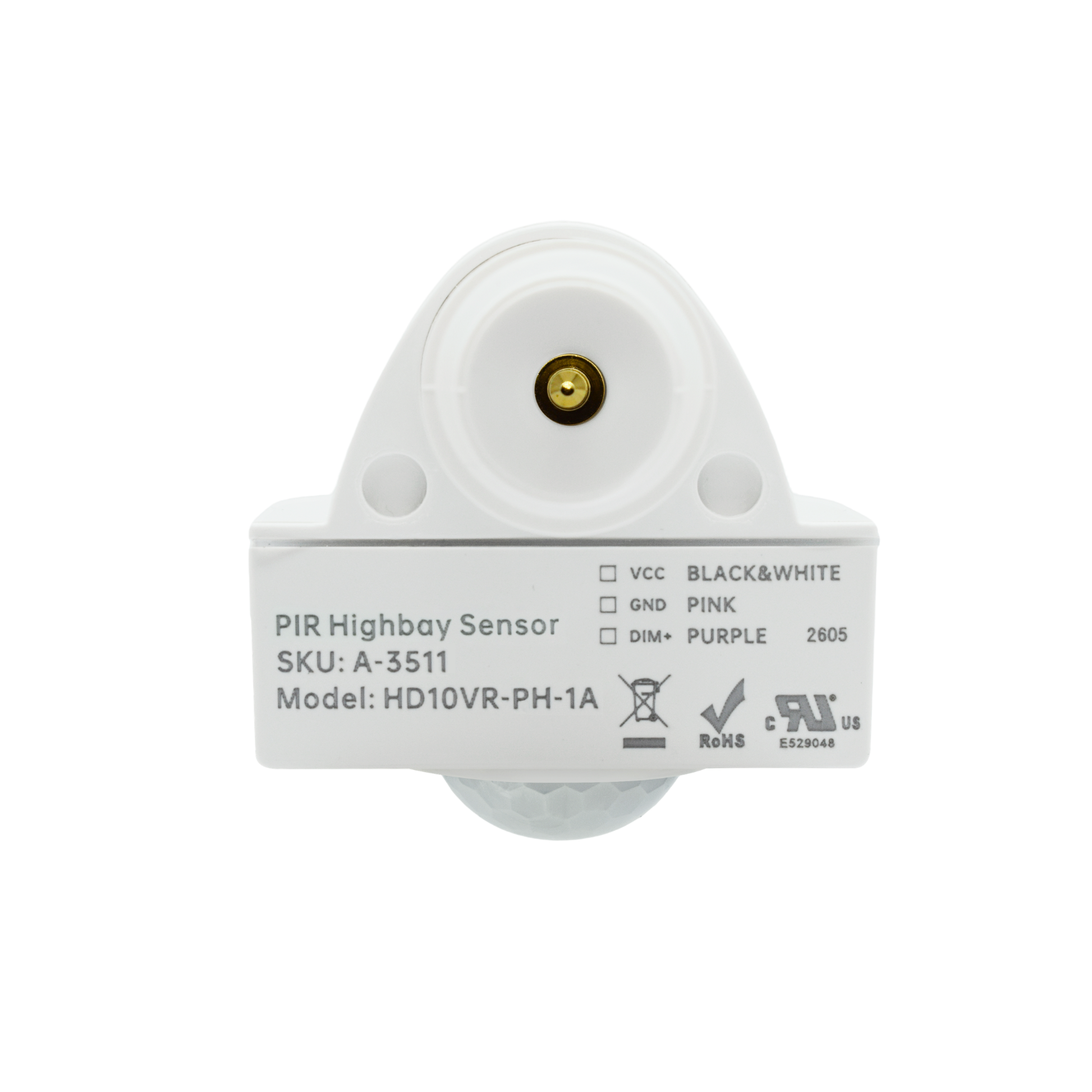

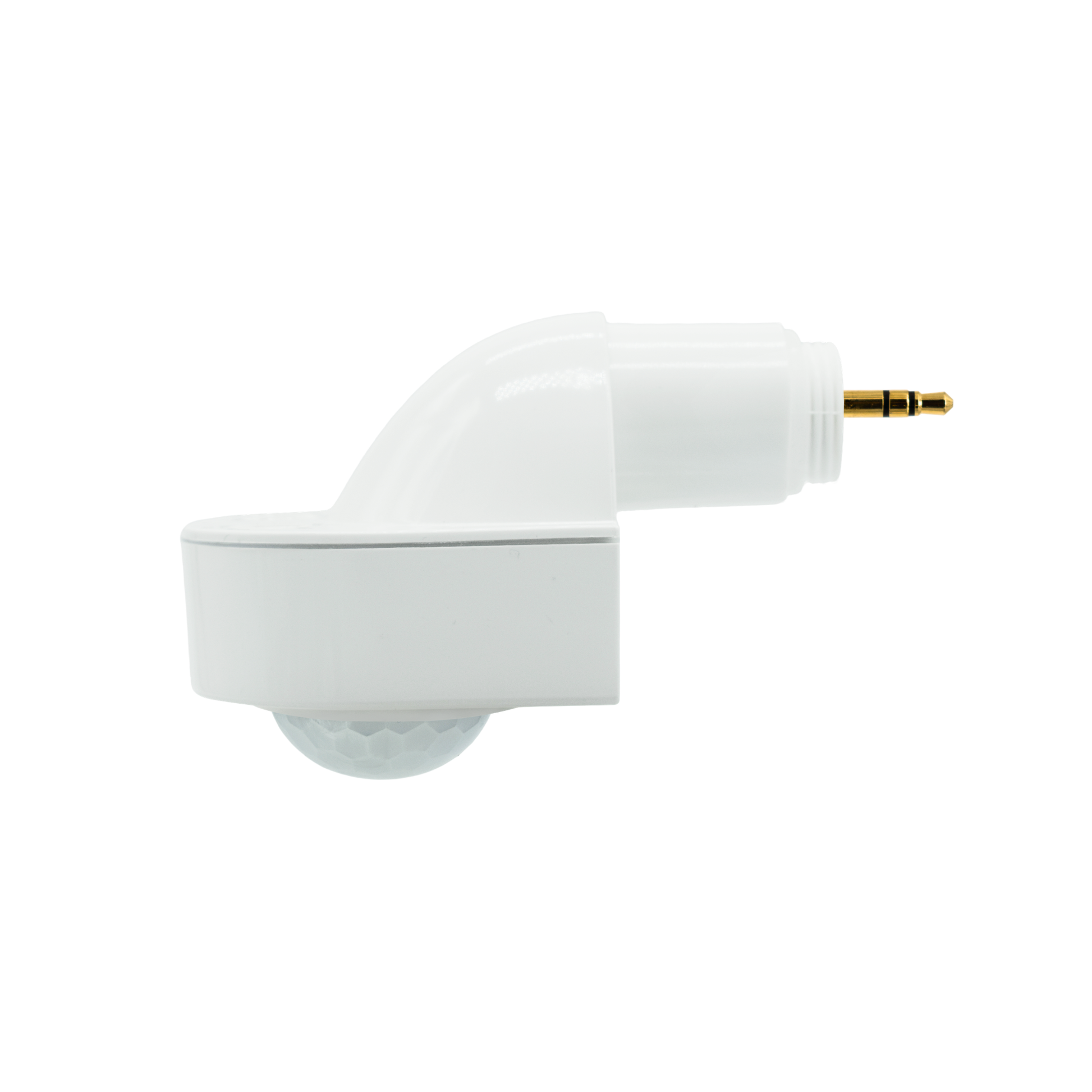

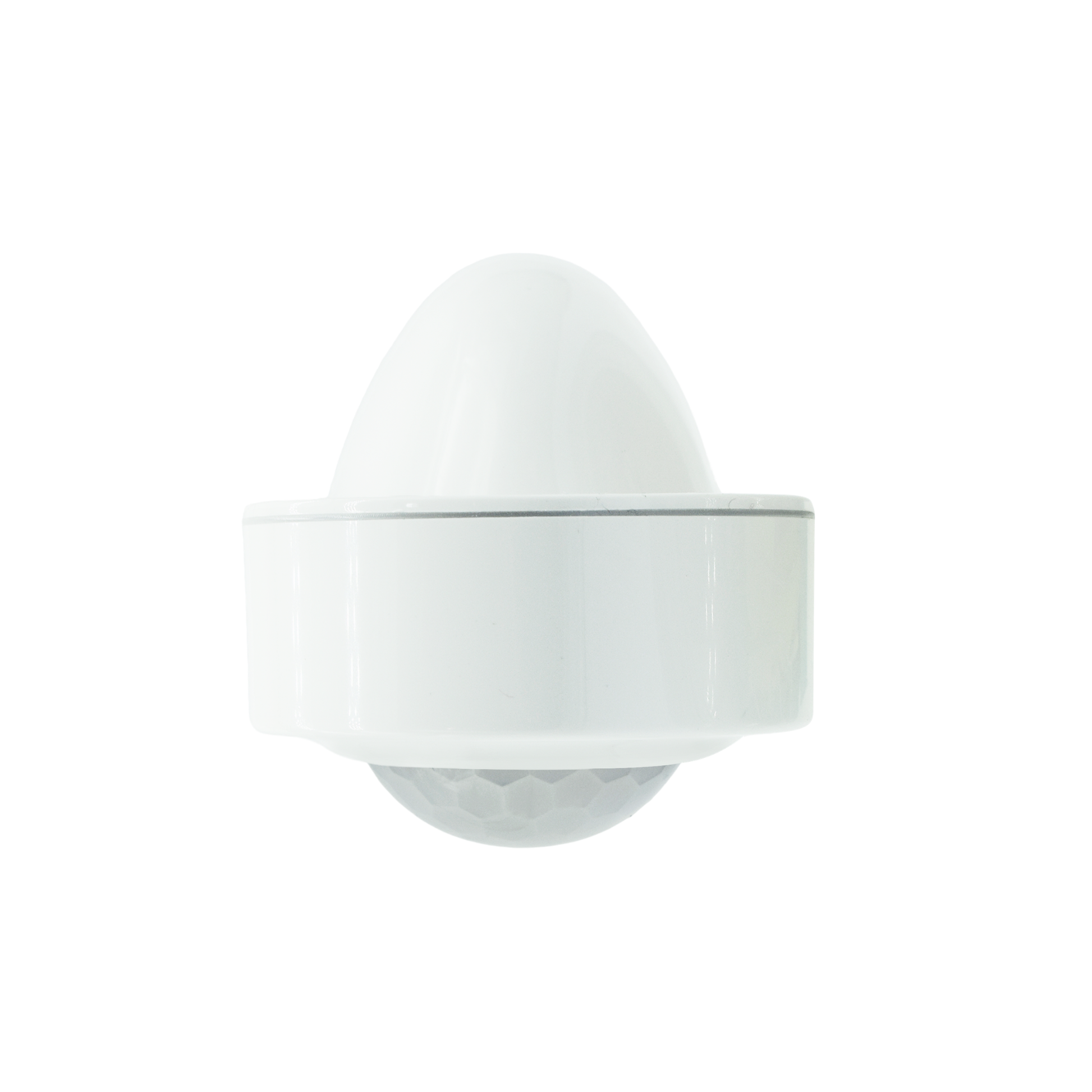

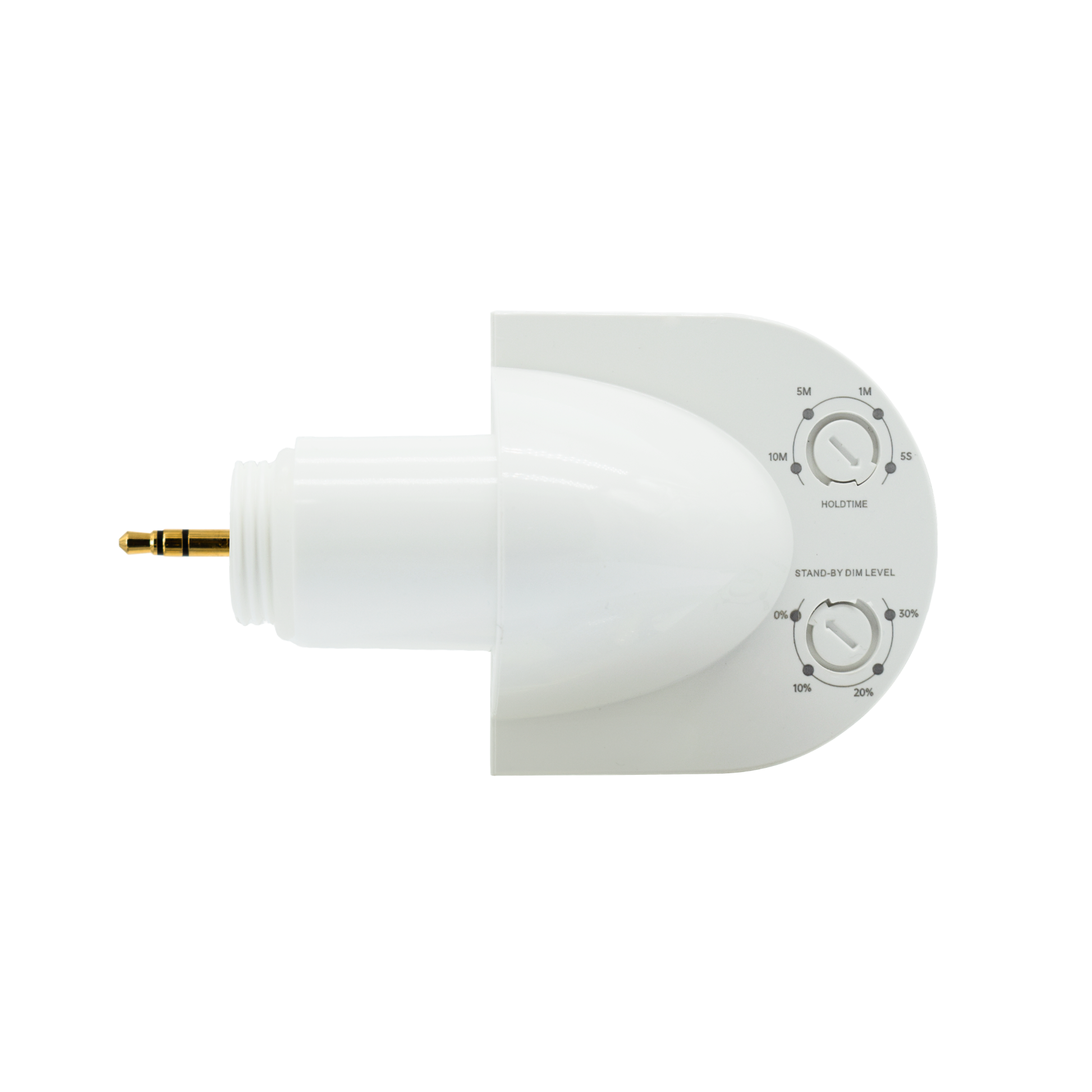

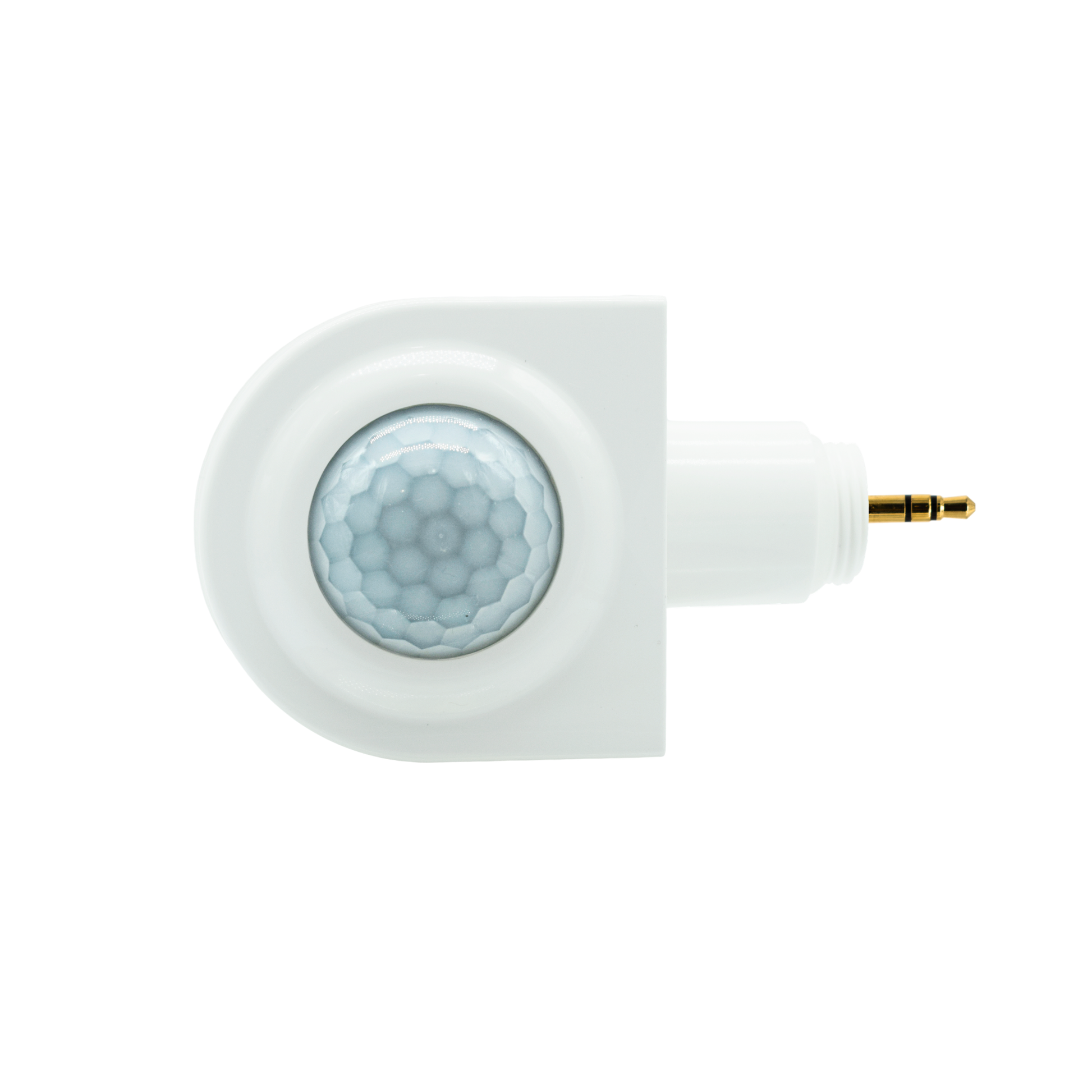

Order Code: A-3511 Model Number: HD10VR-PH-1A	Type: 12V AUX Extended Mount Indoor PIR Sensor Features: Bi-Level Control / Daylight Sensor Compatibility: For LHB



Product Overview

The HD10VR series consists of highbay sensors available in both Bluetooth and regular versions. These sensors are designed for indoor applications and feature a 5-year warranty.Technical Parameters & Installation

• Microwave Sensor: Offers a maximum installation height of 15m/49.21ft and a detection angle of 30-150° (without glass cover).
• PIR Sensor: Offers a maximum installation height of 12m/39ft and a detection angle of ≤120°.
• Operating Conditions: Working temperature ranges from -40°C to +70°C.
• Wiring: Connections vary by model and include options for audio jack or 3-pin pogo-pin configurations.

Key Features and Performance

• Daylight Harvesting: Automatically adjusts artificial light brightness based on ambient natural light when configured.
• Dusk/Dawn Function: Automatically turns lights off when ambient brightness exceeds a preset threshold.
• Sensor Control: Provides configurable settings for detection area, hold time, standby period, standby dimming level, and daylight thresholds.

Important Application Notes

• General: Installation should be performed by a qualified electrician. Unauthorized modifications are forbidden and will invalidate warranties.
• Microwave: Maintain at least 2m distance between sensors and 1.5m from wireless devices to avoid interference. Do not place inside metal shells.
• PIR: Performance may weaken or become non-responsive if ambient temperatures approach human body temperature (36°C-37°C) or exceed 40°C. Fresnel lenses must be completely exposed.
