Highbay Microwave Sensor Series (Bluetooth & Regular)

Product Identification	Specifications & Range

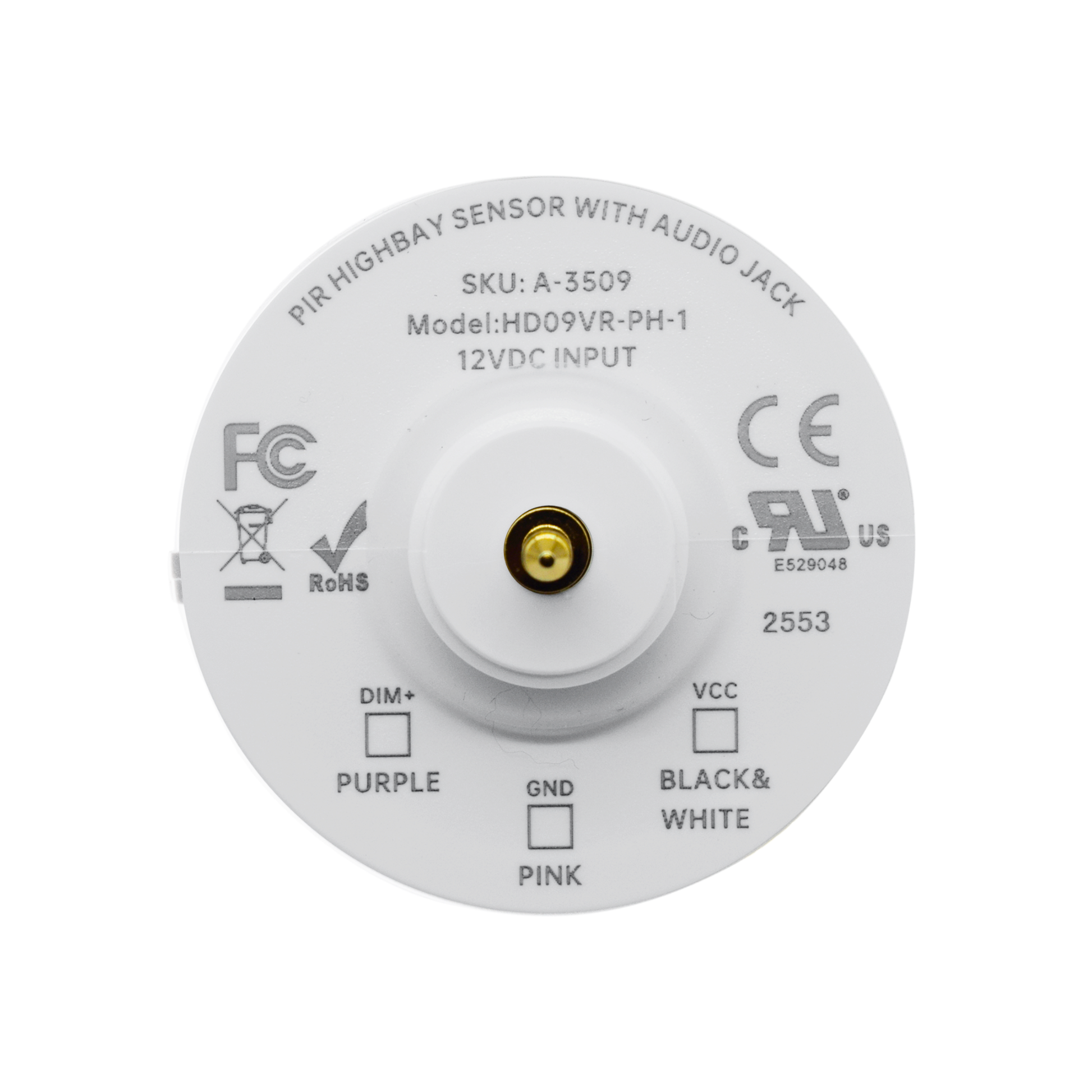

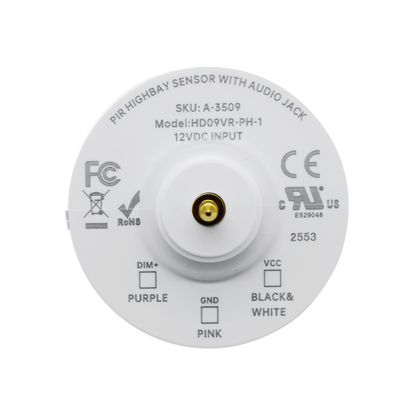

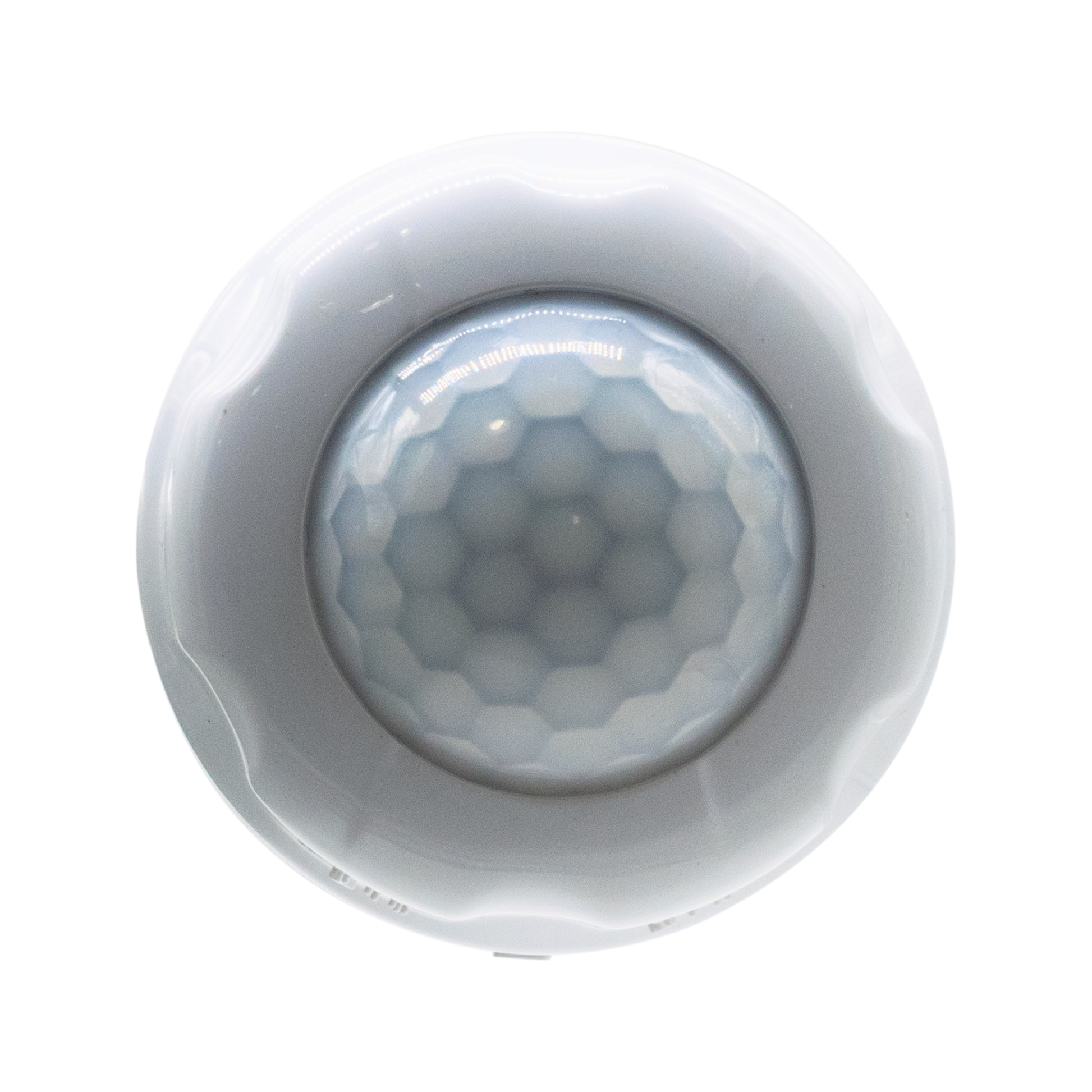

Order Code: A-3509 Model Number: HD09VR-PH-1	Type: 3.5mm 12VDC AUX PIR Sensor Application: Highbay Outdoor Features: Daylight Priority / Daylight Harvesting Detection (Range × Height): 49ft × 39ft Max



The HD09VR Highbay Series is a microwave sensor designed for high-bay lighting applications. It features a 12VDC input with 0-10V dimming capabilities.

Key Features and Specifications:

• Performance: The sensor has a maximum installation height of 16m (52.49ft) and a detection angle of 30-150°.
• Functionality: It supports daylight harvesting, dusk/dawn sensing, and photocell functions.
• Controls: Depending on the model, configuration is performed via remote control (HD05R), a rotating switch, or the "HAISEN BLUE" app for Bluetooth-enabled versions.
• Environmental: The device operates within a temperature range of -40°C to +70°C and is rated IP65. It carries a 5-year warranty.

Operational Modes:

• Daylight Harvesting: Automatically adjusts artificial light levels based on ambient light to maintain consistent brightness.
• Dusk/Dawn Function: Automatically turns off lights when ambient brightness exceeds a preset lux level.

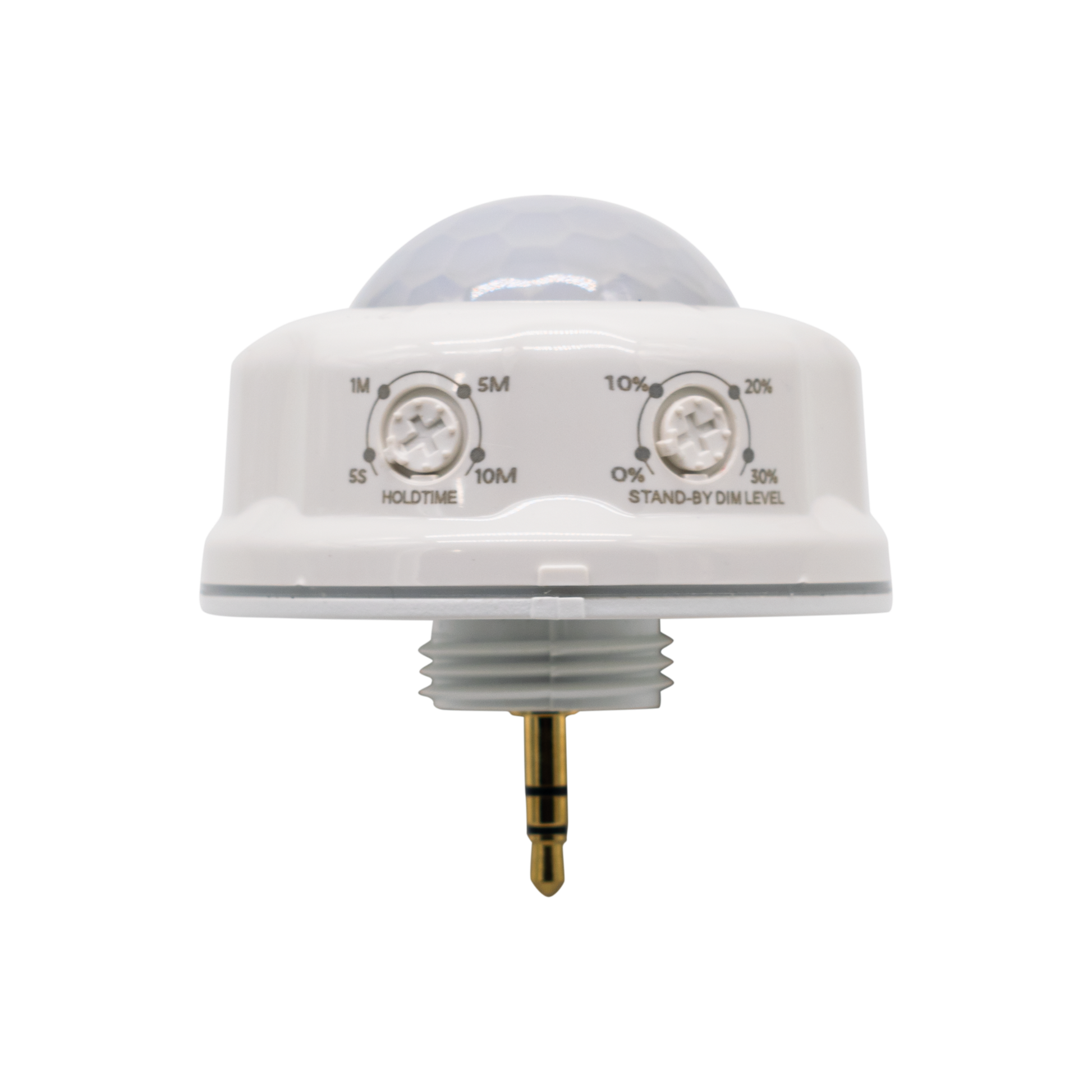

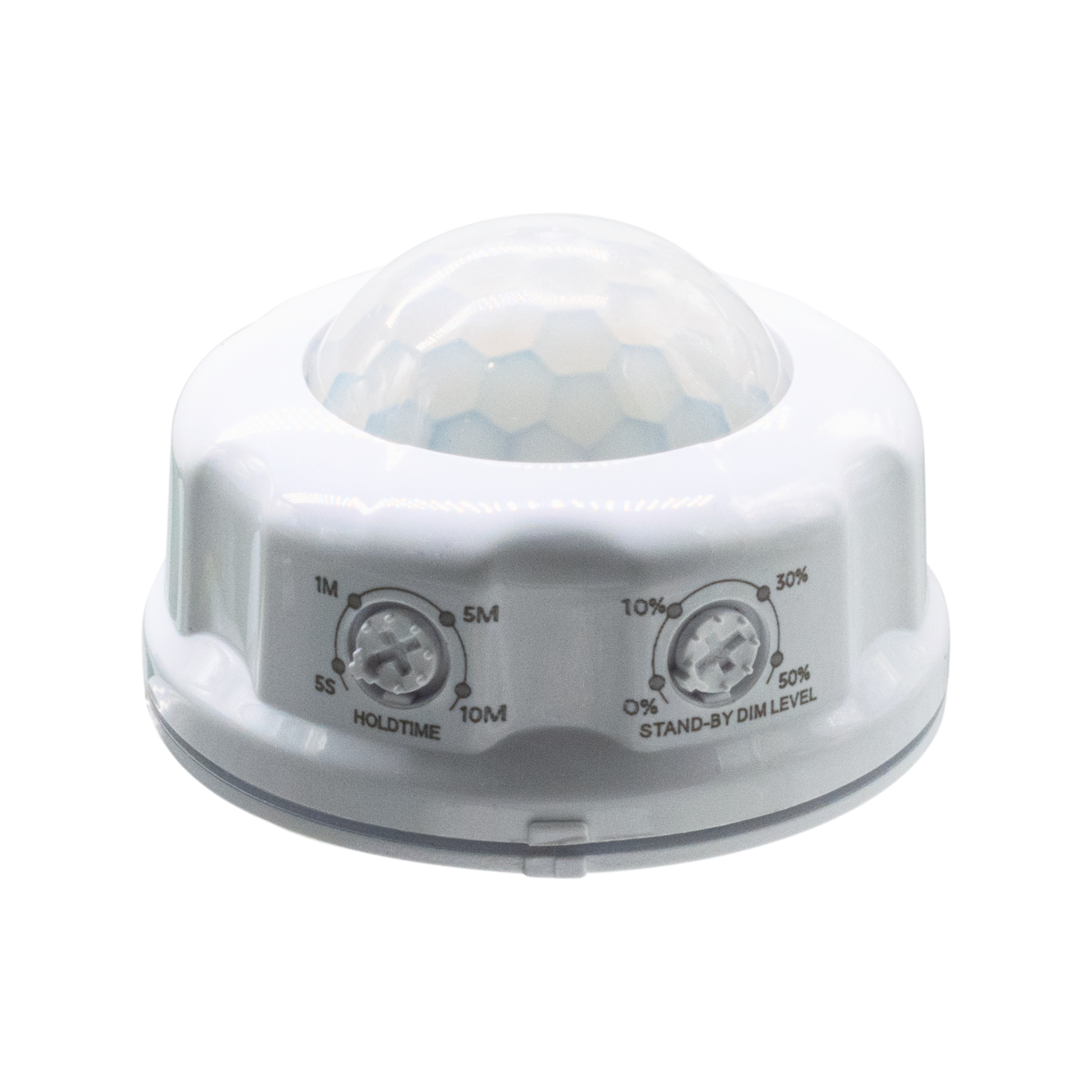

• Motion Detection: The sensor turns on lights upon detecting motion, maintains them for a hold time, and dims or turns them off based on the standby period settings.

Application Notes:

• Installation must be performed by a qualified electrician, ensuring power is off.
• Microwave sensors should not be placed under or inside metal shells and must directly face the detection area.
• To avoid interference, maintain a distance of at least 2m between microwave sensors and 1.5m from other wireless devices.
• The sensor is suitable for ceiling mounting; when wall-mounted, sensitivity adjustments may be required.
