HD08VR Series (For Highbay Light)

Product Identification	Specifications & Compatibility

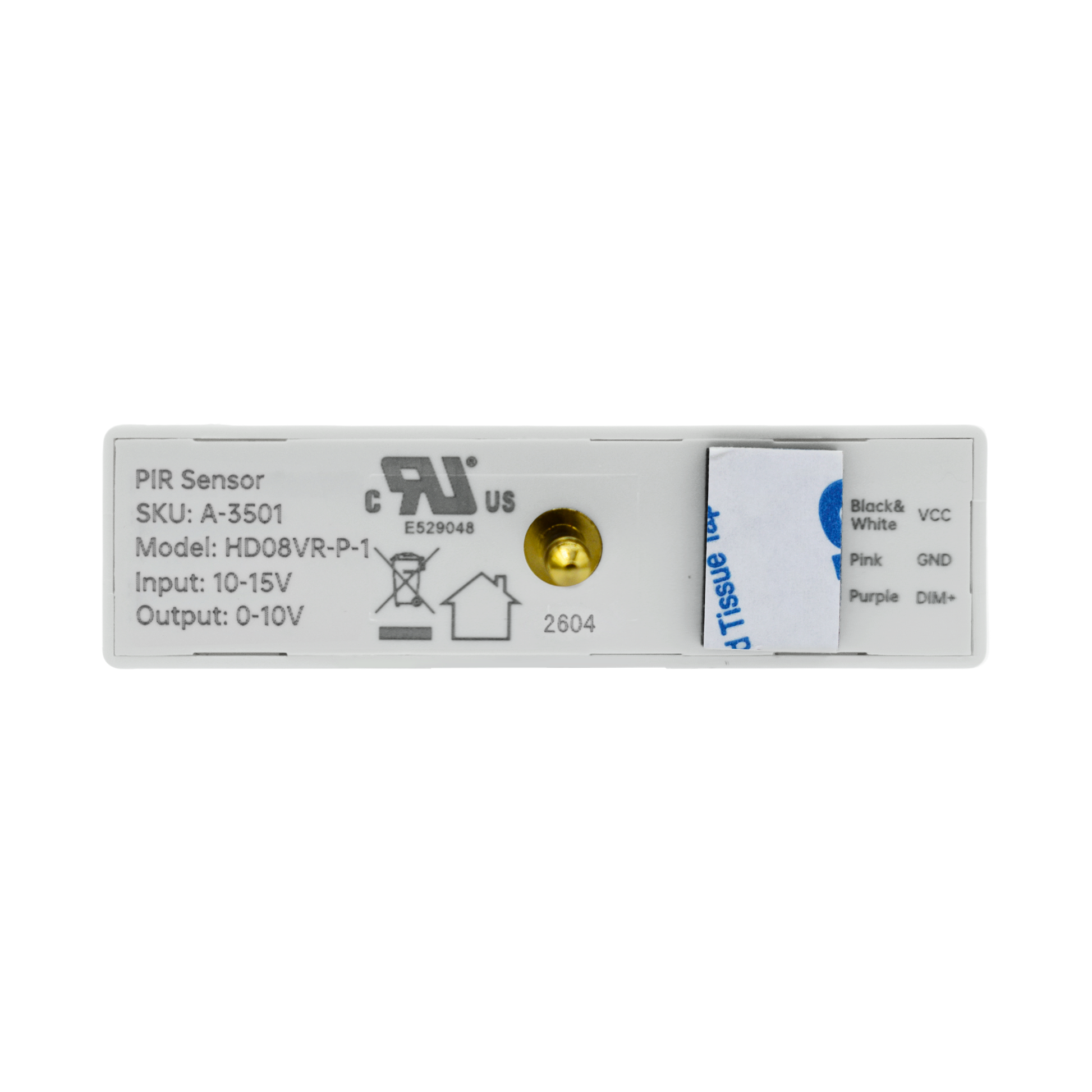

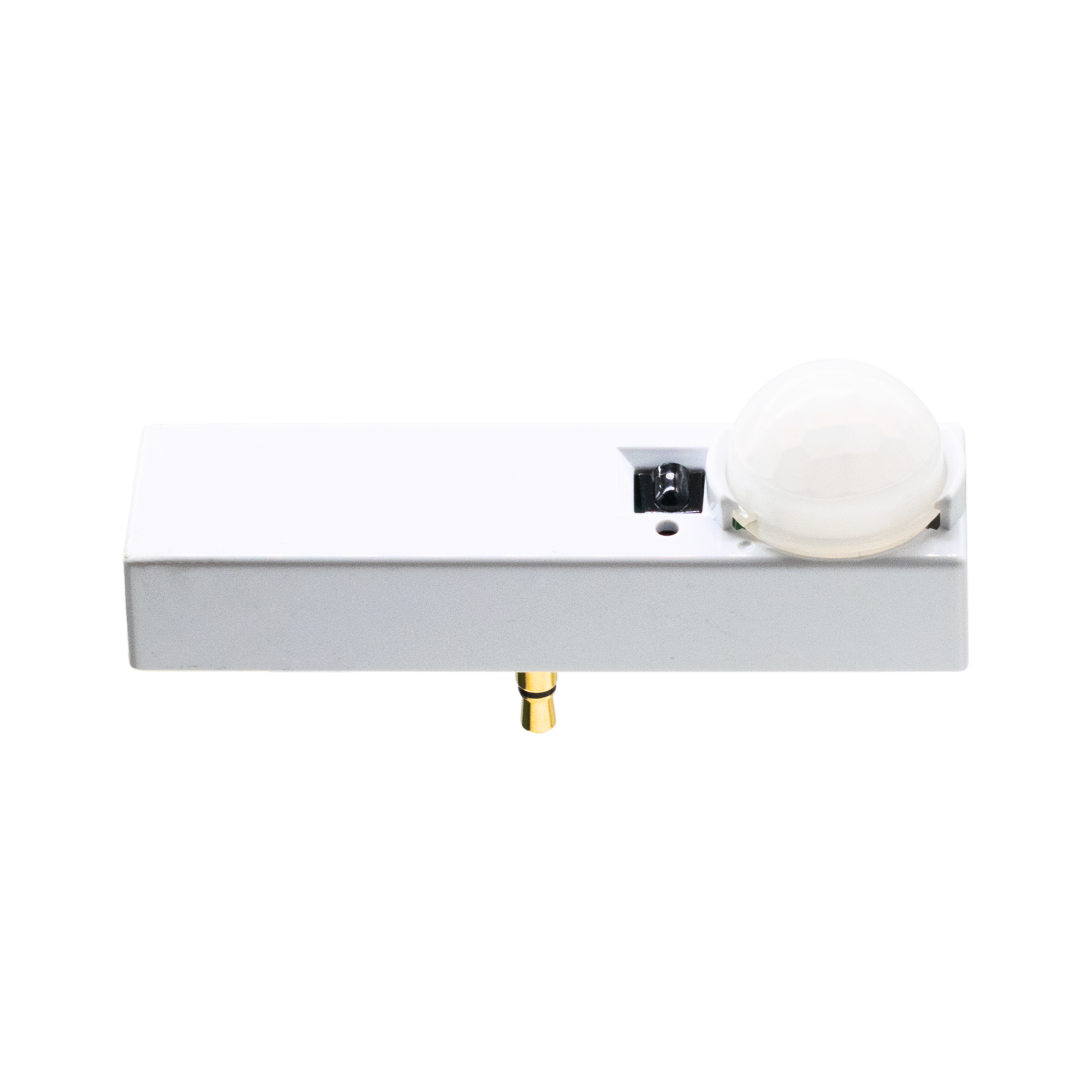

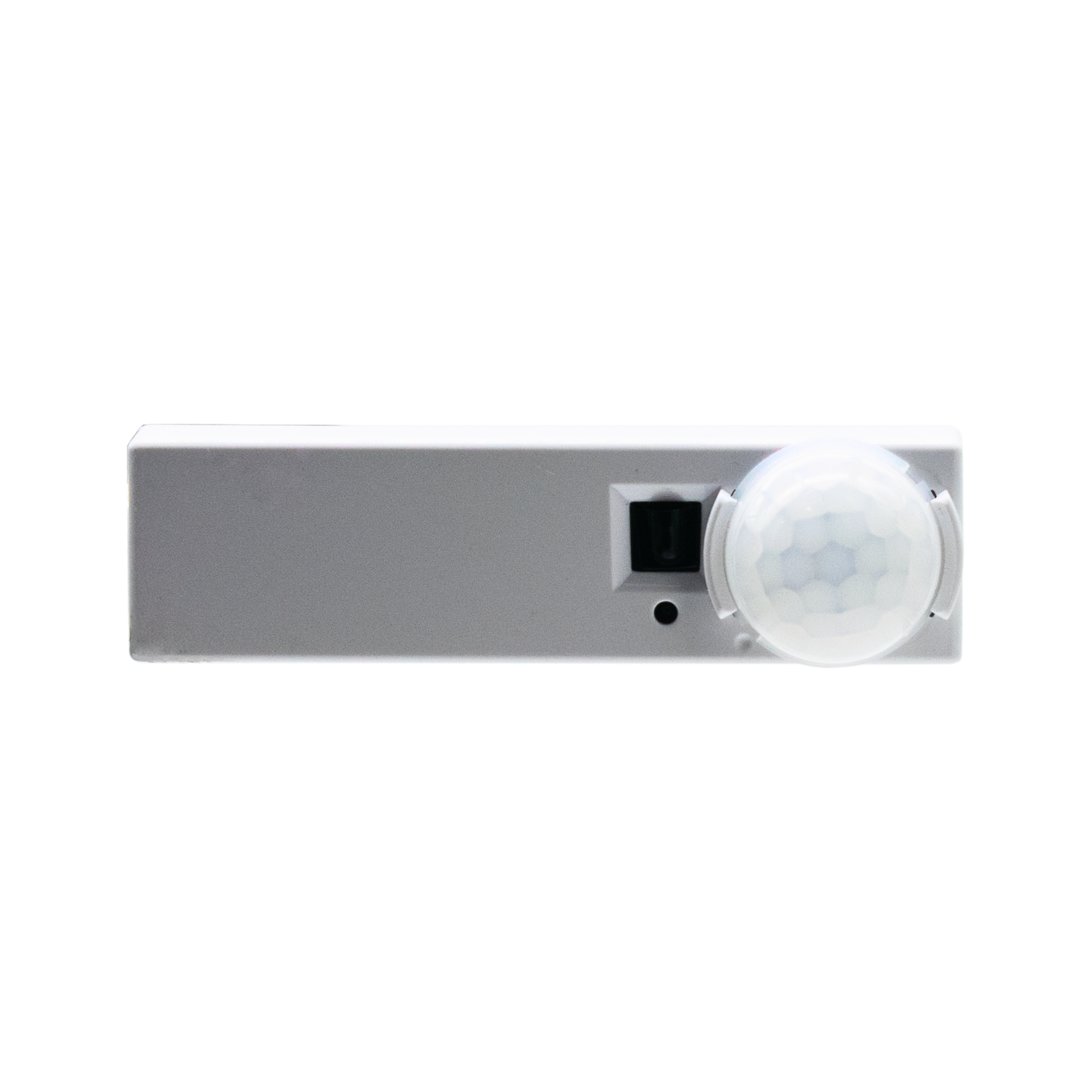

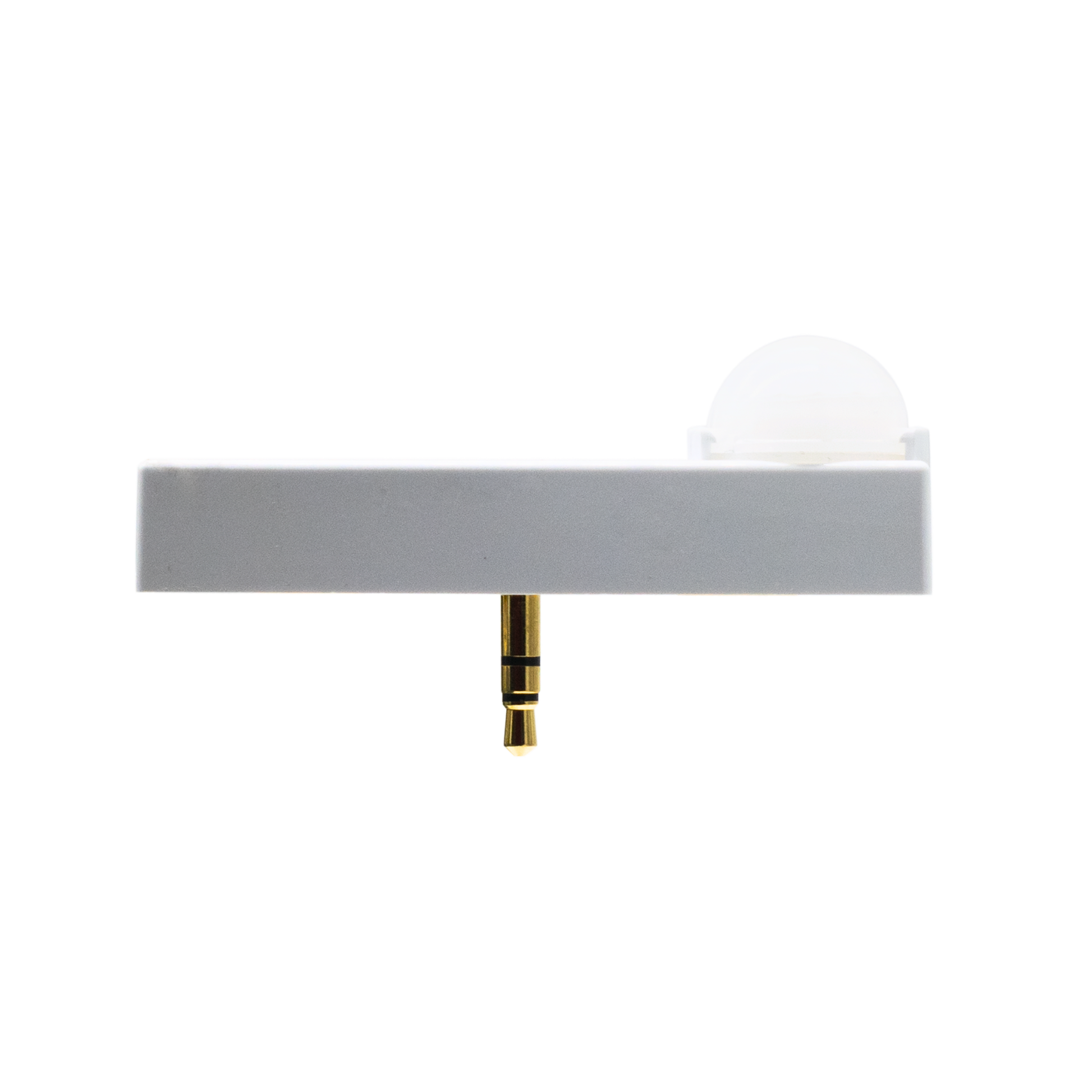

Order Code: A-3501 Model Number: HD08VR-P-1	Type: 3.5mm 12VDC AUX PIR Sensor Features: Daylight Priority / Daylight Harvesting Detection Height: 12ft Max Incompatibility: NOT Working Compatibly With EM Drivers

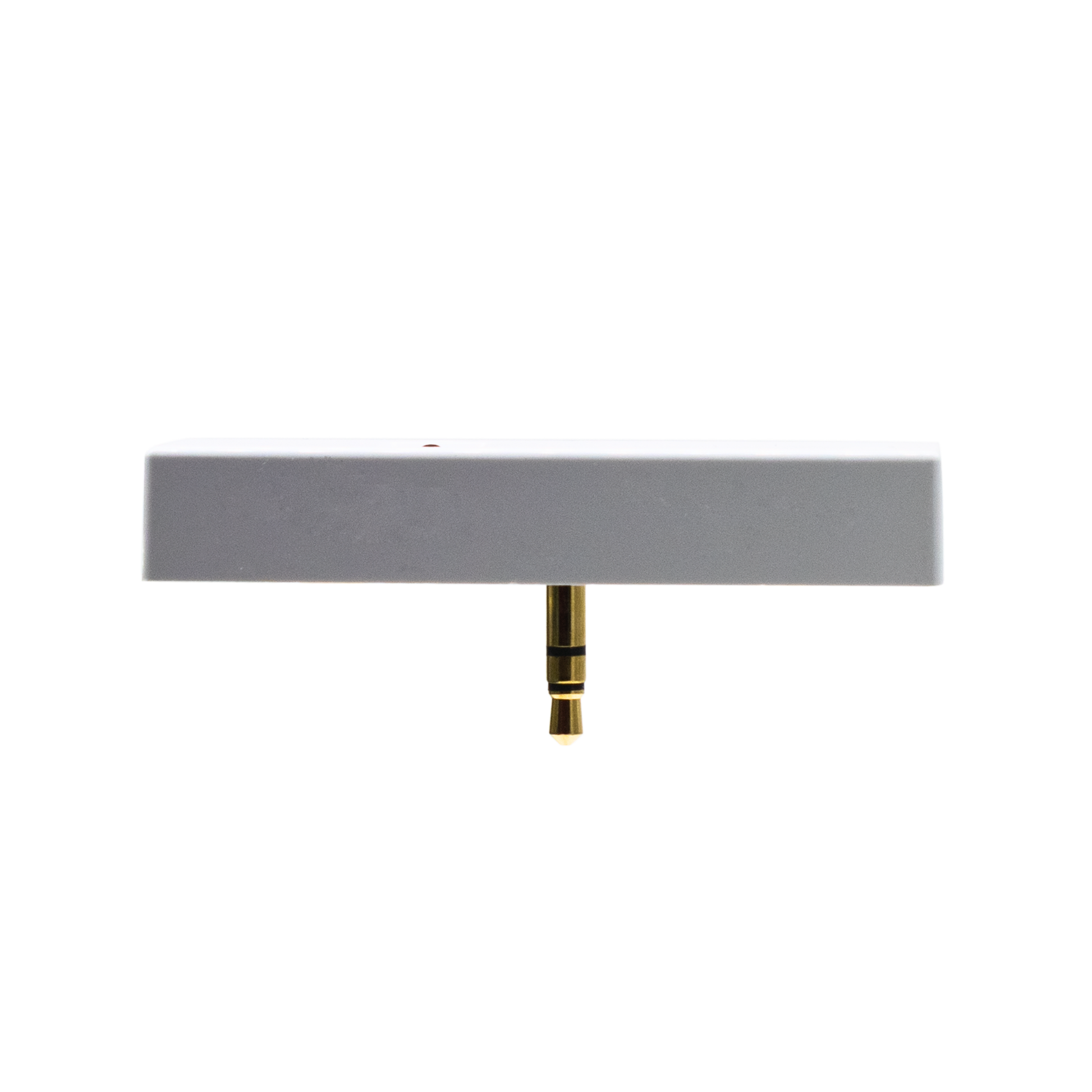

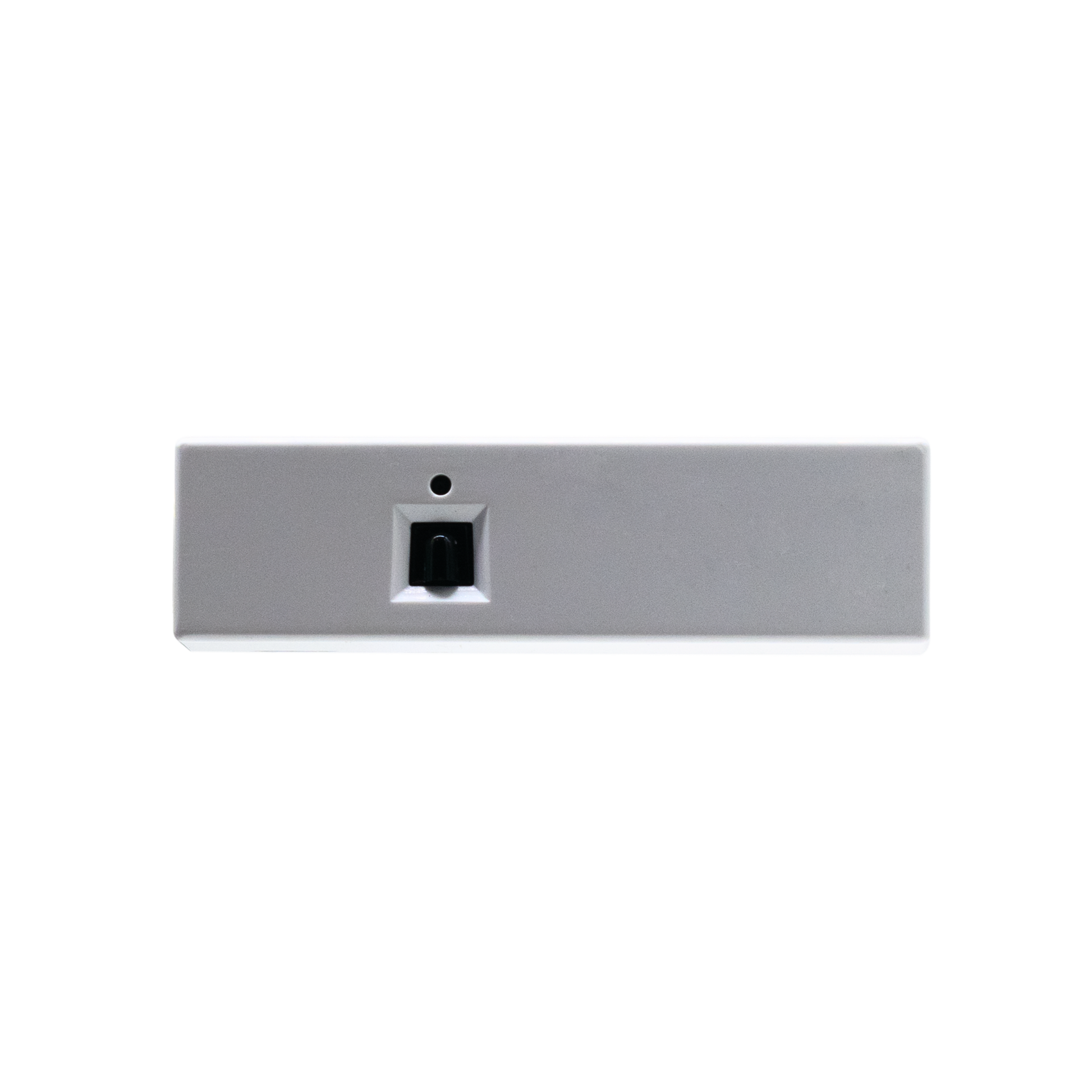

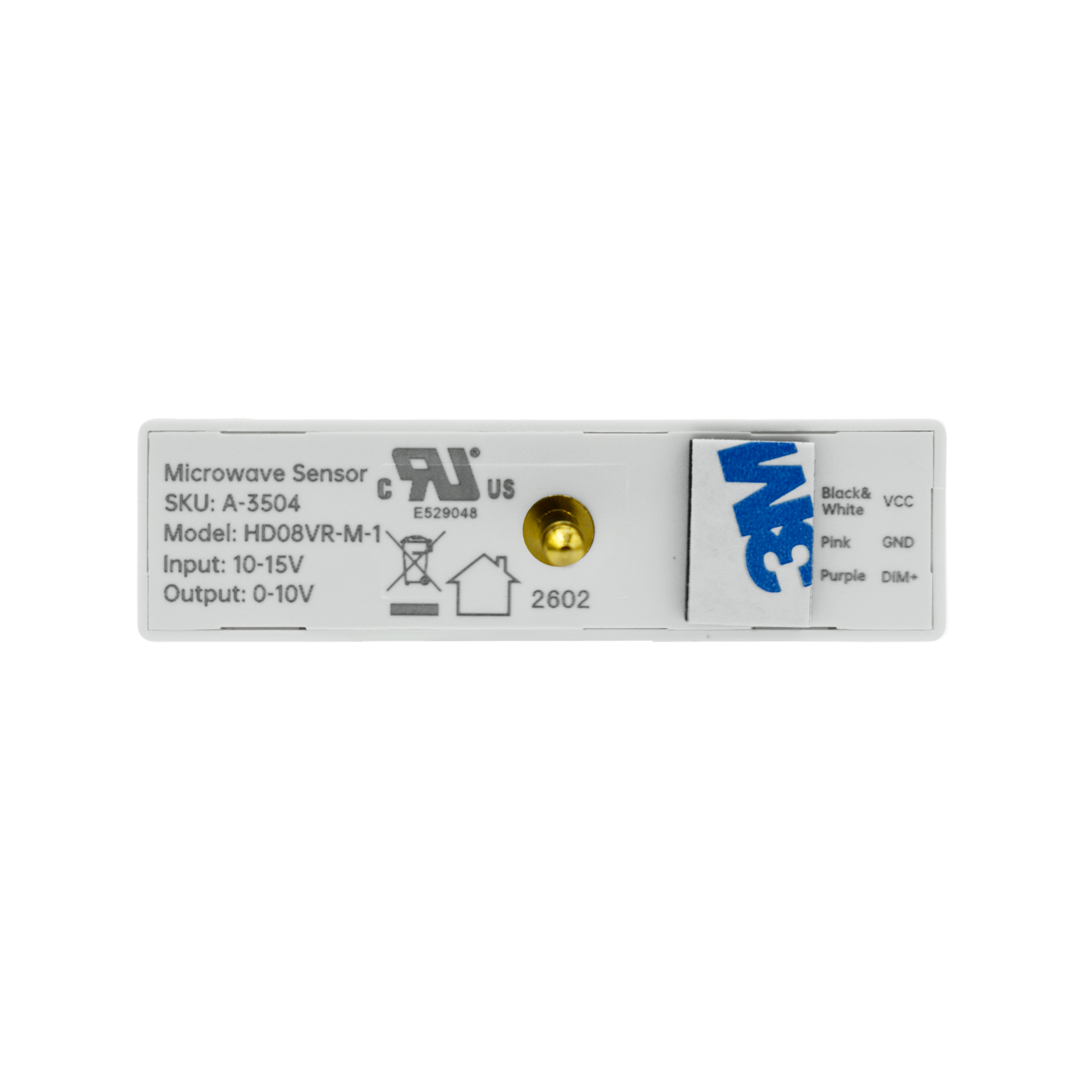

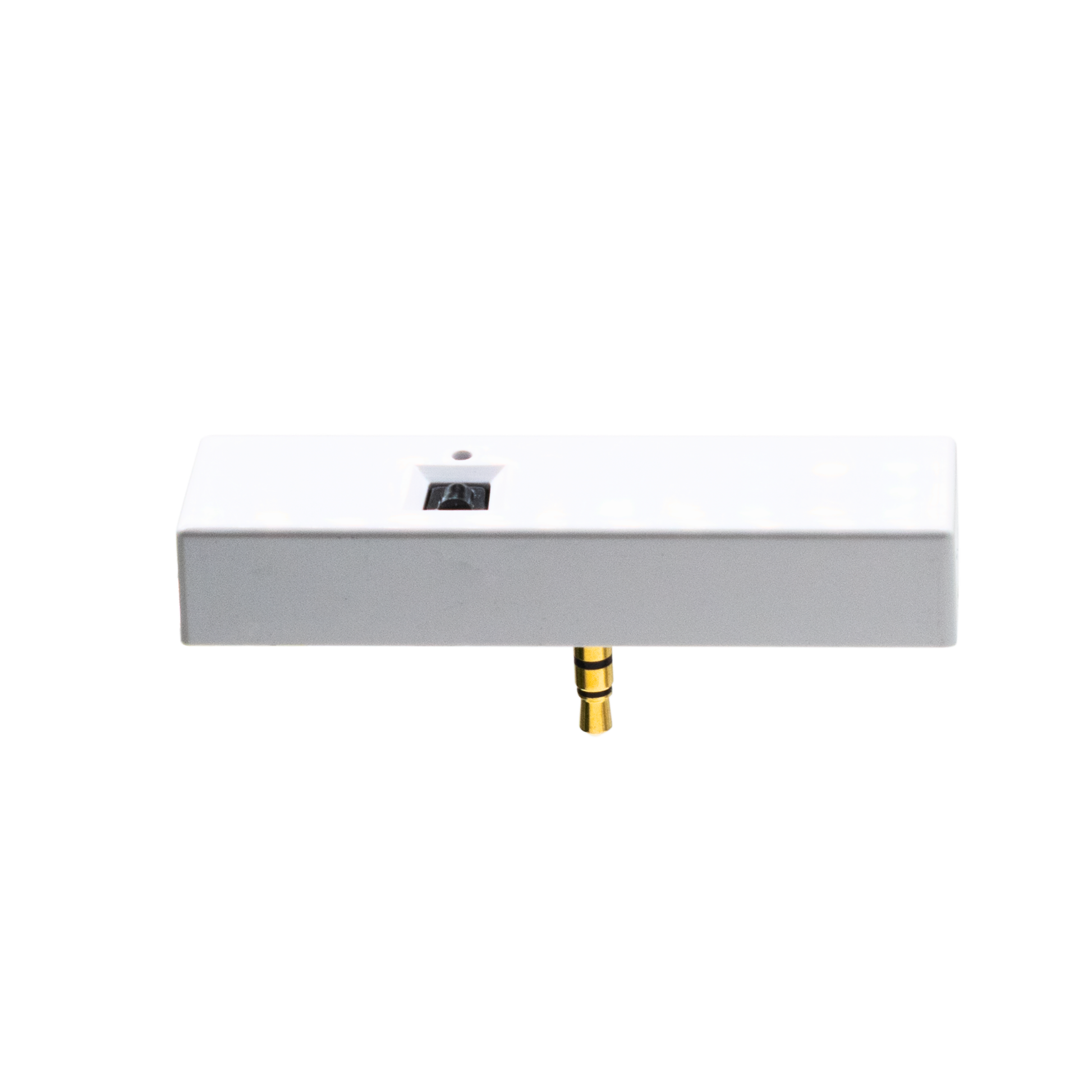

Order Code: A-3504 Model Number: HD08VR-M-1	Type: 3.5mm 12VDC AUX MVS Sensor Features: Daylight Priority / Daylight Harvesting Detection Height: 12ft Max



The HD08VR series is a line of tiny microwave and PIR sensors designed for highbay lighting, indoor panels, and troffers.

Key Features:

• Performance: Features include 0-10V dimming, daylight harvesting, and NLC/DLC qualification.
• Sensor Options: Available in both microwave and PIR versions.
• Connectivity: Certain models support Bluetooth-Mesh via the HAISEN BLUE APP, while others utilize remote control (HD06R).
• Durability: The series carries an IP65 rating and comes with a 5-year warranty.

Technical Specifications:

• Power: Input voltage is 12VDC (10-15VDC range).
• Installation: Designed for a maximum mounting height of 4 meters (13.12 ft).
• Environment: Operating temperatures range from -25°C to +60°C.
• Wiring: Uses black/white (VCC), pink (GND), and purple (0-10V) wires.

Operational Functions:

• Daylight Harvesting: Automatically adjusts artificial light based on ambient brightness to maintain consistent levels.
• Dusk/Dawn Sensing: Can differentiate artificial from natural light and turn off the fixture when ambient brightness exceeds a preset threshold.
• Motion Detection: The sensor triggers the light upon detecting motion, maintains it for a hold time, and dims to a standby level after the hold time expires.

Application Notes:

• Microwave: Ensure the sensor is away from vibration sources, AC/DC signal interference, and other wireless devices to avoid unwanted triggers.
• PIR: Performance is weakened by high ambient temperatures (above 40°C) and requires an unobstructed view for the Fresnel lens.
• Safety: Installation must be performed by a qualified electrician with power turned off.
