HD06R Remote Control
HD06R Remote Control
Installation Instructions
Installation Instructions
| Product Identification | Technical Specifications & Functionality |
|---|---|
|
Model Number: HD06R Product Type: Remote Control for Sensors Interface: LCD Screen (Press any button to wake screen) |
|
Device Overview
- Power: Powered by 2 AAA batteries (2.2-3V).
- Operation: Uses infrared signal transmission with a maximum distance of 15M/49ft. Strong natural light may affect performance or reduce effective control distance.
- Interface: Features an LCD screen. If the screen is dark, press any button to wake it.

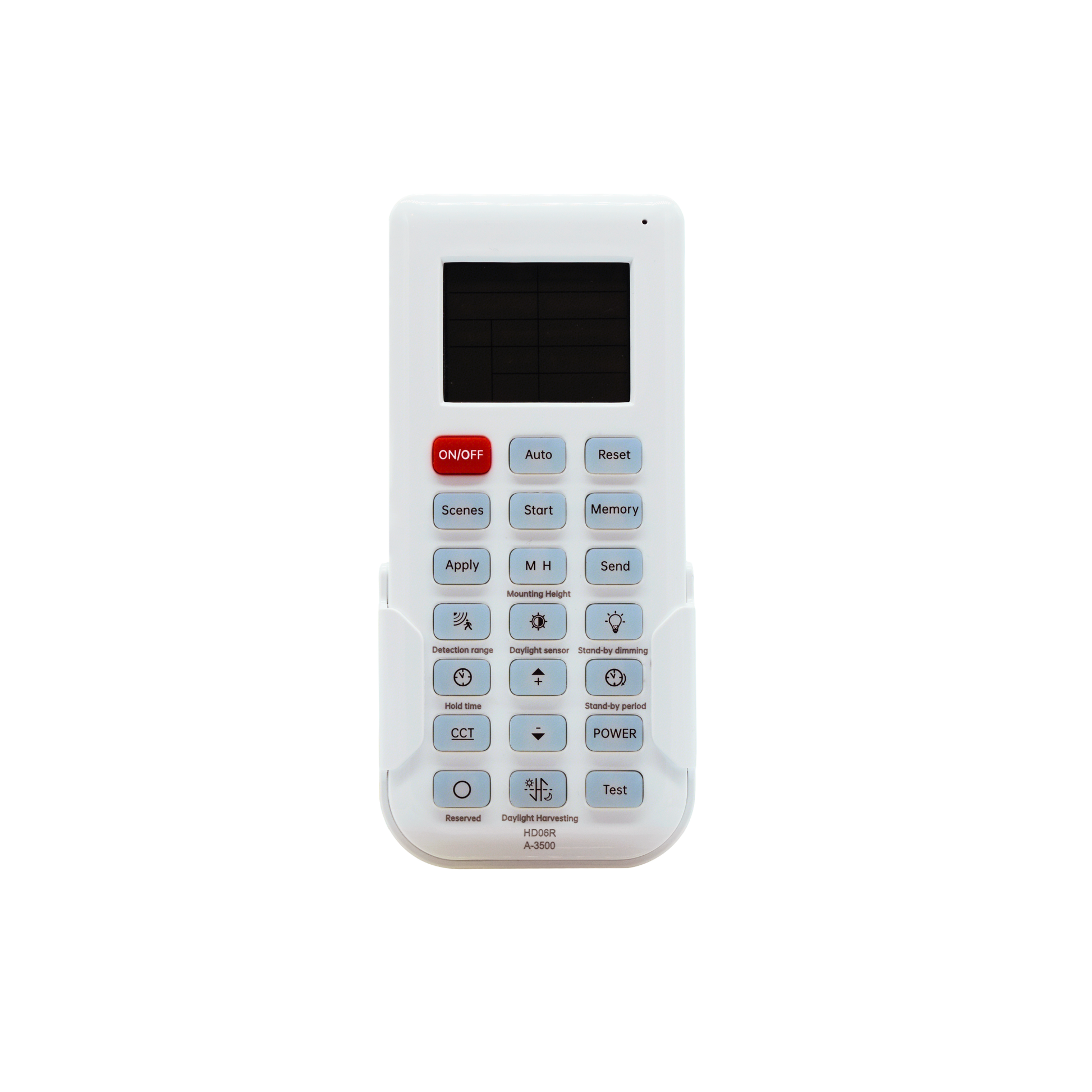

Key Functions & Operation
-
Sensor Modes:
- Auto: Enters sensor mode using the last parameters.
- Reset: Resets to factory settings (motion detection enabled, 5s holdtime).
- ON/OFF: Toggles light status and exits/enters sensor mode.
- Programming: Users can adjust parameters like detection area, holdtime, daylight threshold, standby dim level, and standby period.
- Scenes: The device supports 4 scene options (SC-01 to SC-04) where custom parameters can be saved and applied.
- Test Mode: Quickly performs a 2-second light-on test upon motion detection.
- Daylight Harvesting: Can be activated by setting specific holdtime, daylight threshold, and standby period parameters, then pressing the "DH" button.
- High-End Trim: Adjusted via the "Power" button while in sensor mode to set power levels (60%-100% in sensor mode).
Multi-Sensor Setup
- Method 1: Program one sensor fully (Start/Memory/Apply), then use "Apply" at subsequent sensors to send the stored settings.
- Method 2: Use the Scene function to send preset parameters to multiple sensors by pressing "Send".
For technical support, contact NC LTG at 704-910-2876 or info@ncltg.com.
