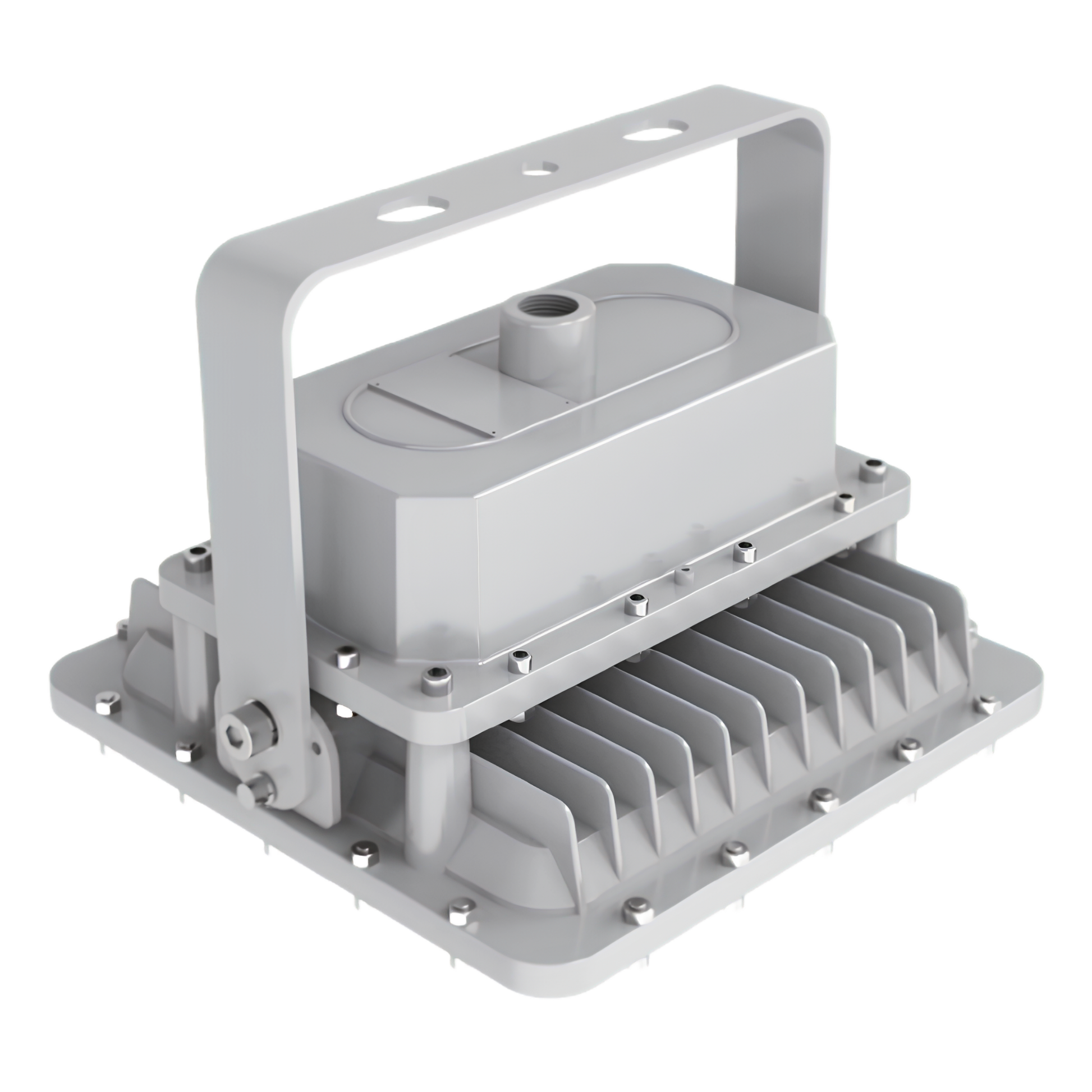

HazardGuard Series Hazardous Location LED Luminaire

About HazardGuard Series Hazardous Location LED Luminaire

The HazardGuard Series Hazardous Location LED Luminaire is designed for use in demanding industrial environments, including Class I, Division 1 hazardous locations.Product Overview and Specifications

• Construction: The fixture features a rugged, copper-free die-cast aluminum housing, tempered glass lens, and stainless steel hardware.
• Environmental Protection: It is rated IP66 and IK08, making it resistant to moisture, dust, corrosion, and vibration.
• Operating Temperature: The luminaire operates in temperatures ranging from -40°C to 55°C (-40°F to 131°F).
• Electrical/Optical Performance:
  • The unit offers selectable output, with a 60W model providing up to 140 LPW.
  • It operates on 100-277V input voltage with a 5000K CCT and >0.95 power factor.
  • Optional 0-10V dimming is available.
• Certifications: The product holds UL HazLoc and ABS certifications, and is cULus, CE, and DLC listed.

Installation and Versatility

• Mounting Options: The luminaire supports versatile mounting configurations, including ceiling, wall, and various pole-mounting methods (vertical, non-vertical, and trunnion).
• Applications: It is suitable for oil and gas facilities, refineries, chemical plants, offshore platforms, power plants, wastewater treatment, marine environments, and manufacturing facilities.

Ordering and Packaging

• Ordering: The series offers customizable specifications, including wattage (20/40/60/80W), dimming, CCT, and beam angles (40°, 60°, 90°, or 120°).
• Weight/Dimensions: For the 60W model, the net weight is 7kg (15.43lb) and the gross weight is 9.5kg (20.94lb), with packaging dimensions of 400x385x335mm.
