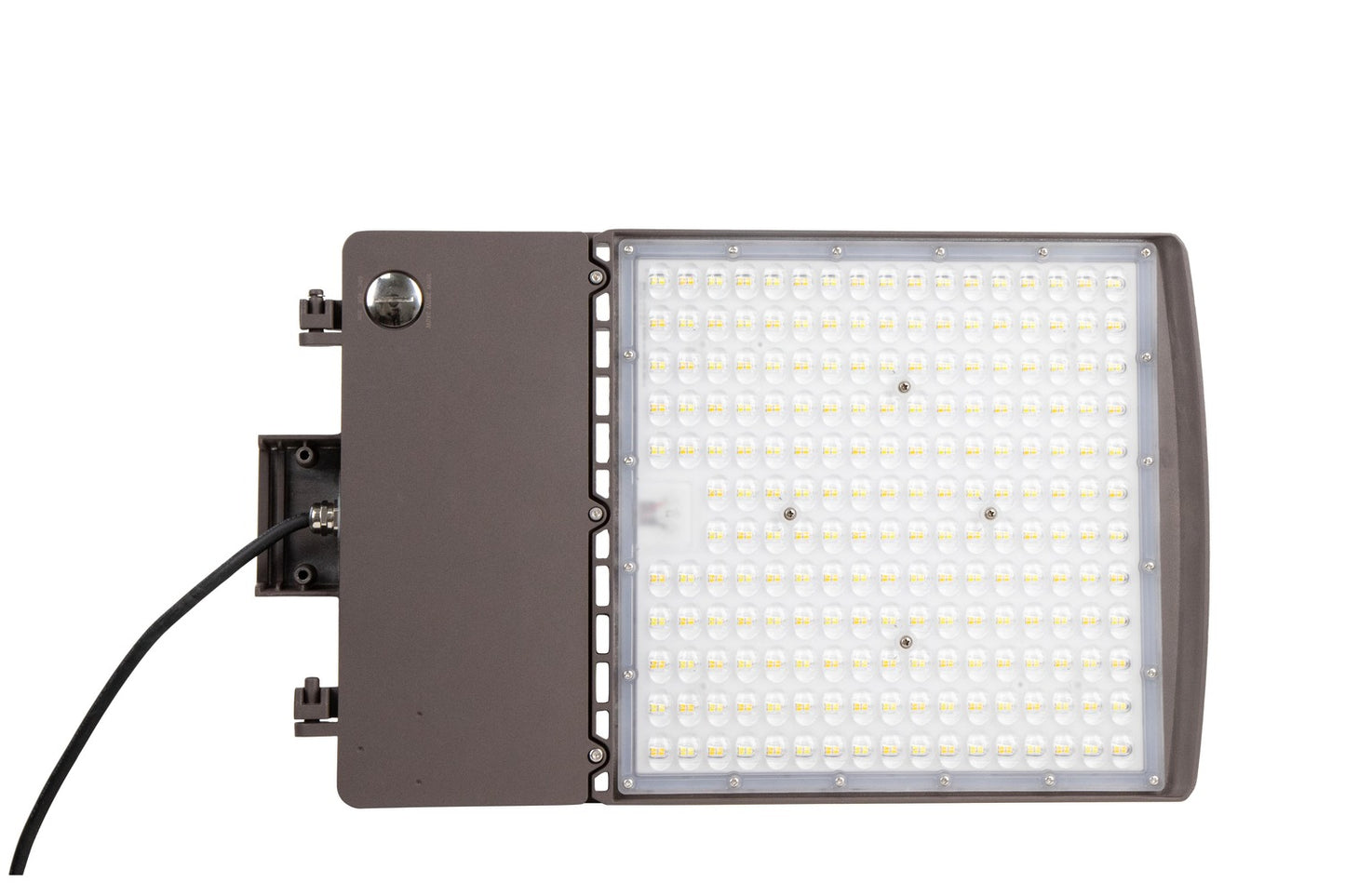

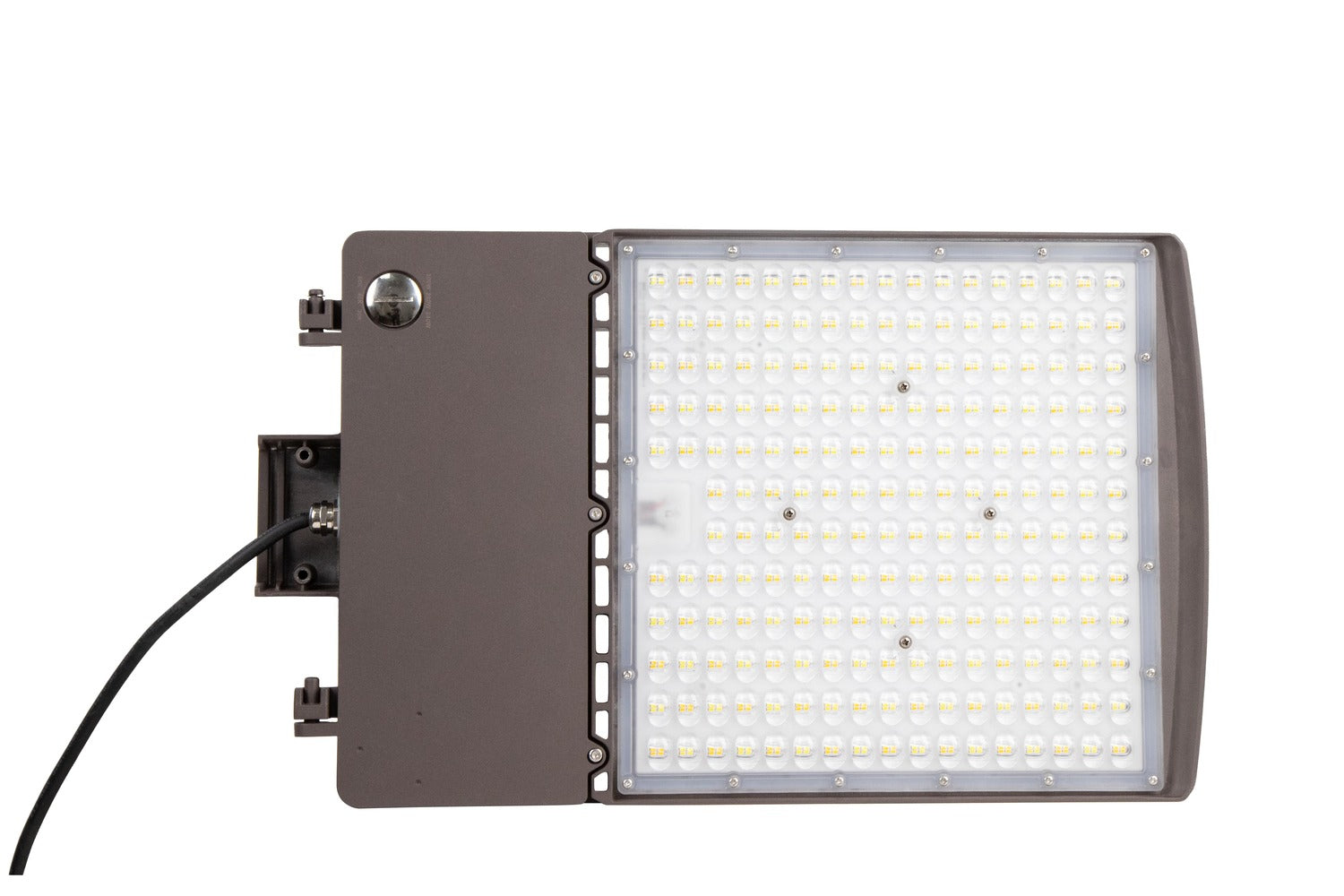

• Bronze GridMax Series LED Area Light side view showing the bottom lens and attached power cable

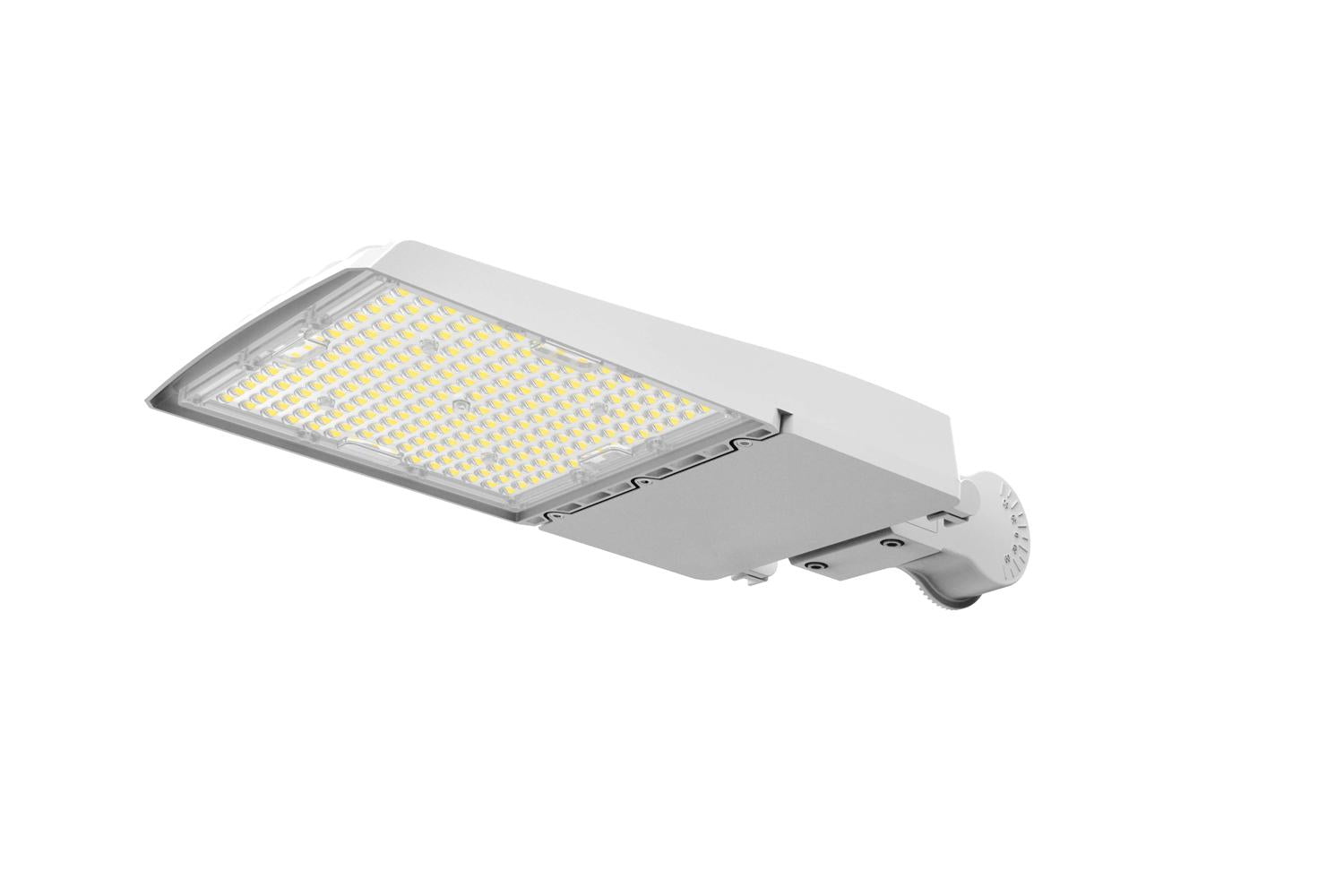

  • White GridMax Series LED Area Light with selectable wattages, high lumen output, and weather-resistant IP65 housing

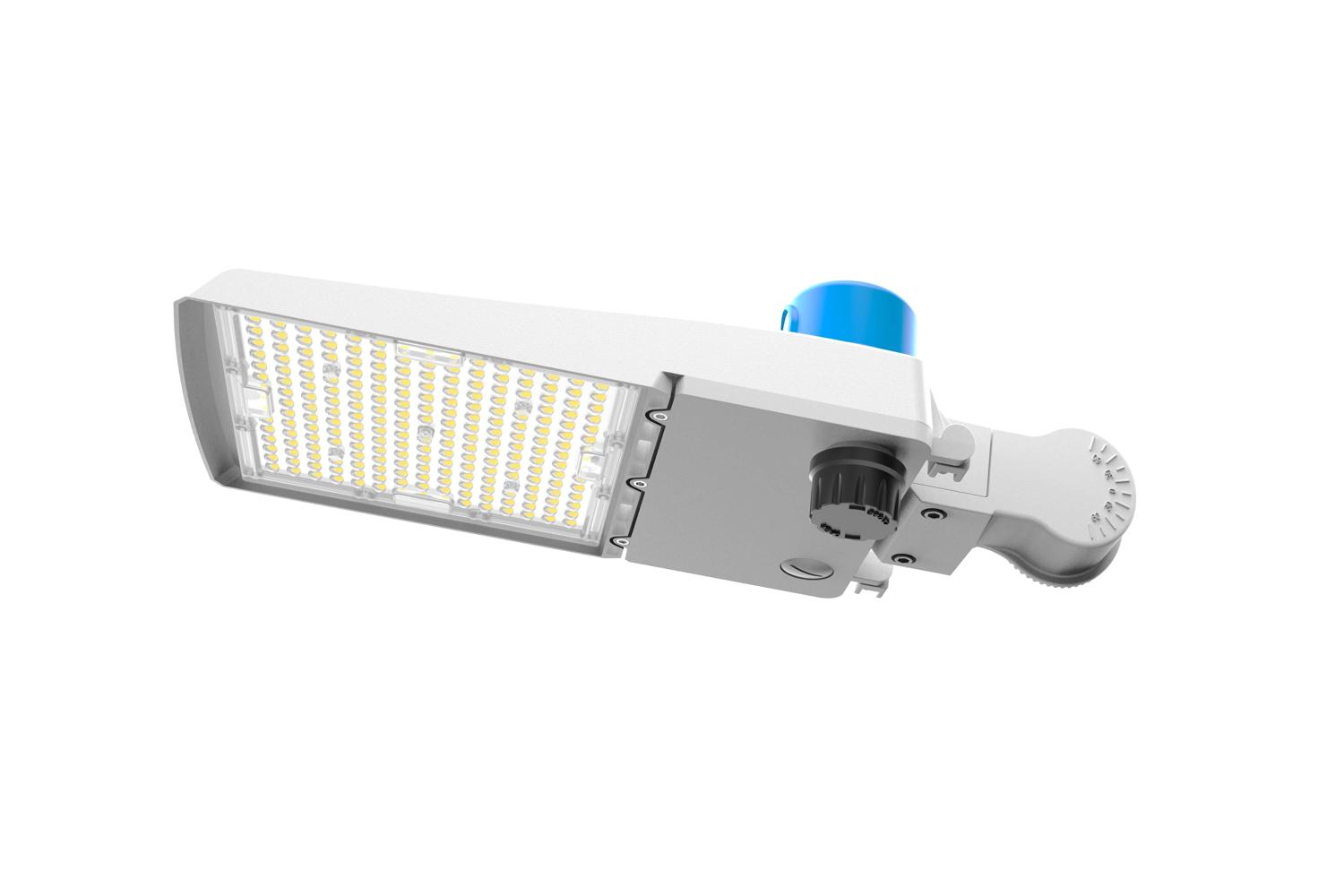

  • White GridMax Series LED Area Light with photocell base providing automatic dusk-to-dawn lighting control for outdoor applications

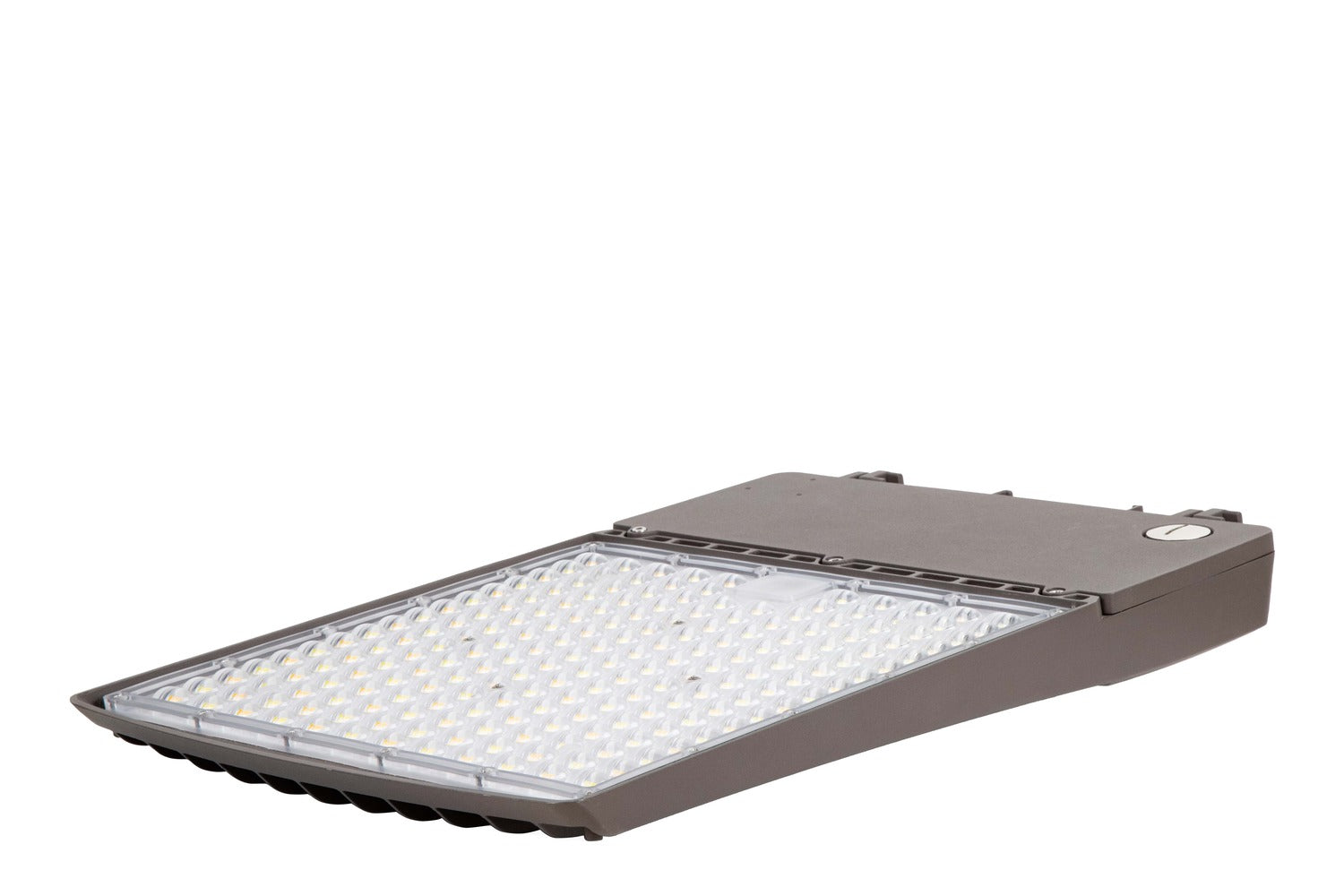

  • Bronze GridMax Series LED Area Light shown in an upside-down view highlighting its durable housing and design details

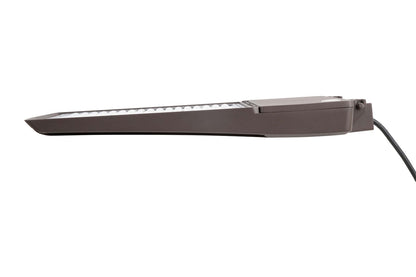

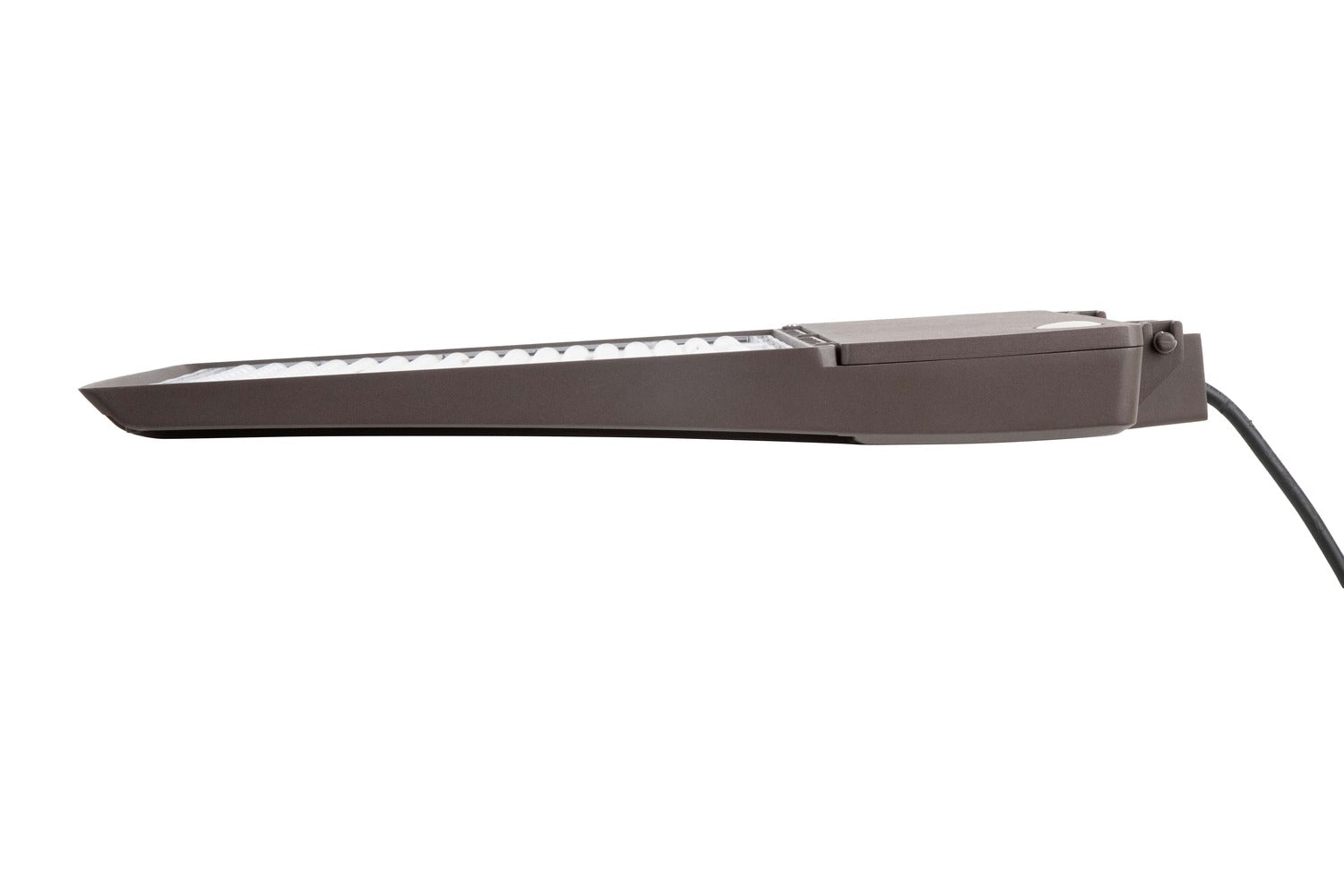

  • Bronze GridMax Series LED Area Light displayed from a left-side upside-down view with the power cable visible

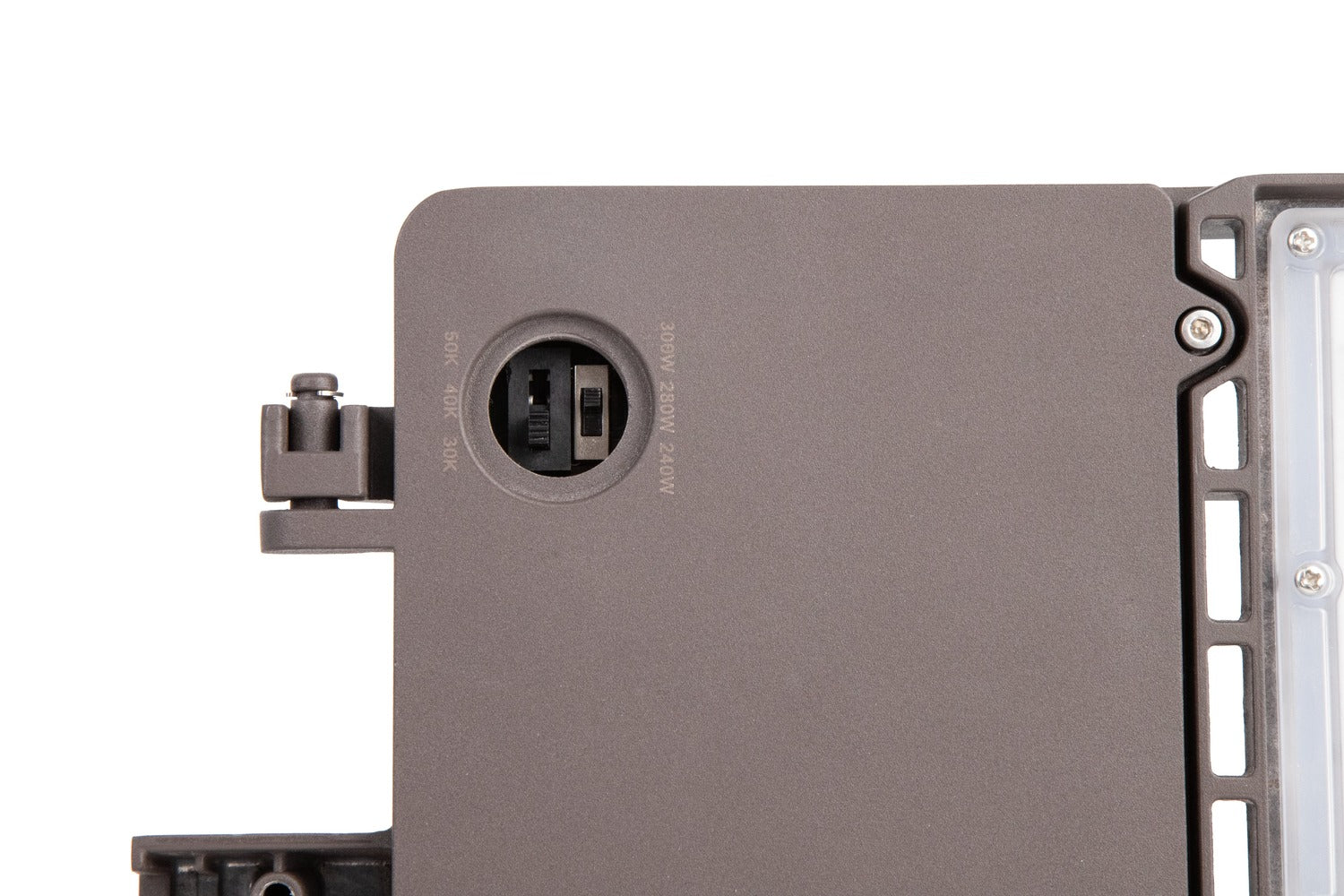

  • Close-up view of the bronze GridMax Series LED Area Light highlighting the wattage and CCT selectable DIP switches

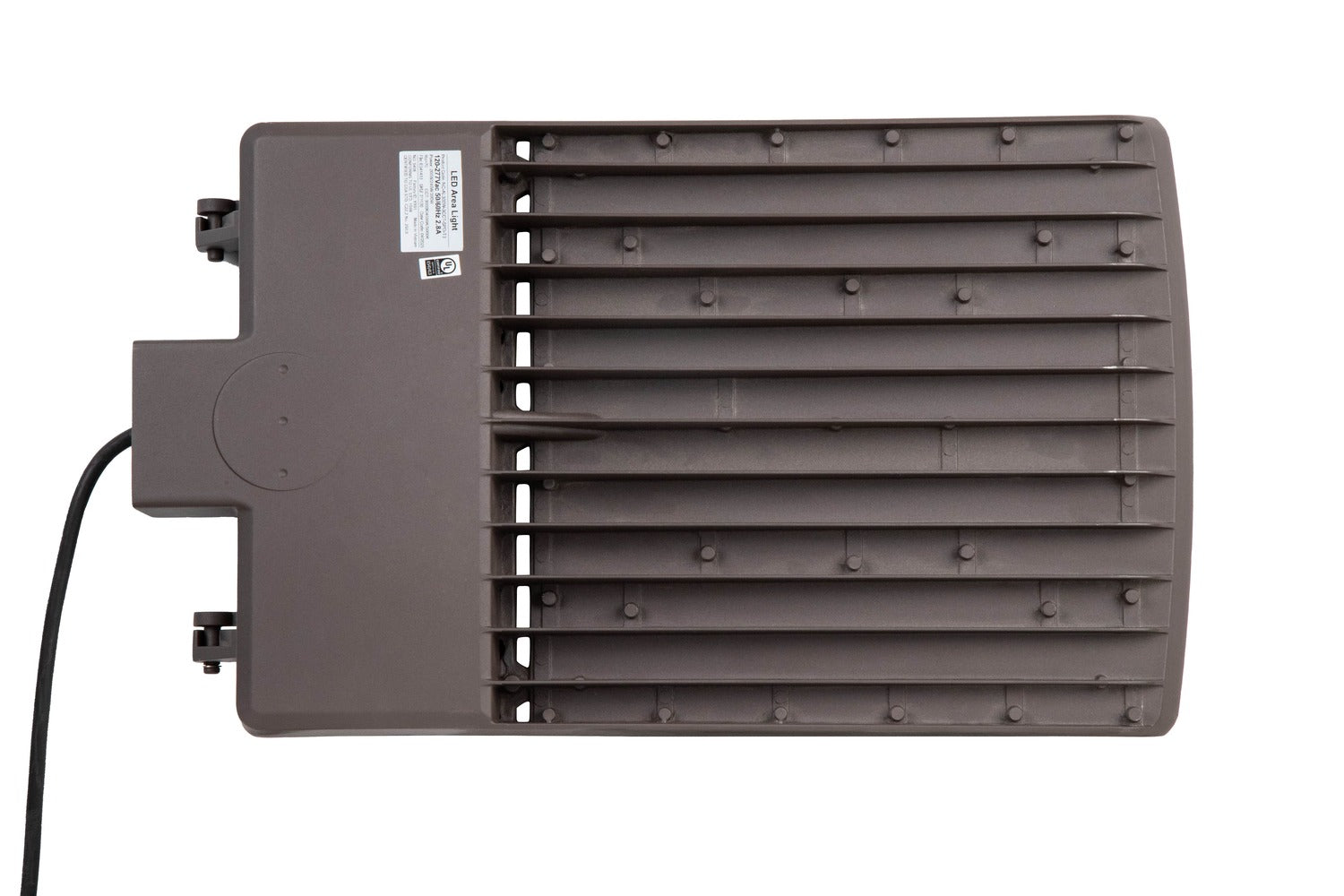

  • Bronze GridMax Series LED Area Light back view highlighting heat-dissipating fins and connected power cable

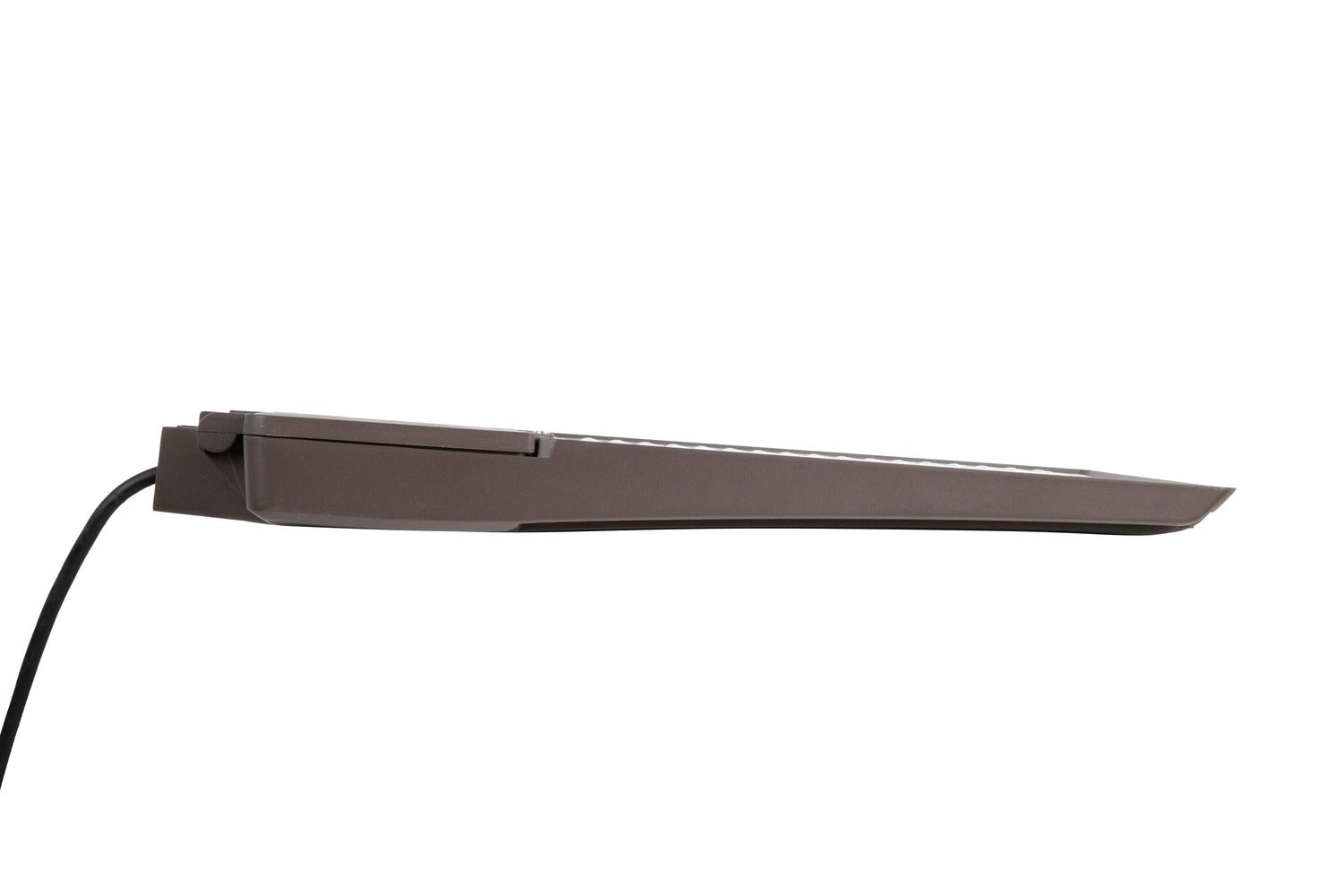

  • Bronze GridMax Series LED Area Light right-side upside-down view showing the attached power cable
1 8

NCLTG

GridMax Series LED Area Lights – Outdoor Lighting Solutions for Commercial Properties, Walkways & Parking Lots

GridMax Series LED Area Lights – Outdoor Lighting Solutions for Commercial Properties, Walkways & Parking Lots

NCLTG WallGuard Series LED Wall Pack Light feature badges – 3-CCT selectable, 4-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specification Sheet

Photometrics (IES Files)

Installation Instructions

Warranty

Request Price View full details

Overview

GridMax Series LED Area Lights deliver bright, uniform site lighting for parking lots, campuses, roadways, and large commercial perimeters. The low-profile, die-cast design mounts cleanly on poles or arms and throws even illumination that improves wayfinding, visibility, and safety after dark.

Right-size output to the location with selectable wattages of 100W (≈17,000 lm), 120W (≈20,400 lm), 150W (≈25,500 lm), 200W (≈34,000 lm), 240W (≈40,800 lm), and 300W (≈51,000 lm). Tune appearance with CCT Select at 3000K, 4000K, or 5000K, and add intelligent control with factory configurations including motion sensor (MSPD) and photocell (PSPD). Fixtures support 0–10V dimming and operate across 120–277V or 277–480V (model dependent) to fit new installs and retrofit projects alike.

Built for long outdoor service, GridMax pairs a rugged die-cast aluminum housing with a durable polycarbonate lens and carries an IP65 rating for wet locations. For compliance and rebates, units are UL Listed and DLC Premium certified, with an L70 >50,000 hours lifetime and a 5-year warranty. The result is a dependable, energy-efficient area light family that reduces maintenance while keeping large sites bright, consistent, and code friendly.

Infographic describing the GridMax Series LED Area Lights by NCLTG: outdoor fixtures engineered for commercial and industrial applications; deliver powerful, energy-efficient illumination across parking lots, streetways, and expansive areas; available in multiple sizes and configurations for tailored solutions; provide uniform light distribution with reduced glare to enhance safety and visibility; feature rugged construction for long-lasting durability in demanding environments.

About the GridMax Series LED Area Lights – High-Performance Outdoor Illumination for Safety & Efficiency

  • Powerful, energy-efficient LED output designed for large outdoor areas
  • Multiple sizes and configurations to suit parking lots, walkways, and perimeter lighting
  • Uniform light distribution reduces glare and enhances visibility
  • Engineered for durability to withstand demanding outdoor environments
  • Ideal for security, safety, and efficiency across commercial and industrial properties
  • Trusted NCLTG quality ensures reliable, long-lasting performance
Infographic explaining why to choose the GridMax Series LED Area Lights from NCLTG: purpose-built for the rigorous demands of commercial and industrial outdoor environments; multiple wattage and color temperature options provide flexibility for diverse lighting requirements; exceptional energy efficiency reduces costs while maintaining superior brightness; uniform illumination improves visibility and strengthens site security.

Why Choose GridMax LED Area Lights – Flexible Performance, Lasting Durability & Energy Savings

  • Engineered for commercial and industrial demands with reliable outdoor performance
  • Multiple wattage and CCT options provide flexibility for diverse site needs
  • Exceptional energy efficiency lowers operating costs without sacrificing brightness
  • Uniform illumination enhances visibility and overall site security
  • Durable construction ensures long-term reliability in harsh environments
  • Trusted NCLTG quality for consistent performance across outdoor applications
Infographic highlighting the key features of the GridMax Series LED Area Lights by NCLTG: high lumen output reaching up to 30,000 lumens for expansive coverage; customizable wattage options from 100W to 300W and color temperatures between 3000K and 5700K; rugged, corrosion-resistant housings with high-quality lenses built for harsh outdoor environments; luminous efficacy up to 130 lm/W for maximum energy efficiency.

Key Features of GridMax LED Area Lights – Powerful Output, Energy Savings & Outdoor Durability

  • High lumen output up to 30,000 lumens delivers bright, uniform coverage for expansive outdoor areas
  • Customizable wattage (100W–300W) and CCT (3000K–5700K) to suit diverse applications
  • Durable, weather-resistant construction with corrosion-resistant housings and quality lenses
  • High efficacy lighting up to 130 lm/W maximizes energy savings while maintaining visibility
  • DLC Premium certified for energy efficiency, rebates, and compliance with codes
  • 0–10V dimming compatibility enables adjustable light levels and optimized energy usage
Infographic illustrating the applications of the GridMax Series LED Area Lights by NCLTG: engineered for consistent, high-output illumination across large outdoor environments; enhance safety in parking lots and garages with bright, reliable light for vehicles and pedestrians; improve roadway visibility with efficient street and sidewalk lighting that minimizes glare; strengthen site protection with uniform security perimeter coverage.

Applications for GridMax LED Area Lights – Safe, Reliable Illumination for Outdoor Commercial & Industrial Spaces

  • Parking lots and garages with bright, reliable lighting for vehicles and pedestrian safety
  • Street and roadway lighting to improve visibility while minimizing glare
  • Security perimeter lighting for uniform coverage along fences, access points, and site boundaries
  • Public spaces such as parks, plazas, and recreation areas requiring dependable nighttime lighting
  • Industrial and commercial sites including warehouses, construction zones, and outdoor storage areas

GridMax LED Area Light Layout Calculator (100–300W)

Plan parking-lot lighting with GridMax by entering lot dimensions, pole height (MH), target foot-candles, and a pole layout (single, twin, 3-way, 4-way). Then select fixture wattage/output. The tool returns a site-specific starting plan with recommended pole count, fixtures-per-pole, and on-center spacing based on MH-driven spacing ratios.

GridMax LED Area Lights — Calculator

Estimate pole fixture counts for parking lots, drive aisles, and site areas using the lumen method and spacing criteria (MH-based).

Visual Layout Preview

Schematic preview; verify with IES files, pole setback, BUG ratings, and local code.

GridMax Series LED Area Light FAQs

What Are GridMax Series LED Area Lights?

GridMax Series LED Area Lights are outdoor lighting fixtures designed to deliver bright, consistent illumination for large spaces such as parking lots, streets, security perimeters, and public areas. Known for their energy efficiency and long-lasting performance, these lights provide reliable visibility while reducing operational costs.

Where Can GridMax Series LED Area Lights Be Used?

GridMax Series LED Area Lights are ideal for a wide range of outdoor locations that require strong, uniform lighting. Common applications include:

  • Parking lots and garages
  • Streetways and roadways
  • Industrial and commercial properties
  • Public parks and recreational spaces
  • Security and perimeter lighting

How Do I Choose the Right Wattage and Color Temperature for My Area Lights?

Selecting the correct settings for GridMax Series LED Area Lights depends on the size of the area and the lighting effect you want to achieve. Higher wattages are recommended for large spaces such as parking lots and roadways, while lower wattages work well for smaller, more focused areas. For color temperature, choose 4000K to 5000K for bright, clear illumination in workspaces and streets, or opt for 3000K to create a warmer ambiance in recreational and residential settings.

Are GridMax Series LED Area Lights Dimmable?

Yes, GridMax Series LED Area Lights are compatible with 0–10V dimming systems, giving you the ability to customize light levels and achieve additional energy savings based on occupancy and specific site requirements.

What Certifications Do GridMax Series LED Area Lights Have?

GridMax Series LED Area Lights are DLC Premium listed, ETL certified, and compliant with FCC and RoHS standards. These certifications ensure the fixtures meet rigorous industry requirements for safety, performance, and energy efficiency.

How Do I Install GridMax Series LED Area Lights?

GridMax Series LED Area Lights are designed for straightforward installation and include all necessary hardware. They can be mounted on poles or walls, and optional accessories such as mounting brackets are available to accommodate various installation methods and site requirements.

GridMax Series — LED Area Lighting for Parking Lots & Large Outdoor Spaces

Engineered for wide-area coverage, GridMax delivers high-output, DLC-listed illumination with selectable wattage/CCT and rugged construction for long-term reliability.

  • Wide, uniform distribution ideal for parking lots and site perimeters
  • Power Select & CCT Select for easy on-site customization
  • Durable, weather-resistant die-cast housing with IP65 rating
  • DLC Premium efficiency for rebate eligibility and reduced energy costs
