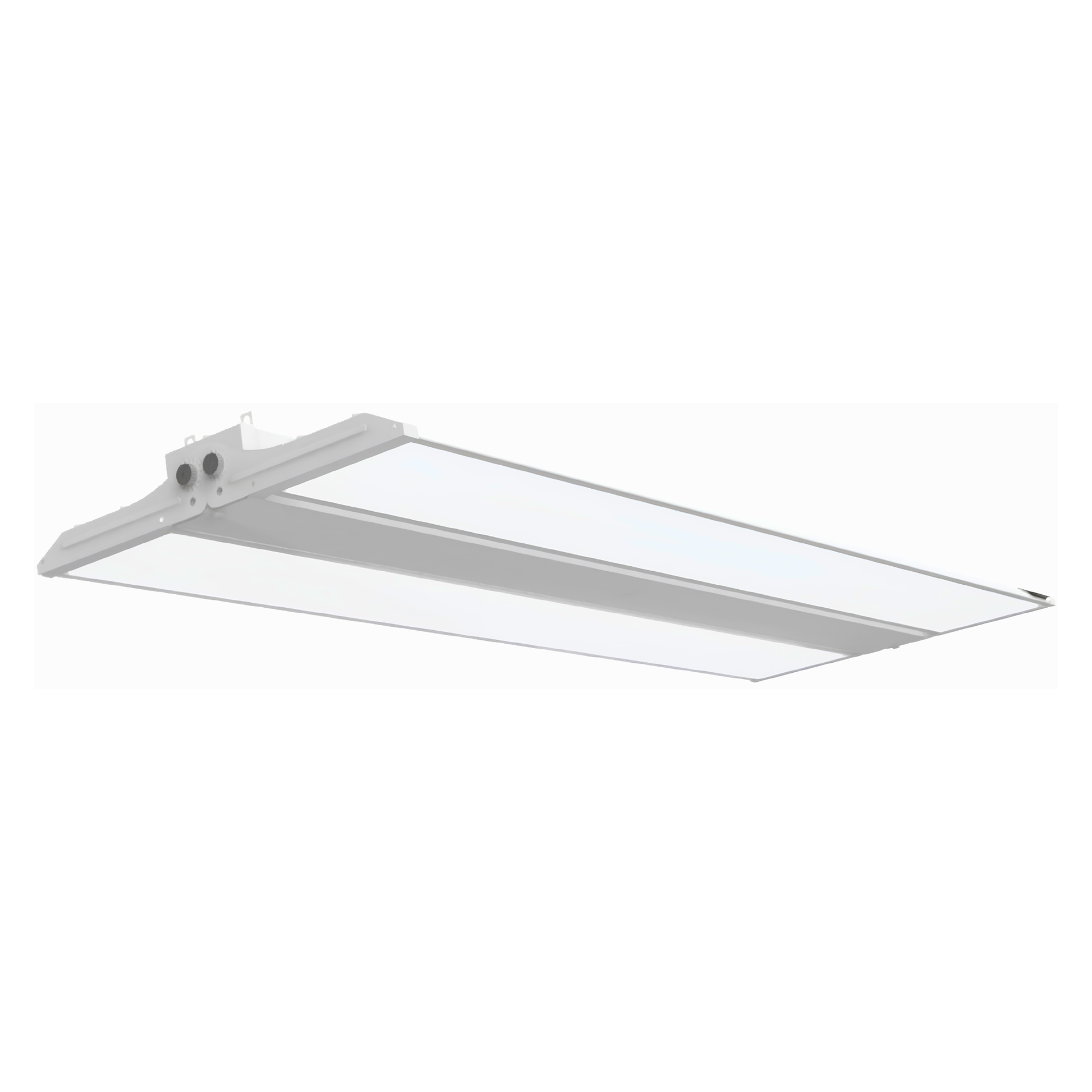

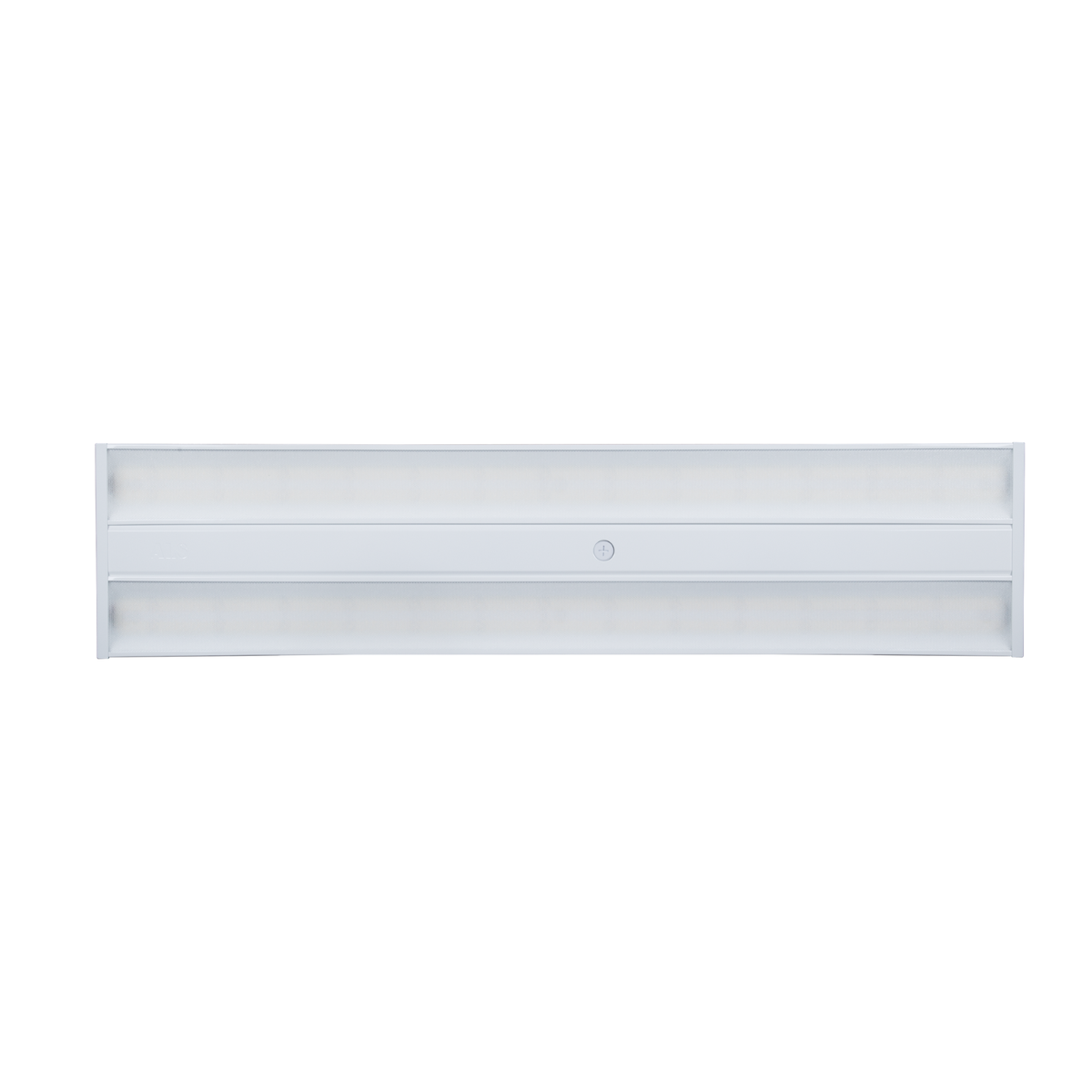

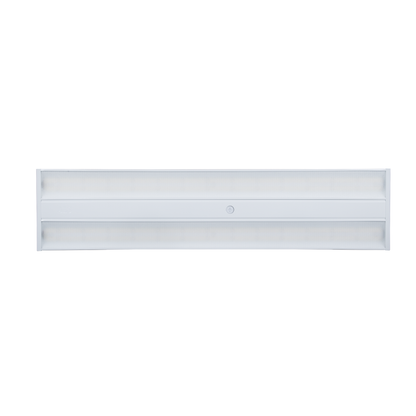

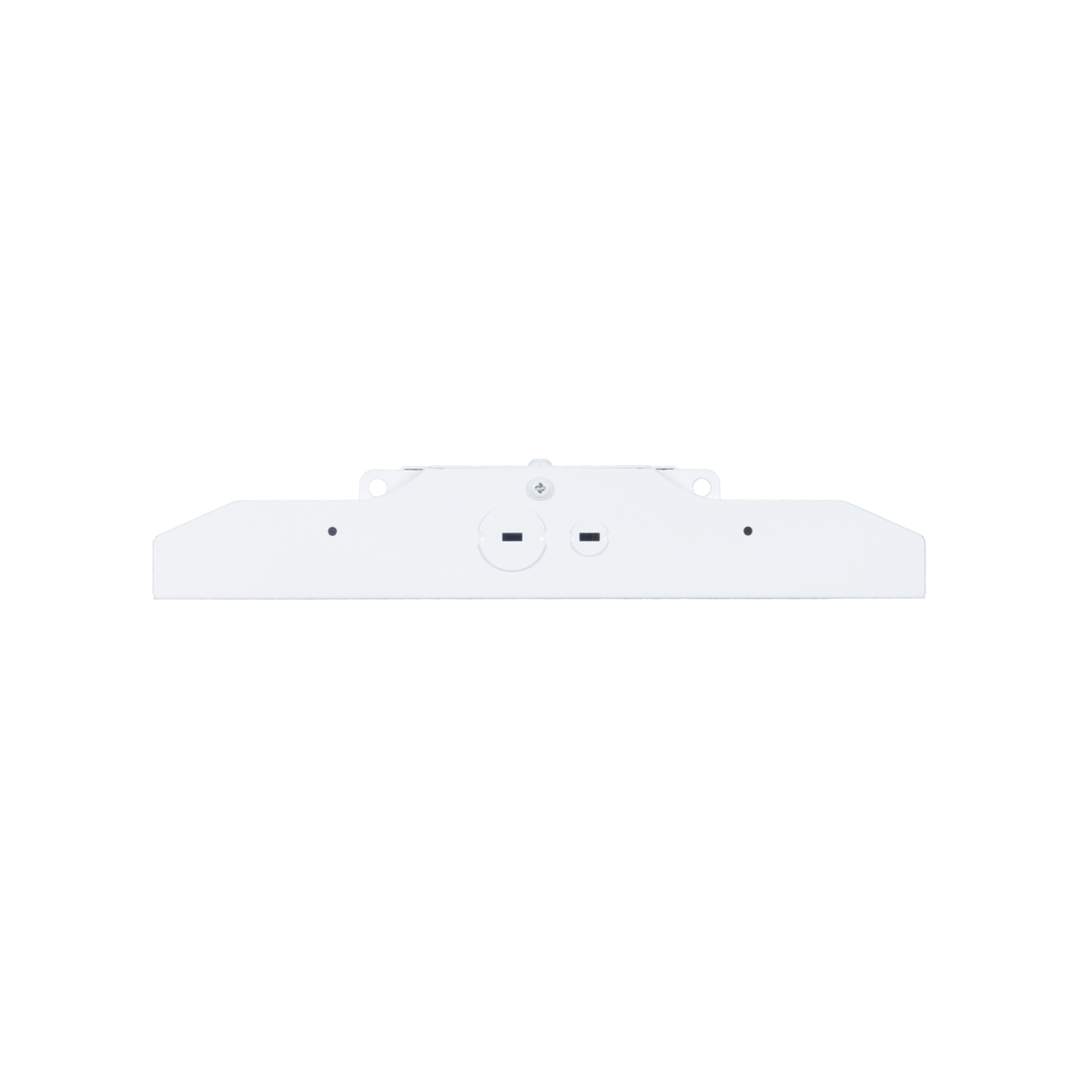

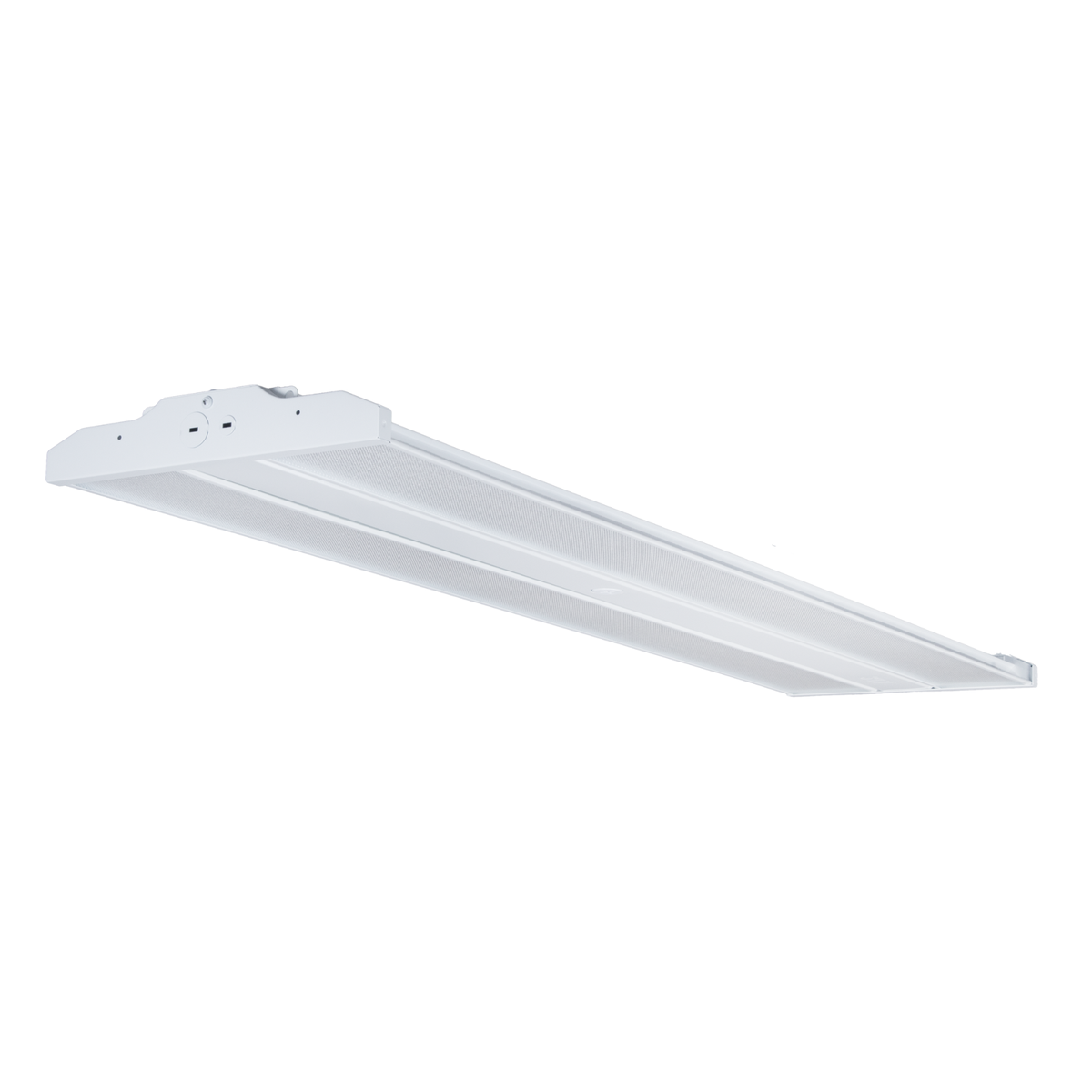

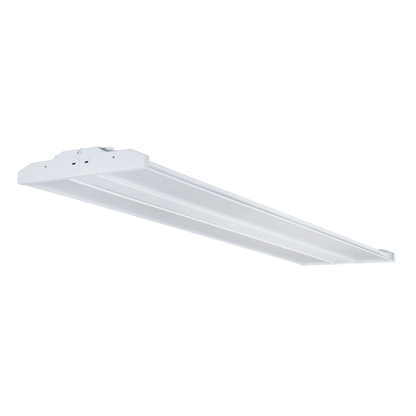

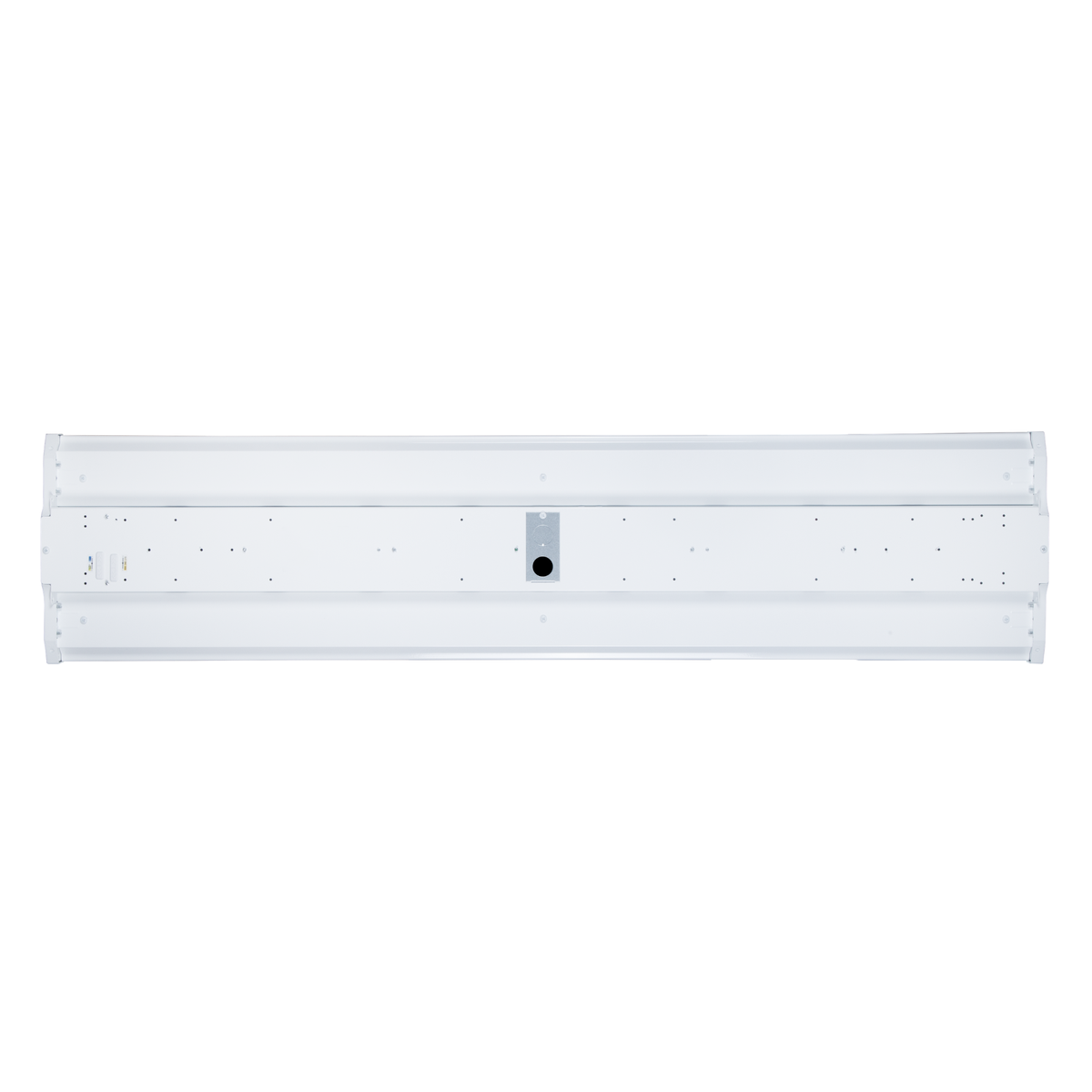

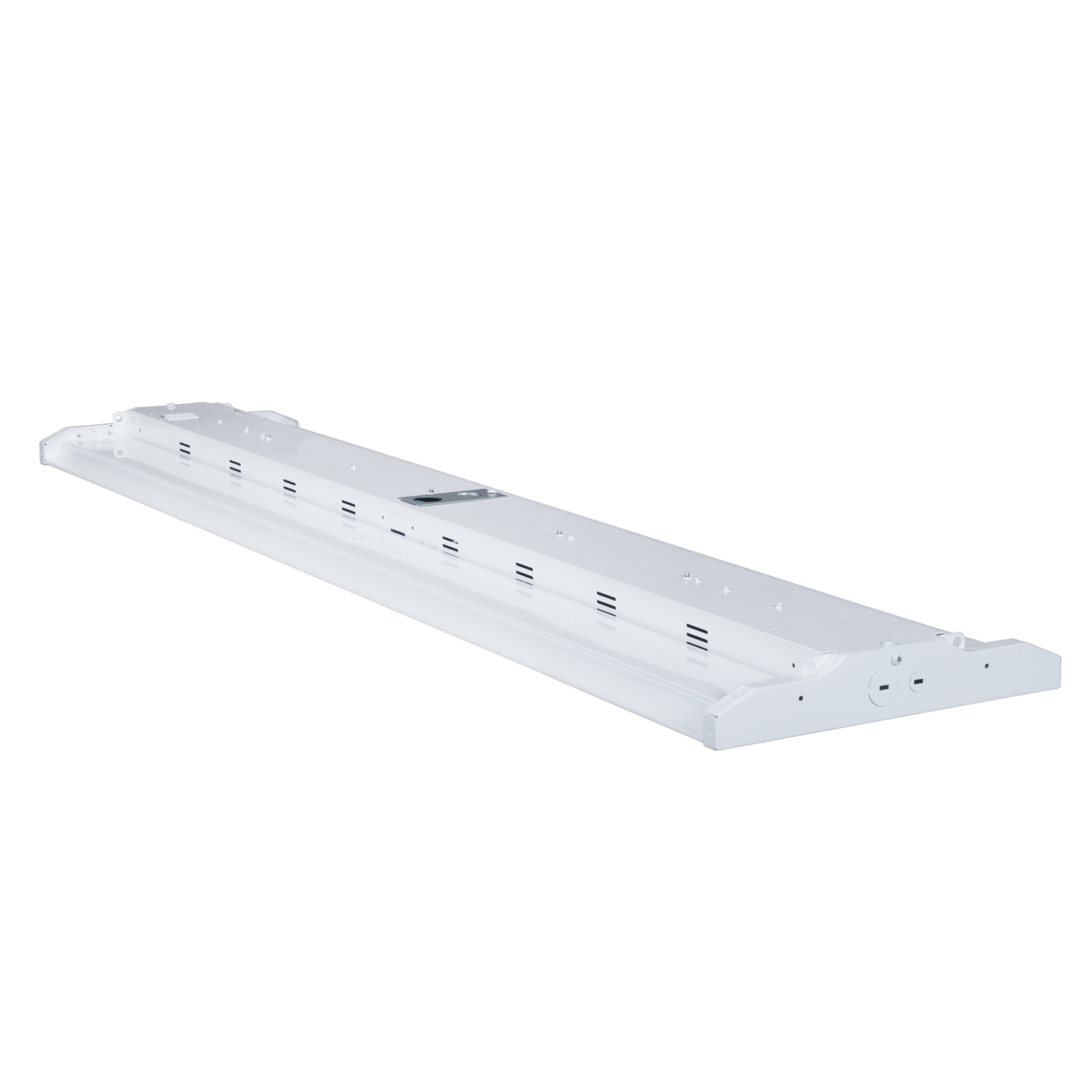

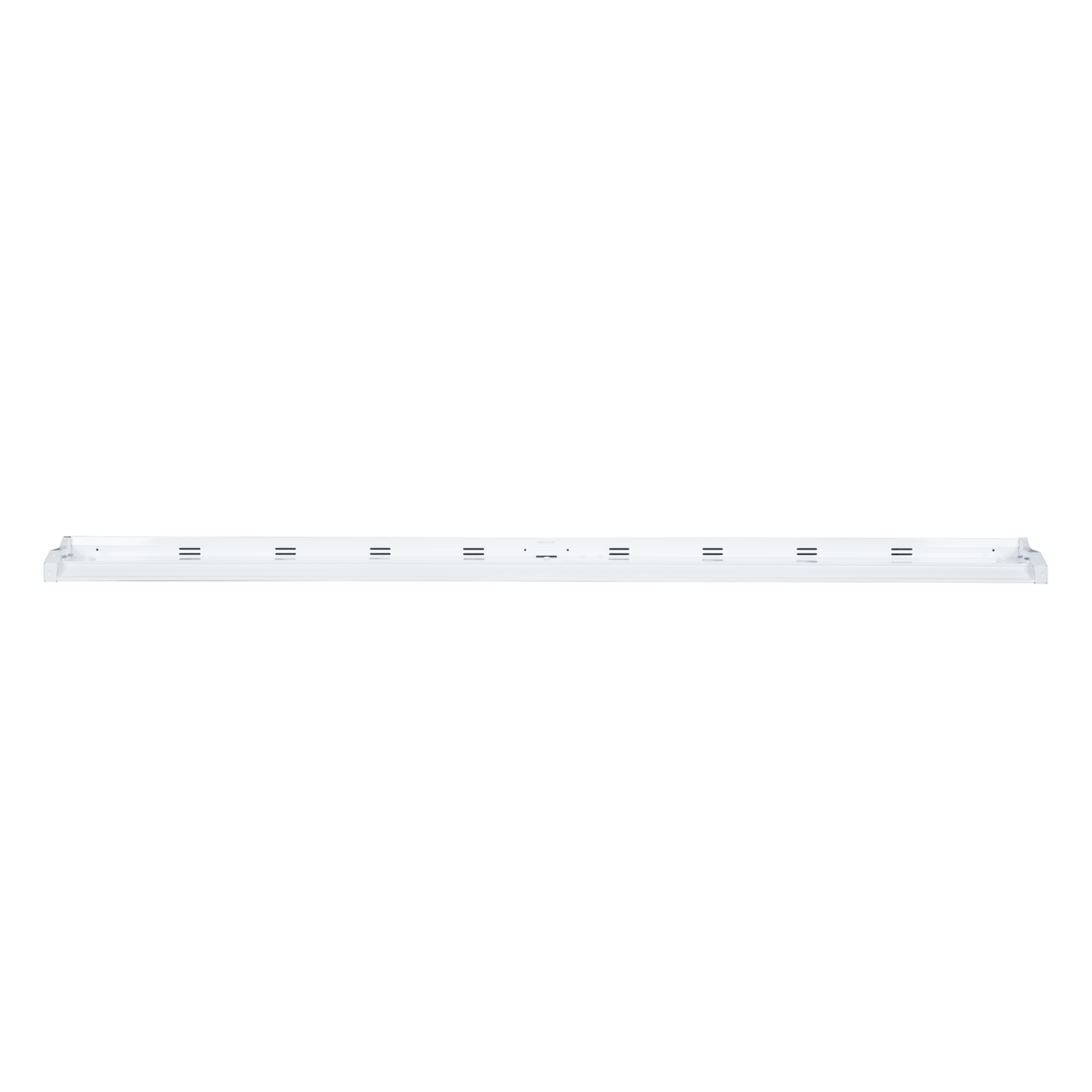

DuoLens Series LED Linear High Bay

About DuoLens Series LED Linear High Bay

The DuoLens Series LED Linear High Bay is a high-performance, industrial-grade luminaire designed for indoor commercial applications such as warehouses, manufacturing facilities, and gymnasiums.

Key Features

• Flexibility: The series features field-selectable wattage and selectable color temperatures (3500K/4000K/5000K) to reduce SKU complexity and provide installation flexibility.
• Adjustable Optics: Integrated beam spread adjustment (0°–90° for models up to 300W) allows for optimized light distribution based on mounting height.
  Construction: Units are built with heavy-duty aluminum housing, an anti-static powder coat finish, and UV-shield polycarbonate lenses.
• Controls and Performance:
  • Includes an AUX smart sensor receptacle for enhanced lighting control.
  • Features 0–10V dimming and is compatible with optional 90-minute emergency drivers.
  • Offers efficacy up to 150 lm/W.

  • Rated for damp locations with an operating range of -40°C to 45°C and an L70 lifetime exceeding 50,000 hours.

Technical Specifications

• Sizes: Available in 2FT, 3FT, and 4FT configurations.

• Output: Supports power levels ranging from 60W up to 500W depending on the model.

• Mounting: Supports chain (included), surface, and pendant mounting options.

Ordering and Support

The DuoLens series includes various accessories such as wire guards, aircraft hanging cables, and smart sensor remotes. For inquiries, NC Lighting can be contacted in Charlotte, NC, or Dallas, TX, via their website, phone (704-910-2876), or email (sales@ncltg.com).
