TenonPro Series Pole Brackets

TenonPro Series Pole Brackets

Specification Sheet

Warranty

Request Price View full details

About the TenonPro Series Pole Brackets

TenonPro Series Pole Brackets expand a single pole into multiple secure mounting points, giving you the flexibility to light wide outdoor areas without adding infrastructure. As part of our commercial outdoor lighting accessories, TenonPro supports real-world applications and is specified on projects nationwide. NCLTG engineers these brackets for strength, reliability, and clean, professional installs.

Product Details & Ordering Information

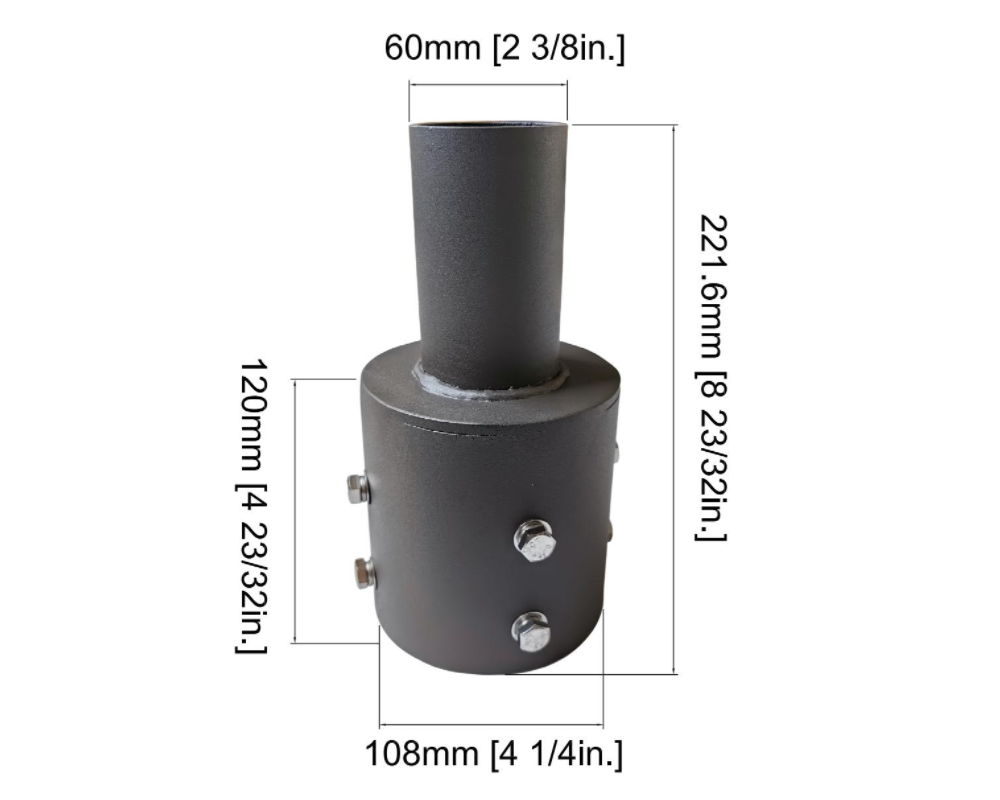

TenonPro 4” Round Pole Mount with 2-3/8” O.D. Tenon

Order Code: AA101201
Model Number: 4RP-VT-B
Dimensions: 4.25"D x 8.71875"H

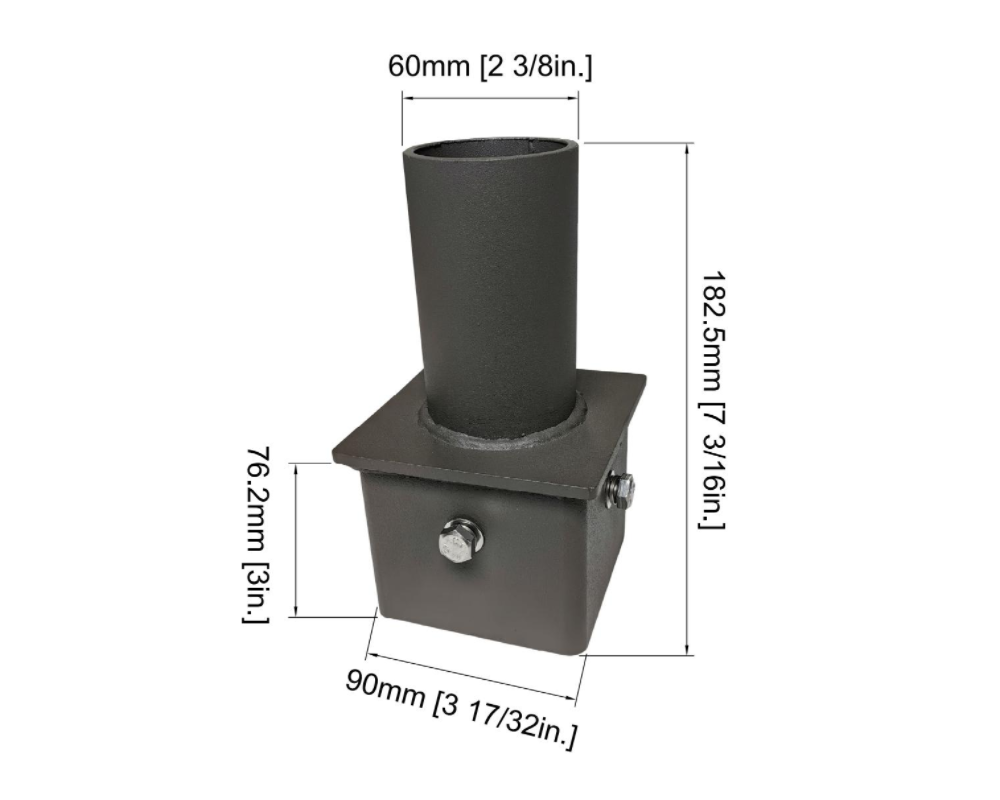

TenonPro 4” Square Pole Mount with 2-3/8” O.D. Tenon

Order Code: AA101401
Model Number: 4SP-VT-B
Dimensions: 3.53125"L x 3.53125"W x 7.1875"H

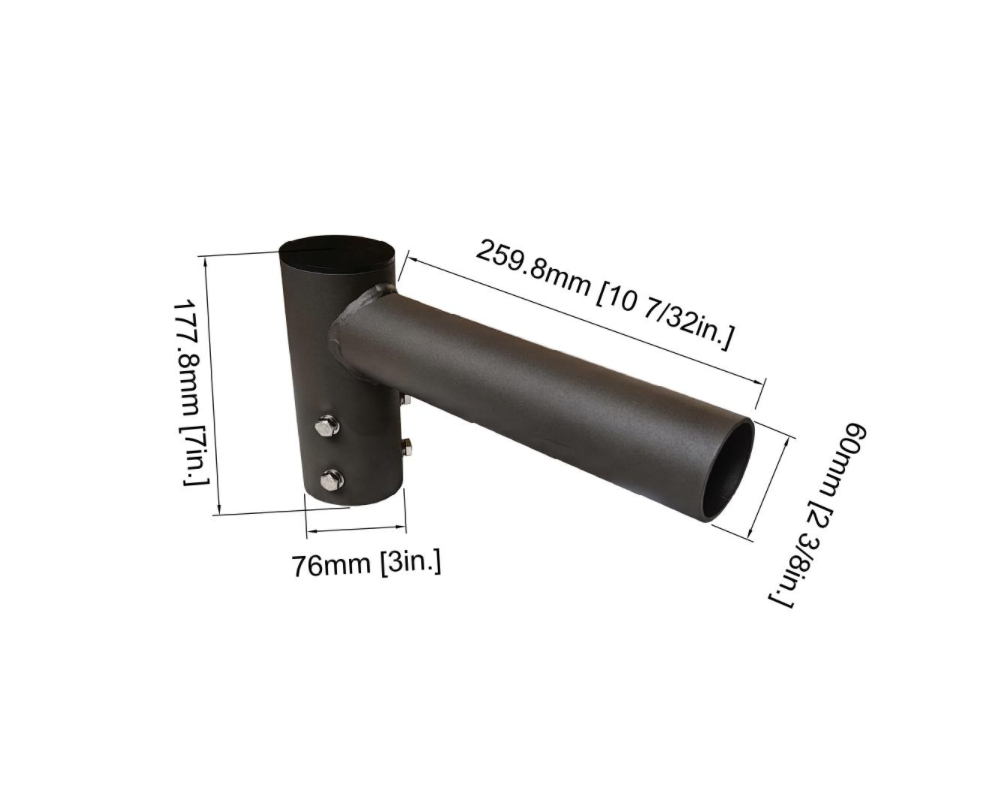

TenonPro Single 90° Horizontal Tenon Adaptor

Order Code: AA101202
Model Number: SS-HT-B
Dimensions: 10.21875"L x 3"W x 7"H

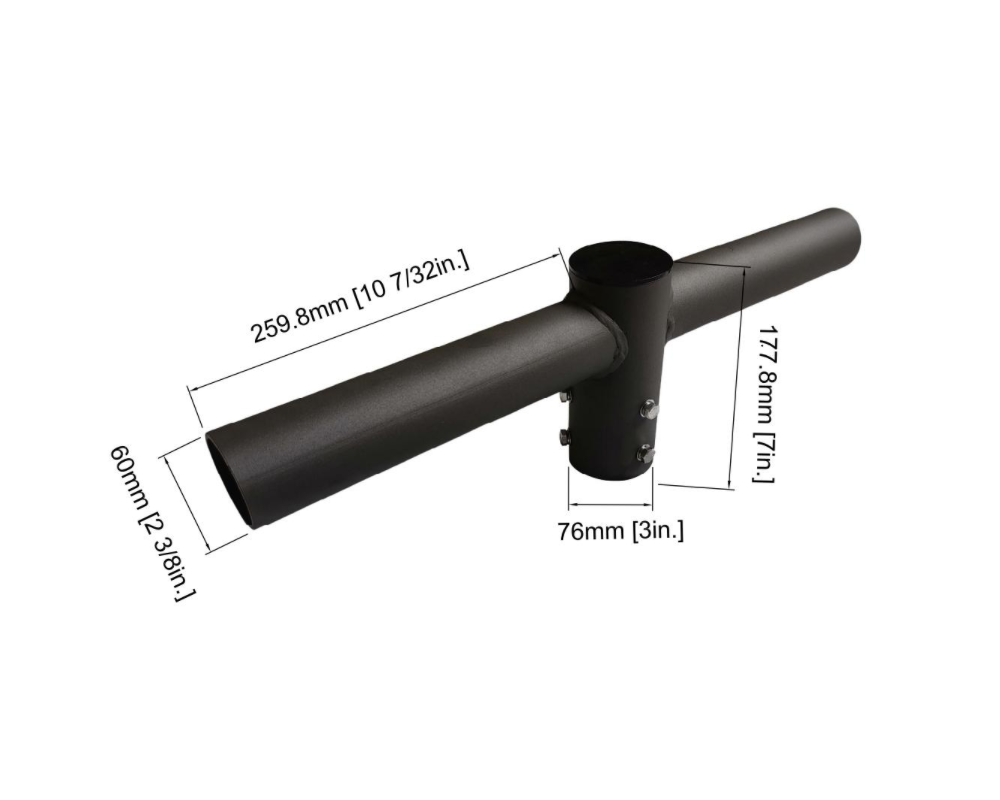

TenonPro Double 180° Horizontal Tenon Adaptor

Order Code: AA101203
Model Number: DS-HT-180B
Dimensions: 20.4375"L x 3"W x 7"H

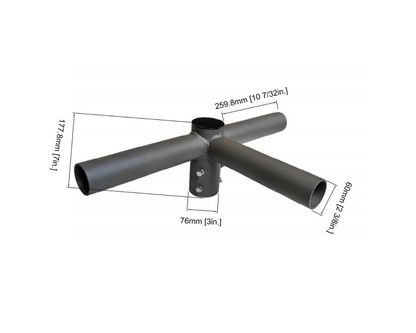

TenonPro Triple 90° Horizontal Tenon Adaptor

Order Code: AA101204
Model Number: TS-HT-90B
Dimensions: 20.4375"L x 3"W x 7"H

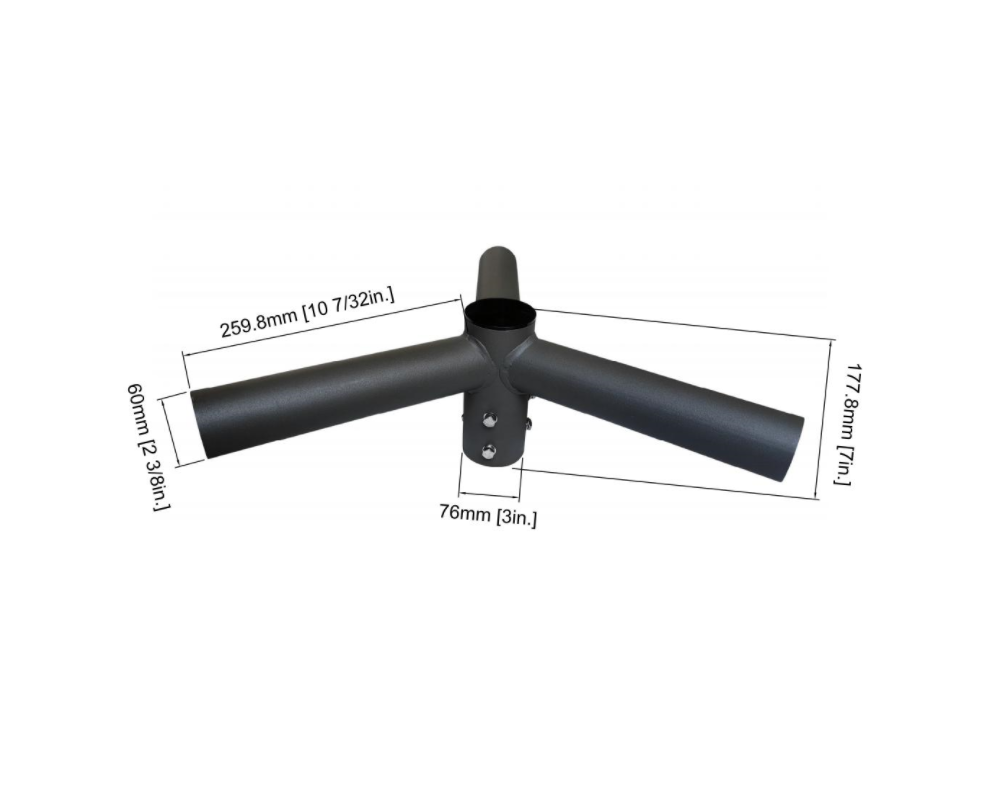

TenonPro Triple 120° Horizontal Tenon Adaptor

Order Code: AA101205
Model Number: TS-HT-120B
Dimensions: 20.4375"L x 3"W x 7"H
