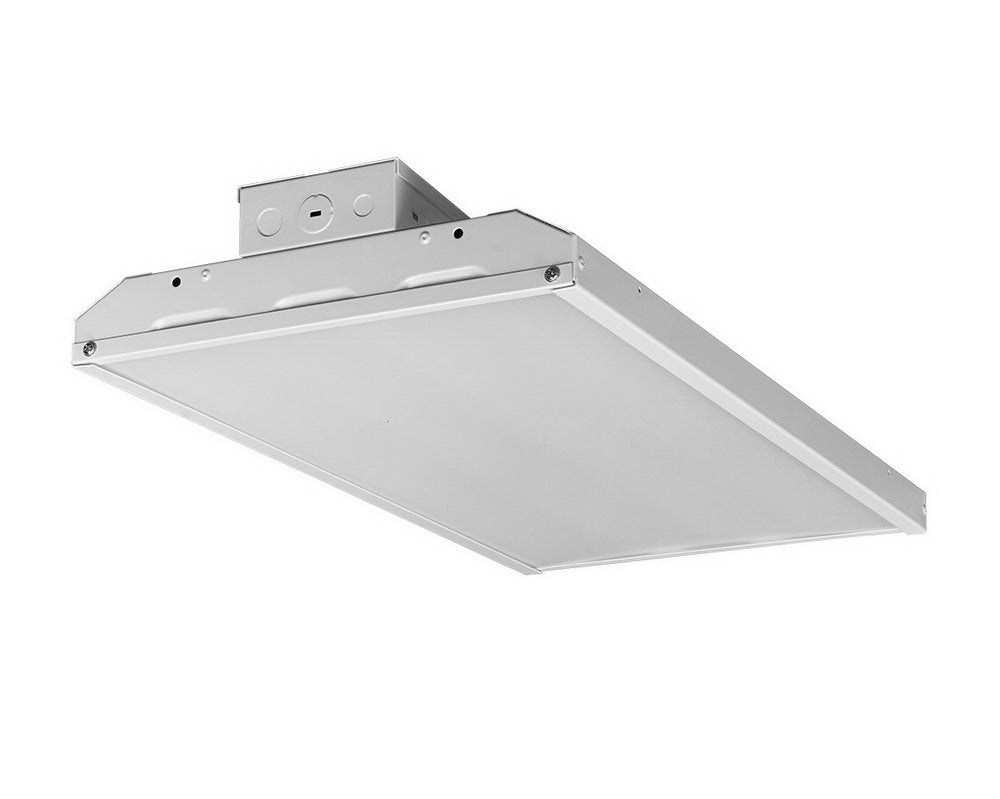

The 2-Foot Heelix Series LED Linear High Bay by NCLTG is a powerful, energy-efficient lighting solution designed for industrial and commercial applications. Offering field-selectable wattage and color temperature options, this DLC Premium listed, damp-rated fixture is perfect for retrofit projects and low-bay installations. With up to 21,000 lumens of uniform, glare-free light, it provides optimal illumination while reducing energy consumption compared to traditional high bays.
Couldn't load pickup availability
Interested in Pricing or Distribution Opportunities?
If you are an electrical distributor, lighting supply house, or trade professional interested in pricing, volume quotes, or adding this product to your line card, please contact us through our Partner Program.
Key Features & Benefits
- Provides up to 21,000 lumens with selectable wattages of 110W, 135W, and 160W for customizable brightness.
- Energy-efficient design that uses less power compared to traditional high bays while delivering bright, uniform light with an efficacy of 135 lm/W.
- Offers flexibility with three selectable wattages and color temperatures of 3500K, 4000K, and 5000K to suit various lighting environments.
- Durable construction with damp-rated aluminum housing and a frosted lens, making it suitable for demanding commercial and industrial applications.
- Easy to install and compatible with 0-10V dimming systems, helping reduce setup time and installation costs.
- DLC certified for energy efficiency, ensuring eligibility for utility rebates and long-term savings.
- Built to last with a lifespan of over 50,000 hours, reducing the need for frequent maintenance and replacements.
- Perfect for commercial and industrial settings such as warehouses, gyms, workshops, and any space that requires consistent and efficient lighting.
Description
xThe 2-Foot Heelix Series LED Linear High Bay by NCLTG delivers powerful, efficient lighting in a compact form factor. With field-selectable wattage and CCT options, it’s ideal for smaller industrial spaces, low-bay installations, and retrofit projects where performance and flexibility are key. DLC Premium listed and damp-rated, this fixture is built for reliability in demanding environments.
Why Choose the 2-Foot Heelix LED High Bay?
The 2-foot Heelix Series LED Linear High Bay is a compact, high-performance lighting solution engineered for commercial and industrial applications. Ideal for mid-height ceilings and tight spaces, it delivers up to 21,000 lumens of uniform, glare-free light—while consuming a fraction of the energy of traditional high bays.
With selectable wattages (110W, 135W, 160W) and color temperatures (3500K, 4000K, 5000K), this fixture offers the flexibility to adapt to various lighting environments. Whether you're outfitting a warehouse, gym, or workshop, the 2' Heelix LED High Bay brings optimal brightness and durability in a sleek form factor.
Designed for Commercial and Industrial Applications
Engineered with a frosted lens and damp-rated aluminum housing, this fixture is ideal for spaces where consistent lighting and rugged construction are essential. It’s easy to install, compatible with 0–10V dimming systems, and backed by DLC certification for utility rebate eligibility.
Flexible Light Output with Wattage and CCT Selectability
Switch between three output levels and color temperatures directly on the fixture, giving you control over both energy usage and lighting appearance. Whether you're replacing fluorescent fixtures or upgrading from older LEDs, the Heelix Series gives you everything you need in one smart design.
DLC Certified and Damp Rated for Reliable Performance
The 2' Heelix Linear High Bay is built to withstand demanding environments while maintaining peak performance. It's DLC listed (S-1HZ331), so you can trust it meets stringent efficiency and quality standards.
Specifications
x| Brand: | NCLTG |
| Manufacturer Part Number (MPN): | NC-LHB-2-160/135/110W-3CCT |
| DLC Product ID: | S-1HZ331 |
| Product Type: | High Bay Light |
| Light Source: | Integrated LED |
| Wattage/Lumen Options: | 110W - 15393 Lumens, 135W - 18390 Lumens, 160W - 21097 Lumens |
| Input Voltage: | 120-277V |
| Efficacy: | 135 lm/W |
| Current: | 1.5A Max |
| Dimming: | 0-10V |
| Color Temperature: | 3500K, 4000K, 5000K |
| CRI: | >80 |
| Power Factor: | >0.95 |
| THD: | <20% |
| Certifications: | UL Listed, RoHS Compliant, DLC Premium Listed |
| Safety Rating: | Suitable for Dry and Damp Locations |
| Special Features: | Power Select Technology, CCT Select Technology |
| Lens Material: | Acrylic |
| Housing Material: | Metal |
| Finish: | White |
| Dimensions: | 25.59"L x 12.59"W x 3.62"H |
| Ambient Operating Temperature: | -4°F to 113°F (-20°C to 45°C) |
| Lifespan: | L70 @ >50,000 hrs |
| Warranty: | 5 Years |
FAQs
xWhat are the wattage options for the 2-Foot Heelix Series LED Linear High Bay?
The 2-Foot Heelix Series LED Linear High Bay is available in three wattage options: 110W, 135W, and 160W, providing flexibility to meet different lighting needs in various environments.
What color temperature options are available for this LED high bay light?
The 2-Foot Heelix Series offers selectable color temperatures of 3500K, 4000K, and 5000K, allowing you to choose the ideal lighting for your space, whether it's warm, neutral, or cool light.
How bright is the 2-Foot Heelix Series LED Linear High Bay?
Depending on the wattage selected, the 2-Foot Heelix LED High Bay offers up to 21,000 lumens of brightness. The lumen output varies based on the wattage chosen:
- 110W - 15,393 Lumens
- 135W - 18,390 Lumens
- 160W - 21,097 Lumens
Is the 2-Foot Heelix LED High Bay compatible with dimming systems?
Yes, the 2-Foot Heelix LED High Bay is compatible with 0-10V dimming systems, allowing for easy adjustment of brightness based on the specific needs of the space.
What types of environments are suitable for the 2-Foot Heelix LED Linear High Bay?
This LED high bay is designed for use in commercial and industrial environments, including warehouses, gyms, workshops, and retail spaces. It is ideal for mid-height ceilings and tight spaces where performance and space-saving design are important.
What makes the 2-Foot Heelix Series LED Linear High Bay a reliable choice?
The 2-Foot Heelix Series is built with durability in mind, featuring a frosted lens and damp-rated aluminum housing, ensuring long-lasting performance even in challenging environments.
Is the 2-Foot Heelix LED High Bay suitable for outdoor use?
The 2-Foot Heelix LED High Bay is damp-rated, making it suitable for environments where moisture levels are present, such as warehouses and other semi-exterior environments. However, it is not intended for full outdoor use without proper protection from the elements.
What certifications does the 2-Foot Heelix LED High Bay have?
The 2-Foot Heelix LED High Bay is DLC Premium listed, ensuring that it meets stringent efficiency and quality standards. This certification also makes it eligible for utility rebates in many areas.
What is the expected lifespan of the 2-Foot Heelix LED High Bay?
The 2-Foot Heelix LED High Bay is designed for longevity, with an impressive L70 rating of over 50,000 hours, ensuring reliable, long-term performance with minimal maintenance.
How easy is it to install the 2-Foot Heelix Series LED High Bay?
Installation is straightforward, and the fixture is designed for easy mounting. It is compatible with 120-277V input voltage, making it ideal for both retrofit and new installations in commercial and industrial settings.
Technical Downloads
x| Download Product Specification Sheet: | Heelix Series LED Linear High Bay – Spec Sheet (PDF) |
| View Photometric Data and Light Distribution: | Heelix Series LED Linear High Bay – IES File (Photometric Data) |
| Download Installation Instructions: | Heelix Series LED Linear High Bay – Installation Guide (PDF) |
