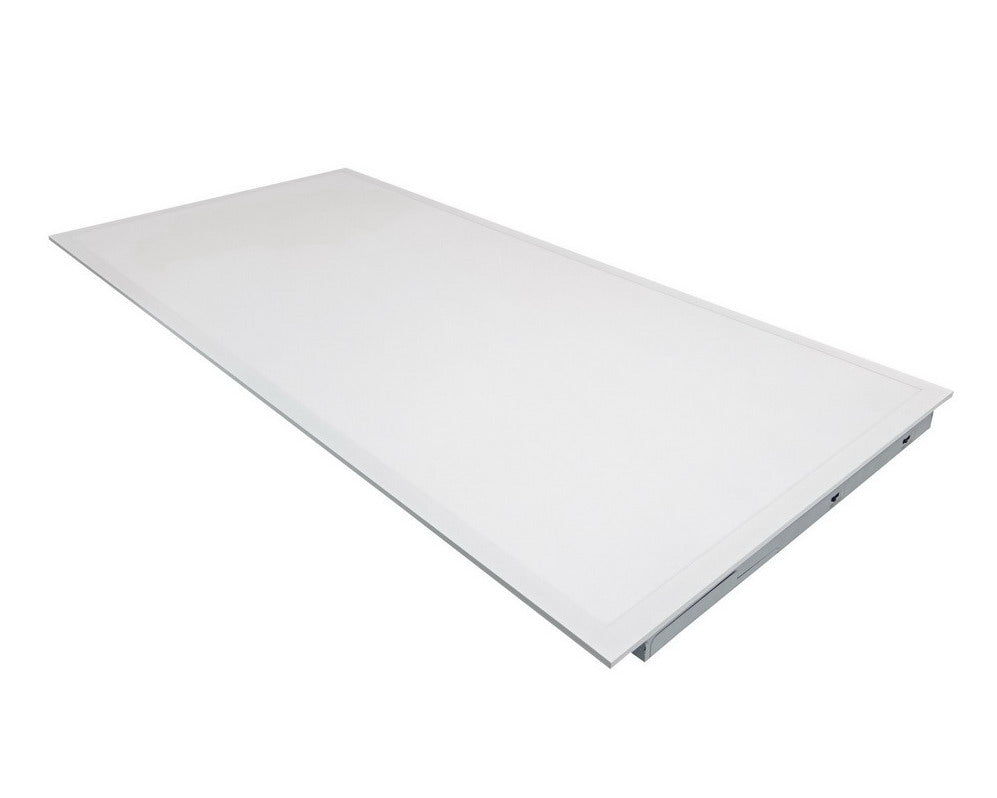

  • Front angled view of NCLTG SkyLine Series 2x4 LED Panel Light highlighting its sleek frame and even light distribution for drop ceiling applications

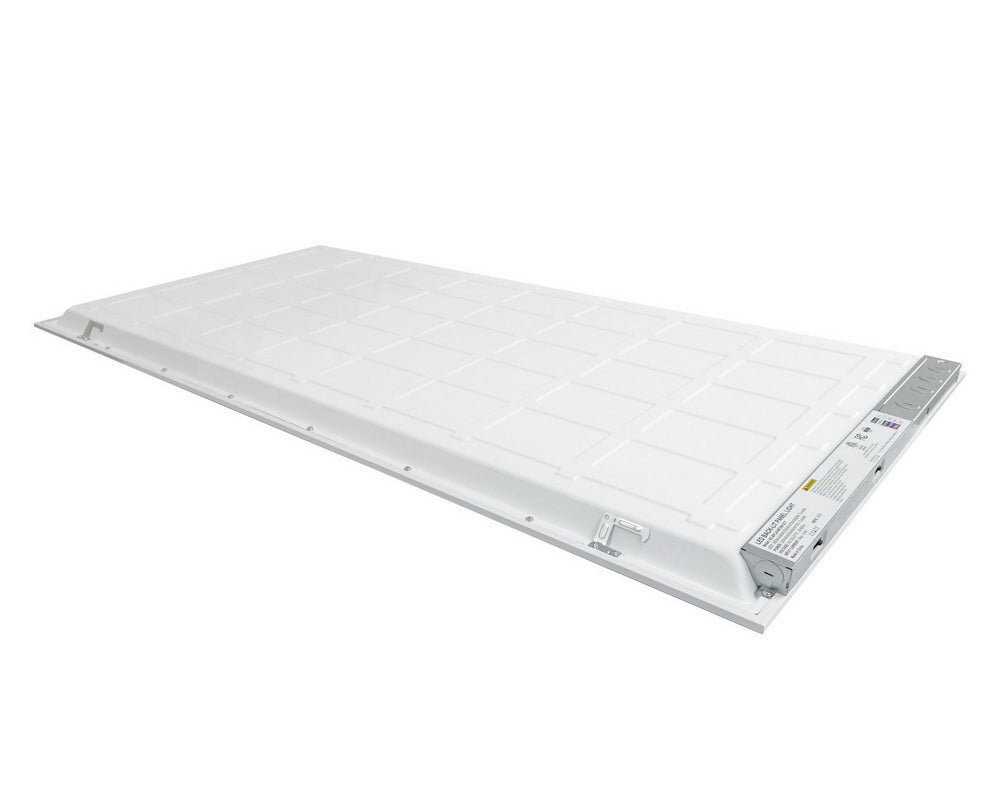

  • Back angled view of NCLTG SkyLine Series 2x4 LED Panel Light showing integrated driver and durable rear housing design

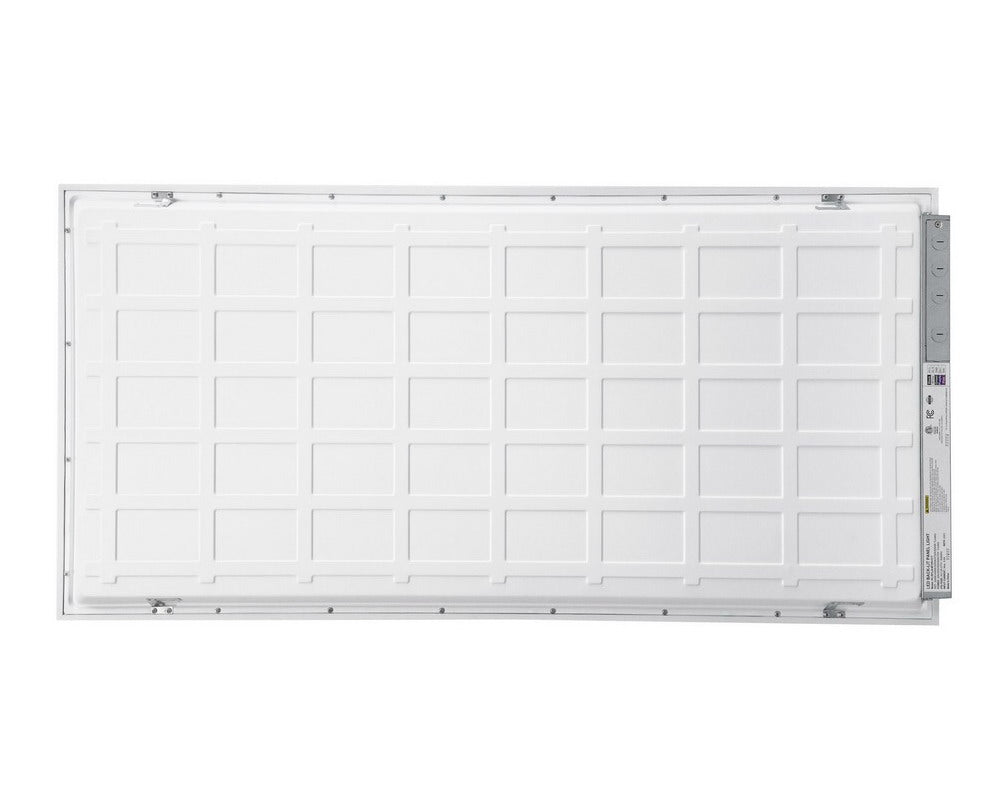

  • Back view of NCLTG SkyLine Series 2x4 LED Panel Light highlighting rear housing and driver compartment

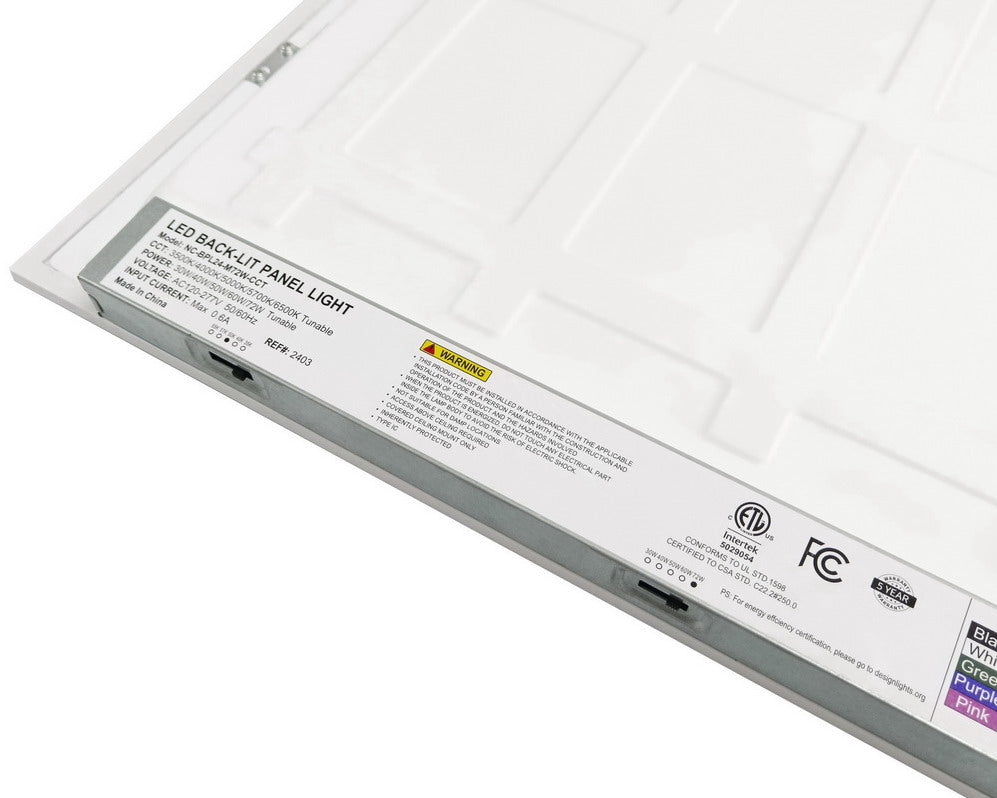

  • Close-up back angled view of NCLTG SkyLine Series 2x4 LED Panel Light focusing on the driver compartment and wiring access

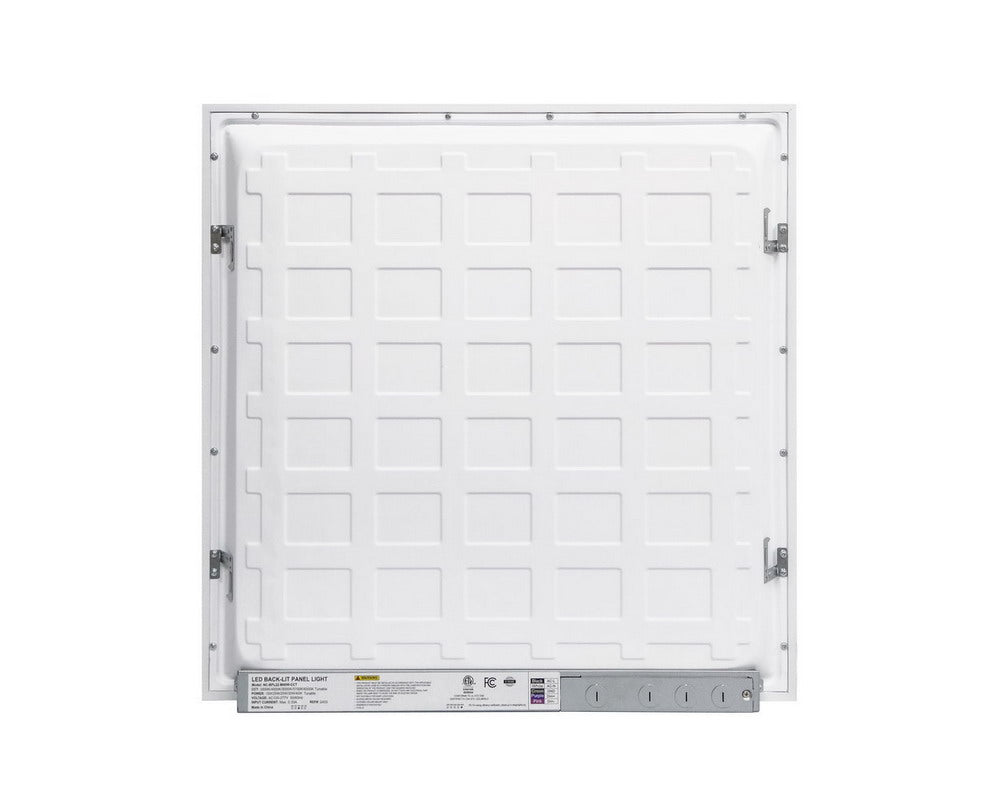

  • Back view of NCLTG SkyLine Series 2x2 LED Panel Light showing sturdy housing and integrated driver design for easy installation

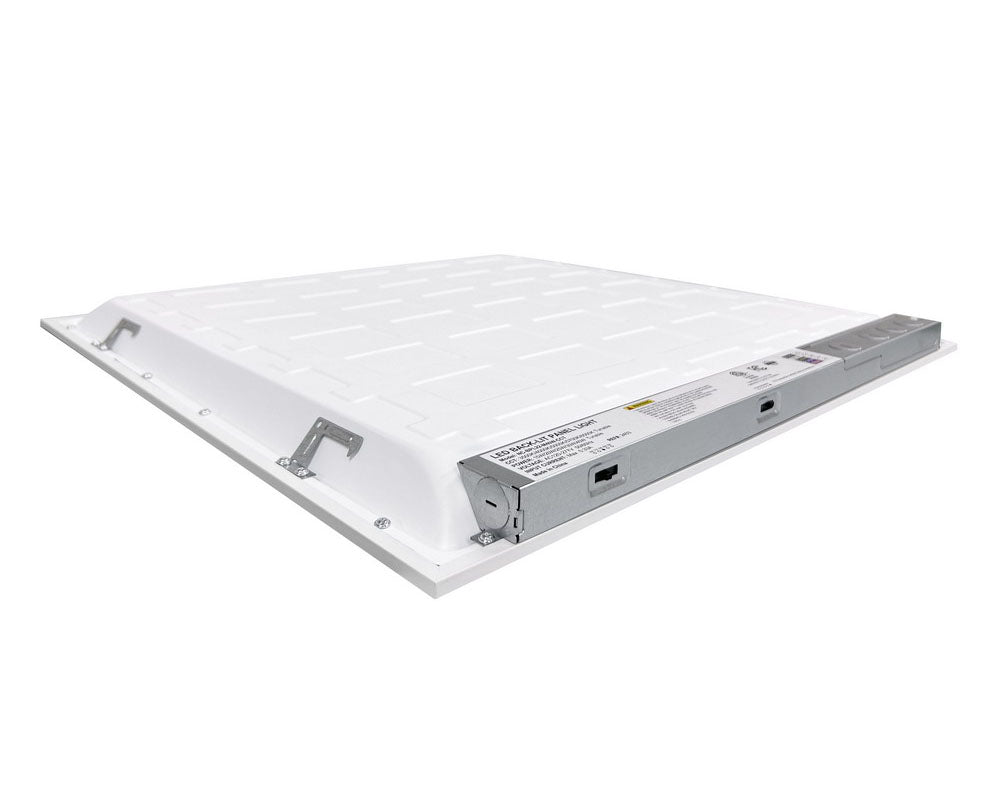

  • Close-up angled back view of NCLTG SkyLine Series 2x2 LED Panel Light highlighting the integrated driver and wiring compartment details
  • Close-up back view of NCLTG SkyLine Series 2x2 LED Panel Light focusing on the driver and rear wiring components

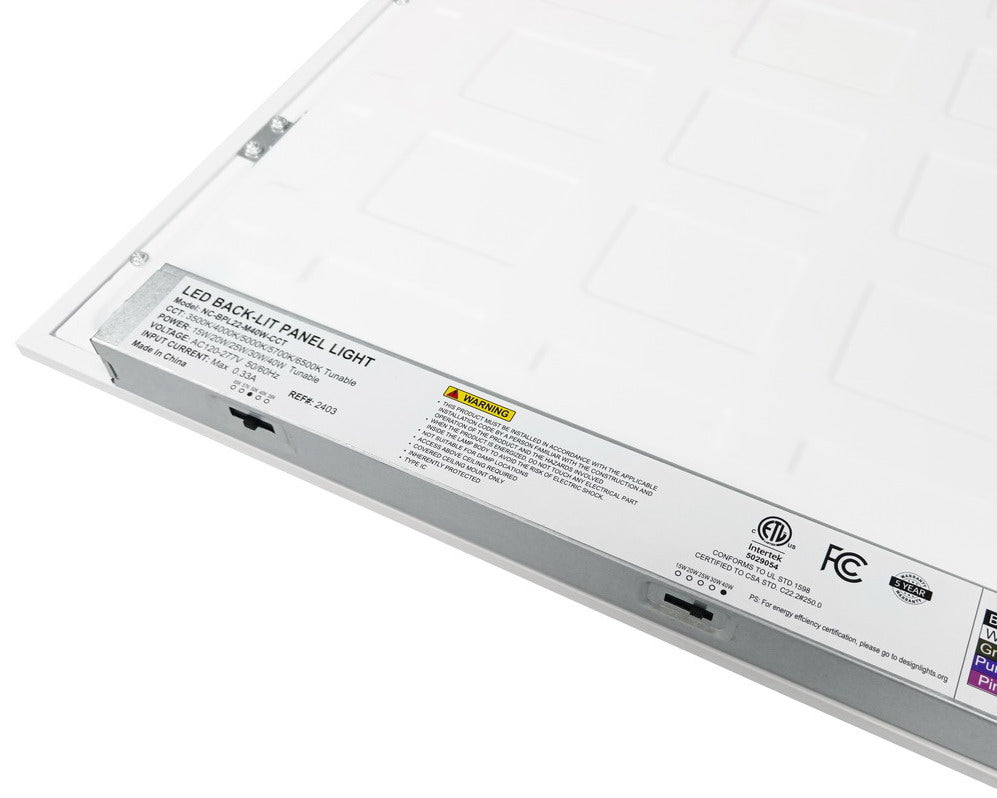

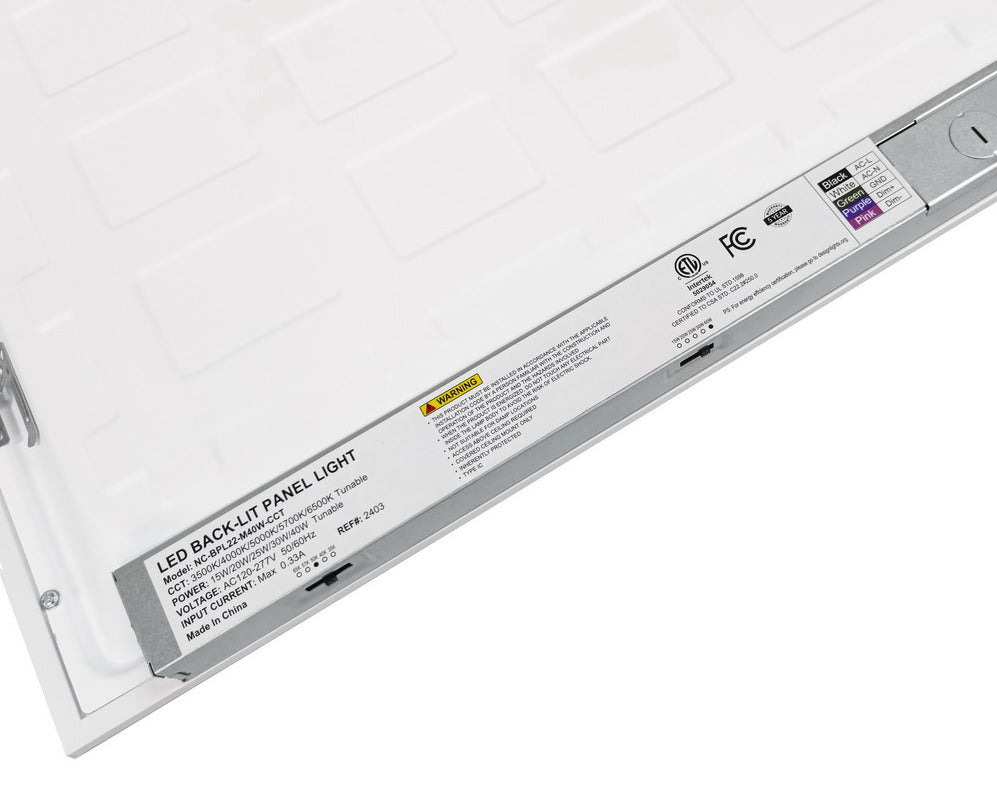

  • Close-up back view of NCLTG SkyLine Series 2x2 LED Panel Light showing driver with wattage and CCT selectable DIP switches for field adjustment

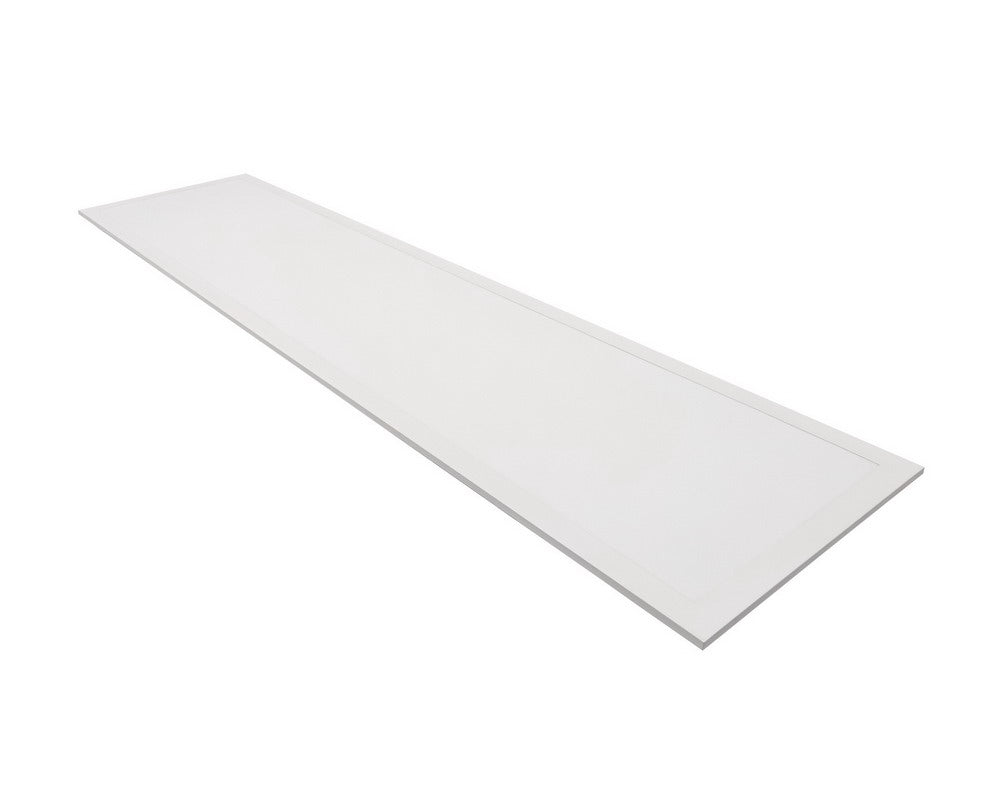

  • Angled front view of NCLTG SkyLine Series 1x4 LED Panel Light highlighting its sleek linear frame and even light-diffusing lens for drop ceiling installations

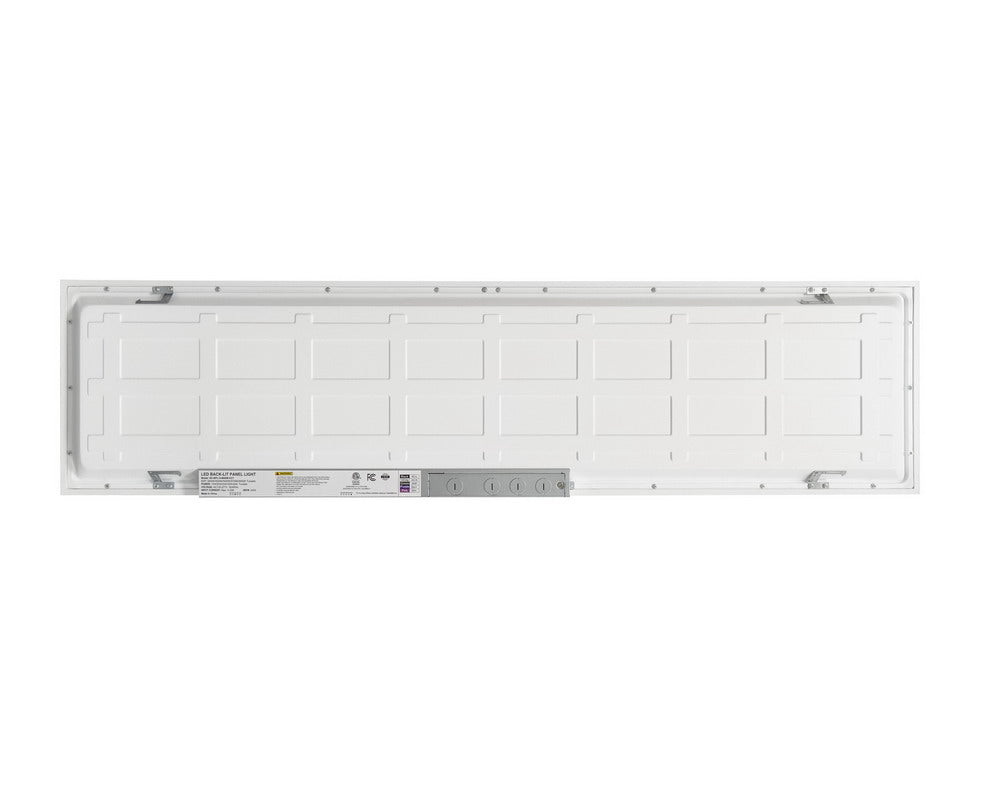

  • Back view of NCLTG SkyLine Series 1x4 LED Panel Light showing durable housing and integrated driver compartment for easy installation

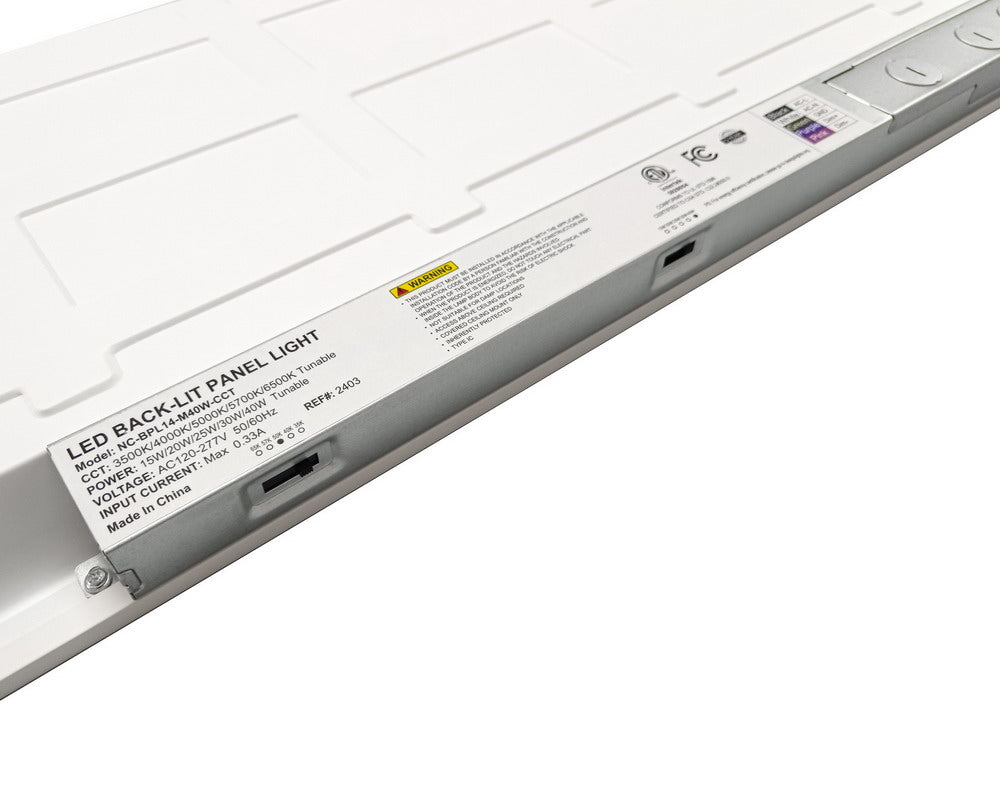

  • Close-up back view of NCLTG SkyLine Series 1x4 LED Panel Light focusing on the integrated driver and wiring access for selectable settings

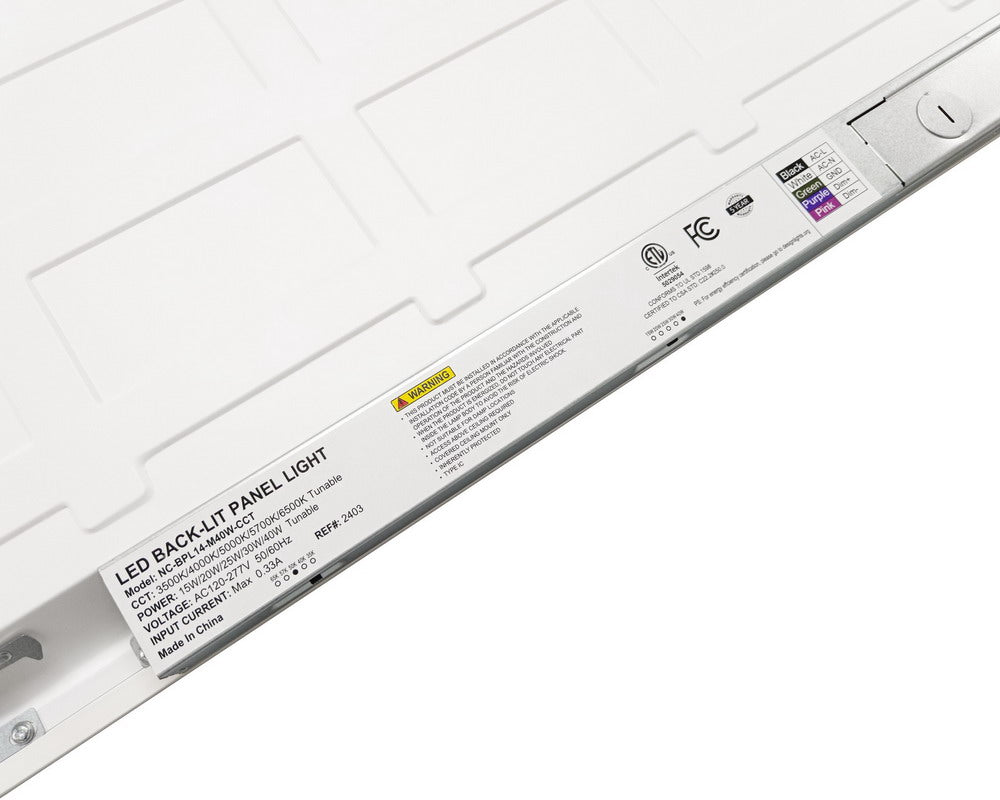

  • Detailed back view of NCLTG SkyLine Series 1x4 LED Panel Light highlighting the driver unit and connection points for field configuration

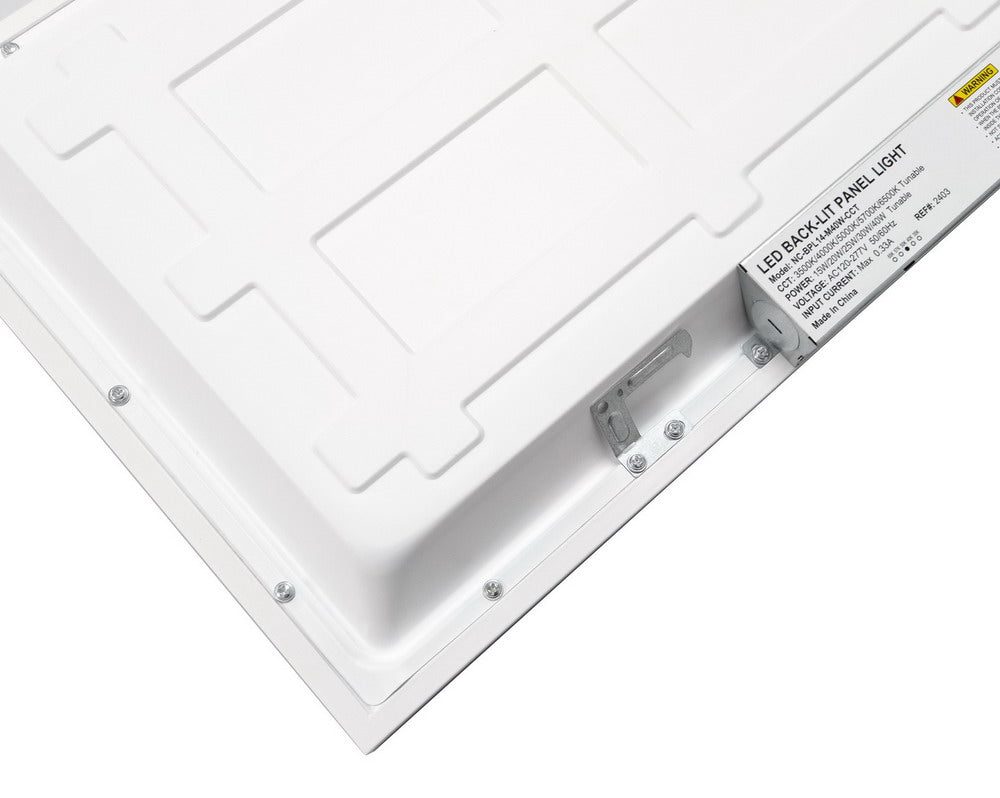

  • Back corner view of NCLTG SkyLine Series 1x4 LED Panel Light showing grid clips and integrated driver for secure installation and easy wiring access

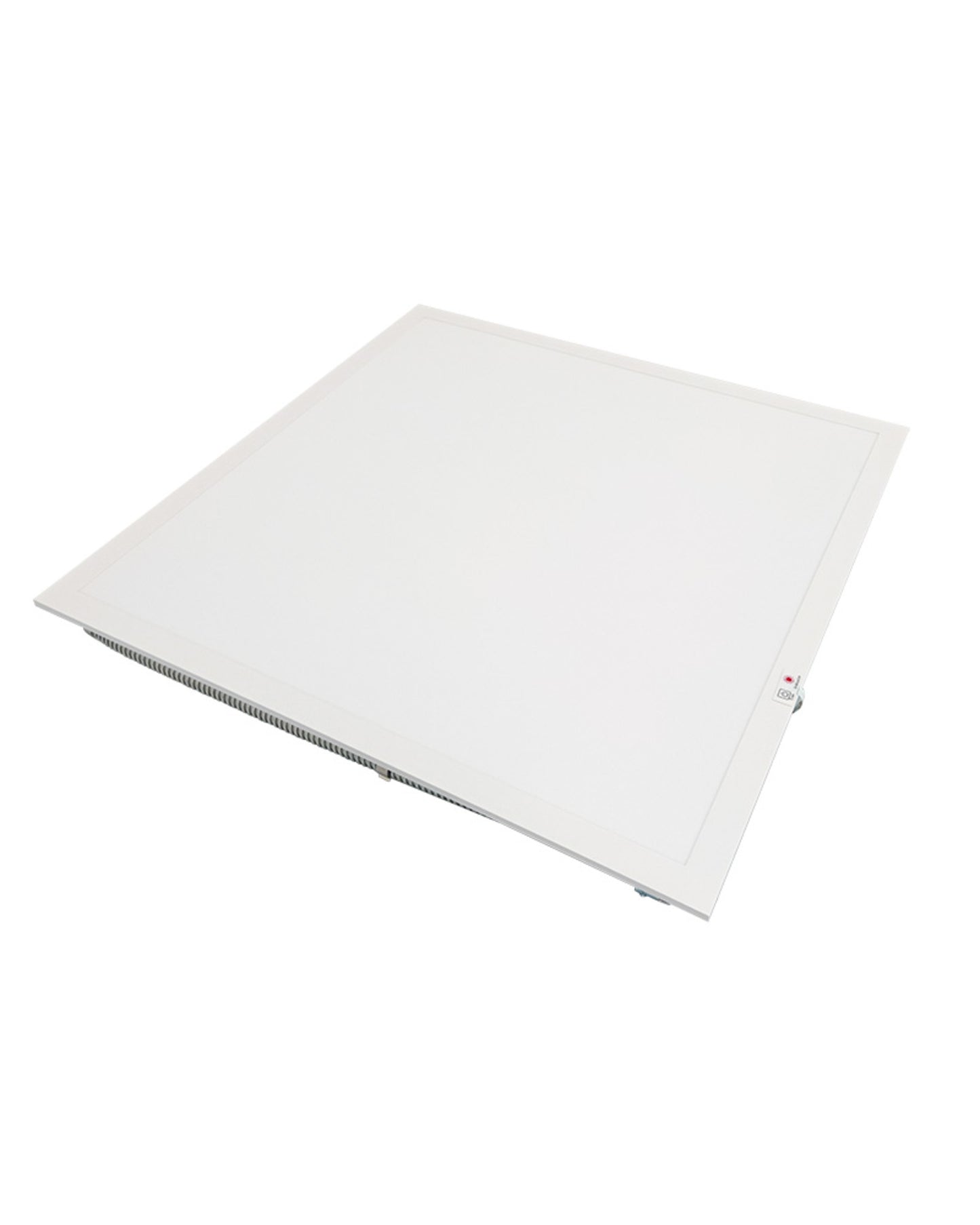

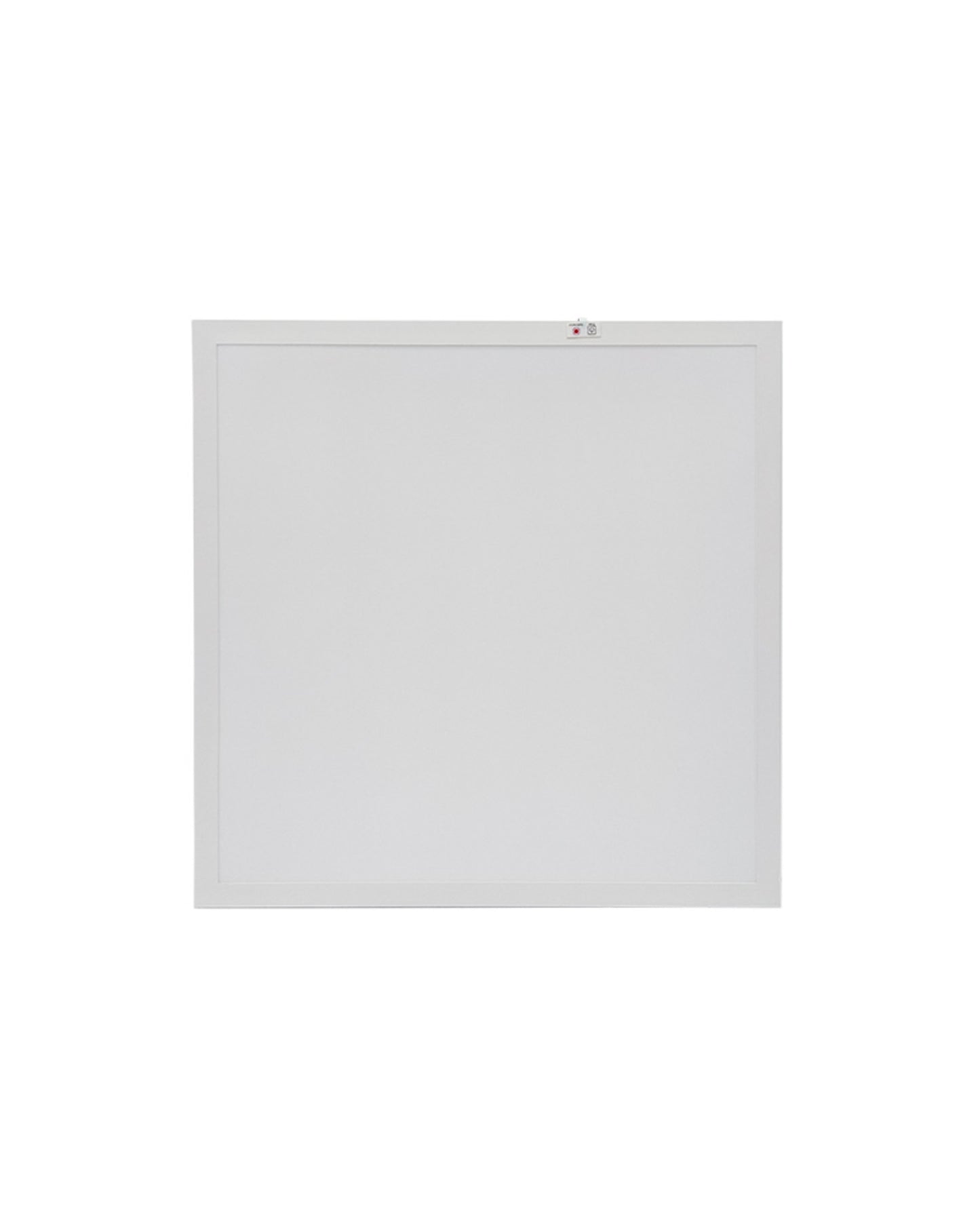

  • Front view of NCLTG SkyLine Series 2x2 LED Panel Light with emergency backup, featuring a conveniently integrated test switch for easy functionality checks
  • Close-up view of the indicator and test switch on the NCLTG SkyLine Series LED Panel Light with emergency backup, showing accessible emergency system controls
1 16

NCLTG

SkyLine Series 1x4 LED Panel Light – Power & CCT Select, 15W–40W, 1950–5000 Lumens, 3500K–6500K, 120–277V

SkyLine Series 1x4 LED Panel Light – Power & CCT Select, 15W–40W, 1950–5000 Lumens, 3500K–6500K, 120–277V

NCLTG Skyline Series LED Panel Light feature badges – 5-CCT selectable, 5-wattage adjustable, 0–10V dimmable, DLC Premium listed, cETLus certified

Specifications

Brand: NCLTG
Manufacturer Part Number (MPN): NC-BPL14-M40W-CCT
DLC Product ID: S-FRVCC0
Product Type: Panel Light
Light Source: Integrated LED
Wattage/Lumen Options: 15W - 1950 Lumens, 20W - 2600 Lumens, 25W - 3250 Lumens, 30W - 3810 Lumens, 40W - 5000 Lumens
Input Voltage: 120-277V
Efficacy: 125 to 130 lm/W
Current: 0.14A to 0.36A
Dimming: 0-10V
Color Temperature: 3500K, 4000K, 5000K, 5700K, 6500K
CRI: >80
Certifications: cETLus Listed, RoHS Compliant, DLC Premium Listed
Safety Rating: Suitable for Dry and Damp Locations
Special Features: Power Select Technology, CCT Select Technology
Lens Material: Polycarbonate
Housing Material: Steel
Finish: White
Weight: 4.17 Lbs.
Dimensions: 47.76"L x 11.93"W x 1.38"H
Ambient Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Lifespan: L70 @ >50,000 hrs
Warranty: 5 Years
Request Price
Specification Sheet IES File Installation Instructions
View full details

About the SkyLine Series LED Panel Lights

The SkyLine Series LED Panel Lights from NCLTG provide high-performance, energy-efficient illumination for a variety of commercial and institutional environments. Available in 1x4, 2x2, and 2x4 sizes, these low-glare panels are ideal for drop ceiling installations in offices, classrooms, healthcare facilities, and retail spaces. Featuring field-selectable wattage and color temperature options, durable aluminum construction, and a frosted polycarbonate lens, the SkyLine Series offers long-lasting reliability. Backed by DLC Premium certification, these panels deliver dependable performance, flexible installation options, and significant energy savings for professional lighting projects.

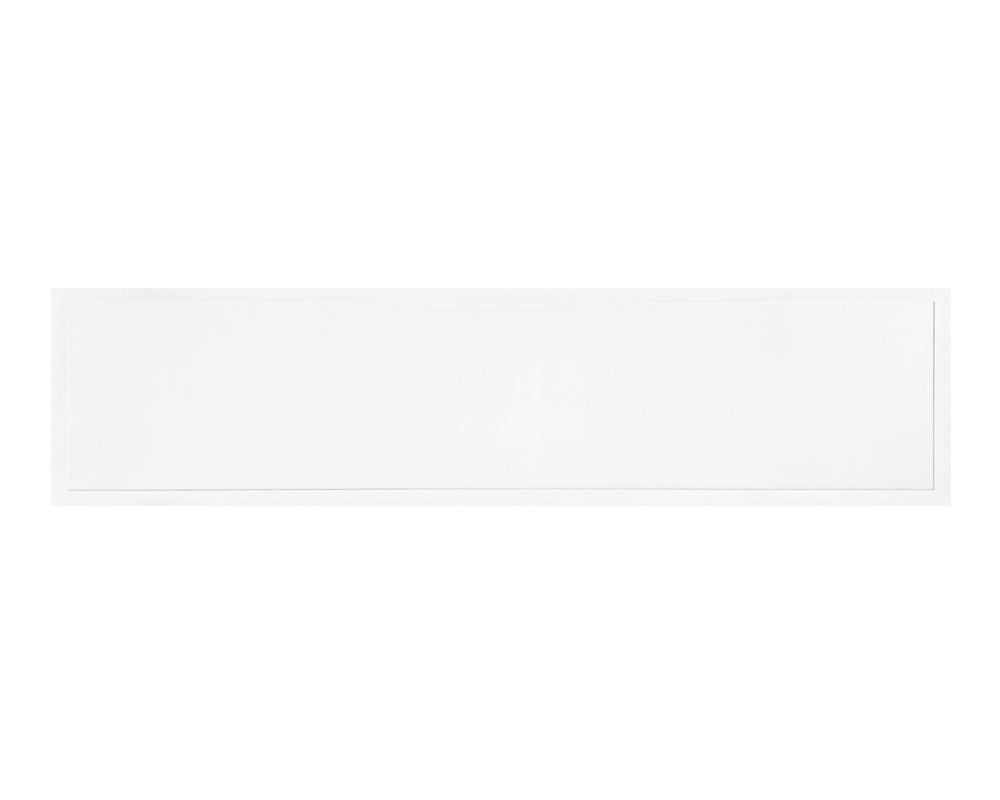

Front view of NCLTG SkyLine Series 1x4 LED Panel Light showcasing slim rectangular design and frosted lens for uniform commercial ceiling lighting

Why Choose SkyLine Series LED Panel Lights?

SkyLine Series LED Panel Lights from NCLTG are designed for flexibility and reliability, making them an excellent upgrade for outdated fluorescent fixtures as well as a practical choice for new construction projects. Key features include:

  • High efficiency, delivering up to 130 lumens per watt
  • Field-selectable wattage and color temperature options ranging from 3500K to 6500K
  • Durable extruded aluminum housing for long-lasting performance
  • Compatibility with 0–10V dimming systems and emergency backup options
  • Ideal for commercial settings such as offices, hospitals, schools, and retail spaces

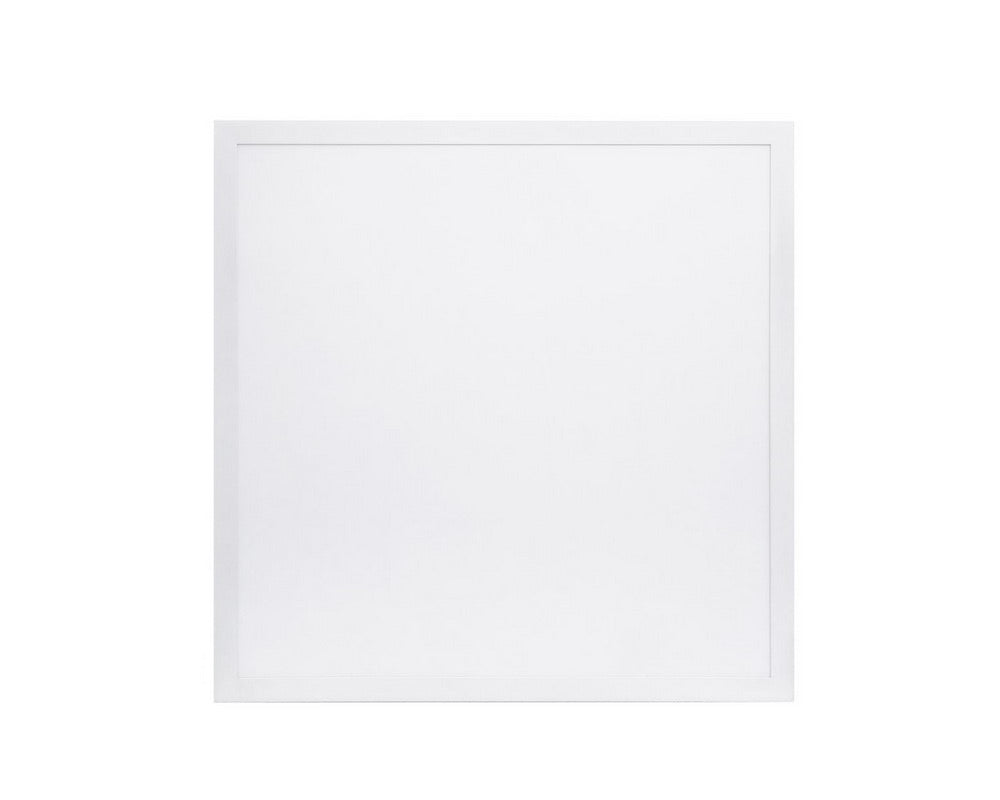

Front view of NCLTG SkyLine Series 2x2 LED Panel Light featuring a slim low-profile frame and frosted diffuser for uniform ceiling illumination

Key Features of SkyLine Series LED Panel Lights

  • Adjustable wattages ranging from 15W to 72W
  • Tunable color temperatures between 3500K and 6500K
  • DLC Premium and ETL certifications, qualifying for energy rebates and ensuring compliance
  • Sensor-ready design compatible with occupancy or daylight controls
  • Optional 90-minute battery backup for code compliance and emergency situations
Front view of NCLTG SkyLine Series 2x4 LED Panel Light showcasing slim profile and smooth frosted diffuser for uniform commercial lighting

Applications for SkyLine Series LED Panel Lights

SkyLine Series LED Panel Lights are an excellent choice for a wide variety of commercial and institutional settings where high-quality, reliable lighting is essential. Common applications include:

  • Offices and meeting spaces
  • Healthcare facilities and patient rooms
  • Classrooms, libraries, and lecture halls
  • Retail stores and shopping environments
  • Commercial lobbies, corridors, and common areas

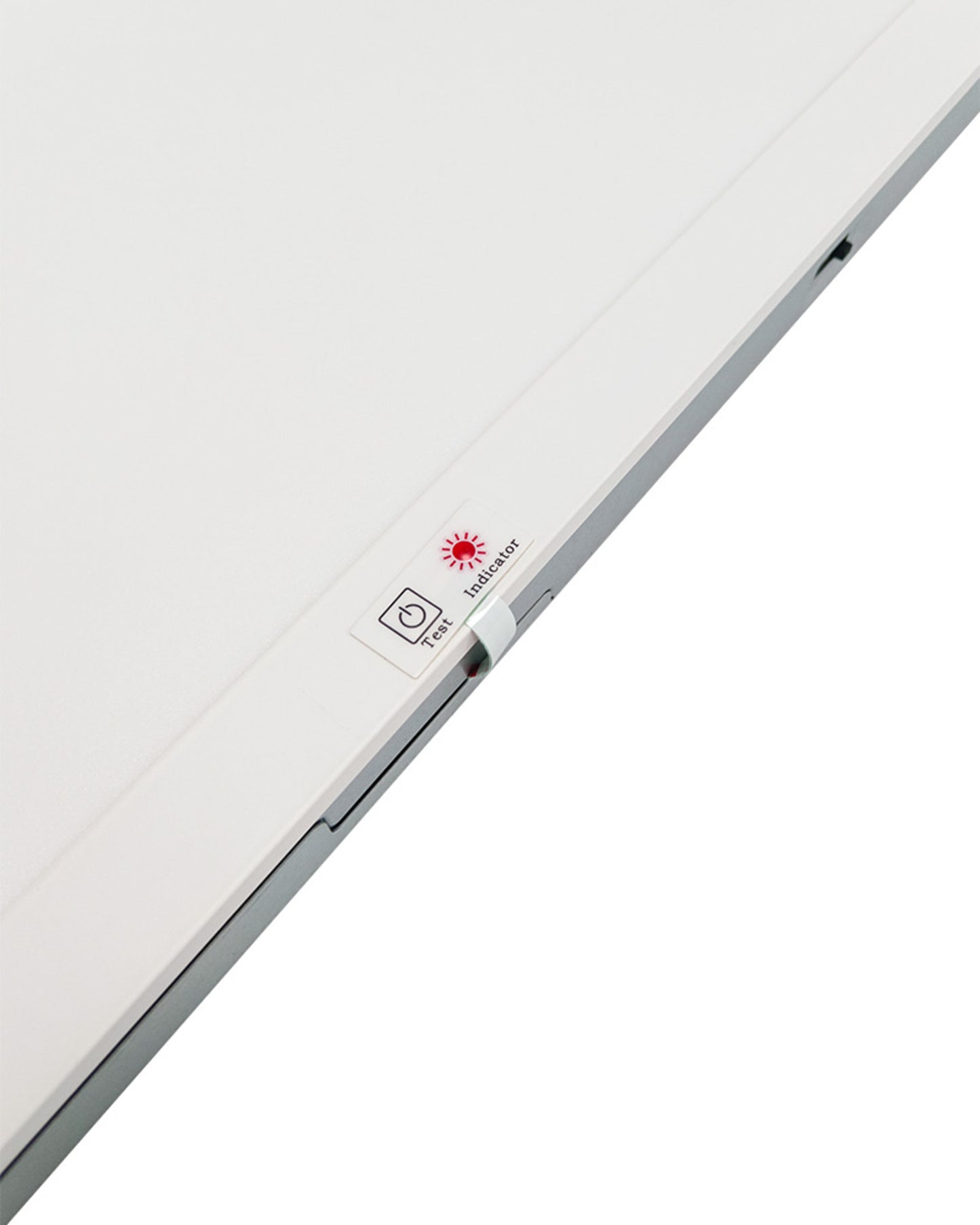

Close-up view of the indicator and test switch on the NCLTG SkyLine Series LED Panel Light with emergency backup, showing accessible emergency system controls

What Makes SkyLine Series LED Panel Lights Stand Out

SkyLine Series LED Panel Lights combine energy-efficient technology with practical features that simplify installation and reduce the need for multiple SKUs. Their field-adjustable wattage and color temperature make them adaptable to a wide range of project requirements. With long lifespans and compatibility with sensor and emergency backup systems, SkyLine Series panel lights offer a dependable and versatile lighting solution for contractors, facility managers, and designers.

SkyLine Series LED Panel Light FAQs

What Is a SkyLine Series LED Panel Light?

SkyLine Series LED Panel Lights are flat, energy-efficient fixtures designed to provide broad and even illumination. Typically installed in drop ceiling grids, they serve as modern replacements for traditional fluorescent troffers in commercial environments.

Where Can SkyLine Series LED Panel Lights Be Used?

SkyLine Series LED Panel Lights are ideal for a wide range of commercial and institutional applications, including:

  • Offices
  • Hospitals and clinics
  • Classrooms and educational spaces
  • Retail stores and showrooms
  • Lobbies, hallways, and conference rooms

How Do I Choose the Right Wattage and Color Temperature for SkyLine Series LED Panel Lights?

For smaller spaces such as offices and break rooms, lower wattage settings are usually sufficient. Larger or high-ceiling areas benefit from higher output wattages to ensure adequate illumination. Regarding color temperature, 3500K to 4000K is ideal for general workspace lighting, while 5000K to 6500K offers a crisper, brighter look suited for retail or medical environments.

Are SkyLine Series LED Panel Lights Dimmable?

Yes, all SkyLine Series LED Panel Lights support 0–10V dimming, allowing for adjustable brightness control and enhanced energy savings.

What Certifications Do SkyLine Series LED Panel Lights Have?

SkyLine Series LED Panel Lights are DLC Premium listed, ETL certified, and RoHS compliant. These certifications make them eligible for utility rebates and approved for use in commercial installations.

How Are SkyLine Series LED Panel Lights Installed?

SkyLine Series LED Panel Lights are designed to fit standard drop ceiling grids and include optional surface-mount and suspension kits for versatile installation. They are also compatible with sensor controls and emergency backup systems, providing added flexibility for various commercial projects.
