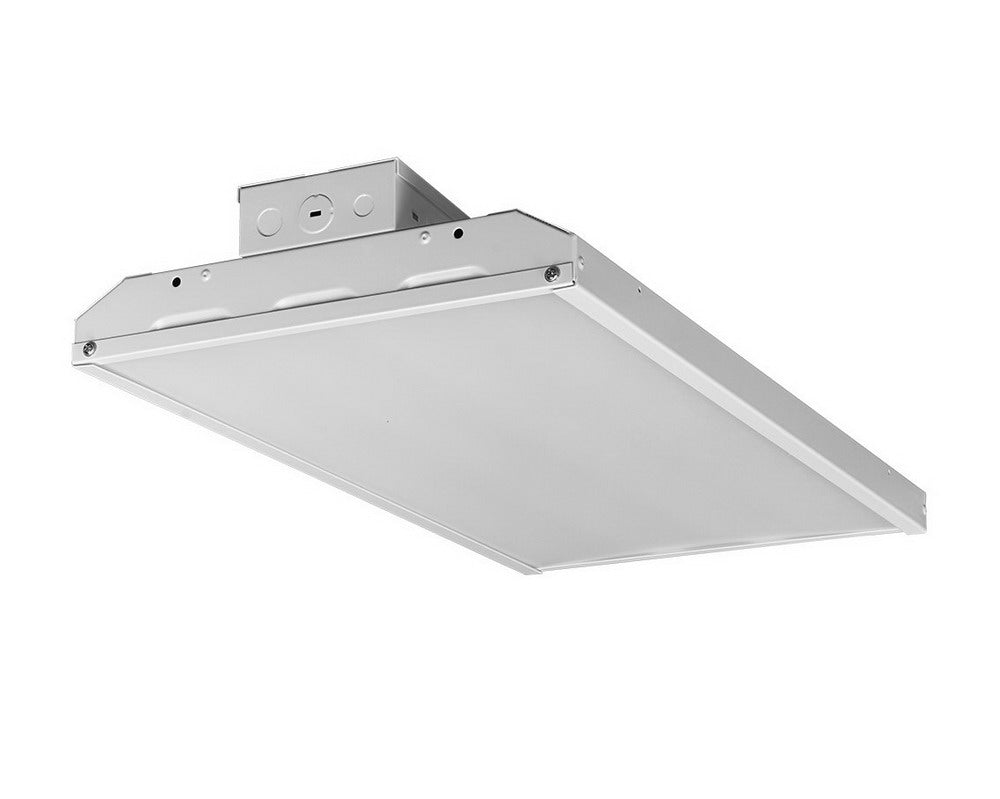

• NCLTG CoreBay Series 2-Foot LED Linear High Bay Light featuring a slim metal housing, frosted lens, and high-output LEDs for warehouses and industrial spaces

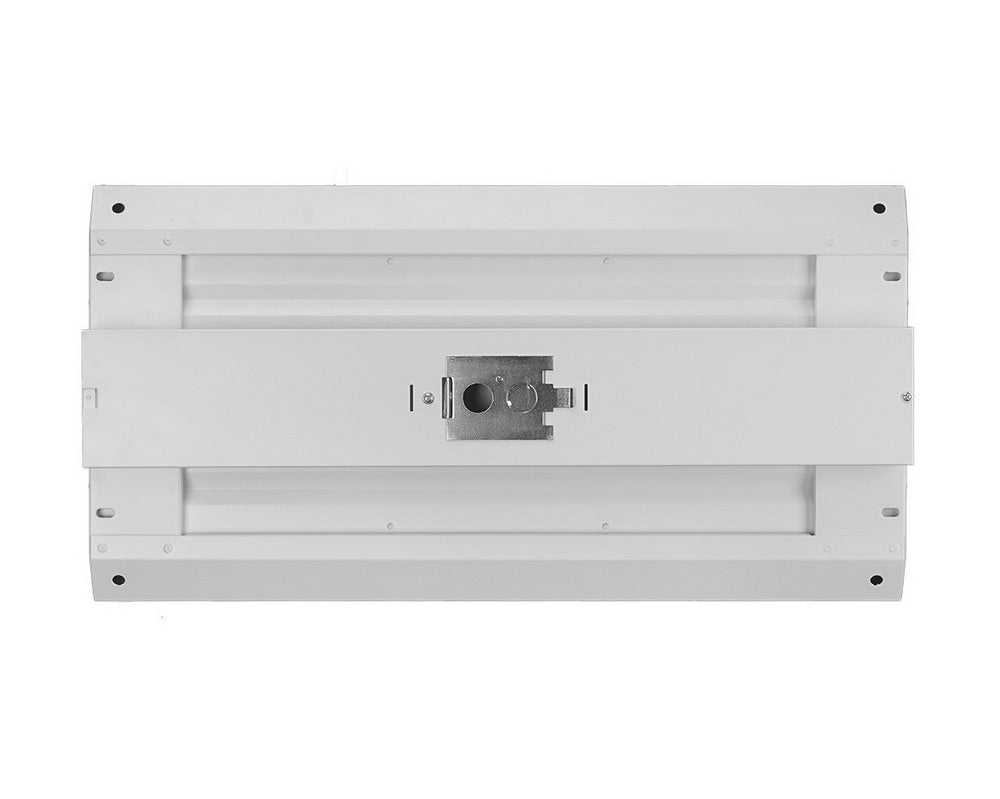

  • Back view of NCLTG CoreBay Series 2-Foot LED Linear High Bay Light showing durable metal housing, mounting points, and integrated LED driver
  • Angled back view of NCLTG CoreBay Series 2-Foot LED Linear High Bay Light highlighting slim profile, robust housing, and integrated driver design

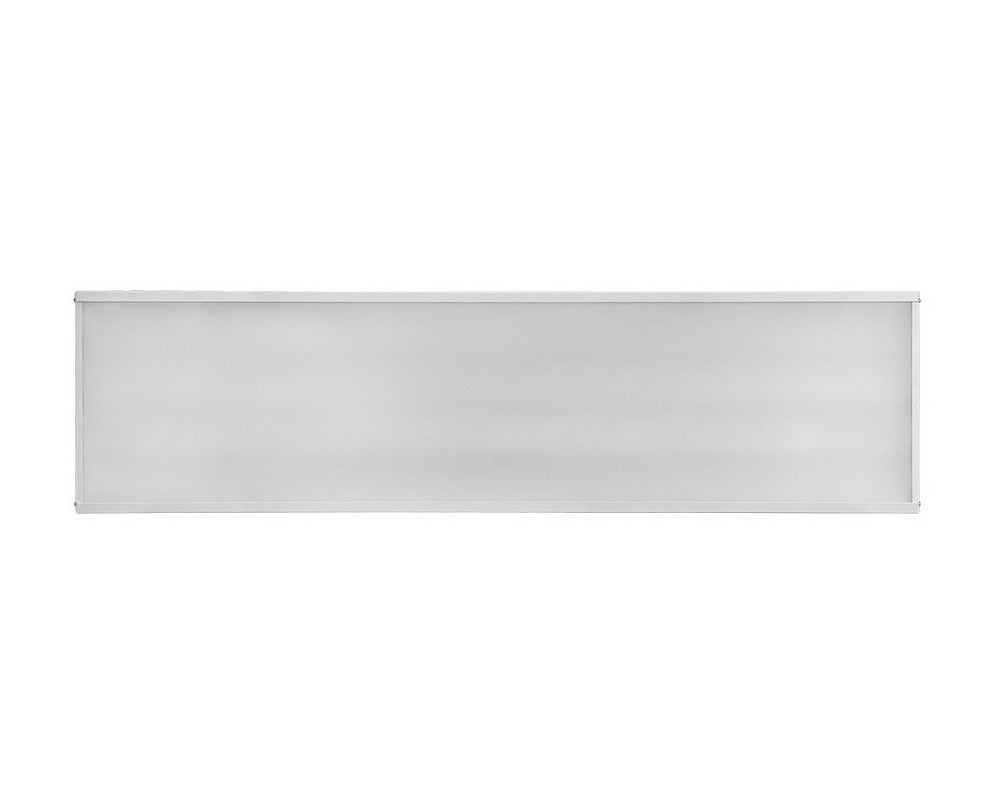

  • Front view of NCLTG CoreBay Series 4-Foot LED Linear High Bay Light highlighting slim profile, uniform frosted diffuser, and high lumen output for large commercial spaces
  • Angled back view of NCLTG CoreBay Series 4-Foot LED Linear High Bay Light showing durable metal housing, mounting brackets, and integrated LED driver for industrial applications
1 5

NCLTG

CoreBay Series 2-Foot LED Linear High Bay Light – Power & CCT Select, 110W–160W, 15393–21097 Lumens, 3500K–5000K, 120–277V

CoreBay Series 2-Foot LED Linear High Bay Light – Power & CCT Select, 110W–160W, 15393–21097 Lumens, 3500K–5000K, 120–277V

Badges for NCLTG CoreBay Series LED Linear High Bay showing 3CCT selector, 3 wattage selector, 0–10V dimmable compatibility, sensor ready design, DLC Premium listing, and UL certification

Specifications

Brand: NCLTG
Manufacturer Part Number (MPN): NC-LHB-2-160/135/110W-3CCT
DLC Product ID: S-1HZ331
Product Type: High Bay Light
Light Source: Integrated LED
Wattage/Lumen Options: 110W - 15393 Lumens, 135W - 18390 Lumens, 160W - 21097 Lumens
Input Voltage: 120-277V
Efficacy: 135 lm/W
Current: 1.5A Max
Dimming: 0-10V
Color Temperature: 3500K, 4000K, 5000K
CRI: >80
Power Factor: >0.95
THD: <20%
Certifications: UL Listed, RoHS Compliant, DLC Premium Listed
Safety Rating: Suitable for Dry and Damp Locations
Special Features: Power Select Technology, CCT Select Technology
Lens Material: Acrylic
Housing Material: Metal
Finish: White
Dimensions: 25.59"L x 12.59"W x 3.62"H
Ambient Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Lifespan: L70 @ >50,000 hrs
Warranty: 5 Years
Request Price
Specification Sheet IES File Installation Instructions
View full details

About the CoreBay Series LED Linear High Bay Lights

The CoreBay Series LED Linear High Bay Lights from NCLTG provide a high-performance, energy-efficient solution for large commercial and industrial spaces. Designed for use in warehouses, gymnasiums, manufacturing facilities, and similar environments, these fixtures deliver powerful, uniform illumination that enhances visibility and safety. Available in 2-foot and 4-foot configurations with selectable wattages and color temperatures, the CoreBay Series offers the flexibility to meet a variety of lighting requirements. Engineered for long-term reliability and low operational costs, these high bay lights are built to perform in demanding applications.

NCLTG CoreBay Series 2-Foot LED Linear High Bay Light featuring a slim metal housing, frosted lens, and high-output LEDs for warehouses and industrial spaces

Why Choose CoreBay Series LED Linear High Bay Lights?

CoreBay Series LED Linear High Bay Lights from NCLTG are engineered for the rigorous demands of industrial and commercial environments. Featuring field-selectable wattages and adjustable color temperature options, these fixtures allow you to customize light output to match your specific application. With a robust construction and advanced energy-saving technology, the CoreBay Series ensures long-lasting performance while helping businesses reduce energy costs and maintain optimal lighting conditions.

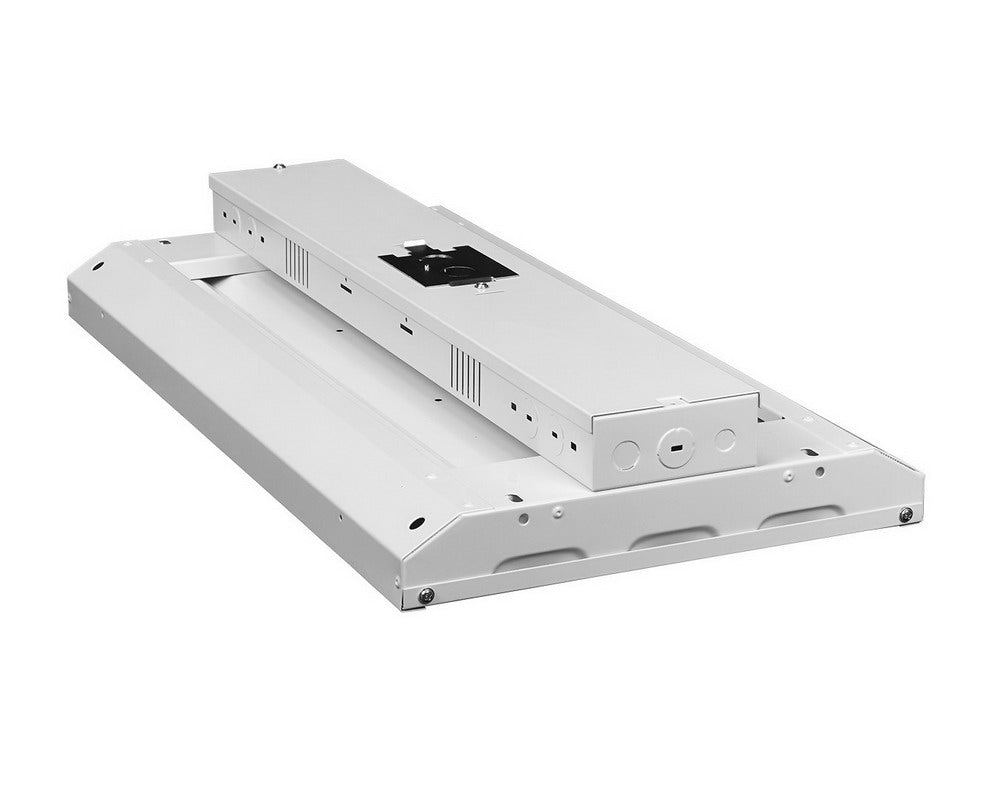

Angled back view of NCLTG CoreBay Series 2-Foot LED Linear High Bay Light highlighting slim profile, robust housing, and integrated driver design

Key Features of CoreBay Series LED Linear High Bay Lights

  • Delivers high lumen output up to 30,431 lumens, ensuring excellent illumination for large commercial and industrial spaces.
  • Offers selectable wattages ranging from 110W to 220W, accommodating various mounting heights and application needs.
  • Provides adjustable color temperatures of 3500K, 4000K, and 5000K for optimal visual comfort and performance.
  • Constructed with a rugged metal housing and an acrylic lens designed to withstand high-traffic, demanding environments.
  • Utilizes energy-efficient technology with efficacy ratings up to 135 lm/W to help lower operational energy costs.
  • DLC Premium listed and UL certified, qualifying for rebates while ensuring safety and code compliance.
NCLTG CoreBay Series 4-Foot LED Linear High Bay Light showcasing extended housing, frosted lens, and high-output LED design for industrial applications

Applications for CoreBay Series LED Linear High Bay Lights

CoreBay Series LED Linear High Bay Lights are ideal for high-ceiling installations where powerful, uniform illumination is essential. Common applications include:

  • Warehouses and distribution centers that require bright, consistent lighting for safety and efficiency.
  • Gymnasiums and indoor sports facilities where glare-free visibility supports optimal performance.
  • Manufacturing plants and assembly areas where precision lighting enhances productivity and accuracy.
  • Large retail environments and showrooms that demand high-output lighting to showcase products effectively.
  • Industrial facilities and commercial spaces in need of reliable, energy-saving illumination.
Angled back view of NCLTG CoreBay Series 4-Foot LED Linear High Bay Light showing durable metal housing, mounting brackets, and integrated LED driver for industrial applications

Why CoreBay Series LED Linear High Bay Lights Stand Out

With selectable wattage, adjustable color temperature, and a durable construction, CoreBay Series LED Linear High Bay Lights offer unmatched flexibility and performance. These fixtures deliver the brightness and reliability required to optimize lighting in large-scale commercial and industrial applications while helping to reduce energy usage and maintenance costs.

CoreBay Series LED Linear High Bay Light FAQs

What is a CoreBay Series LED Linear High Bay Light?

A CoreBay Series LED Linear High Bay Light is a high-output fixture designed for facilities with ceilings typically 15 feet or higher. It provides bright, uniform illumination that is ideal for warehouses, factories, gymnasiums, and other large commercial or industrial spaces.

Where Can CoreBay Series LED Linear High Bay Lights Be Used?

CoreBay Series LED Linear High Bay Lights are perfect for a wide range of high-ceiling applications, including:

  • Warehouses and logistics centers
  • Manufacturing facilities and production floors
  • Indoor sports arenas and gymnasiums
  • Large retail stores and commercial areas
  • Industrial workshops and storage facilities

How Do I Choose the Right Wattage and Color Temperature?

Selecting the right settings for CoreBay Series LED Linear High Bay Lights depends on the size and purpose of your space. Use higher wattages, such as 180W to 220W, for very large areas or high-ceiling installations, and lower wattages, such as 110W to 160W, for smaller sections or lower mounting heights. For color temperature, choose 4000K–5000K for task-oriented areas requiring clear visibility, while 3500K offers a softer, more comfortable light for spaces where ambiance is a priority.

Are CoreBay Series LED Linear High Bay Lights Dimmable?

Yes, CoreBay Series LED Linear High Bay Lights support 0–10V dimming, allowing you to adjust light levels to suit your specific needs while achieving additional energy savings.

What Certifications Do CoreBay Series LED Linear High Bay Lights Have?

CoreBay Series LED Linear High Bay Lights are DLC Premium listed, UL certified, and RoHS compliant. These certifications ensure the fixtures meet rigorous standards for energy efficiency, safety, and environmental responsibility.

How Are CoreBay Series LED Linear High Bay Lights Installed?

CoreBay Series LED Linear High Bay Lights are designed for straightforward installation with multiple mounting options, including suspension and pendant mounts. Each fixture comes with the necessary hardware to ensure a quick, secure, and hassle-free setup.

Interested in Pricing or Distribution Opportunities?

If you are an electrical distributor, lighting supplier, or trade professional interested in pricing, volume quotes, or adding the CoreBay Series LED Linear High Bay Lights to your product offerings, please contact us through our Partner Program. Our team is ready to assist with the information and support you need.
