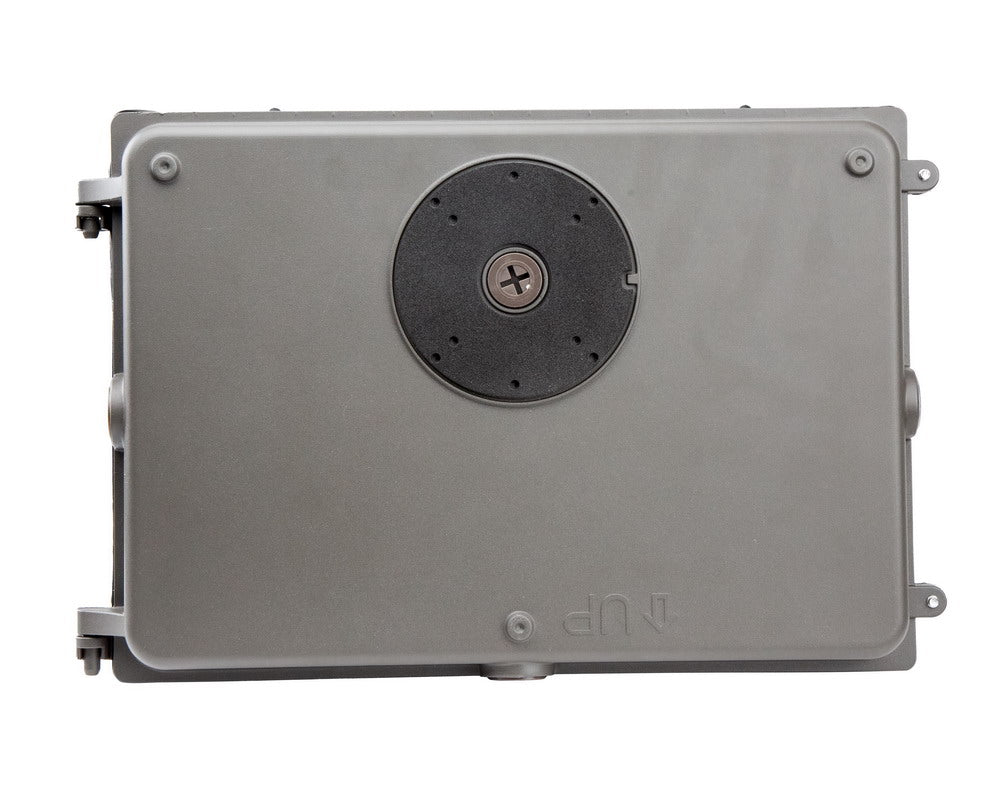

  • Back view of the NCLTG WallGuard Series LED Wall Pack Light showing durable housing and mounting design

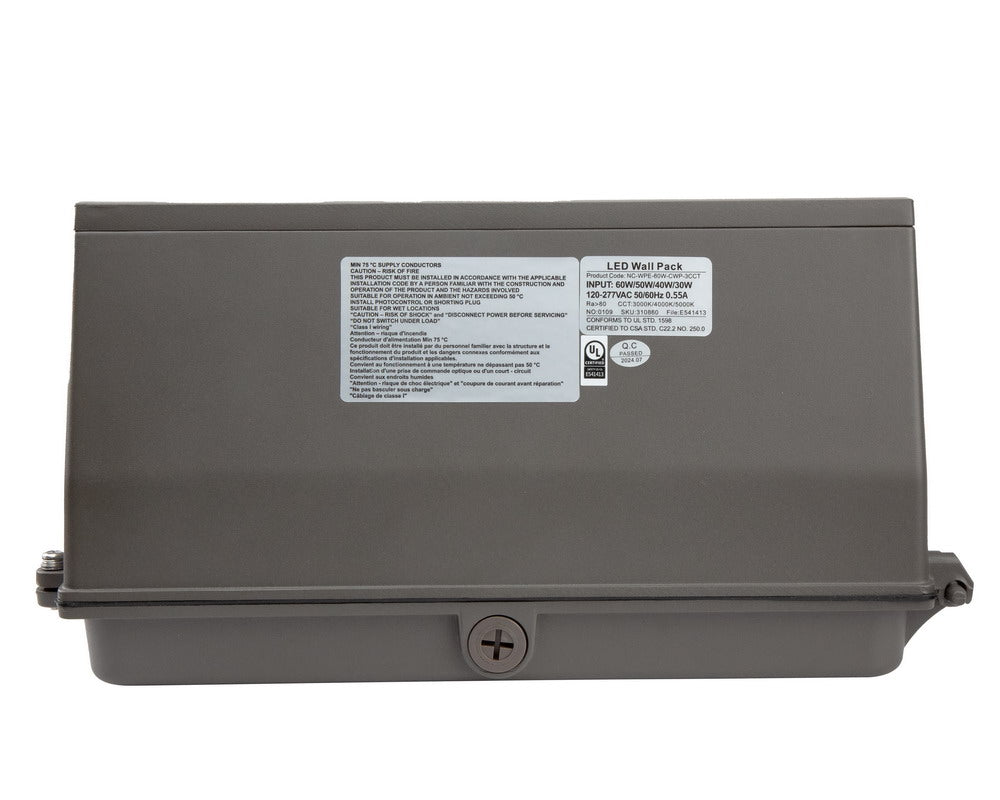

  • Top view of the NCLTG WallGuard Series LED Wall Pack Light displaying model and certification labels
  • Left side view of the NCLTG WallGuard Series LED Wall Pack Light showing the knockout for wiring access

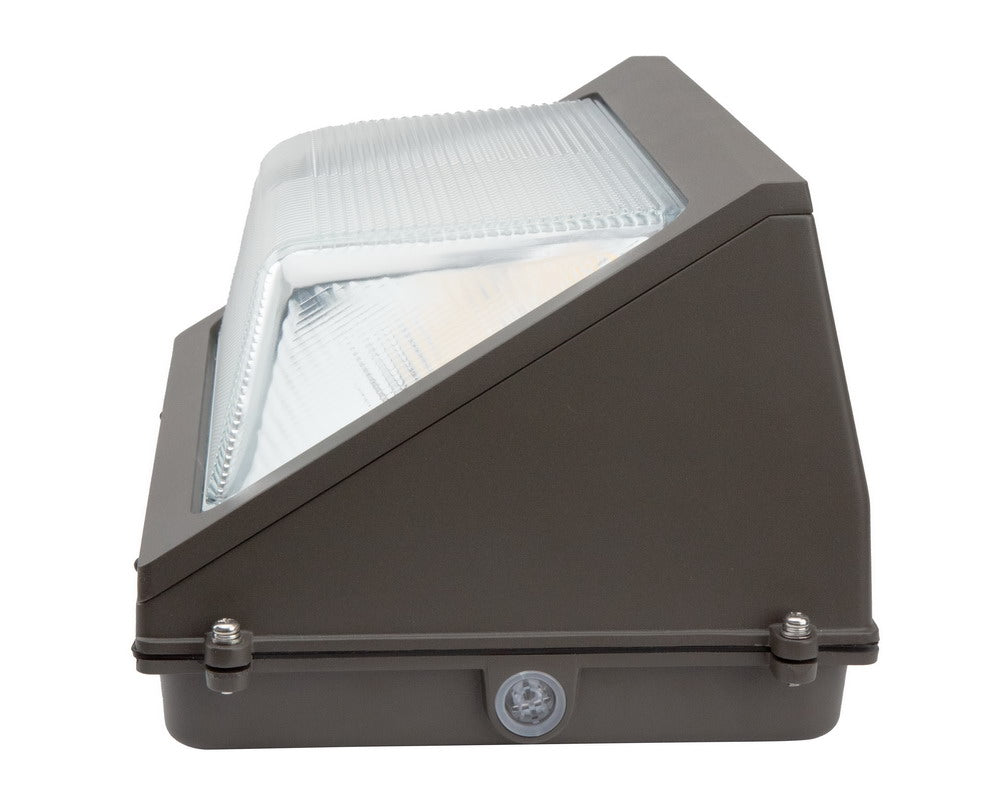

  • Right side view of the NCLTG WallGuard Series LED Wall Pack Light highlighting the knockout for electrical connections
  • Front view of the NCLTG WallGuard Series LED Wall Pack Light showing the lens and housing design
1 8

NCLTG

WallGuard Series LED Wall Pack Light – Power & CCT Select, 30W–60W, 4740–9471 Lumens, 3000K–5000K, 120–277V

WallGuard Series LED Wall Pack Light – Power & CCT Select, 30W–60W, 4740–9471 Lumens, 3000K–5000K, 120–277V

NCLTG WallGuard Series LED Wall Pack Light feature badges – 3-CCT selectable, 4-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specifications

Brand: NCLTG
Manufacturer Part Number (MPN): NC-WPE-60W-CWP-3CCT
Product Type: Wall Pack Light
Light Source: Integrated LED
Wattage/Lumen Options: 30W - 4740 Lumens, 40W - 6240 Lumens, 50W - 7600 Lumens, 60W - 9471 Lumens
Input Voltage: 120-277V
Efficacy: 139 to 158 lm/W
Current: 0.55A
Dimming: 0-10V
Color Temperature: 3000K, 4000K, 5000K
CRI: >80
Beam Angle: 120°
Power Factor: >0.9
THD: <20%
Certifications: UL Listed, DLC Premium Listed, IP65 Rated
Safety Rating: Suitable for Wet Locations
Special Features: Power Select Technology, CCT Select Technology
Lens Material: Glass
Housing Material: Die-Cast Aluminum
Finish: Bronze
Weight: 8.38 Lbs.
Dimensions: 14.2"L x 9.3"H x 7.3"D
Ambient Operating Temperature: -30°C/-22°F to 45°C/113°F
Lifespan: L70 @ >50,000 hrs @ 25°C/77°F fixture temperature
Warranty: 5 Years
Request Price
Specification Sheet IES File Installation Instructions
View full details

About the WallGuard Series LED Wall Pack Lights

The WallGuard Series LED Wall Pack Lights from NCLTG provide high-performance, energy-efficient illumination designed to improve outdoor security and visibility. Suitable for both commercial and residential applications, these fixtures are ideal for lighting parking lots, building exteriors, walkways, and other outdoor areas requiring durable and reliable lighting. Equipped with advanced technology and weather-resistant features, WallGuard Series lights offer customizable wattage and color temperature options, making them a versatile solution for all outdoor lighting needs.

Angled view of the NCLTG WallGuard Series LED Wall Pack Light showcasing its robust housing and lens design

Why Choose WallGuard Series LED Wall Pack Lights?

WallGuard Series LED Wall Pack Lights from NCLTG are engineered to deliver superior lighting performance in demanding outdoor environments. With adjustable wattages ranging from 30W to 120W and selectable color temperatures between 3000K and 5000K, these fixtures offer the flexibility to meet a wide range of lighting needs. Whether upgrading outdated fixtures or installing new outdoor lighting, WallGuard Series lights provide an energy-efficient solution that ensures long-lasting durability, reduced energy costs, and enhanced security.

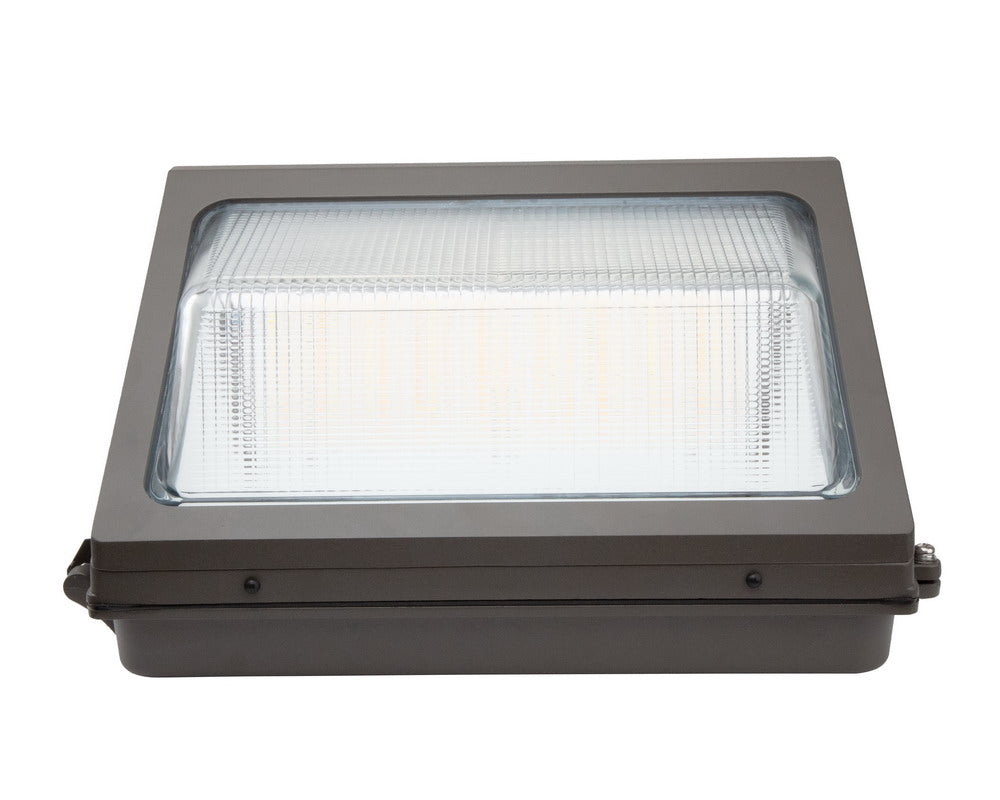

Front view of the NCLTG WallGuard Series LED Wall Pack Light showing the lens and housing design

Key Features of WallGuard Series LED Wall Pack Lights

  • Energy-Efficient Technology: Achieves up to 174 lumens per watt (lm/W), providing significant energy savings with bright, uniform illumination for large outdoor areas.
  • Customizable Wattage & Color Temperature: Offers selectable wattages from 30W to 120W and color temperatures between 3000K and 5000K for tailored lighting performance.
  • Weather-Resistant Construction: Built with a high-quality die-cast aluminum housing and rated IP65, these fixtures withstand harsh outdoor conditions including rain, snow, and extreme temperatures.
  • Long Lifespan: Provides up to 50,000 hours of reliable, maintenance-free operation.
  • Certified for Safety & Efficiency: UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with strict energy efficiency, safety, and durability standards.
  • Advanced Dimming Capabilities: Compatible with 0–10V dimming systems for flexible lighting control and enhanced energy savings.

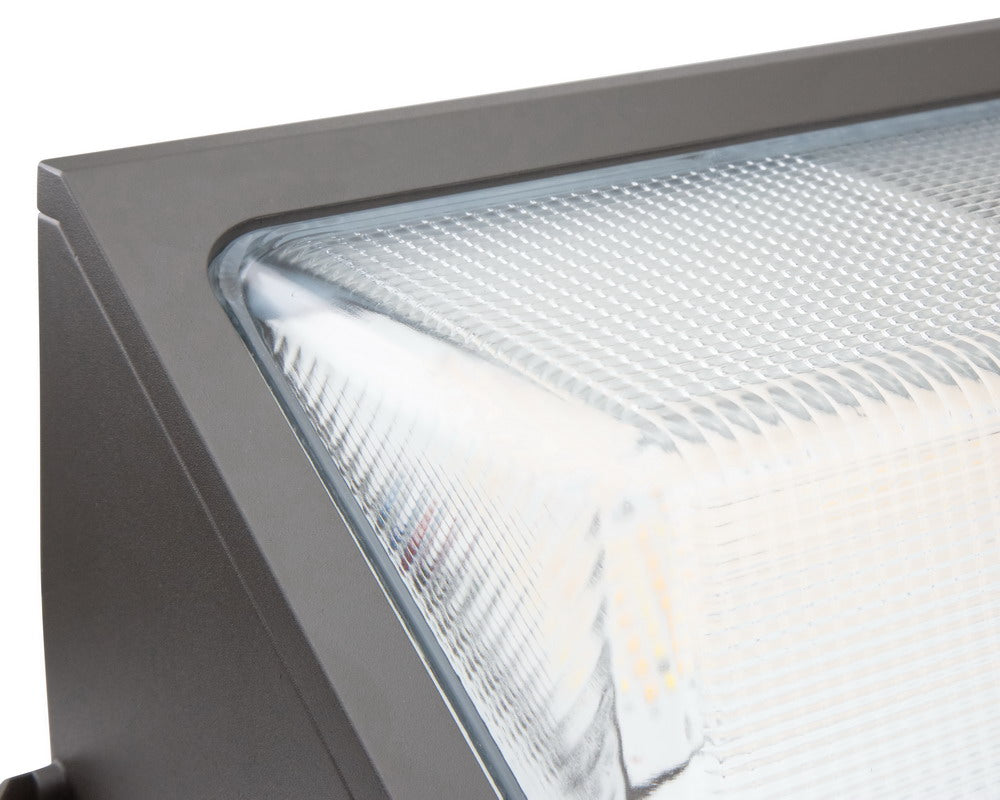

Close-up corner view of the NCLTG WallGuard Series LED Wall Pack Light highlighting the lens and construction details

Applications for WallGuard Series LED Wall Pack Lights

WallGuard Series LED Wall Pack Lights are ideal for a wide range of outdoor settings where bright, efficient illumination is essential, including:

  • Parking Lots: Enhance security and visibility with consistent, bright lighting for parking areas.
  • Building Exteriors: Improve safety and highlight architectural features around commercial and residential buildings.
  • Walkways & Pathways: Provide safe, clear visibility for pedestrians with well-lit walkways and pathways.
  • Commercial & Industrial Spaces: Illuminate yards, warehouses, and other commercial properties to boost safety and productivity.
  • Residential Applications: Perfect for home exteriors, driveways, and gardens, enhancing safety and curb appeal.
Left side view of the NCLTG WallGuard Series LED Wall Pack Light showing the knockout for wiring access

Why WallGuard Series LED Wall Pack Lights Stand Out

Combining energy-efficient technology, customizable settings, and rugged construction, WallGuard Series LED Wall Pack Lights deliver superior outdoor illumination. Designed to reduce energy consumption and provide long-term reliability, these fixtures are the top choice for both commercial and residential applications.

WallGuard Series LED Wall Pack Light FAQs

What Are WallGuard Series LED Wall Pack Lights?

WallGuard Series LED Wall Pack Lights are high-quality outdoor fixtures designed to deliver bright, uniform illumination for exterior spaces. Ideal for lighting parking lots, walkways, and building exteriors, these fixtures suit both commercial and residential outdoor environments.

Where Can WallGuard Series LED Wall Pack Lights Be Used?

WallGuard Series LED Wall Pack Lights are suitable for a wide range of outdoor environments, including:

  • Parking lots
  • Building exteriors
  • Walkways and pathways
  • Commercial and industrial properties
  • Residential homes and gardens

How Do I Choose the Right Wattage and Color Temperature for WallGuard Series LED Wall Pack Lights?

Select wattage and color temperature based on your space’s size and purpose. Higher wattages (80W to 120W) are suited for larger areas like parking lots, while 30W to 60W models work well in smaller spaces. For color temperature, 4000K to 5000K delivers bright white light ideal for security applications, whereas 3000K provides a warmer glow suitable for residential or customer-facing environments.

Are WallGuard Series LED Wall Pack Lights Dimmable?

Yes, WallGuard Series LED Wall Pack Lights are compatible with 0–10V dimming systems, allowing for adjustable light control to optimize energy savings while maintaining effective outdoor illumination.

What Certifications Do WallGuard Series LED Wall Pack Lights Have?

WallGuard Series LED Wall Pack Lights are UL listed, DLC Premium certified, and IP65 rated, ensuring compliance with stringent standards for energy efficiency, safety, and durability in outdoor applications.

How Do I Install WallGuard Series LED Wall Pack Lights?

WallGuard Series LED Wall Pack Lights include all necessary mounting hardware for straightforward installation on exterior walls. Installation options include direct mounting or surface mounting, with additional accessories such as brackets and extension arms available to facilitate installation in high or hard-to-reach locations.

Interested in Pricing or Distribution Opportunities?

If you are an electrical distributor, lighting supplier, or trade professional interested in pricing, volume quotes, or adding the WallGuard Series LED Wall Pack Lights to your product lineup, please contact us through our Partner Program. Our team is ready to provide expert support and tailored solutions to meet your business needs.
