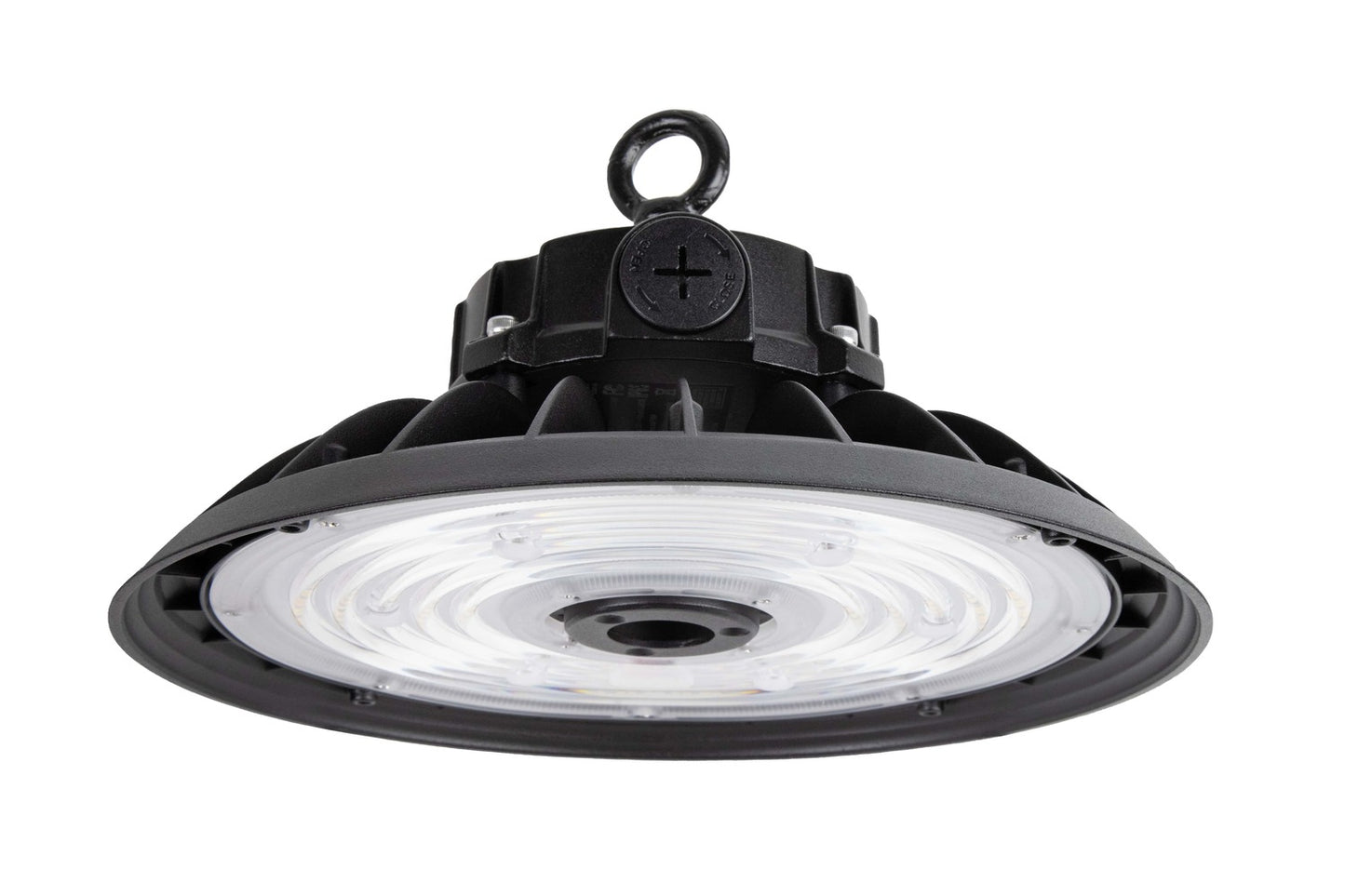

• NCLTG Halo X Series LED UFO High Bay Light showcasing compact round design with high-output LED array for industrial and commercial lighting applications
  • Rear view of NCLTG Halo X Series LED UFO High Bay Light featuring durable ring mount and 6-foot whip for flexible industrial installation

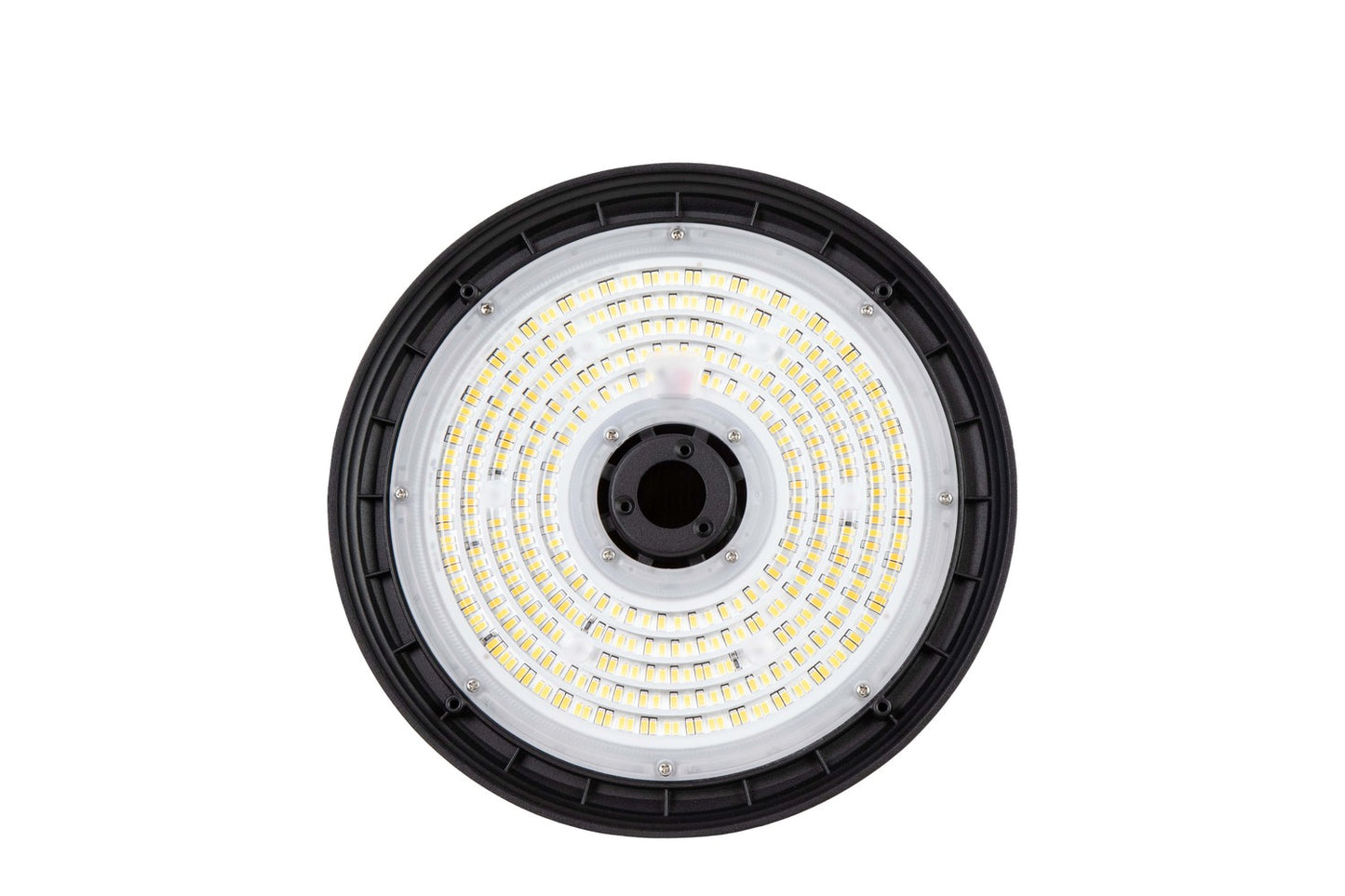

  • Bottom detailed view of the NCLTG Halo X Series LED UFO High Bay Light showcasing the precision-engineered lens for uniform, high-output illumination

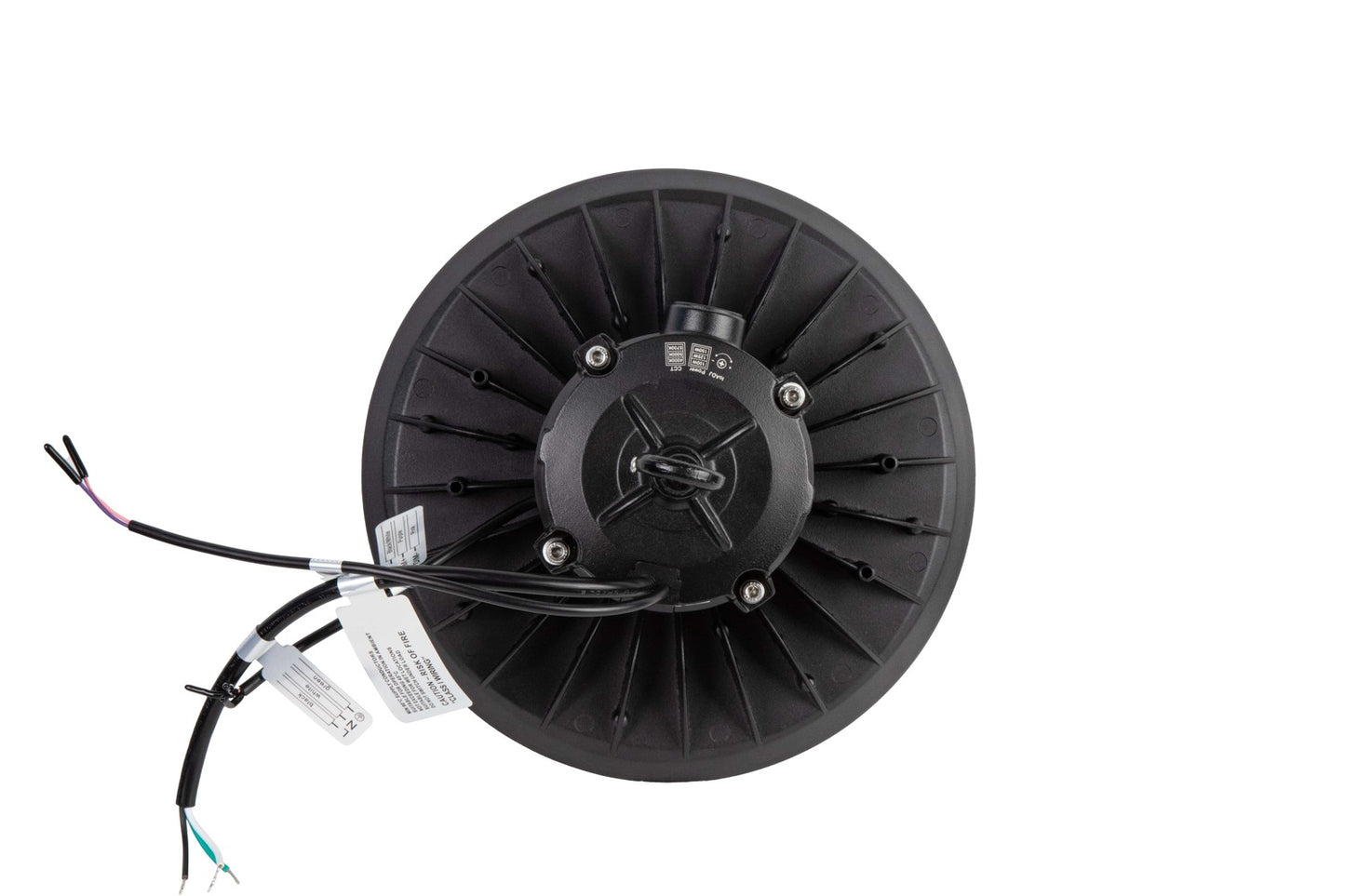

  • Top view of the NCLTG Halo X Series LED UFO High Bay Light highlighting the ring mount and 0–10V dimming wires for easy installation and control

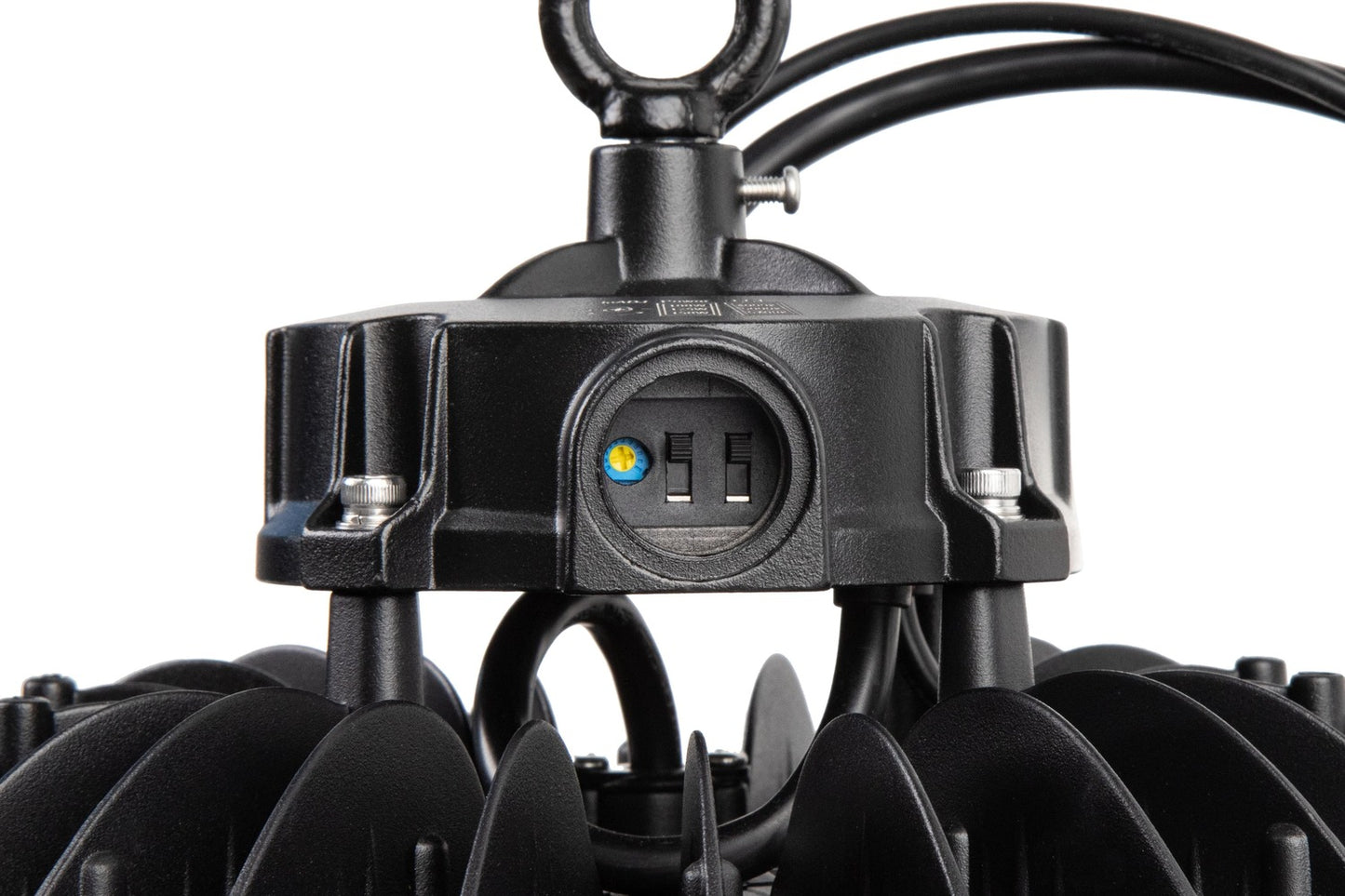

  • Detailed view of the NCLTG Halo X Series LED UFO High Bay Light showing wattage and CCT selectable DIP switches for customizable lighting settings

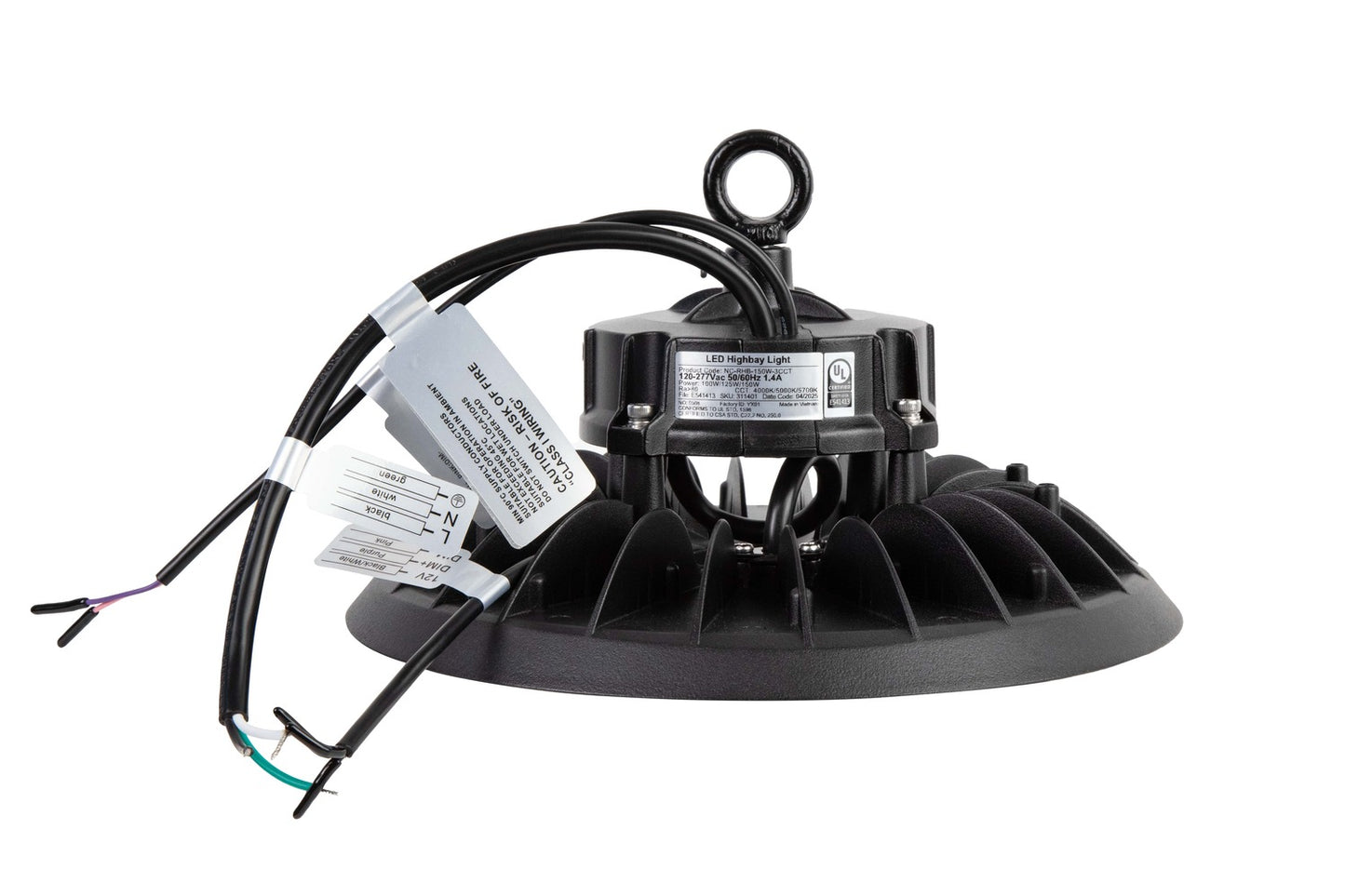

  • Side view of the NCLTG Halo X Series LED UFO High Bay Light highlighting its low-profile design and durable die-cast aluminum housing

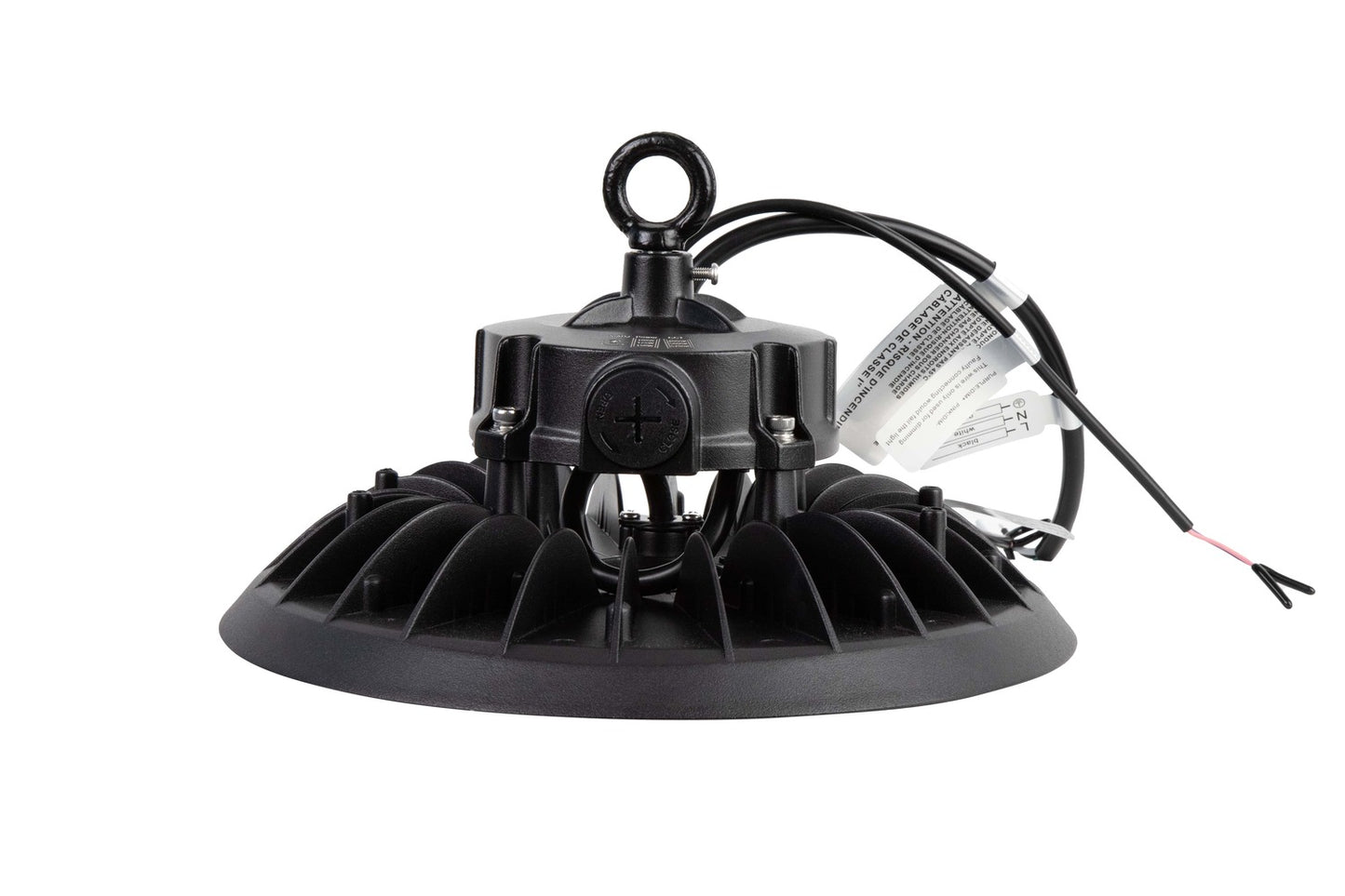

  • Alternate side view of the NCLTG Halo X Series LED UFO High Bay Light with visible whip and 0–10V dimming wires positioned on the right side
1 7

NCLTG

Halo X Series LED UFO High Bay Light – Power & CCT Select, 100W–150W, 15000–22500 Lumens, 3500K–5000K, 120–277V

Halo X Series LED UFO High Bay Light – Power & CCT Select, 100W–150W, 15000–22500 Lumens, 3500K–5000K, 120–277V

Badges for NCLTG Halo X LED UFO High Bay showing 3CCT selector, 3 wattage selector, 0–10V dimmable compatibility, sensor ready design, DLC Premium listing, and UL certification

Specifications

Brand: NCLTG
Manufacturer Part Number (MPN): NC-RHB-150W-3CCT
Product Type: High Bay Light
Light Source: Integrated LED
Wattage/Lumen Options: 100W - 15000 Lumens, 125W - 18750 Lumens, 150W - 22500 Lumens
Input Voltage: 120-277V
Efficacy: 150 lm/W
Current: 1.4A
Dimming: 0-10V
Color Temperature: 4000K, 5000K, 5700K
CRI: >80
Power Factor: >0.9
THD: <20%
Certifications: UL Listed, DLC Premium Listed
Safety Rating: Suitable for Wet Locations
Special Features: Power Select Technology, CCT Select Technology
Lens Material: Polycarbonate
Housing Material: Die-Cast Aluminum
Finish: Black
Dimensions: 10.2"D x 4.6"H
Ambient Operating Temperature: -40°F to 113°F (-40°C to 45°C)
Lifespan: L70 @ >50,000 hrs
Warranty: 5 Years
Request Price
Specification Sheet Installation Instructions
View full details

About the Halo X Series LED UFO High Bay Lights

The Halo X Series LED UFO High Bay Lights from NCLTG deliver powerful, energy-efficient illumination engineered for the most demanding commercial and industrial environments. Featuring advanced Power Select and CCT Select technology, these compact fixtures provide exceptional flexibility, high performance, and long-term reliability. Ideal for warehouses, gymnasiums, production floors, and large retail spaces, the Halo X Series ensures bright, uniform lighting while helping to significantly reduce energy costs.

NCLTG Halo X Series LED UFO High Bay Light showcasing compact round design with high-output LED array for industrial and commercial lighting applications

Why Choose Halo X Series LED UFO High Bay Lights?

Halo X Series LED UFO High Bay Lights combine cutting-edge LED technology with rugged construction, making them an excellent choice for both new installations and retrofit projects. Equipped with field-selectable wattages and multiple color temperature options, these fixtures allow contractors and facility managers to customize lighting output to meet the specific needs of any space. Their die-cast aluminum housing and IP-rated protection ensure long-lasting durability in harsh environments, while high luminous efficacy delivers superior energy savings without compromising brightness.

Bottom detailed view of the NCLTG Halo X Series LED UFO High Bay Light showcasing the precision-engineered lens for uniform, high-output illumination

Key Features of Halo X Series LED UFO High Bay Lights

  • Exceptional Lumen Output: Models deliver up to 36,000 lumens, providing powerful and uniform illumination for large commercial and industrial spaces.
  • Selectable Wattage and CCT: Field-adjustable settings allow wattage selection from 100W to 240W and color temperatures from 4000K to 5700K, offering flexibility for various applications.
  • High Efficiency: Achieves an efficacy of up to 150 lm/W, maximizing light output while minimizing energy consumption.
  • Durable Design: Built with a die-cast aluminum housing and a polycarbonate lens to withstand demanding industrial environments.
  • Wet Location Rated: UL listed for wet locations, ensuring reliable operation in a wide range of conditions.
  • DLC Premium Certified: Meets stringent energy-efficiency standards and qualifies for utility rebate programs.
Top view of the NCLTG Halo X Series LED UFO High Bay Light highlighting the ring mount and 0–10V dimming wires for easy installation and control

Applications for Halo X Series LED UFO High Bay Lights

The Halo X Series LED UFO High Bay Lights are ideal for illuminating large, high-ceiling spaces where bright, consistent lighting is essential. Their compact UFO design simplifies installation while maintaining a clean, modern appearance. Common applications include:

  • Warehouses and Logistics Centers: Provide high visibility to enhance safety and efficiency in storage, shipping, and receiving areas.
  • Manufacturing Facilities: Deliver bright, uniform lighting to improve productivity and reduce workplace accidents on production floors.
  • Gymnasiums and Sports Arenas: Offer glare-free illumination that supports clear visibility during sporting events and activities.
  • Large Retail Spaces: Enhance product visibility and create a welcoming shopping environment while reducing energy costs.
  • Commercial Buildings: Suitable for exhibition halls, aircraft hangars, and other high-ceiling applications requiring powerful, energy-efficient illumination.
Detailed view of the NCLTG Halo X Series LED UFO High Bay Light showing wattage and CCT selectable DIP switches for customizable lighting settings

Why Halo X Series LED UFO High Bay Lights Stand Out

Featuring a compact design, powerful lumen output, and flexible configuration options, Halo X Series LED UFO High Bay Lights provide an advanced lighting solution for industrial and commercial environments. These fixtures deliver premium light quality while offering significant energy savings, making them a dependable choice for any high-ceiling application.

Halo X Series LED UFO High Bay Light FAQs

What Is a Halo X Series LED UFO High Bay Light?

The Halo X Series LED UFO High Bay Light is a round, compact fixture engineered to provide powerful illumination for large, open spaces with high ceilings. Its streamlined UFO design ensures efficient light distribution, easy installation, and superior performance in demanding environments.

Where Can Halo X Series LED UFO High Bay Lights Be Installed?

Halo X Series LED UFO High Bay Lights are perfect for a variety of high-ceiling applications where bright, uniform lighting is essential. Common installation locations include:

  • Warehouses and distribution centers
  • Manufacturing and assembly areas
  • Gymnasiums and sports facilities
  • Retail and commercial buildings
  • Any industrial environment requiring powerful illumination

Are Halo X Series LED UFO High Bay Lights Dimmable?

Yes, Halo X Series LED UFO High Bay Lights are compatible with 0–10V dimming systems, allowing users to customize light levels as needed while achieving additional energy savings.

Do Halo X Series LED UFO High Bay Lights Qualify for Rebates?

Yes, Halo X Series LED UFO High Bay Lights are DLC Premium listed, making them eligible for many energy rebate programs. This certification helps reduce overall project costs while ensuring the fixtures meet high energy-efficiency standards.

How Easy Are Halo X Series LED UFO High Bay Lights to Install?

Halo X Series LED UFO High Bay Lights are designed for quick and straightforward installation. They feature a versatile mounting system compatible with hooks, chains, and brackets, making them easy to install in a wide range of industrial and commercial settings.
