NCLTG

TitanBeam Series Selectable LED Flood Light – 5W/10W/15W, 650–1950 Lumens, 3000K–5000K, 120–277V

TitanBeam Series Selectable LED Flood Light – 5W/10W/15W, 650–1950 Lumens, 3000K–5000K, 120–277V

NCLTG TitanBeam Series LED Flood Light feature badges – 3-CCT selectable, 3-wattage adjustable, 0–10V dimmable, DLC Premium listed, sensor ready, UL listed

Specifications

Brand: NCLTG
Manufacturer Part Number (MPN): NC-FL01G-15W-3CCT
Product Type: Flood Light
Light Source: Integrated LED
Wattage/Lumen Options: 5W - 650 Lumens, 10W - 1300 Lumens, 15W - 1950 Lumens
Input Voltage: 120-277V
Efficacy: 130 lm/W
Current: 0.14A
Dimming: 0-10V
Color Temperature: 3000K, 4000K, 5000K
CRI: >80
Power Factor: >0.9
THD: <20%
Certifications: UL Listed, DLC Premium Listed
Safety Rating: Suitable for Wet Locations
Special Features: Power Select Technology, CCT Select Technology
Lens Material: Polycarbonate
Housing Material: Die-Cast Aluminum
Finish: Black
Dimensions: 16.63"W x 8.66"H x 2.07"D
Ambient Operating Temperature: -22°F to 113°F (-30°C to 45°C)
Lifespan: L70 @ >50,000 hrs
Warranty: 5 Years
Request Price View full details

About the TitanBeam Series LED Flood Lights

The TitanBeam Series LED Flood Lights from NCLTG are engineered to provide targeted, high-performance illumination for a variety of outdoor commercial and architectural applications. Featuring selectable wattage and color temperature options, these flood lights offer exceptional flexibility, energy efficiency, and reliable performance in a compact, durable design. Whether illuminating building façades, signage, walkways, or landscapes, the TitanBeam Series delivers clean, uniform lighting with long-term efficiency and minimal maintenance requirements.

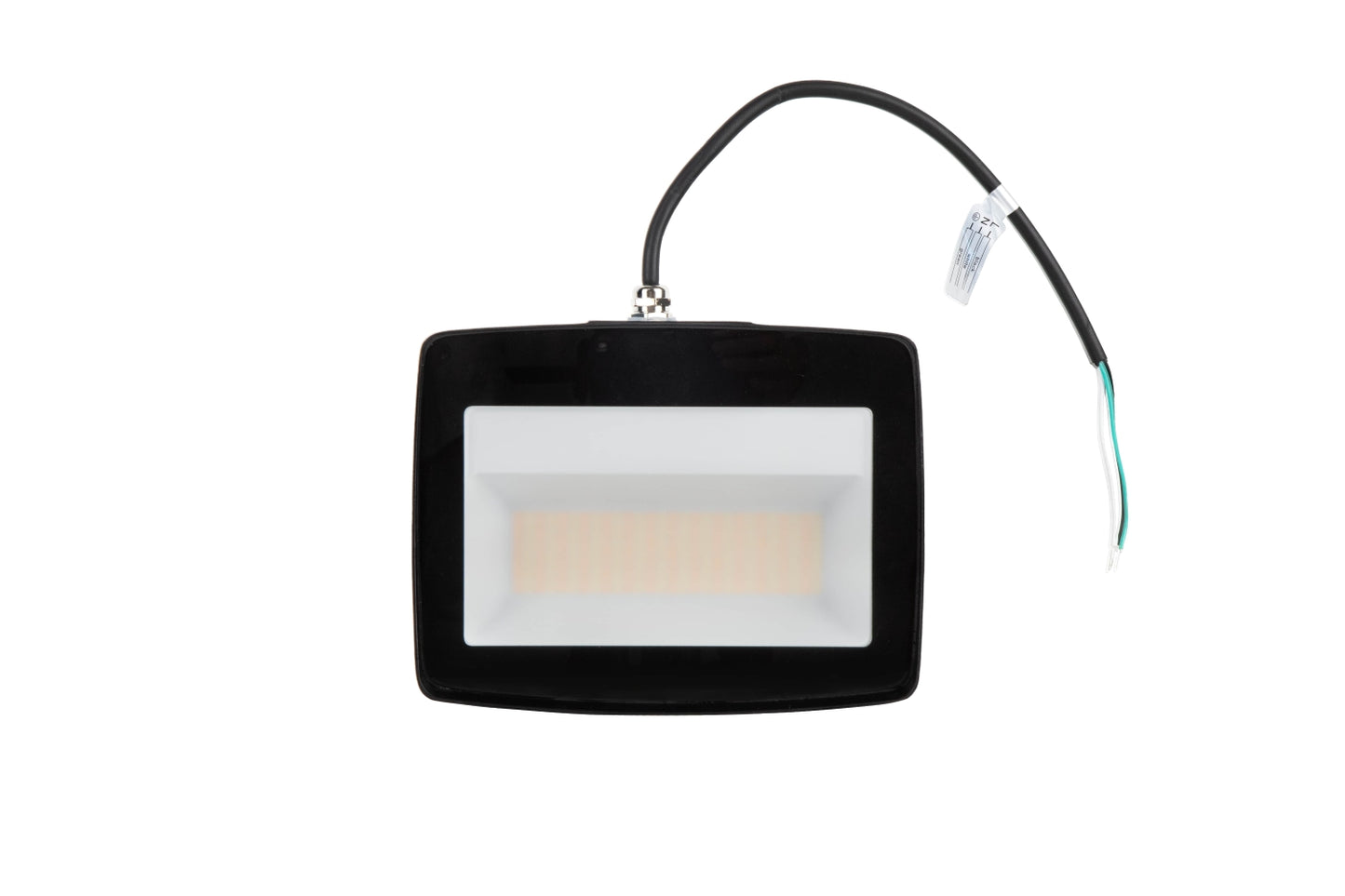

Front view of the NCLTG TitanBeam Series LED flood light showing its compact design and durable housing

Why Choose TitanBeam Series LED Flood Lights?

At NCLTG, our outdoor lighting solutions combine rugged durability with precise performance. The TitanBeam Series LED Flood Lights are engineered to meet the demanding needs of contractors, distributors, and commercial property managers. With selectable output levels ranging from 5W to 120W, tunable color temperatures, and compatibility with advanced lighting controls, these flood lights simplify project planning while maximizing reliability and energy efficiency.

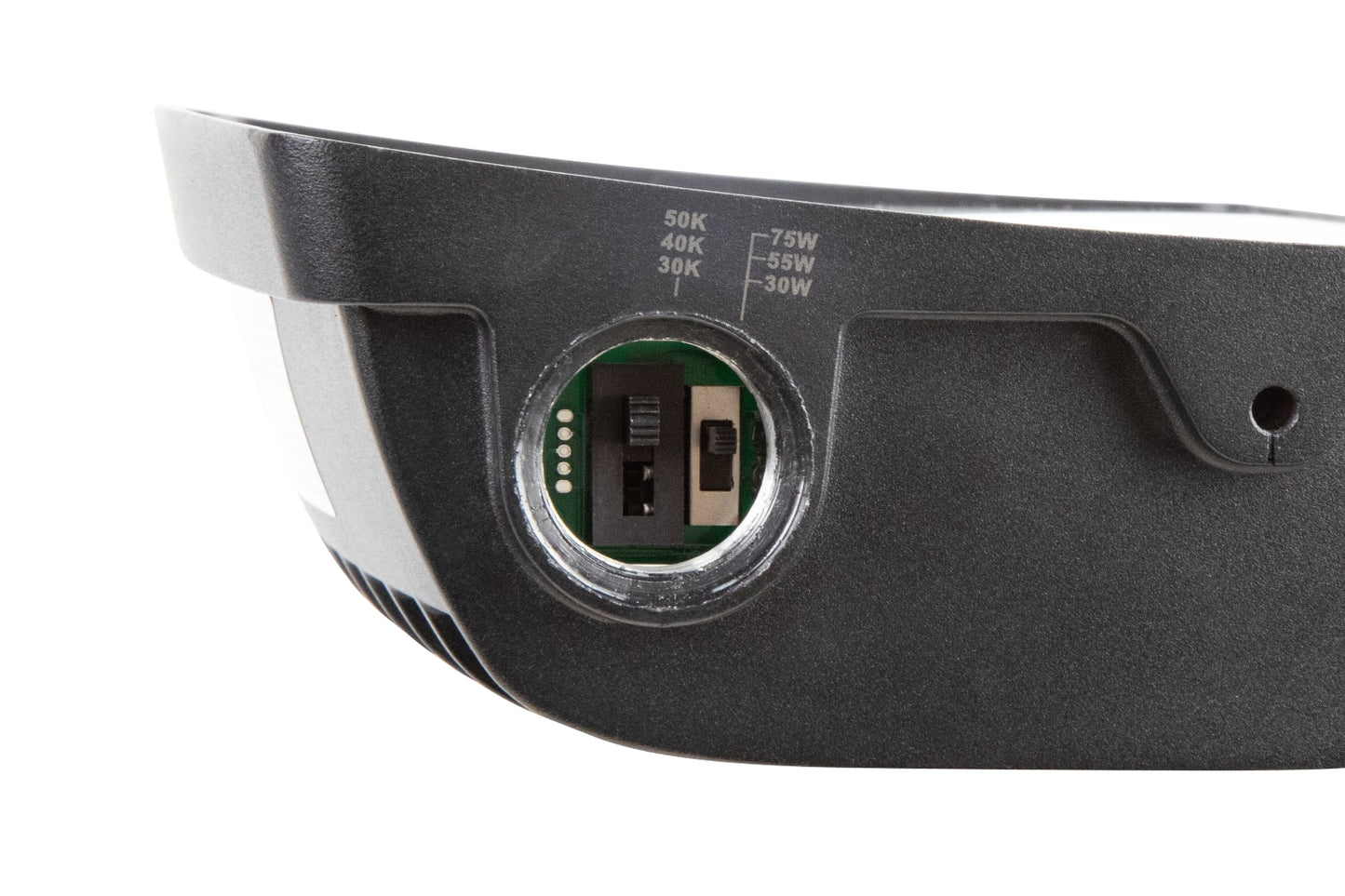

Up-close view of the NCLTG TitanBeam Series flood light highlighting the wattage and CCT selectable DIP switches

Key Features of TitanBeam Series LED Flood Lights

  • Selectable Wattage: Each model includes a built-in power switch with wattage configurations ranging from 5W–15W up to 75W–120W, allowing field adjustment to meet specific brightness needs.
  • Tunable Color Temperature: Choose from 3000K, 4000K, or 5000K CCT settings to align lighting with site aesthetics and functional requirements.
  • High Lumen Output: Depending on the model, TitanBeam flood lights deliver up to 15,600 lumens for optimal visibility in architectural and security applications.
  • Compact & Durable Housing: Built with die-cast aluminum and a high-transmittance glass lens, each fixture is IP65 rated and IK06 impact resistant, ensuring durability in harsh outdoor conditions.
  • Advanced Lighting Controls: Supports 0–10V dimming and is compatible with optional photocell sensors for automated dusk-to-dawn operation.
  • Long-Term Performance: Rated for L70 at over 50,000 hours of operation at 25°C, reducing maintenance requirements and total lifecycle costs.

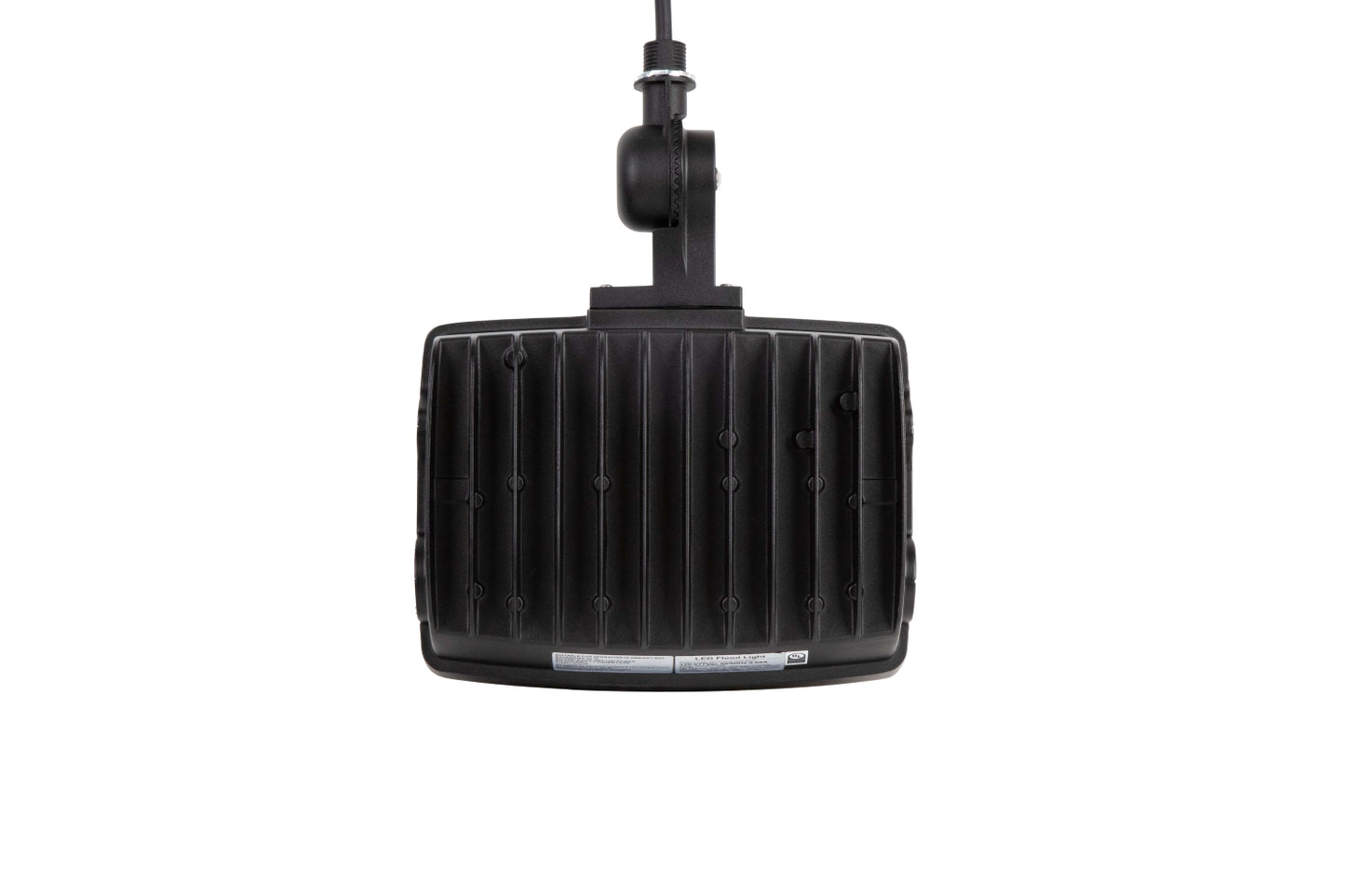

Upside-down back view of the NCLTG TitanBeam Series flood light highlighting its heat-dissipating fins for improved thermal management

Applications for TitanBeam Series LED Flood Lights

TitanBeam Series LED Flood Lights are designed for a variety of commercial, industrial, and architectural applications where focused, reliable lighting is essential. Common uses include:

  • Building Façade Lighting: Enhance architectural features and improve signage visibility with crisp, directional illumination.
  • Security & Perimeter Lighting: Increase safety and deter trespassing by illuminating dark areas with dependable flood lighting.
  • Landscape & Accent Lighting: Highlight trees, gardens, sculptures, and exterior walls using precise beam control.
  • Pathways & Walkways: Provide uniform, glare-free lighting to ensure safe pedestrian movement along sidewalks and building perimeters.
  • Signage & Branding Illumination: Showcase business signage and outdoor displays with consistent, high-clarity lighting.

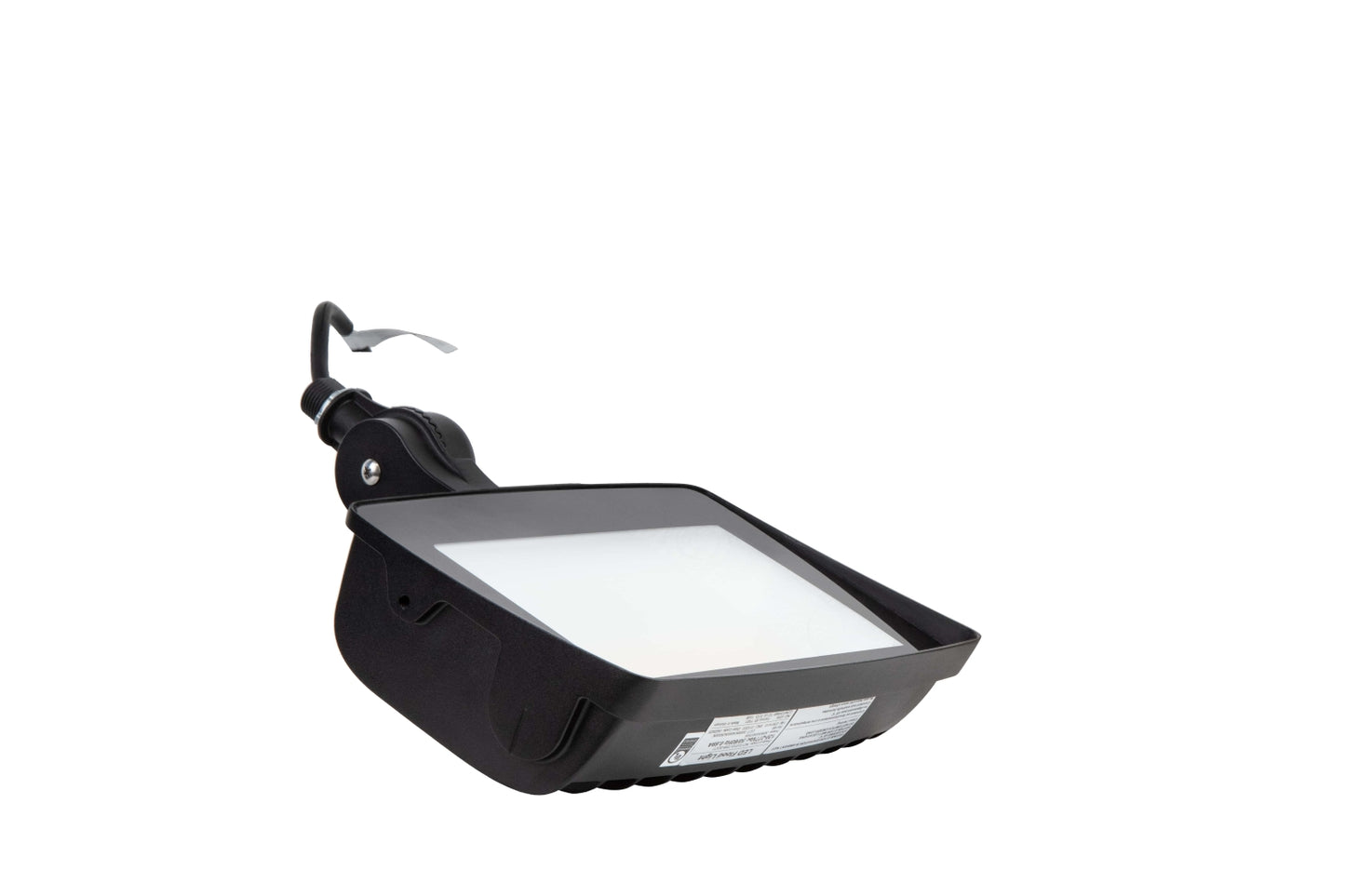

Angled upside-down view of the NCLTG TitanBeam Series flood light showing the lens and adjustable knuckle mount

Why TitanBeam Series LED Flood Lights Stand Out

What sets NCLTG apart is a commitment to flexibility, quality, and contractor-focused design. TitanBeam Series LED Flood Lights offer superior control with universal voltage compatibility (120–277V) and performance ratings that exceed commercial requirements. Featuring multiple power ranges and a compact footprint, the TitanBeam Series adapts seamlessly to nearly any installation, delivering precise lighting exactly where it’s needed without complicating the process.

TitanBeam Series LED Flood Light FAQs

What Are TitanBeam Series LED Flood Lights Used For?

TitanBeam Series LED Flood Lights provide wide-beam, high-intensity illumination for outdoor areas including building façades, landscapes, signage, and security zones. They are ideal for accentuating architectural features and enhancing visibility in low-light or dark environments.

What Wattage Options Are Available for TitanBeam Series LED Flood Lights?

The TitanBeam Series offers four selectable wattage configurations: 5W/10W/15W, 15W/30W/55W, 30W/55W/75W, and 75W/100W/120W, providing precise control over brightness and energy consumption.

Can I Adjust the Color Temperature of TitanBeam Series LED Flood Lights?

Yes, every TitanBeam Series model features a CCT selectable switch with options for 3000K, 4000K, and 5000K, enabling you to customize the color temperature to suit your project’s visual preferences and environment.

Are TitanBeam Series LED Flood Lights Weatherproof?

Absolutely. TitanBeam Series LED Flood Lights are IP65 rated for outdoor use and UL listed for wet locations. Their robust construction ensures they withstand exposure to rain, wind, dust, and impact, making them ideal for harsh outdoor conditions.

Do TitanBeam Series LED Flood Lights Support Dimming or Motion Control?

Yes, all TitanBeam Series models are compatible with 0–10V dimming systems and support optional photocell sensors for dusk-to-dawn operation or integration with smart lighting controls.

How Long Do TitanBeam Series LED Flood Lights Last?

TitanBeam Series LED Flood Lights are rated for over 50,000 hours of maintenance-free operation, supported by NCLTG's commitment to quality engineering and proven field durability.

Are TitanBeam Series LED Flood Lights Easy to Install?

Yes, with a compact profile measuring 16.63" x 8.66" x 2.07" and universal mounting options, TitanBeam Series LED Flood Lights offer straightforward installation for both retrofit and new construction projects.

Interested in Pricing or Distribution Opportunities?

If you are an electrical distributor, lighting supplier, or trade professional interested in pricing, volume quotes, or adding the TitanBeam Series LED Flood Lights to your product offerings, please contact us through our Partner Program. Our team is ready to provide expert support and customized solutions to meet your business needs.
