The CPS Series Large LED Canopy Light by NCLTG offers a high-performance, energy-efficient lighting solution designed for outdoor and covered areas like parking garages, gas stations, and commercial entryways. With selectable wattages of 40W, 60W, and 75W and customizable color temperatures ranging from 3000K to 5000K, this fixture provides reliable illumination and long-lasting durability. Built to withstand harsh outdoor conditions, it ensures optimal performance and reduces energy consumption, making it a perfect choice for various lighting applications.
Couldn't load pickup availability
Interested in Pricing or Distribution Opportunities?
If you are an electrical distributor, lighting supply house, or trade professional interested in pricing, volume quotes, or adding this product to your line card, please contact us through our Partner Program.
Key Features & Benefits
- Adjustable wattage options (40W, 60W, 75W) and selectable color temperatures (3000K, 4000K, 5000K) offer flexibility to meet specific outdoor lighting needs.
- Ideal for high-traffic outdoor and covered areas such as parking garages, gas stations, and commercial entryways, providing bright and efficient illumination.
- Constructed with durable die-cast aluminum housing, making it weather-resistant and capable of withstanding harsh outdoor conditions.
- IP65 rated and UL certified for wet locations, ensuring reliable performance in rain, snow, and extreme temperatures.
- Equipped with Power Select and CCT Select technologies, allowing for adjustable brightness and color temperature to suit different environments.
- Provides up to 11,127 lumens at an efficacy of 134 to 160 lm/W, ensuring high light output while maintaining energy efficiency.
- Wide 145° light distribution pattern ensures optimal coverage, making it ideal for large outdoor areas and enhancing security and visibility.
- Offers dimming capabilities (0-10V) for flexible control over lighting intensity and energy savings.
- The 5-year warranty guarantees long-lasting performance and peace of mind for outdoor applications.
Description
xThe NCLTG CPS Series Large LED Canopy Light is a high-performance lighting solution designed for outdoor and covered areas, delivering bright and energy-efficient illumination. Featuring selectable wattages (40W, 60W, and 75W) and color temperature options (3000K, 4000K, and 5000K), this canopy light is ideal for applications such as parking garages, gas stations, and commercial entryways. Built to withstand harsh outdoor conditions, the NCLTG CPS Series ensures long-lasting durability and customizable lighting for a variety of outdoor environments.
Why Choose the NCLTG CPS Series Large LED Canopy Light?
The NCLTG CPS Series Large LED Canopy Light is engineered to provide superior lighting for high-traffic, outdoor, and covered spaces. With wattage options ranging from 40W to 75W and color temperatures from 3000K to 5000K, it offers the flexibility needed for various installations. Whether replacing outdated lights or installing new fixtures, this energy-efficient solution guarantees optimal performance, reduced energy costs, and enhanced safety.
Durable and Weather-Resistant Construction

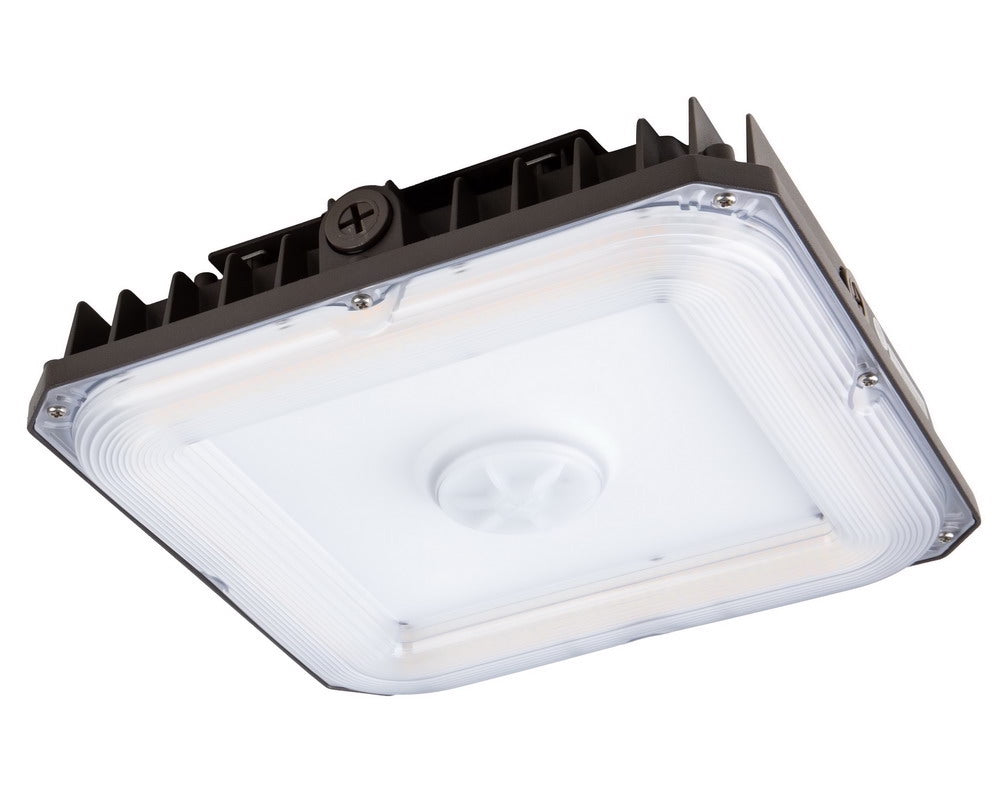

Designed with heavy-duty die-cast aluminum housing, the NCLTG CPS Series Large LED Canopy Light is built to endure demanding outdoor conditions. Featuring an IP65 rating and UL certification for wet locations, this fixture can withstand rain, snow, and extreme temperatures. Its rugged design ensures reliable performance for years to come, reducing the need for frequent maintenance.
Customizable Brightness and Color Temperature

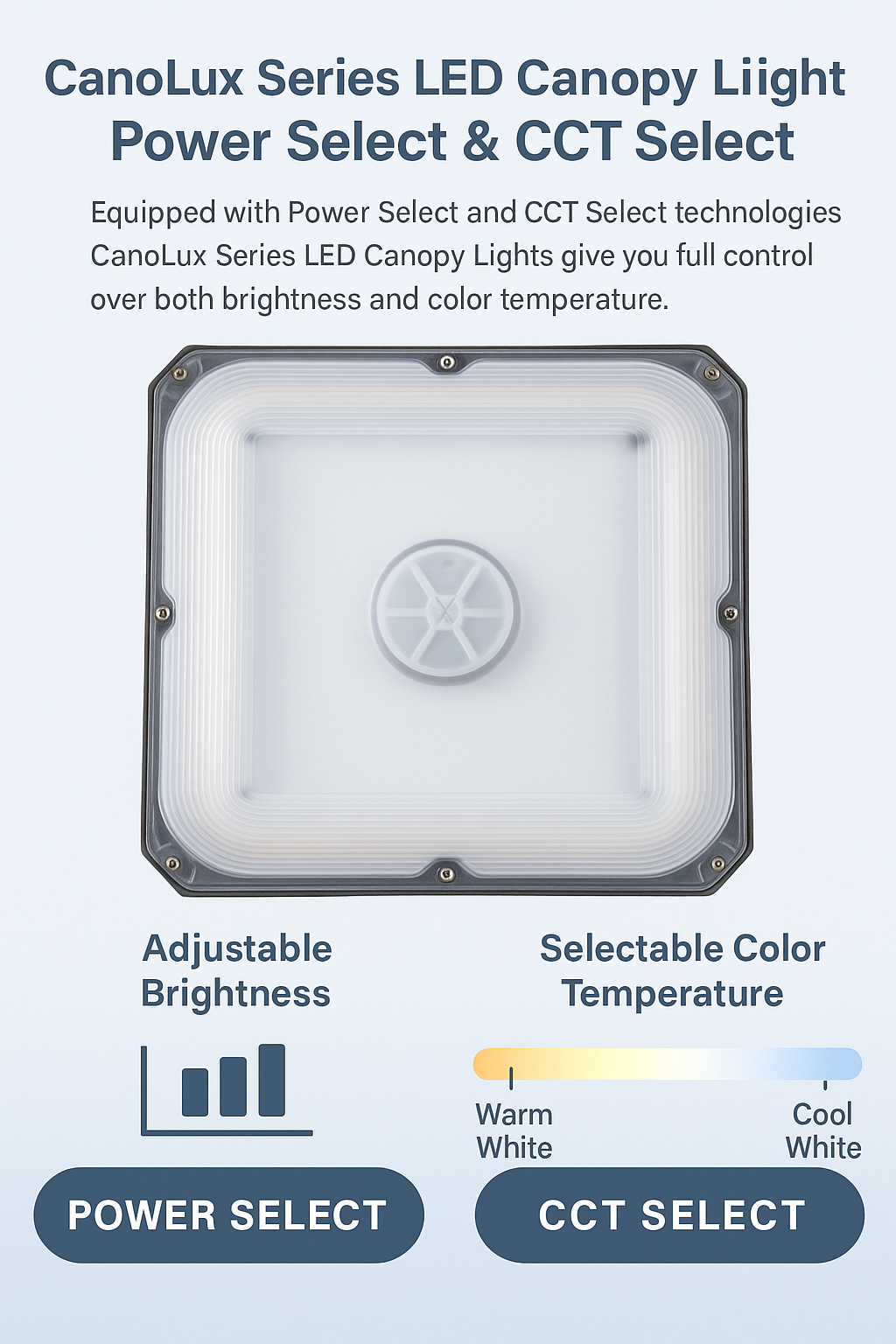

Equipped with Power Select and CCT Select technologies, the NCLTG CPS Series Large LED Canopy Light allows you to adjust both brightness and color temperature to suit your specific lighting needs. Whether you require a warmer tone for residential or commercial spaces or a cooler tone for enhanced visibility and security, this fixture offers complete flexibility to meet various outdoor lighting demands.
Specifications
x| Brand: | NCLTG |
| Manufacturer Part Number (MPN): | NC-CPS-75W-3CCT |
| Product Type: | Canopy Light |
| Light Source: | Integrated LED |
| Wattage/Lumen Options: | 40W - 6880 Lumens, 60W - 9200 Lumens, 75W - 11127 Lumens |
| Input Voltage: | 120-277V |
| Efficacy: | 134 to 160 lm/W |
| Current: | 0.69A |
| Dimming: | 0-10V |
| Color Temperature: | 3000K, 4000K, 5000K |
| CRI: | >80 |
| Light Distribution Pattern: | 145° |
| Power Factor: | >0.95 |
| THD: | <20% |
| Certifications: | UL Listed, DLC Premium Listed, IP65 Rated |
| Safety Rating: | Suitable for Wet Locations |
| Special Features: | Power Select Technology, CCT Select Technology, Built-In Photocell |
| Lens Material: | Polycarbonate |
| Housing Material: | Die-Cast Aluminum |
| Finish: | Bronze |
| Weight: | 4.63 Lbs. |
| Dimensions: | 10"L x 10"W x 2.75"H |
| Ambient Operating Temperature: | -30°C/-22°F to 50°C/122°F |
| Lifespan: | L70 @ >50,000 hrs @ 25°C/77°F fixture temperature |
| Warranty: | 5 Years |
FAQs
xWhat wattage options are available for the NCLTG CPS Series Large LED Canopy Light?
The NCLTG CPS Series Large LED Canopy Light is available in three wattage options: 40W, 60W, and 75W, providing flexibility for various outdoor and covered lighting needs.
What color temperature options are available for the NCLTG CPS Series Large LED Canopy Light?
This fixture offers three selectable color temperatures: 3000K, 4000K, and 5000K, allowing you to choose the ideal light for your environment.
Is the NCLTG CPS Series Large LED Canopy Light suitable for wet locations?
Yes, the NCLTG CPS Series Large LED Canopy Light is UL certified for wet locations and IP65 rated, ensuring it performs reliably in outdoor conditions like rain and snow.
Can the NCLTG CPS Series Large LED Canopy Light be dimmed?
Yes, this canopy light supports 0-10V dimming, allowing you to adjust the brightness to your needs, enhancing energy efficiency and optimizing light output.
What materials are used in the construction of the NCLTG CPS Series Large LED Canopy Light?

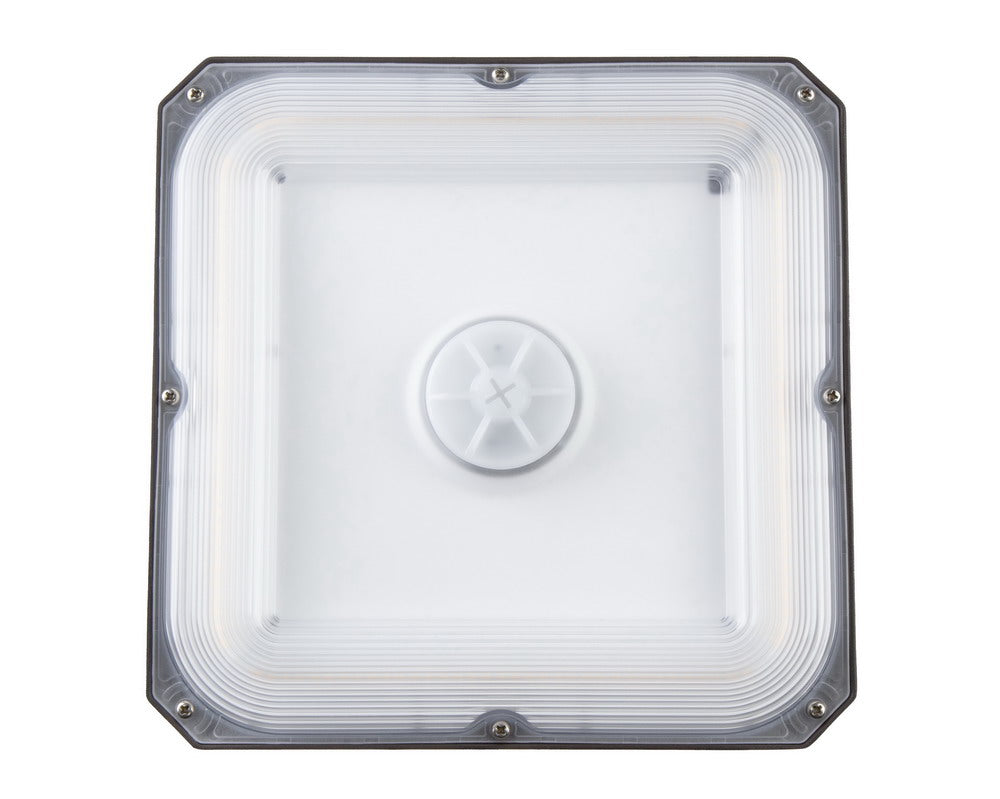

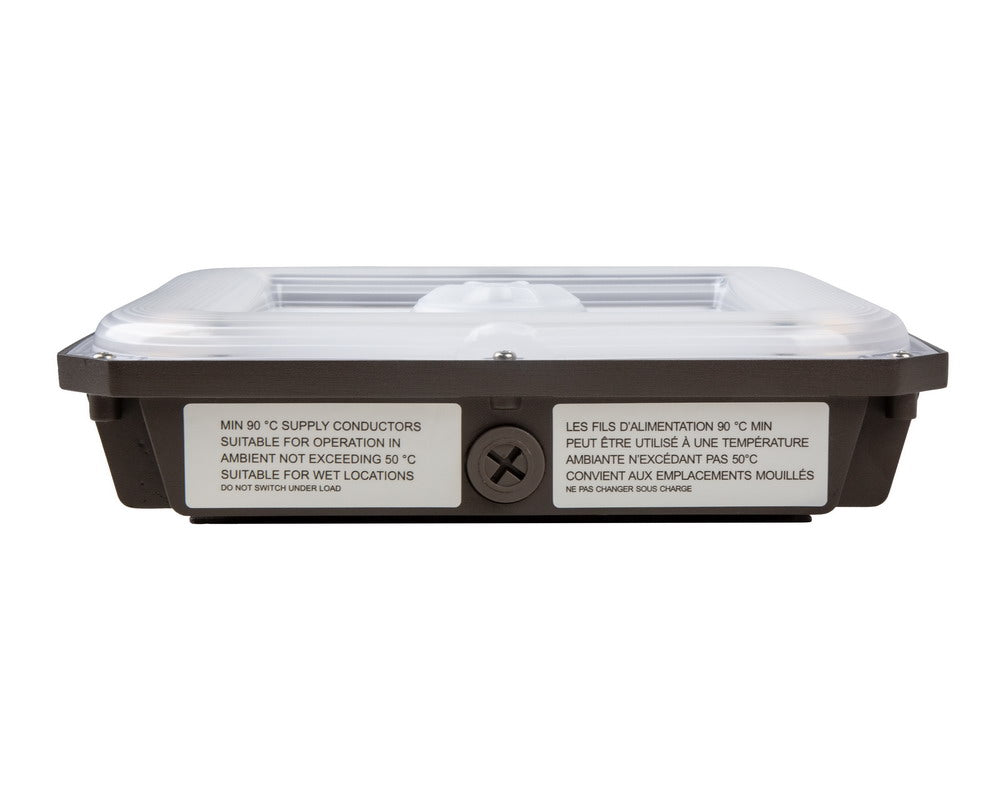

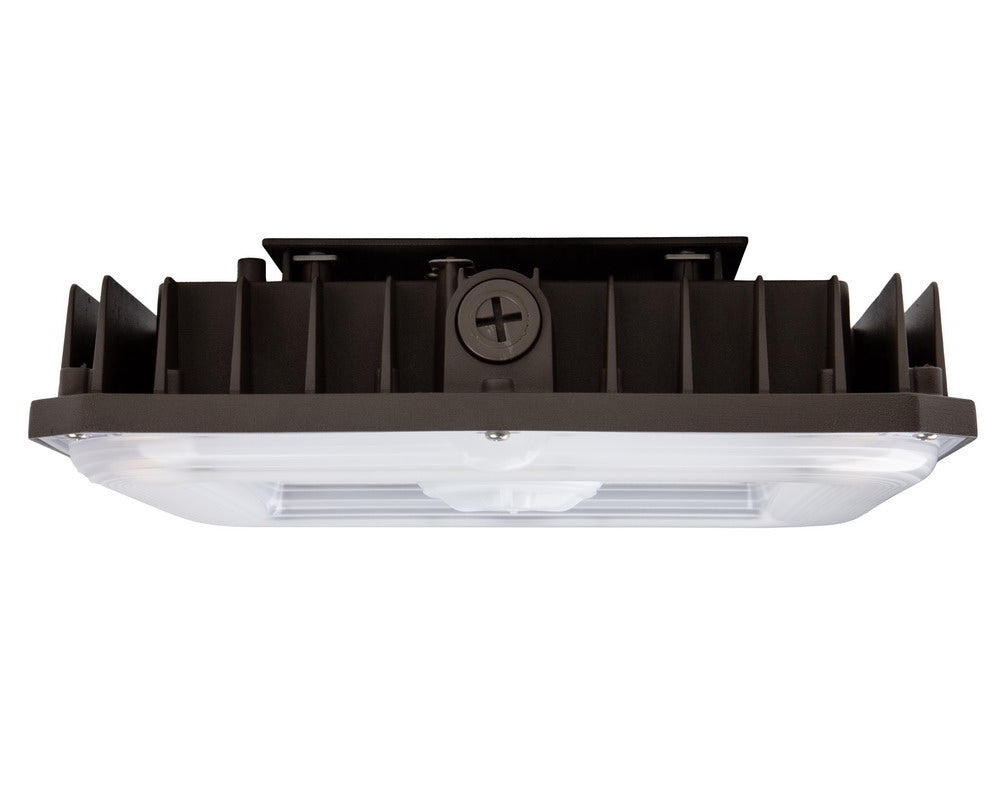

The fixture is built with durable die-cast aluminum housing and features a polycarbonate lens for enhanced protection against outdoor elements.
What is the lifespan of the NCLTG CPS Series Large LED Canopy Light?
This canopy light has an impressive lifespan of over 50,000 hours (L70 rating), ensuring long-lasting performance and minimal maintenance.
What certifications does the NCLTG CPS Series Large LED Canopy Light have?
The NCLTG CPS Series Large LED Canopy Light is UL listed, DLC Premium listed, and IP65 rated, meeting high standards for safety, efficiency, and performance in outdoor environments.
Can the NCLTG CPS Series Large LED Canopy Light be used in parking garages?
Yes, this fixture is perfect for parking garages, providing bright, customizable illumination that enhances safety and visibility in large, open spaces.
How easy is it to install the NCLTG CPS Series Large LED Canopy Light?
The NCLTG CPS Series Large LED Canopy Light is designed for easy installation in a variety of outdoor and covered spaces, making it a great choice for both retrofit and new installations.
What warranty comes with the NCLTG CPS Series Large LED Canopy Light?
The NCLTG CPS Series Large LED Canopy Light comes with a 5-year warranty, ensuring reliable performance and peace of mind over time.
Technical Downloads
x| Download Product Specification Sheet: | CPS Series Large LED Canopy Light – Spec Sheet (PDF) |
| View Photometric Data and Light Distribution: | CPS Series Large LED Canopy Light – IES File (Photometric Data) |
| Download Installation Instructions: | CPS Series LED Canopy Light – Installation Guide (PDF) |
