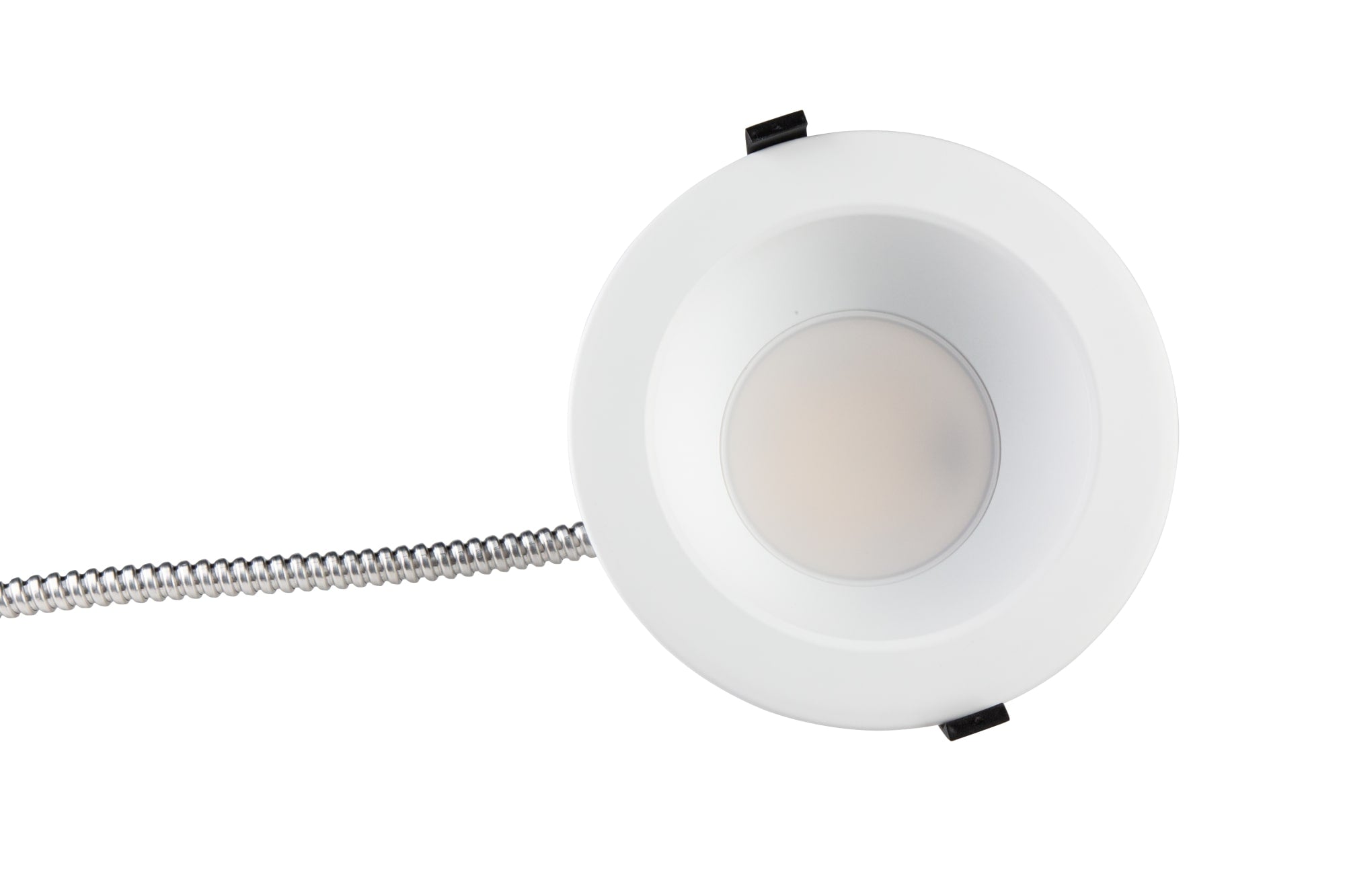

The NCLTG CDL Series 4-Inch LED Commercial Downlight provides an energy-efficient, customizable lighting solution designed for a variety of commercial spaces. With wattage options ranging from 6W to 16W and color temperatures from 2700K to 5000K, this downlight offers flexibility in brightness and ambiance. Constructed with durable materials and rated for wet locations, it ensures long-lasting performance and minimal maintenance. Ideal for offices, retail spaces, and hospitality venues, this downlight helps reduce energy costs while providing high-quality, reliable illumination.
Couldn't load pickup availability
Interested in Pricing or Distribution Opportunities?
If you are an electrical distributor, lighting supply house, or trade professional interested in pricing, volume quotes, or adding this product to your line card, please contact us through our Partner Program.
Key Features & Benefits
- Energy efficient lighting providing up to 100 lm/W efficacy, helping businesses reduce electricity bills while delivering bright, consistent illumination
- Flexible wattage options ranging from 6W to 16W, allowing for customized lighting to meet diverse commercial lighting needs
- Customizable color temperature with options from 2700K to 5000K, creating the ideal ambiance for any commercial environment
- Durable design with die-cast aluminum housing and polycarbonate lens, suitable for high-traffic areas and rated for wet locations (IP54)
- Low maintenance with a long lifespan (L70 at 50,000 hours), reducing replacement and upkeep costs while ensuring reliable performance
- Power Select and CCT Select technologies to adjust both brightness and color temperature for maximum versatility in different settings
- Cost-effective lighting solution ideal for businesses seeking energy efficiency and long-lasting performance with substantial savings over time
- Perfect for various commercial spaces, including offices, retail stores, hospitality venues, and common areas, ensuring optimal lighting in each
- Safe and reliable, cETLus Listed, Energy Star Rated, and suitable for wet locations, offering compliance with safety and environmental standards
- Easy to install, versatile design ideal for both new constructions and retrofits in commercial environments
Description
xThe NCLTG CDL Series 4-Inch LED Commercial Downlight offers an energy-efficient and flexible lighting solution, designed specifically for commercial environments. With adjustable wattage options (ranging from 6W to 16W) and selectable color temperatures (from 2700K to 5000K), this downlight allows you to customize your space's lighting to meet both functional and aesthetic needs. Ideal for spaces like offices, retail stores, hospitality venues, and more, the CDL Series is engineered to provide optimal illumination while lowering energy costs.
Key Benefits of the NCLTG CDL Series 4-Inch LED Commercial Downlight
The NCLTG CDL Series 4-Inch LED Commercial Downlight combines performance and versatility, offering a range of features that make it ideal for a variety of applications. With wattage options that vary from 6W to 16W and color temperatures spanning from 2700K to 5000K, this downlight adapts to your specific lighting requirements. Whether upgrading existing fixtures or installing new ones, the CDL Series ensures both energy efficiency and superior lighting quality.
Durability Meets Functionality
Constructed with a die-cast aluminum housing and a polycarbonate lens, the NCLTG CDL Series 4-Inch LED Commercial Downlight is designed to withstand the rigors of high-traffic commercial spaces. Rated for wet locations with an IP54 rating, this downlight is perfect for areas exposed to moisture, providing both durability and reliability. Its robust design ensures minimal maintenance and long-term performance, keeping your space well-lit for years.
Customizable Lighting for Every Environment
Featuring Power Select and CCT Select technologies, the NCLTG CDL Series 4-Inch LED Downlight offers exceptional flexibility in both brightness and color temperature. This flexibility allows you to fine-tune your lighting to create the ideal ambiance, whether you’re enhancing customer experiences in a retail store or providing bright, focused light for an office space. With options for warm or cool lighting, this downlight meets a wide variety of commercial lighting needs.
Energy-Efficient, Cost-Effective Lighting
Utilizing cutting-edge LED technology, the NCLTG CDL Series 4-Inch LED Commercial Downlight maximizes light output while minimizing energy consumption. With an impressive lumen efficacy of up to 100 lm/W, this downlight helps businesses reduce their electricity bills without sacrificing brightness. Furthermore, with an estimated L70 rating at 50,000 hours, this energy-efficient solution offers significant long-term savings, making it a cost-effective choice for businesses looking to improve their lighting.
Versatile Applications for Various Commercial Spaces
The NCLTG CDL Series 4-Inch LED Commercial Downlight is perfect for a wide array of indoor commercial applications, including:
- Offices: Provide clear, uniform lighting to support productivity and comfort.
- Retail Spaces: Enhance the shopping experience with bright, inviting lighting.
- Hospitality: Create a welcoming atmosphere for guests with customizable lighting.
- Common Areas: Deliver a sleek, modern look with functional lighting for hallways and lobbies.
Why Choose the NCLTG CDL Series 4-Inch LED Downlight?
Offering a combination of energy-saving features, rugged durability, and customizable lighting options, the NCLTG CDL Series 4-Inch LED Commercial Downlight is the ideal choice for any commercial space. Whether you're upgrading or installing new lighting, this downlight is a reliable, cost-effective solution that provides high-quality illumination tailored to your needs.
| Brand: | NCLTG |
| Manufacturer Part Number (MPN): | NC-CDL4-16W-5CW |
| Product Type: | Downlight |
| Light Source: | Integrated LED |
| Wattage/Lumen Options: | 6W - 600 Lumens, 8W - 830 Lumens, 10W - 1045 Lumens, 12W - 1207 Lumens, 16W - 1515 Lumens |
| Input Voltage: | 120-277V |
| Efficacy: | 100 lm/W |
| Current: | 0.06A to 0.15A |
| Dimming: | 0-10V |
| Color Temperature: | 2700K, 3000K, 3500K, 4000K, 5000K |
| CRI: | >80 |
| Light Distribution Pattern: | 80° |
| Power Factor: | >0.9 |
| THD: | <20% |
| Certifications: | cETLus Listed, Energy Star Rated |
| Safety Rating: | Suitable for Wet Locations |
| Special Features: | Power Select Technology, CCT Select Technology |
| Lens Material: | Polycarbonate |
| Housing Material: | Aluminum |
| Finish: | White |
| Weight: | 1.85 Lbs. |
| Dimensions: | 6"D x 4.1"H |
| Ambient Operating Temperature: | -20°C/-4°F to 40°C/104°F |
| Lifespan: | L70 @ >50,000 hrs |
| Warranty: | 5 Years |
Specifications
x| Brand: | NCLTG |
| Manufacturer Part Number (MPN): | NC-CDL4-16W-5CW |
| Product Type: | Downlight |
| Light Source: | Integrated LED |
| Wattage/Lumen Options: | 6W - 600 Lumens, 8W - 830 Lumens, 10W - 1045 Lumens, 12W - 1207 Lumens, 16W - 1515 Lumens |
| Input Voltage: | 120-277V |
| Efficacy: | 100 lm/W |
| Current: | 0.06A to 0.15A |
| Dimming: | 0-10V |
| Color Temperature: | 2700K, 3000K, 3500K, 4000K, 5000K |
| CRI: | >80 |
| Light Distribution Pattern: | 80° |
| Power Factor: | >0.9 |
| THD: | <20% |
| Certifications: | cETLus Listed, Energy Star Rated |
| Safety Rating: | Suitable for Wet Locations |
| Special Features: | Power Select Technology, CCT Select Technology |
| Lens Material: | Polycarbonate |
| Housing Material: | Aluminum |
| Finish: | White |
| Weight: | 1.85 Lbs. |
| Dimensions: | 6"D x 4.1"H |
| Ambient Operating Temperature: | -20°C/-4°F to 40°C/104°F |
| Lifespan: | L70 @ >50,000 hrs |
| Warranty: | 5 Years |
FAQs
xWhat is the NCLTG CDL Series 4-Inch LED Commercial Downlight?
The NCLTG CDL Series 4-Inch LED Commercial Downlight is an energy-efficient lighting solution designed for commercial spaces. With adjustable wattages (from 6W to 16W) and selectable color temperatures (from 2700K to 5000K), it provides customizable lighting to meet various functional and aesthetic needs in offices, retail stores, hospitality venues, and more.
What makes the NCLTG CDL Series 4-Inch LED Commercial Downlight suitable for wet locations?
This downlight is rated for wet locations with an IP54 rating, making it an ideal choice for areas exposed to moisture. The rugged construction, including a die-cast aluminum housing and polycarbonate lens, ensures durability and reliable performance in high-traffic and moisture-prone commercial environments.
How does the NCLTG CDL Series 4-Inch LED Downlight save energy?
Utilizing advanced LED technology, the CDL Series 4-Inch LED Downlight maximizes light output while minimizing energy consumption. It achieves a high efficacy of up to 100 lm/W, helping businesses reduce electricity costs while maintaining consistent brightness over a long lifespan.
Can I customize the brightness and color temperature of the NCLTG CDL Series 4-Inch LED Downlight?
Yes, the CDL Series 4-Inch LED Downlight features Power Select and CCT Select technologies, allowing you to adjust both brightness and color temperature. You can choose from a range of options (from warm 2700K to cool 5000K) to create the perfect lighting ambiance for your space.
What are the key benefits of the NCLTG CDL Series 4-Inch LED Commercial Downlight?
The NCLTG CDL Series 4-Inch LED Downlight provides energy-efficient lighting, customizable brightness and color temperatures, and robust durability. It is designed to reduce maintenance costs, offer long-term savings, and enhance the aesthetics and functionality of various commercial spaces.
What types of commercial spaces are best suited for the NCLTG CDL Series 4-Inch LED Downlight?
The NCLTG CDL Series 4-Inch LED Downlight is ideal for offices, retail environments, hospitality settings, and common areas. Its versatility makes it perfect for enhancing productivity in offices, improving customer experience in retail spaces, and creating a welcoming atmosphere in hospitality venues.
Technical Downloads
x| View Photometric Data and Light Distribution: | CDL Series 8-Inch LED Commercial Downlight – IES File (Photometric Data) |
| Download Installation Instructions: | CDL Series LED Commercial Downlight – Installation Guide (PDF) |
